Equipment / Key Hose
TRU-ID
MUNICIPAL
About TRU-ID
Introducing TRU-ID, the first and only true internal diameter hose specifically designed for combat fire fighting. FOR COMMAND AND CONTROL Ideal for Low Pressure Nozzles Unmatchable Kink Resistance Featuring True Robust Construction for Internal Diameters Superior Handling Less Water Weight Reduces Fatigue * THIS IS KEY A Combat Classic Reborn From. Classic performance in an innovative design and rugged construction guaranteed to withstand the rigors of the fire ground.
Technical details of TRU-ID
Scope
A Combat Classic Reborn From coast-to-coast, fire departments put out the call for an attack line that will deliver tried and true performance. A hose that will deliver targeted application rates with reduced kink, minimal nozzle whip and specific friction loss.
Jacket Construction
FOR COMMAND AND CONTROL Ideal for Low Pressure Nozzles Unmatchable Kink Resistance Featuring True Robust Construction for Internal Diameters Superior Handling Less Water Weight Reduces Fatigue * THIS IS KEY A Combat Classic Reborn From coast-to-coast, fire departments put out.
Abrasion
The inside and outside jackets shall be manufactured with a minimum pick count of 9.5 picks per inch for increased strength and abrasion resistance.
Lining
ATTACK HOSE/HANDLINE FOR COMMAND AND CONTROL Lining The rubber lining shall be a single-ply extruded tube of synthetic EPDM compounded to resist ozone.
Couplings
Connection options are available to match apparatus and deployment preferences.
Performance and Standards
Scope The minimum burst test pressure when tested in accordance to NFPA Hose manufactured to this specification shall be of superior quality and workmanship. 1961 on all TRU-ID hose shall be 1200 psi / 82 bar. Meets or exceeds NFPA 1961. UL listing applies by diameter and pressure rating.
Diameter specifications of TRU-ID
| Diameter | Part No. | Service Test | Proof Test | Burst Test | Bowl Size | Weight Uncoupled |
|---|---|---|---|---|---|---|
| 1.75" | DP17-TRU | 400 psi | 800 psi | 1200 psi | 2.125" | 0.44 lbs/ft |
| 2.25" | DP22-TRU | 400 psi | 800 psi | 1200 psi | 2.6875" | 0.56 lbs/ft |
| 2.50" | DP25-TRU | 400 psi | 800 psi | 1200 psi | 2.8125" | 0.56 lbs/ft |
Comparison with other MUNICIPAL hoses
Big-10
1" | 400 psi service
Combat-Ready
13/4" | 500 psi service
Combat-Sniper
1.78" | 500 psi service
Dura-Flow
1" | 300 psi service
Eco-10
11/2" | 400 psi service
Hy-Flow
4" | 300 psi service
Key-Lite
1" | 400 psi service
Magnum
11/2" | 400 psi service
Pro-Flow
3" | 300 psi service
Pro-Flow-HP
300 psi service
TRU-ID
1.75" | 400 psi service

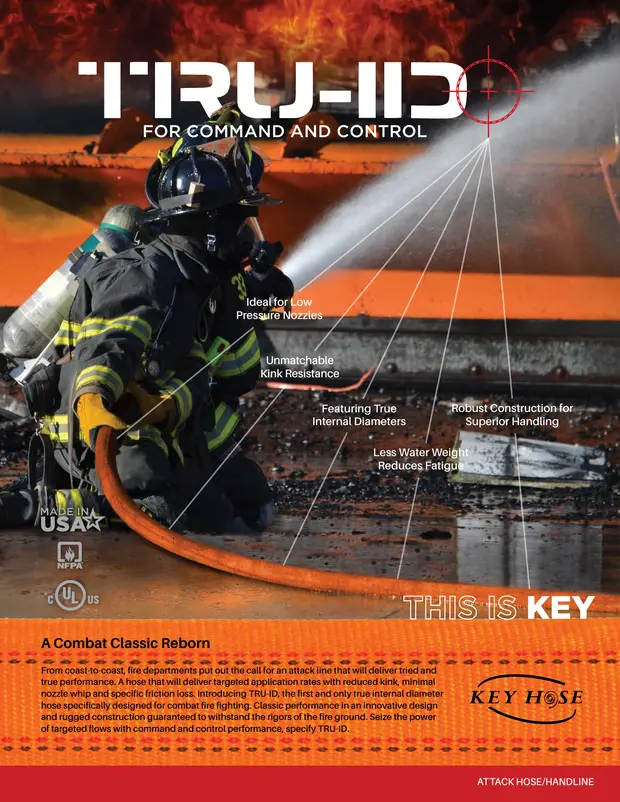

Key Hose Literature
TRU-ID-Spec-Sheet.pdf
