Firematic supports the Elkhart Brass line across front-line nozzle packages, monitor platforms, master stream nozzles, valves, appliances, foam accessories, standpipe hardware, and industrial systems. This page organizes the product families into a cleaner buying view with direct PDF access right under each product block.
Elkhart Brass covers handline nozzles, monitors, master streams, valves, appliances, flow-testing tools, foam accessories, standpipe hardware, and industrial equipment. This Firematic page keeps the full line organized by product family and puts the available literature directly under each product block.
Elkhart Brass
Flush Inlet FAST LANE by Elkhart Brass provides quick access to essential firefighting equipment, with the goal that a selection of our key products will be shipped within a week. Available to all authorized dealers, FAST LANE ensures you receive the best firefighting equipment quickly and reliably. To access this expedited service, include the code FASTLANE
1.5" NHT Inlet x 1.5" NHT Outlet Black Bale Insert No Custom Etching or colors available on this Fast Lane Product
2.5" NHT Inlet x 1.5" NHT Outlet Black Bale Insert No Custom Etching available or colors on this Fast Lane Product

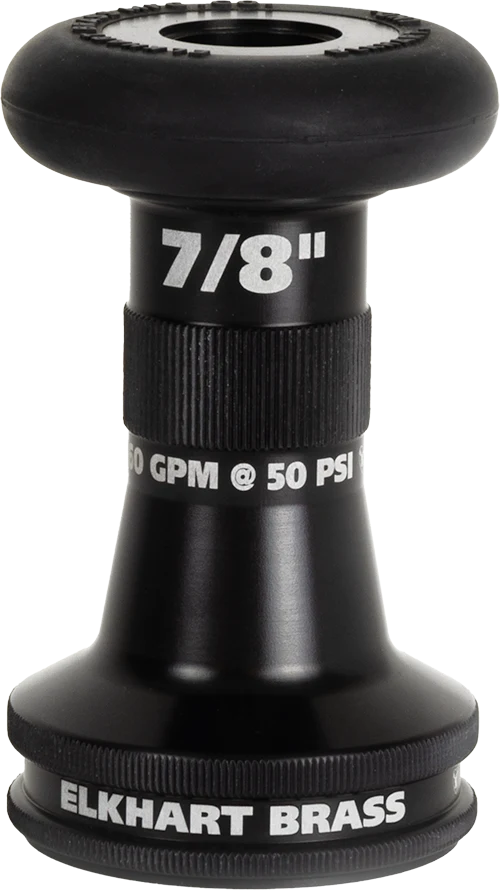

7/8" Discharge 1.5" NHT Inlet Standard color black bumper

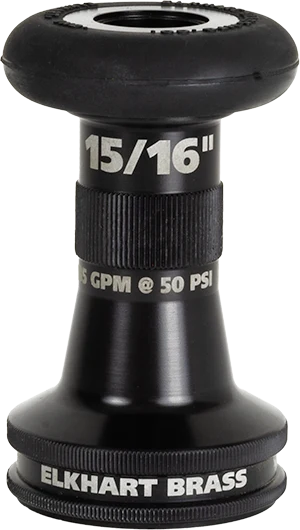

15/16" Discharge 1.5" NHT Inlet Standard color black bumper
1-1/8" Discharge 1.5" NHT Inlet Standard color black bumper
1-3/16" Discharge 1.5" NHT Inlet Standard color black bumper

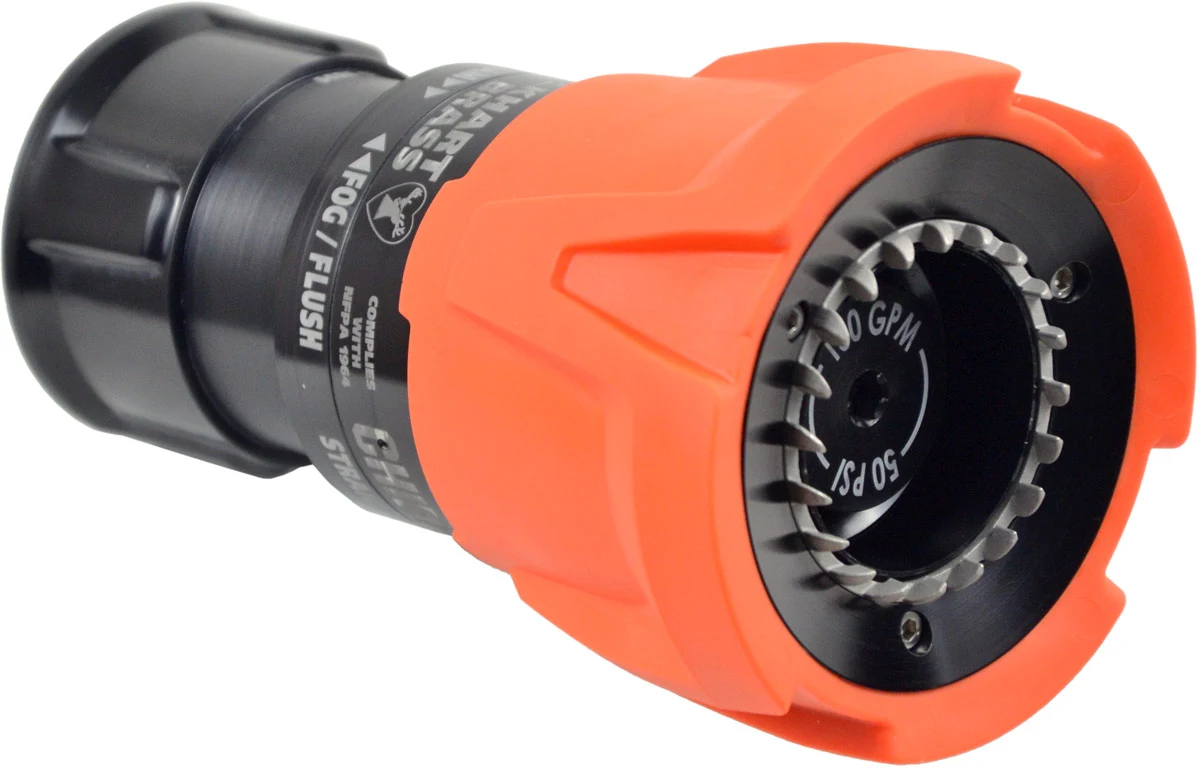

160 gpm @ 50psi 1.5" NHT Inlet Metal spinning teeth Standard color orange bumper

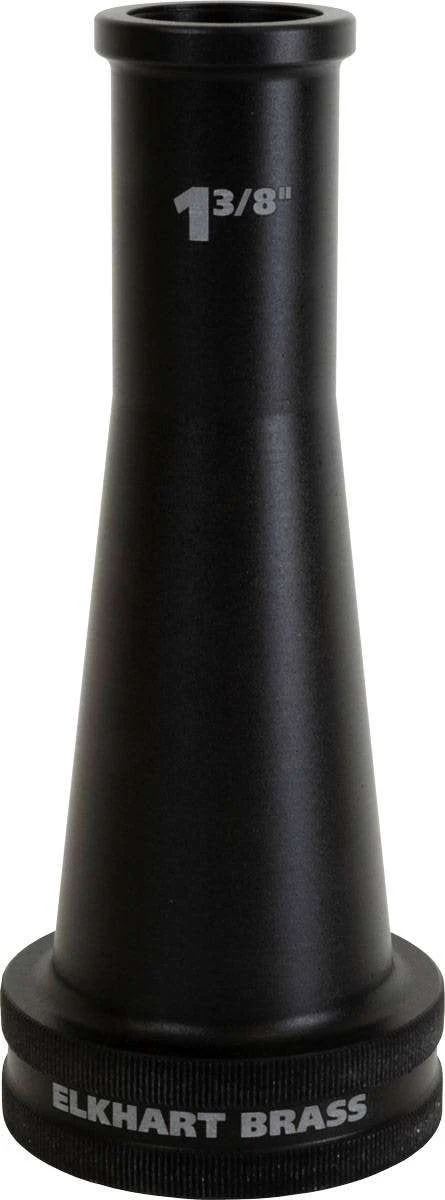

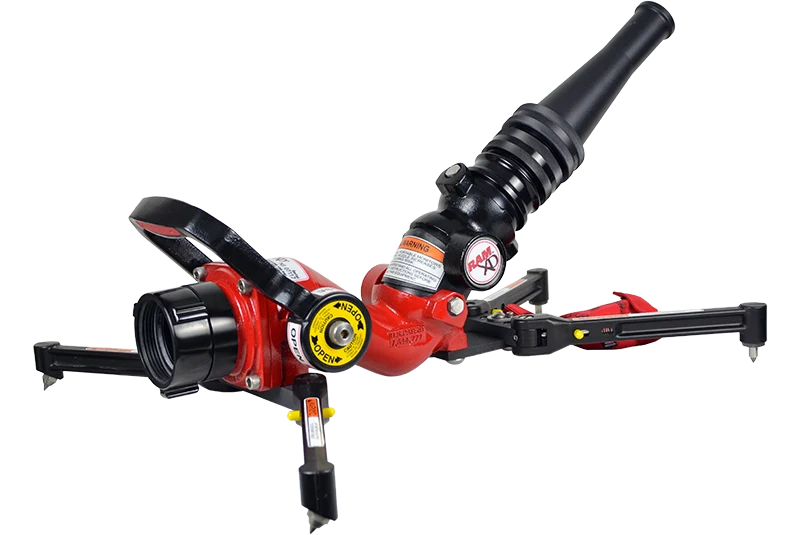

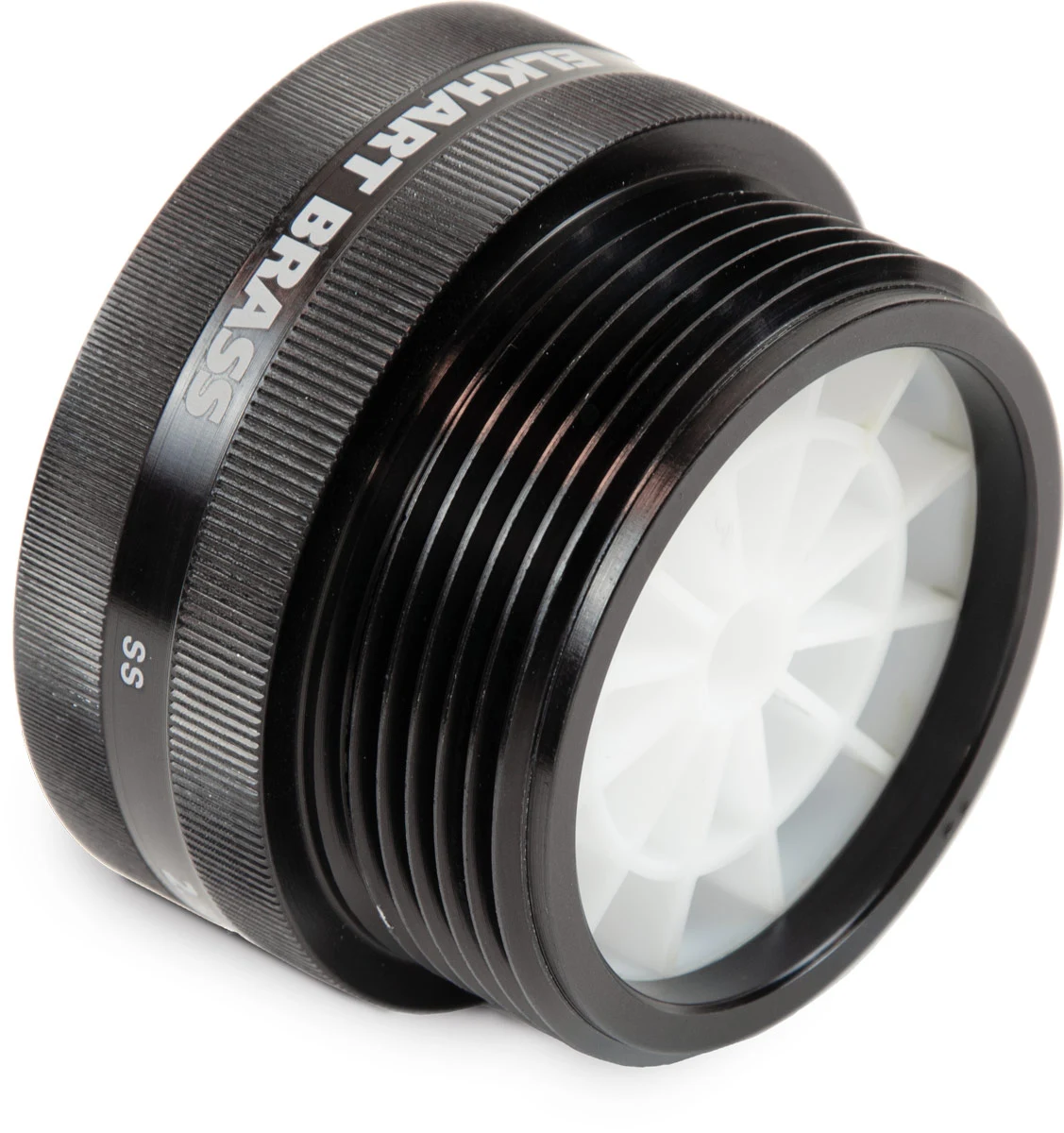

Lightweight Portable Rapid Attack Monitor, rated for 500 gpm 181-A Deluge Tip, 1-3/8" 282A Mini Stream Shaper Aluminum Construction 2.5" NHT Inlet
Lightweight Portable Rapid Attack Monitor, rated for 500 gpm ST-197A Triple Stacked Tip, 1", 1-1/4", 1-1/2" 282A Mini Stream Shaper Aluminum Construction 2.5" NHT Inlet

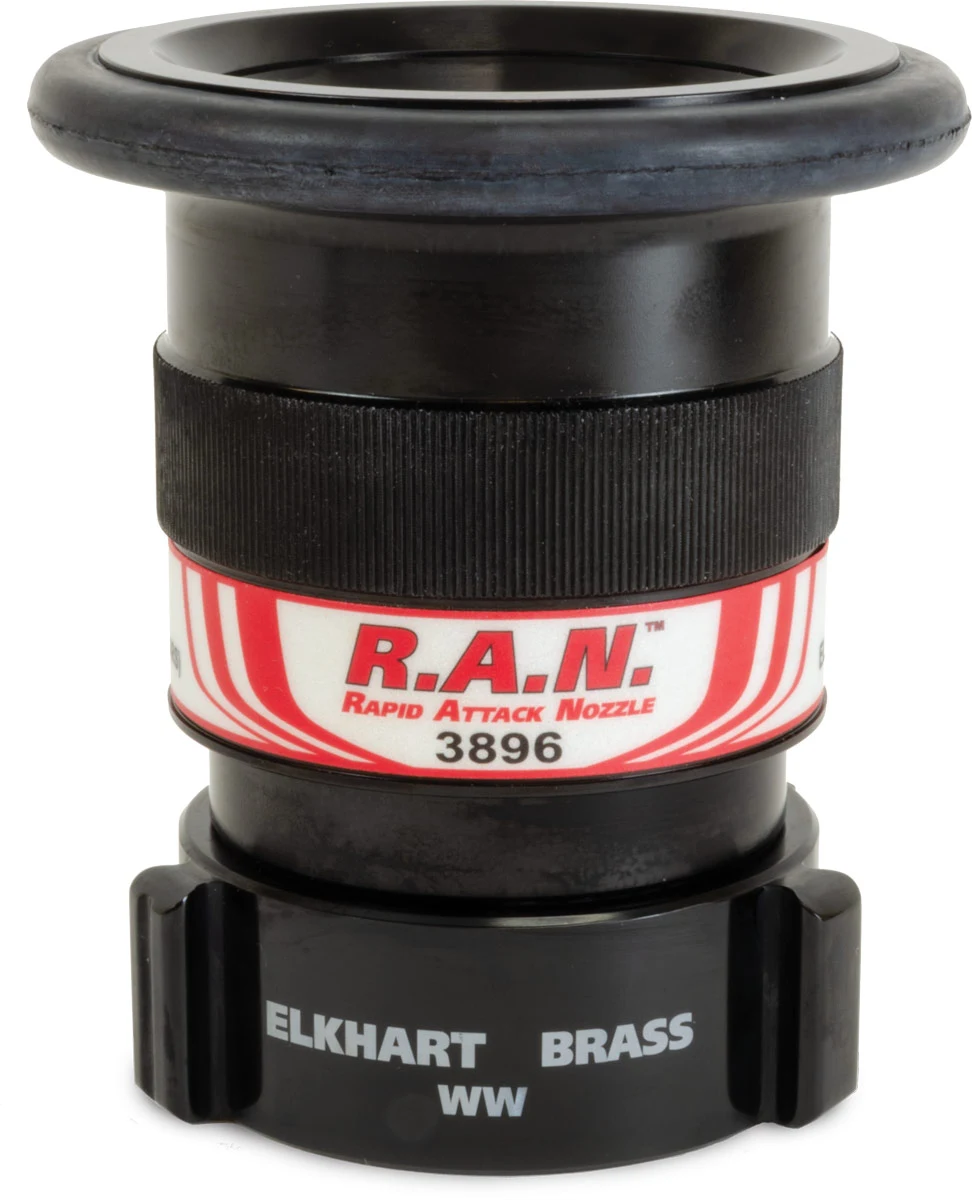

Lightweight Portable Rapid Attack Monitor, rated for 500 gpm 3896 Rapid Attack Nozzle, 500 gpm @ 75 psi 282A Mini Stream Shaper Aluminum Construction 2.5" NHT Inlet

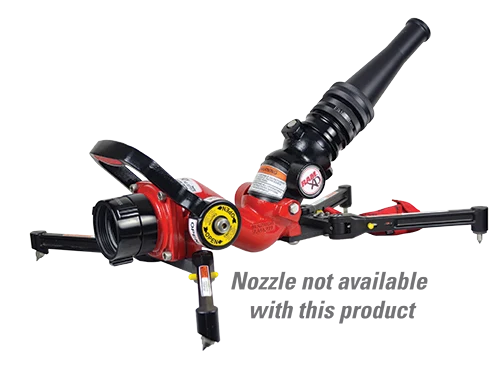

Lightweight Portable Rapid Attack Monitor, rated for 500 gpm Aluminum Construction 2.5" NHT Inlet x 2.5" NHT Outlet
1-3/8" Discharge Size Aluminum Construction 2.5" NHT Inlet
Rated for 500 gpm @ 75 psi Aluminum Construction 2.5" NHT Inlet
Compact design Aluminum Construction 2.5" NHT Inlet x 2.5" NHT Outlet

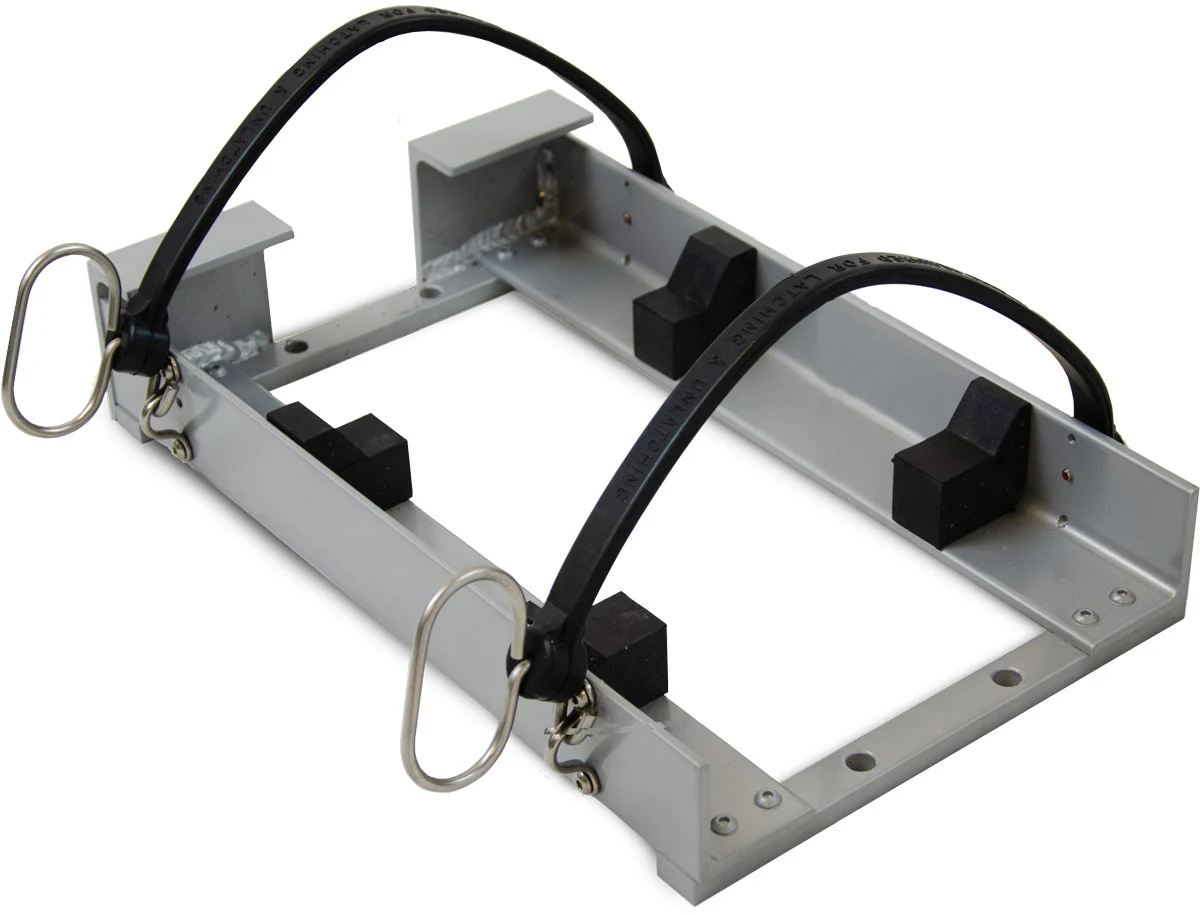

Mounting Bracket for RAM XD Aluminum Construction
Tiller Bar Control Selectable Flow Master Stream Nozzle (350-500-750-1000-1250) Rugged Brass Construction 4.0" Flange 2.5" NHT Outlet
Tiller Bar Control FM Approved Rugged Brass Construction 4.0" Flange 2.5" NHT Outlet
Selectable Flow Master Stream Nozzle (350-500-750-1000-1250) Rugged Brass Construction 2.5" NHT Inlet
Elkhart Brass

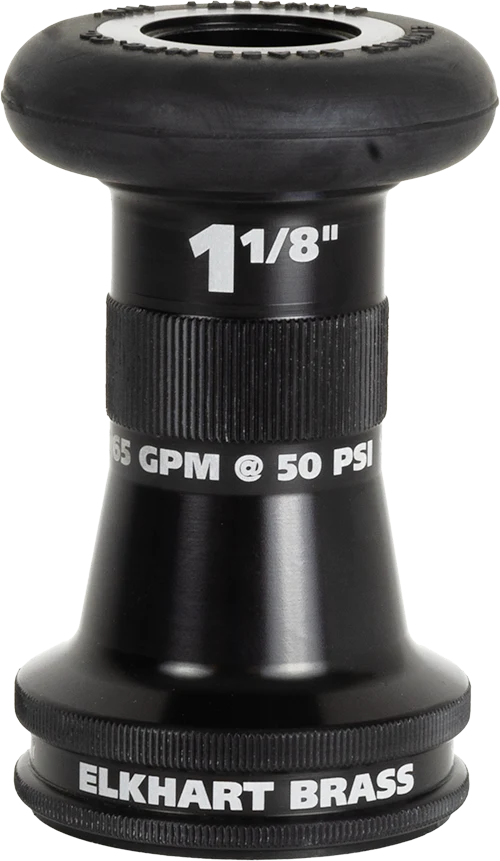

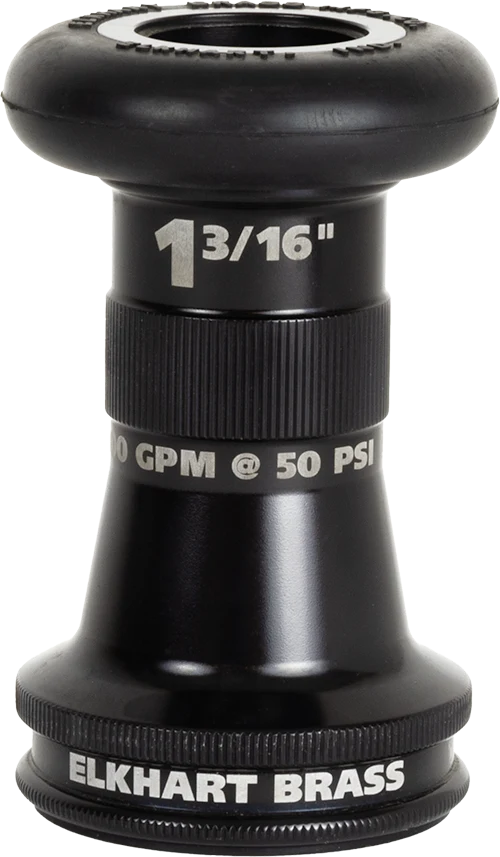

Elkhart Brass took the classic smooth bore tip to the next level. The XD�s smooth bore tips feature durable urethane bumpers and laser etching. You�ll also find extra knurling added for increased control and grip. Lightweight aluminum construction Laser etched flow rates Durable urethane molded bumper Customize the mod...

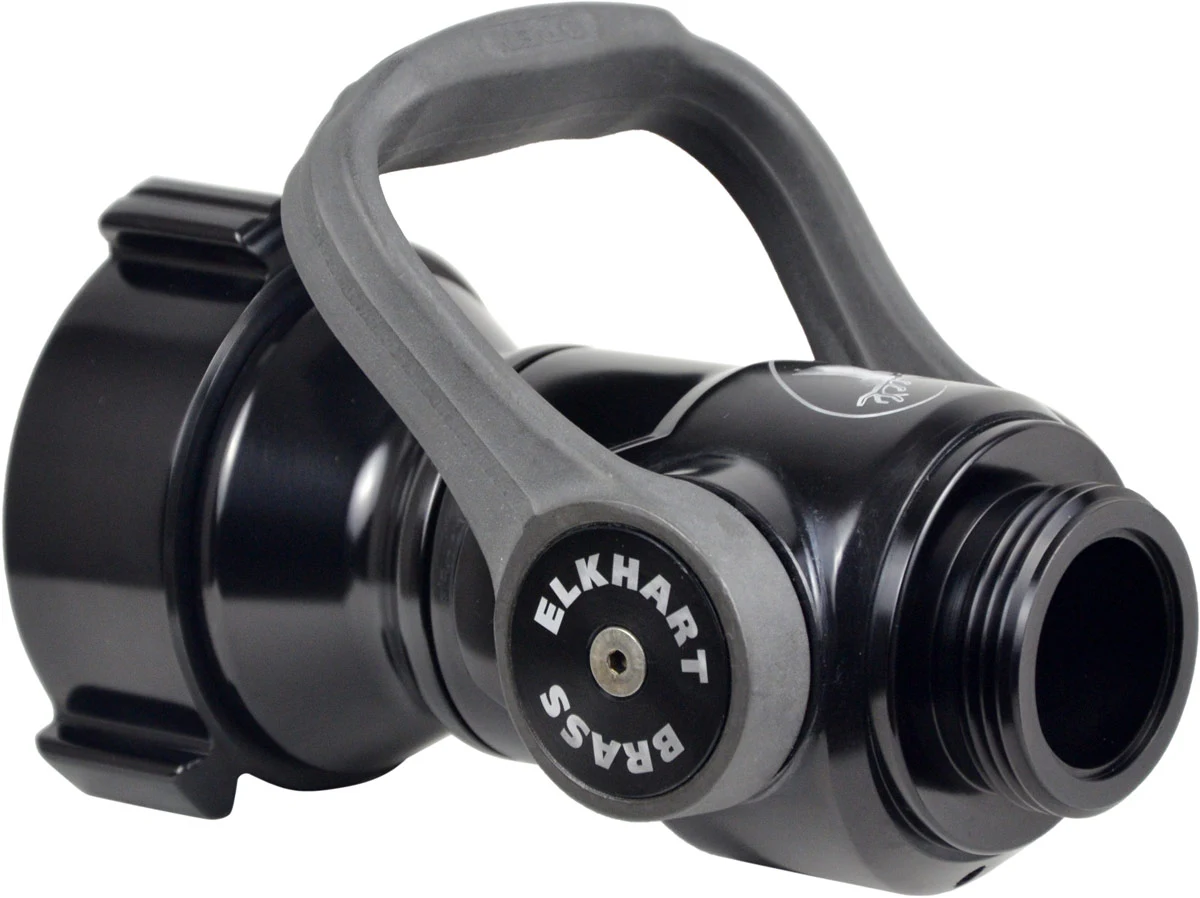

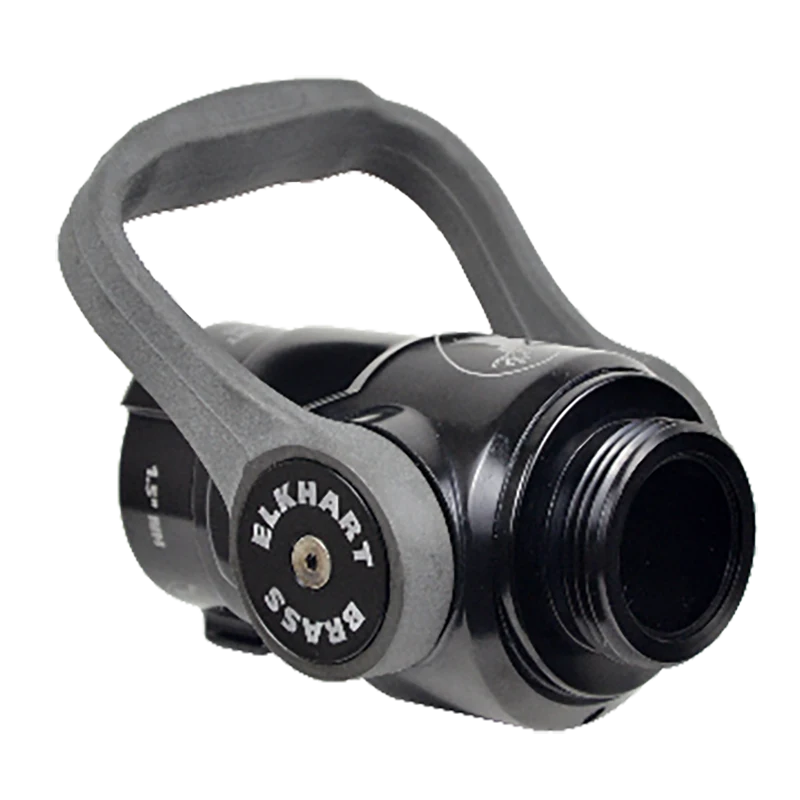

Ball Shutoffs and Playpipes Built for Xtreme Duty use with a forged metal bale handle, full round metal ball, and laser etched markings. Customize these shutoffs with your logo and twelve different handle insert colors. 1.0", 1.5", and 2.5" models for any application Integrated smooth bores available to build the ultim...

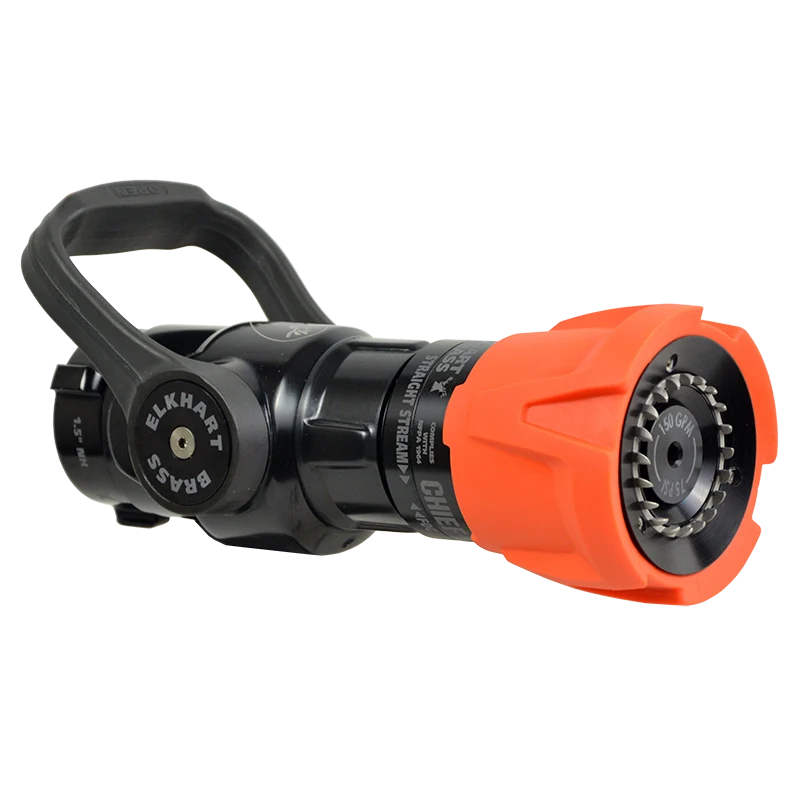

Fixed Flow Handline Nozzles The choice for fixed flow fog nozzles, the Chief XD® is an absolute workhorse designed for a lifetime of service. Available in a variety of flow rates and pressures down to 50 psi (3.5 BAR). Forged metal bale handle No stickers to peel off or scratch You choose:

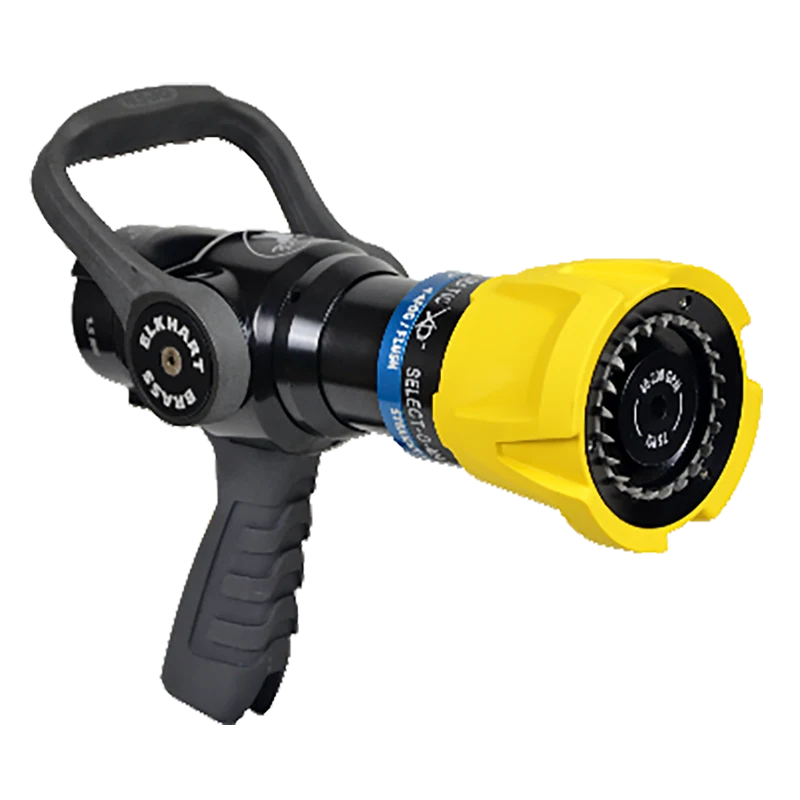

Automatic Flow Handline Nozzles The Select-O-Matic® XD� automatic handline nozzle adjusts to fluctuating water supply conditions to maintain effective pressure and a consistent fire stream in all flow ranges. It does so by generating back pressure by using a patented internal spring design that leaves the waterway unob...

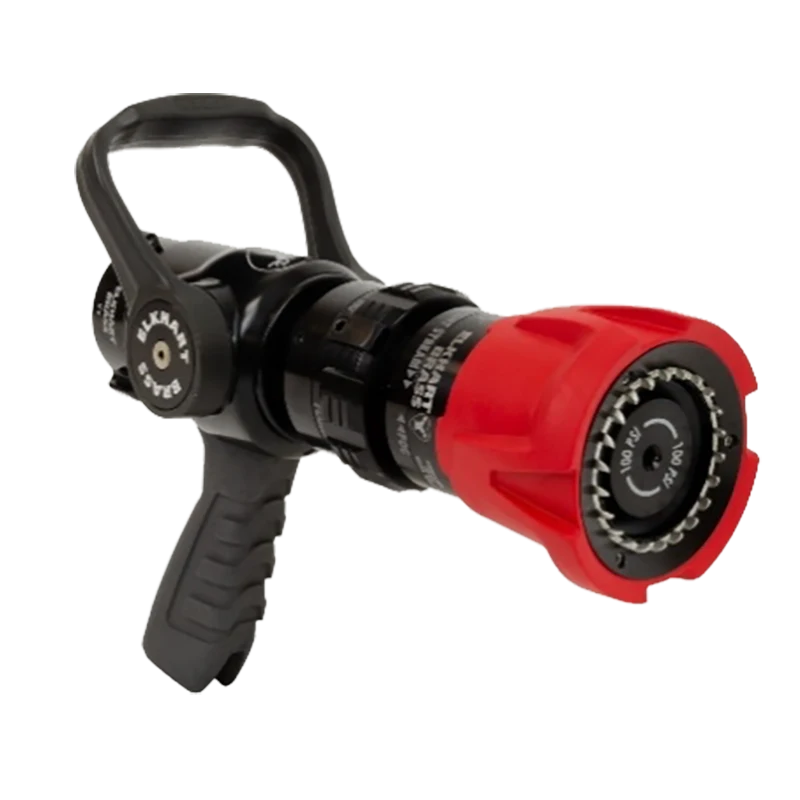

Selectable Flow Handline Nozzles The Phantom® XD� selectable flow nozzle series has your target flow covered! With different pressure and flow ranges available, there is one to meet your need. Built with positive interlocking, robust tactile selection grips, selecting the desired flow rate won�t be a problem even in th...

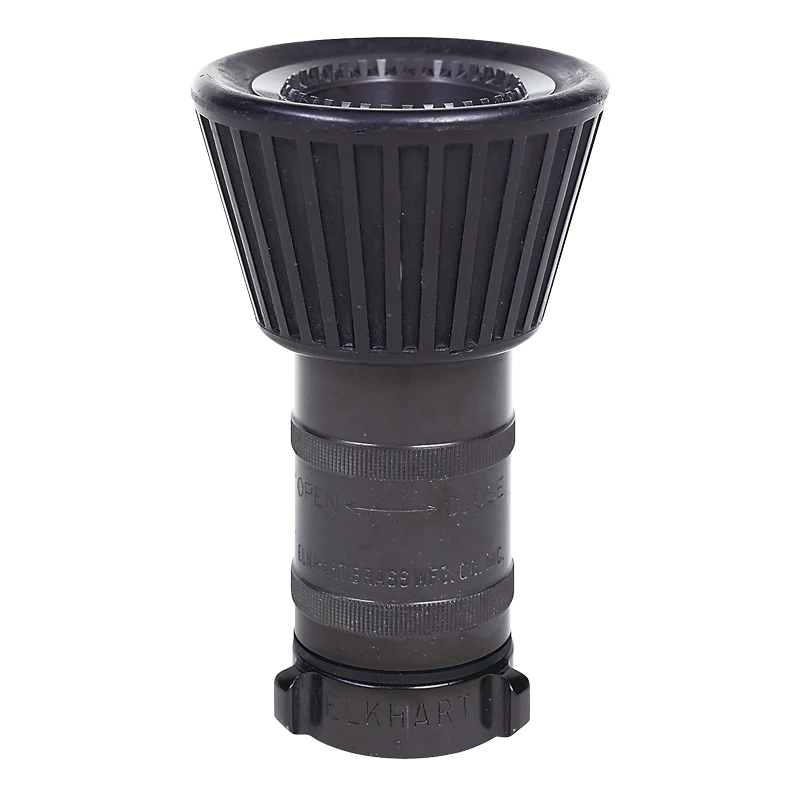

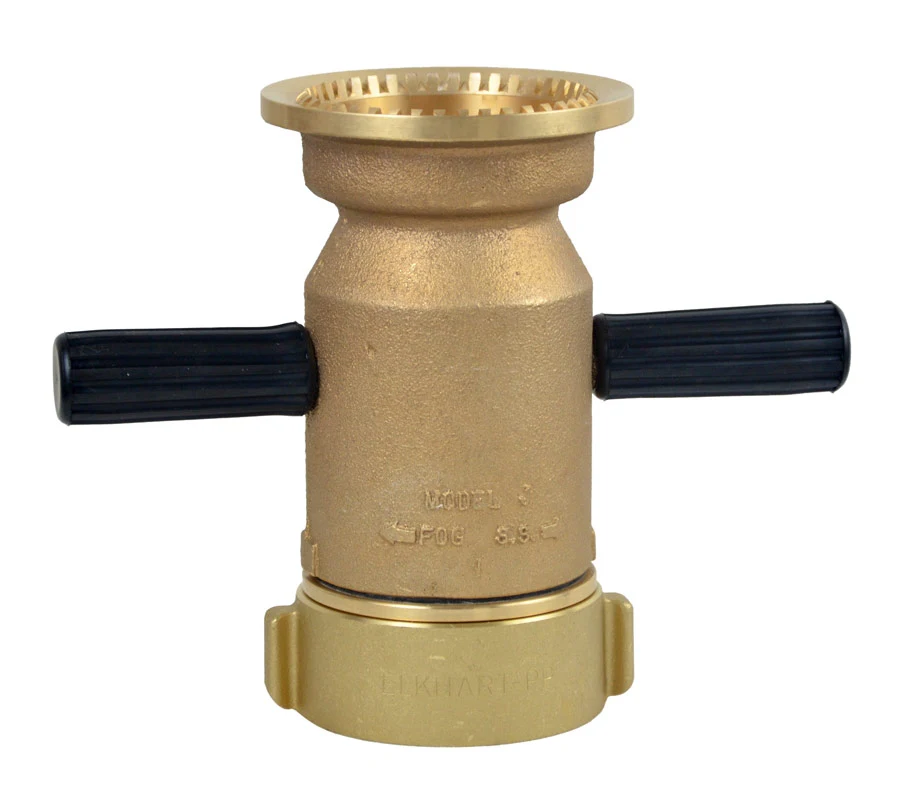

Flush Inlet Twist Shutoff Tips The Mystery® Nozzle incorporates a twist-type shutoff, opening in straight stream and producing a variable flow from straight stream to wide fog with low pressure options available. Paired with an XD� shutoff, the Mystery nozzle tip offers an extremely convenient method of advancing hose....

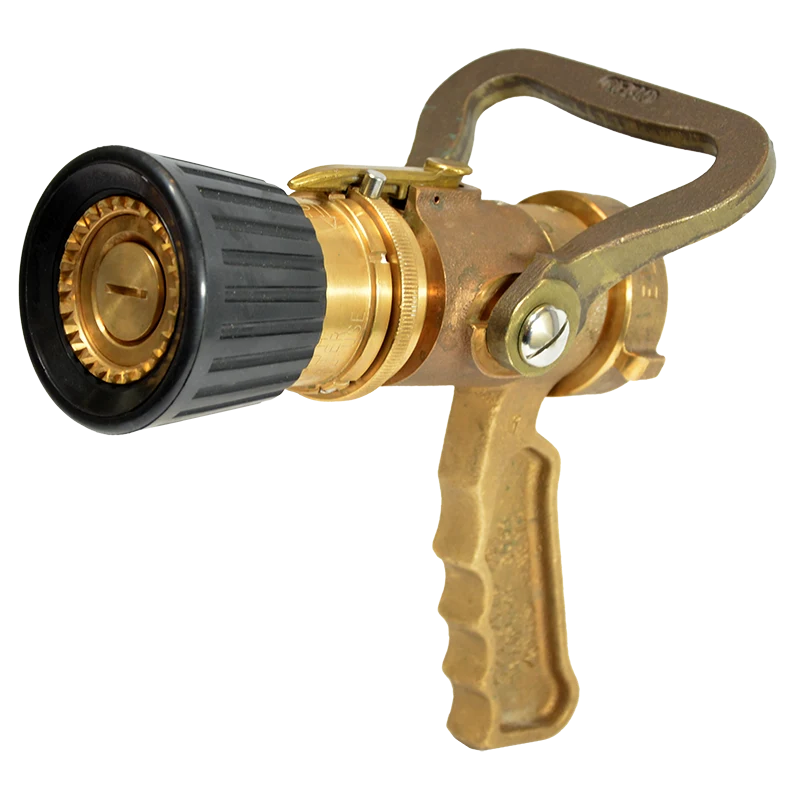

Elkhart Brass marine handline nozzles are designed for use in marine firefighting applications. These nozzles can stand up to aggressive marine environments, utilize military grade components, and are constructed of marine grade brass. They are suitable for use with AFFF foam for the shipping industry, refineries, offs...
Elkhart Brass

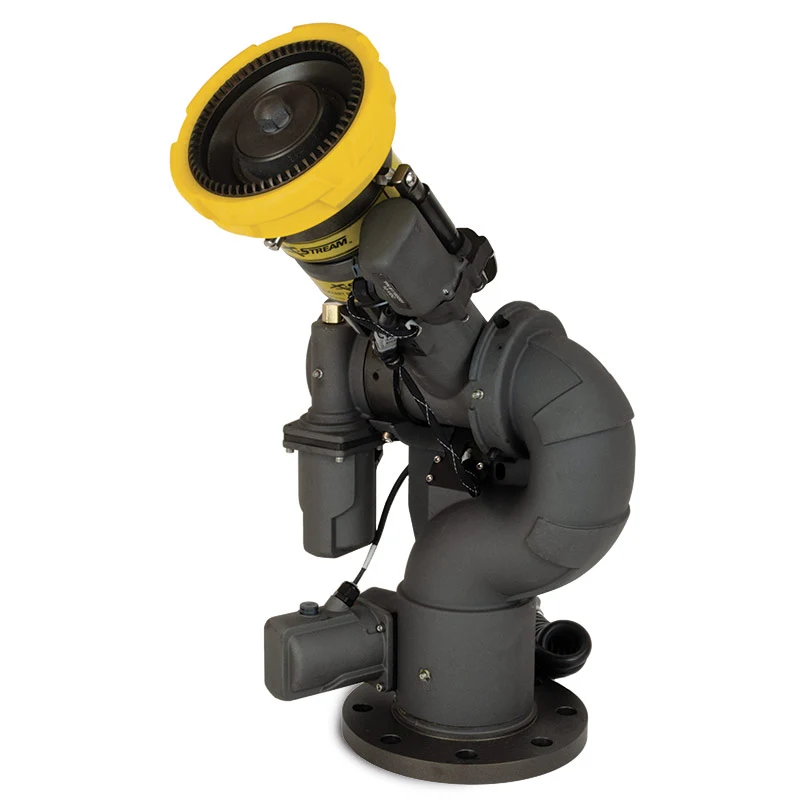

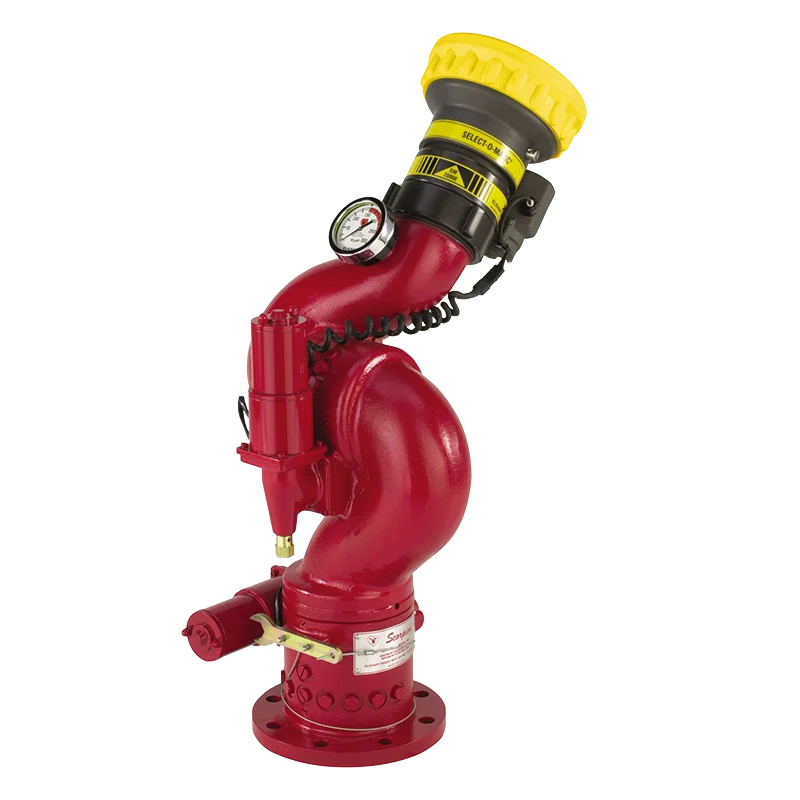

Flush Inlet Wi-Fi Connectivity The EXM2� system includes an integrated Wi-Fi server within the monitor control module. This provides secure access to the EXM2 browser page for simple, intuitive configuration of the monitor and controllers when required. Connecting to the monitor via Wi-Fi also allows you to set travel....
Flush Inlet
Flush Inlet

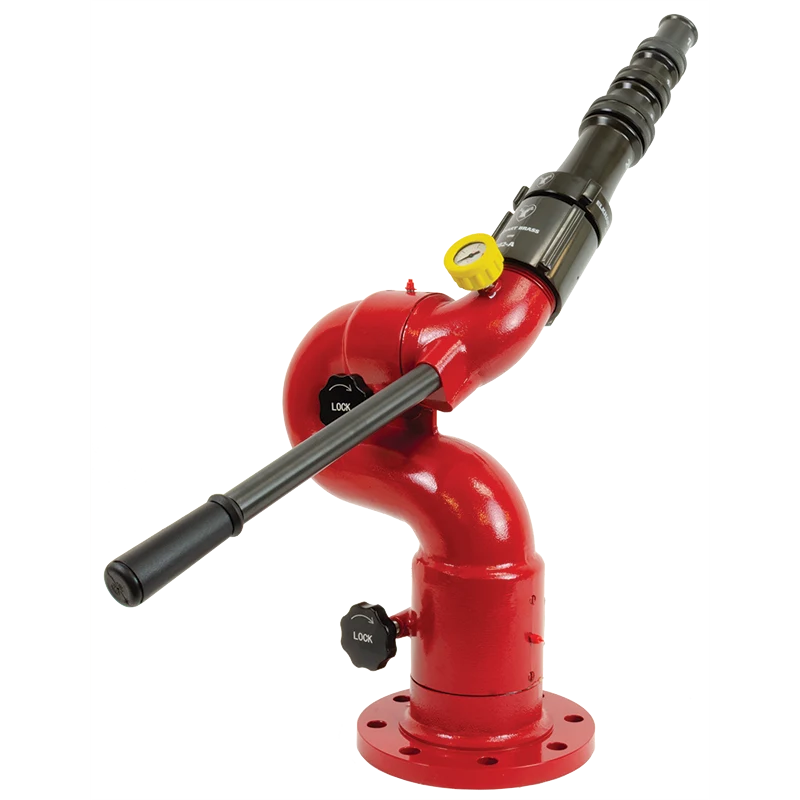

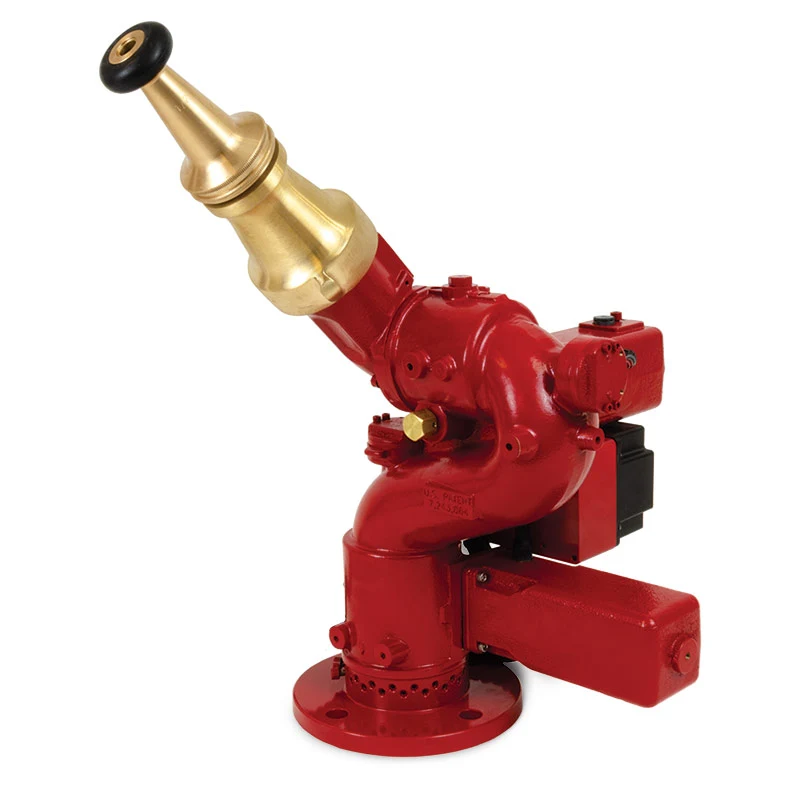

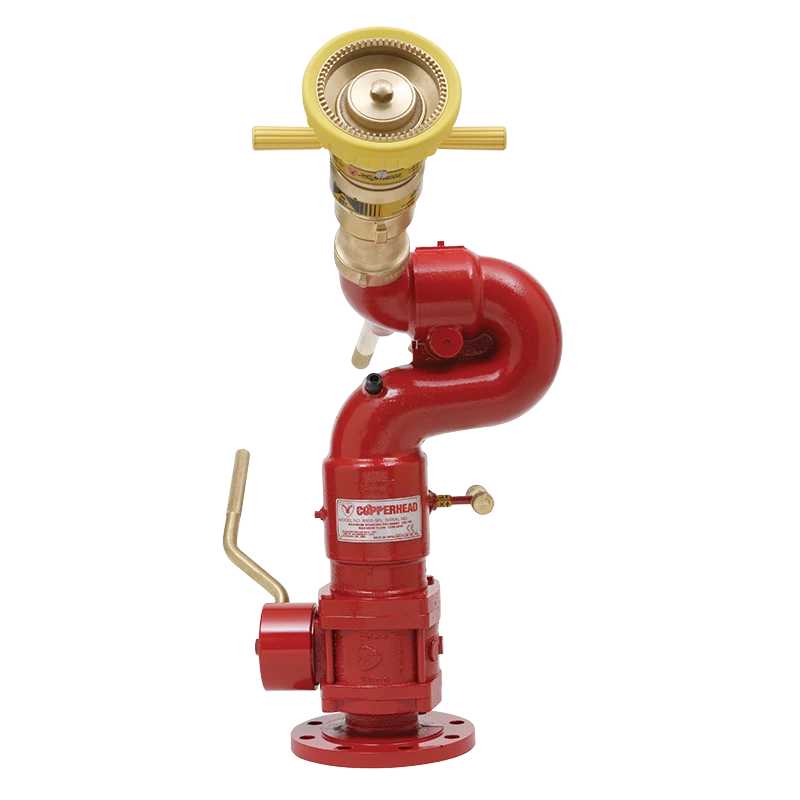

The Elkhart Brass Industrial monitor portfolio offers a wide range of solutions for industrial fire suppression applications as well as mining and washdown applications. Elkhart Brass Industrial monitors are designed for use in several vertical markets including Oil and Gas, Mining and Construction, Waste-to-Energy and...

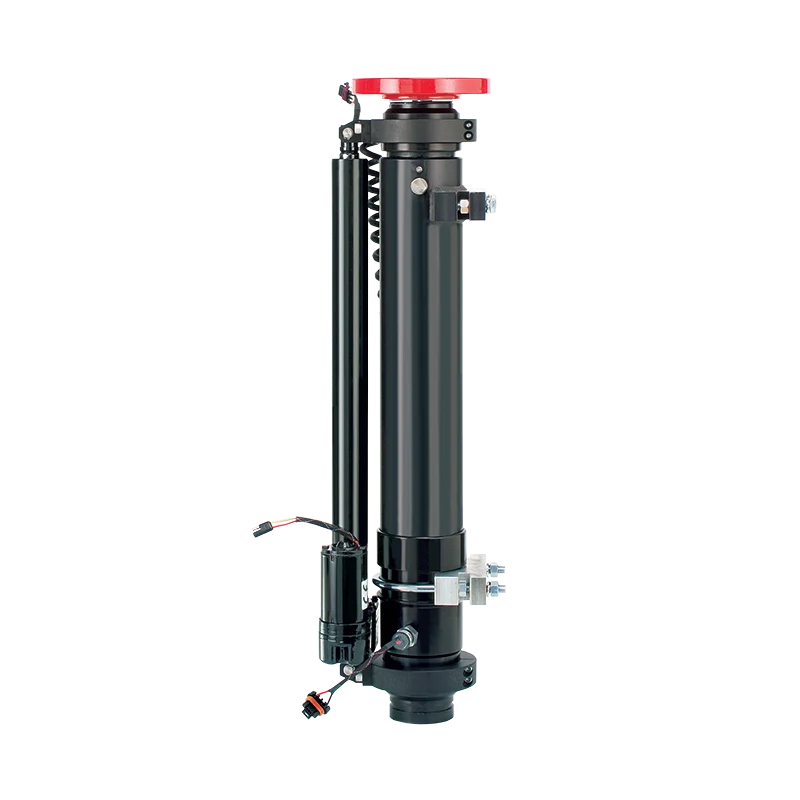

Model: 8598 The Electric Extender deploys in 10 seconds and extends a full 18" (457 mm) above the pump house. It is designed to flow in both the raised and lowered positions. Inlet/Outlet Options 3" VIC / 3" MNPT 3" VIC / 3" 150# flange 3" MNPT / 3" 150#

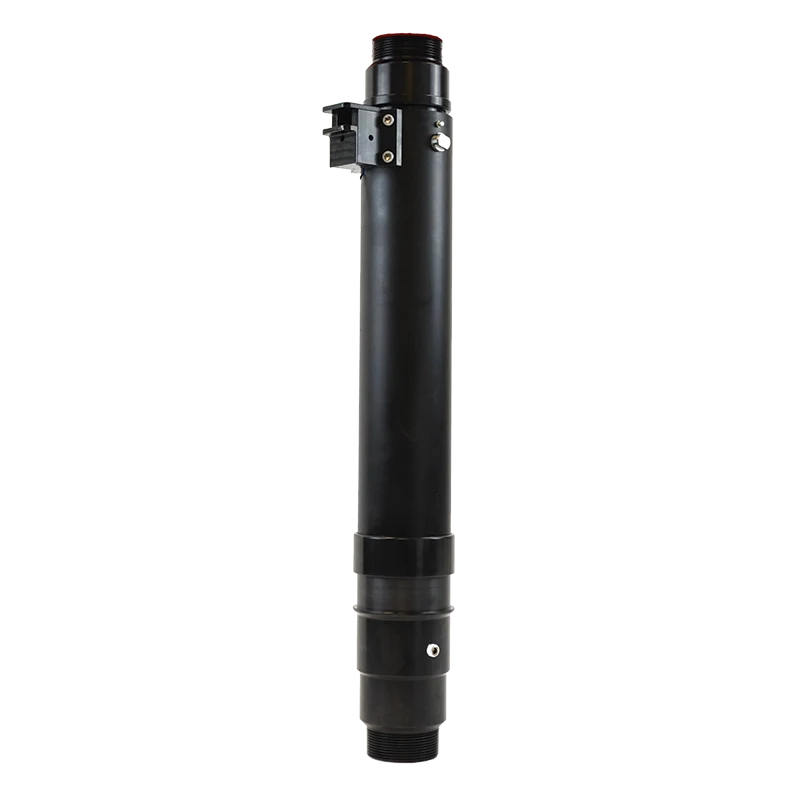

Model: 8599 Available in both 12" (305 mm) and 18" (457 mm) options, the Manual Extender provides full 360° operation in either full-up or full-down position. The integrated lock prevents unintended collapse of the Extender, protecting the operator from harm. Inlet/Outlet Options 3" VIC / 3" MNPT 3" MNPT / 3" MNPT
Elkhart Brass
Elkhart Brass offers a comprehensive line of Master Stream Nozzles in fixed, automatic or selectable flow options that seamlessly integrate with the Elkhart Brass monitor offerings. Most nozzles are available in both manual and electric versions and are either FM approved or U.L. listed.

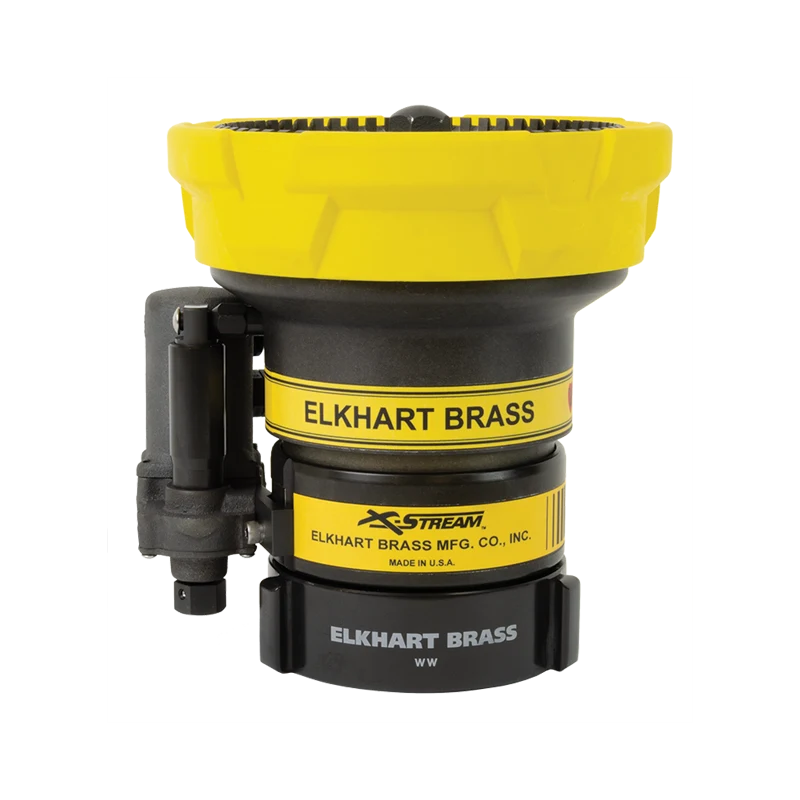

Flush Inlet Built to perform, the X-Stream® Series automatic nozzles are designed to self-adjust based on variable or reduced pressure and flow to maintain an effective stream with maximum reach. Manual models feature large handles for easy stream pattern adjustment. 12VDC electric versions include sealed connectors an...

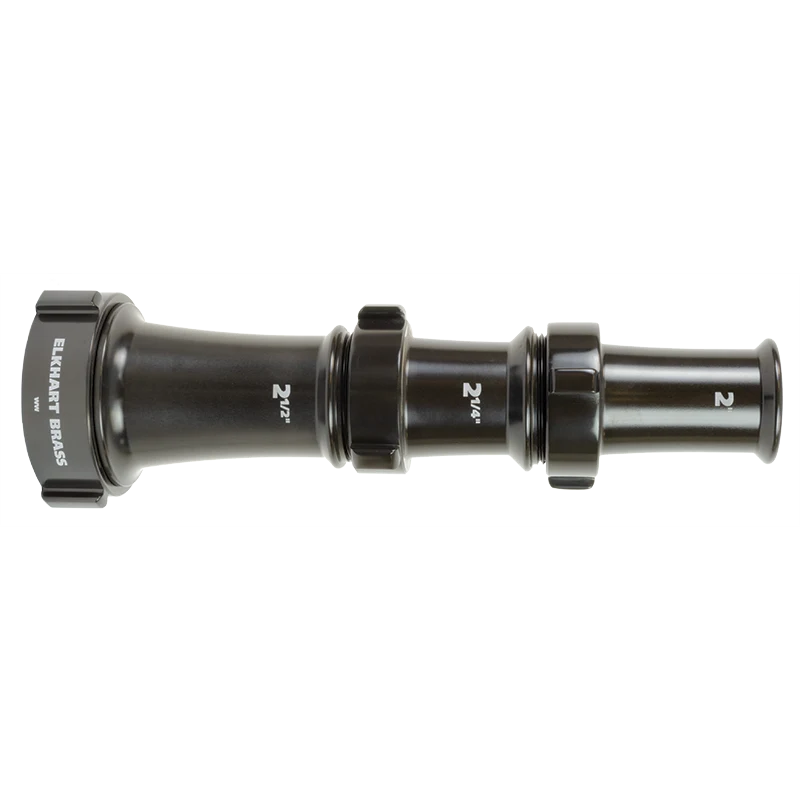

Designed for maximum reach and penetration when combined with Elkhart Brass monitors, they are available in a variety of discharge sizes to suit any application. Aluminum Models ST-194 Quad Stacked Tip Discharges sizes of 1-3/8" / 1-1/2" / 1-3/4" / 2" Rated for 502 gpm / 597 gpm / 813 gpm

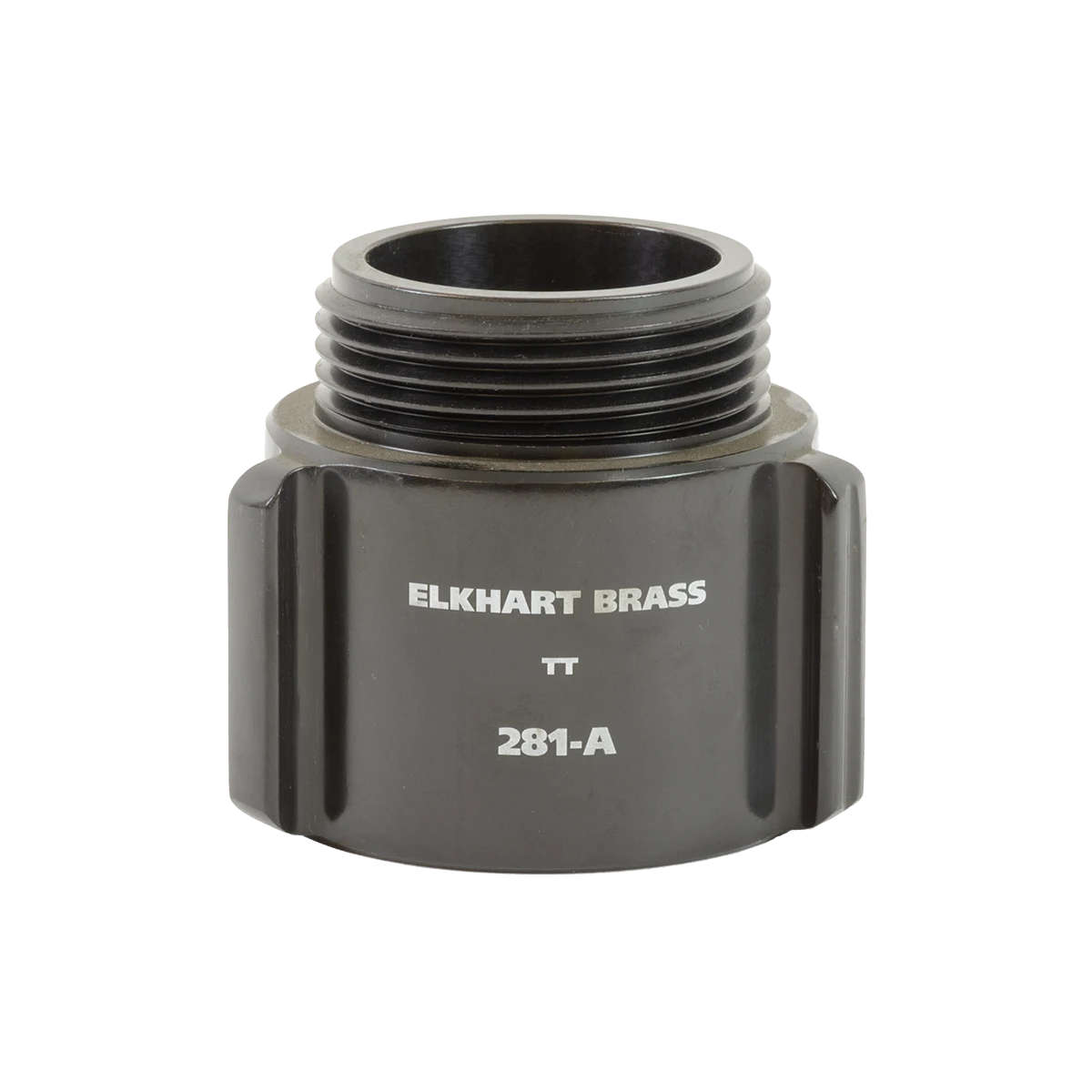

Flush Inlet Used to remove turbulence from water flow and increase stream performance, Elkhart Brass has Stream Shapers available in a variety of sizes and materials to suit all applications. 281-A Stream Shaper Compact design Internal vanes help reduce turbulence improving stream reach and quality Durable, lightweight...
Flush Inlet Created for specific applications where water flow may be limited, such as wildland firefighting, the 5000 Series nozzle is a high-performance, fixed flow, combination nozzle. With a 1.5" inlet, the 5000 Series is compatible with lower flow monitors such as the BrushHawk. Flow rates: 15-475 gpm (60-1800 LPM...

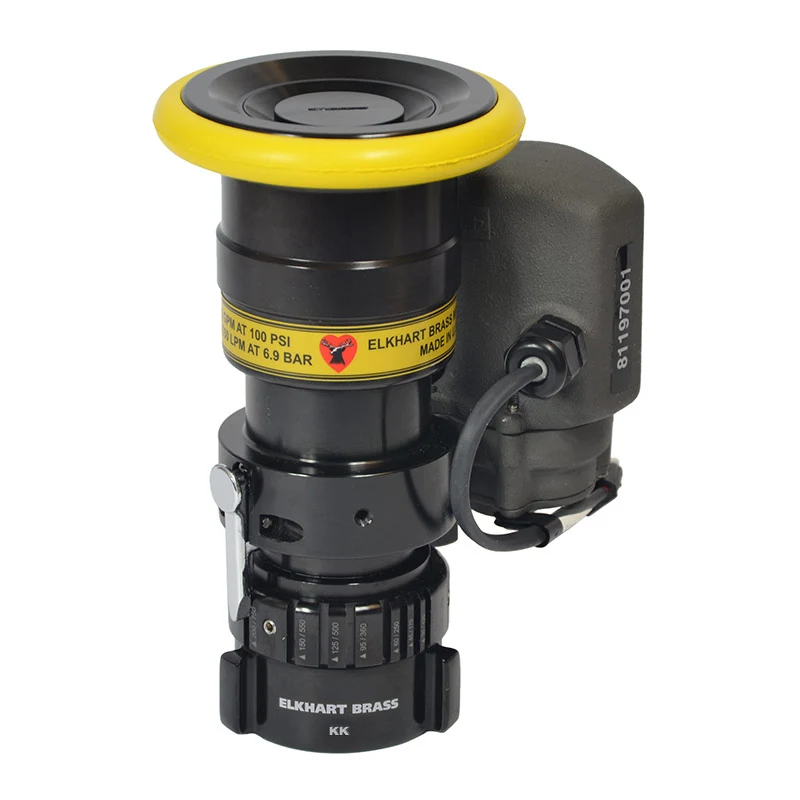

Flush Inlet The 6000 Series is a line of selectable flow, electrically actuated Master Stream Nozzles featuring an ultra-wide flow range with a locking flow-selector ring. Useful in many applications, the 6000 Series was specifically designed for optimal performance when paired with the Sidewinder EXM2 monitor Flow rat...

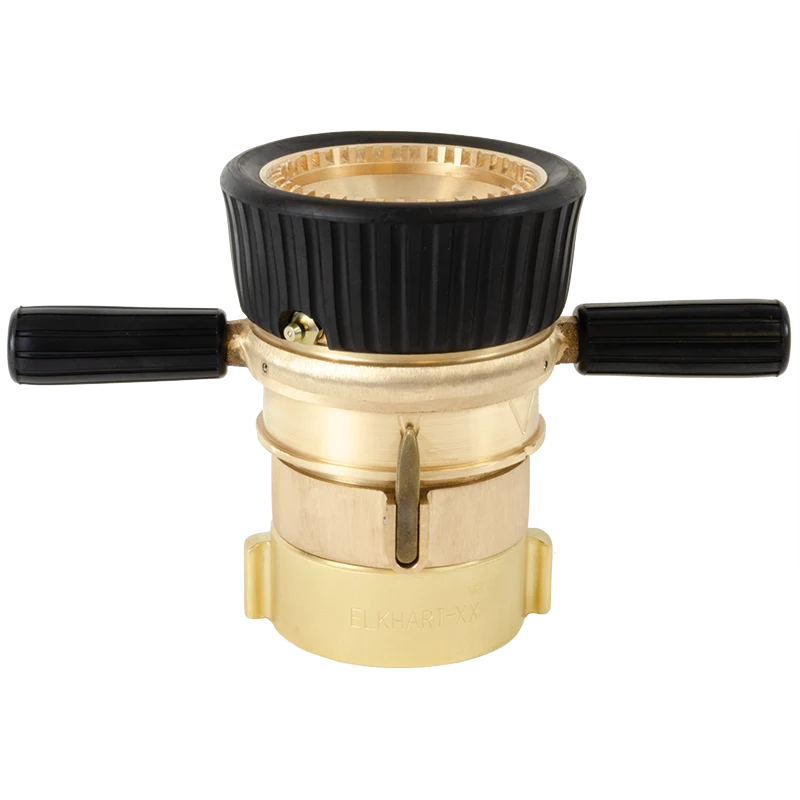

Flush Inlet The Elkhart Brass Select-O-Stream® nozzles are constant flow with a fully machined waterway that ensures excellent stream quality. The Select-O-Stream nozzles are FM Approved. Brass construction for corrosive and non-corrosive environment applications Pattern easily changed under flowing conditions from str...

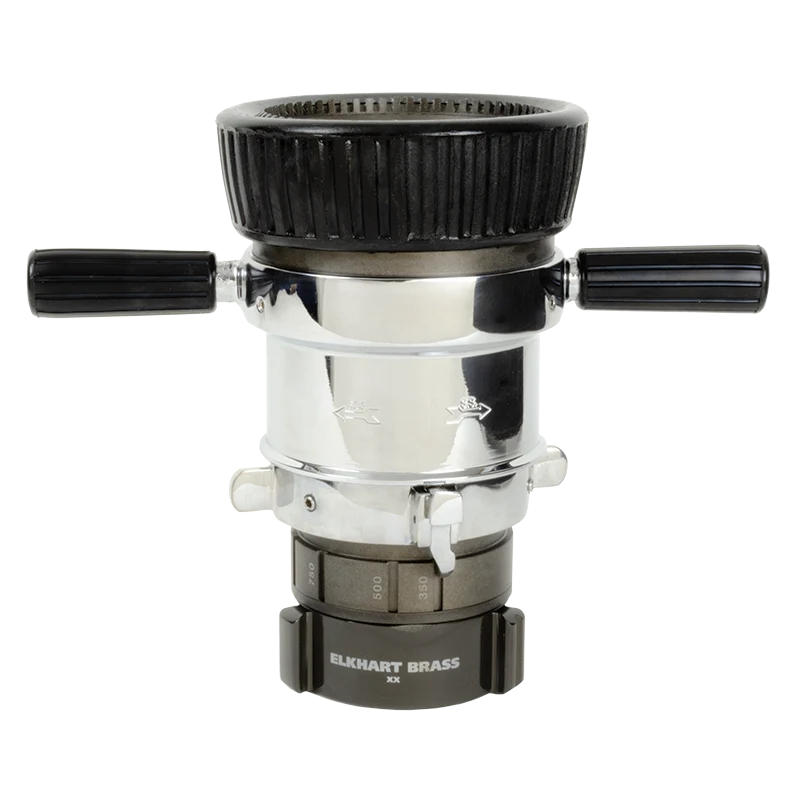

Flush Inlet Elkhart Brass Select-O-Flow® Master Stream nozzles are selectable flow constant flow type nozzles. The Select-O-Flow nozzles design enables flow rate change while nozzle is operating under flow condition. Brass construction for corrosive and non-corrosive environment applications Pattern easily changed unde...
Flush Inlet The Elkhart Brass Mystery® nozzle design has a twist shut-off feature with models flowing up to 2000 gpm (7550 LPM) maximum flow rates. Brass construction for corrosive and non-corrosive environment applications Pattern easily changed under flowing conditions from straight stream to 90° fog Grease zerk fitt...

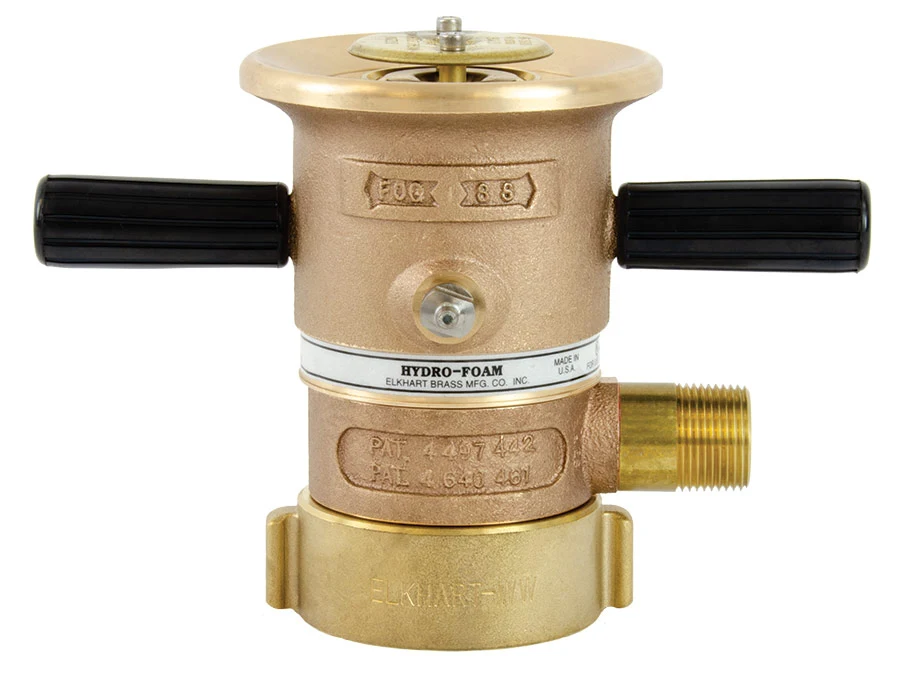

Flush Inlet The Elkhart Brass Hydro-Foam® self-educting nozzle design enables these products to flow foam solution without the need for special foam mixing equipment. The design of the Elkhart Brass Hydro-Foam nozzle provides the flexibility and reliability required for applying foam solution. Built-in metering device....
Flush Inlet Lightweight composite foam tubes are corrosion resistant and easy to handle with bases that snap securely onto the nozzle in seconds. The foam tubes are specifically designed to require no alteration of the nozzle itself for use. The base of the tube includes large air intakes. Expansion rates are easily va...

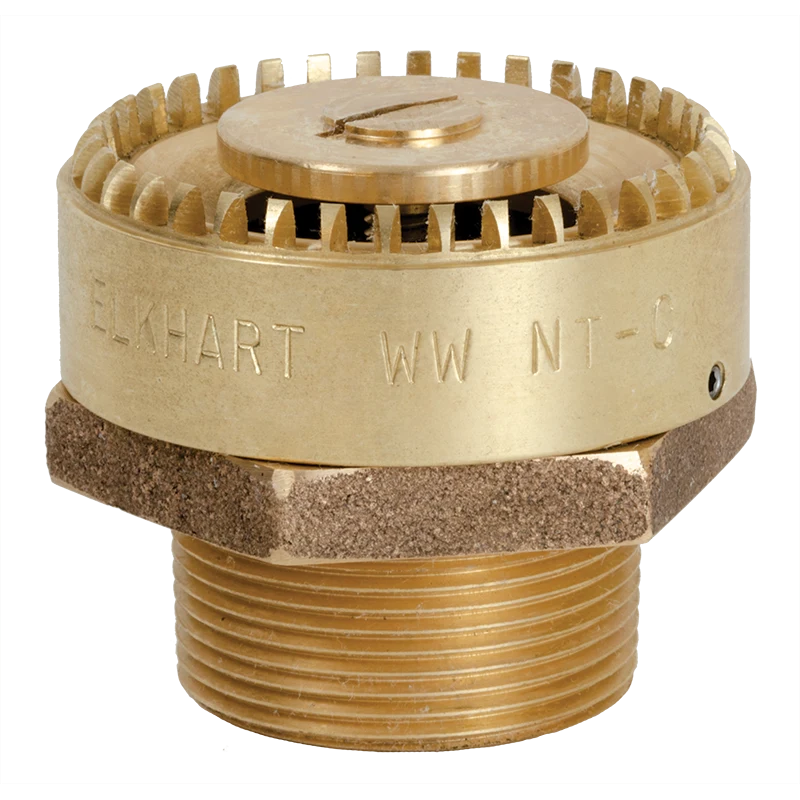

Flush Inlet Designed for use in fixed system applications. Adjustable nozzles can be pre-set at the factory or set in the field at time of installation. The fog pattern, which can be set up to 120°, can also easily be set or adjusted on site. NTS-C Adjustable flow rate from
Elkhart Brass
Flush Inlet

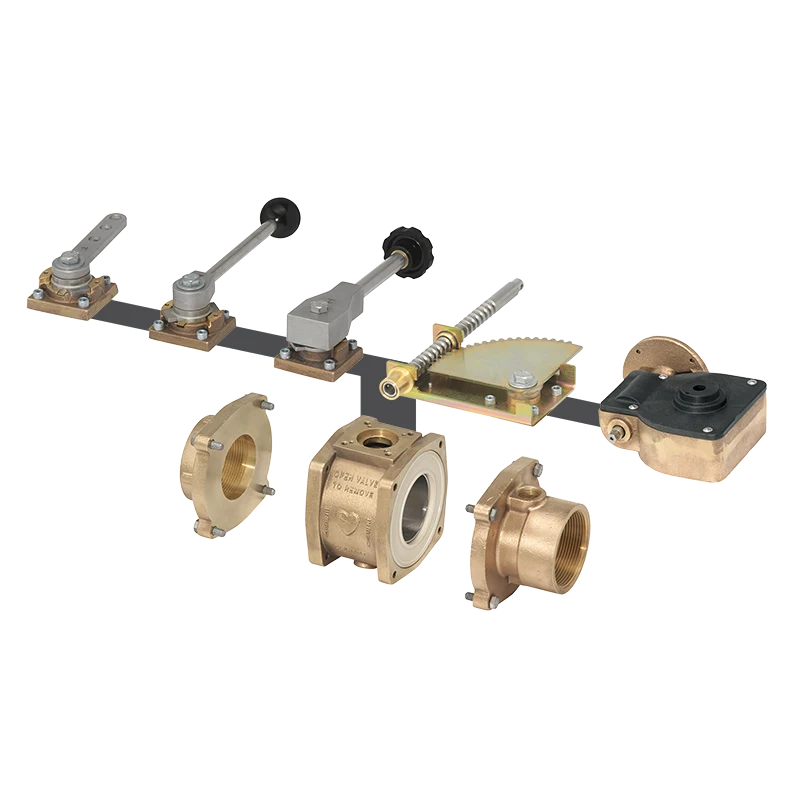

The Unibody� Valve family, with ball valve offerings from 1.5" to 4.0" and butterfly valves offered in 3.0" to 8.0", provides a solution to all of your apparatus valve needs. Ball valves utilize solid brass construction and incorporate a universal design to simplify both configuration and installation. Butterfly valves...
Ultimate Solutions. Ultimate Control Combine customization capabilities with space saving design, add tactile keypad buttons and large, easy-to-read graphics and the result is an innovative new valve controller. APEX� provides great benefits to OEMs as well as end users! The design and versatility of the APEX Valve all...

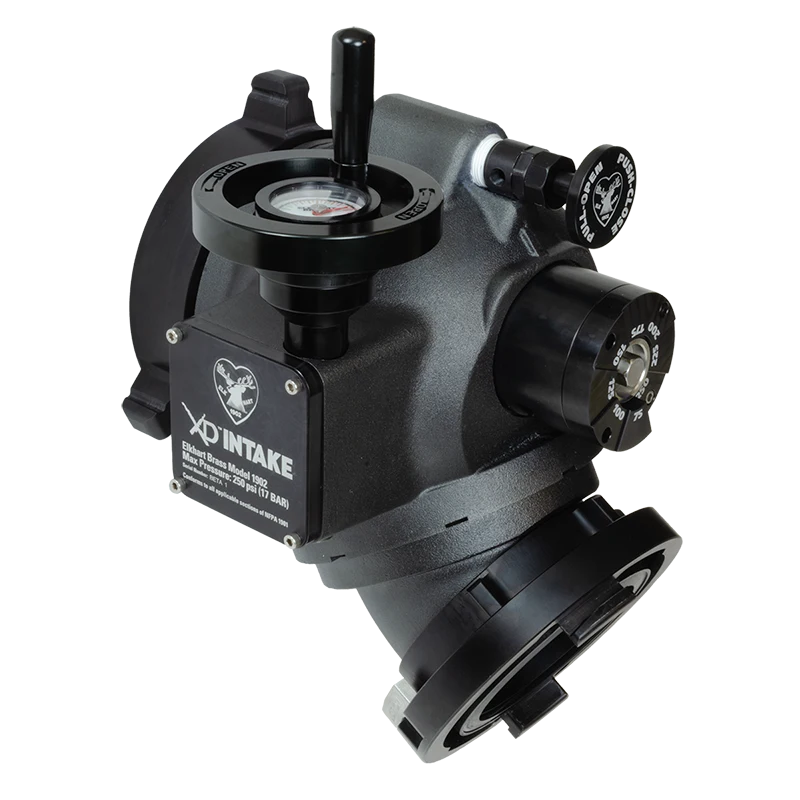

Flush Inlet The XD Intake Model 1902 by Elkhart Brass, is a nod to our founding year and a century-plus of innovation. This heavy-duty valve, engineered to regulate water supply intake to your pump, combines a robust design with cutting-edge technology. The Model 1902 symbolizes our enduring legacy and commitment to ad...

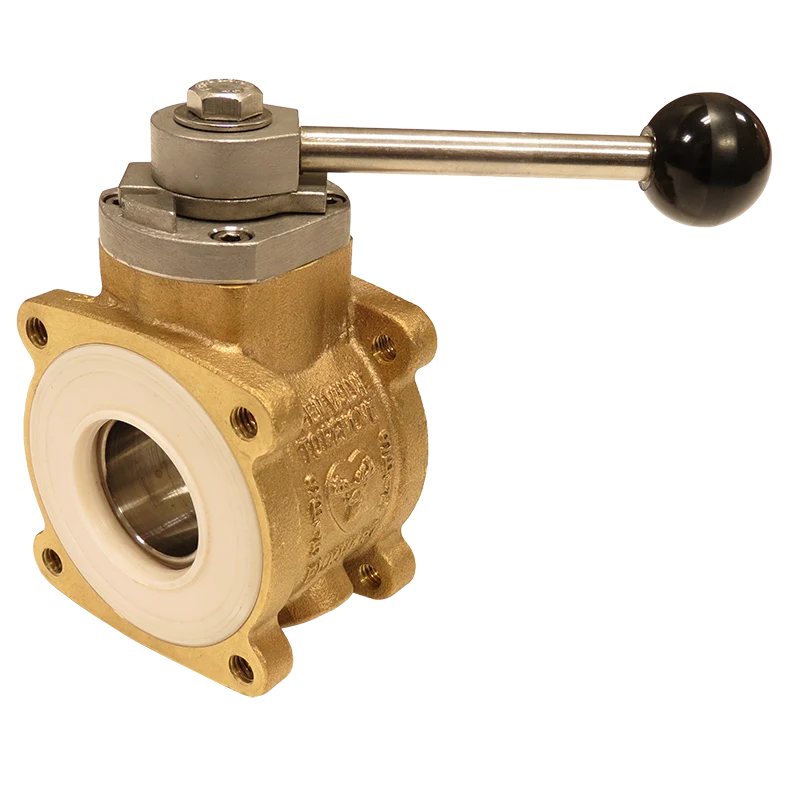

Flush Inlet 1.0" and 1.5" Single Body apparatus valves are equipped with an integral actuator of your choice � direct or remote. They're designed especially for reliability, ease of installation, and ease of use. The Single Body ball valve is designed to the industry standard dimensions. It features the option to selec...
Flush Inlet GWP-4 4" Handwheel diameter Position indication Stainless steel construction and finish GWP-6 6" Handwheel diameter Position indication Stainless steel construction and finish GWR-5 5" Handwheel diameter Panel mount Brass construction with chrome finish Furnished with panel bushing and two universal joints....

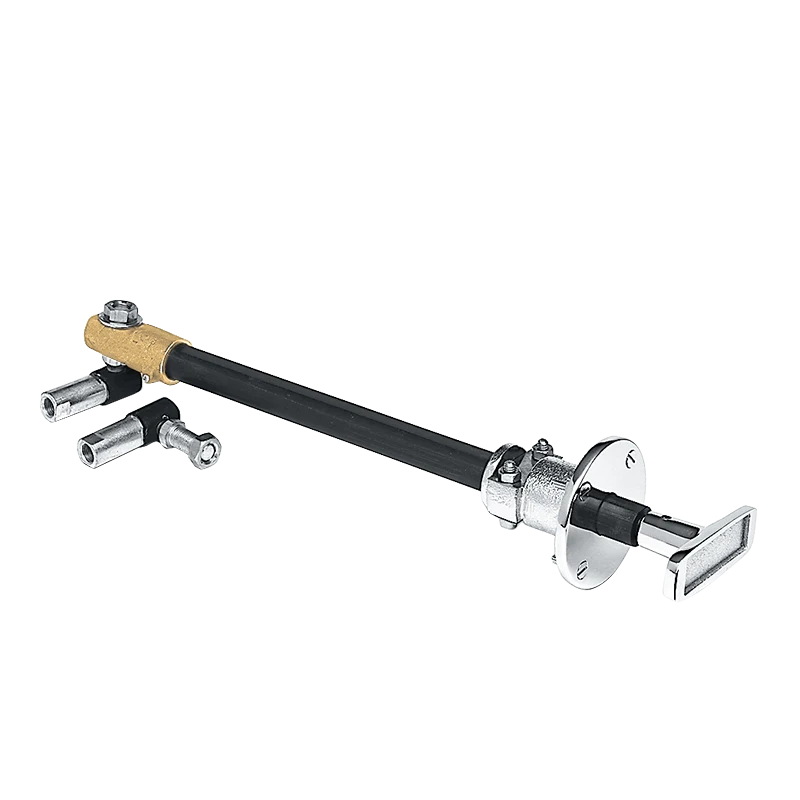

Tee Handle Remote Control Units Push-pull control for the operation of in-line, quarter-turn ball valves or built-in eductors. Handle configuration allows identification/location label to be inserted. RC-7 Non-locking handle 1" Installation diameter (2.5 cm) Specify 11.3", 9.8", or 7.3" Travel Chrome-plated case, brass...

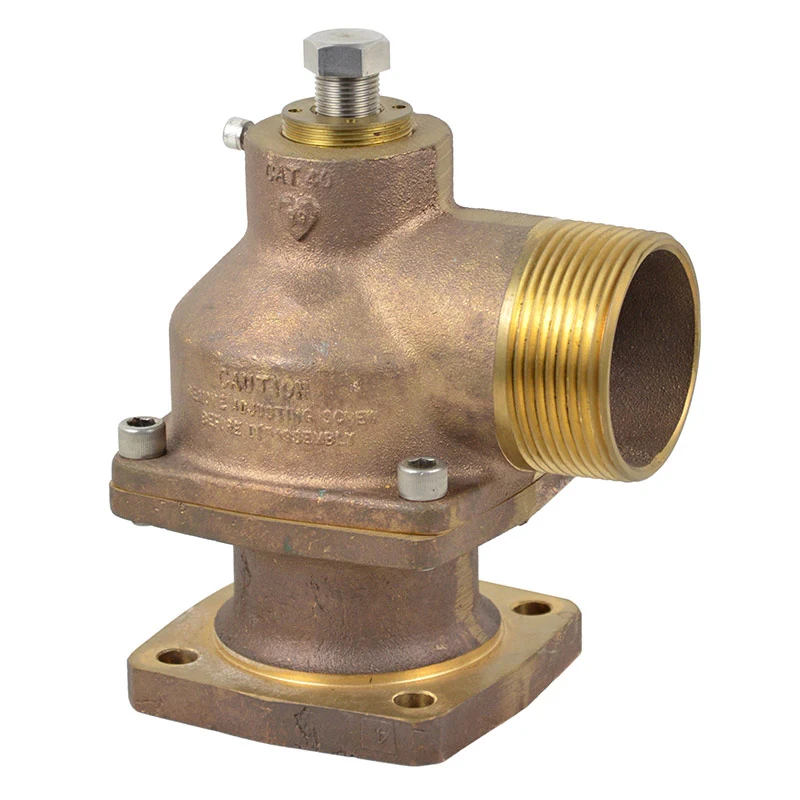

Flush Inlet Model 40 Relief Valves For use on the suction side of the pump or on a designated LDH discharge outlet Material: Choice of cast brass or hard coated
Elkhart Brass

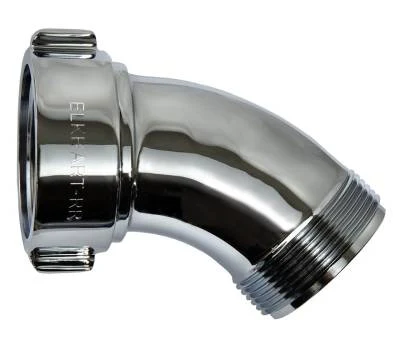

Flush Inlet 105 Apparatus Elbow � 45° Cast brass with chrome-plated finish Options 2.5" female swivel inlet x 2.5" male outlet 2.5" female swivel inlet x 3" male outlet 3" female swivel inlet x 2.5" male outlet 3"
Cast brass with chrome-plated finish Options 2.5" female swivel inlet x 2.5" male outlet 2.5" female swivel inlet x 3" male outlet 3" female swivel inlet x 2.5" male outlet 3" female swivel inlet x 3" male outlet 3.5" female swivel inlet x 3.5" male outlet 90° Discharge & suction swivel elbows

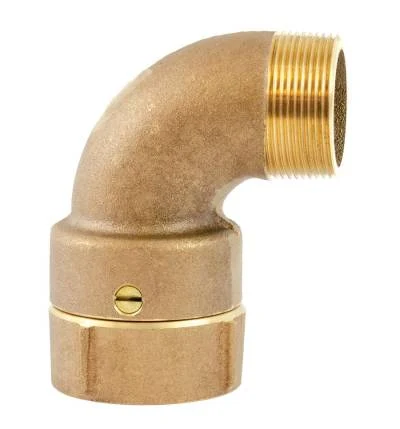

Cast brass construction and finish Single ball bearing race 1.5" or 2" female NPT free swivel inlet 1.5"male NHT or NSPH outlet
Slightly longer discharge Cast brass construction and finish Single ball bearing race 1.5" or 2" female NPT free swivel inlet 1.5" male NHT or NSPH outlet
Includes cast bracket for stud mount to apparatus Cast brass construction and finish Single ball bearing race 2" female NPT free swivel inlet 1.5" male NHT outlet
Includes cast bracket for stud mount to apparatus Slightly longer discharge Cast brass construction and finish Single ball bearing race 2" female NPT free swivel inlet 1.5" male NHT outlet
Cast brass construction and finish Double ball bearing race 2.5" female NPT free swivel inlet 2.5" male NHT outlet
Specify flange bracket or stud mount bracket for mounting to apparatus Cast brass construction and finish Double ball bearing race 2.5" female NPT free swivel inlet 2.5" male NHT outlet

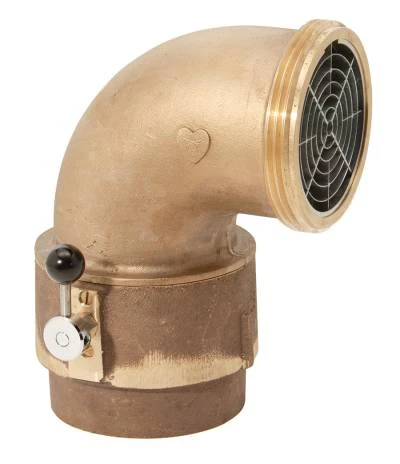

Cast brass construction with rough brass or rough chrome finish Double ball bearing race 4" female NPT free swivel inlet 4" male NHT or NPT outlet

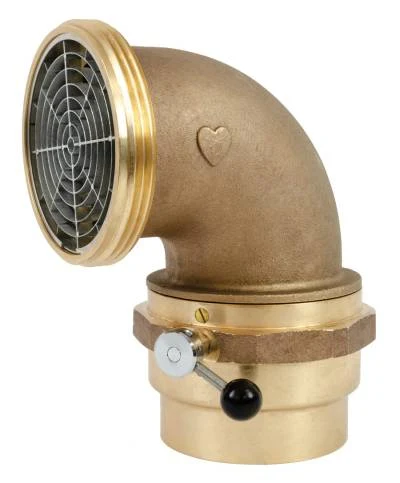

Cast brass construction with rough chrome finish Double ball bearing race 5" female NPT free swivel inlet 5" male NHT outlet with strainer

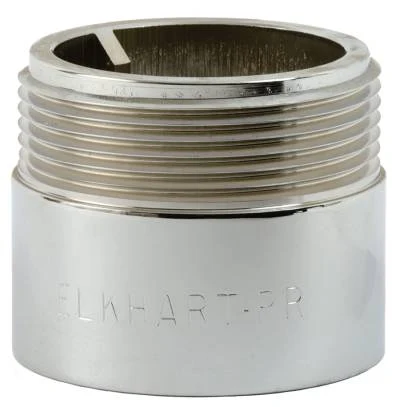

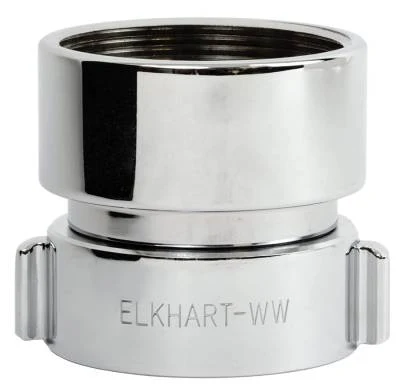

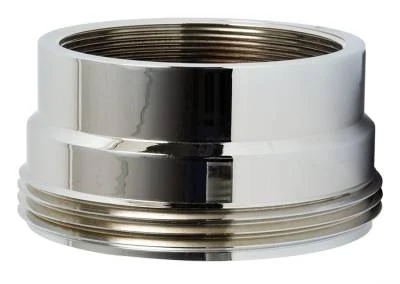

Rugged, cast brass, internal lug adapter with removable strainer for suction intake of pump Chrome-plated finish Options 3" female NPT inlet x 3" male NHT outlet 4" female NPT inlet x 4" male NHT outlet 4" female NPT inlet x 4.5" male NHT outlet 4" female NPT inlet x 5" male NHT outlet 4" female NPT inlet x 6" male NHT...

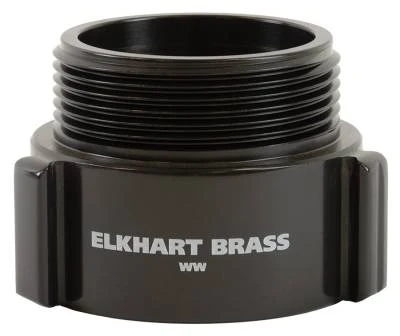

Rugged, cast brass, internal lug adapter for discharge outlet Chrome-plated finish 2.5" female NPT inlet x 2.5" male NHT outlet

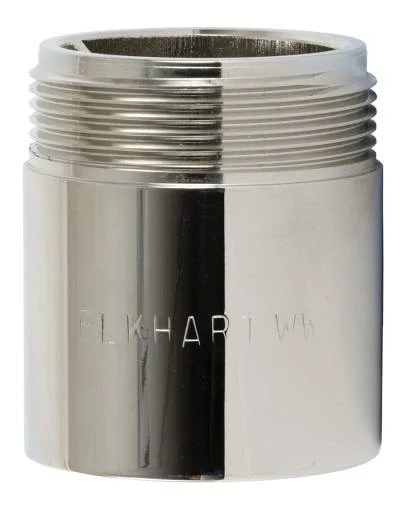

Rugged, cast brass, internal lug adapter for discharge outlet Chrome-plated finish 2.5" female NPT inlet x 2.5" male NHT outlet
Durable lightweight aluminum rocker lug adapter for discharge outlet Hard coated aluminum finish 2.5" female NPT inlet x 2.5" male NHT outlet
Rugged, cast brass, internal lug adapter with removable strainer for suction intake of pump Chrome-plated finish Options 2.5" female NPT inlet x 2.5" female swivel NHT outlet 3" female NPT inlet x 2.5" female swivel NHT outlet
Elkhart Brass

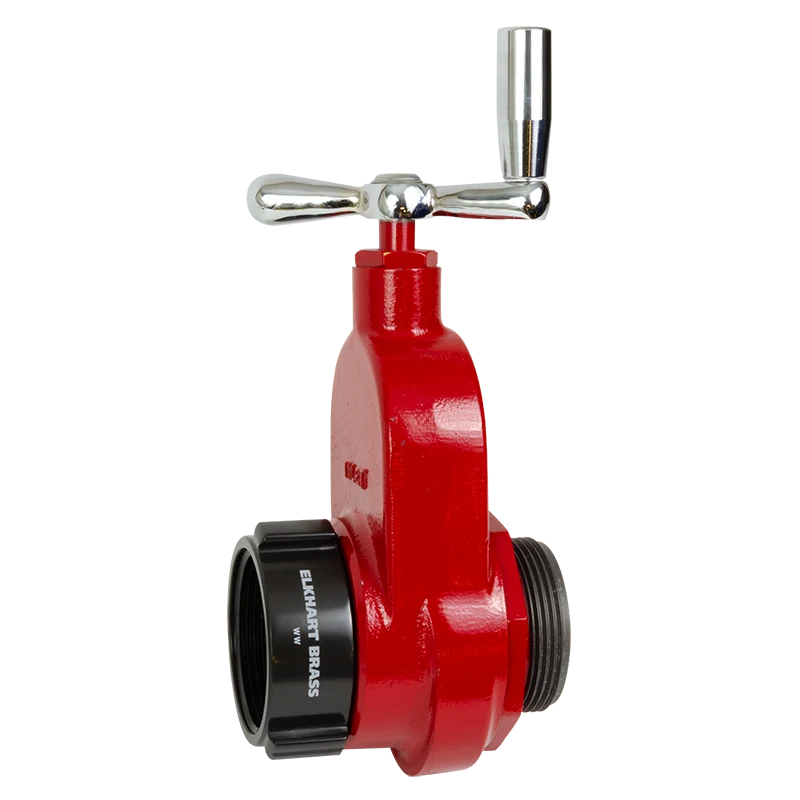

X86A Gate Valve 2.5" female swivel inlet x 2.5" male outlet Gate style valve function for easy adjustment for proper flow and pressure Rated to 300 psi (21 BAR) Lightweight aluminum Finish red urethane enamel with hard anodized trim X86 Gate Valve 2.5" female swivel inlet x 2.5" male outlet Gate style valve function fo...

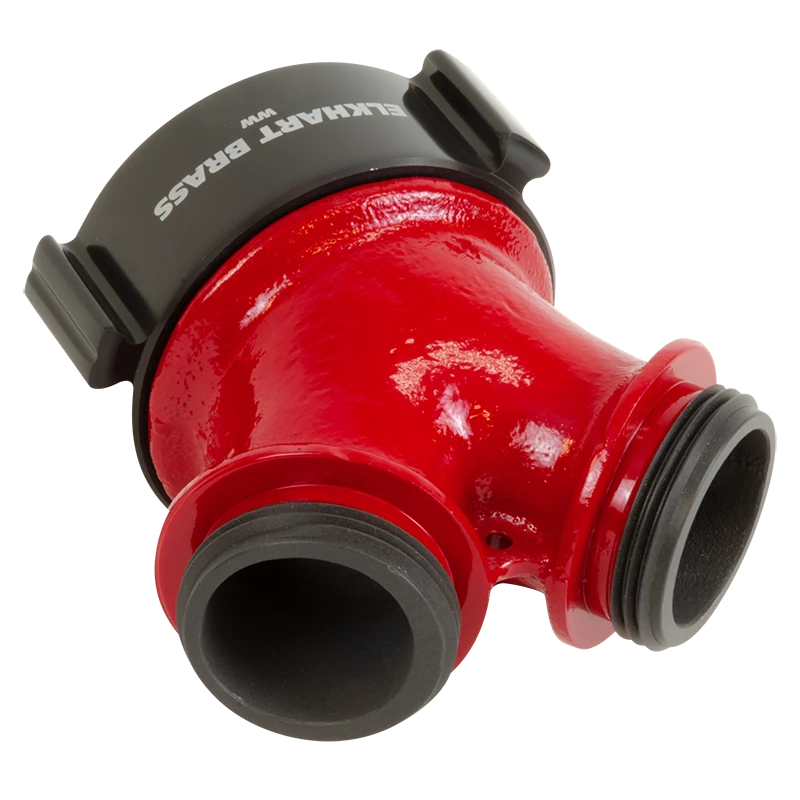

Flush Inlet B-100-SA Specify Inlet/Outlet Configuration: 1.0" female swivel inlet x (2) 0.75" male outlet (1) 1.5" female swivel inlet x (2) 0.75" male outlet (1) 1.5" female swivel inlet x (2) 1.0" male outlet Durable, lightweight aluminum construction Finish red urethane enamel with hard anodized trim B-100-LA (1) 1....

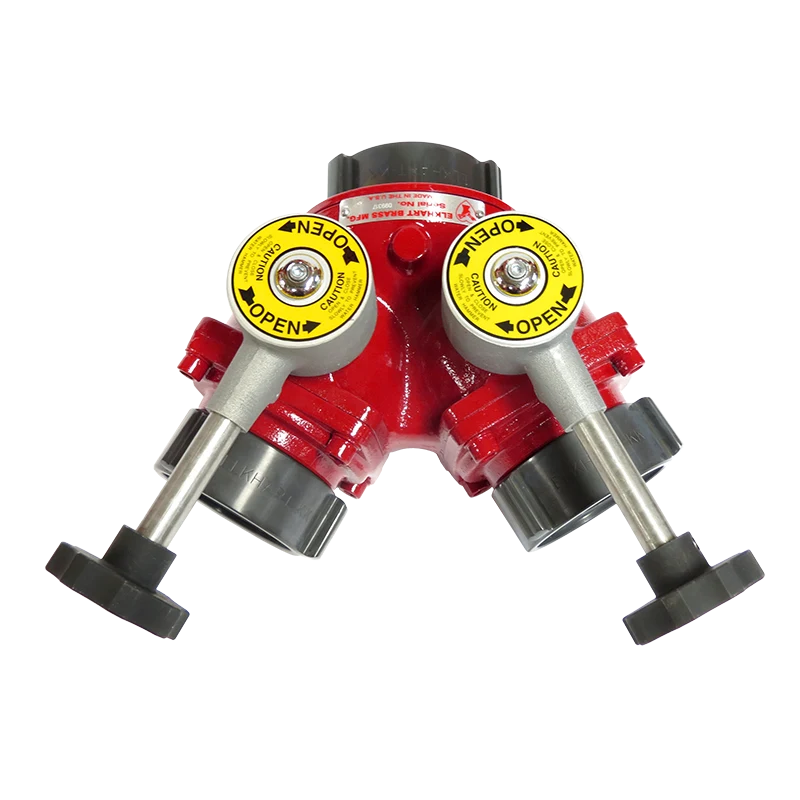

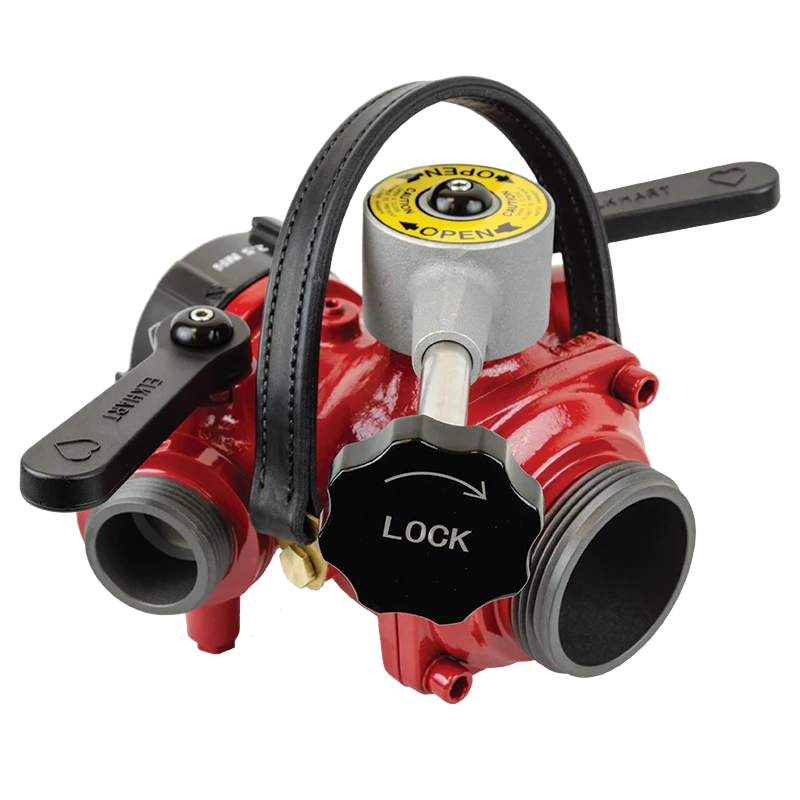

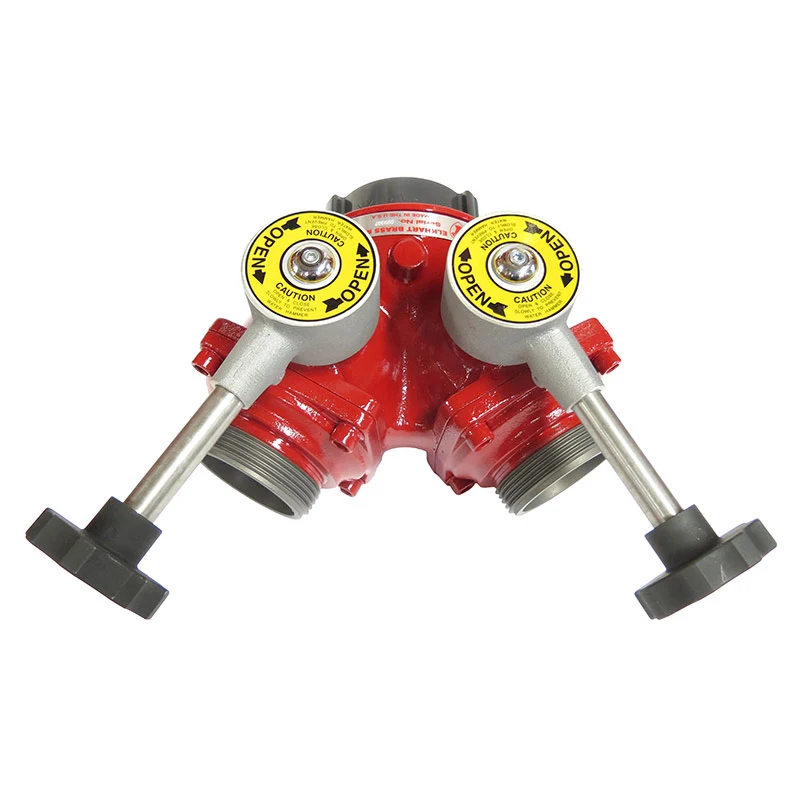

Flush Inlet Model 1A Specify Inlet/Outlet Configuration: (1) 2.5" female swivel inlet x (2) 1.5" male outlet (1) 4.5" female swivel inlet x (2) 2.5" male outlet Durable, lightweight aluminum construction Finish red urethane enamel with hard anodized trim Model 1 Specify Inlet/Outlet Configuration: (1) 2.5" female swive...

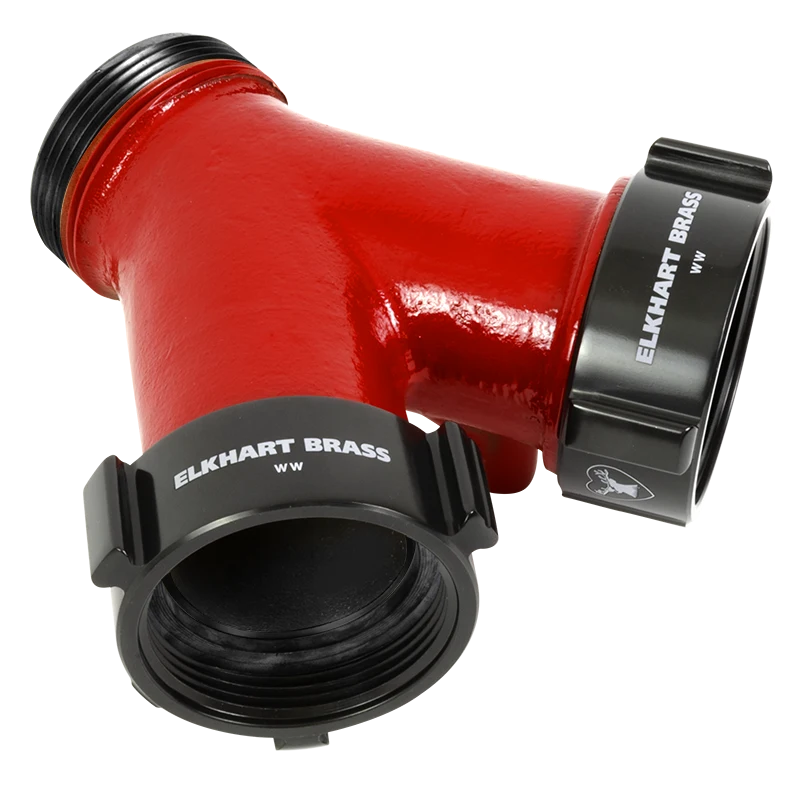

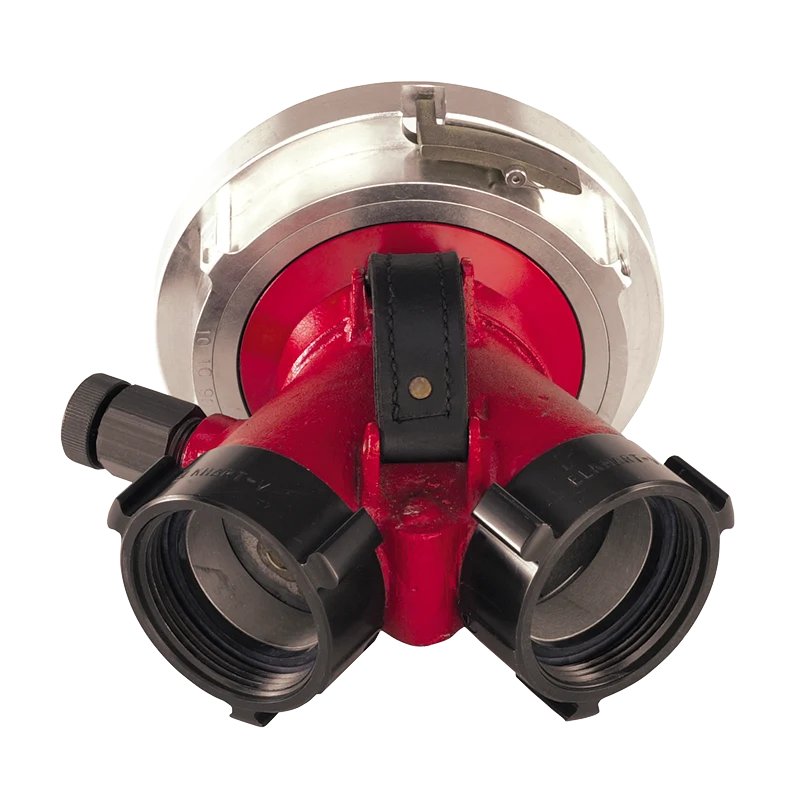

Flush Inlet B-98A Specify Inlet/Outlet Configuration: (2) 2.5" female swivel inlet x (1) 2.5" female swivel outlet (2) 2.5" female swivel inlet x (1) 4.0" female swivel outlet (2) 2.5" female swivel inlet x (1) 4.5" female swivel outlet (2) 2.5" female swivel inlet x (1) 5.0" female swivel outlet (2) 2.5" female swivel...
Flush Inlet Model 2A Specify Inlet/Outlet Configuration: (2) 2.5" female swivel inlet x (1) 2.5" male outlet (2) 2.5" female swivel inlet x (1) 3.0" male outlet (2) 2.5" female swivel inlet x (1) 4.0" male outlet Durable, lightweight aluminum construction Finish red urethane enamel with hard anodized trim Model
Flush Inlet Model 4A Specify Inlet/Outlet Configuration: (2) 2.5" female swivel inlet x (1) 2.5" male outlet (2) 2.5" female swivel inlet x (1) 3.0" male outlet (2) 2.5" female swivel inlet x (1) 4.0" Storz outlet (2) 2.5" female swivel inlet x (1) 5.0" Storz outlet Single swinging clappered siamese design Leather carr...
Flush Inlet BG-104A - Aluminum (1) 2.5" female swivel inlet x (1) 2.5" male outlet and (2) 1.5" male outlets Acetal valve balls with adjustable neoprene seats Rugged aluminum handles Durable, lightweight aluminum construction Finish red urethane enamel with hard anodized trim BG-104 - Brass (1) 2.5" female swivel inlet...

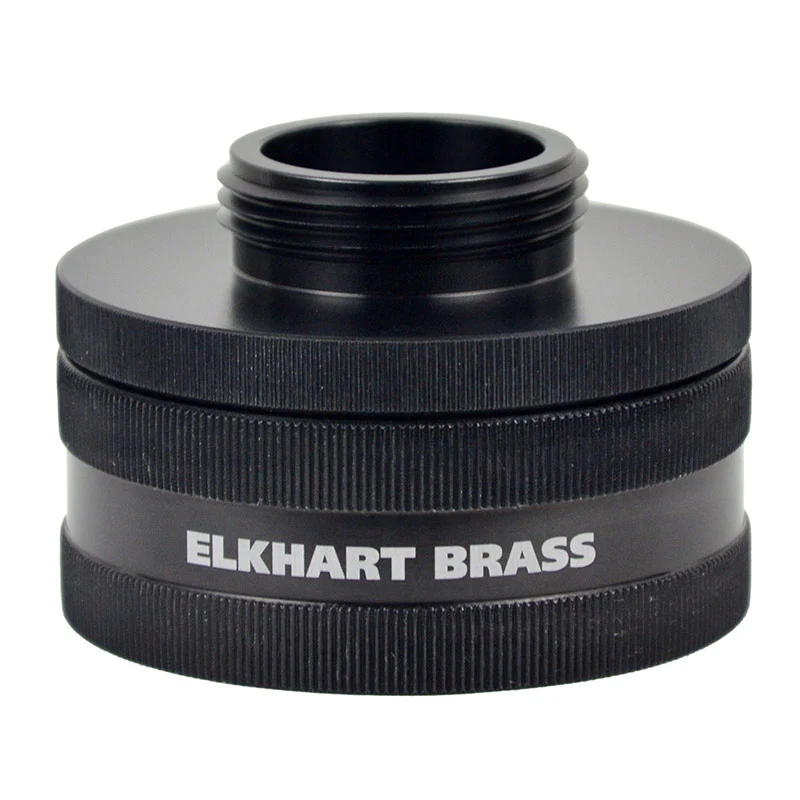

101A Swiveling Plate Reducer 2.5" female swivel inlet x 1.5" male outlet Low profile knurling Durable lightweight aluminum A-327A Plate Reducer 2.5" female rigid inlet x 1.5" male outlet Rocker lug style Durable lightweight aluminum 102A Swiveling Bell Reducer 2.5" female swivel inlet x 1.5" male outlet Low profile knu...
Elkhart Brass
Flush Inlet

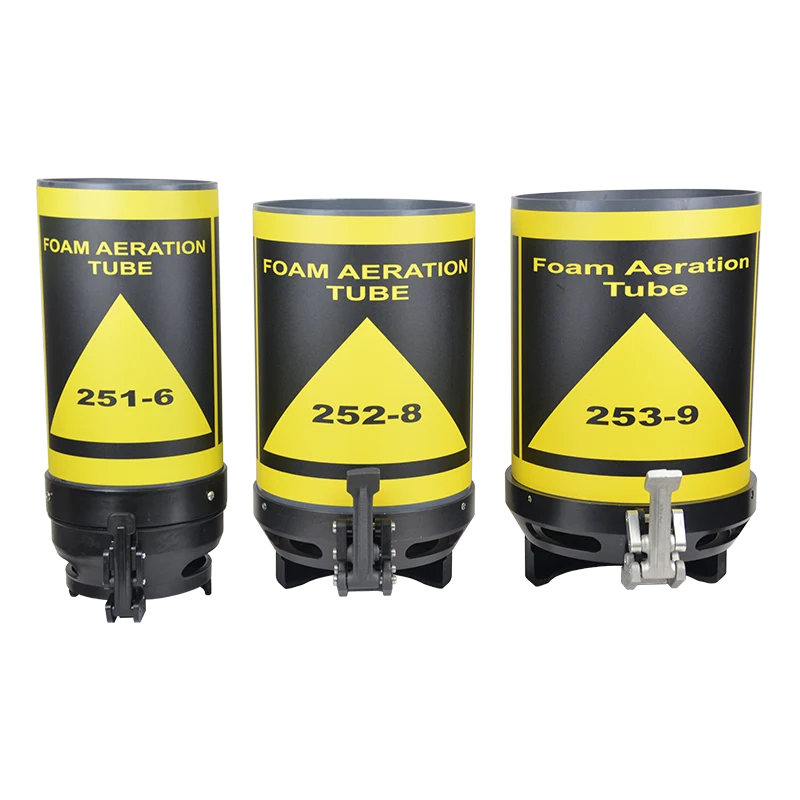

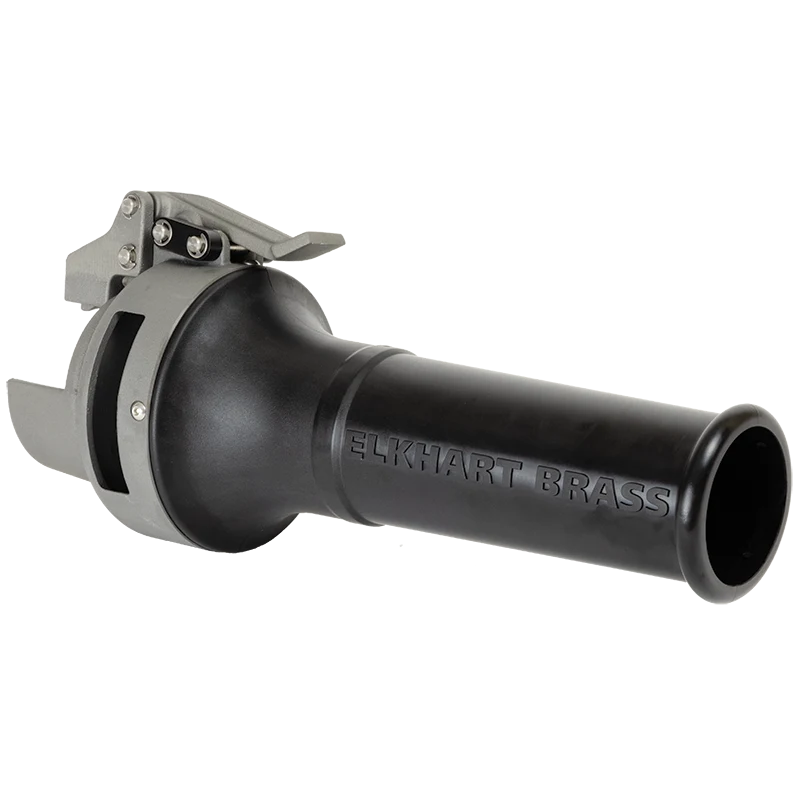

When greater foam expansion rates are needed, our line of XD� Foam Tubes Steps in. Light-weight and quick to attach and detach. Mid Range XD Foam Tube FITS: Mid/Low and Mid Range XD Fog Nozzles High Range XD Foam Tube FITS: High Range XD Fog Nozzles Composite and aluminum construction for

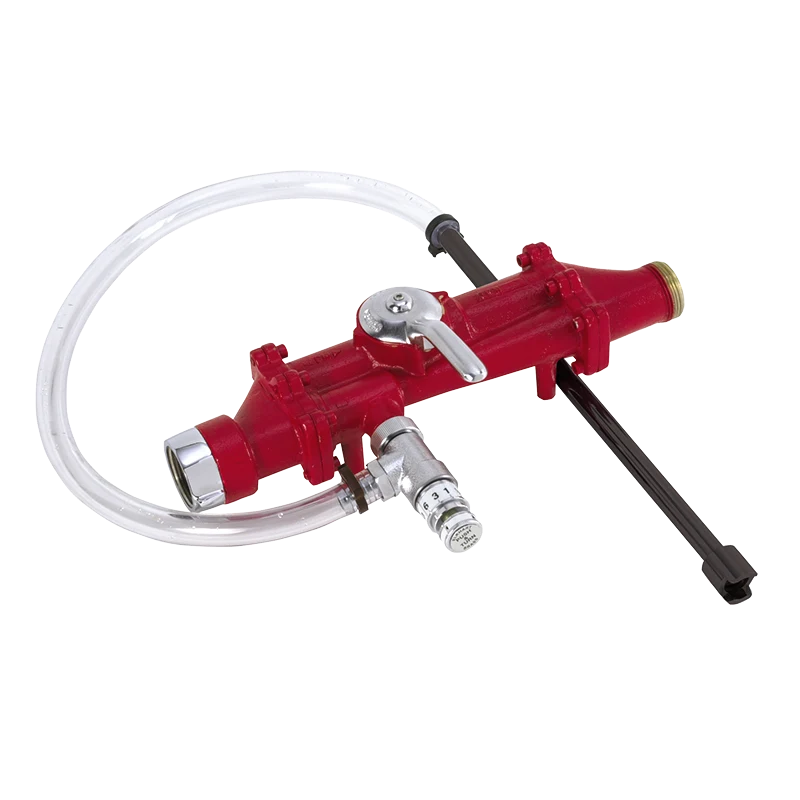

Flush Inlet By-Pass Style 240-95 Rated to flow 95 gpm at 200 psi (360 LPM @ 14 BAR) inlet pressure Simple, Efficient Venturi Design By-pass allows for water only at lower
Elkhart Brass
Flush Inlet
EB-500-XD Portable Flow Meter The EB-500-XD portable flow meter changes the game when it comes to accurate and effective flow testing. The flow tube, paddlewheel, digital readout, and battery are all self-contained making this unit extremely compact. The waterway features a unique internal waterway shape ensuring lamin...

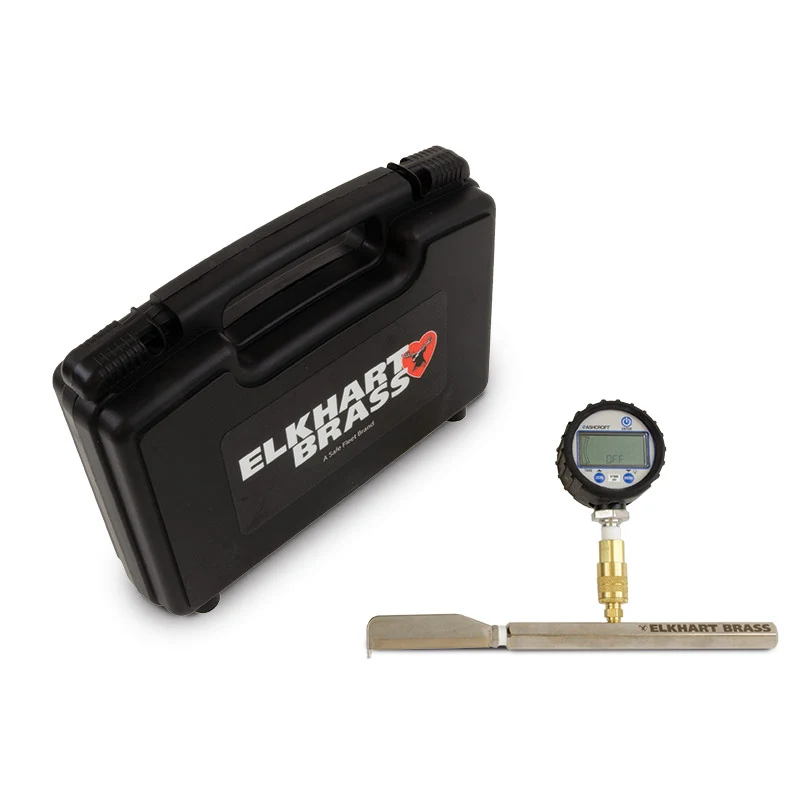

Digital Handheld Pitot Gauge Ideal for determining nozzle pressure for smooth bore tips Accurately read pressure from 0-300 psi (0-20 BAR) down to the tenth psi Gauge features a backlit display and protective rubber boot Durable pitot blade Includes carrying case 228A-1.5" Inline Pressure Gauge 0-200 psi (0-14
Elkhart Brass
Designed for flow efficiency, ease of install and rapid deployment, the Elkhart Brass standpipe valves offer the reliability and versatility required for modern high-rise and standpipe fire protection applications. These valves have major global and regional certifications in UL, FM and City of New York approval and comply with NFPA 14 requirements.

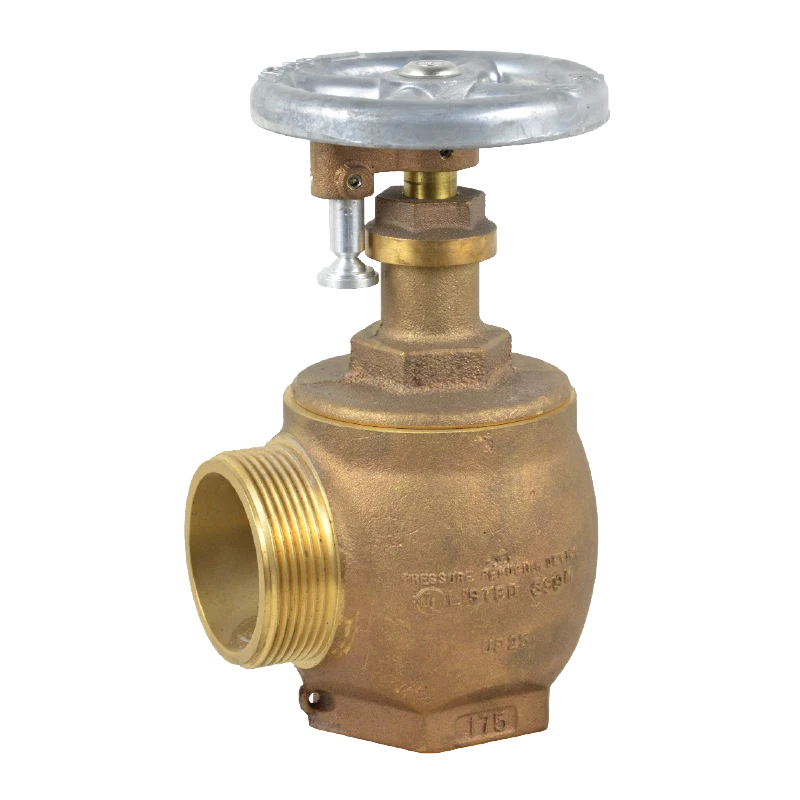

Flush Inlet Pressure restricting valves from Elkhart Brass all feature rugged cast brass construction in your choice of finishes. The pressure restricting valves feature rubber seats and are rated for use at 175 psi (12 BAR). Although factory setting is recommended, all the pressure restricting valves are field settabl...

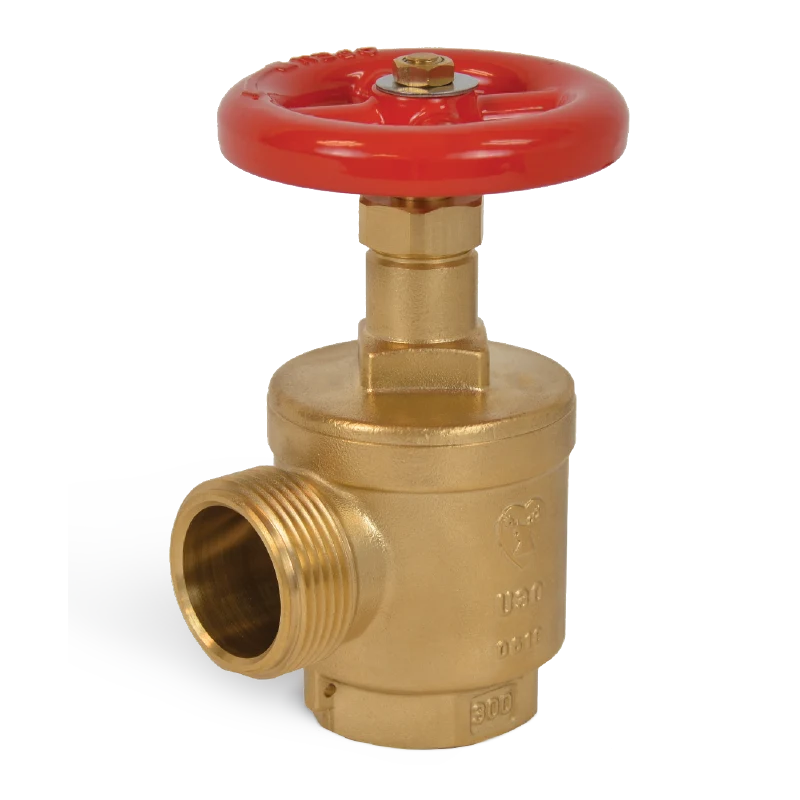

Flush Inlet The Elkhart Brass U angle valves are used in firefighting piping systems as Fire Department outlet connection or Fire Hose Rack assembly connection. They are available in 1.5" and 2.5" inlet/outlet sizes and offered in angle style with NPT and NHT threading options. The U valves are UL Listed and FM
Elkhart Brass

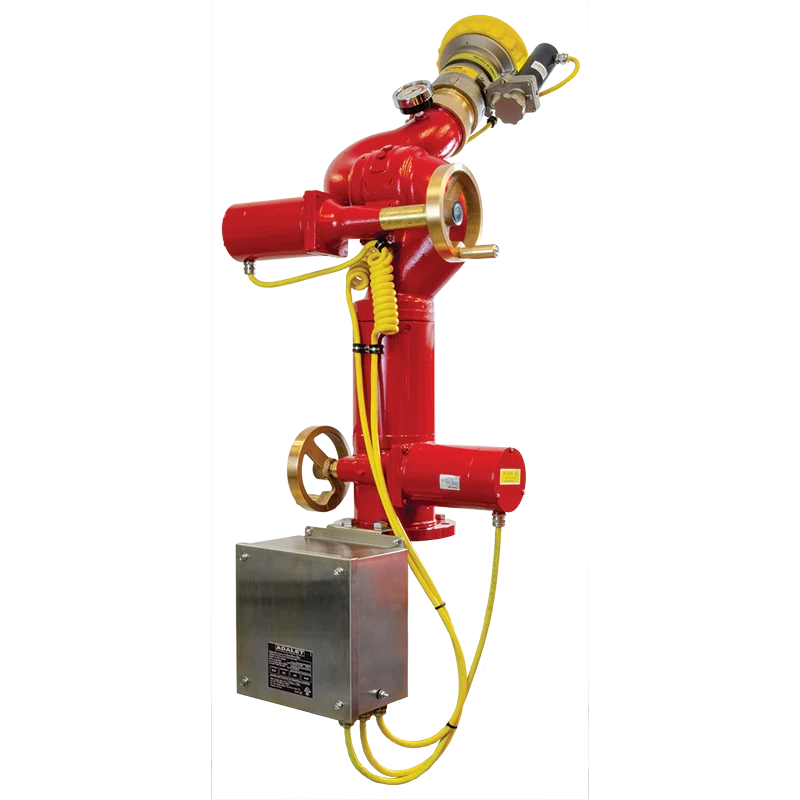

Combining modern technology with years of experience, Elkhart Brass industrial firefighting systems are designed for use in many different types of industrial settings, including: refineries, chemical plants, loading docks, tanker berthings, railroad yards and offshore platforms. Other vertical environments for our industrial systems include: waste management facilities, construction sites, agricultural processing facilities, mines, warehouses, and
Elkhart Brass has a strong global presence in several vertical markets in the Industrial fire suppression industry. These markets include Waste and recycling, Oil & Gas, Mining & Construction, Firefighting, and Wash Down. Elkhart Brass products provide a range of solutions that are designed to meet the flexibility and....
Elkhart Brass products provide a range of solutions that are designed to meet the flexibility and reliability required for modern fire suppression applications. Our remote controlled monitor system for hazardous locations is designed for use in many different types of industrial settings where the possibility of catast...
