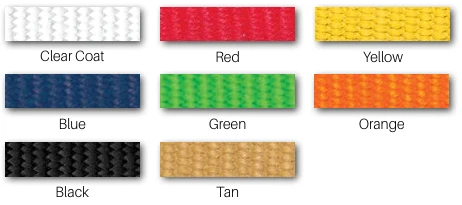

Color Swatch Options

About Eco-10

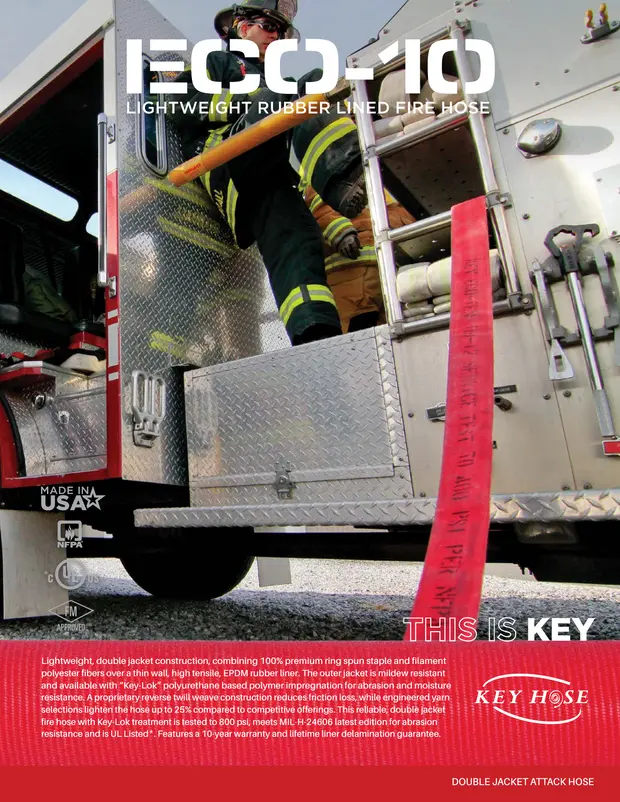

ECO-10 LIGHTWEIGHT RUBBER LINED FIRE HOSE * THIS IS KEY Lightweight, double jacket construction, combining 100% premium ring spun staple and filament polyester fibers over a thin wall, high tensile, EPDM rubber liner. The outer jacket is mildew resistant and available with “Key-Lok” polyurethane based polymer impregnation for abrasion and moisture resistance. The finished form shall be free of pits or other imperfections and have a smooth finish for better ECO-10 flow characteristics.

Technical details of Eco-10

Scope

Lightweight, double jacket construction, combining 100% premium ring spun staple and filament polyester fibers over a thin wall, high tensile, EPDM rubber liner.

Jacket Construction

The outer jacket is mildew resistant and available with “Key-Lok” polyurethane based polymer impregnation for abrasion and moisture resistance.

Abrasion

Hose assemblies shall be available with the special “Key-Lok” poly- urethane based polymer impregnation for added abrasion resistance and ease in identification purposes. Impregnated hose shall meet the NFPA colors may be specified by the end-user.

Lining

Lining The rubber lining shall be a single-ply extruded tube of synthetic high tensile EPDM compounded to resist ozone.

Couplings

Connection options are available to match apparatus and deployment preferences.

Performance and Standards

The finished form shall be free of pits or other imperfections and have a smooth finish for better ECO-10 flow characteristics. Meets or exceeds NFPA 1961. UL listing applies by diameter and pressure rating.

Diameter specifications of Eco-10

Diameter	Part No.	Service Test	Proof Test	Burst Test	Bowl Size	Weight Uncoupled
11/2"	DP15-800-ECO	400 psi	800 psi	1200 psi	115/16"	0.23 lbs/ft
13/4"	DP17-800-ECO	400 psi	800 psi	1200 psi	21/16"	0.28 lbs/ft
21/2"	DP25-800-ECO	400 psi	800 psi	1200 psi	3"	0.42 lbs/ft
3"	DP30-800-ECO	400 psi	800 psi	1200 psi	33/8"	0.56 lbs/ft
