About Key-Lite
KEY-LITE LIGHTWEIGHT POLYESTER FIRE HOSE THIS IS KEY Ultra light, double jacket construction, utilizing high strength ring spun and filament polyester fibers to deliver a highly abrasion resistant lightweight attack hose. The outer jacket is mildew resistant and available with iconic “Key-Lok” polyurethane based polymer impregnation for additional abrasion and moisture resistance. Lining KEY-LITE The lining shall be a single-ply extruded tube of synthetic polyure- thane to resist ozone.
Technical details of Key-Lite
Scope
Ultra light, double jacket construction, utilizing high strength ring spun and filament polyester fibers to deliver a highly abrasion resistant lightweight attack hose.
Jacket Construction
The outer jacket is mildew resistant and available with iconic “Key-Lok” polyurethane based polymer impregnation for additional abrasion and moisture resistance.
Abrasion
Hose assemblies shall be available with the special “Key-Lok” poly- urethane based polymer impregnation for added abrasion resistance and ease in identification purposes. Impregnated hose shall meet the NFPA colors may be specified by the end-user.
Lining
A dependable, polyurethane lining eliminates ozone deterioration while maintaining lightweight integrity of the hose.
Couplings
or forged Storz. Special threads or other custom features available 1961, on all Key-Lite diameters up to 3" shall be 1200 psi / 82 bar. Scope with current minimum requirements of NFPA 1962.
Performance and Standards
Lining KEY-LITE The lining shall be a single-ply extruded tube of synthetic polyure- thane to resist ozone. Meets or exceeds NFPA 1961. UL listing applies by diameter and pressure rating.
Diameter specifications of Key-Lite
| Diameter | Part No. | Service Test | Proof Test | Bowl Size | Weight Uncoupled |
|---|---|---|---|---|---|
| 1" | DP10-800-PU | 400 psi | 800 psi | 13/8" | 0.14lbs/ft |
| 11/2" | DP15-800-PU | 400 psi | 800 psi | 115/16" | 0.28 lbs/ft |
| 13/4" | DP17-800-PU | 400 psi | 800 psi | 2 1/8" | 0.30 lbs/ft |
| 21/2" | DP25-800-PU | 400 psi | 800 psi | 3" | 0.46 lbs/ft |
| 3" | DP30-800-PU | 400 psi | 800 psi | 3 1/2" | 0.62 lbs/ft |
Comparison with other MUNICIPAL hoses
Big-10
1" | 400 psi service
Combat-Ready
13/4" | 500 psi service
Combat-Sniper
1.78" | 500 psi service
Dura-Flow
1" | 300 psi service
Eco-10
11/2" | 400 psi service
Hy-Flow
4" | 300 psi service
Key-Lite
1" | 400 psi service
Magnum
11/2" | 400 psi service
Pro-Flow
3" | 300 psi service
Pro-Flow-HP
300 psi service
TRU-ID
1.75" | 400 psi service

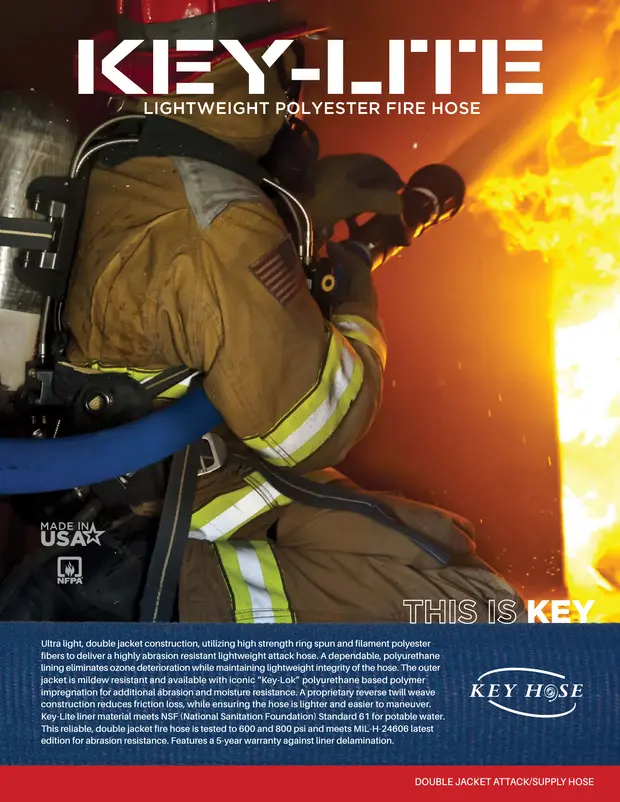

Key Hose Literature
