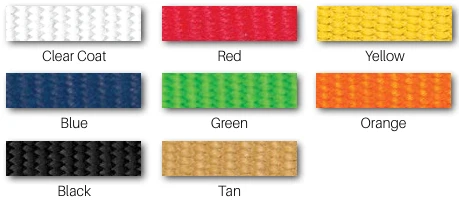

Color Swatch Options
Equipment / Key Hose
Big-10
MUNICIPAL
About Big-10
DOUBLE JACKET ATTACK HOSE RUBBER LINED ATTACK HOSE Abrasion Hose assemblies shall be available with the special “Key-Lok” poly- urethane based polymer impregnation for added abrasion resistance and ease in identification purposes. BIG-10 HEAVY DUTY RUBBER LINED FIRE HOSE * THIS IS KEY The standard in double jacket construction, combining 100% premium ring spun and filament polyester fibers over a heavy wall, ozone resistant, EPDM rubber liner. Hose furnished under these specifications will Fire hose manufactured to this specification shall meet or exceed all have a potential service life and warranty of 10 years with a lifetime warranty against performance requirements of NFPA.
Technical details of Big-10
Scope
The standard in double jacket construction, combining 100% premium ring spun and filament polyester fibers over a heavy wall, ozone resistant, EPDM rubber liner.
Jacket Construction
BIG-10 HEAVY DUTY RUBBER LINED FIRE HOSE * THIS IS KEY The standard in double jacket construction, combining 100% premium ring spun and filament polyester fibers over a heavy wall, ozone resistant, EPDM rubber liner.
Abrasion
Hose assemblies shall be available with the special “Key-Lok” poly- urethane based polymer impregnation for added abrasion resistance and ease in identification purposes. Impregnated hose shall meet the NFPA colors may be specified by the end-user.
Lining
Lining The rubber lining shall be a single-ply extruded tube of synthetic EPDM compounded to resist ozone.
Couplings
Connection options are available to match apparatus and deployment preferences.
Performance and Standards
Hose furnished under these specifications will Fire hose manufactured to this specification shall meet or exceed all have a potential service life and warranty of 10 years with a lifetime warranty against performance requirements of NFPA 1961, Underwriters Laboratories liner. Meets or exceeds NFPA 1961. UL listing applies by diameter and pressure rating.
Diameter specifications of Big-10
| Diameter | Part No. | Service Test | Proof Test | Burst Test | Bowl Size | Weight Uncoupled |
|---|---|---|---|---|---|---|
| 1" | DP10-800 | 400 psi | 800 psi | 1200 psi | 13/8" | 0.14 lbs/ft |
| 11/2" | DP15-800 | 400 psi | 800 psi | 1200 psi | 115/16" | 0.34 lbs/ft |
| 13/4" | DP17-800 | 400 psi | 800 psi | 1200 psi | 21/8" | 0.38 lbs/ft |
| 2" | DP20-800 | 400 psi | 800 psi | 1200 psi | 22/5" | 0.39 lbs/ft |
| 21/2" | DP25-800 | 400 psi | 800 psi | 1200 psi | 3" | 0.54 lbs/ft |
| 3" | DP30-800 | 400 psi | 800 psi | 1200 psi | 31/2" | 0.74 lbs/ft |
| 31/2" | DP35-600 | 300 psi | 600 psi | 900 psi | 45/16" | 0.90 lbs/ft |
Comparison with other MUNICIPAL hoses
Big-10
1" | 400 psi service
Combat-Ready
13/4" | 500 psi service
Combat-Sniper
1.78" | 500 psi service
Dura-Flow
1" | 300 psi service
Eco-10
11/2" | 400 psi service
Hy-Flow
4" | 300 psi service
Key-Lite
1" | 400 psi service
Magnum
11/2" | 400 psi service
Pro-Flow
3" | 300 psi service
Pro-Flow-HP
300 psi service
TRU-ID
1.75" | 400 psi service
