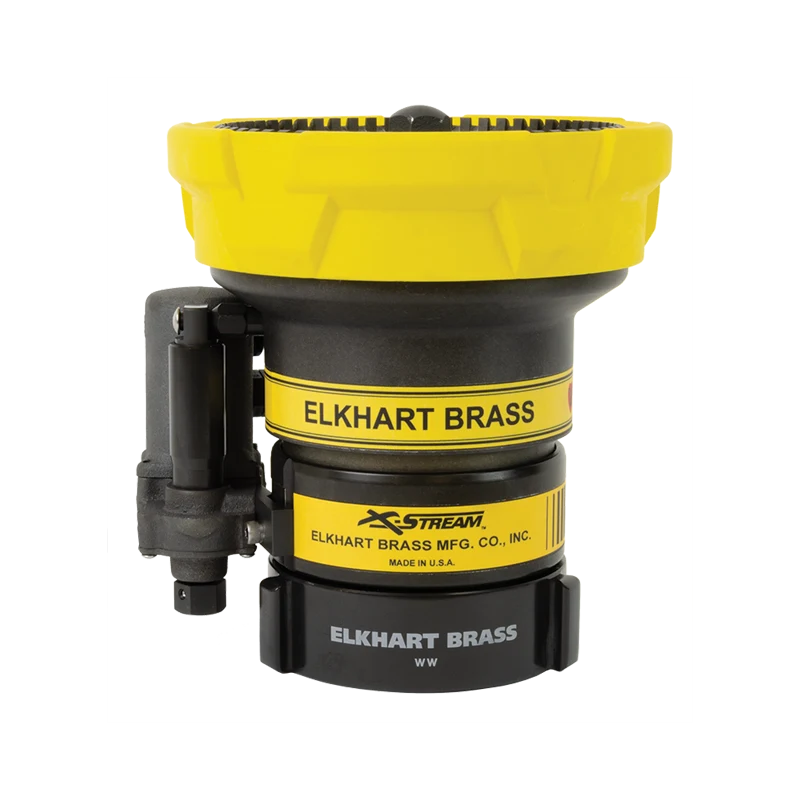

X-Stream
The X-Stream line is broader than a single nozzle choice. Manual, hydraulic, electric, hazardous-location, and gas-mitigation versions all sit inside the same family. This page breaks them into a specification view that is easier to work with during apparatus design, industrial projects, and retrofit planning.
Family Snapshot
How the X-Stream family breaks down
Manual bodies
SM-1250B and SM-2000B use large handles for manual pattern adjustment and stay focused on traditional apparatus monitor setups.
Hydraulic actuation
SM-1250HB and SM-2000HB move pattern control to a hydraulic actuator while keeping the same primary flow bands.
Electric and hazardous
The BE-HL models support electronic pattern control, with hazardous-location approvals available for industrial work.
Gas mitigation
Gas-mitigation variants use a wide fog pattern package where vapor suppression, not reach alone, drives the selection.
Model Comparison
| Model | Flow Range | Control Format | Inlet |
|---|---|---|---|
| 350 to 1250 gpm at 75 psi | Manual pattern control | 2.5" or 3.5" | |
| FM approved. | |||
| 350 to 1250 gpm at 75 psi | Hydraulic actuator | 2.5" or 3.5" | |
| Remote stream-pattern control. | |||
| 500 to 2000 gpm at 80 psi | Manual pattern control | 3.5" | |
| FM approved. | |||
| 500 to 2000 gpm at 80 psi | Hydraulic actuator | 3.5" | |
| Remote stream-pattern control. | |||
| 350 to 1250 gpm at 75 psi | Electronic motor | 3.5" | |
| FM approved or ATEX option. | |||
| 500 to 2000 gpm at 80 psi | Electronic motor | 3.5" | |
| FM approved or ATEX option. | |||
| 350 to 1250 gpm at 75 psi | Electronic motor | 3.5" | |
| Gas-mitigation fog application. | |||
| 500 to 2000 gpm at 80 psi | Electronic motor | 3.5" | |
| Gas-mitigation fog application. | |||
Where each subgroup fits
- Manual models make sense when operators want direct local control and a simpler apparatus plumbing package.
- Hydraulic variants help when pattern control has to move back to a remote operator position without changing the basic flow band.
- Electronic hazardous-location models are aimed at industrial work where monitor/nozzle control and area classification both matter.
- Gas-mitigation variants are for vapor control packages that need broad fog performance rather than straight-stream emphasis.
Selection Notes
- The primary split in this family is the flow band: 350-1250 gpm or 500-2000 gpm.
- The second split is control method: manual handles, hydraulic actuator, or electric motor.
- The third split is environment: standard apparatus use, hazardous location, or gas mitigation.
- That structure is why X-Stream usually needs a full package discussion instead of a one-line model callout.
Support Documents
PDFs, Drawings, and Performance References
Dimensional Drawing
SM-series dimensional reference for installation and packaging work.
Parts Drawing
Useful when service teams need exploded-view support on the nozzle family.
Manual: SM-1000 to SM-2000B
Core operating and service manual for the manual X-Stream line.
Manual: Electric Models
Reference for electric X-Stream variants used in remote-control applications.
Performance Chart
Published X-Stream performance chart for flow and operating reference.
Product Selection Chart
Useful for narrowing the family before you drop into the detailed dimensional and approval documents.
