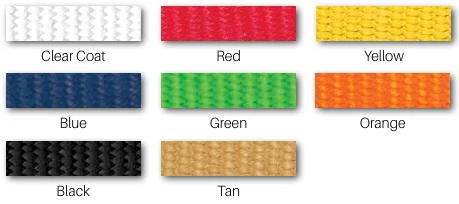

Color Swatch Options
Equipment / Key Hose
Eco-10
INDUSTRIAL
About Eco-10
ECO-10 LIGHTWEIGHT RUBBER LINED FIRE HOSE * THIS IS KEY Lightweight, double jacket construction, combining 100% premium ring spun staple and filament polyester fibers over a thin wall, high tensile, EPDM rubber liner. The outer jacket is mildew and moisture resistant, available with “Key-Lok” polyurethane based polymer impregnation which shall meet the requirements of MIL-H-24606 latest edition for abrasion resistance. The finished form shall be free of pits or other imperfections and have a smooth finish for better flow characteristics.
Technical details of Eco-10
Scope
Lightweight, double jacket construction, combining 100% premium ring spun staple and filament polyester fibers over a thin wall, high tensile, EPDM rubber liner.
Jacket Construction
The outer jacket is mildew and moisture resistant, available with “Key-Lok” polyurethane based polymer impregnation which shall meet the requirements of MIL-H-24606 latest edition for abrasion resistance.
Abrasion
Hose assemblies shall be available with the special “Key-Lok” poly- urethane based polymer impregnation for added abrasion resistance and ease in identification purposes. Impregnated hose shall meet the NFPA colors may be specified by the end-user.
Lining
* Lining ECO-10 The rubber lining shall be a single-ply extruded tube of synthetic high tensile EPDM compounded to resist ozone.
Couplings
Connection options are available to match apparatus and deployment preferences.
Performance and Standards
The minimum burst test pressure, when tested in accordance to NFPA 1961, on all Eco-10 diameters up to 3" shall be 1200 psi / 82 bar. Minimum burst test requirements for 4" and 5" diameters shall be 900 Meets or exceeds NFPA 1961. UL listing applies by diameter and pressure rating.
Diameter specifications of Eco-10
| Diameter | Part No. | Service Test | Proof Test | Burst Test | Bowl Size | Weight Uncoupled |
|---|---|---|---|---|---|---|
| 1" | DP10-800 | 400 psi | 800 psi | 1200 psi | 13/8" | 0.14 lbs/ft |
| 11/2" | DP15-800-ECO | 400 psi | 800 psi | 1200 psi | 115/16" | 0.23 lbs/ft |
| 13/4" | DP17-800-ECO | 400 psi | 800 psi | 1200 psi | 21/16" | 0.28 lbs/ft |
| 2" | DP20-800 | 400 psi | 800 psi | 1200 psi | 22/5" | 0.31 lbs/ft |
| 21/2" | DP25-800-ECO | 400 psi | 800 psi | 1200 psi | 3" | 0.42 lbs/ft |
| 3" | DP30-800-ECO | 400 psi | 800 psi | 1200 psi | 33/8" | 0.56 lbs/ft |
| 4" | DP40-600 | 300 psi | 600 psi | 900 psi | 41/2" | 0.82 lbs/ft |
| 5" | DP50-600 | 300 psi | 600 psi | 900 psi | 51/2" | 1.14 lbs/ft |
