Super X-Strut
Heavy-Duty Vehicle Stabilization Struts
Res-Q-Jack's premium heavy-duty stabilization and lifting strut for large vehicles, structural collapse, mine rescue, and high-load shoring work.
Super X-Strut | Our Strongest Heavy-Duty Lifting Strut
Overview
The Super X-Strut is Res-Q-Jack's premium stabilization and lifting strut and is capable of stabilizing and lifting large vehicles, structural collapse loads, and mine rescue scenarios.
The strut is milled from solid aluminum and uses threaded collars instead of standard pins, giving crews a faster-deploying package with higher-end stabilization and lifting performance.
Duty Class
Heavy-Duty Vehicle Stabilization Struts
Model Count
2
Span Range
51.5" to 100"
Max Column WLL
19,300 lbs.
Max Lifting WLL
6,000 lbs.
Weight Range
36 to 46 lbs.
Product Features
The product images below come from your local Super X-Strut files, and the feature copy follows the same sequence shown on those graphics.

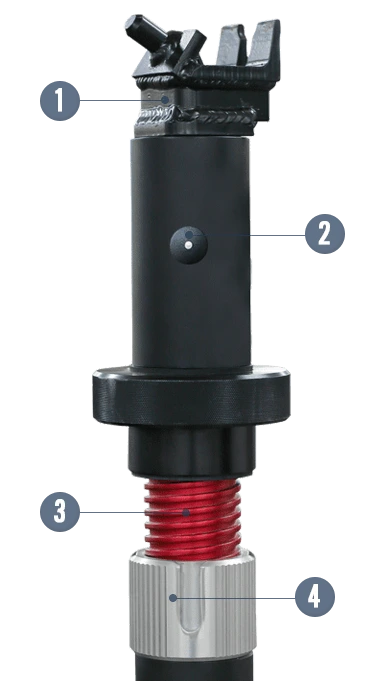

1. Swivel CRG End Fitting
The Super X-Strut comes standard with the Swivel CRG head fitting, giving crews multiple purchase-point options and 360 degree rotation to quickly find the right contact point.
2. Quick-Release End Fittings
Change end fittings with a single retaining pin. Because the Super X-Strut is compatible with other manufacturers' end fittings, crews can swap components during mutual aid operations.
3. Pin-Free Operation
The threaded tube design eliminates setup pins and allows infinitesimal height adjustment when stabilizing, lifting, or lowering a load.
4. Aluminum Construction
The strut is milled from solid 6061-T6 aluminum for high strength in shoring, stabilization, and lifting without unnecessary weight.

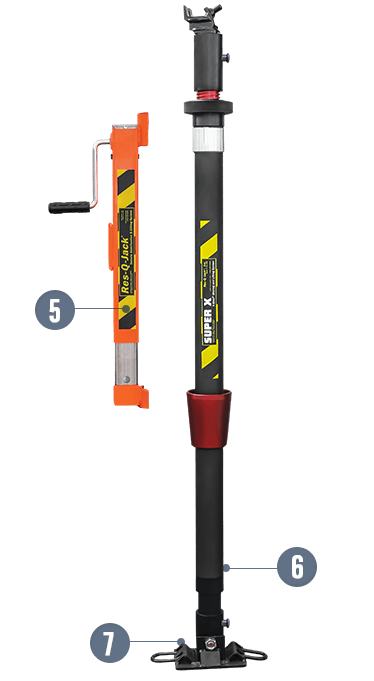

5. X-Strut Lifting Power
With the removable mechanical Add-On Jack, the Super X-Strut converts from shoring strut to lifting strut in seconds, delivering 6,000 lbs. of lift capacity with 12" of travel before reset.
6. Available Air Fitting
Air fitting availability gives departments a path to integrate the Super X-Strut into pneumatic stabilization and lifting systems when the application requires it.
7. Base-Mounted D-Rings
Pivoting rings built into the base plate support fast attachment of straps, hooks, and chains, and they can also serve as a picket receiver when anchoring is required.
Heavy-Duty Vehicle Stabilization Struts Comparison
This table keeps the heavy-duty strut families on one sheet so crews can compare reach, load, lift, and carry weight across the top-end stabilization packages.
| Product | Models | Span Range | Max Column WLL | Max Lifting WLL | Weight Range |
|---|---|---|---|---|---|
| Super X-Strut | 2 | 51.5" to 100" | 19,300 lbs. | 6,000 lbs. | 36 to 46 lbs. |
 Apex X-Strut | 2 | 45.125" to 91.5" | 12,500 lbs. | 6,000 lbs. | 33 to 41 lbs. |
 Aluminum X-Strut | 3 | 40" to 98" | 9,700 lbs. | 6,000 lbs. | 30 to 42 lbs. |
