Apex X-Strut
Heavy-Duty Vehicle Stabilization Struts
A heavy-duty lifting strut that builds on the user-friendly Auto X-Strut design with more capability, smoother adjustment, and added control under load.
Apex X-Strut | Heavy-Duty Lifting Strut
Overview
The Apex X-Strut takes the user-friendly Auto X-Strut concept and scales it up for heavier-duty stabilization and lifting work.
Its combination of a threaded inner tube and square outer tube allows for a built-in ratchet on the standard strut, plus an internal positive stop that reduces over-extension risk.
Duty Class
Heavy-Duty Vehicle Stabilization Struts
Model Count
2
Span Range
45.125" to 91.5"
Max Column WLL
12,500 lbs.
Max Lifting WLL
6,000 lbs.
Weight Range
33 to 41 lbs.
Product Features
The product images below come from your local Apex X-Strut files, and the feature copy follows the same sequence shown on those graphics.

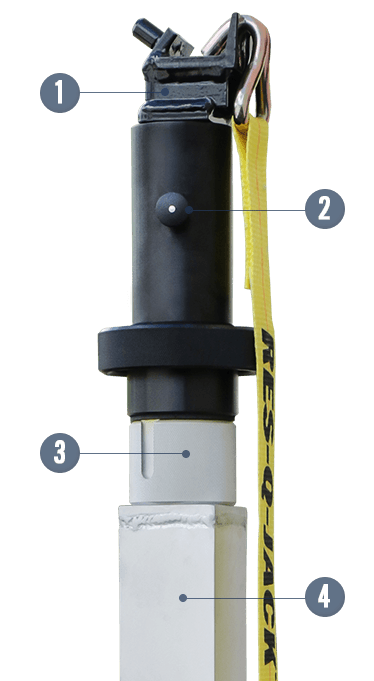

1. Swivel CRG End Fitting
The Apex X-Strut comes standard with the Swivel CRG head fitting, giving crews multiple purchase-point options and 360 degree rotation to quickly find the right contact point.
2. Quick-Release Head Fittings
Change head fittings with a single retaining pin. Apex X-Strut works with Res-Q-Jack pin-free end fittings and other manufacturers' fittings for mutual aid flexibility.
3. Pin-Free / Twist-Free Operation
The threaded inner tube allows fast, smooth adjustment without pins, while the positive-stop design helps keep the inner tube from rotating under lighter loads and reduces over-extension risk.
4. Aluminum Construction
A milled aluminum inner tube paired with a welded aluminum chassis delivers strength for shoring, stabilization, and lifting without adding unnecessary weight.

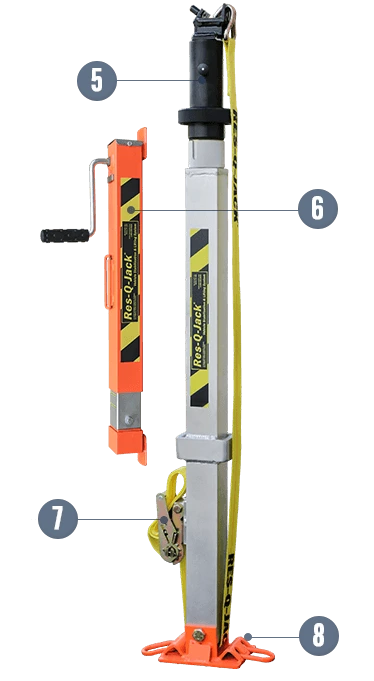

5. Compatible Head Fittings
Quick-release fittings detach in seconds so crews can add extensions for more length or swap in fittings from other manufacturers.
6. X-Strut Lifting Power
With the removable mechanical Add-On Jack, the Apex X-Strut converts from shoring strut to lifting strut in seconds, delivering 6,000 lbs. of lift capacity with 12" of travel before reset.
7. Built-In Ratchet Strap
The standard strut includes a built-in ratchet strap with wire hooks so the strap stays right where crews need it. This feature is not offered on the short strut.
8. Base-Mounted D-Rings
Pivoting rings built into the base plate support fast attachment of straps, hooks, and chains, and they can also serve as a picket receiver when anchoring is required.
Heavy-Duty Vehicle Stabilization Struts Comparison
This table keeps the heavy-duty strut families on one sheet so crews can compare reach, load, lift, and carry weight across the top-end stabilization packages.
| Product | Models | Span Range | Max Column WLL | Max Lifting WLL | Weight Range |
|---|---|---|---|---|---|
 Super X-Strut | 2 | 51.5" to 100" | 19,300 lbs. | 6,000 lbs. | 36 to 46 lbs. |
| Apex X-Strut | 2 | 45.125" to 91.5" | 12,500 lbs. | 6,000 lbs. | 33 to 41 lbs. |
 Aluminum X-Strut | 3 | 40" to 98" | 9,700 lbs. | 6,000 lbs. | 30 to 42 lbs. |
