HURST SP777 Spreader
High-capacity spreader with long reach and force balance.
Product Profile
SP777 is positioned as a broad-capability spreader for crews handling varied rescue geometry.
Literature values show a strong force profile, long working range, and IP68 durability.
Quantitative details of HURST SP777 Spreader
Length
39.3 in
Width
12.2 in
Height
9.96 in
Weight
51.6 lbs
Spreading distance
32 in
Max spreading force
134,900 lbs
Max pulling force
13,490 lbs
NFPA HSF
19,110 lbs
NFPA LSF
13,260 lbs
NFPA HPF
11,016 lbs
NFPA LPF
6,744 lbs
Ingress protection
IP68
NFPA 1960:2024 compliant
Yes
Spreaders Comparison Region
M40 Spreader
- Spread: 40.1 in
- Max spread: 112,400 lbs
- Weight: 54.9 lbs
SP333 Spreader
- Spread: 23.6 in
- Max spread: 187,940 lbs
- Weight: 37.5 lbs
SP777 Spreader
- Spread: 32 in
- Max spread: 134,900 lbs
- Weight: 51.6 lbs
Current product
SP555 E2 Spreader
- Spread: 28.7 in
- Max spread: 147,924 lbs
- Pull: 13,039 lbs
HURST SP777 Spreader Literature
Brochure thumbnails below link directly to local PDFs.

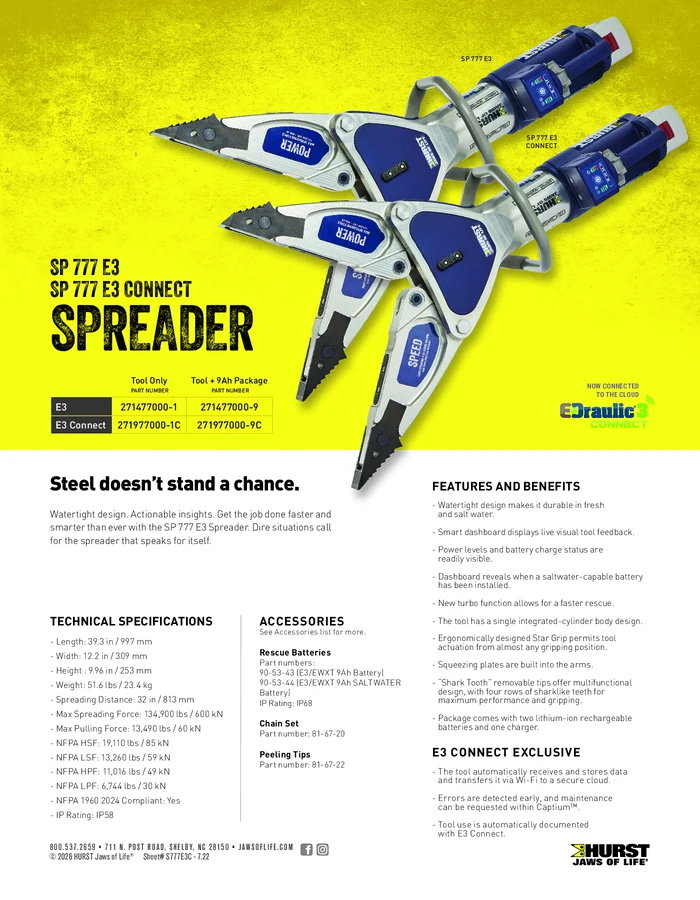

E3 Connect_SP777_New_v4.pdf

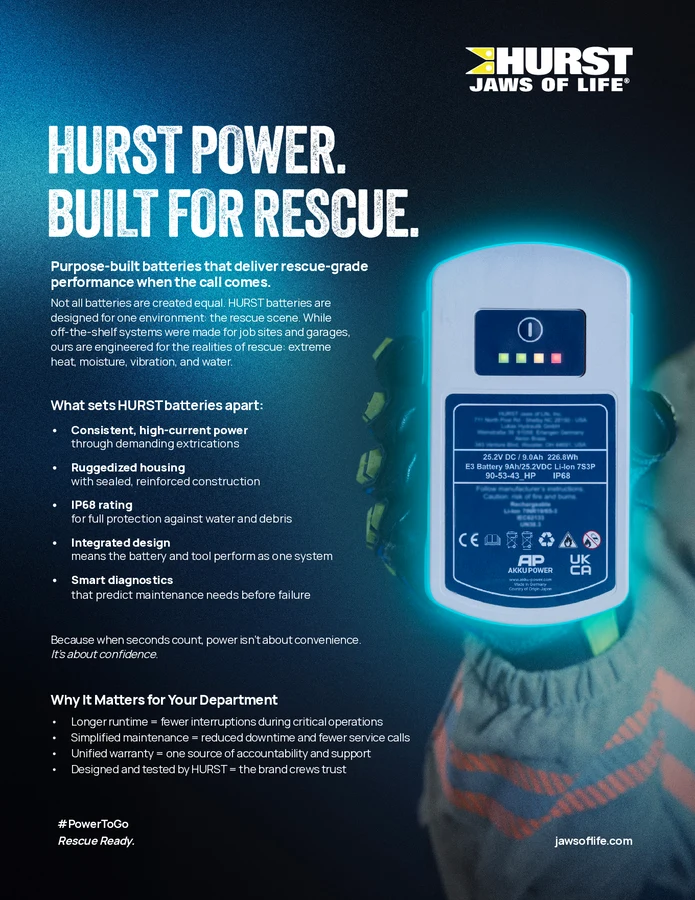

HURST_Battery_DealerFlyer.pdf
