HURST SP555 E2 Spreader
Mid-size E2 spreader with strong spread and pull values for departments keeping the earlier battery platform in service.
Product Profile
SP555 E2 gives crews a lighter E2-series spreader package while still posting strong max spreading and pulling numbers for everyday rescue work.
The source-page specifications include a 28.7 in spread, 147,924 lb max spreading force, IP54 protection, and 2024 NFPA compliance.
Quantitative details of HURST SP555 E2 Spreader
Brand
HURST
Inventory type
Finished Good
Length
39.4 in
Width
10.4 in
Height
11 in
Spreading distance
28.7 in
Max spreading force
147,924 lbs
Max pulling force
13,039 lbs
NFPA HSF
16,186 lbs
NFPA LSF
11,016 lbs
NFPA HPF
10,341 lbs
NFPA LPF
6,925 lbs
Ingress protection
IP54
NFPA 1960:2024 compliant
Yes
Spreaders Comparison Region
M40 Spreader
- Spread: 40.1 in
- Max spread: 112,400 lbs
- Weight: 54.9 lbs
SP333 Spreader
- Spread: 23.6 in
- Max spread: 187,940 lbs
- Weight: 37.5 lbs
SP777 Spreader
- Spread: 32 in
- Max spread: 134,900 lbs
- Weight: 51.6 lbs
SP555 E2 Spreader
- Spread: 28.7 in
- Max spread: 147,924 lbs
- Pull: 13,039 lbs
Current product
HURST SP555 E2 Spreader Literature
Brochure thumbnails below link directly to local PDFs.

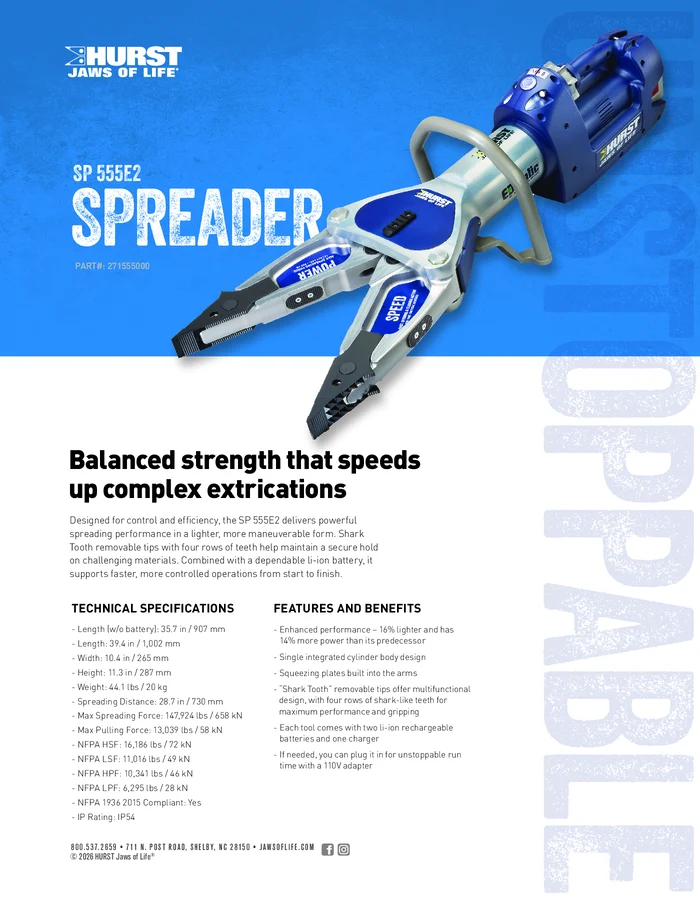

E2_SP555_Flyer_v3.pdf

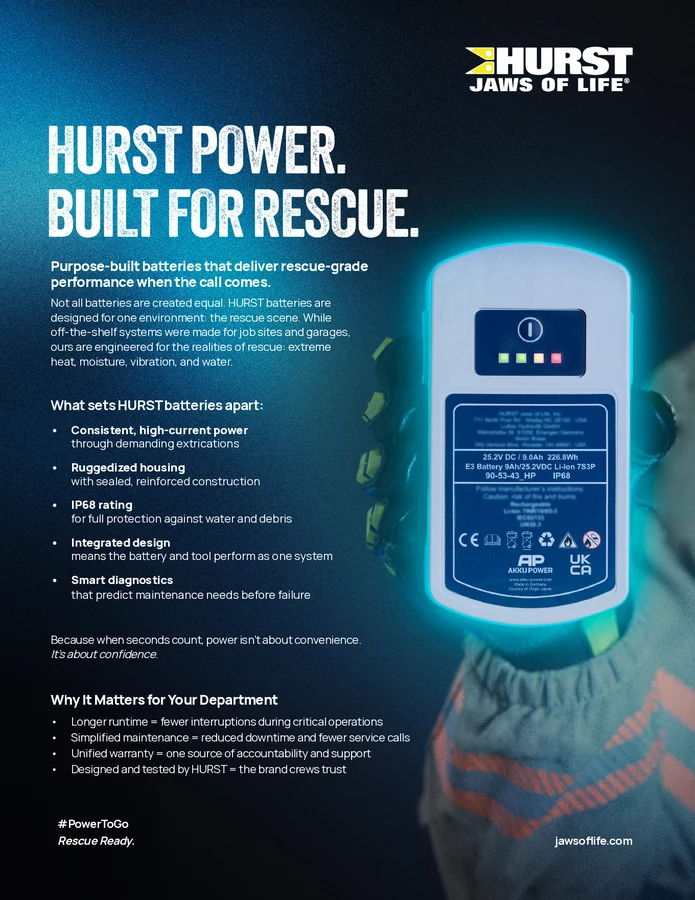

HURST_Battery_DealerFlyer.pdf

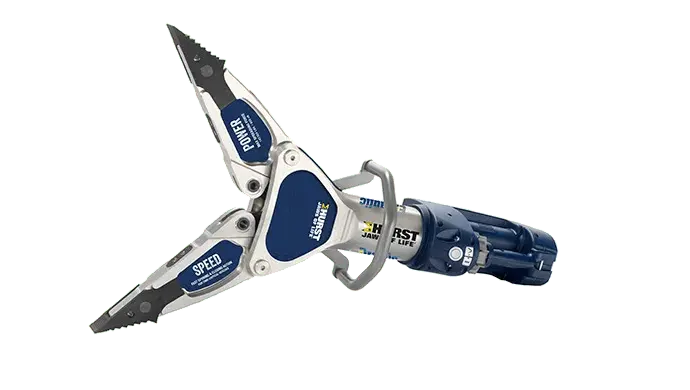

SP-555-E3-Product-Specifications.doc
