HURST EXTRICATION

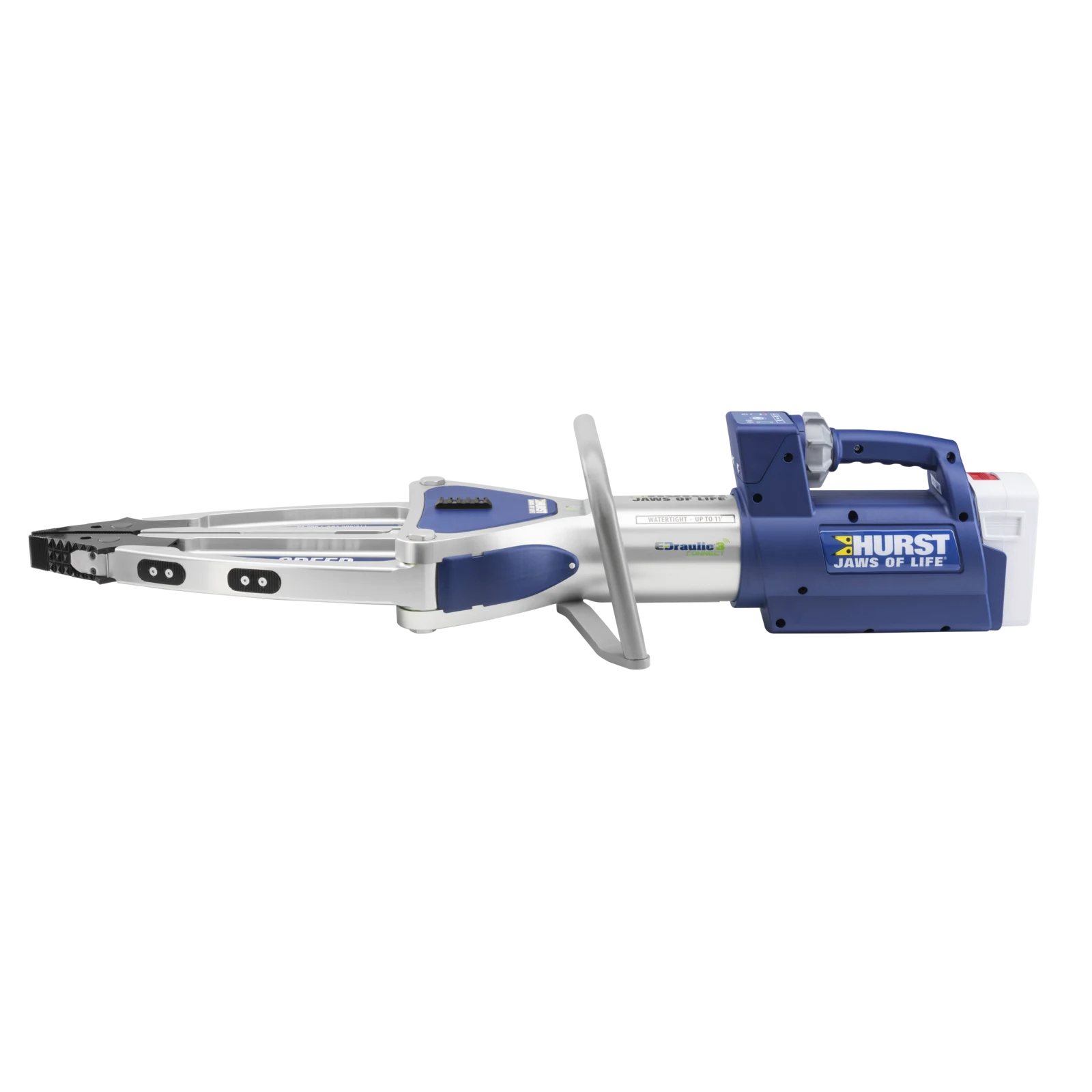

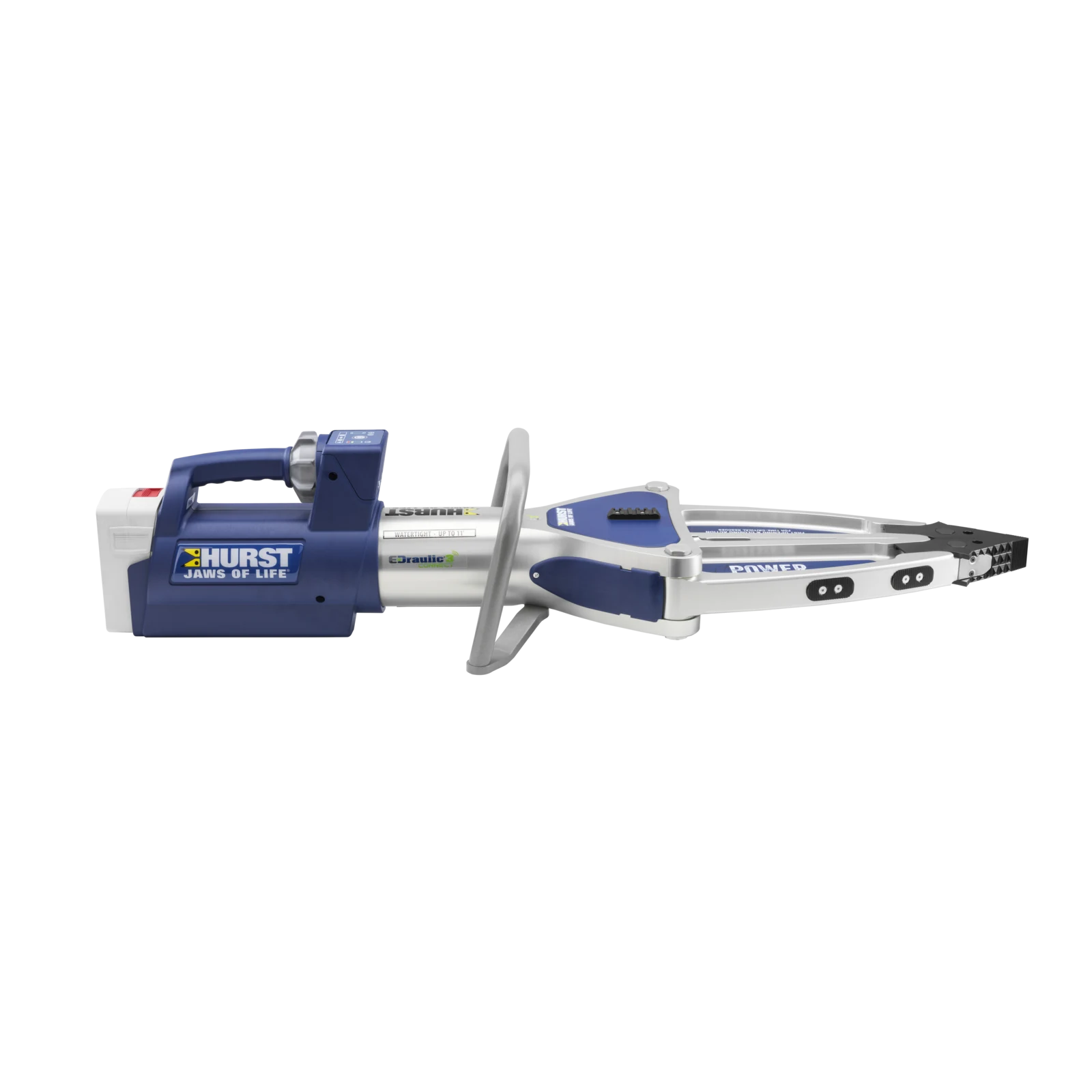

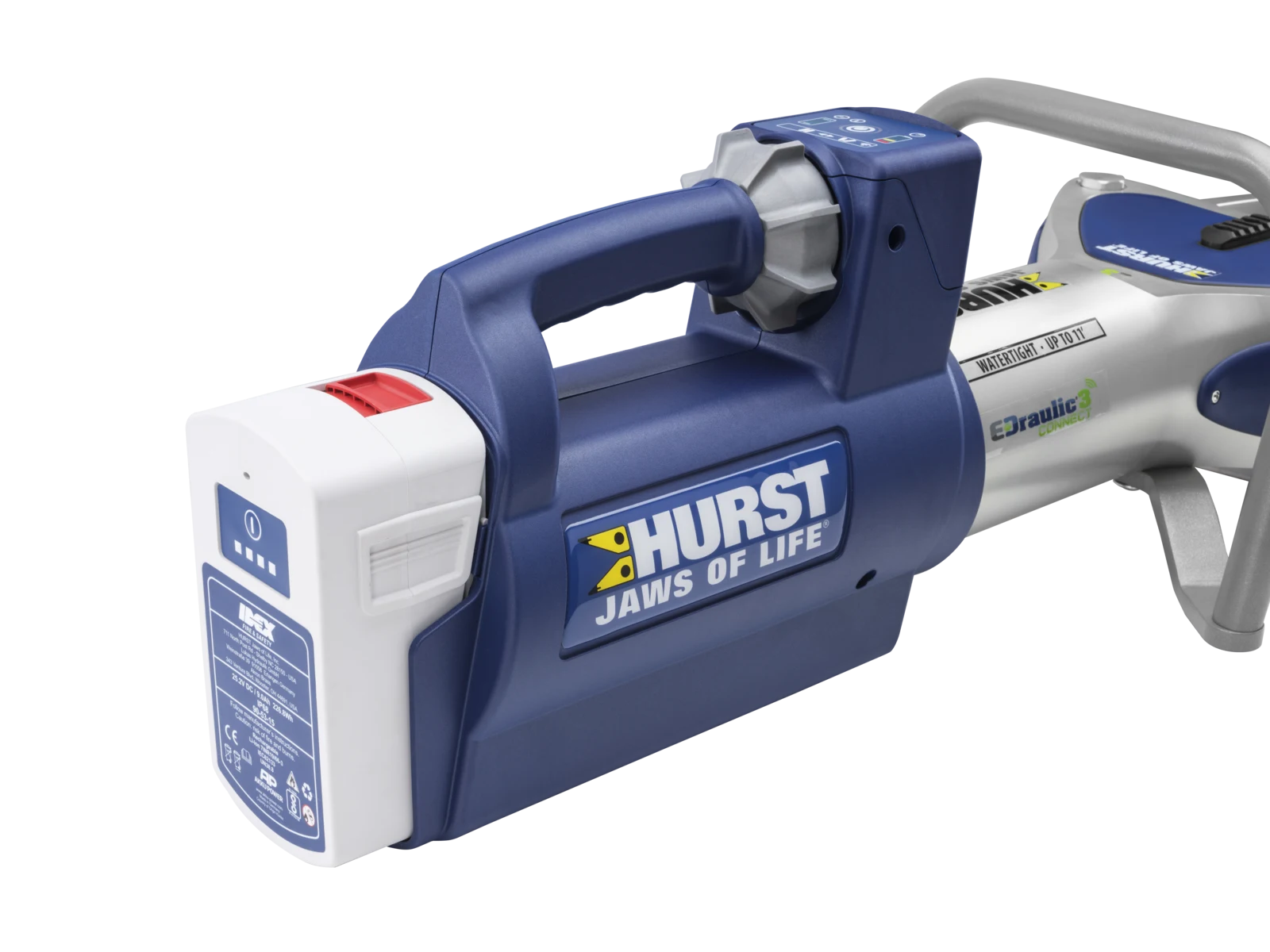

HURST M40 Spreader
Wide-opening spreader for high displacement and pull work.
Product Profile
M40 is a heavy spreader profile with a large opening range and balanced spread/pull force performance.
It includes full NFPA force-class values and IP68 protection in the published literature.
Quantitative details of HURST M40 Spreader
Length
43.6 in
Width
12.1 in
Height
9.96 in
Weight
54.9 lbs
Spreading distance
40.1 in
Max spreading force
112,400 lbs
Max pulling force
11,240 lbs
NFPA HSF
16,190 lbs
NFPA LSF
10,120 lbs
NFPA HPF
9,442 lbs
NFPA LPF
5,171 lbs
Ingress protection
IP68
NFPA 1960:2024 compliant
Yes
Spreaders Comparison Region
M40 Spreader
- Spread: 40.1 in
- Max spread: 112,400 lbs
- Weight: 54.9 lbs
Current product
SP333 Spreader
- Spread: 23.6 in
- Max spread: 187,940 lbs
- Weight: 37.5 lbs
SP777 Spreader
- Spread: 32 in
- Max spread: 134,900 lbs
- Weight: 51.6 lbs
SP555 E2 Spreader
- Spread: 28.7 in
- Max spread: 147,924 lbs
- Pull: 13,039 lbs
HURST M40 Spreader Literature
Brochure thumbnails below link directly to local PDFs.

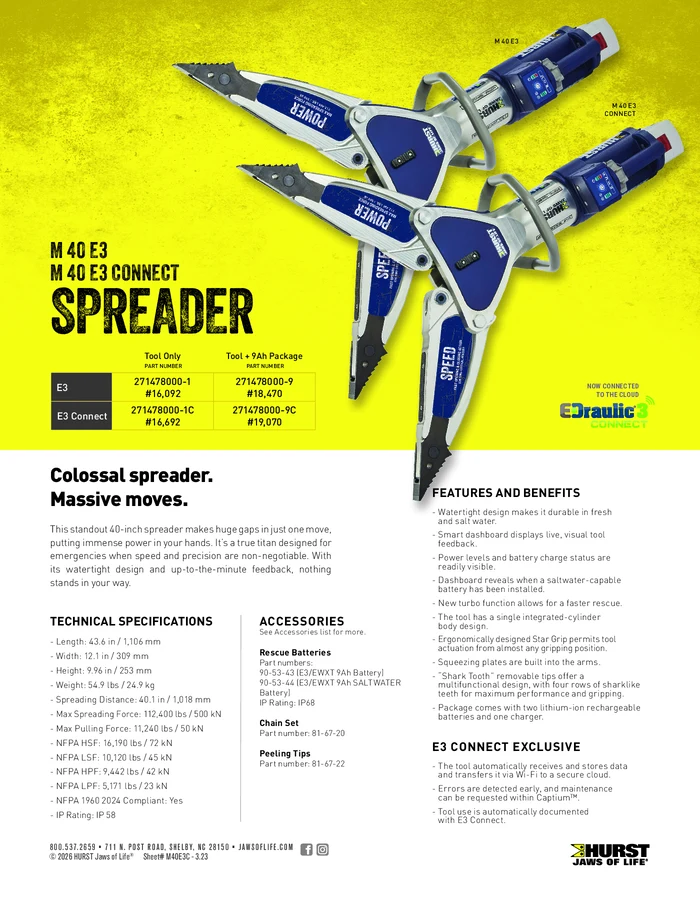

E3 Connect_M40_New_V4.pdf

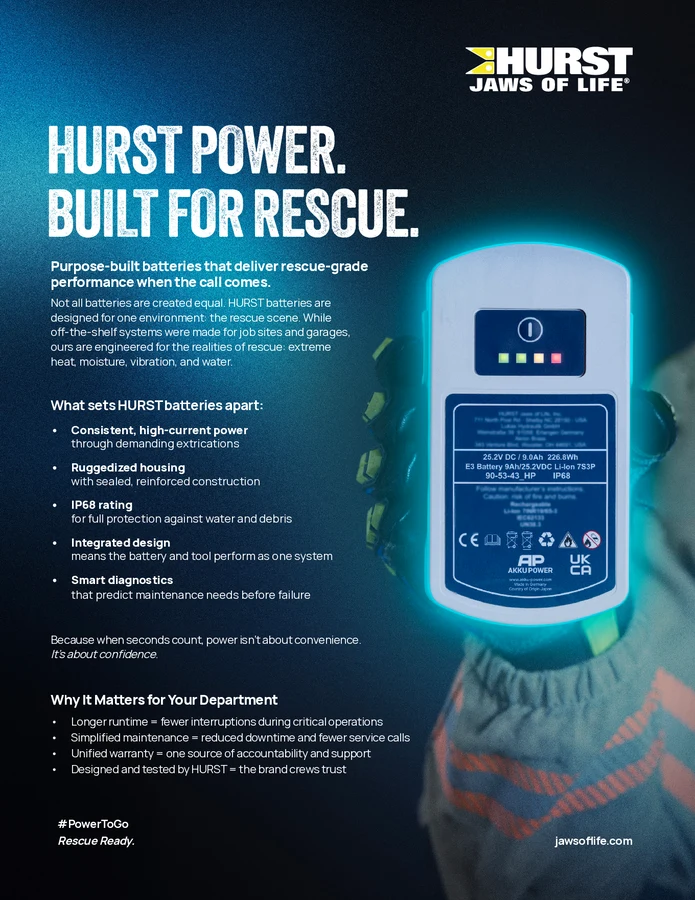

HURST_Battery_DealerFlyer.pdf
