Steel X-Strut
Standard-Duty Vehicle Stabilization Struts
The original standard-duty X-Strut, built to cover common rescue scenarios with enough lifting and stabilization capacity for most vehicle rescue work.
The Original X-Strut | Standard Lifting Strut
Overview
The Steel X-Strut is the strut that started the Add-On Jack approach and remains one of the most well-rounded steel stabilization struts in the Res-Q-Jack line.
Positioned between GreenLite economy models and the premium Aluminum X-Strut, it delivers the core X-Strut functionality with enough working load for common rescue scenarios.
Duty Class
Standard-Duty Vehicle Stabilization Struts
Model Count
2
Span Range
40" to 81.5"
Max Column WLL
4,000 lbs.
Max Lifting WLL
4,000 lbs.
Weight Range
27 to 38 lbs.
Product Features
The product images below come from your local Steel X-Strut files, and the feature copy follows the same sequence shown on those graphics.

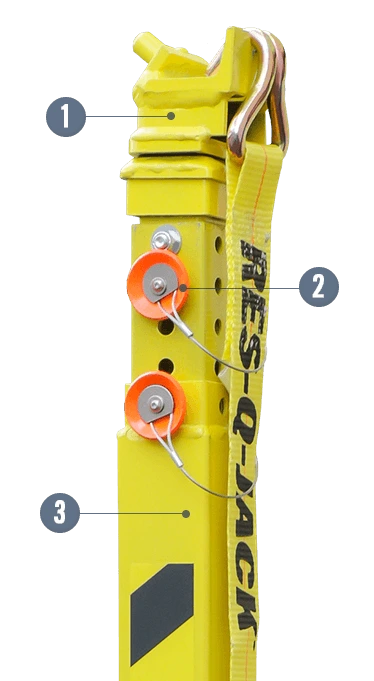

1. Swivel CRG End Fitting
The Steel X-Strut comes standard with the Swivel CRG head fitting, giving crews multiple purchase-point options and 360 degree rotation to quickly find the right contact point.
2. Ergonomic Cone Pins
The exclusive cone pin design uses a flared end that is easier to grip, harder to lose on scene, and helps line up the Add-On Jack quickly.
3. Rugged Steel Construction
The Steel X-Strut is built from durable steel for 4,000 lbs. of strength and then powder coated for years of field durability.

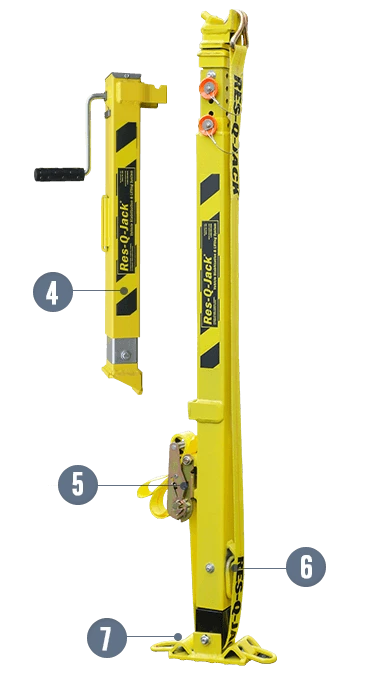

4. X-Strut Lifting Power
With the removable mechanical Add-On Jack, the Steel X-Strut converts from shoring strut to lifting strut in seconds, delivering 4,000 lbs. of lift capacity with 12" of travel before reset.
5. Built-In Ratchet Strap
The standard Steel X-Strut includes a chassis-mounted ratchet strap with wire hooks so the strap stays right where crews need it. This is not offered on short struts.
6. Strut-Mounted D-Ring
An added D-ring mounted directly to the strut chassis on the standard-length strut gives crews another attachment point for straps and hooks.
7. Base-Mounted D-Rings
Pivoting rings built into the base plate support fast attachment of straps, hooks, and chains, and they can also double as a picket receiver when anchoring is required.
Model Specifications
Each family variant below reflects the published Steel X-Strut item number, span, rated working load, lifting load, and weight data from your local source document.
SSX-STRT
Short Strut - 40" to 59"
| Column WLL | 4,000 lbs. |
|---|---|
| Lifting WLL | 4,000 lbs. |
| Extended Height | 59" |
| Collapsed Height | 40" |
| Weight | 27 lbs* |
STX-STRT
Standard Strut - 53.5" to 81.5"
| Column WLL | 4,000 lbs. |
|---|---|
| Lifting WLL | 4,000 lbs. |
| Extended Height | 81.5" |
| Collapsed Height | 53.5" |
| Weight | 38 lbs* |
Standard-Duty Vehicle Stabilization Struts Comparison
This table keeps the related strut families in the same duty class on one sheet so span, column rating, lifting rating, and weight tradeoffs are easy to compare.
| Product | Models | Span Range | Max Column WLL | Max Lifting WLL | Weight Range |
|---|---|---|---|---|---|
|
Steel X-Strut
|
2 | 40" to 81.5" | 4,000 lbs. | 4,000 lbs. | 27 to 38 lbs. |
RJ3 Jackstand
|
4 | 36.5" to 106" | 4,000 lbs. | 4,000 lbs. | 37 to 53 lbs. |
