RJ3 Series Jackstands

Standard-Duty Vehicle Stabilization Struts

The RJ3 family gives departments four standard-duty stabilization and lifting configurations, pairing traditional adjustable stands and jackstands with SpaceSaver layouts for tighter packaging and extended reach.

Adjustable Stands And Jackstands

Overview

RJ3 is the standard-duty stabilization family for crews that need adjustable support columns, mechanical lifting capability on selected models, and a clear path to spec either a traditional frame or a tighter SpaceSaver package.

Across the family, the range starts at 36.5" collapsed and reaches up to 106" extended, with column ratings up to 4,000 lbs. The adjustable stand models focus on stabilization, while the jackstand models add matching 4,000 lb. lifting capability.

Duty Class

Standard-Duty Vehicle Stabilization Struts

Model Count

Span Range

36.5" to 106"

Max Column WLL

4,000 lbs.

Max Lifting WLL

4,000 lbs.

Weight Range

37 to 53 lbs.

Family Configurations

This family is split into two decision points: traditional RJ3 vs. SpaceSaver packaging, and stabilization-only adjustable stands vs. lifting-capable jackstands.

RJ3 Adjustable Stand

The standard RJ3 adjustable stand is the stabilization-only option for departments that need tall working range and a straightforward support column without the lifting jack assembly.

RJ3 Jackstand

The standard RJ3 jackstand keeps the larger-frame layout and adds mechanical lifting capability, making it the right fit when the same tool needs to stabilize and raise the load.

SpaceSaver Adjustable Stand

The SpaceSaver adjustable stand trims the package down for tighter compartments and compact rescue loads while staying focused on pure stabilization duty.

SpaceSaver Jackstand

The SpaceSaver jackstand gives crews the compact frame of the SpaceSaver models, but adds the same 4,000 lb. lifting capability available in the full RJ3 jackstand.

How To Spec The RJ3 Family

Choose Stand Or Jackstand

If the assignment is stabilization only, the adjustable stand versions keep the tool lighter and simpler. If crews need to stabilize and lift with the same unit, move to the jackstand versions with 4,000 lb. lifting capacity.

Choose Standard Or SpaceSaver

The standard RJ3 frame fits departments that want a conventional layout, while the SpaceSaver versions are built for tighter packaging and crews prioritizing compact storage without giving up working height.

Match Span To Vehicle Profile

The family stretches from 36.5" collapsed to 106" extended, so the real decision is whether your rescue profile needs the extra reach of the jackstand models or the lower stowed height of the SpaceSaver adjustable stand.

Model Specifications

Each card below reflects the local RJ3 technical sheets so the family can be compared by layout, reach, lifting capability, and carry weight.

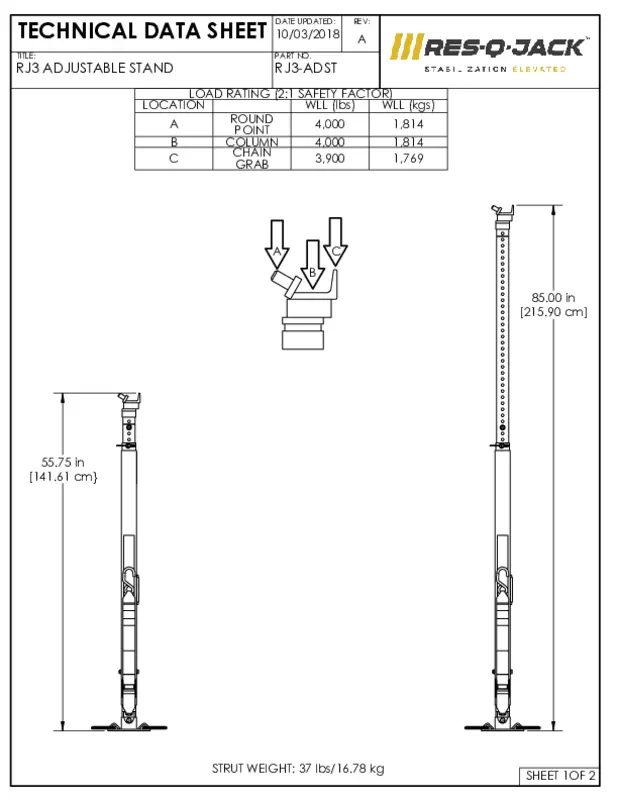

RJ3-ADST

RJ3 Adjustable Stand

Use Case	Stabilization Only
Column WLL	4,000 lbs.
Lifting WLL	For Stabilization Only
Extended Height	86"
Collapsed Height	55"
Weight	37 lbs.*

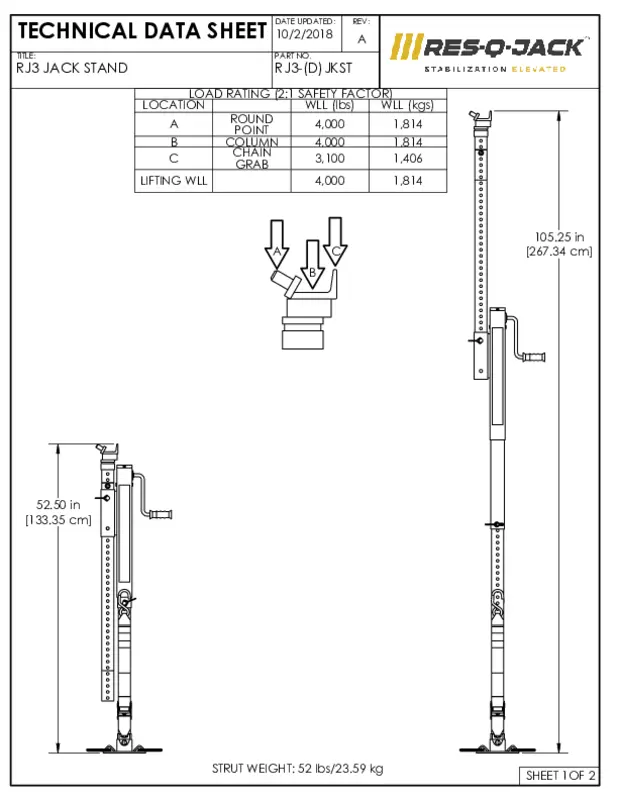

RJ3-JKST

RJ3 Jackstand

Use Case	Stabilization And Lifting
Column WLL	4,000 lbs.
Lifting WLL	4,000 lbs.
Extended Height	106"
Collapsed Height	52.5"
Weight	53 lbs.*

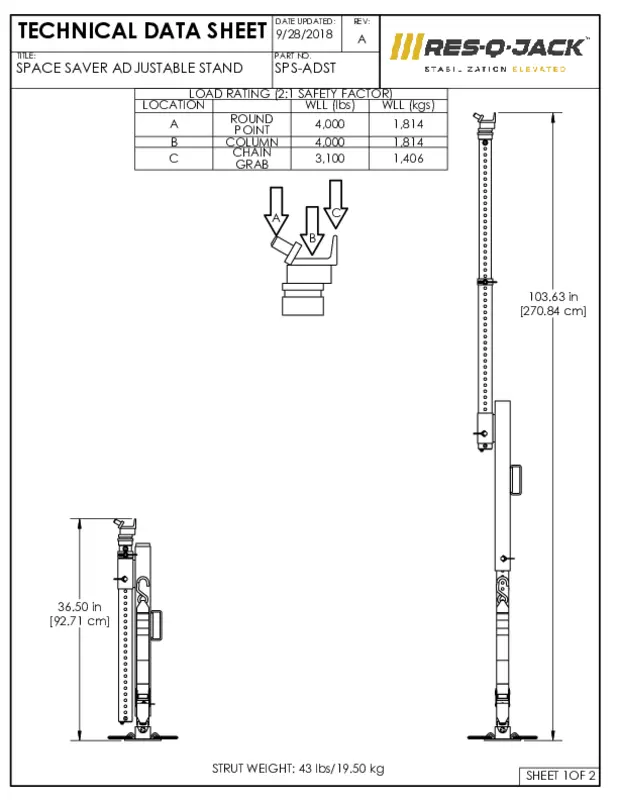

SPS-ADST

SpaceSaver Adjustable Stand

Use Case	Stabilization Only
Column WLL	4,000 lbs.
Lifting WLL	For Stabilization Only
Extended Height	103.5"
Collapsed Height	36.5"
Weight	45 lbs.*

SPS-JKST

SpaceSaver Jackstand

Use Case	Stabilization And Lifting
Column WLL	4,000 lbs.
Lifting WLL	4,000 lbs.
Extended Height	106"
Collapsed Height	52.5"
Weight	53 lbs.*

Standard-Duty Vehicle Stabilization Struts Comparison

This table keeps the related standard-duty strut families on one sheet so departments can compare reach, lift, and carry weight across the core rescue packages.
