GreenLite X-Strut
Light-Duty Vehicle Stabilization Struts
GreenLite X-Strut gives departments a budget-conscious light-duty stabilization and lifting package without stepping away from the core Res-Q-Jack toolset.
GreenLite Light-Duty Vehicle Stabilization And Lifting Strut
Overview
You do not need to sacrifice capability to stay inside a tighter rescue budget. GreenLite X-Strut carries the same core design philosophy as the larger Res-Q-Jack struts, but scales it to lighter-duty vehicle work and a more accessible package cost.
When paired with the Add-On Jack, GreenLite gives crews a light-duty stabilization and lifting tool that spans from 42" to 85.5", with column ratings up to 2,500 lbs. and lifting ratings up to 2,500 lbs.
Duty Class
Light-Duty Vehicle Stabilization Struts
Model Count
2
Span Range
42" to 85.5"
Max Column WLL
2,500 lbs.
Max Lifting WLL
2,500 lbs.
Weight Range
22 to 29 lbs.
Key Features
The local GreenLite spec sheet does not include the same numbered callout boards as the other light-duty pages, so this section is organized as clean feature blocks instead.
Swivel CRG End Fitting
GreenLite X-Strut ships with the Swivel CRG head fitting, giving crews multiple purchase-point options and 360 degree rotation to find the right contact point quickly.
Ergonomic Cone Pins
The flared cone-pin design is easier to grip on scene, harder to lose, and helps automatically line up the Add-On Jack for faster setup.
Rugged Steel Construction
GreenLite uses durable steel construction and a powder-coated finish to deliver 2,500 lbs. of strength in a light-duty package built for repeat field use.
X-Strut Lifting Power
Add the removable mechanical Add-On Jack and GreenLite converts from shoring strut to lifting strut, delivering 2,500 lbs. of lift capacity with 12" of travel before reset.
Built-In Ratchet Strap
The long strut includes a ratchet strap with wire hooks mounted on the chassis, keeping stabilization hardware directly on the tool for faster deployment.
D-Ring Attachment Points
GreenLite adds a strut-mounted D-ring on supported models and base-mounted D-rings for attaching straps, hooks, chains, or anchoring hardware when the scene requires it.
Model Specifications
These model cards follow your local GreenLite spec sheet so crews can compare span, load, and carry weight quickly.
SGL-STRT
Short Strut | 42" to 62"
| Column WLL | 2,500 lbs. |
|---|---|
| Lifting WLL | 2,500 lbs. |
| Extended Height | 62" |
| Collapsed Height | 42" |
| Weight | 22 lbs.* |

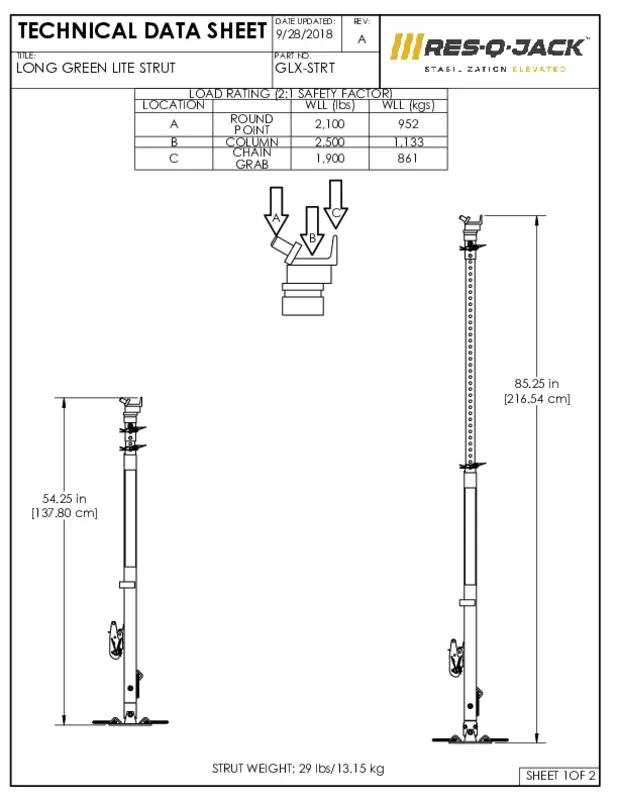

GLX-STRT
Long Strut | 54.25" to 85.5"
| Column WLL | 2,500 lbs. |
|---|---|
| Lifting WLL | 2,500 lbs. |
| Extended Height | 85.5" |
| Collapsed Height | 54.25" |
| Weight | 29 lbs.* |
Light-Duty Vehicle Stabilization Struts Comparison
This table keeps the related light-duty strut families on one sheet so crews can compare span, load, and carry weight before they set a package.
| Product | Models | Span Range | Max Column WLL | Max Lifting WLL | Weight Range |
|---|---|---|---|---|---|
Auto X-Strut
|
2 | 44" to 88.25" | 3,250 lbs. | 2,500 lbs. | 30 to 33 lbs. |
|
GreenLite X-Strut
|
2 | 42" to 85.5" | 2,500 lbs. | 2,500 lbs. | 22 to 29 lbs. |
