Auto X-Strut
Light-Duty Vehicle Stabilization Struts
The Auto X-Strut brings pin-free stabilization and lifting to light vehicle rescue in a fast, ultra-portable package built around Res-Q-Jack's square aluminum chassis.
Auto X-Strut | Light-Duty, Pin-Free
Overview
The Auto X-Strut brings pin-free stabilization and lifting to light vehicle rescue. It combines the pin-free operation of the premium Super X-Strut with an aluminum X-style square chassis, giving crews a light, fast, and compact strut for vehicle incidents where speed and portability matter.
This family covers 2 model configurations, with column ratings up to 3,250 lbs., lifting ratings up to 2,500 lbs., and working heights spanning from 44" collapsed to 88.25" extended.
Duty Class
Light-Duty Vehicle Stabilization Struts
Model Count
2
Span Range
44" to 88.25"
Max Column WLL
3,250 lbs.
Max Lifting WLL
2,500 lbs.
Weight Range
30 to 33 lbs.
Product Features
The product images below come from your local Auto X-Strut files, and the feature copy follows the same sequence shown on those graphics.

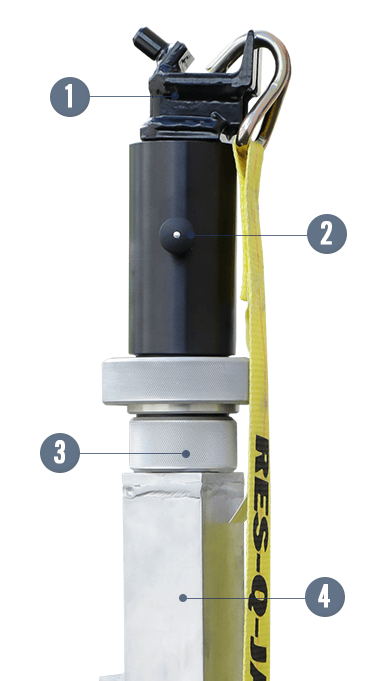

1. Swivel CRG End Fitting
The Auto X-Strut comes standard with the Swivel CRG head fitting, giving crews multiple purchase-point options and 360 degree rotation to quickly find the right contact point.
2. Quick-Release Head Fittings
Change head fittings in an instant with the pull of a single retaining pin. Auto X-Strut stays compatible with pin-free end fittings and other manufacturers' fittings, which helps when departments are operating together on mutual aid calls.
3. Twist-Free Inner Tubing
A positive stop on the inner tubing helps keep the tube from rotating under lighter loads and prevents over-extension while crews are stabilizing or lifting.
4. Aluminum Construction
The Auto X-Strut uses a welded square chassis with a machined round inner tube, both built from 6061-T6 aluminum to keep the package light without giving up structural performance.
5. Swivel CRG End Fitting
The lower callout board reinforces that the Auto X-Strut ships with the rotating CRG fitting, making it easier to set solid purchase points on light vehicle incidents.
6. X-Strut Lifting Power
Add the removable mechanical Add-On Jack and the Auto X-Strut converts from stabilization strut to lifting strut, delivering 2,500 lbs. of lift capacity with 12" of resettable travel.
7. On-Board Ratchet Strap
Departments can spec the standard ratchet strap or step up to the slack management system, keeping stabilization hardware directly on the strut and ready for deployment.
8. Base-Mounted D-Rings
Pivoting rings built into the base plate support fast attachment of straps, hooks, and chains, and they can double as a picket receiver when the scene calls for anchoring.
Model Specifications
These model cards follow the Auto X-Strut source document so crews can compare span, load, and carry weight at a glance.
ATX-STRT-S
Short Strut | 44" to 67"
| Column WLL | 3,250 lbs. |
|---|---|
| Lifting WLL | 2,500 lbs. |
| Extended Height | 67" |
| Collapsed Height | 44" |
| Weight | 30 lbs.* |

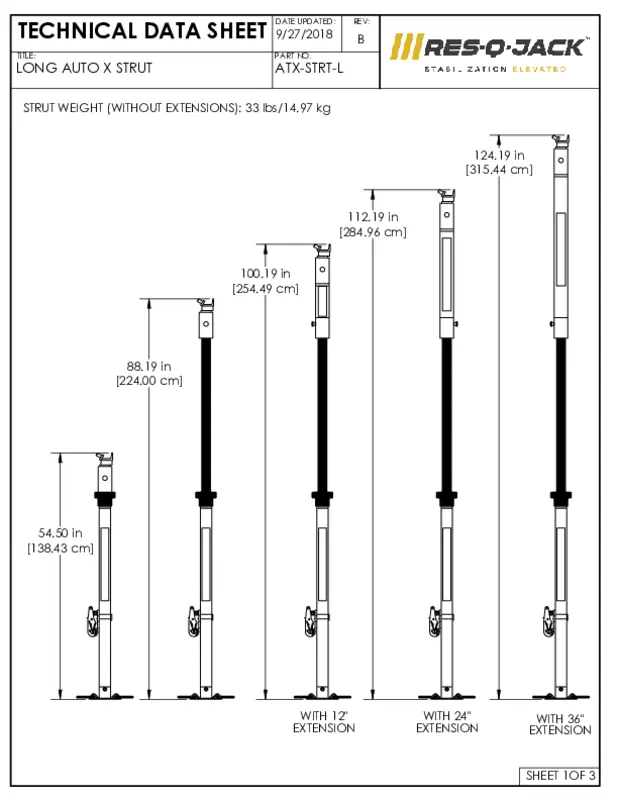

ATX-STRT-L
Long Strut | 54.5" to 88.25"
| Column WLL | 3,250 lbs. |
|---|---|
| Lifting WLL | 2,500 lbs. |
| Extended Height | 88.25" |
| Collapsed Height | 54.5" |
| Weight | 33 lbs.* |
Light-Duty Vehicle Stabilization Struts Comparison
This table keeps the related light-duty strut families on one sheet so crews can compare span, load, and carry weight before they set a package.
| Product | Models | Span Range | Max Column WLL | Max Lifting WLL | Weight Range |
|---|---|---|---|---|---|
|
Auto X-Strut
|
2 | 44" to 88.25" | 3,250 lbs. | 2,500 lbs. | 30 to 33 lbs. |
GreenLite X-Strut
|
2 | 42" to 85.5" | 2,500 lbs. | 2,500 lbs. | 22 to 29 lbs. |
