Trucks / Pierce Stock
Enforcer Pumper - 45091
Current Pierce stock unit with linked chassis/body references, local drawing file, and a full-size drawing viewer.
Stock Specifications
| Job # | 45091 |
|---|---|
| Availability | In Production |
| Chassis | Enforcer |
| Body | Pumper |
| Actual Overall Height | 10' 5.5" |
| Engine | PACCAR MX-13 |
| Horsepower | 510 hp |
| Front Suspension | TAK-4 Independent Front Suspension |
| Rear Suspension | Spring |
| Electrical System | Hard Wired |
| Foam System | Foam System Provisions |
| Pump | Waterous Midship |
| Pump GPM | 1500 GPM |
| Tank | Foam / Water |
| Tank Size | 1000 gallons |
| Drawing File | Available |

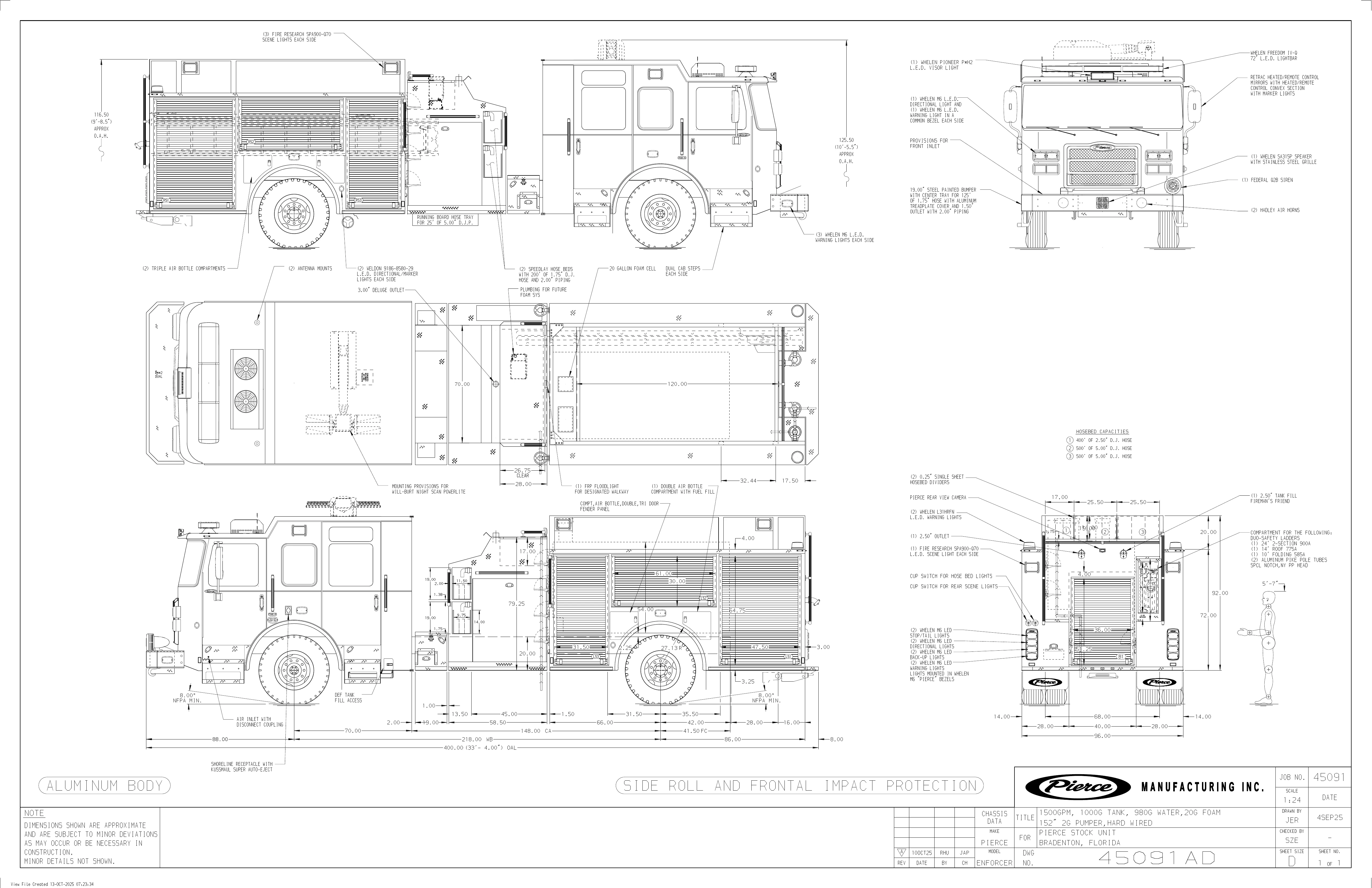

Truck Drawing
The apparatus drawing below opens in a larger modal viewer and can also be downloaded as the original PDF.
