Trucks / Pierce
Pierce Pumpers
Engine, rescue pumper, and specialty pumper configurations with published ranges for capacity and storage.
Program Overview
Pierce engine and pumper products span custom and commercial configurations for municipal, rescue, industrial, and quick-attack missions. The lineup includes traditional engines, PUC package architectures, rescue pumpers, and heavy-duty rescue pumpers, each with different tank, storage, and body packaging envelopes.
What You'll Learn From This Page
- Published configuration ranges from published data
- Model-level feature photos extracted from product literature
- Quick comparison table normalized for planning and procurement
Configuration Matrix
Quick sizing and chassis guidance across the current Pierce lineup.
Pumper Type
Engine / Pumper
Chassis
- Enforcer
- Impel
- Saber
- Velocity
Tank
<= 1,500 gal
Compartment Space
<= 200 cu ft
Load Rating
<= 500 lb each
Body Width
96'
Pumper Type
PUC Pumper
Chassis
- Enforcer
- Impel
- Velocity
Tank
<= 1,500 gal
Compartment Space
<= 400 cu ft
Load Rating
<= 800 lb each
Body Width
98'
Pumper Type
Rescue Pumper
Chassis
- Enforcer
- Impel
- Saber
- Velocity
Tank
<= 1,000 gal
Compartment Space
<= 400 cu ft
Load Rating
<= 800 lb each
Body Width
96'
Pumper Type
Heavy-Duty Rescue Pumper
Chassis
- Enforcer
- Impel
- Velocity
Tank
<= 1,000 gal
Compartment Space
<= 500 cu ft
Load Rating
<= 800 lb each
Body Width
98'
Pumper Type
Responder
Chassis
Freightliner commercial
Tank
750/1,000/1,250 gal
Compartment Space
<= 200 cu ft
Load Rating
<= 500 lb full height
Body Width
98'
Pumper Type
BX Pumper
Chassis
Freightliner M2-106
Tank
1,000 gal
Compartment Space
<= 200 cu ft
Load Rating
<= 500 lb each
Body Width
98'
| Pumper Type | Chassis | Tank | Compartment Space | Load Rating | Body Width |
|---|---|---|---|---|---|
| Engine / Pumper |
| <= 1,500 gal | <= 200 cu ft | <= 500 lb each | 96' |
| PUC Pumper |
| <= 1,500 gal | <= 400 cu ft | <= 800 lb each | 98' |
| Rescue Pumper |
| <= 1,000 gal | <= 400 cu ft | <= 800 lb each | 96' |
| Heavy-Duty Rescue Pumper |
| <= 1,000 gal | <= 500 cu ft | <= 800 lb each | 98' |
| Responder | Freightliner commercial | 750/1,000/1,250 gal | <= 200 cu ft | <= 500 lb full height | 98' |
| BX Pumper | Freightliner M2-106 | 1,000 gal | <= 200 cu ft | <= 500 lb each | 98' |
Feature Highlights

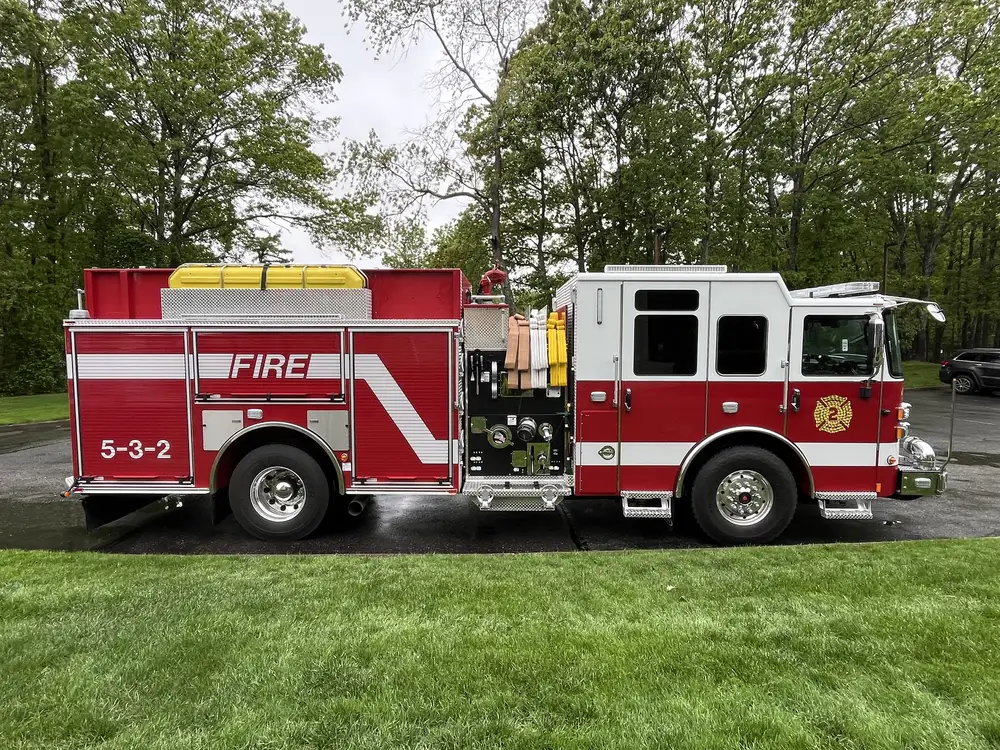

Engine / Pumper
General municipal engine format balancing suppression capability and modular compartment options.
- Up to 1,500 gallon tank packages
- Published pump ranges include 500 to 3,000 gpm lineup-wide
- Body material options include aluminum and stainless packages

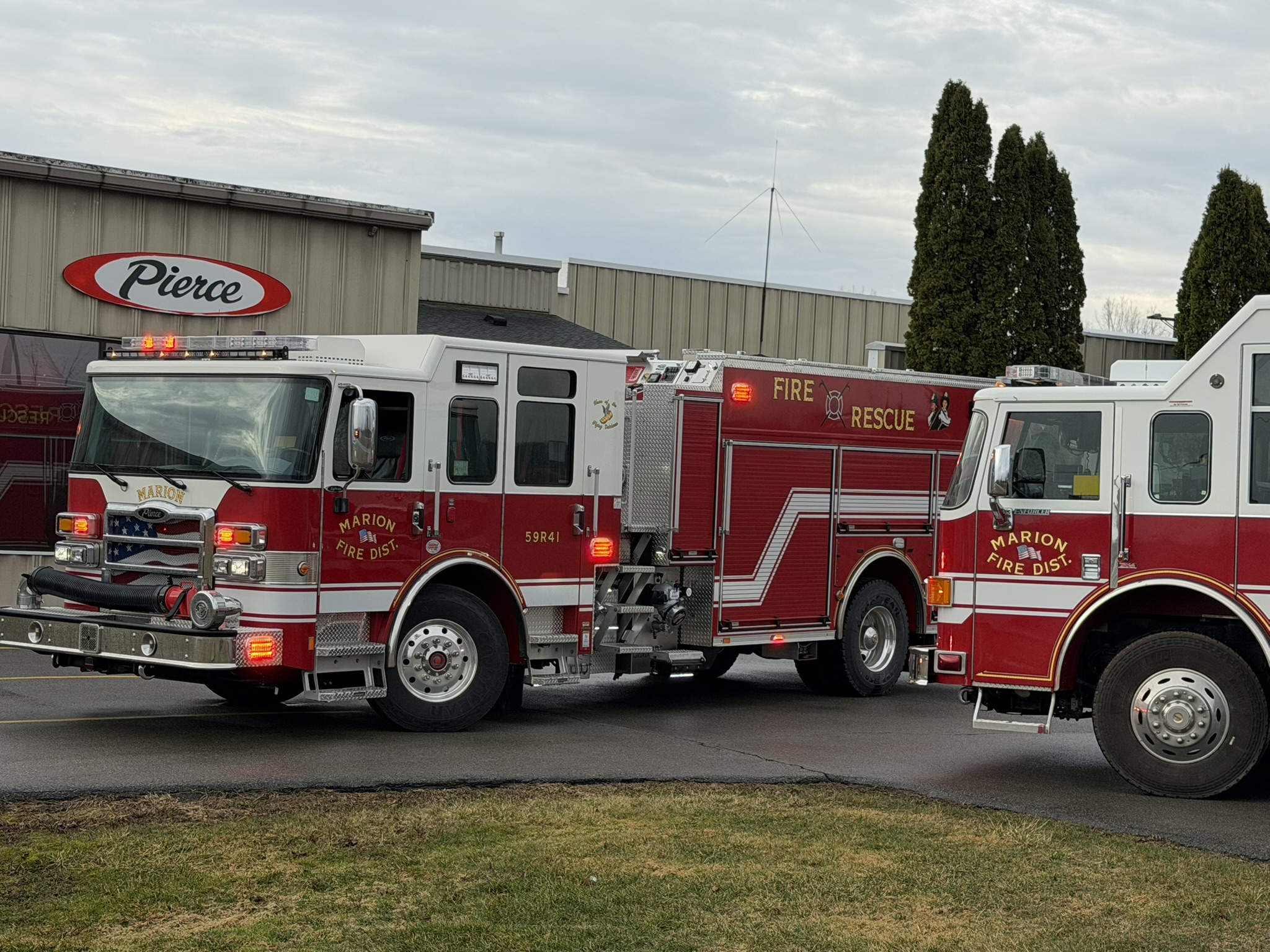

PUC Pumper
PUC architecture repositions pump package to free central body volume for equipment and storage.
- Up to 400 cubic feet compartment space
- Up to 800 lb each compartment rating
- Wheelbase envelope shown at 162 in to 212 in
Rescue Pumper
Integrated suppression plus rescue storage profile for mixed-response districts.
- Up to 400 cubic feet compartment space
- 26 in full-height depth callout in published specs
- Body width listed at 96 in

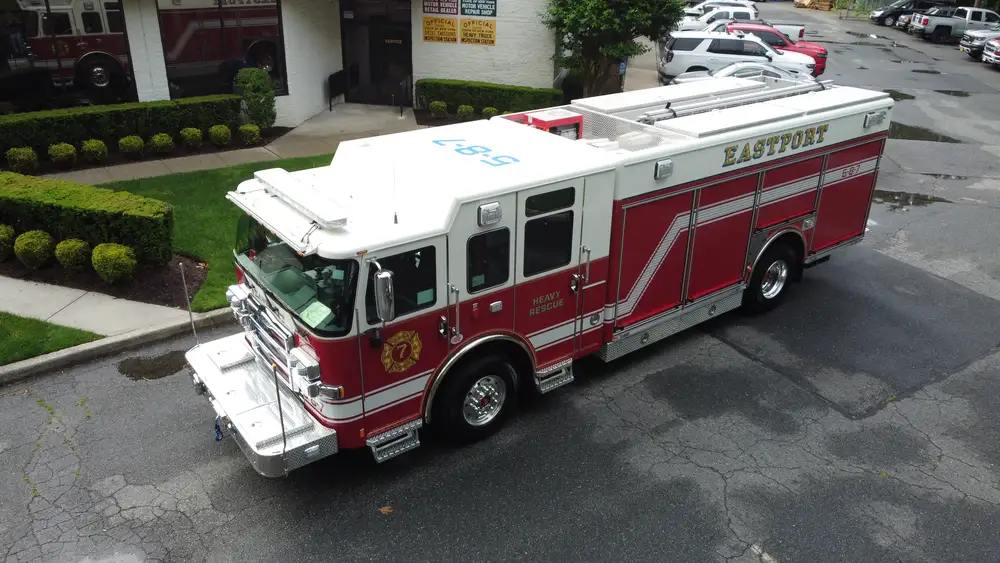

Heavy-Duty Rescue Pumper
Maximum rescue storage profile among pumper-focused configurations.
- Up to 500 cubic feet compartment space
- Up to 1,000 gallon tank options
- Up to 800 lb compartment load rating
Pierce Literature

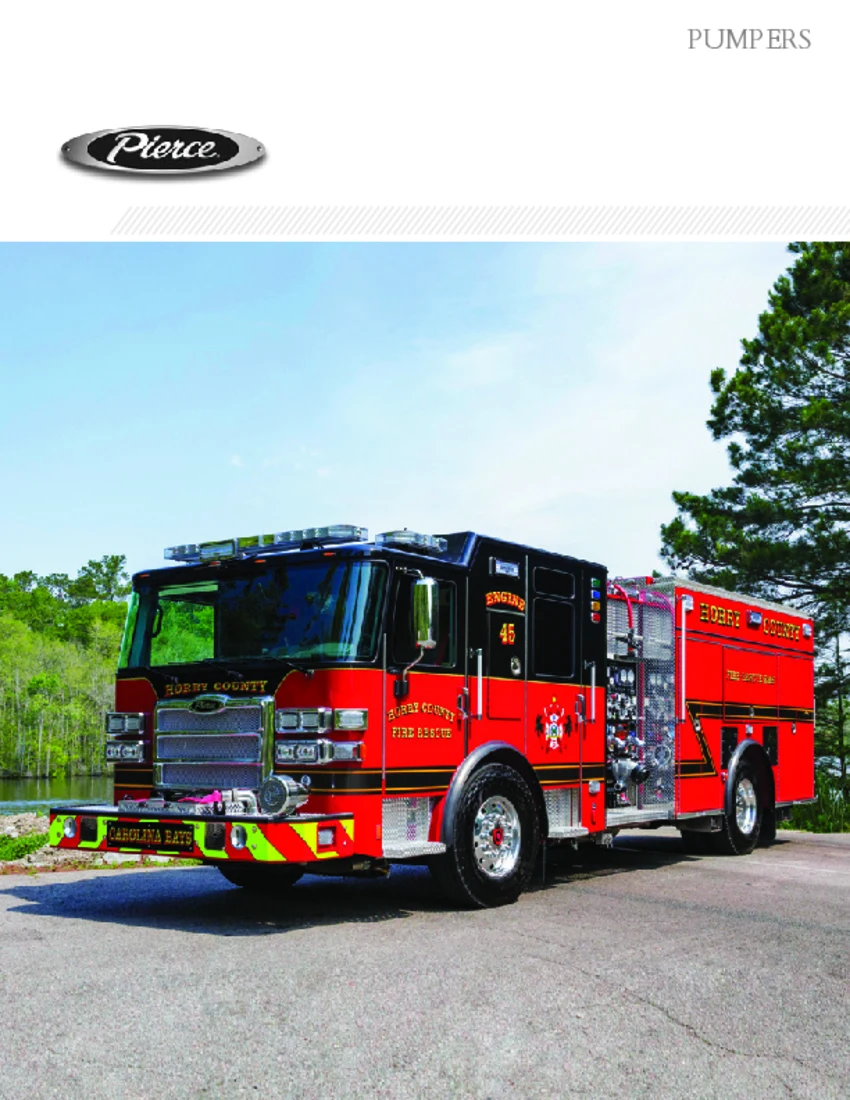

Pumpers overview
Enforcer Chassis Sell Sheet

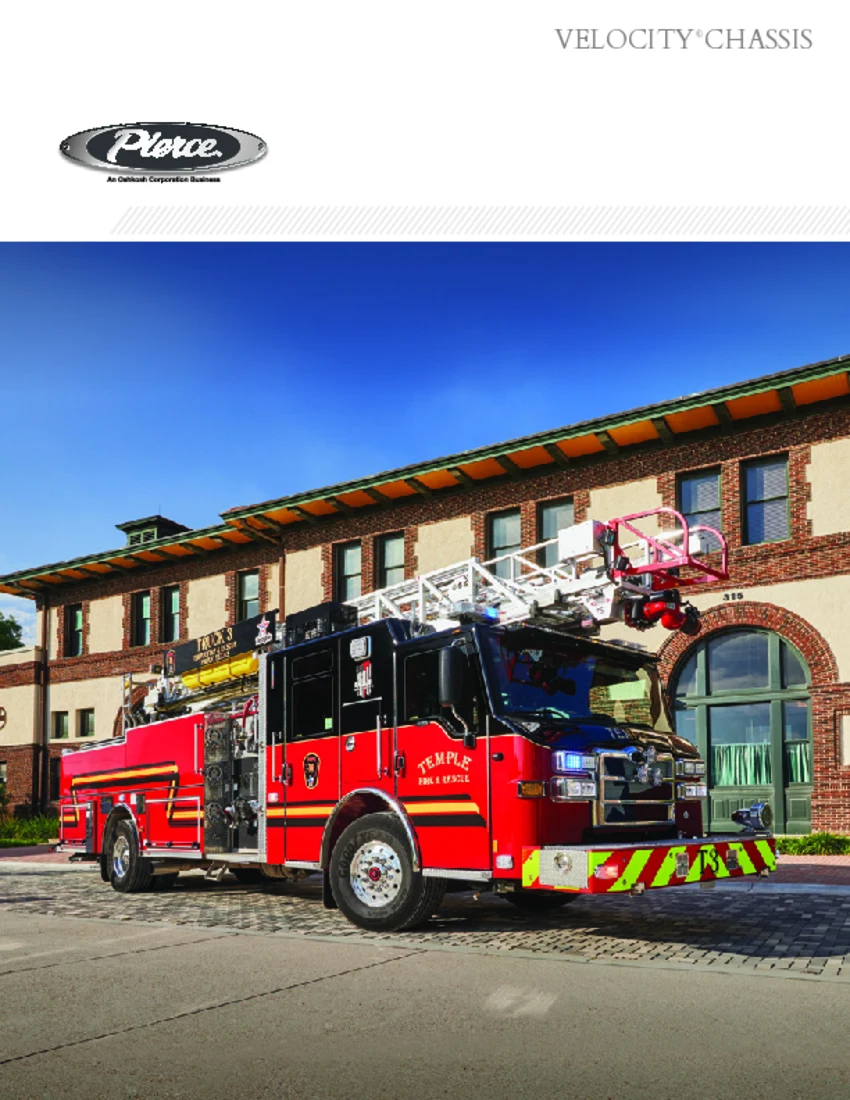

Velocity Chassis Sell Sheet

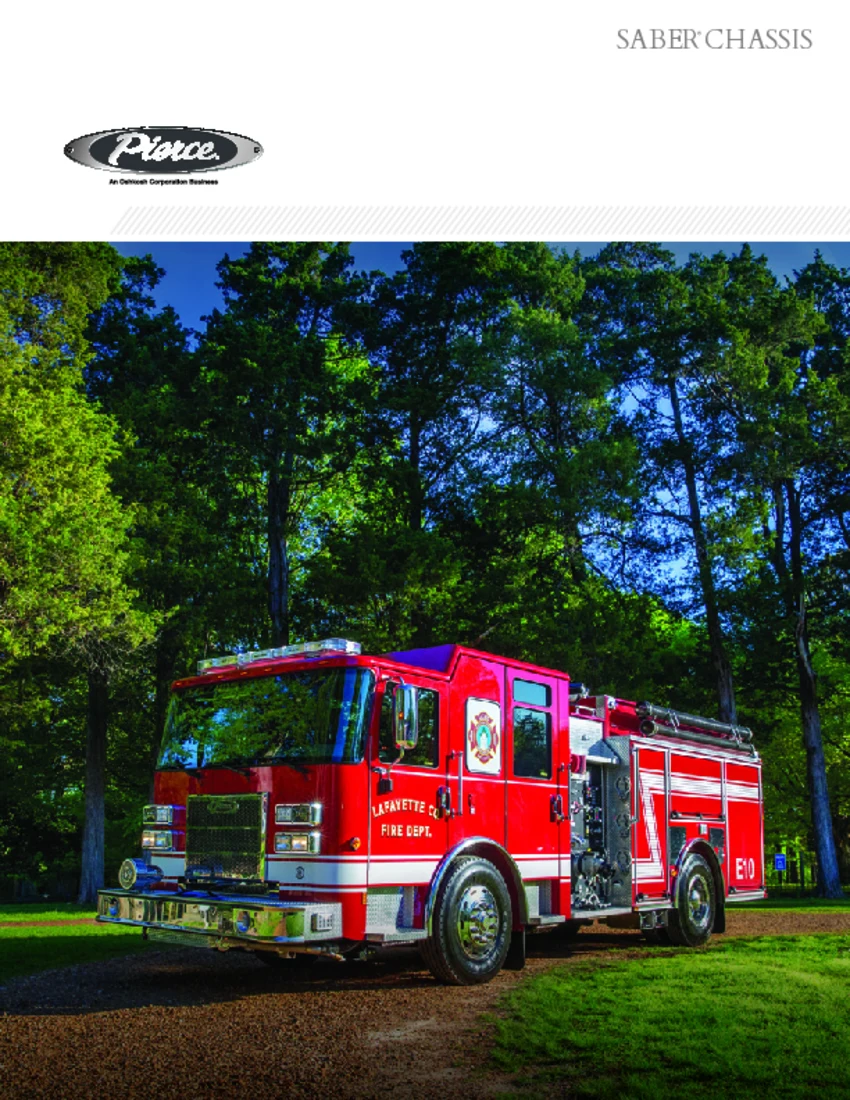

Saber Chassis Sell Sheet
Impel Chassis Sell Sheet
