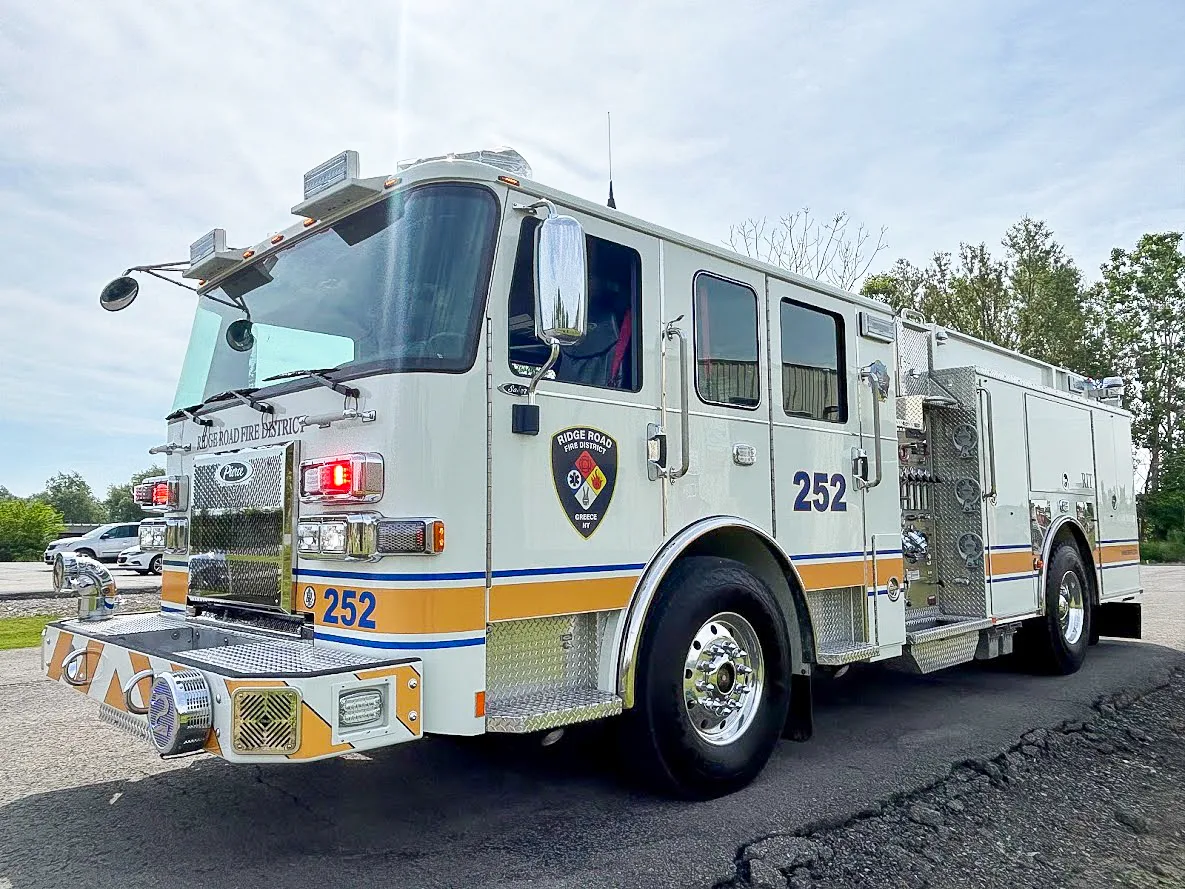

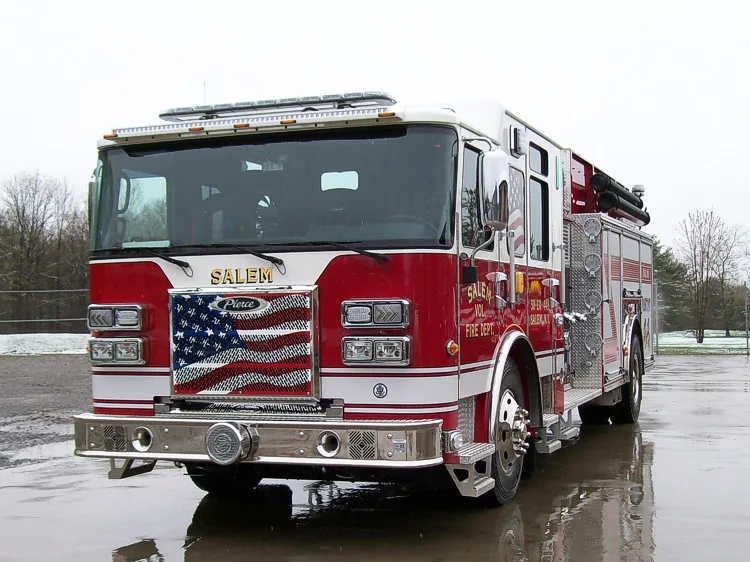

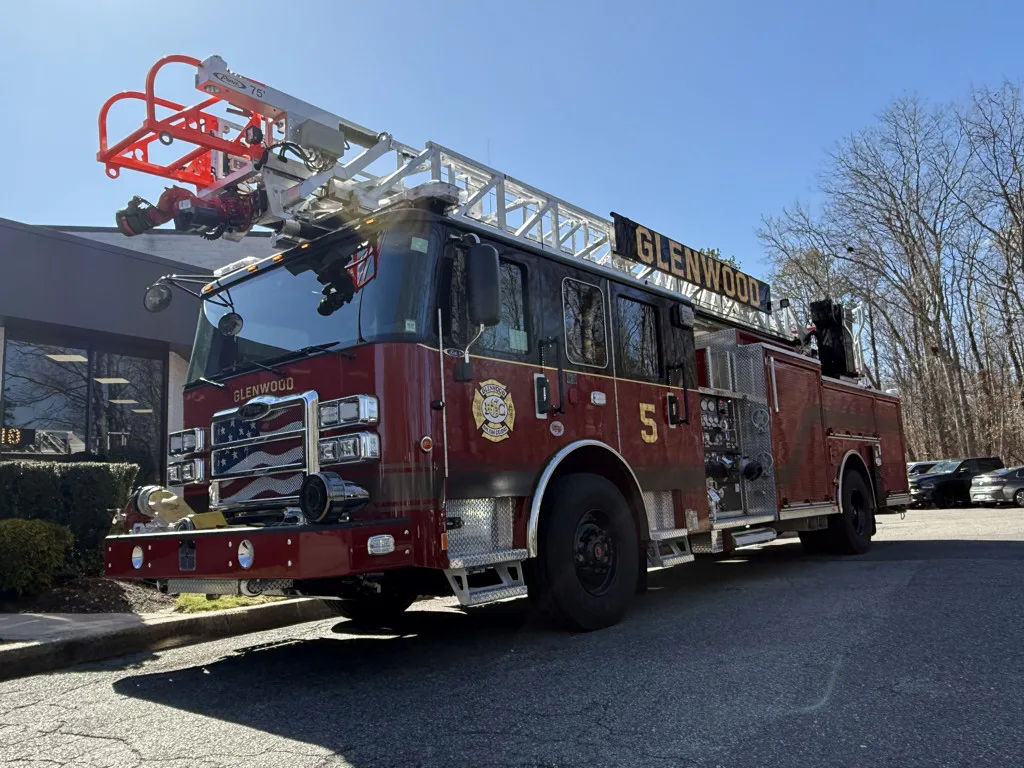

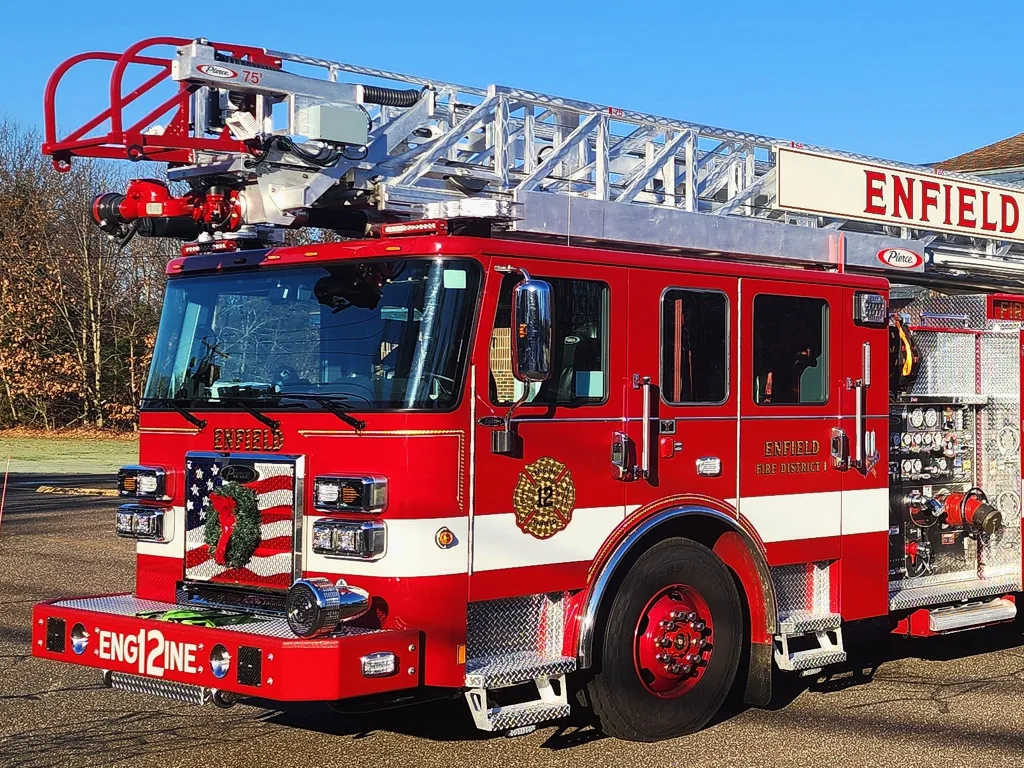

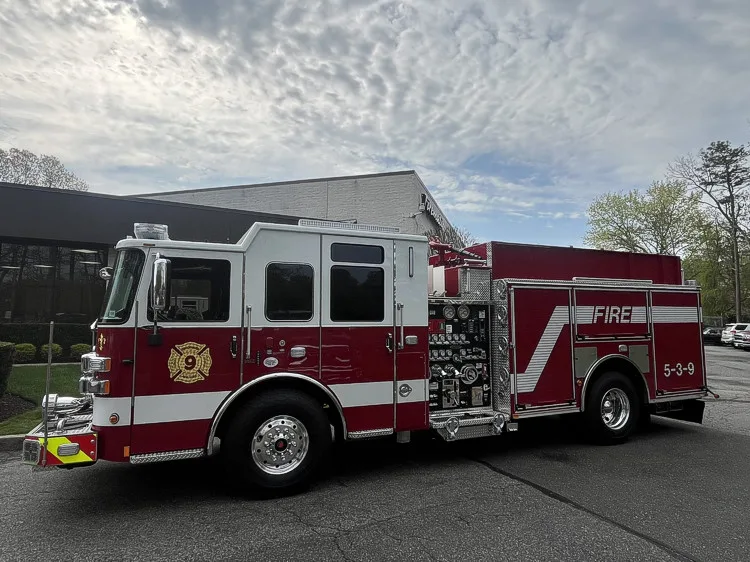

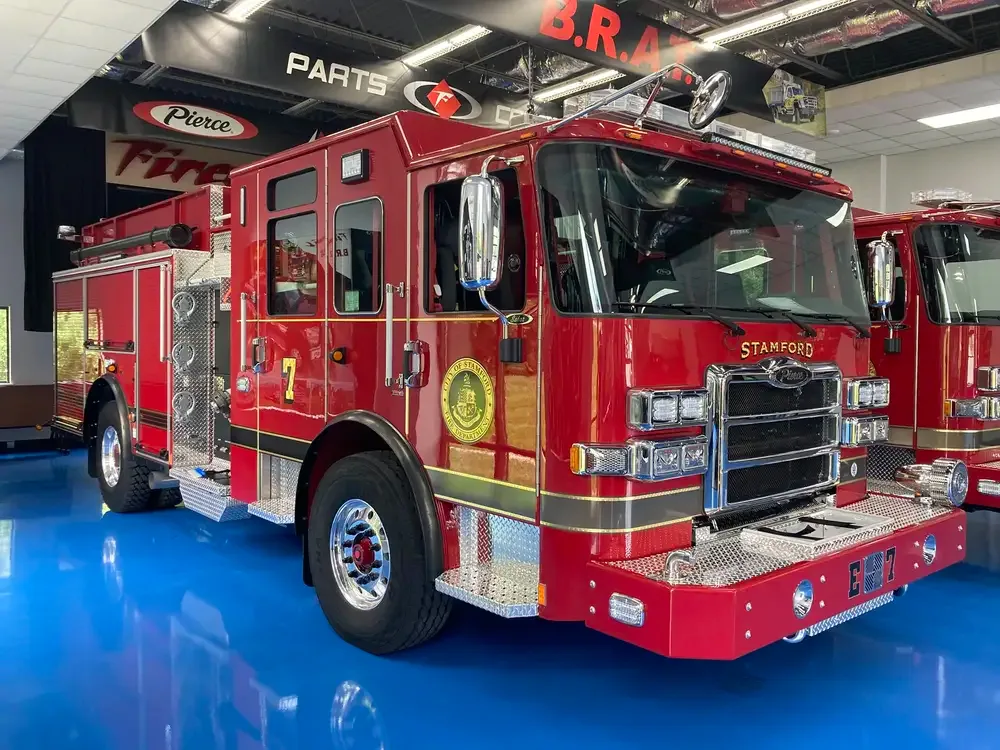

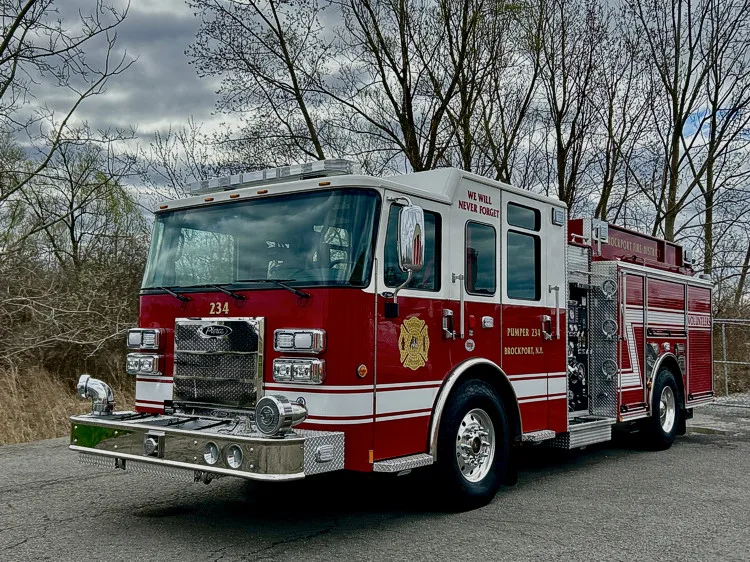

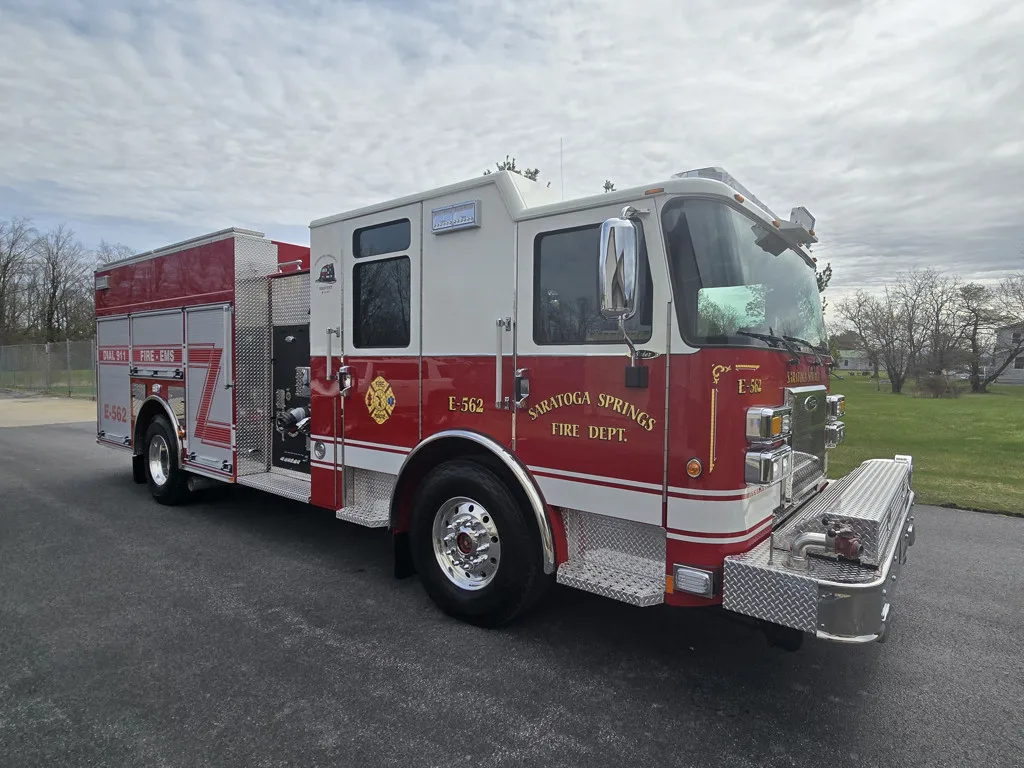

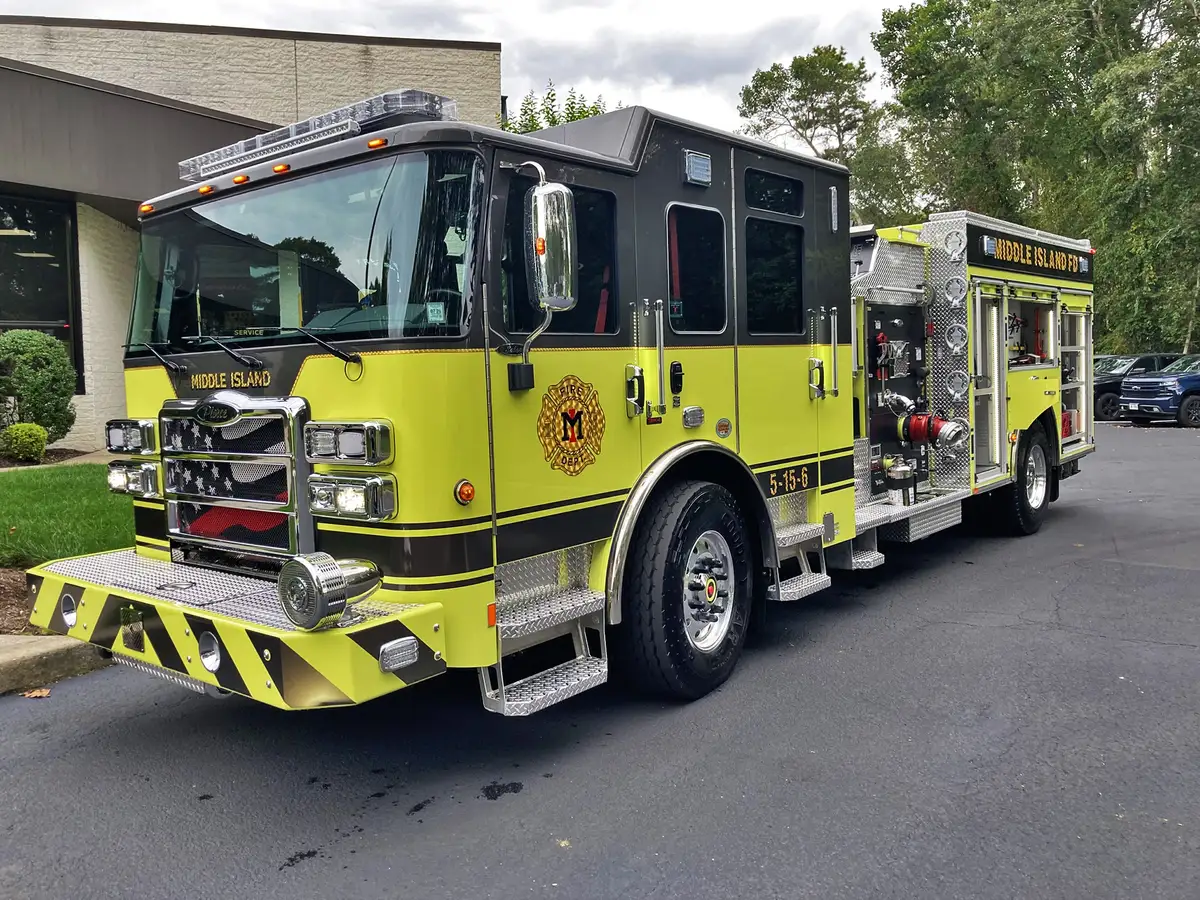

Pierce Saber Chassis
Value-driven 96 in custom chassis platform with proven Pierce design fundamentals.
The Legendary Pierce Saber
The Pierce Saber is a timeless industry-standard chassis for value-driven fire departments. It focuses on advanced visibility, greater space, improved ergonomics, and streamlined serviceability while maintaining core custom chassis capability in a proven 96 in package.
Configuration Matrix
Quick sizing and chassis guidance across the current Pierce lineup.
| Specification | Published Value |
|---|---|
| Engine | Cummins X10 |
| Engine Horsepower | 370 - 510 hp |
| Transmission | Allison 3000 EVS |
| Alternator | 270 - 430 amp |
| Front GAWR (Maximum) | 24,000 lb |
| Rear GAWR (Maximum) | 52,000 lb |
| Cramp Angle (Maximum) | 50 deg |
| Cab Dimensions | Length 60 in or 70 in / Width 96 in |
| Cab Roof Style | Flat or raised (10 in) |
| Doors | Barrier or full height |
| Electrical System | Hard Wired |
| Frame Rail | 10-1/4 in, 13 in |
| Front Axle Suspension | Leaf or TAK-4 |
| Rear Axle Suspension | Leaf, rubber, or air; single or tandem |
| Seating Capacity | 8 |
| Side Roll Protection | Default |
| Frontal Air Bags | Default |
Operational Highlights
Visibility and Space
Saber design emphasizes forward visibility and functional crew packaging for day-to-day municipal operations.
- Large windshield area supports broad forward sightlines
- Cab layout supports practical crew and officer workspace
- Roof profile options support mission-specific interior planning

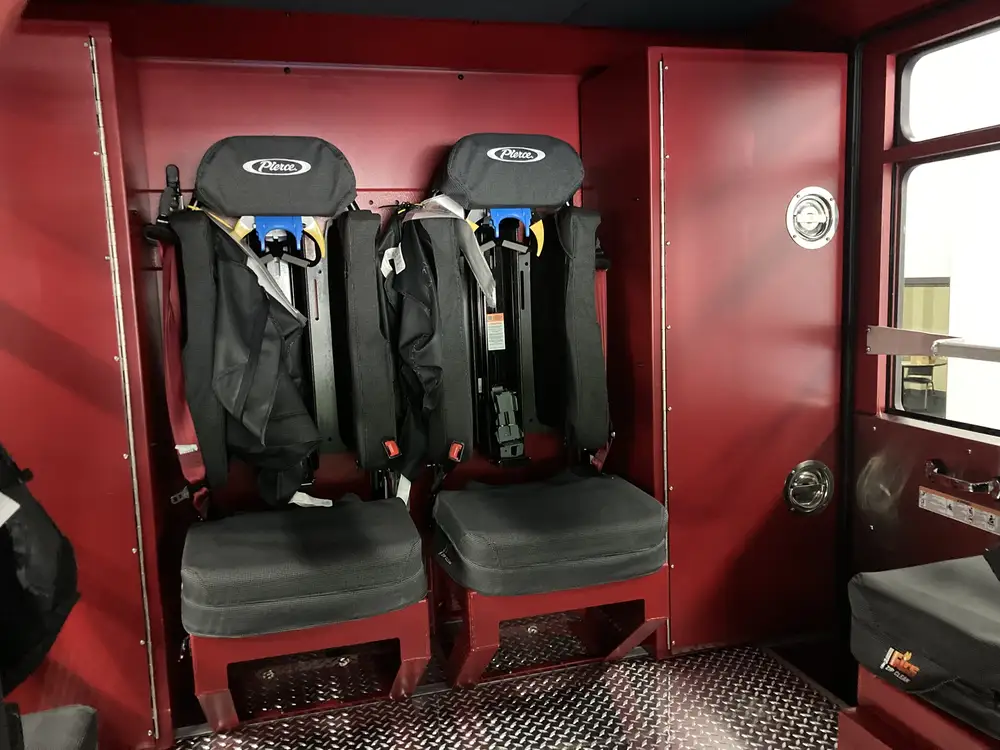

Ergonomics and Access
Entry, control reach, and interior interface points are designed around firefighter workflow and quick cab transitions.
- Door and step geometry support rapid ingress and egress
- Driver interface prioritizes clear access to operating controls
- Seating and layout are optimized for practical crew deployment
Pierce Innovations
These Pierce-specific systems directly shape how the chassis rides, how it is controlled, and what apparatus configurations it can support.
TAK-4
Independent suspension and rear-steer systems available across Pierce custom chassis.
View Innovation
PUC
Storage-forward Pierce package architecture built around pump integration and body efficiency.
View Innovation
Command Zone
Electrical controls, diagnostics, and telematics for Command Zone-equipped Pierce builds.
View Innovation
Snozzle
High-reach extendable turret option available on qualifying Pierce apparatus configurations.
View Innovation
PACCAR MX-13
Big-block PACCAR engine option available on select Pierce custom chassis programs.
View InnovationPierce Literature
