Pierce PUC
Pierce proprietary package architecture that removes the traditional pump house to free body space, shorten wheelbase, and simplify operator access.

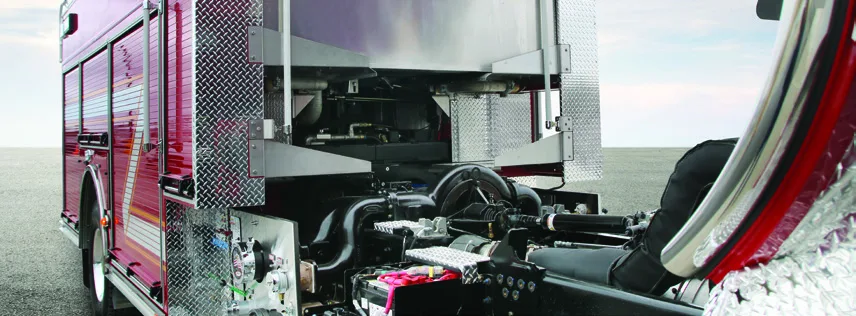

Packaging Strategy
PUC eliminates the traditional pump house so Pierce can build the apparatus body around storage, hosebed, and wheelbase goals instead of around a center pump module. The overview positions it as a single-source Pierce package with a 2,000 gpm pump, simplified Sure Shift operation, enclosed operator panel, and broader design flexibility across pumper, aerial, rescue, and tanker configurations.
What You'll Learn From This Page
- Normalized specs across PUC pumper, aerial, rescue, and tanker variants
- Sure Shift and enclosed pump panel overview
- Storage and compartment depth callouts from published Pierce material
Configuration Matrix
Quick sizing and chassis guidance across the current Pierce lineup.
| PUC Configuration | Chassis | Tank | Storage / Depth | Load Rating |
|---|---|---|---|---|
| Pumper | Enforcer / Impel / Velocity | Up to 1,500 gallons | Up to 500 cu ft / 12 in upper, 26 in lower | Up to 800 lb each |
| Aerial | Enforcer / Impel / Velocity | Up to 500 gallons | Up to 200 cu ft / various ladder storage options | Up to 500 lb each |
| Rescue | Enforcer / Impel / Velocity | Up to 750 gallons | Up to 1,000 cu ft / 26 in full height, 92 in transverse | Up to 1,400 lb each |
| Tanker | Enforcer / Impel / Velocity | Up to 3,000 gallons | 12 in upper, 26 in lower / rear dump options | Up to 800 lb each |
Feature Highlights

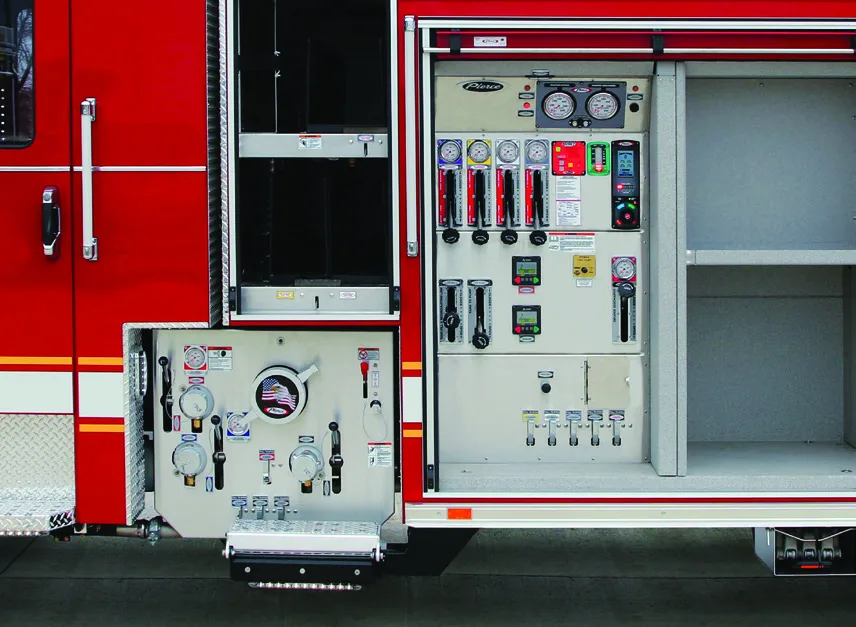

Sure Shift and Operator Interface
PUC Sure Shift is presented as a two-step pump engagement process backed by an enclosed Control Zone pump panel.
- Park-to-neutral feature is called out
- Single-touch water / foam / CAFS selection from dash
- Pump panel is designed to stay cleaner in road grime and moisture

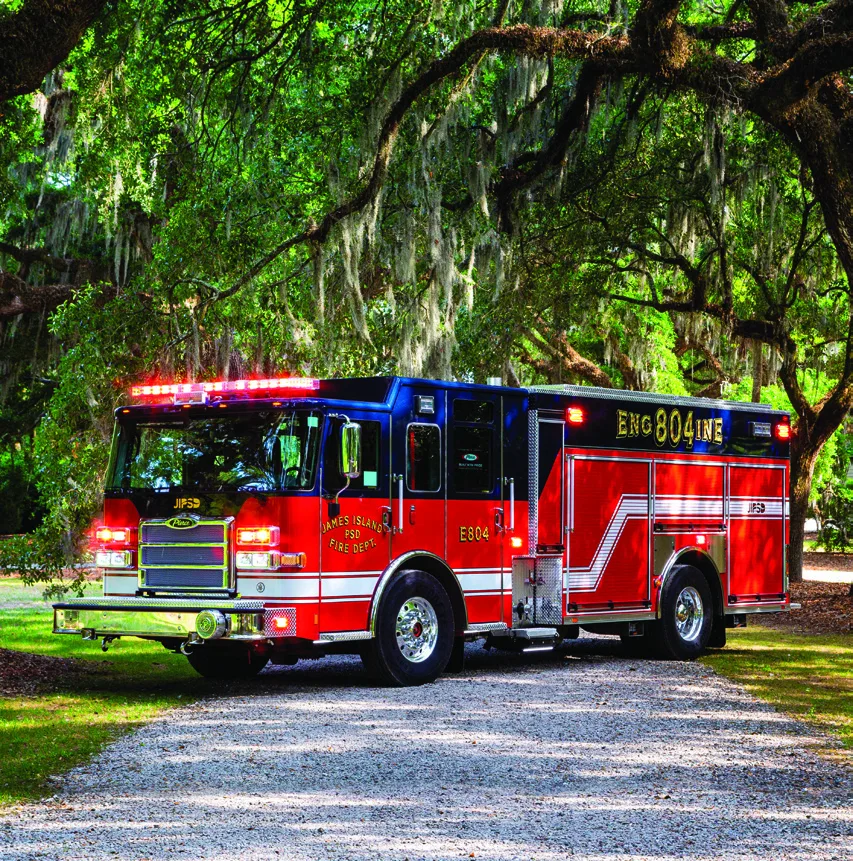

Pumper Packaging
The pumper spread emphasizes shorter wheelbase, lower hosebed height, and large clean storage volume made possible by the package layout.
- Up to 1,500 gallon tank capacity
- Up to 500 cubic feet of compartment space
- 98 in body width with up to 800 lb compartment rating

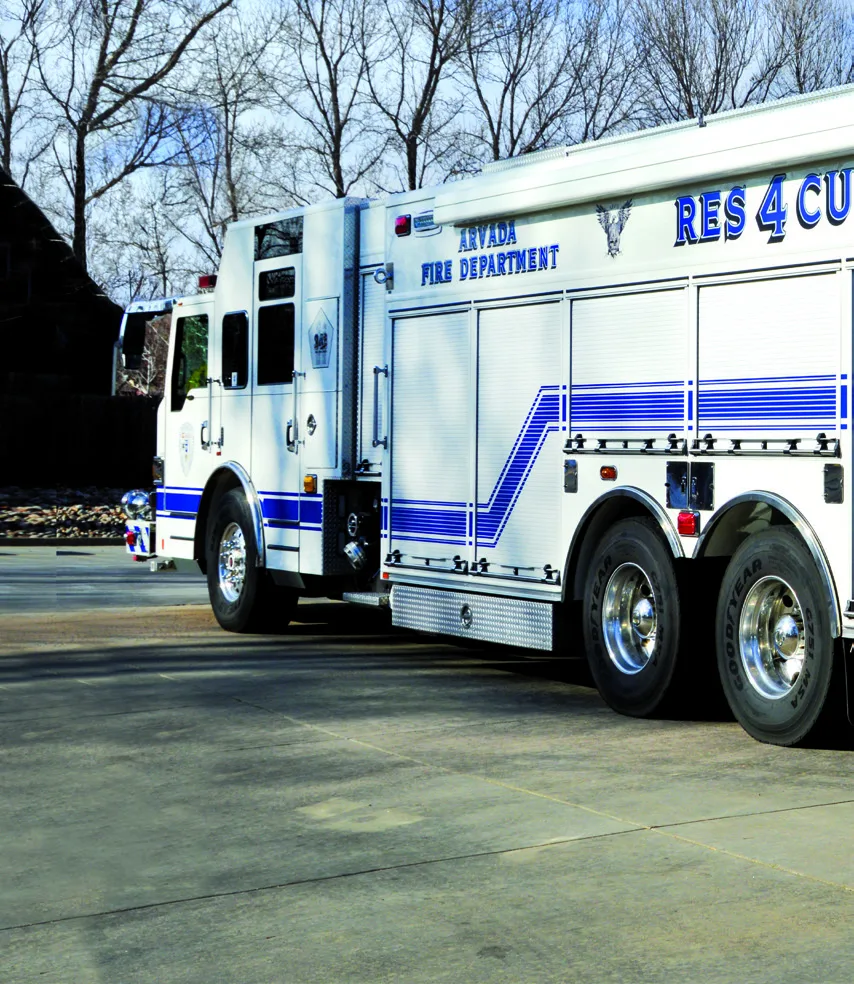

Rescue Application
PUC rescue bodies use the same architecture to keep suppression capability while maximizing rescue storage and transverse depth.
- Up to 10,000 lb of gear noted in published material
- Up to 1,000 cubic feet compartment space
- 15 year structural body warranty listed

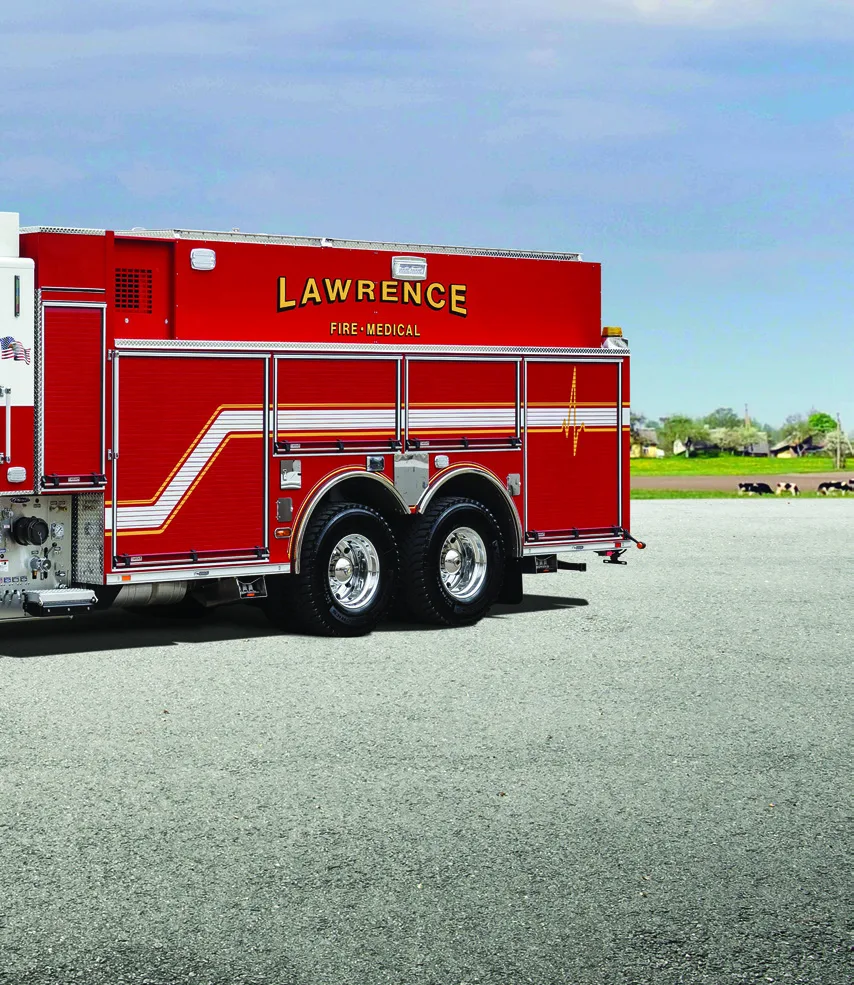

Tanker Application
The tanker package positions PUC as a way to retain best-in-class storage while carrying up to 3,000 gallons of water.
- 8 in, 10 in, and 12 in rear dump options listed
- 2,000 gpm pump weighs 30 percent less claim is repeated
- 98 in body width and aluminum standard body called out

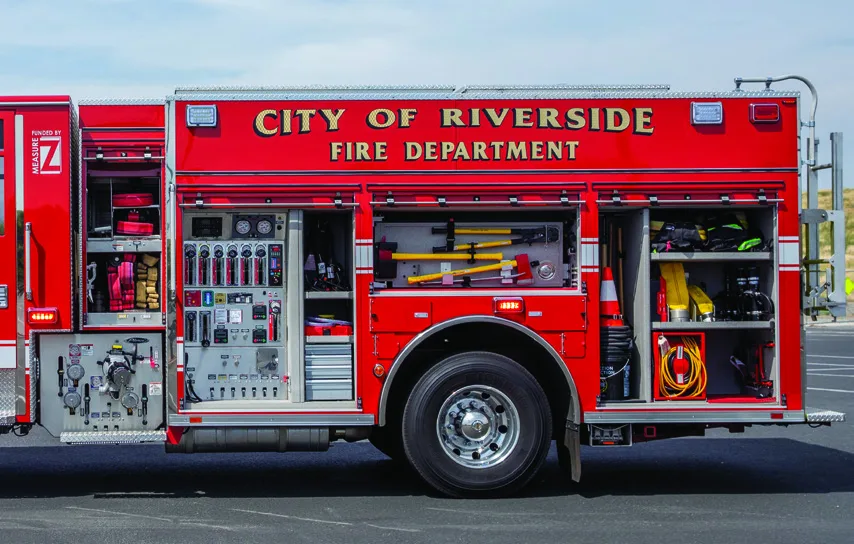

Compartment Strategy
Pierce uses the storage spread to sell the practical result of the architecture: deeper compartments, cleaner raceways, and broader shelving flexibility.
- 26 in deep lower compartments highlighted
- Covered raceways and recessed shelf tracks mentioned

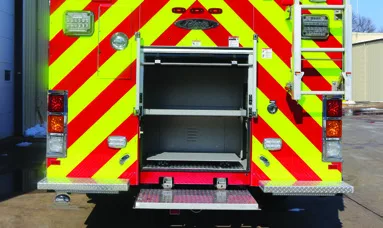

- Jump-off compartment can be configured for EMS, rescue, or turnout gear
Pierce Literature
PUC overview (Nov 2025)
