Pierce Snozzle
Pierce high-reach extendable turret designed to add elevated attack capability with compact geometry, direct mounting, and multiple agent options.
Elevated Waterway System
The Pierce Snozzle is presented as a compact elevated waterway and turret package that increases response versatility without consuming the space footprint associated with larger aerial systems. Pierce emphasizes its direct-mount installation, compact pedestal, short-wheelbase compatibility, wireless remote operation, and ability to work both above and below grade with water, piercing, lighting, thermal, and optional dry chemical capability.
What You'll Learn From This Page
- Published height, waterway, and stabilizer values
- Primary options including piercing nozzle and dry chemical discharge
- Compact mounting and quick setup positioning from published material
Configuration Matrix
Quick sizing and chassis guidance across the current Pierce lineup.
| Metric | Published Value |
|---|---|
| Vertical Height | 50 ft or 65 ft |
| Remote Control Range | Up to 400 ft |
| Rotation | 360 degrees |
| Waterway | 3.25 in |
| Stabilizer Spread | 11 ft |

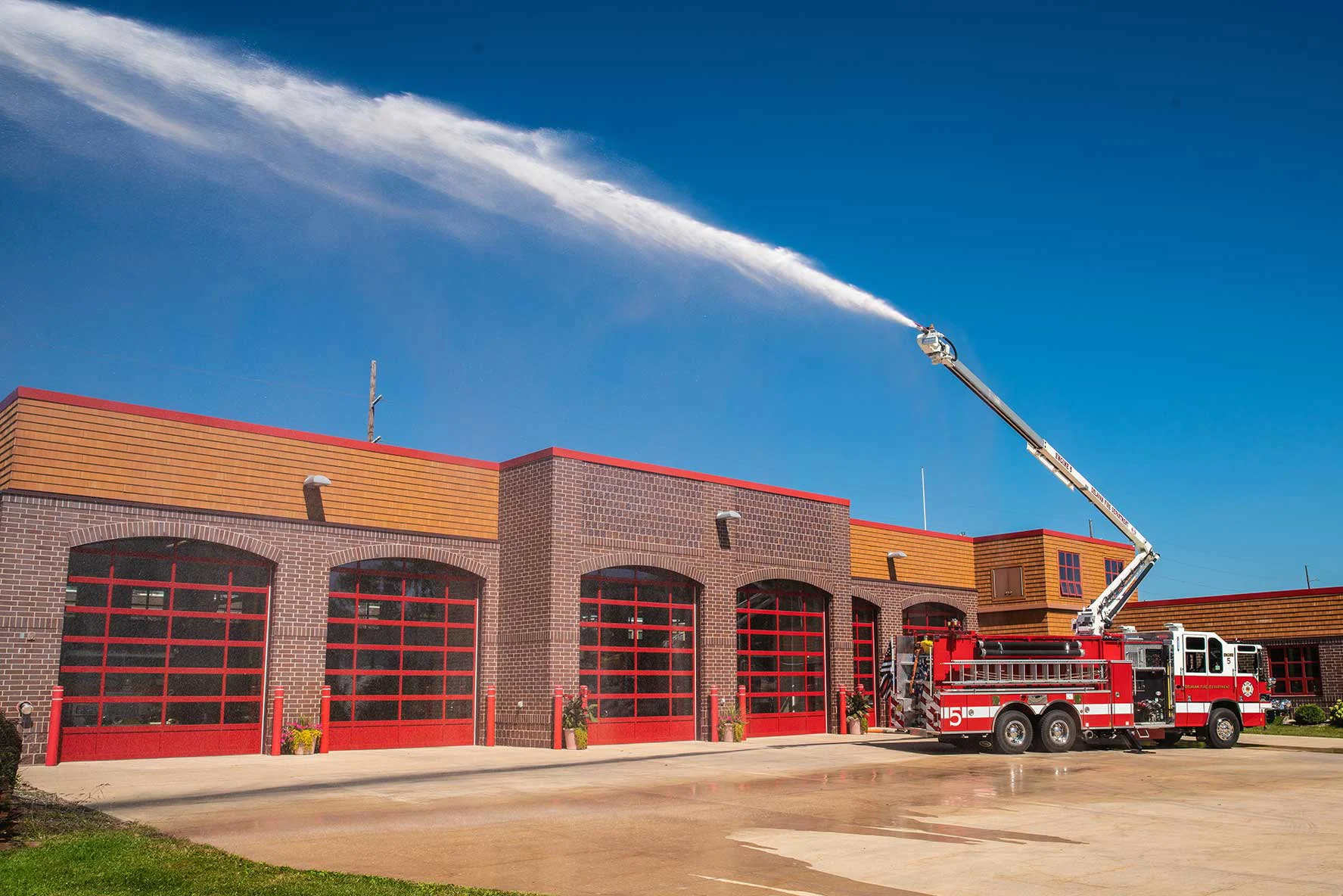

| Maximum Water Flow | Up to 1,250 gpm |
| Piercing Nozzle Flow | 250 gpm |
| Piercing Depth | 36 in standard / up to 48 in with extension |
| Dry Chemical Option | 20 lb per second with Williams Hydrochem nozzle |
Feature Highlights

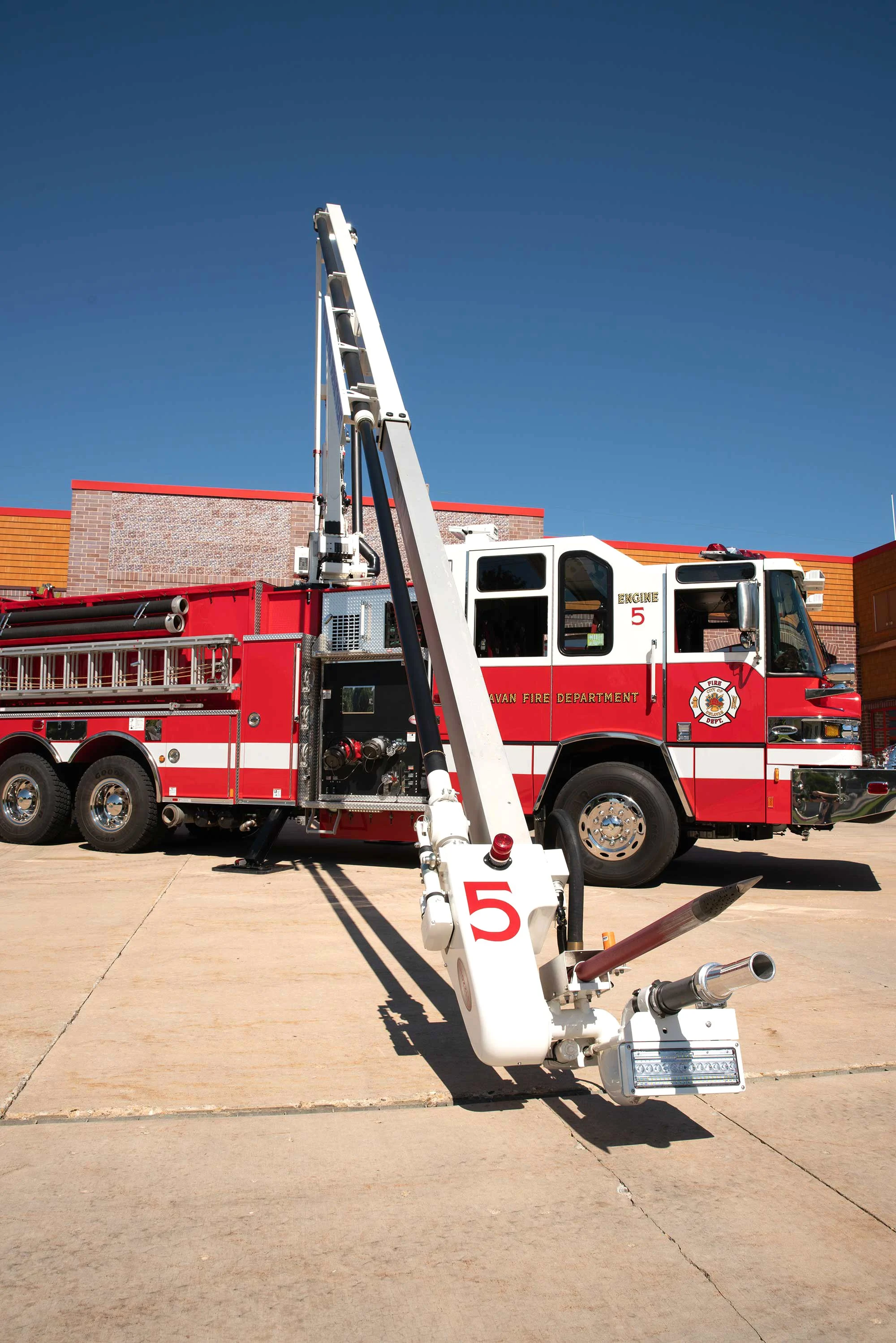

Reach and Attack Options
The Snozzle combines telescoping and articulating boom motion with compact boom-end geometry so operators can work through or into structures more precisely.

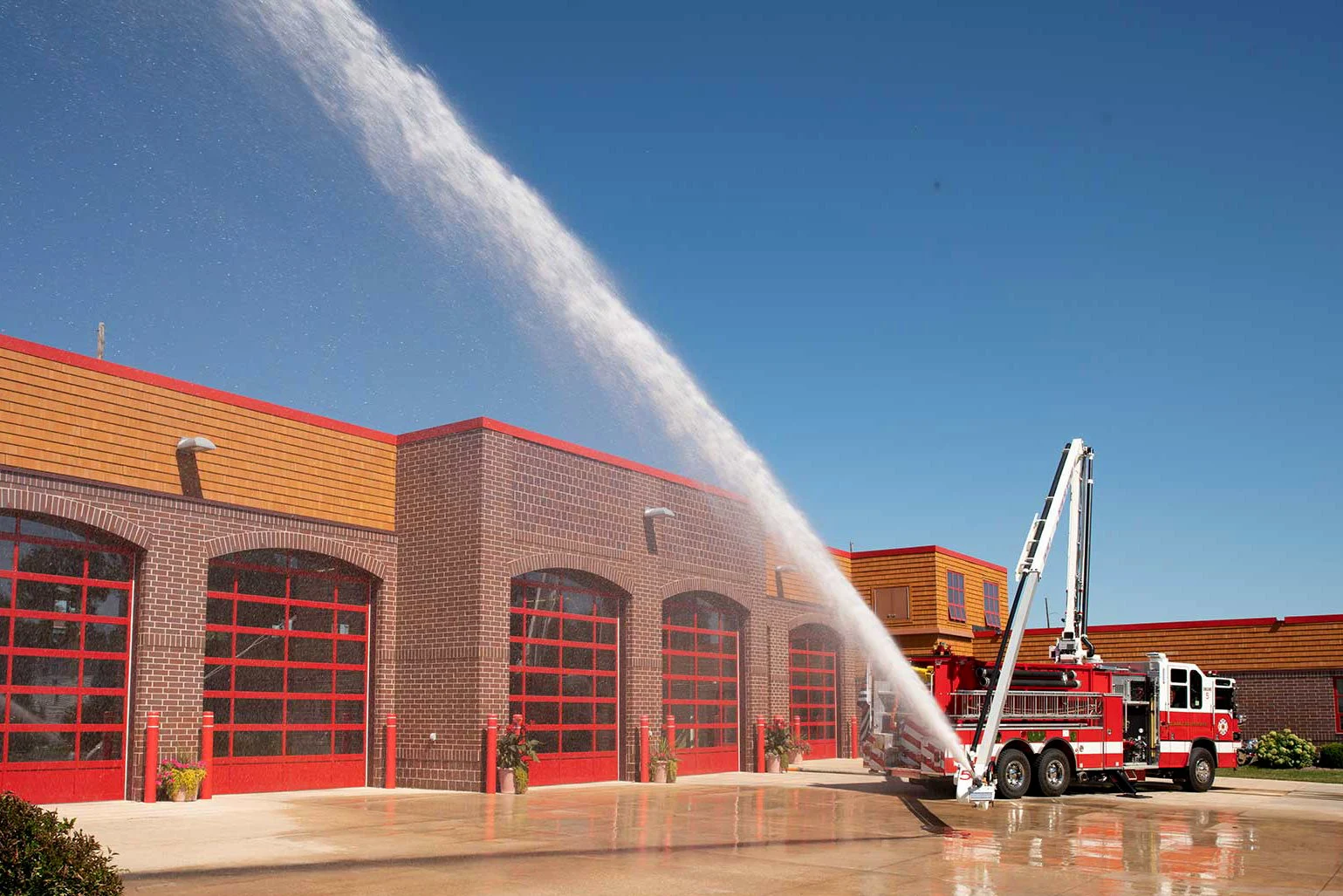

- Below-grade operation with HS1 is listed
- Auto-level feature for nozzle is included
- Up-and-over reach is part of the design positioning

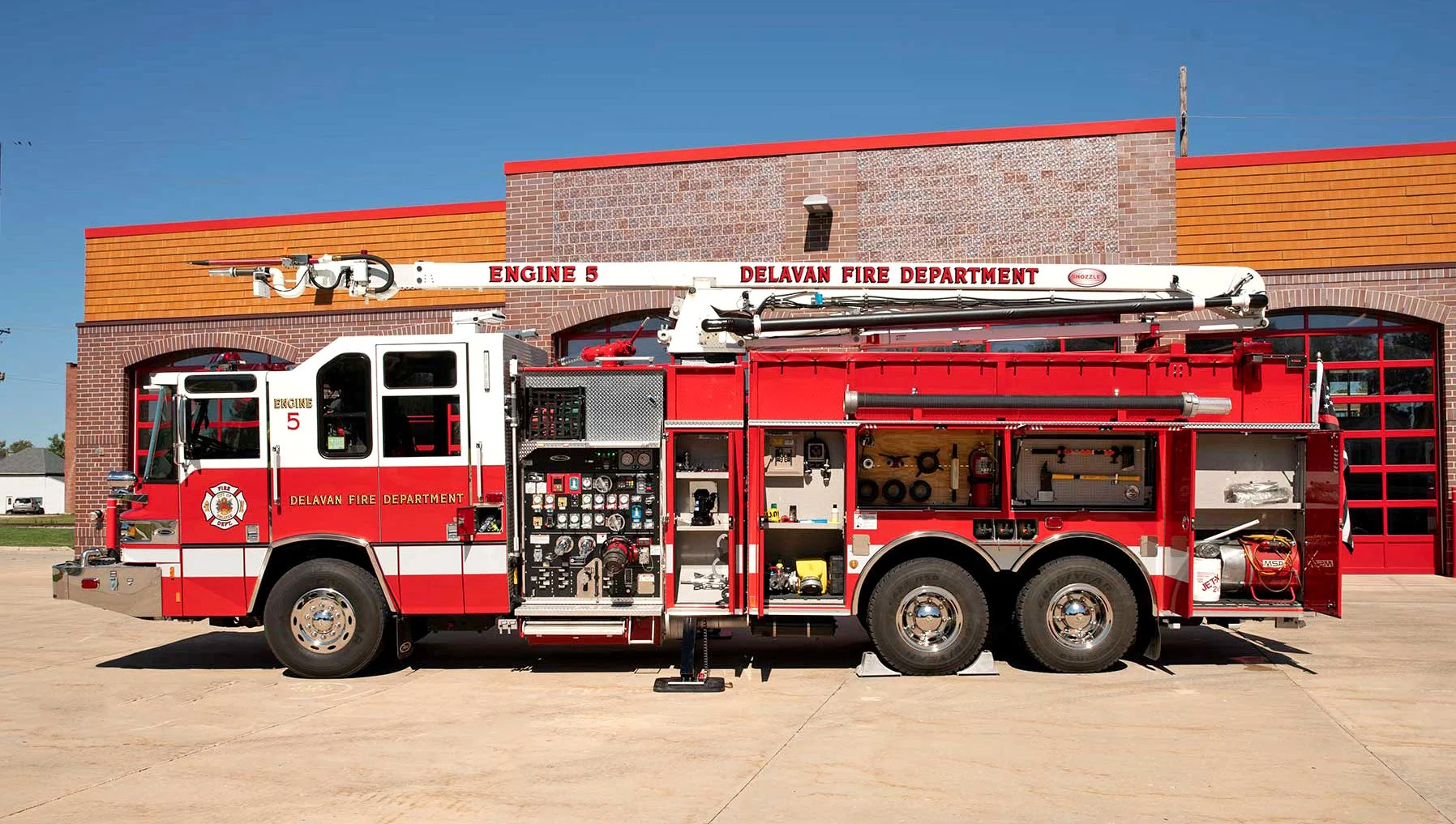

Compact Mounting Strategy
Pierce explicitly sells the system on short-wheelbase chassis fit and direct mounting without a torque box to preserve storage volume.
- Small-profile pedestal is meant to maximize storage

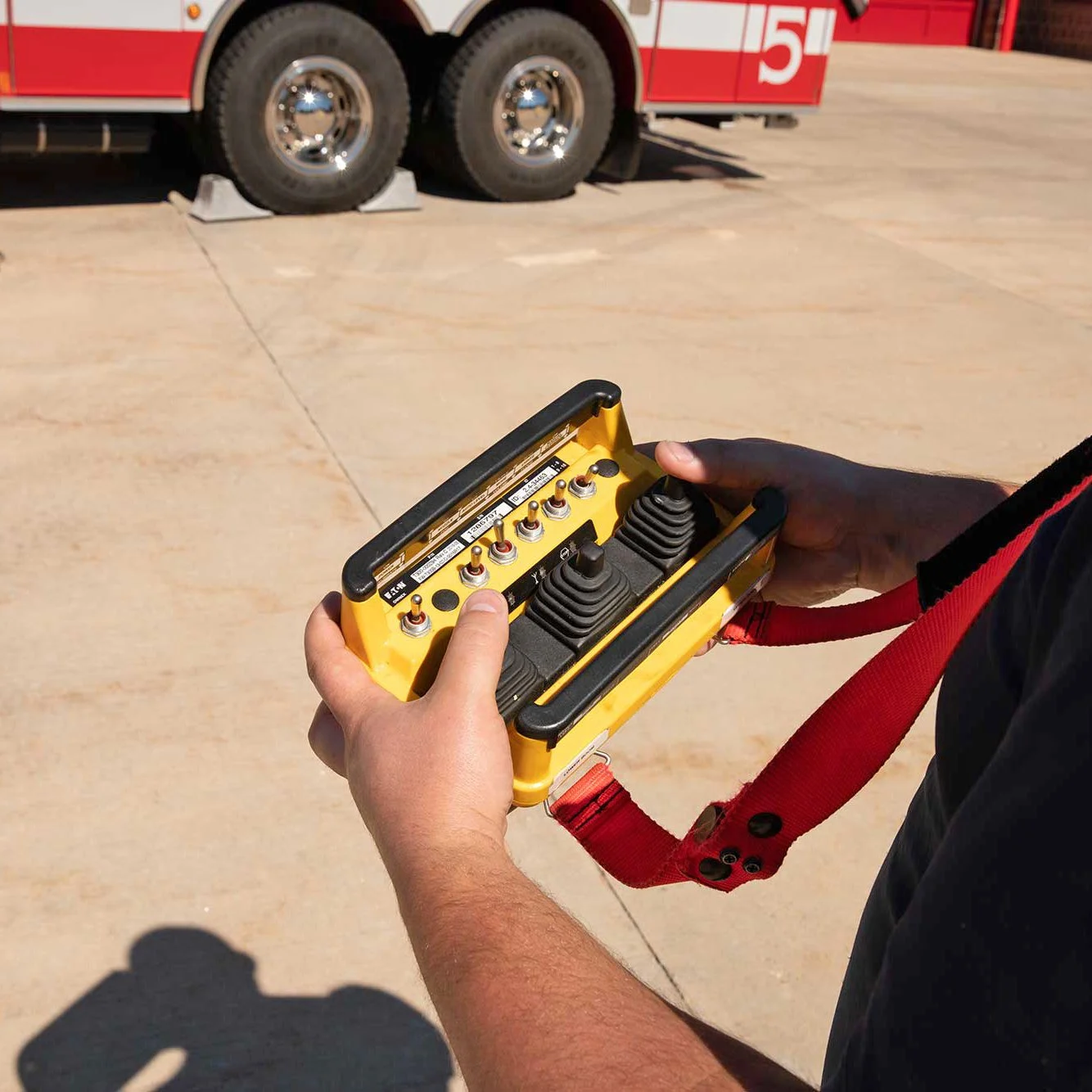

- Wireless remote control is standard product language
- Automatic collision avoidance is offered as an option
