Pierce Delivery
Velocity

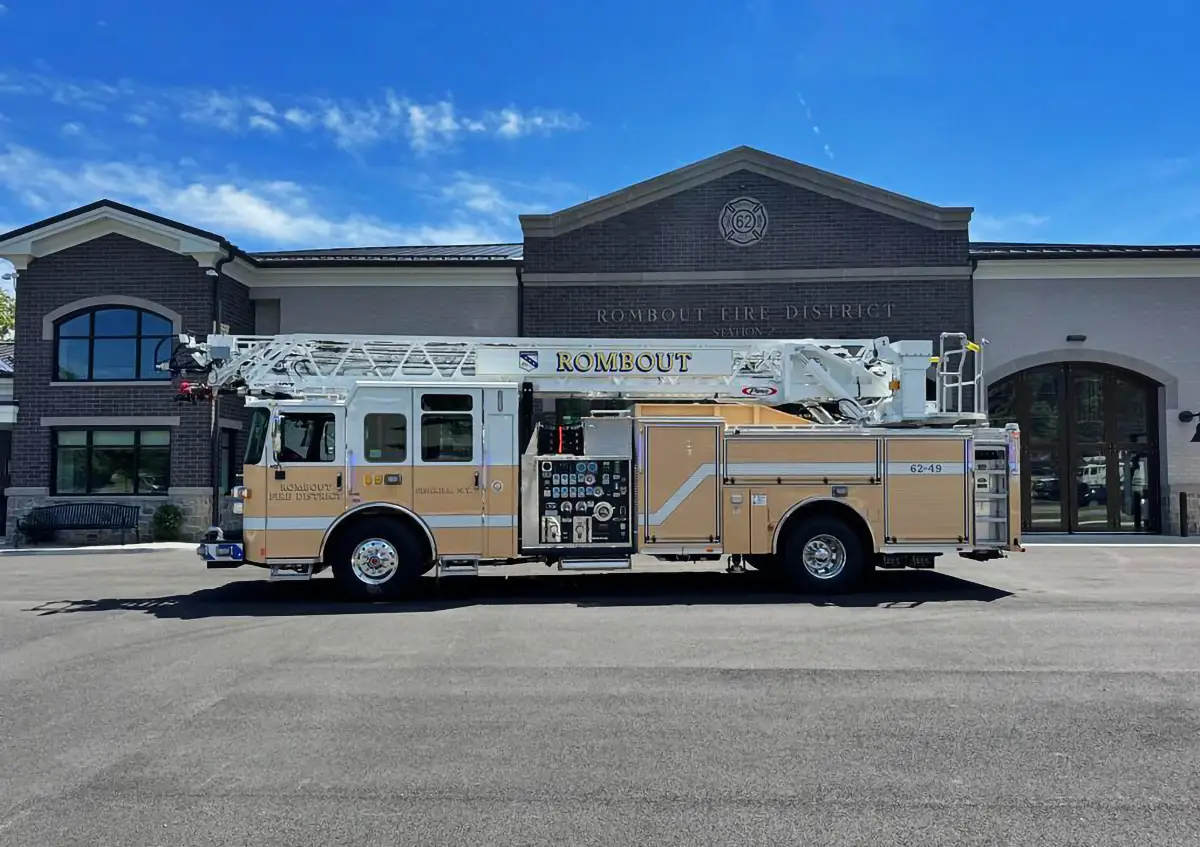

Pierce Velocity Aerial

Delivered to Rombout Fire Company in Fishkill, NY.

  • Department Rombout Fire Company
  • Location Fishkill, NY
  • Chassis Velocity
  • Category Ascendant
  • Delivery Date 5/9/25

Specs Summary

Drawing PDF
  • Velocity chassis (100AAT) aerial platform
  • Wheelbase: 271 in
  • GVWR: 78,000 lb
  • Engine: Cummins X15, 605 hp, 1,850 lb-ft (EPA 2021) with Jacobs engine brake
  • Transmission: Allison 4000 EVS 6-speed with external Modine cooler

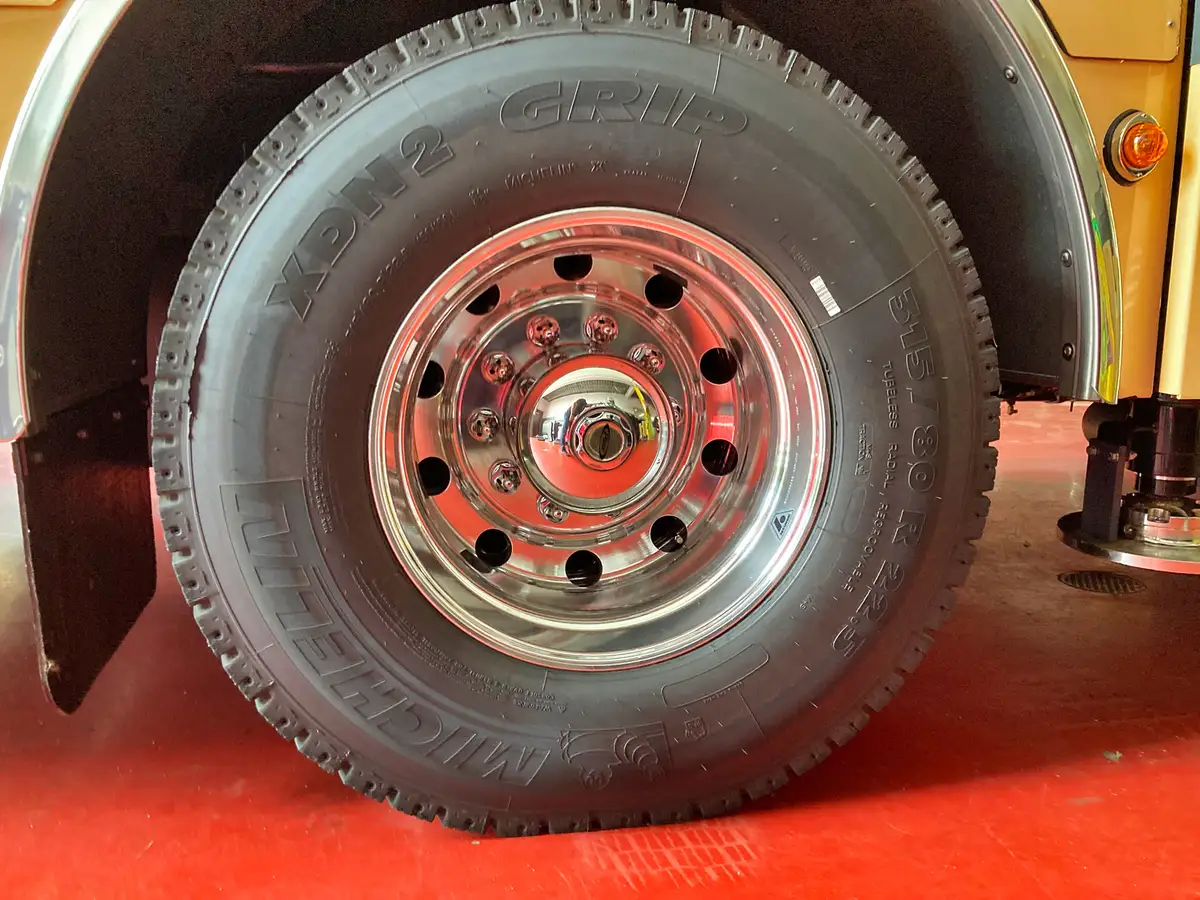

  • Front axle/suspension: Oshkosh TAK-4 non-drive 24,000 lb with KONI shocks; Michelin 445/65R22.5 tires; Alcoa 22.5×13 wheels
  • Rear axles: Meritor RT52-185 tandem 54,000 lb; 6.14 ratio (top speed set 60 mph); Goodyear 12R22.5 tires; Alcoa 22.5×8.25 wheels
  • Brakes: Meritor EX225 disc (front & rear) with Wabco ESC/ABS/ATC and AD-SP air dryer
  • Fuel/DEF: 65-gal fuel tank (driver-side fill) and 4.5-gal DEF tank
  • Alternator/Batteries: Delco Remy 55SI 430-amp alternator; six Group 31 (1000 CCA) batteries
  • Generator/120V: Harrison 10 kW hydraulic generator with Square D breaker panel and dual 200-ft 10/3 cord reels

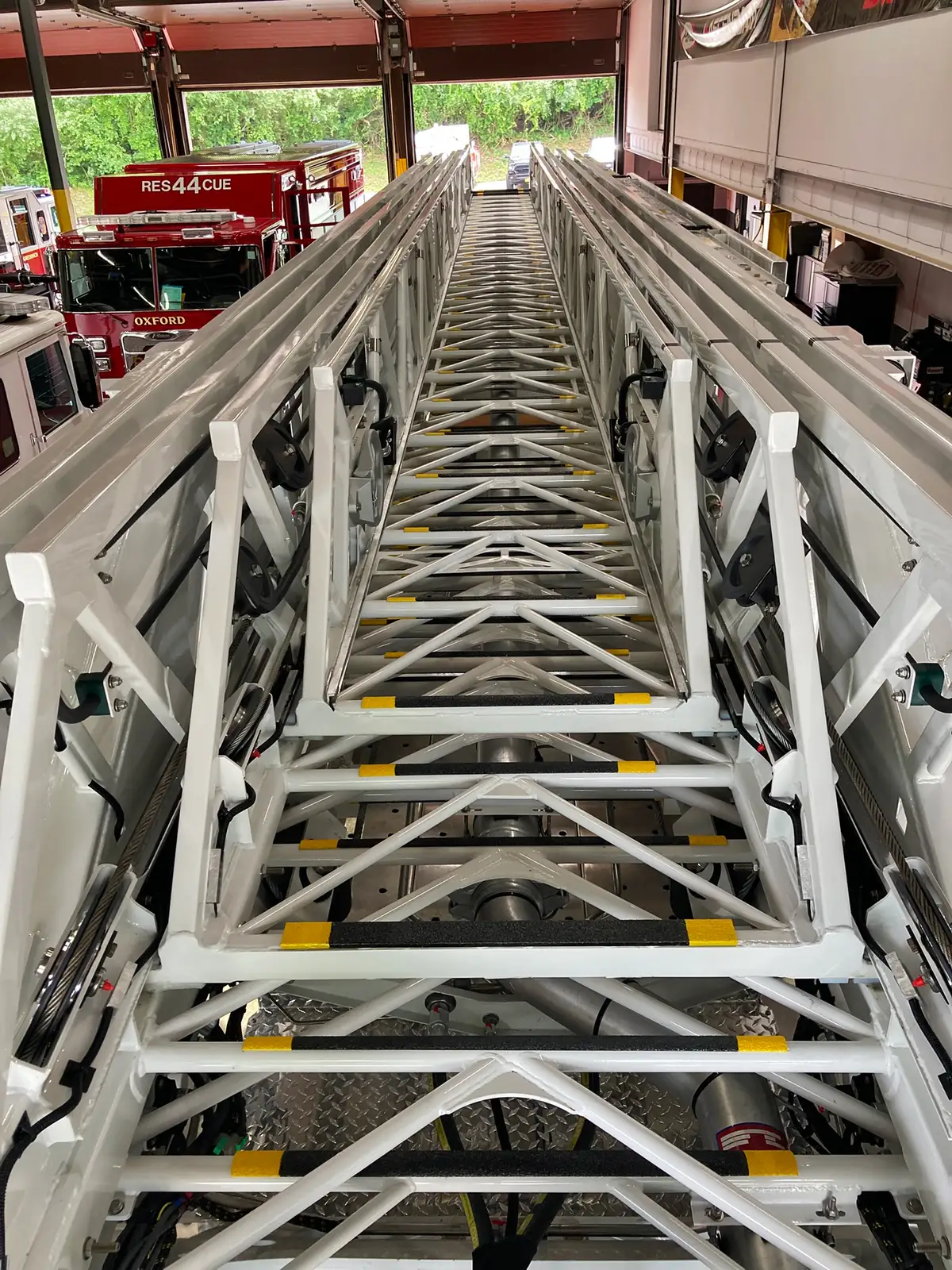

  • Aerial: Ascendant 100-ft tower with wireless remote; dual TFT monitors (incl. electric 2000 gpm nozzle) and waterway flowmeter

Opens an in-page PDF viewer. Use the drawing link above for a direct PDF tab.

Photo Gallery (12)
