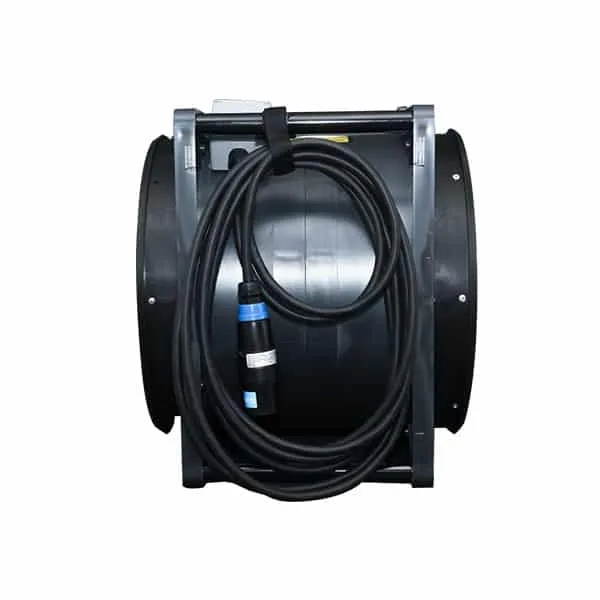

EFi50xx

Smoke Ejectors

EFi50xx image

Ramfan Product Family

The EFi50xx is part of Ramfan's smoke ejectors lineup for fire rescue ventilation operations and incident response support.

Quantitative details of EFi50xx

MetricValue
AirflowFree Air 3,200 cfm (5,440 m3/hr)
Airflow1,935 cfm (3,289 m3/hr)
Weight49 lbs / 22 kg
Motor/Power0.5 hp
Dimensions19 x 18 x16 in
NoiseNoise 90.2 dB @ 3' (1 m)

Comparison with other Smoke Ejectors

ProductAirflowPowerWeight
EFi50xx thumbnail EFi50xx Free Air 3,200 cfm (5,440 m3/hr)0.5 hp49 lbs / 22 kg
EFC50 EFC120 EF150 thumbnail EFC50 EFC120 EF150 3,200 cfm0.5 Hp49 lbs / 22 kg
EFC50x EFC120x EFC150x thumbnail EFC50x EFC120x EFC150x 3,200 cfm0.5 Hp49 lbs / 22 kg
EFi50 EFi120 EFi150 thumbnail EFi50 EFi120 EFi150 3,200 cfm0.5 Hp46 lbs 21 kg
EFi75xx thumbnail EFi75xx Free Air 2,500 cfm (4,250 m3/hr)0.75 Hp44 lbs/20 kg
