Equipment / Ramfan

UB30

Rescue / Confined Space

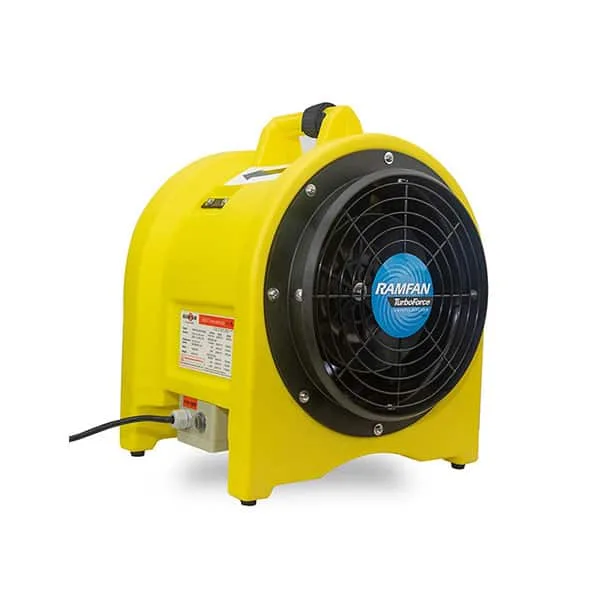

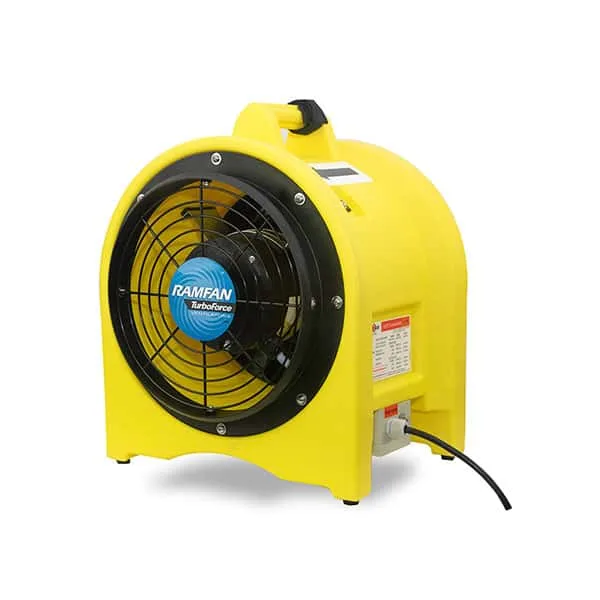

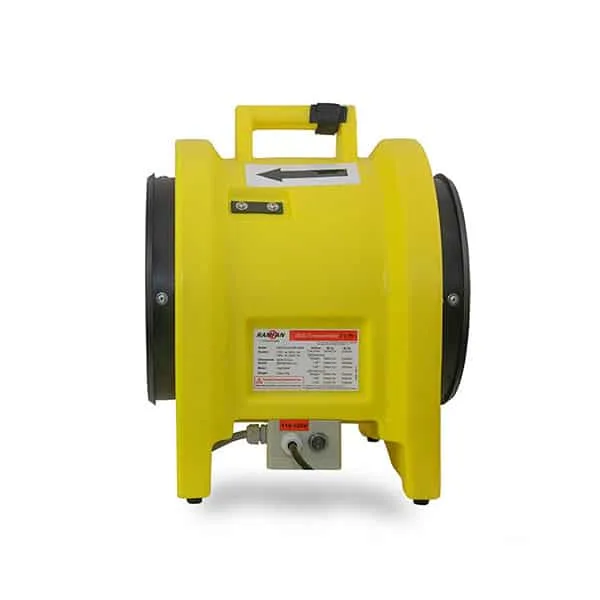

UB30 image

Ramfan Product Family

The UB30 is part of Ramfan's rescue / confined space lineup for fire rescue ventilation operations and incident response support.

Quantitative details of UB30

MetricValue
AirflowFree Air 2,420 cfm (4,114 m3/hr)
Airflow2,250 cfm (3,825 m3/hr)
Airflow1,825 cfm (3,103 m3/hr)
Airflow1,750 cfm (2,975 m3/hr)
Weight37 lbs / 17 kg
Motor/PowerMotor 1 Hp / 0
Dimensions20 x 15.5 x 12 in
NoiseNoise 95 dB @ 3' (1 m)

Comparison with other Rescue / Confined Space

ProductAirflowPowerWeight
UB30 thumbnail UB30 Free Air 2,420 cfm (4,114 m3/hr)Motor 1 Hp / 037 lbs / 17 kg
UB20 thumbnail UB20 Free Air 980 cfm (1,666 m3/hr)Motor 1/3 Hp 017 lbs / 8 kg
UB20xx thumbnail UB20xx 789 cfm (1,341 m3/hr)0.33 Hp27 lbs 12 kg
UB20 thumbnail

UB20

Free Air 980 cfm (1,666 m3/hr)

UB20xx thumbnail

UB20xx

789 cfm (1,341 m3/hr)
