Ramfan Product Family
The VX700 is part of Ramfan's gas ppv blowers lineup for fire rescue ventilation operations and incident response support.
Equipment / Ramfan

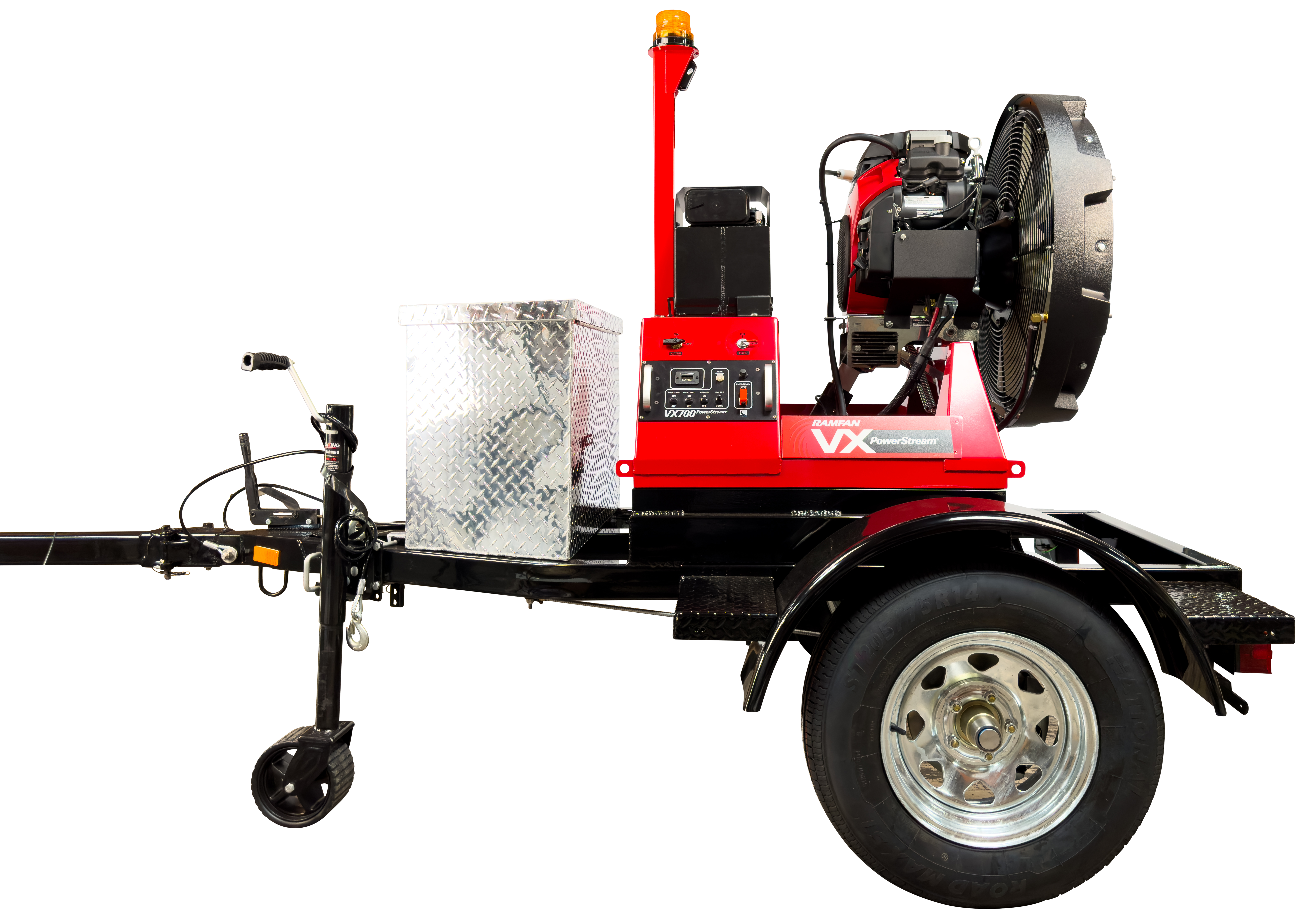

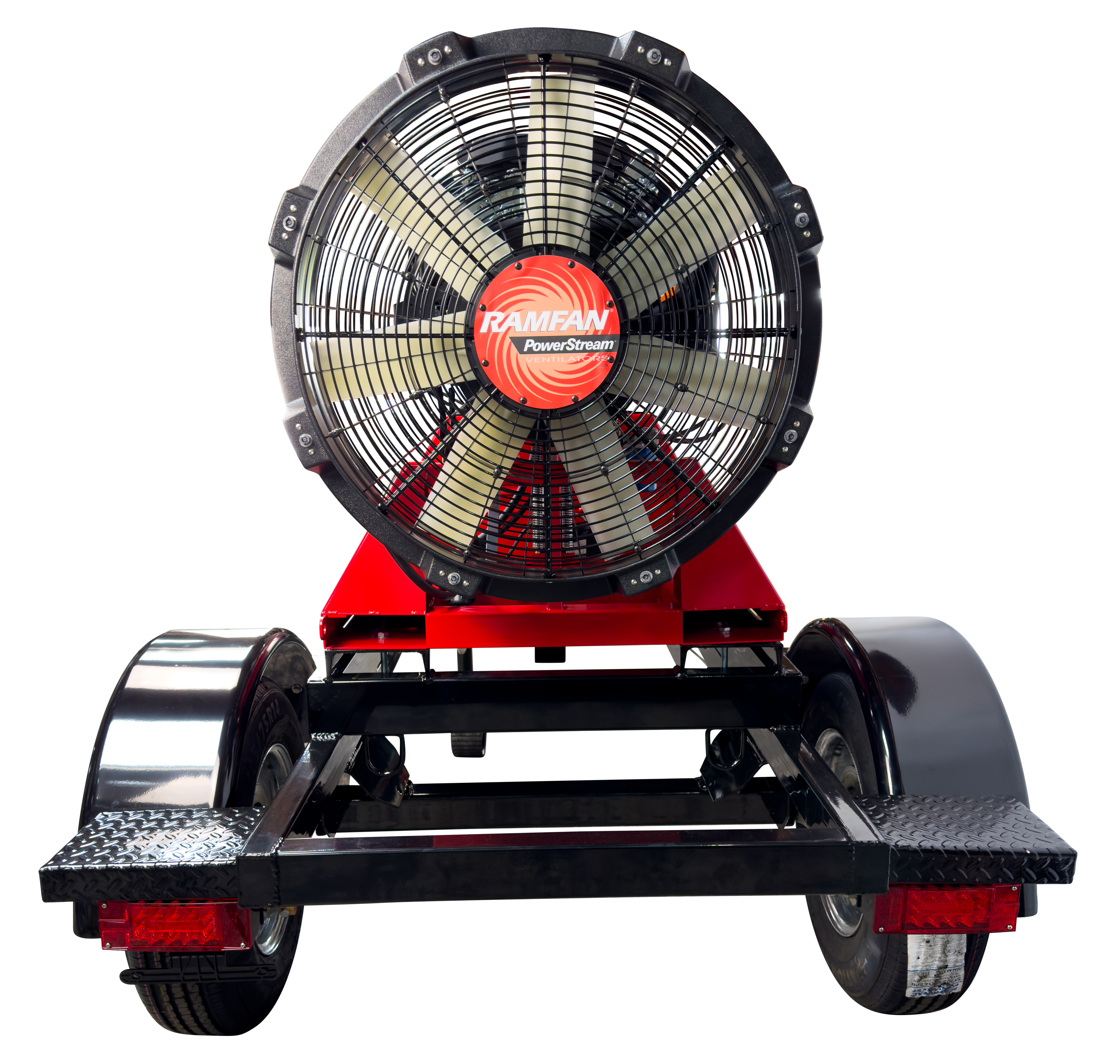

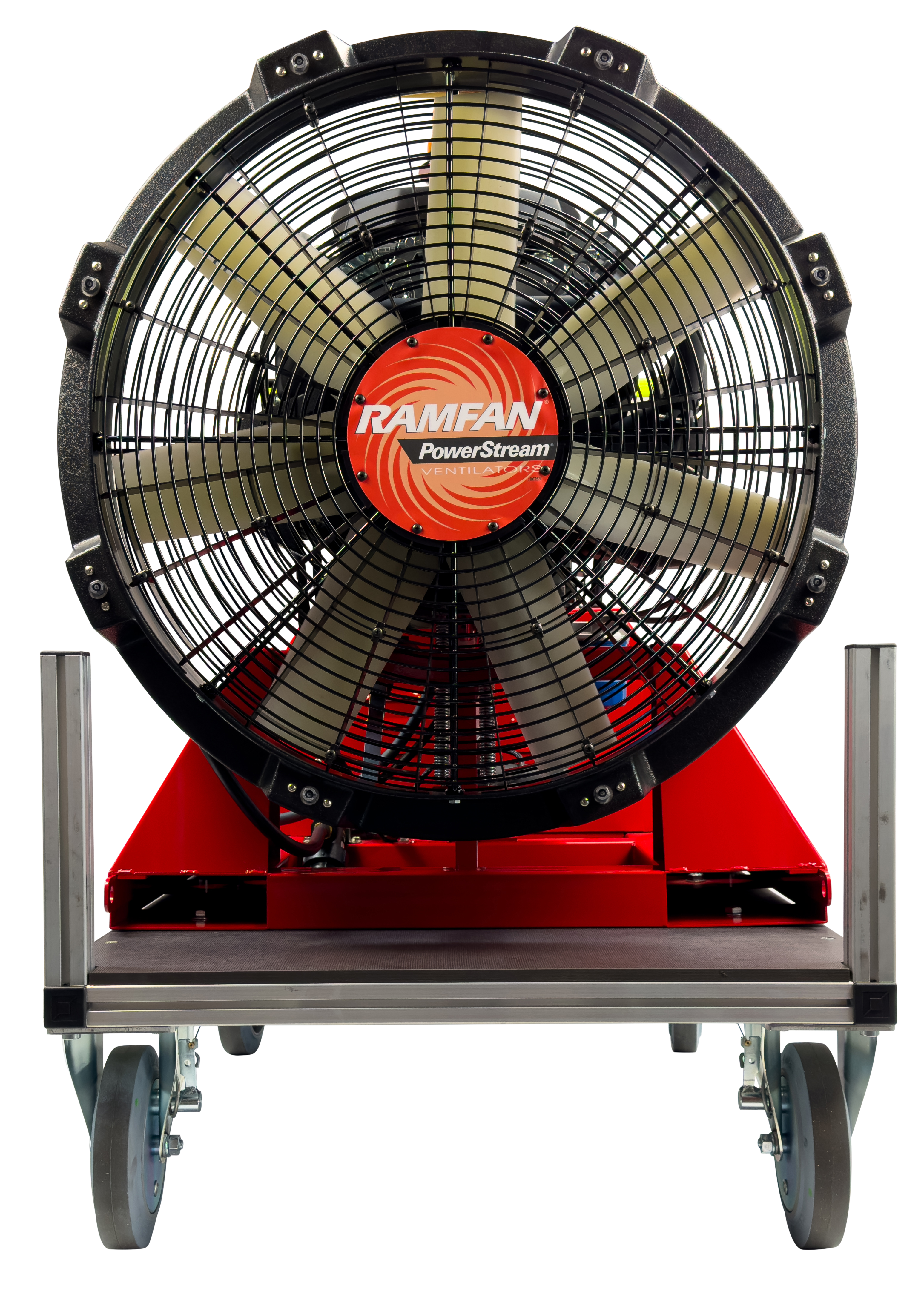

VX700
Gas PPV Blowers
Quantitative details of VX700
| Metric | Value |
|---|---|
| Airflow | Double Door 46,700 cfm |
| Airflow | Warehouse 60,200 cfm |
| Weight | 220 lbs / 100 kg |
| Voltage | 12V |
| Runtime | Runtime 2 hrs |
| Motor/Power | Engine Honda GX630 23 Hp / 17 kW |
| Blade/Impeller | Impeller 7-Blade |
| Dimensions | 49 x 33.3 x 47.3 in |
| Noise | Noise 105 dB @ 3' (1 m) / 103 dB @ 10' (3 m) |
Comparison with other Gas PPV Blowers
| Product | Airflow | Power | Weight | Runtime |
|---|---|---|---|---|
|
VX700
|
Double Door 46,700 cfm | 12V | 220 lbs / 100 kg | Runtime 2 hrs |
GF164GP
|
- | - | - | Runtime 1 hr |
GF164SE
|
- | 4.6 Hp | 59 lbs / 27 kg | Runtime 1 hr |
GF165
|
Opening Size 12,906 cfm | 4.8 Hp | 84 lbs / 38 kg | Runtime 2 hrs |
GF210
|
30,039 m3/hr | 4.8 Hp | 88 lbs / 40 kg | Runtime 1 hr |
GF164GP
-
GF164SE
-
GF165
Opening Size 12,906 cfm
GF210
30,039 m3/hr
Ramfan Literature

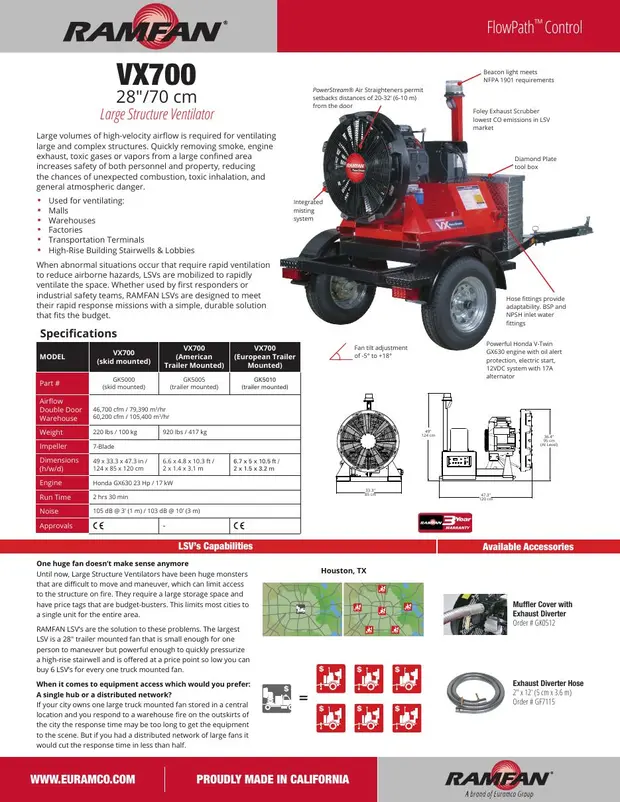

VX700 Data Sheet.pdf

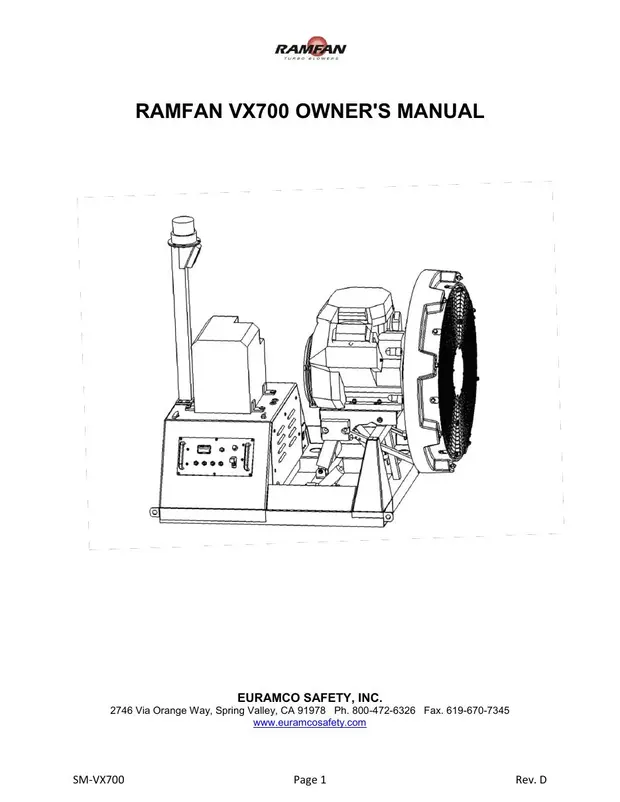

VX700 User Guide.pdf
