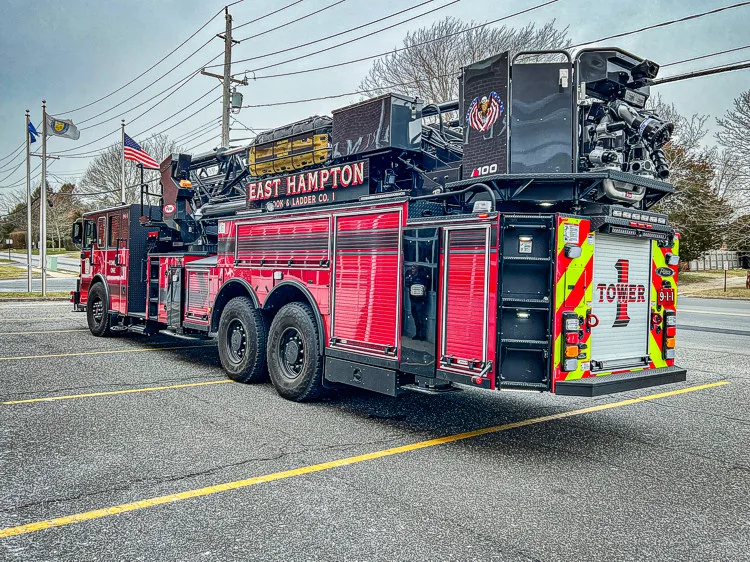

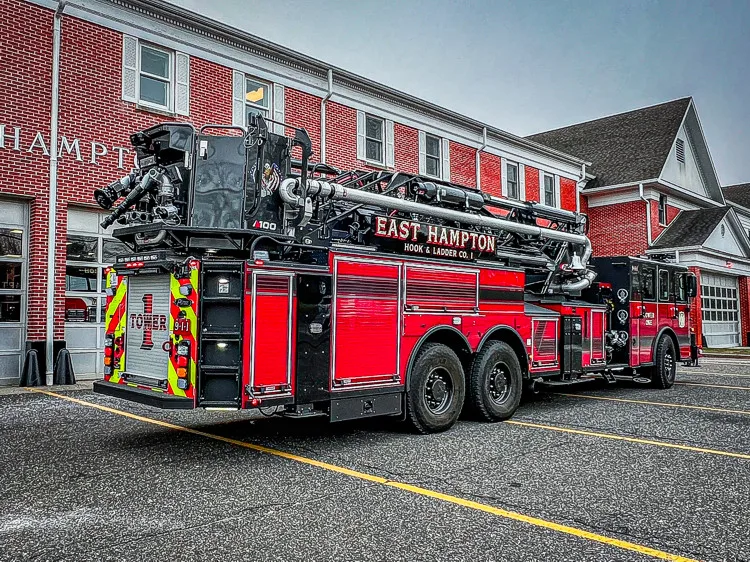

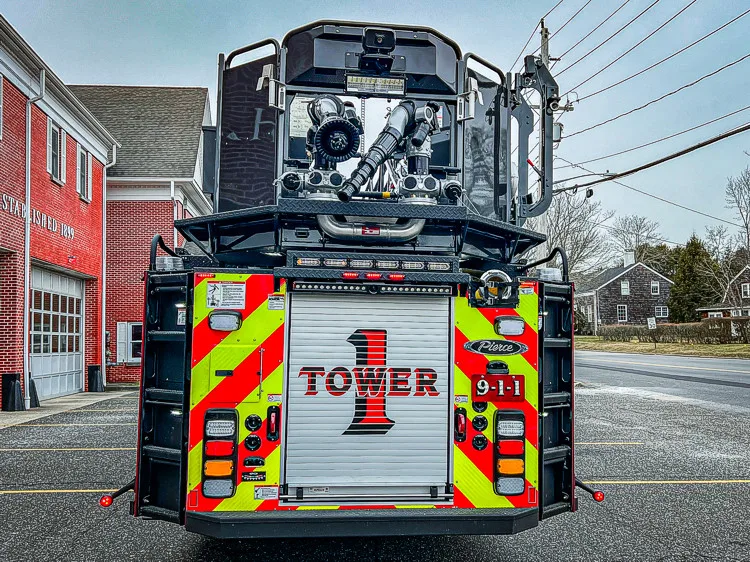

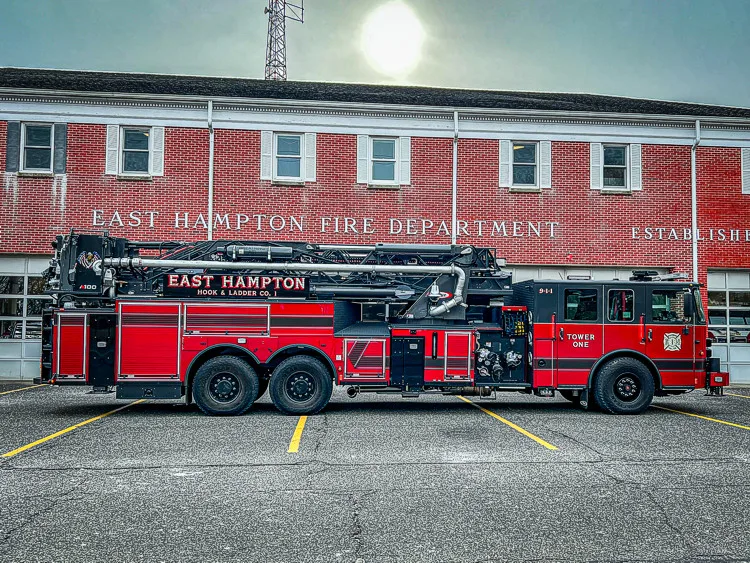

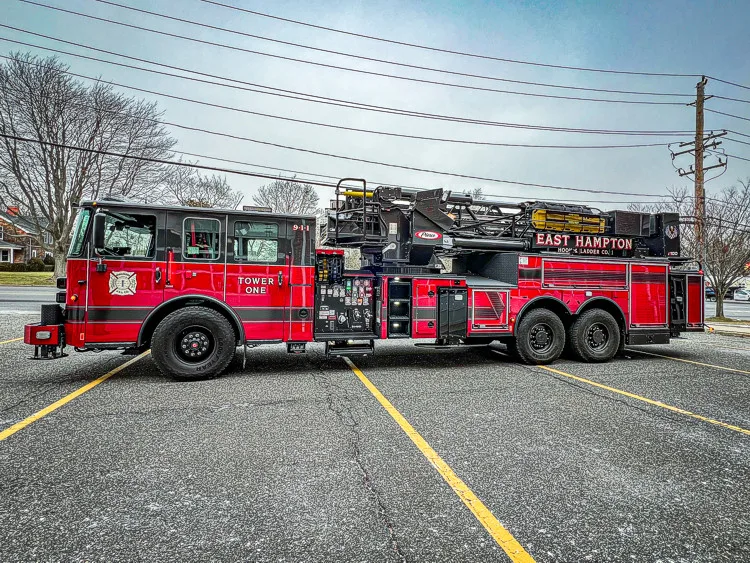

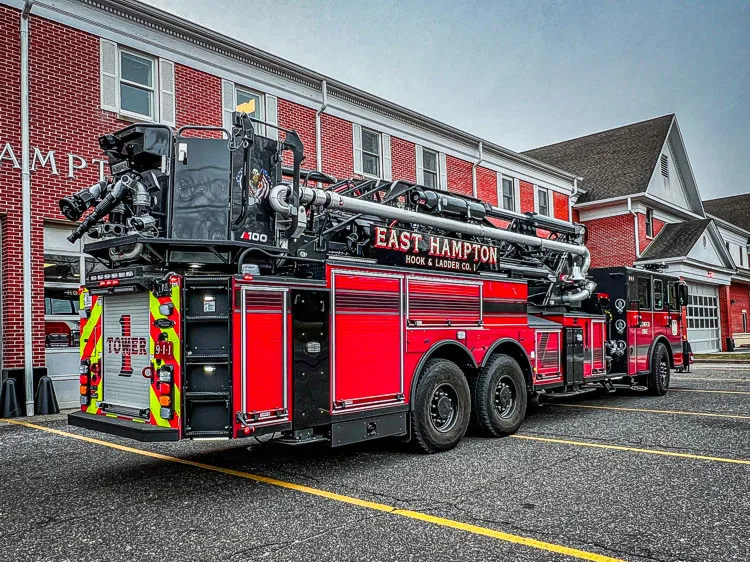

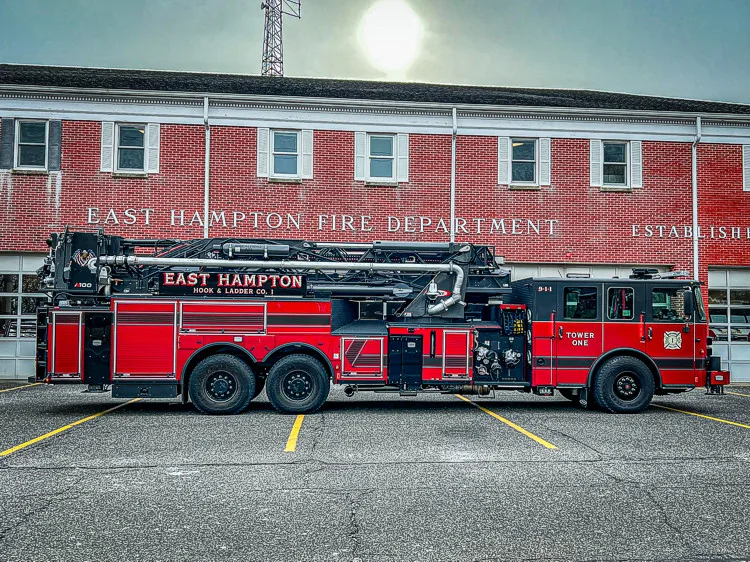

Pierce Arrow Aerial

Delivered to East Hampton FD in East Hampton, NY.

  • Department East Hampton FD
  • Location East Hampton, NY
  • Chassis Arrow
  • Category Ascendant
  • Delivery Date 1/19/24

Specs Summary

Drawing PDF
  • Chassis: Enforcer Chassis
  • Transmission: Allison 6th Gen, 4000 EVS
  • Chassis: ARROW
  • Wheelbase: 271.00 WB
  • Pierce Ascendant 100' Aerial Tower
  • Suspension, Front TAK-4, 24,000 lb
  • Axle, Rear, Oshkosh TAK-4 T3, 52,640 lb, Rear Steer, 2 Axle
  • Engine, Cummins X12, 500 hp, 1700 lb-ft, W/OBD
  • Trans, Allison 6th Gen, 4000 EVS P

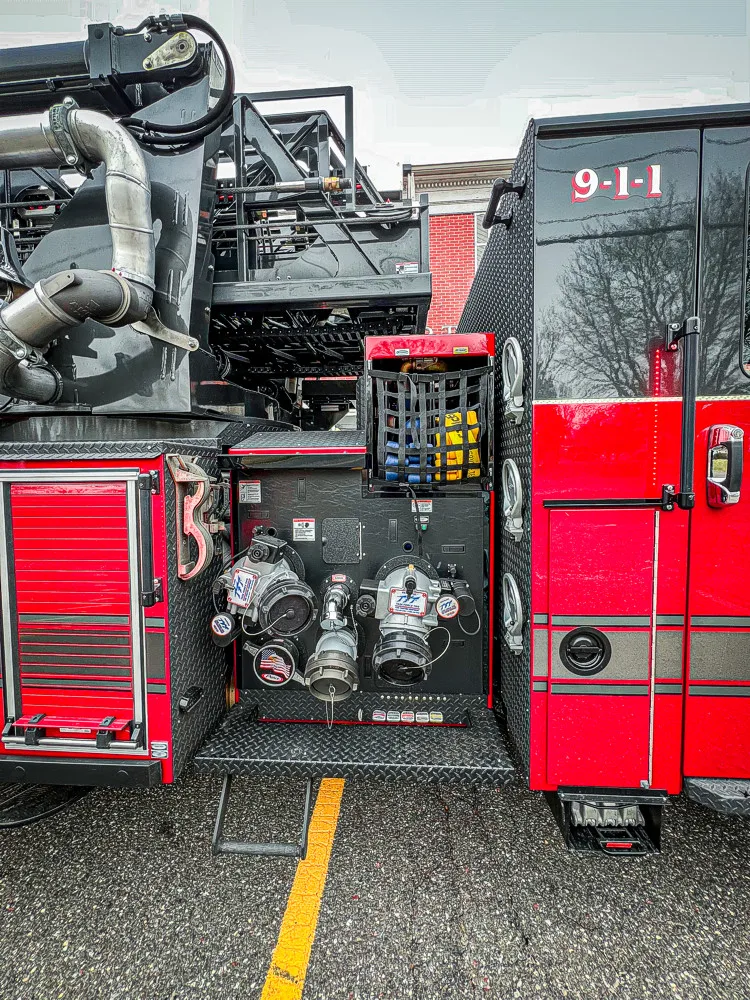

  • Pump, Waterous, S100, 2000 GPM, Single Stage
  • Tank, Water, 300 Gallon, Poly
