Pierce Delivery
Arrow

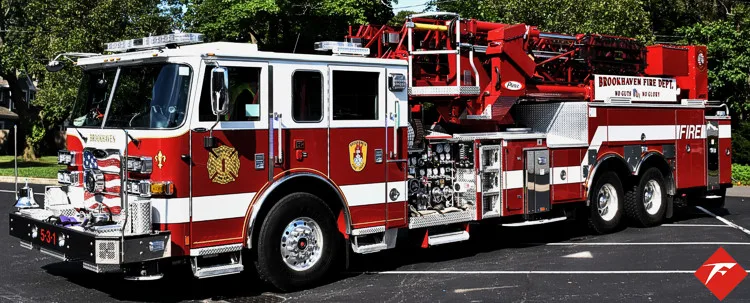

Pierce Arrow Aerial

Delivered to Brookhaven FD in Brookhaven, NY.

  • Department Brookhaven FD
  • Location Brookhaven, NY
  • Chassis Arrow
  • Category Ascendant
  • Delivery Date 7/18/22

Specs Summary

Drawing PDF
  • Chassis: Arrow XT Chassis
  • Chassis: ARROW XT

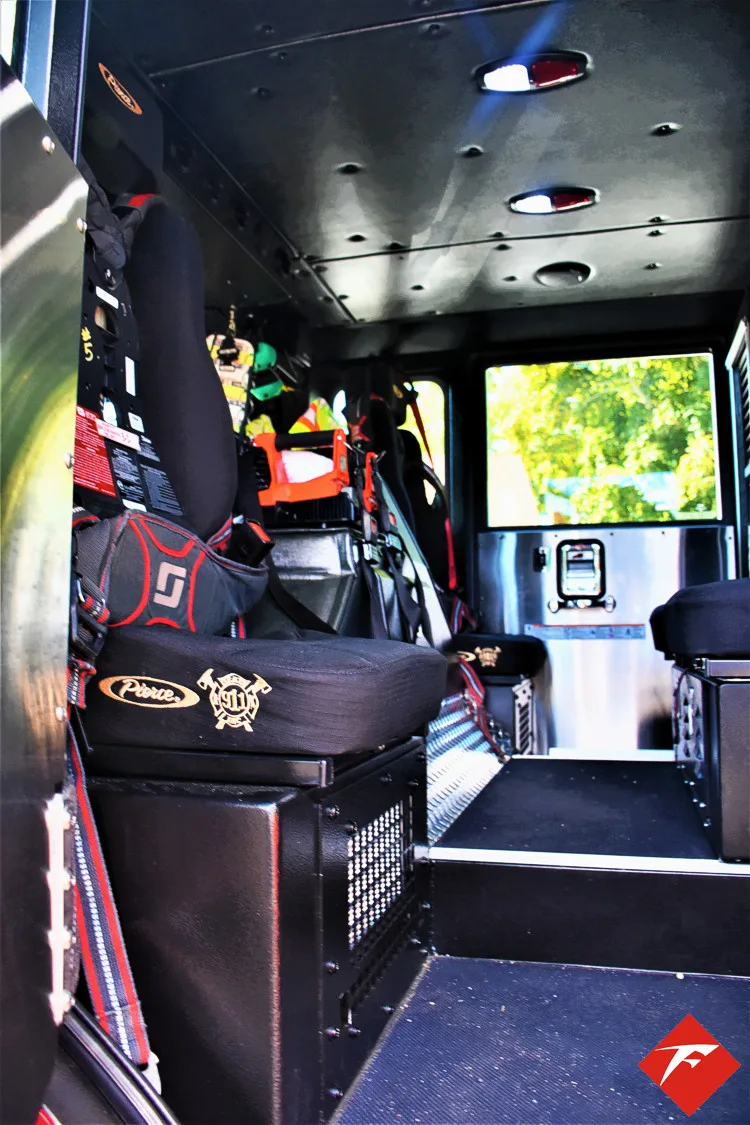

  • Pierce Arrow XT Cab and Chassis

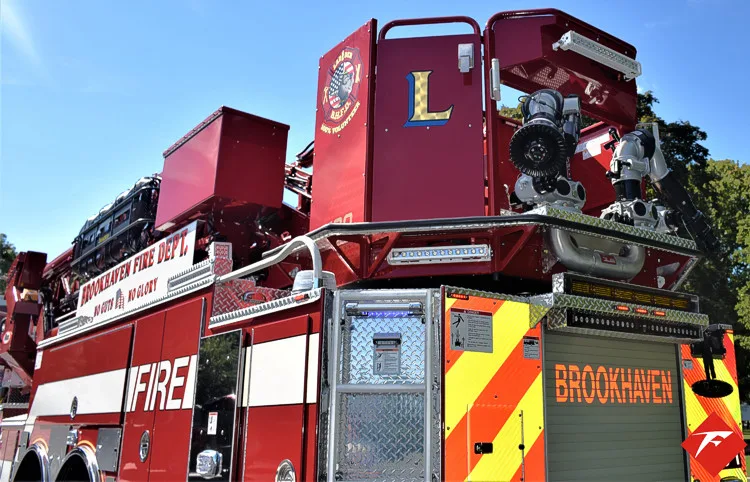

  • 100' Ascendant Steel Aerial with Platform
  • GVW 76,000lbs
  • Wheelbase 271"
  • Front Suspension TAK-4 24,000lbs, Rear Suspension Meritor 54,000 lbs.
  • Pierce Command Zone Electronics

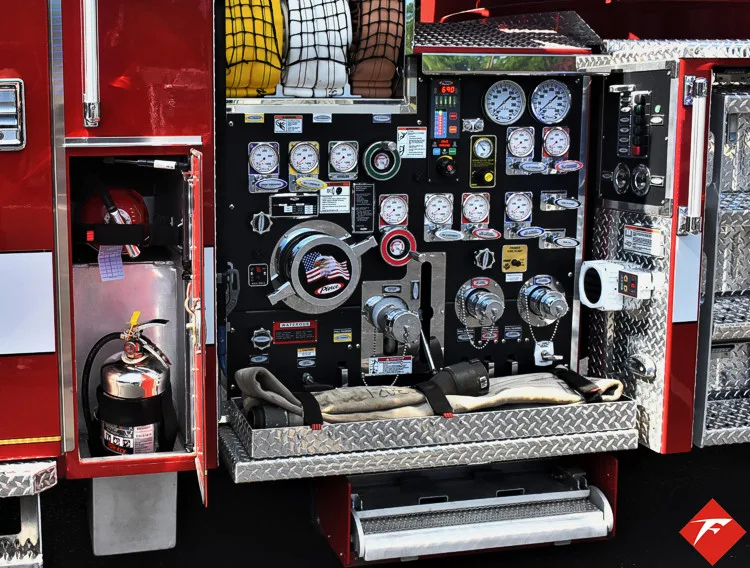

  • Waterous S100 2000 gpm pump, 300-gallon poly tank
  • Hi viz headlights and scene lighting
  • Whelen Emergency Vehicle lighting

Opens an in-page PDF viewer. Use the drawing link above for a direct PDF tab.

Photo Gallery (14)
