Pierce Delivery
Arrow

Pierce Arrow Aerial

Delivered to Blue Point FD in Blue Point, NY.

  • Department Blue Point FD
  • Location Blue Point, NY
  • Chassis Arrow
  • Category Aerial
  • Delivery Date 9/12/22

Specs Summary

Drawing PDF
  • Chassis: Arrow XT Chassis
  • Transmission: Allison 5th Gen, 4000 EVS
  • Rear Axle: 48,000 Lb Meritor AxLe
  • Engine: 455 HP Cummins X12 Engine
  • Wheelbase: 245.50 WB

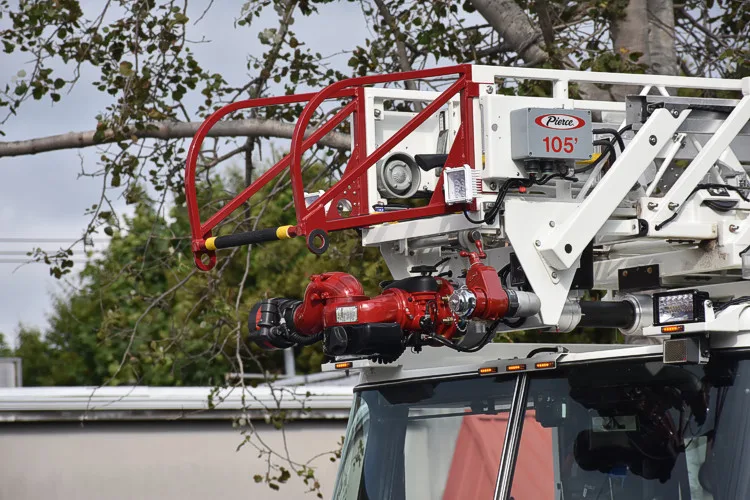

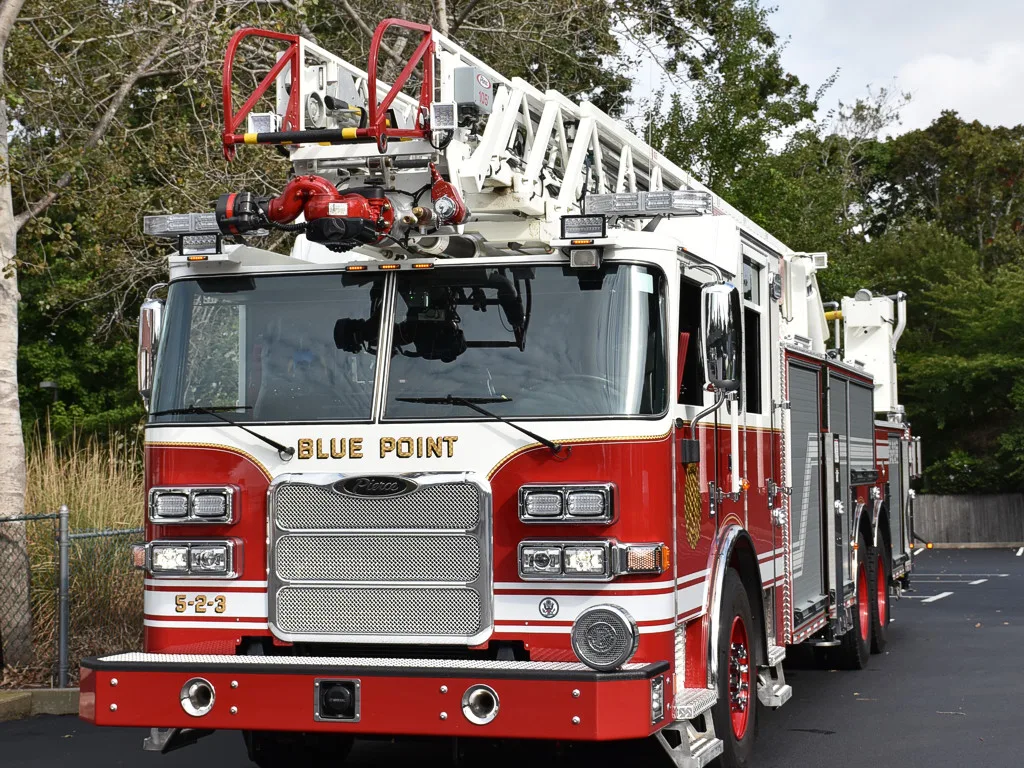

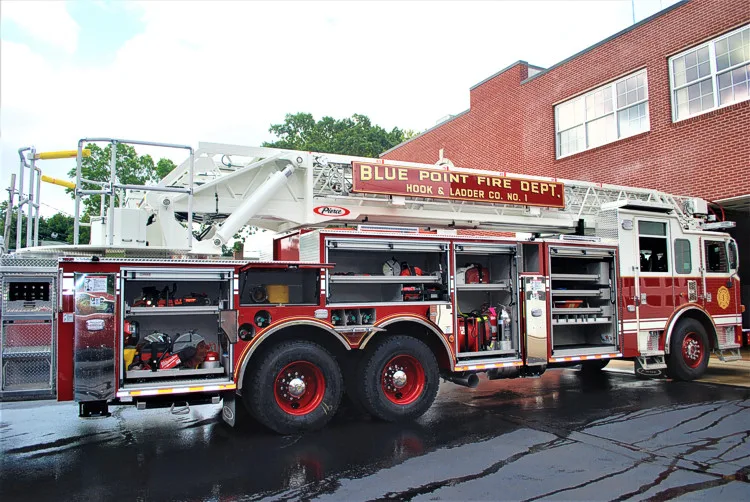

  • Pierce Arrow XT Cab and Chassis, HD Ladder 105', Aluminum Body
  • Notched roof
  • Wheelbase 245.5"
  • GVW 67,000
  • Front Axle, Dana 21,500 lbs
  • Rear Axle, Meritor 48,000 lbs
  • Jake Engine Brake

Opens an in-page PDF viewer. Use the drawing link above for a direct PDF tab.

Photo Gallery (18)
