Battery-Operated Positive-Pressure Ventilation Fans

These Super Vac PPV fans are grouped by battery ecosystem because the power pack drives airflow, runtime, and the chassis combinations available to the crew. The result is a cleaner spec discussion than treating every battery version like a separate product family.

16 inch saddle-style battery-operated PPV fan

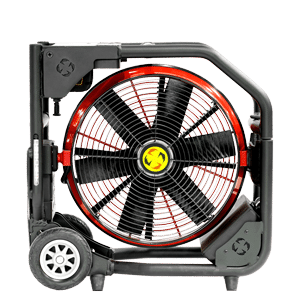

20 inch wheeled battery-operated PPV fan

What Changes From Platform To Platform

The fan family stays visually familiar, but the battery platform changes airflow, runtime, available blade sizes, and whether the compact saddle-style 16" unit is offered alongside the wheeled 16", 18", and 20" packages.

Blade Range

16" to 20"

Layouts

Saddle And Wheeled

Highest Published CFM

14,100 CFM

Longest Published Runtime

Up To 67 Minutes

Application Notes

Saddle-style 16" units

DeWalt, Milwaukee, and Makita include the compact 16" saddle format. HURST and Stihl do not, so their lineup starts with the wheeled 16" fan.

Wheeled fan packages

Every battery family carries the larger wheeled fans where crews need tilt control, fast repositioning, and higher airflow on push paths into the structure.

Runtime footnotes

Published runtimes vary by battery selection. Airflow values are based on the AMCA 240-22 PPV test standard or the comparable procedure called out in the source notes.

Battery Platform Overview

DeWalt

DeWalt Battery Fans

Available in 16" saddle, 16" wheeled, 18" wheeled, and 20" wheeled configurations for crews already committed to the DeWalt battery platform.

Battery: DeWalt batteries
Airflow range: 8,127 to 9,456 CFM
Runtime range: Up to 58 to 66 minutes
Applications: 4

Milwaukee

Milwaukee REDLITHIUM Battery Fans

Built around Milwaukee M18 and M28 REDLITHIUM batteries, with the same four physical formats and a stronger top-end 20" airflow figure than the DeWalt lineup.

Battery: Milwaukee M18/M28 REDLITHIUM
Airflow range: 7,721 to 9,867 CFM
Runtime range: Up to 52 to 62 minutes
Applications: 4

HURST

HURST EWXT/E3 Battery Fans

This package begins with the wheeled 16" fan and skips the saddle layout. It is positioned for departments already standardizing around HURST extrication batteries.

Battery: 5.0Ah or 9.0Ah HURST EWXT/E3
Airflow range: 7,879 to 9,413 CFM
Runtime range: Up to 61 to 63 minutes
Applications: 3, no saddle fan

Makita

Makita XGT Battery Fans

Makita brings back the 16" saddle option and posts the longest runtime in your notes at the 20" wheeled size.

Battery: 4.0Ah, 5.0Ah, or 8.0Ah Makita XGT
Airflow range: 7,921 to 9,773 CFM
Runtime range: Up to 39 to 67 minutes
Applications: 4

Stihl

Stihl AP Battery Fans

Stihl is another three-application lineup with no saddle fan, but it posts the strongest airflow figures in your notes across the 16", 18", and 20" wheeled packages.

Battery: Stihl AP 300S or AP 500S
Airflow range: 11,700 to 14,100 CFM
Runtime range: Up to 32 to 35 minutes
Applications: 3, no saddle fan

Configuration Comparison

This table keeps the battery-driven PPV lineup on one sheet so crews can compare blade size, carry weight, airflow, runtime, and whether the configuration is offered in each battery ecosystem.

Configuration

16" Saddle

DeWalt

45 lbs.
8,127 CFM
66 min max

Milwaukee

45 lbs.
7,721 CFM
52 min max

HURST

Makita

46 lbs.
7,921 CFM
39 min max

Stihl

Configuration

16" Wheeled

DeWalt

53 lbs.
8,127 CFM
66 min max

Milwaukee

53 lbs.
7,721 CFM
52 min max

HURST

54 lbs.
7,879 CFM
62 min max

Makita

54 lbs.
7,921 CFM
62 min max

Stihl

61 lbs.
11,700 CFM
35 min max

Configuration

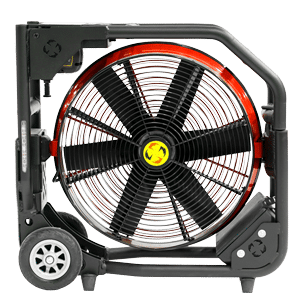

18" Wheeled

DeWalt

58 lbs.
8,489 CFM
63 min max

Milwaukee

58 lbs.
8,946 CFM
53 min max

HURST

60 lbs.
8,397 CFM
61 min max

Makita

56 lbs.
8,456 CFM
66 min max

Stihl

65 lbs.
12,600 CFM
32 min max

Configuration

20" Wheeled

DeWalt

63 lbs.
9,456 CFM
58 min max

Milwaukee

62 lbs.
9,867 CFM
62 min max

HURST

64 lbs.
9,413 CFM
63 min max

Makita

61 lbs.
9,773 CFM
67 min max

Stihl

70 lbs.
14,100 CFM
35 min max
