Freightliner Tanker - No Pump House - 42696
Current Pierce stock unit with linked chassis/body references, local drawing file, and a full-size drawing viewer.
Stock Summary
Stock Specifications
| Job # | 42696 |
|---|---|
| Availability | In Production |
| Chassis | Freightliner |
| Body | Commercial Wet Side Tanker |
| Actual Overall Height | 10' 3" |
| Engine | Detroit Diesel DD13 |
| Horsepower | 450 hp |
| Front Suspension | Spring |
| Rear Suspension | Spring |
| Electrical System | Hard Wired |
| Pump | Darley Midship |
| Pump GPM | 500 GPM |
| Tank | Water |
| Tank Size | 3000 gallons |
| Drawing File | Available |

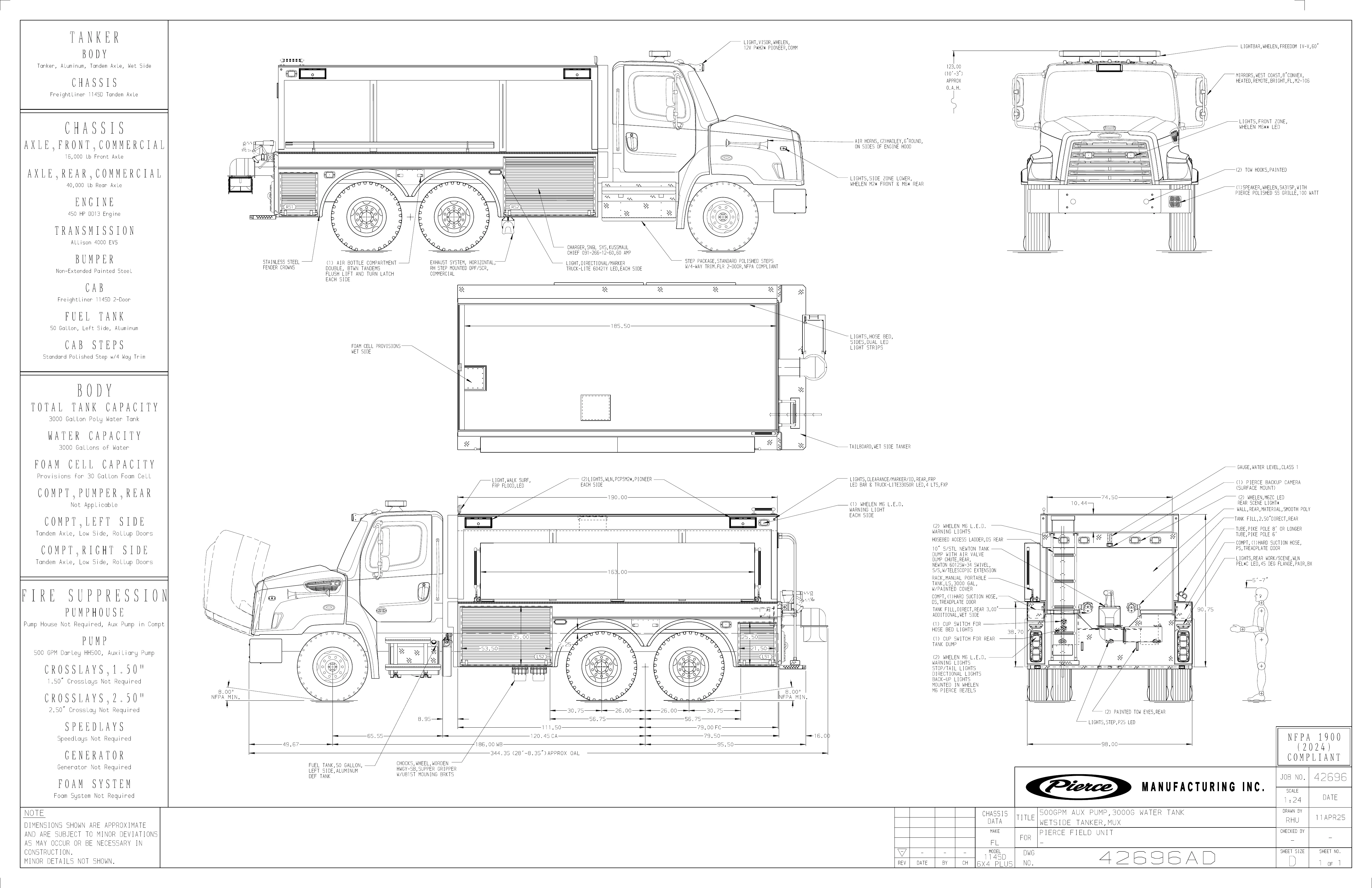

Truck Drawing
The apparatus drawing below opens in a larger modal viewer and can also be downloaded as the original PDF.
