Arctic 2500 Series enclosed compressor

Equipment / Arctic Compressor

2500 Series

The 2500 Series is Arctic's high-output enclosed platform for larger fill programs, multi-company stations, and training-heavy operations where bottle turnaround speed becomes an operational issue, not a convenience issue.

2500 Series Enclosed

High-output enclosed air-room platform

The 2500 Series is where Arctic moves from routine station support into serious fill throughput. When a department is supporting a larger fleet, a regional training schedule, or heavy cascade usage, this is the enclosed platform that keeps fill time from getting in the way of operations.

It delivers up to 24 CFM, keeps 6000 PSI capability, and is the right answer when a larger install is justified by actual fill demand instead of wishful overbuying.

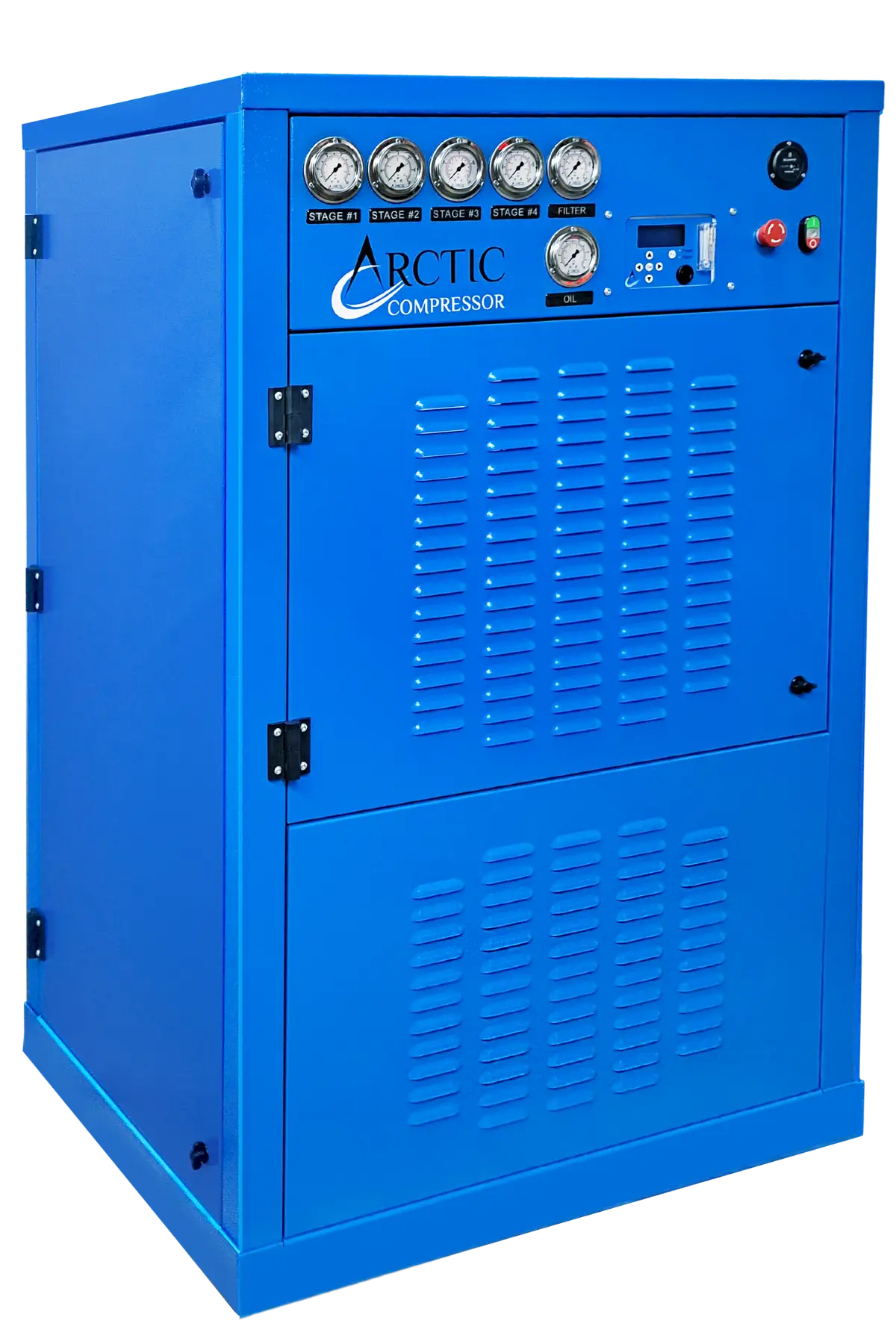

Arctic 2500 Series enclosed compressor front view

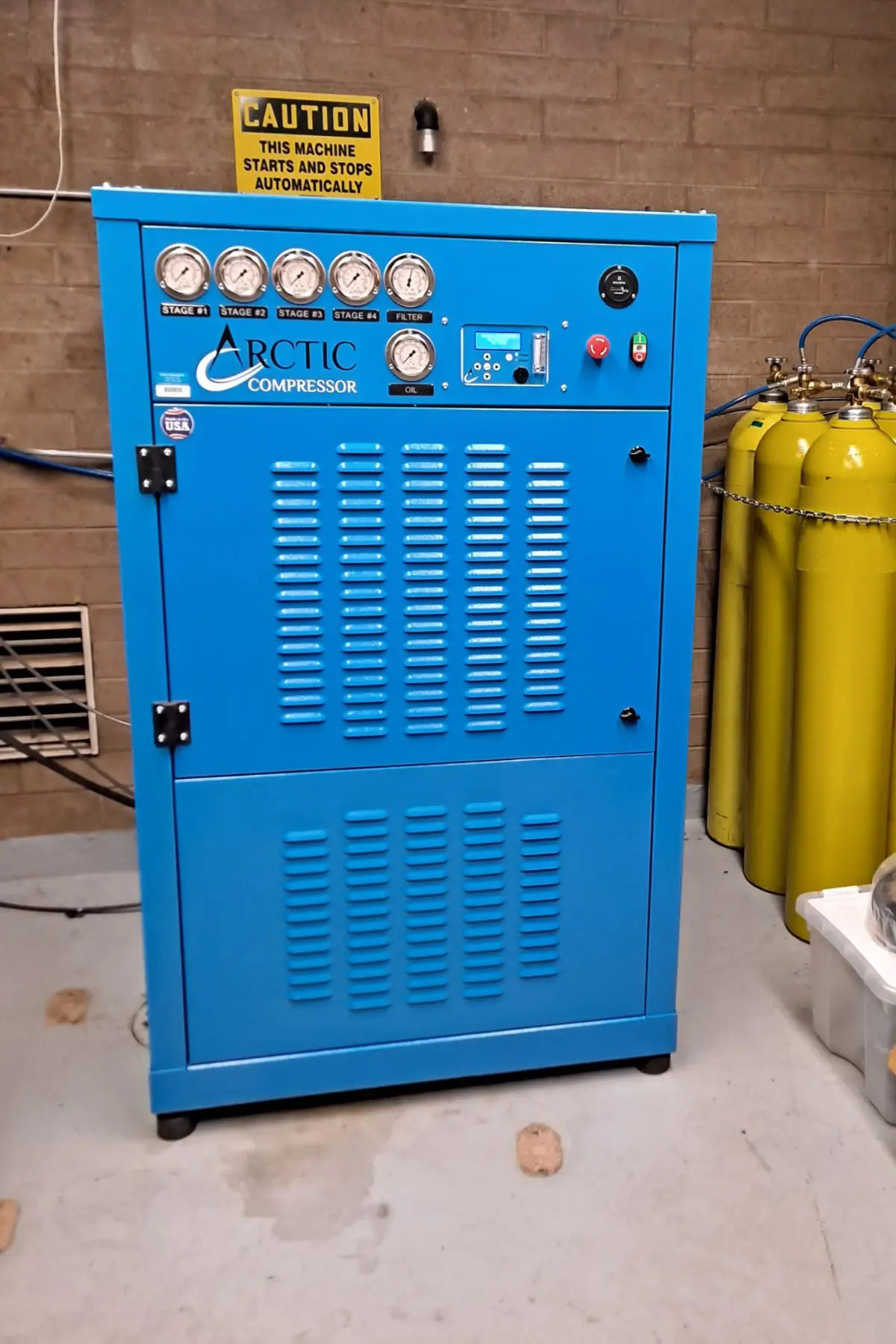

Arctic 2500 Series enclosed compressor side view
Pressure6000 PSI
Max FlowUp to 24 CFM
Motor15 to 20 HP
Drive Speed1400 RPM
FiltrationUp to 90,000 cu. ft. at 80 F with 4-stage filtration up to 24 CFM
Air QualityExceeds CGA Grade E breathing air standards
Weight1150 to 1200 lb

Where 2500 Fits Best

  • Larger stations and training centers with sustained bottle fill demand
  • Departments supporting multiple companies from one breathing-air room
  • Programs where faster recovery after major incidents or drills matters
  • Facilities that want enclosed packaging but cannot afford low throughput
ModelPressureCFMMotorStagesRPMWeight
E4-20-A66000 PSI24 CFM20 HP41400 RPM1200 lb
E4-15-A66000 PSI18 CFM15 HP41400 RPM1150 lb

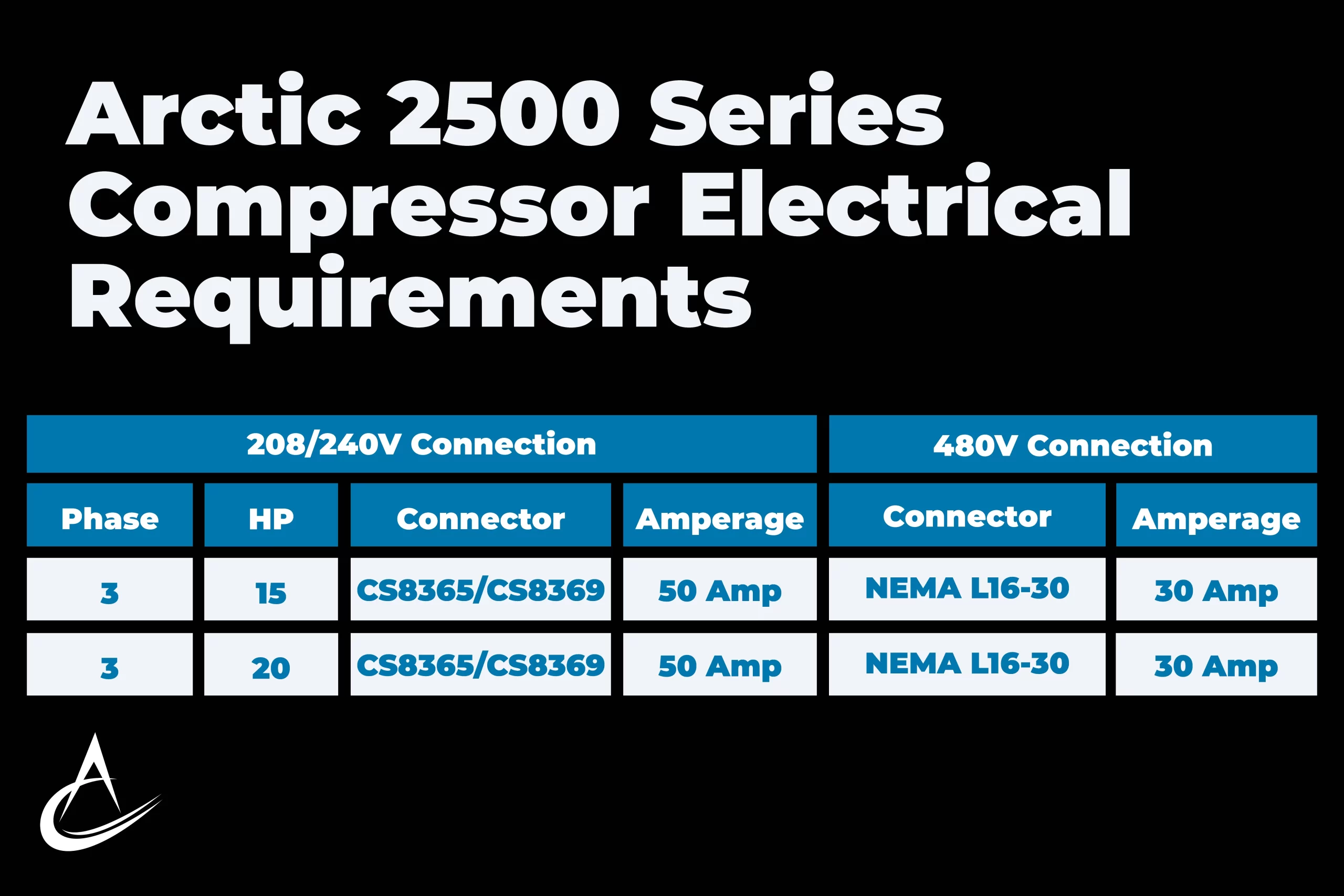

Open 2500 Series Cut SheetView Electrical Requirements
