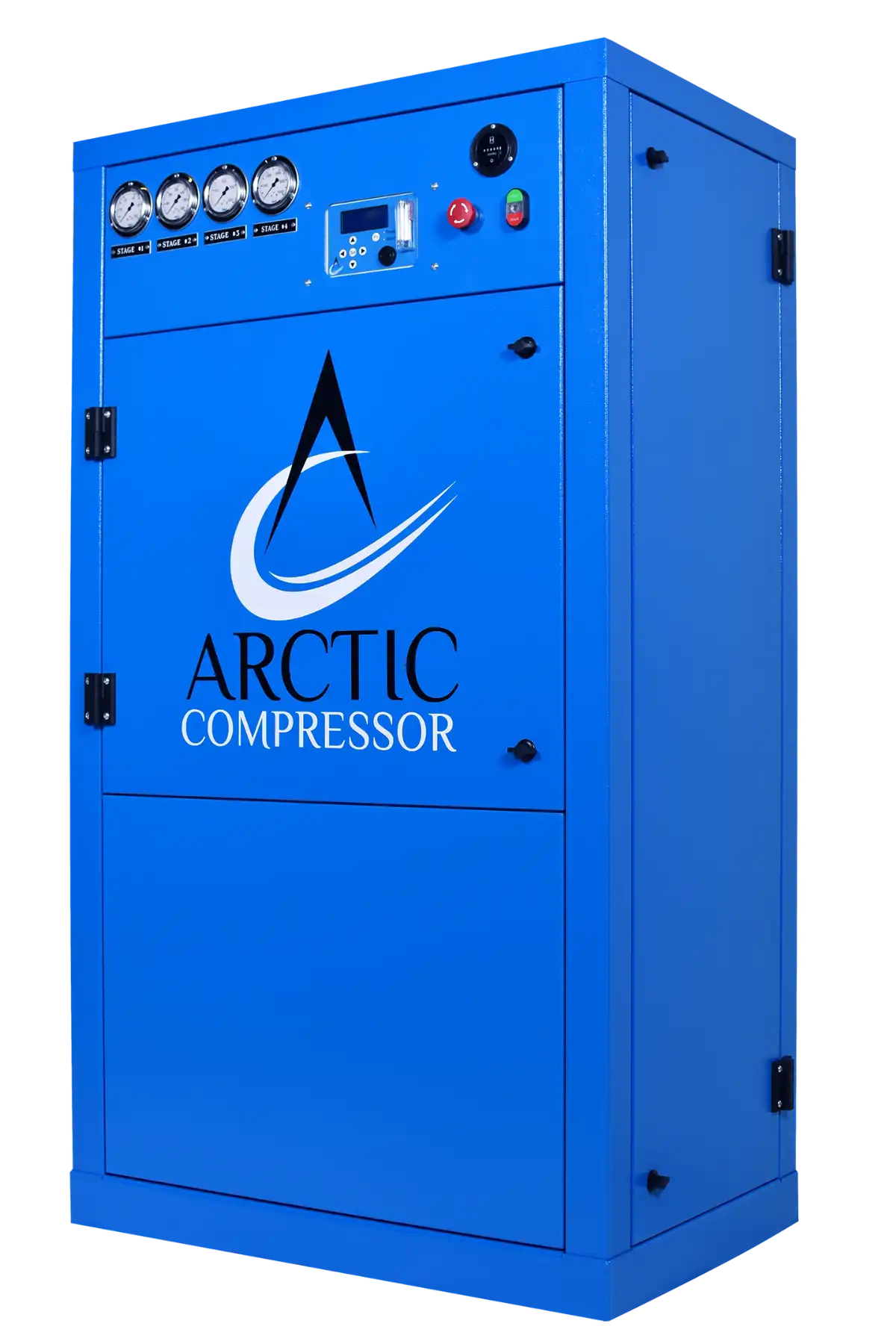

1500 Series Enclosed
Mid-range enclosed platform for busier air rooms
The 1500 Series is the practical step up when departments need more fill capacity but still want the tidy packaging and controlled footprint of an enclosed compressor. This is the platform that makes the most sense for many stations because it increases output without moving all the way into the larger 2500 Series class.
If fill demand is consistent and the room is expected to support multiple rigs, reserve cylinders, and post-training turnaround, this is often where the conversation gets serious.
| Pressure | 6000 PSI |
|---|---|
| Max Flow | Up to 14 CFM |
| Motor | 7.5 to 10 HP |
| Drive Speed | 1100 to 1400 RPM |
| Filtration | Up to 57,000 cu. ft. at 80 F with 4-stage filtration up to 14 CFM |
| Air Quality | Exceeds CGA Grade E breathing air standards |
| Weight | 680 to 700 lb |
Why Departments Step Up To 1500
- Higher output without jumping immediately into the largest enclosed platform
- 6000 PSI operation across a tighter cabinet footprint than many departments expect at this capacity
- Better fit for busier fill rooms, shared-company air support, and reserve bottle rotation
- Clean install path when the air room needs enclosed equipment with straightforward daily operation
| Model | Pressure | CFM | Motor | Stages | RPM | Weight |
|---|---|---|---|---|---|---|
| E4-10-A6 | 6000 PSI | 14 CFM | 10 HP | 4 | 1400 RPM | 700 lb |
| E4-7.5-A6 | 6000 PSI | 9 CFM | 7.5 HP | 4 | 1100 RPM | 680 lb |
