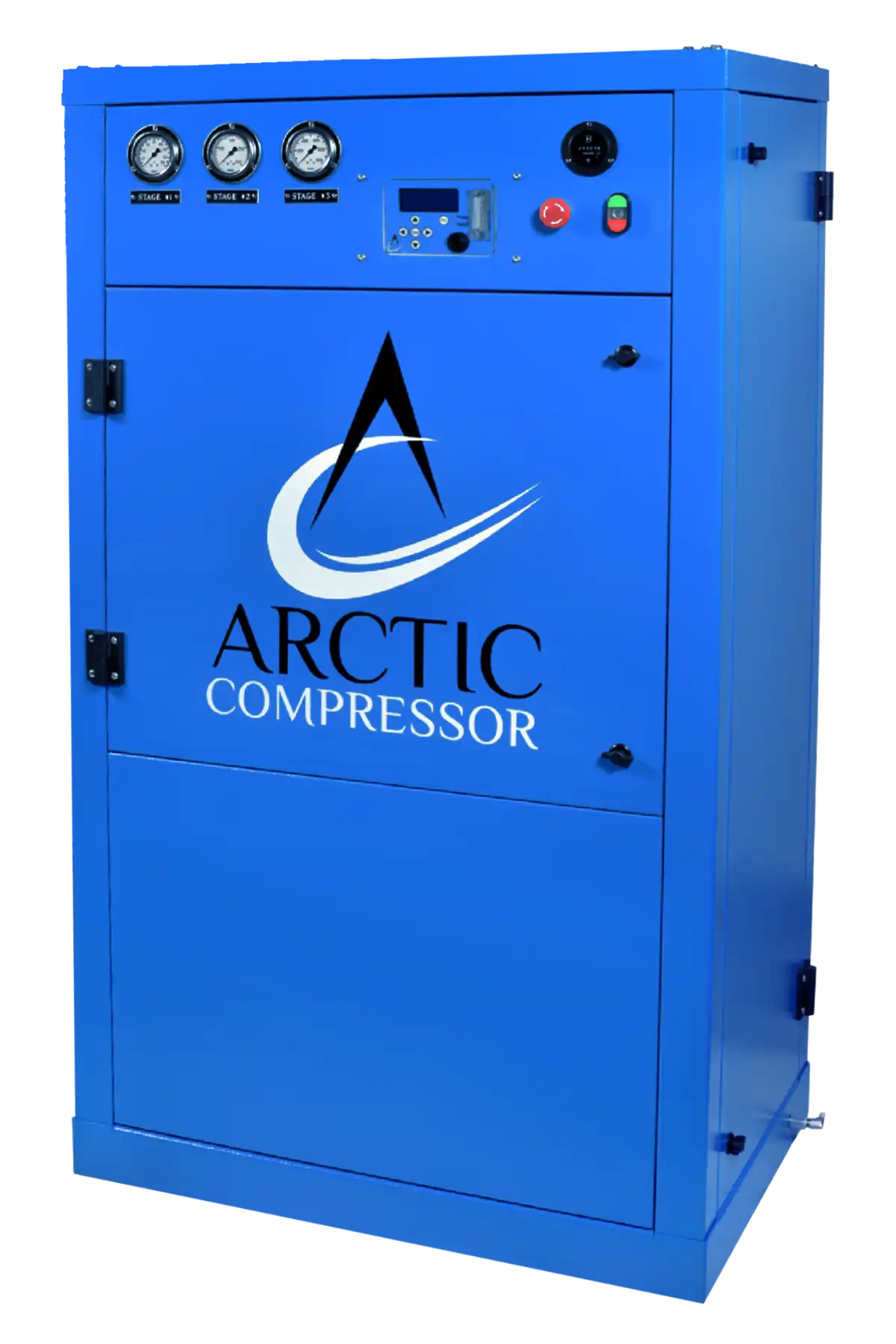

1000 Series Enclosed
Compact enclosed breathing-air support
The 1000 Series is the right starting point for departments that want a true breathing-air station compressor without committing to a larger enclosed system. It covers 5000 and 6000 PSI applications, keeps the footprint manageable, and stays simple enough for stations where air fills are important but not constant all day.
It is also the cleanest entry point when the room needs an enclosed look and the team still expects Grade E output, automatic condensate drain, and practical service access.
| Pressure | 5000 to 6000 PSI |
|---|---|
| Max Flow | Up to 9 CFM |
| Motor | 7.5 HP |
| Drive Speed | 1500 RPM |
| Filtration | Up to 57,000 cu. ft. at 80 F with 3-stage filtration up to 9 CFM |
| Air Quality | Exceeds CGA Grade E breathing air standards |
| Weight | 610 lb |
| Sound Level | 92 dB at 1 meter |
Standard Features and Options
- Radial compressor block with relief valve protection on all stages
- Aluminum intercoolers, stainless steel aftercoolers, forged steel crankshaft, and cast iron cylinders
- Interstage pressure gauges, hour meter, splash lubrication, and automatic condensate drain
- M4200 CO monitor, low-oil shutdown, high-temp shutdown, remote start, dual-pressure system, and added filtration capacity available
| Model | Pressure | CFM | Motor | Stages | RPM | Weight |
|---|---|---|---|---|---|---|
| E3-7.5-A6 | 6000 PSI | 8 CFM | 7.5 HP | 3 | 1500 RPM | 610 lb |
| E3-7.5-A | 5000 PSI | 9 CFM | 7.5 HP | 3 | 1500 RPM | 610 lb |
