Amerex

High Flow Dry Chemical

High-delivery dry chemical configurations engineered for rapid knockdown in larger hazard areas and faster application demand.

Amerex Family

Product View

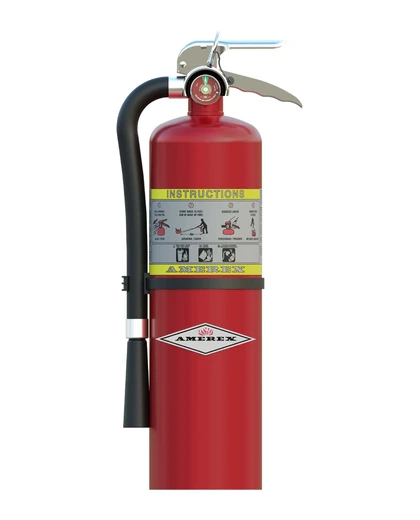

Selected extinguisher: 720

High-delivery dry chemical configurations engineered for rapid knockdown in larger hazard areas and faster application demand.

This family is commonly selected for Class A B C applications based on Amerex catalog positioning and rating pathways.

Class A

Class B

Class C

Class A

Class B

Class C

Typical fire classes

Class A, Class B, Class C

Performance emphasis

Exceeds 1 lb/sec discharge rate

Best-fit environments

Industrial and high-load hazard zones

NFPA note

Designed for applications requiring >1 lb/sec flow

Model-level table below is extracted from the Amerex catalog data for this family.

Model	Agent	UL Rating	Capacity (lbs)	Discharge (sec)	Flow (lbs/sec)
720	ABC	1A:20B:C	10	10	1.22
760	ABC	4A:60B:C	20	19	1.14
722	Purple K	20B:C	10	12	1.15
762	Purple K	60B:C	20	20	1.08

Primary use

High-delivery dry chemical configurations engineered for rapid knockdown in larger hazard areas and faster application demand.

Class focus

Optimized around Class A B C hazard profiles. Final extinguisher selection should align with site hazard analysis and local code requirements.

ABC Dry Chemical

Most versatile Amerex family for broad building coverage across ordinary combustibles, liquid fuels, and energized electrical hazards.

Z-Series

High-durability, high-hazard dry chemical series for severe-use environments and frequent service demand.

Purple K Dry Chemical

High Class B and C performance for fuel, petrochemical, utility, and industrial process fire hazards.
