B.R.A.T. Delivery
Marion VFD
Original B.R.A.T. delivered in Marion, Texas.
This original b.r.a.t. was delivered to Marion VFD in Marion, Texas and is configured around 400-gallon tank, F550 chassis, 4x4.
Specs Summary

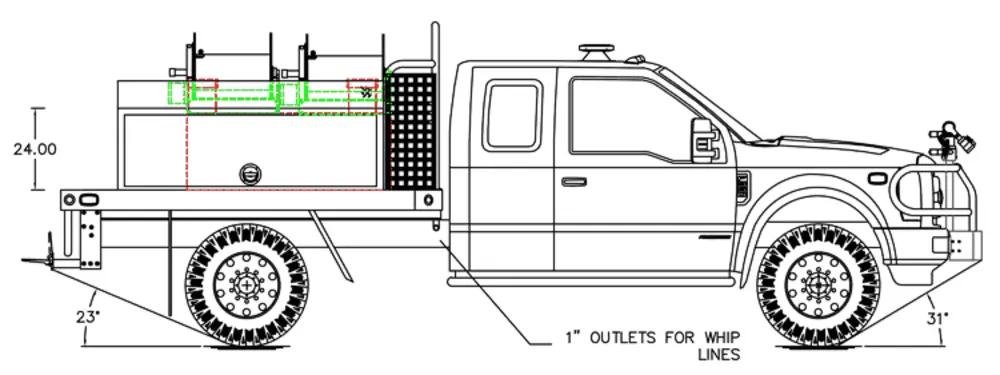

Drawing PDF- 2018 Ford F550 2 Door 4x4 Extended Chassis w/ 19,500 lbs. GVW
- Super Single 19.5" Founders MT tires
- Heavy Duty Aluminum Fabricated Flatbed with FEA Tested Roll Bar
- Warn Trans4mer Gen II brush guard system
- Pro Poly 400 Gallon Skid with 40 gal. Foam Cell
- Hale HPX200 B18 Gasoline Pump
- Hale Pro Kit Stainless Steel Inlet and Discharge Manifold
- Exhaust Primer
- Two 1" whip line outlets
- Scotty "Around the Pump" Class A Foam Eductor System
- Two Aluminum Diamond Plate Rear 1.5 Preconnect
- Two Electric Hannay Reel Mounted on water tank with 200' of 1" Booster
