B.R.A.T. Delivery
Tunkhannock VFC

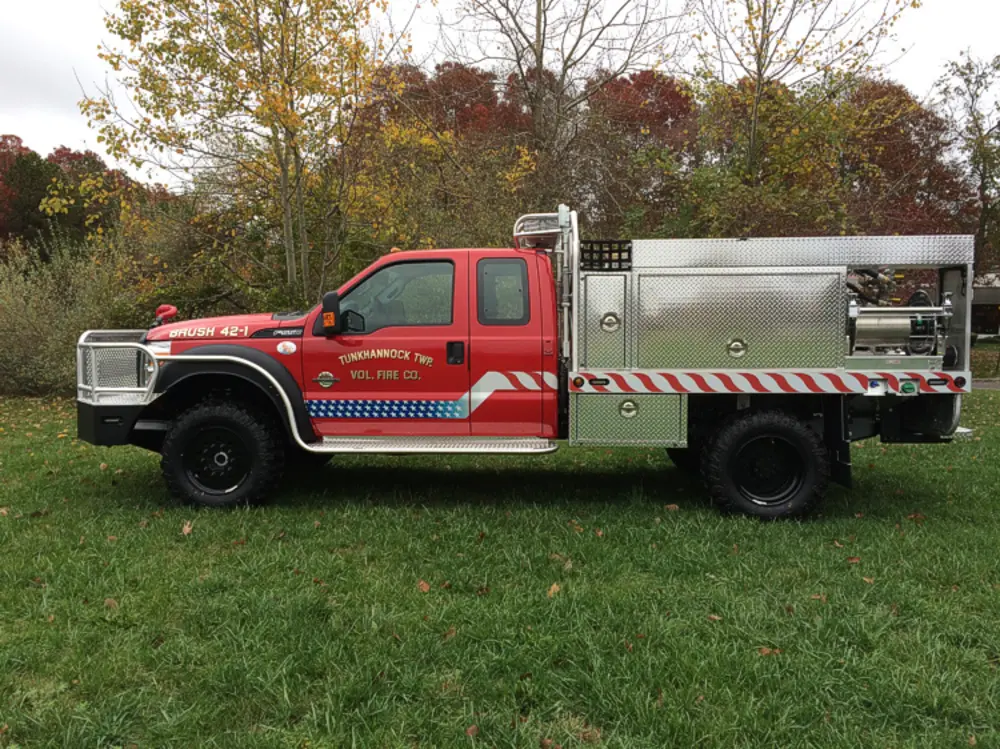

Original B.R.A.T. delivered in Long Pond, Pennsylvania.

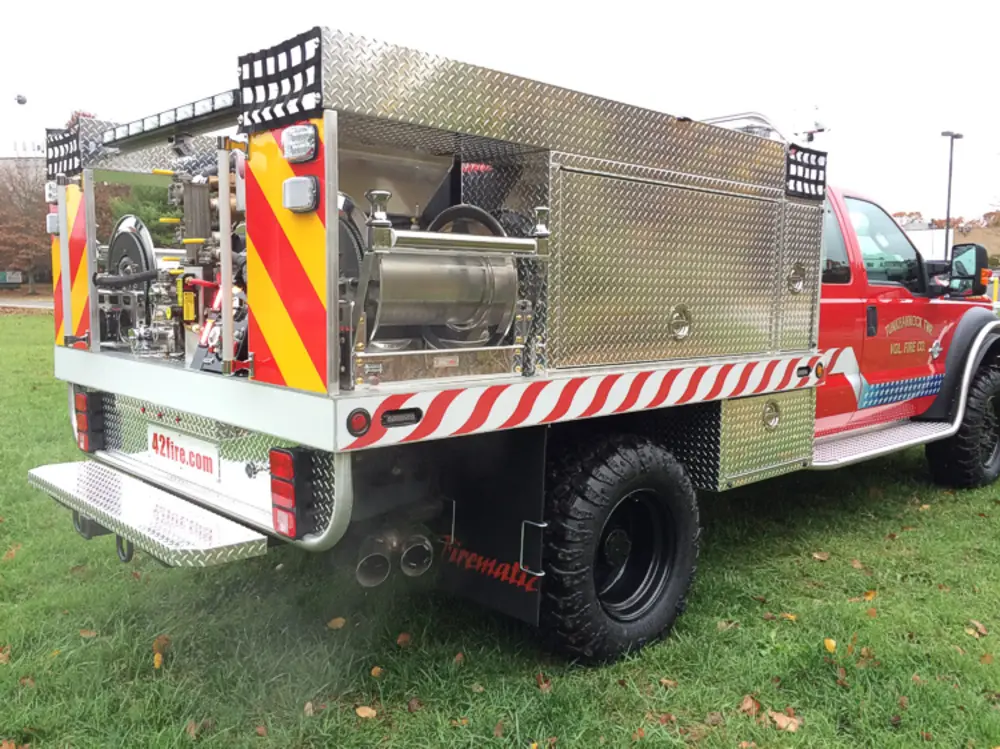

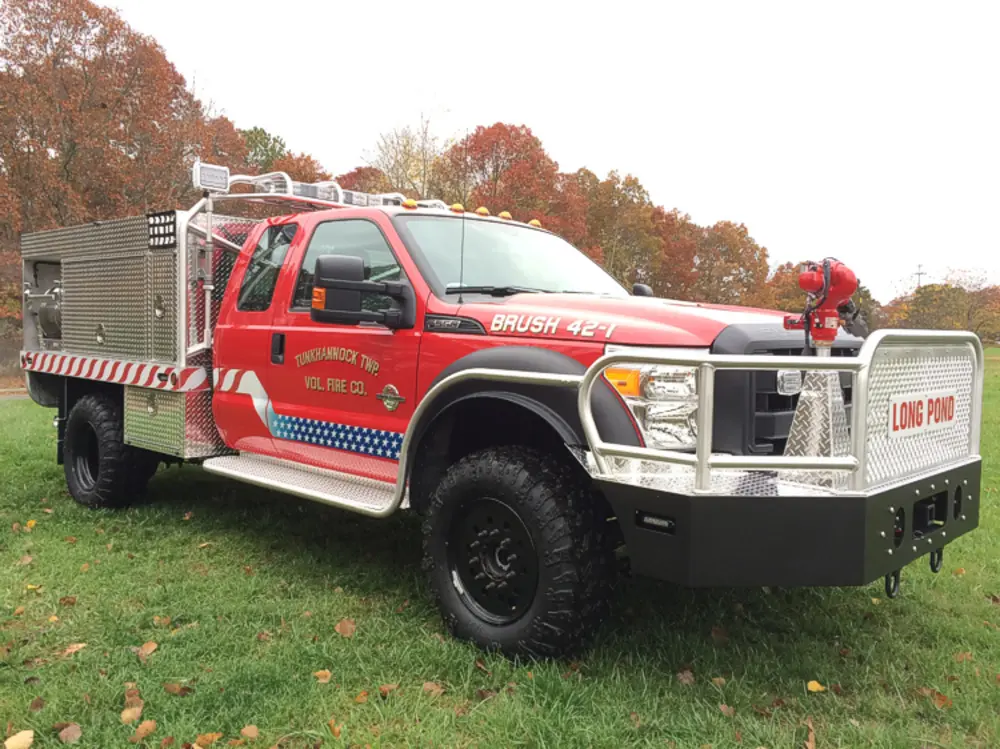

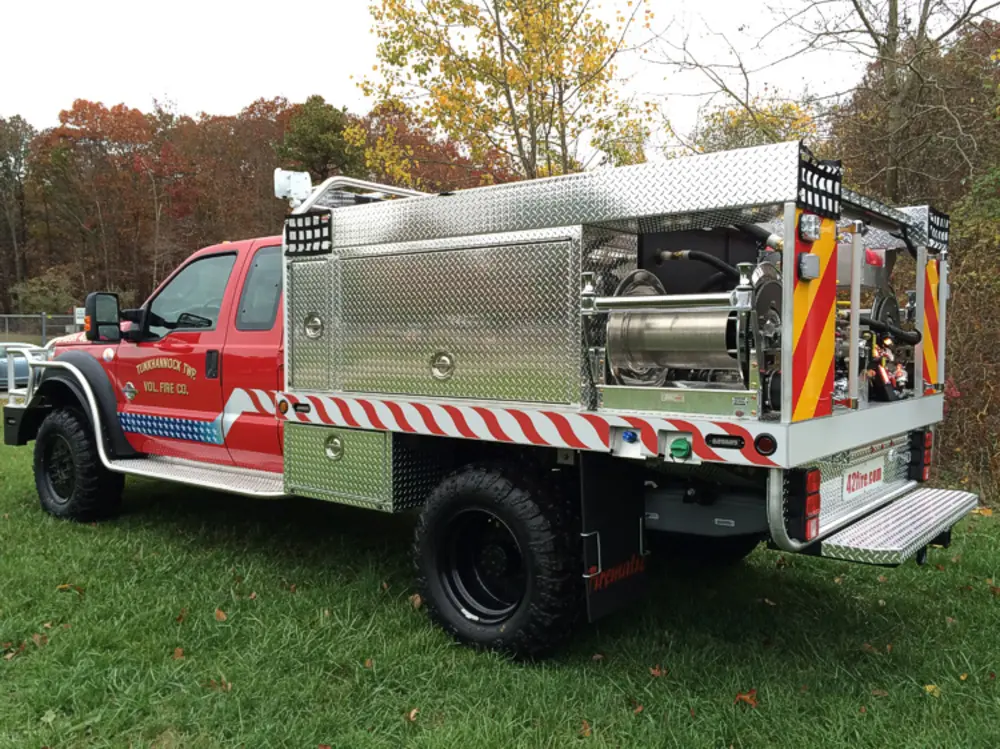

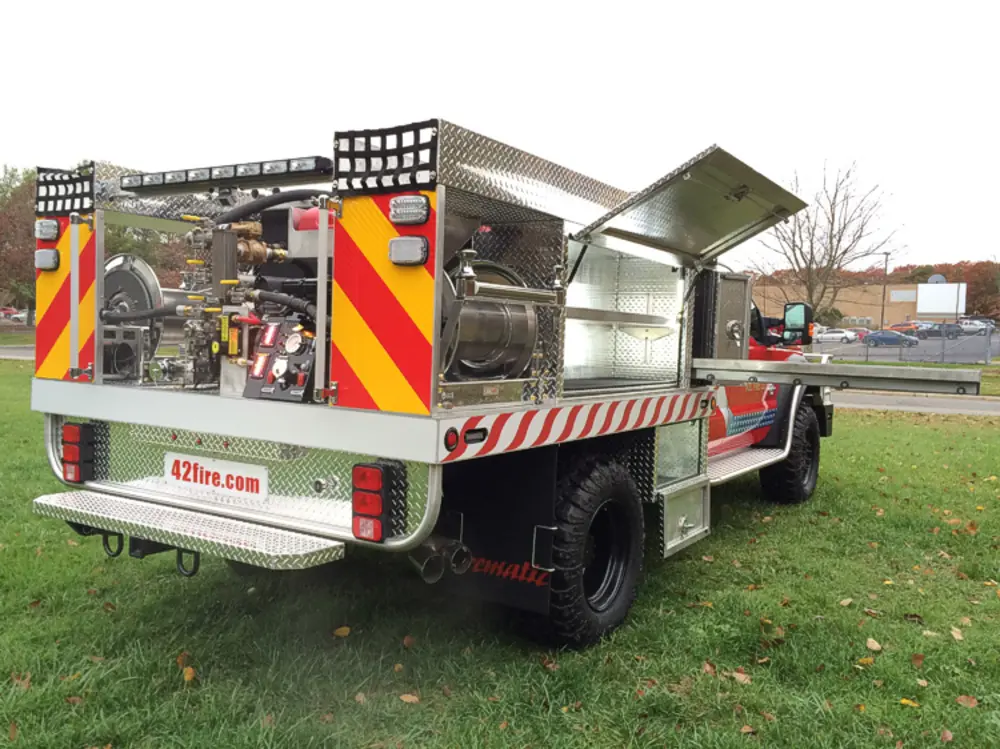

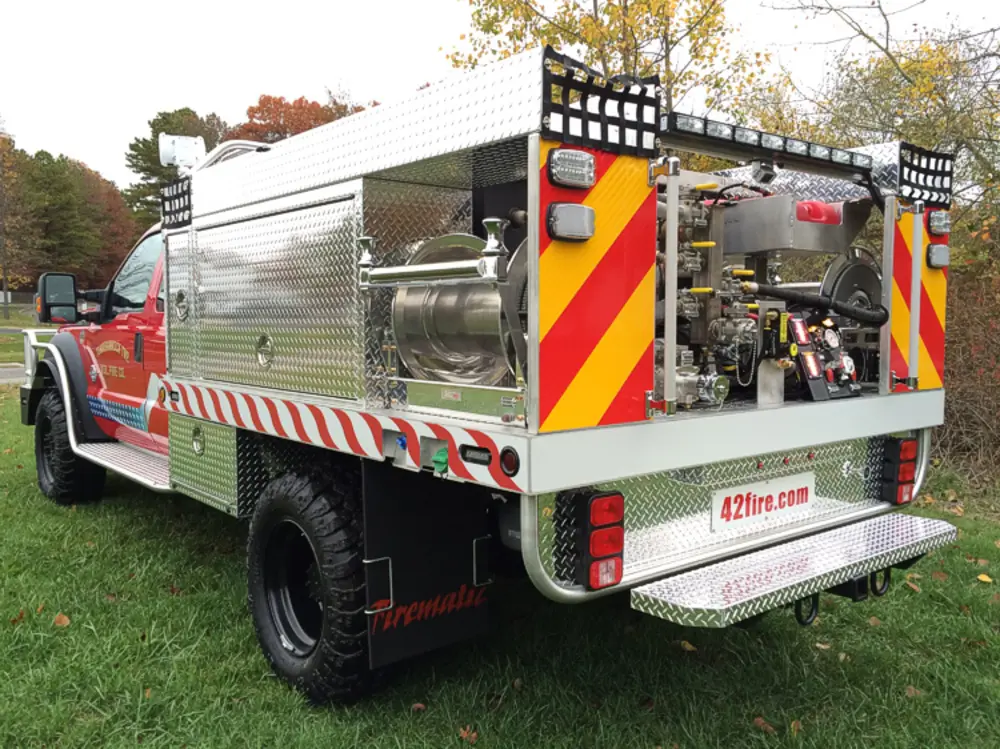

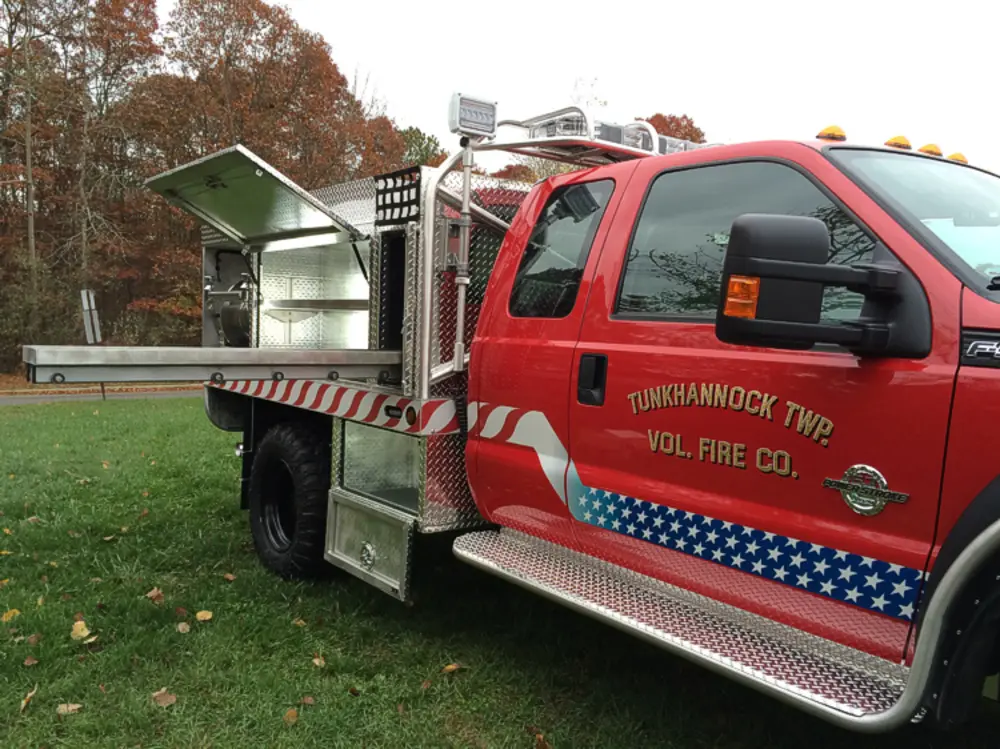

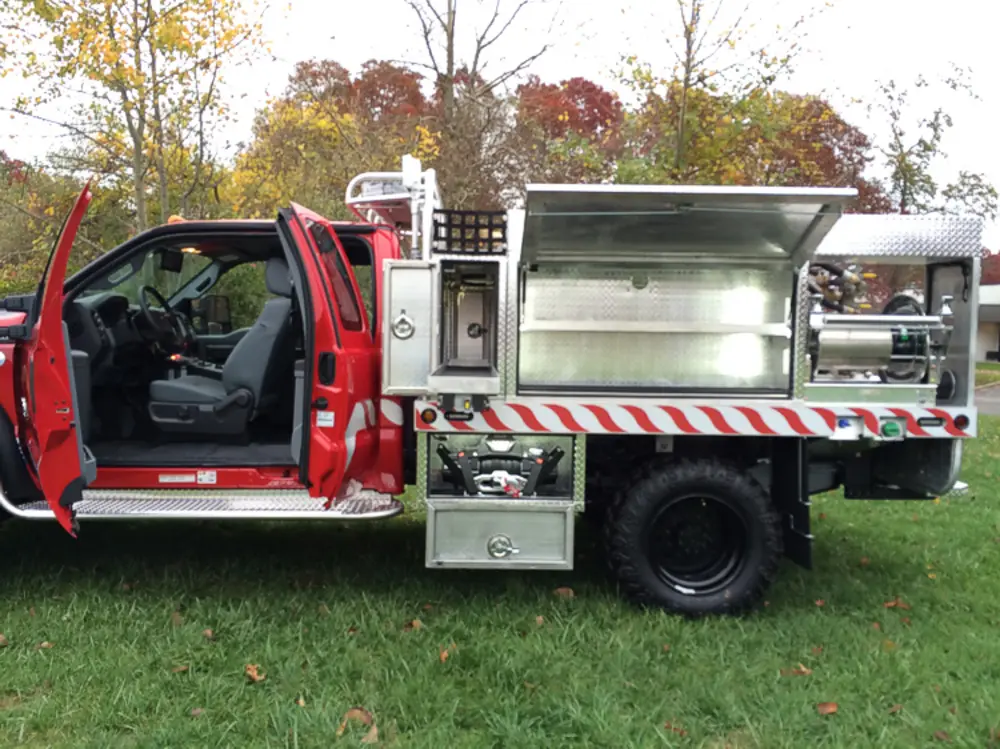

This original b.r.a.t. was delivered to Tunkhannock VFC in Long Pond, Pennsylvania and is configured around 400-gallon tank, F550 chassis, 4x4.
Specs Summary

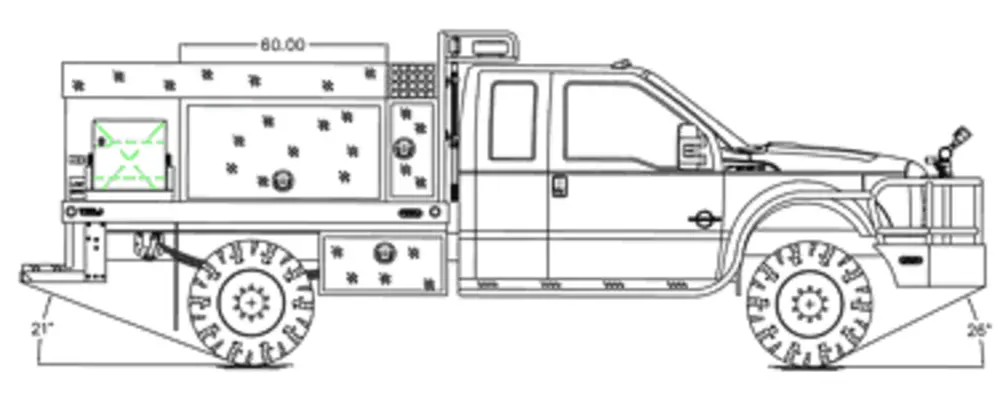

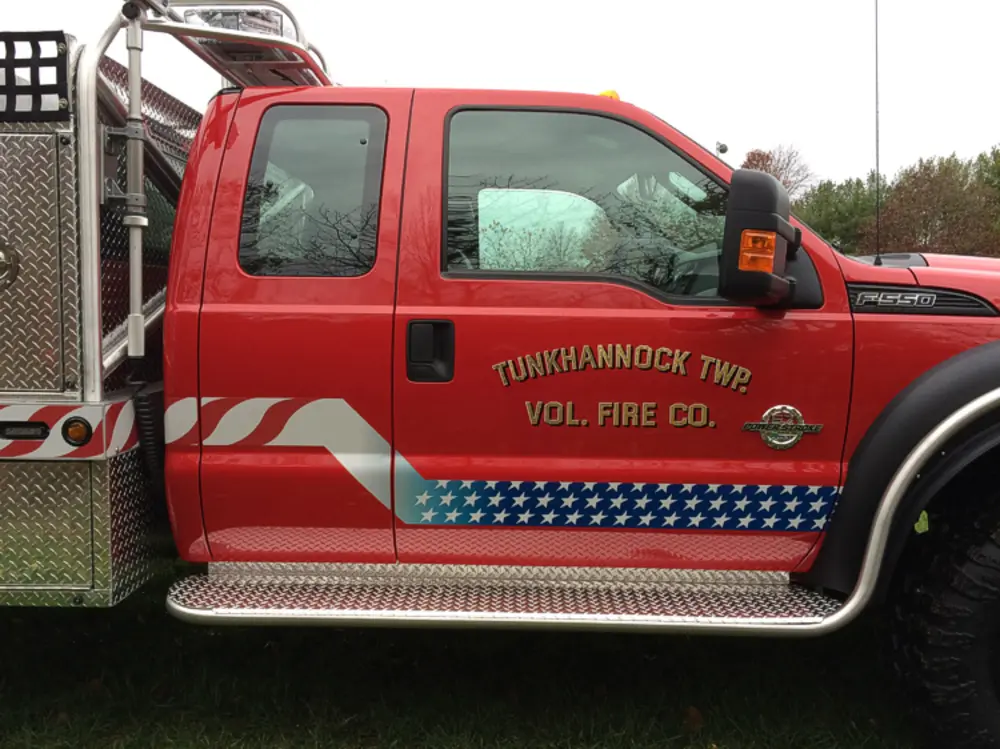

Drawing PDF- 2016 Ford F550 Extended Cab 4x4 Chassis w/ 19,500 lbs. GVW
- Super Single Aggressive Tread 19.5" Interco Irok Tires

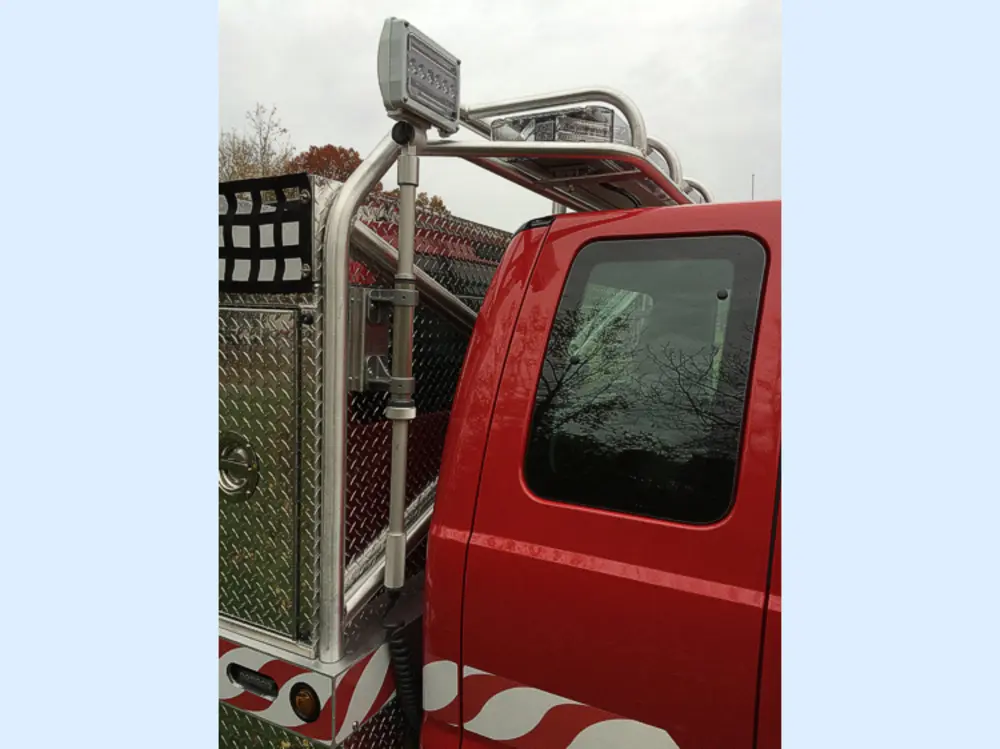

- Heavy duty Aluminum Fabricated Flatbed with FEA Tested Roll Bar

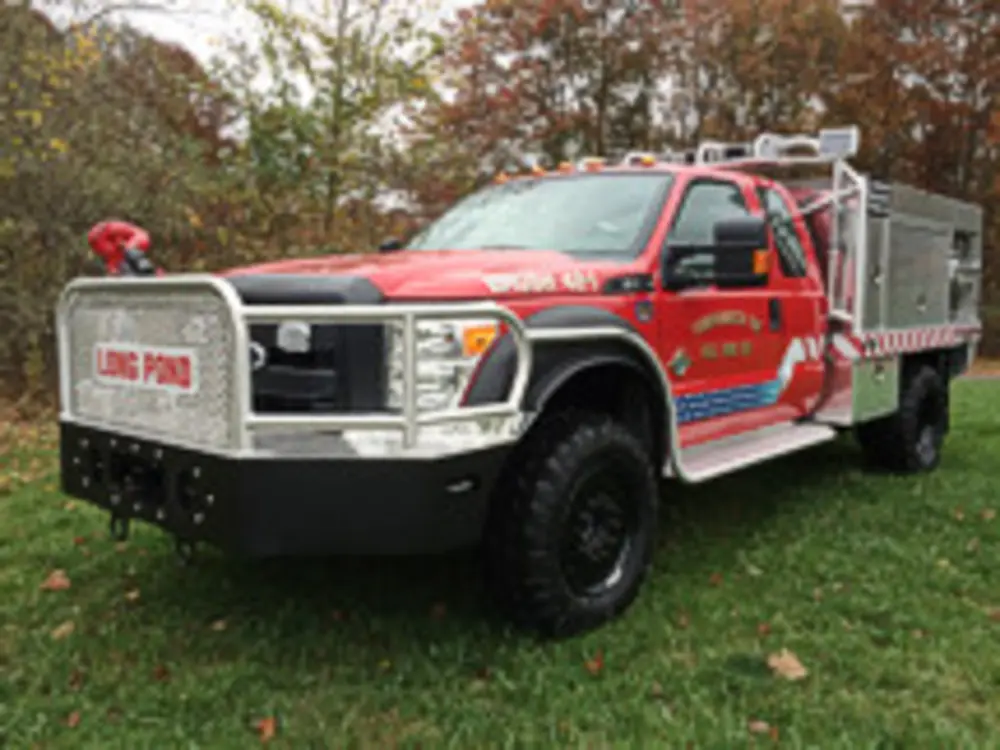

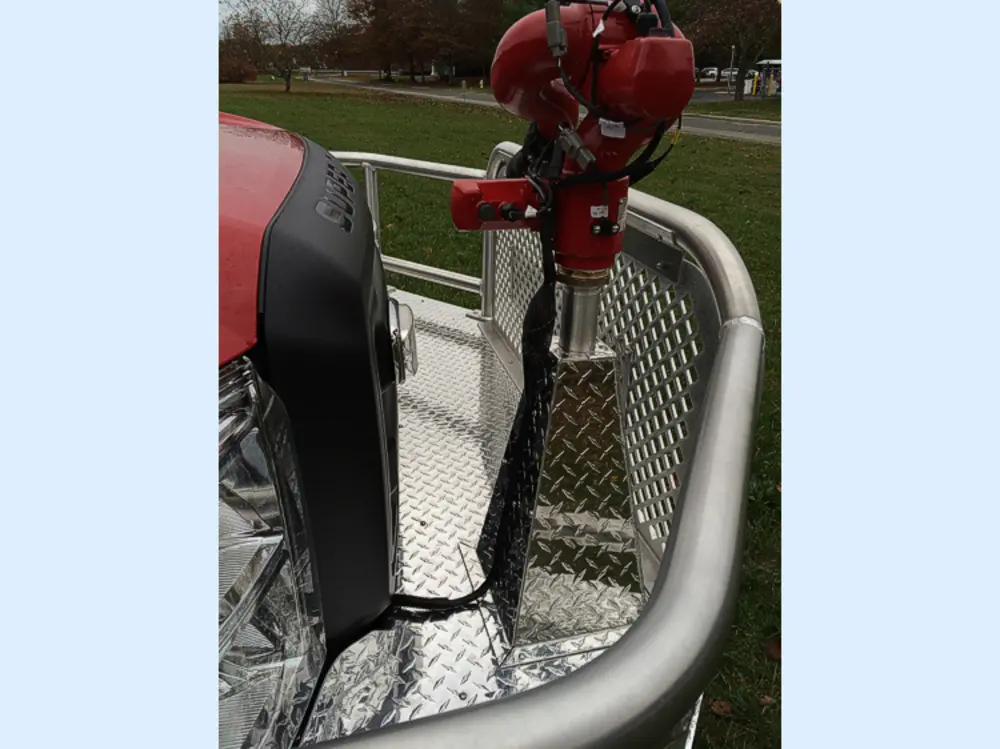

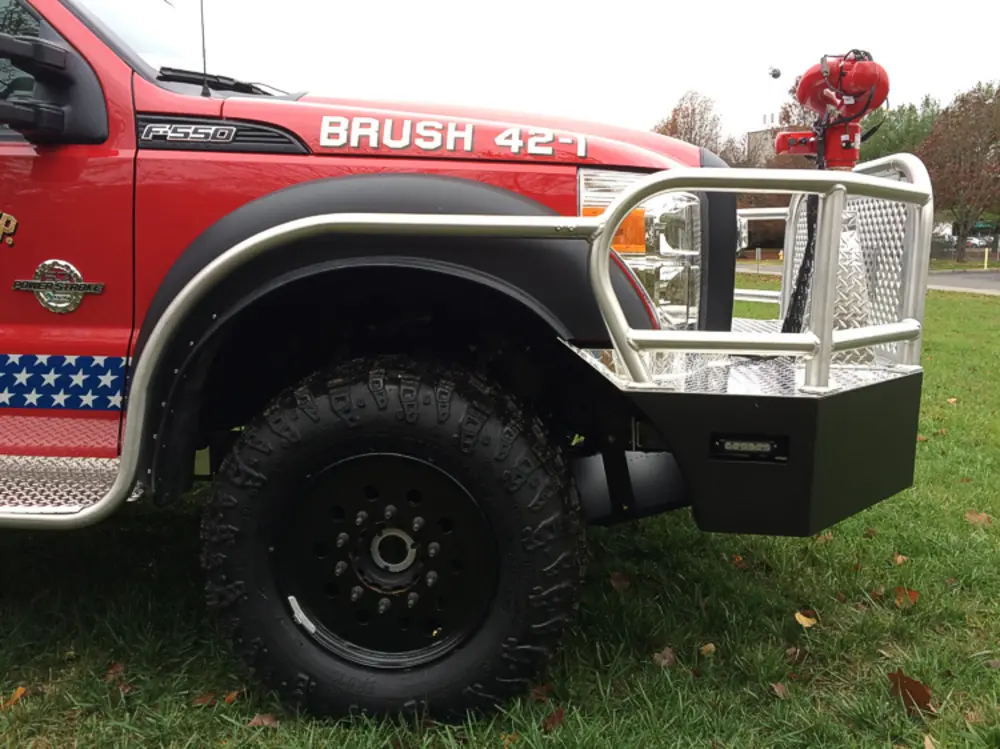

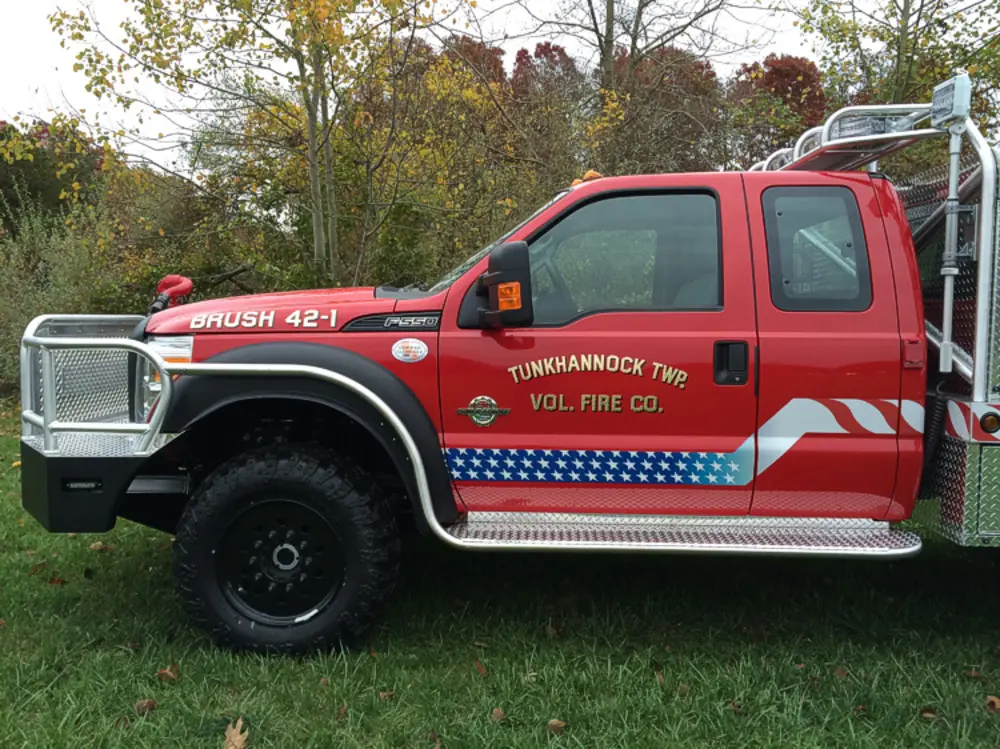

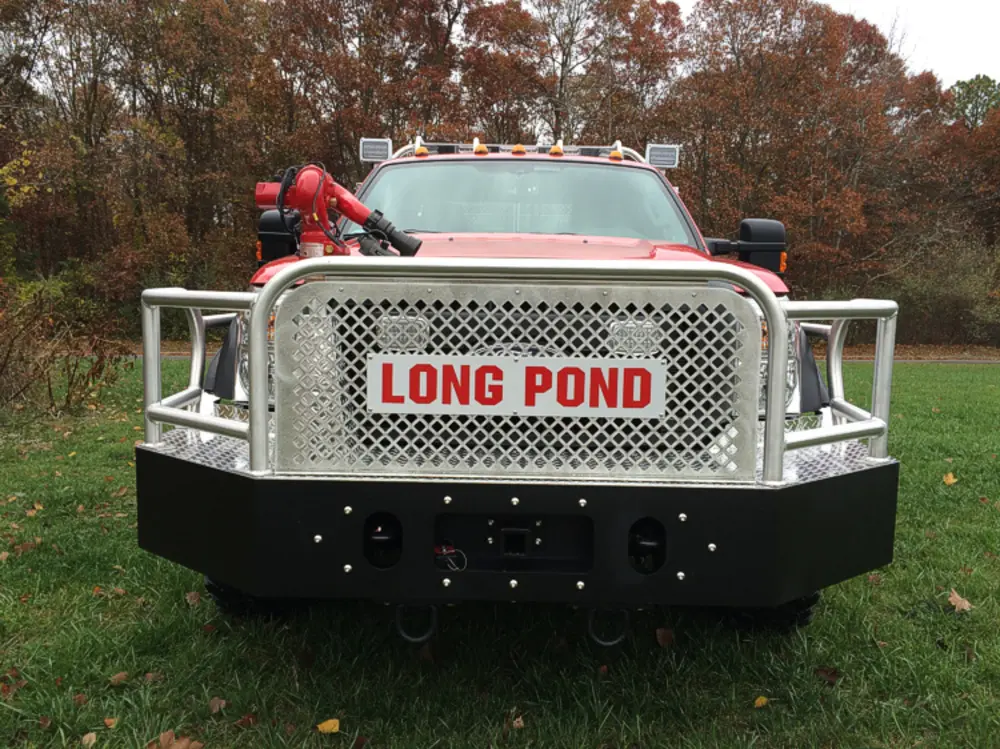

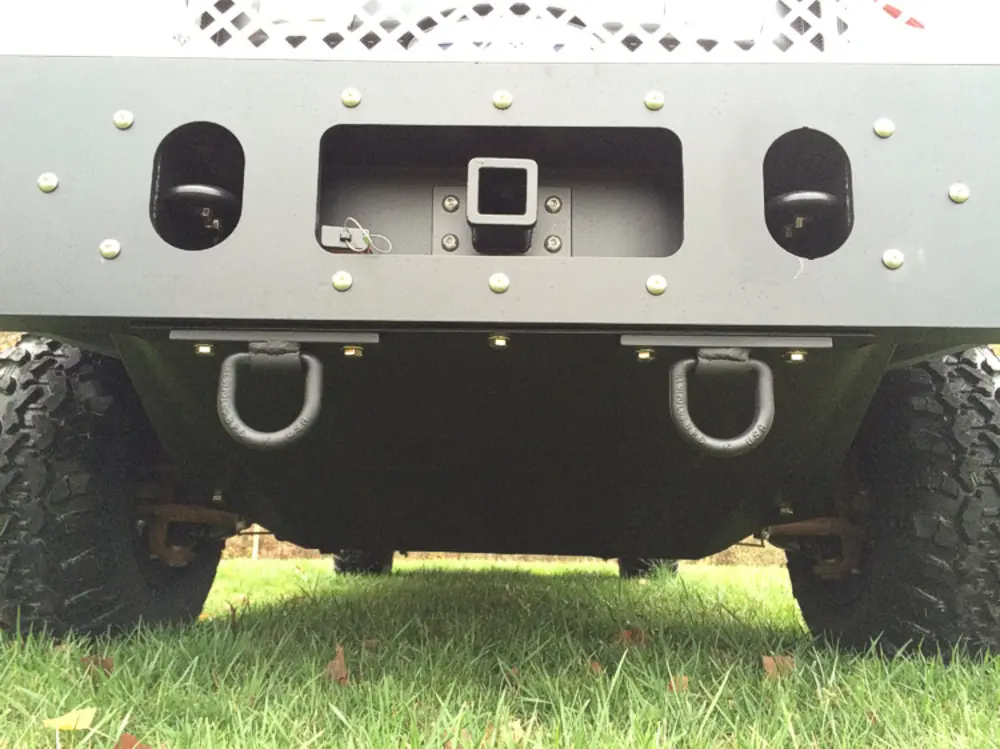

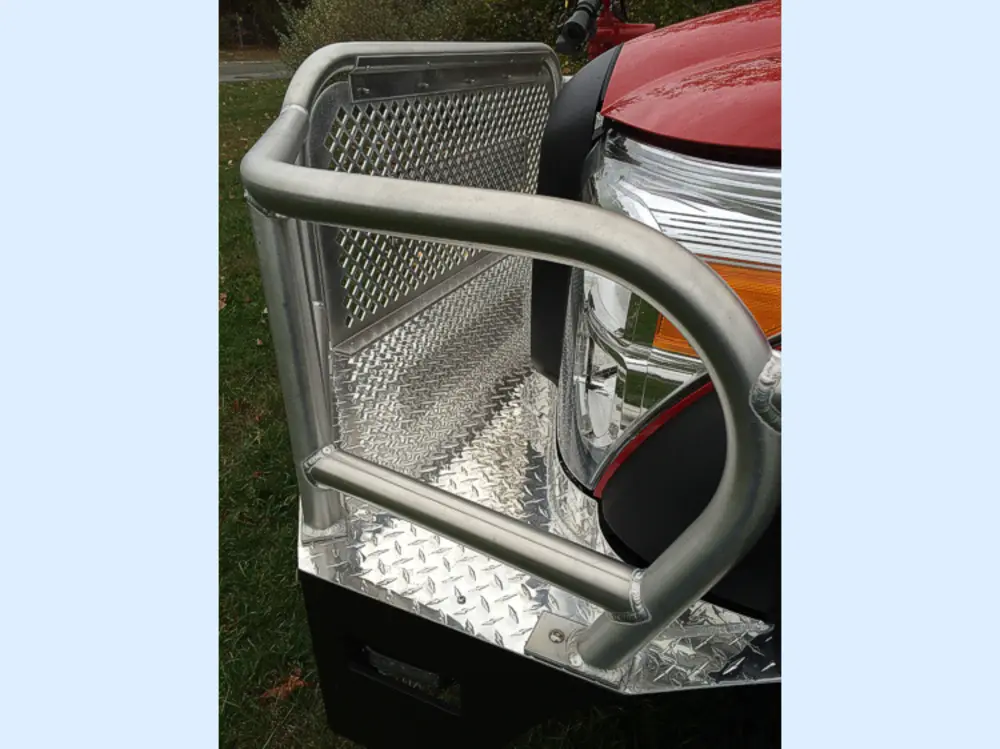

- Firematic Extended Front Bumper, Grill guard and Nerf Bars

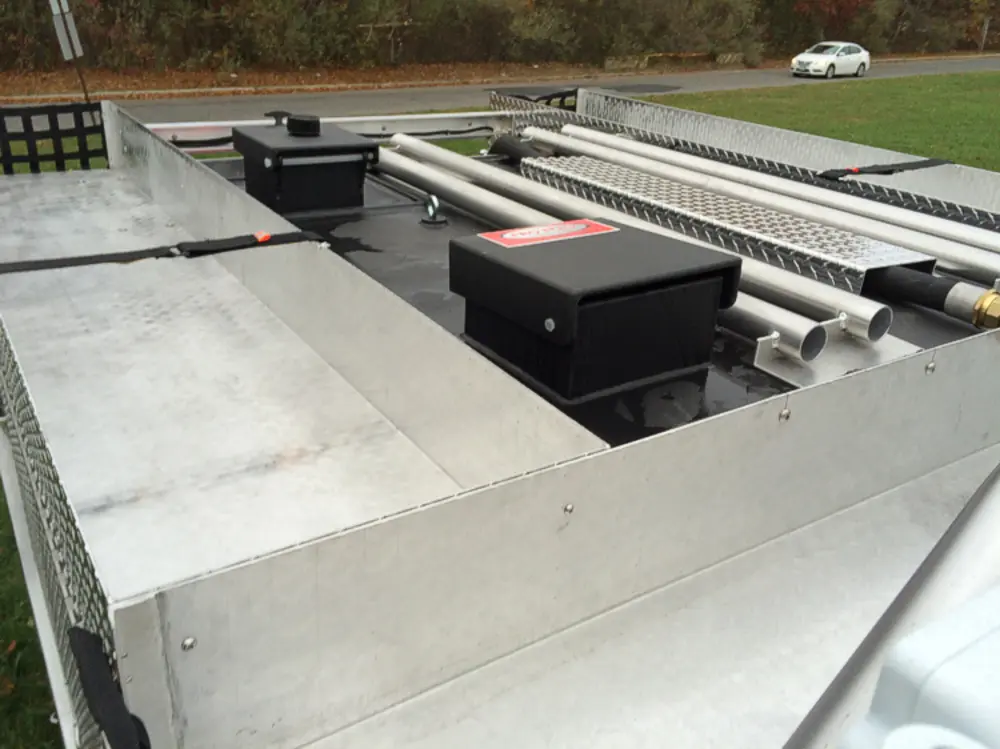

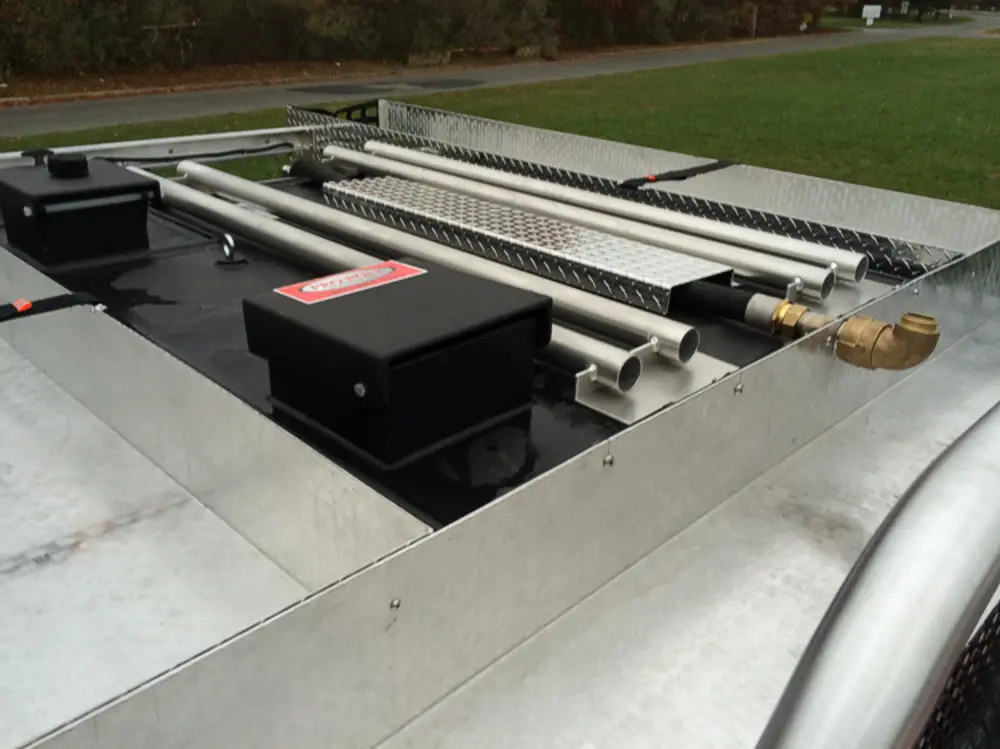

- Pro Poly 400 Gallon Protector Skid w/ 10 gal. Foam Cell

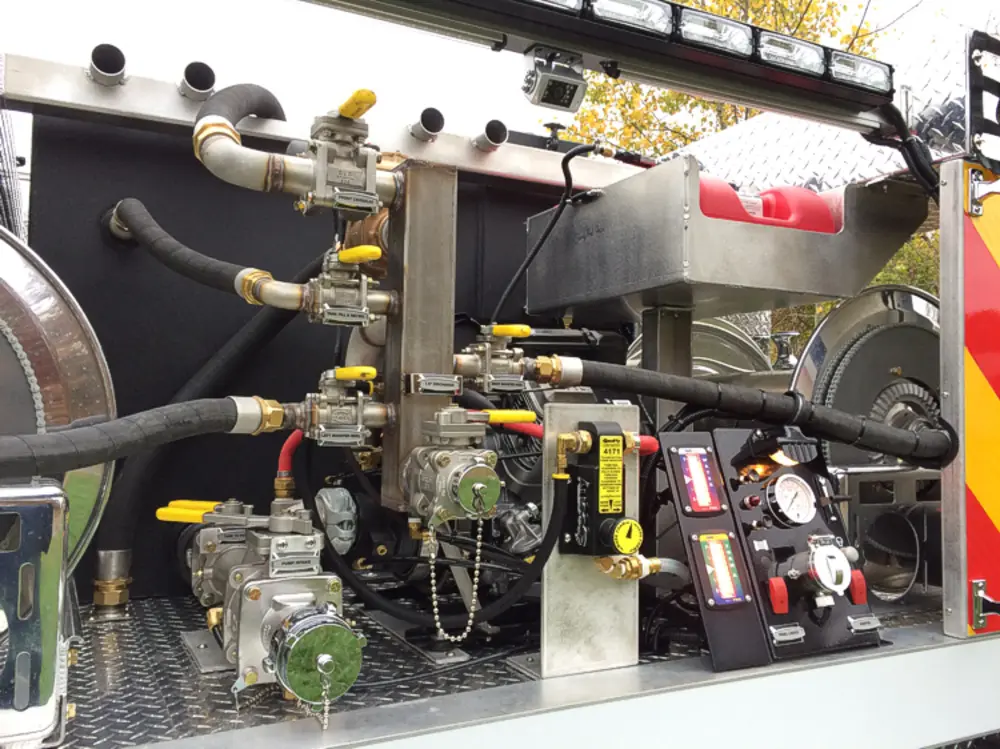

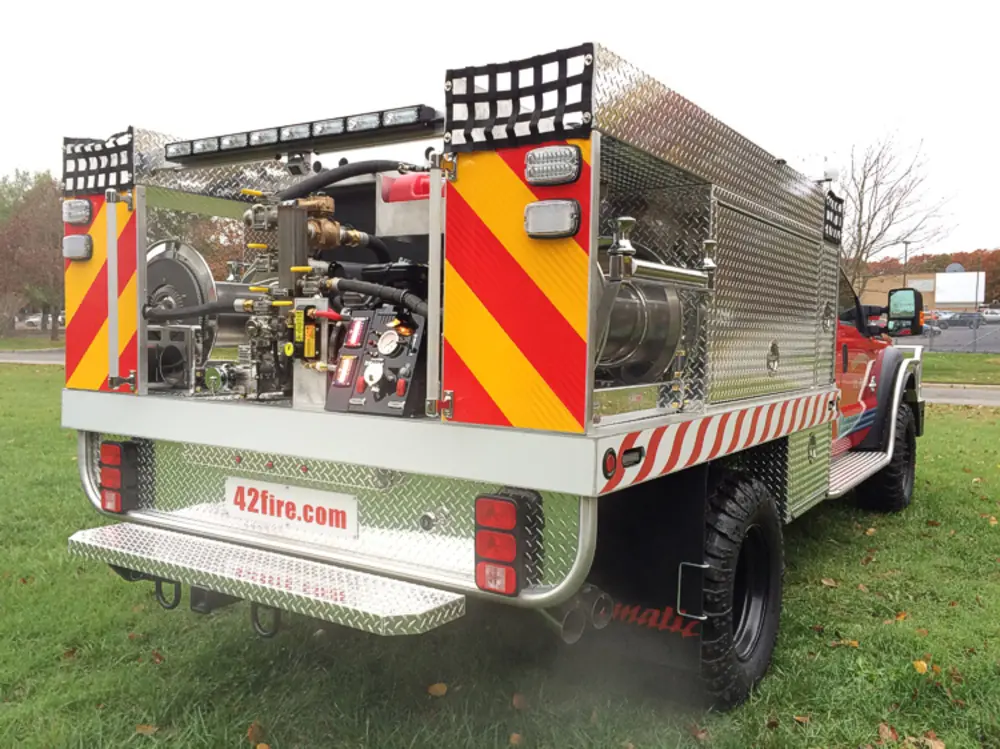

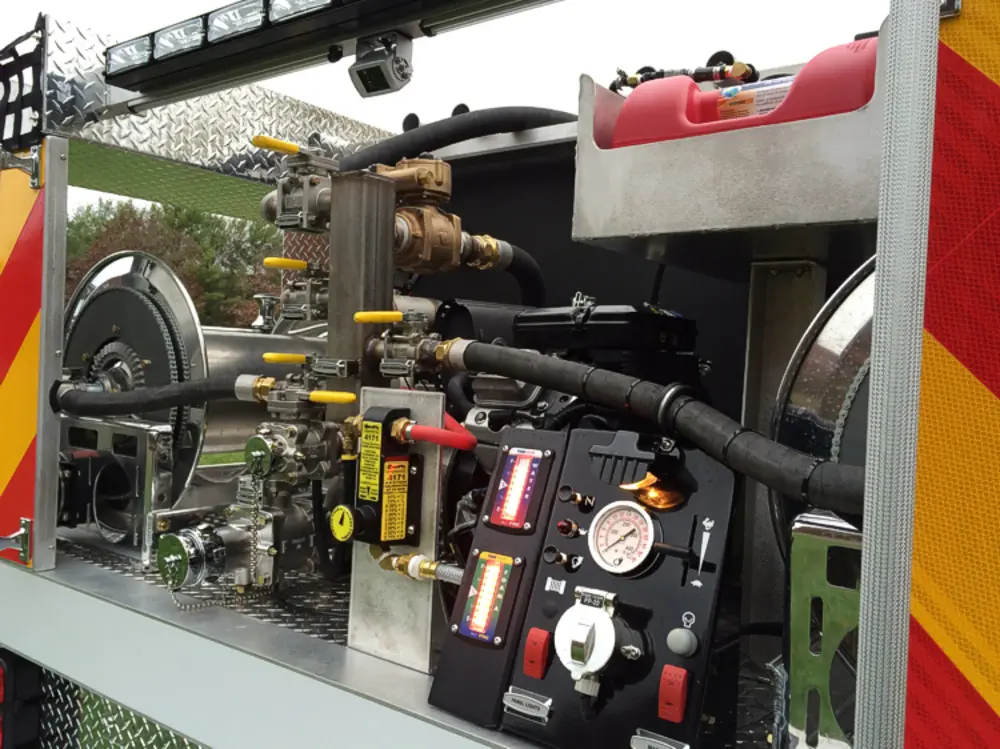

- Hale HPX200 - B18 Gasoline Pump
- Hale Pro Kit Stainless Steel Inlet and Discharge Manifold
- Exhaust Primer
- Scotty "Around the Pump" Class A Foam Eductor System
- Two Aluminum Diamond Plate Rear Trays
- Two Electric Hannay Reels Mounted on rear deck (1) 200' of 3/4" Booster Hose

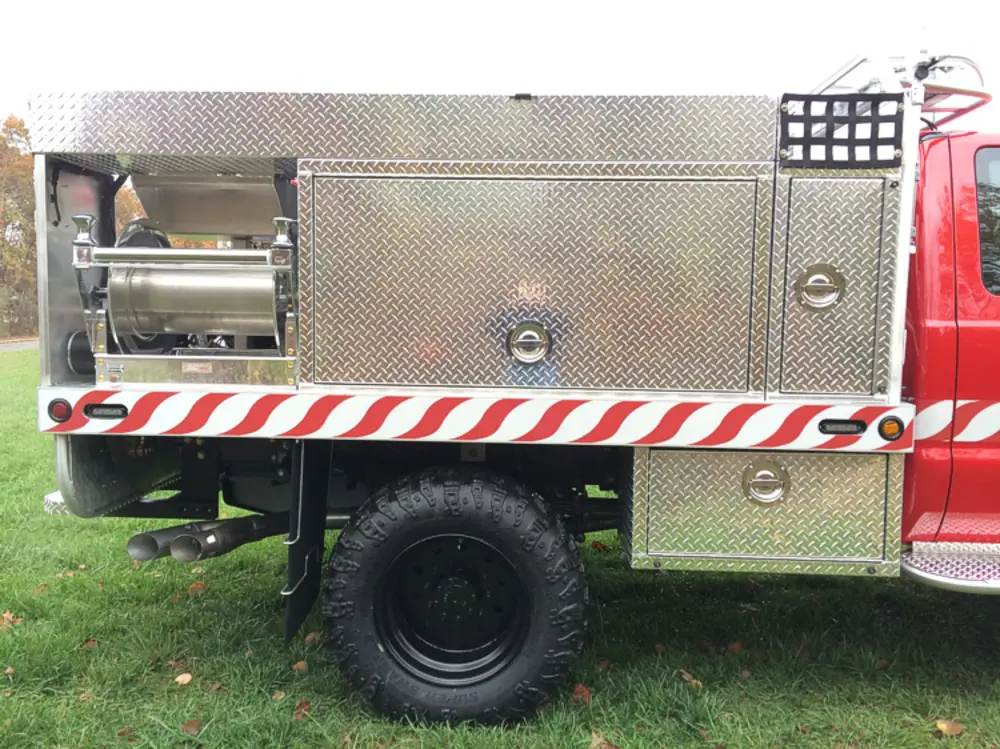

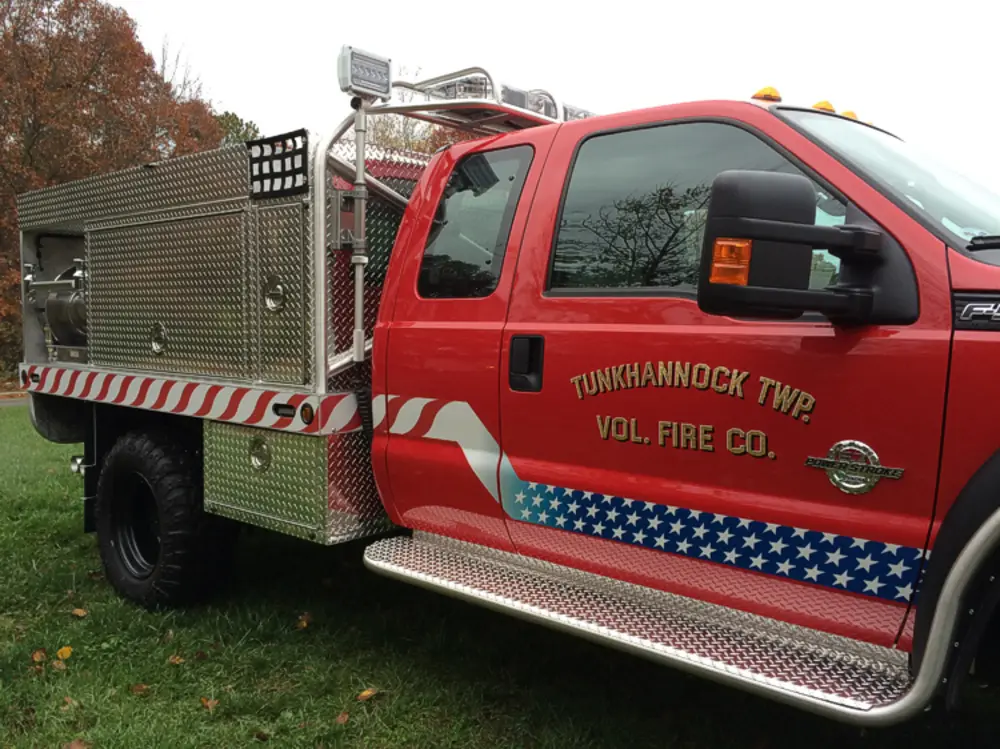

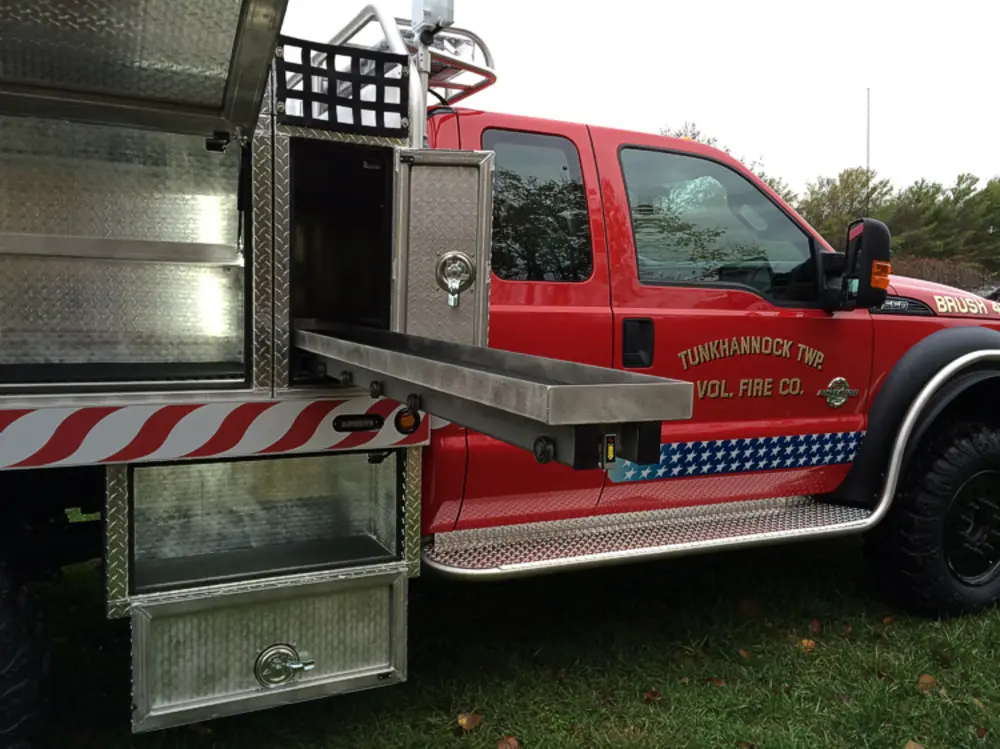

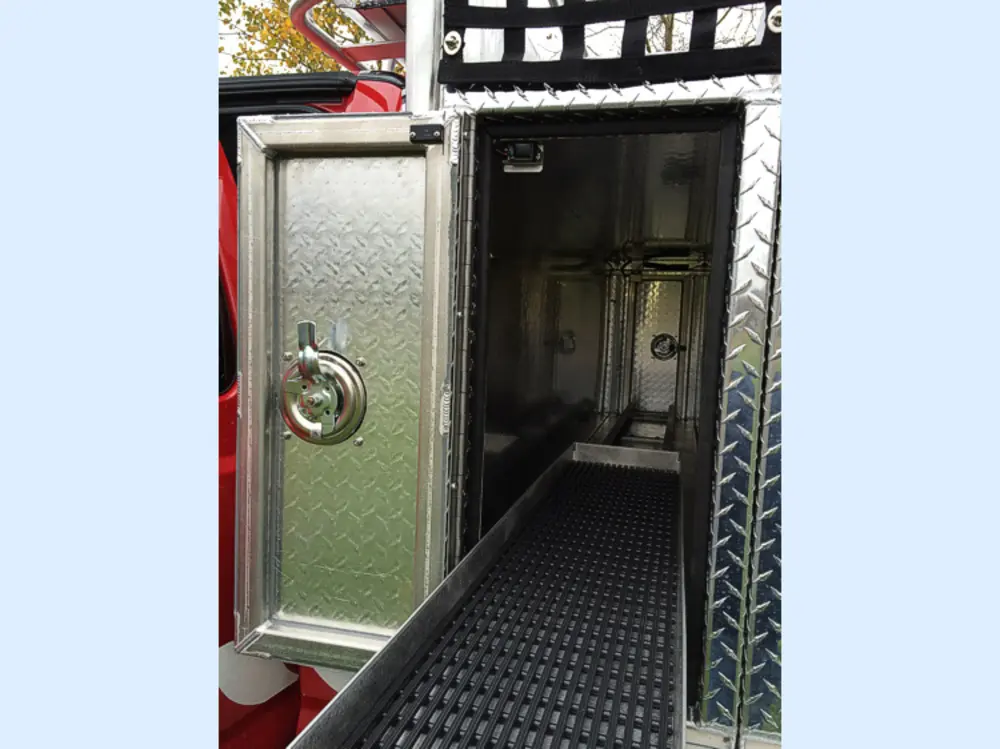

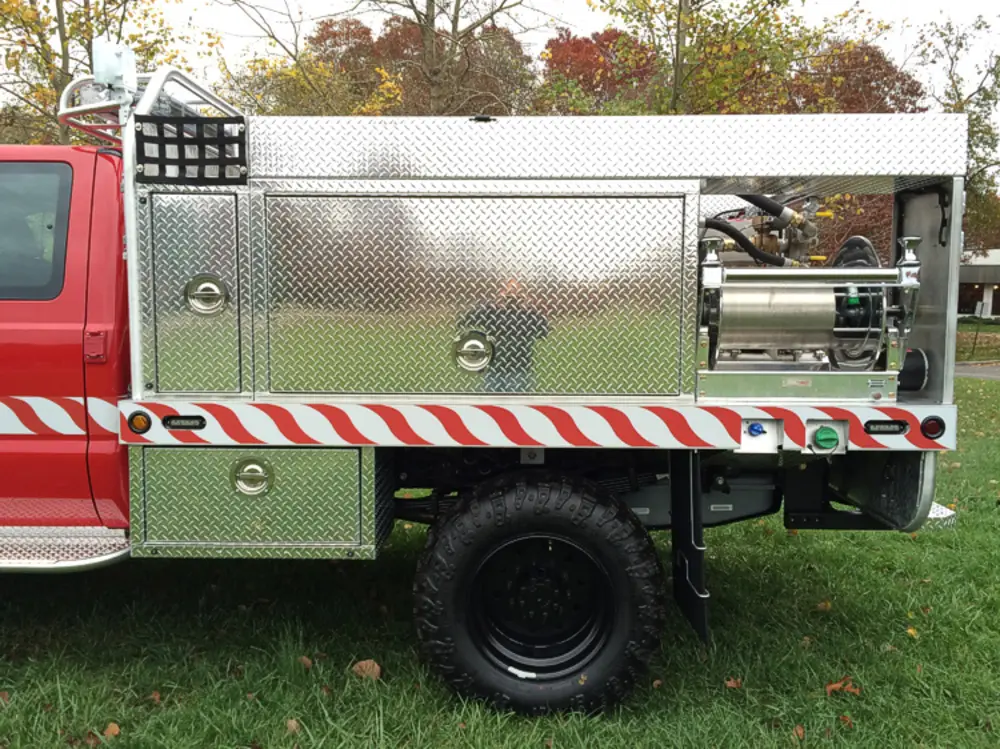

- (3) Aluminum Diamond Plate Compartments.
