B.R.A.T. Delivery
MMP&W Volunteer Fire Company

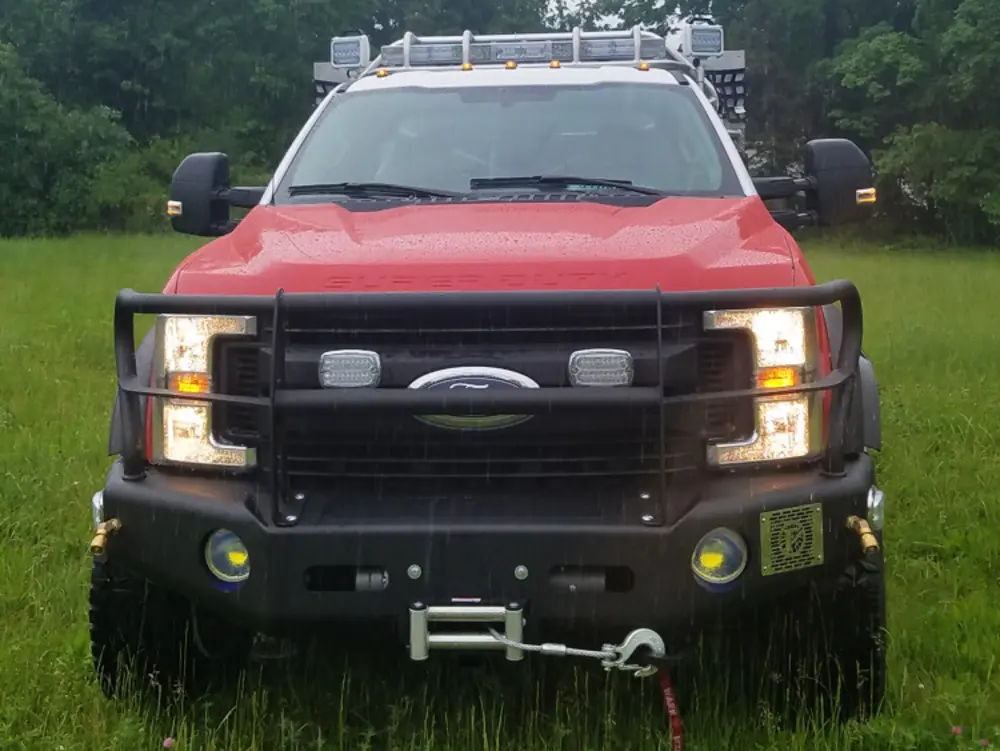

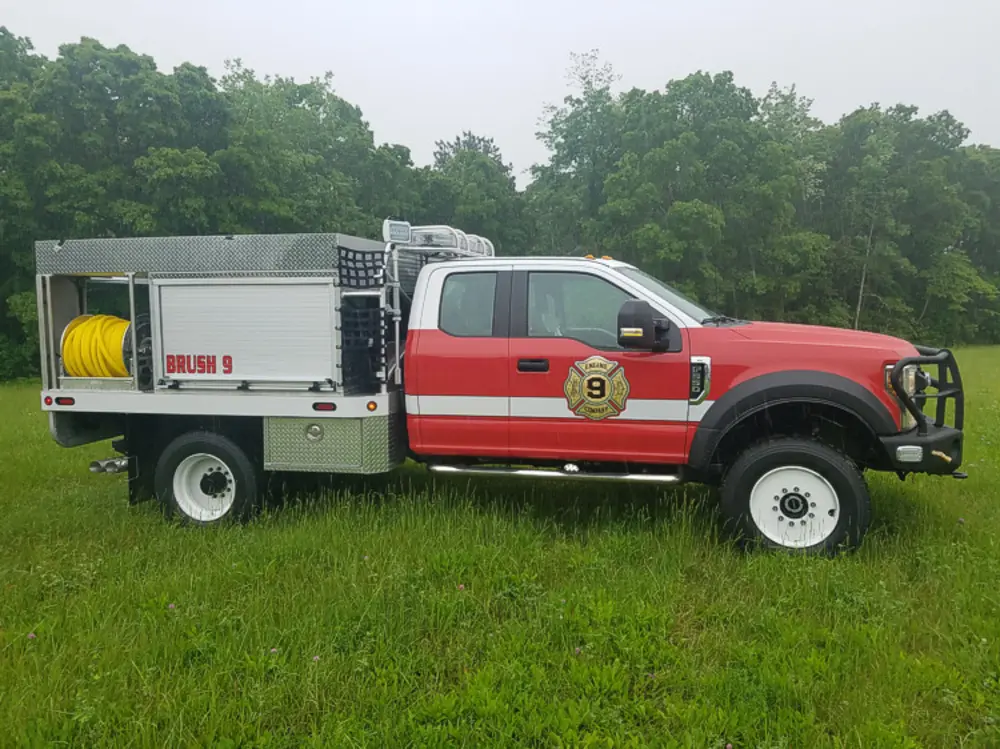

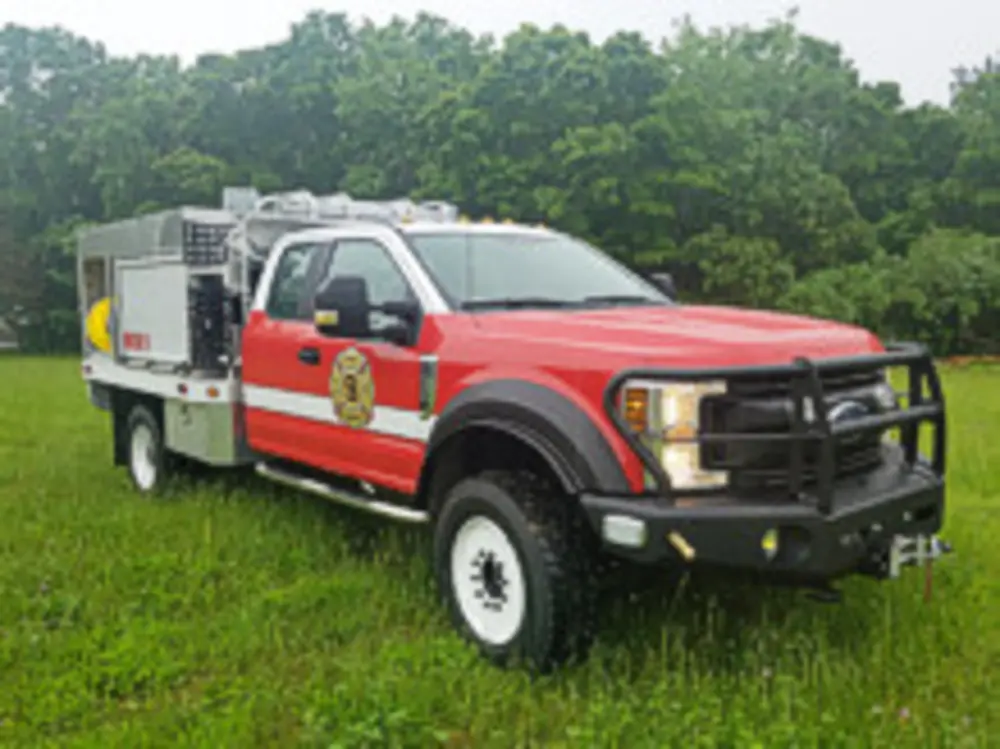

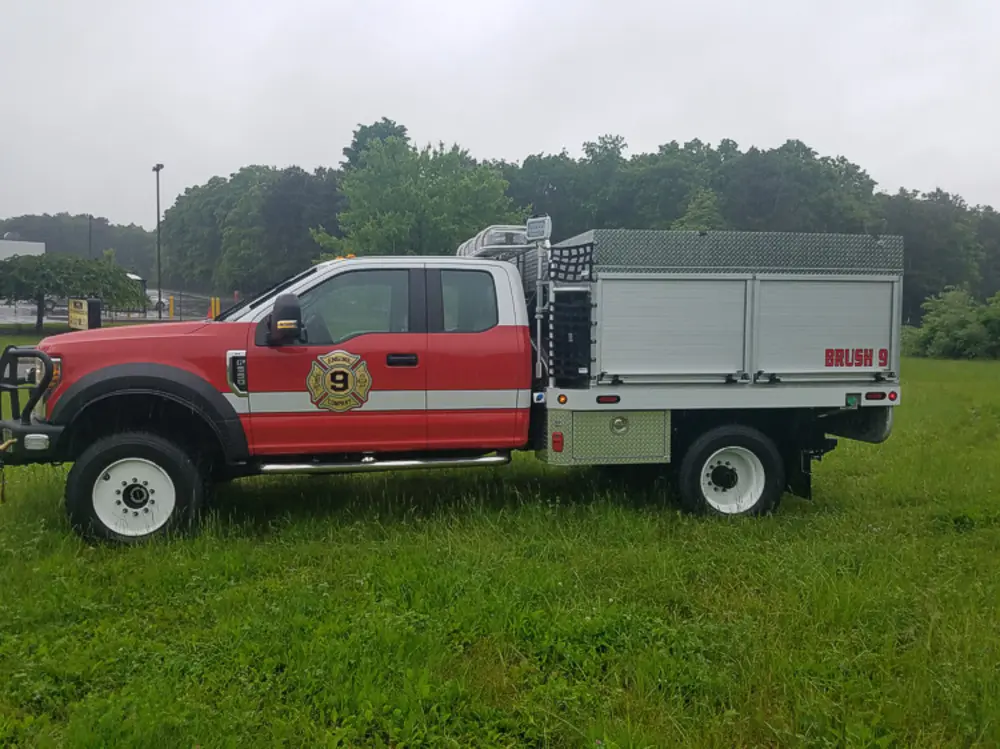

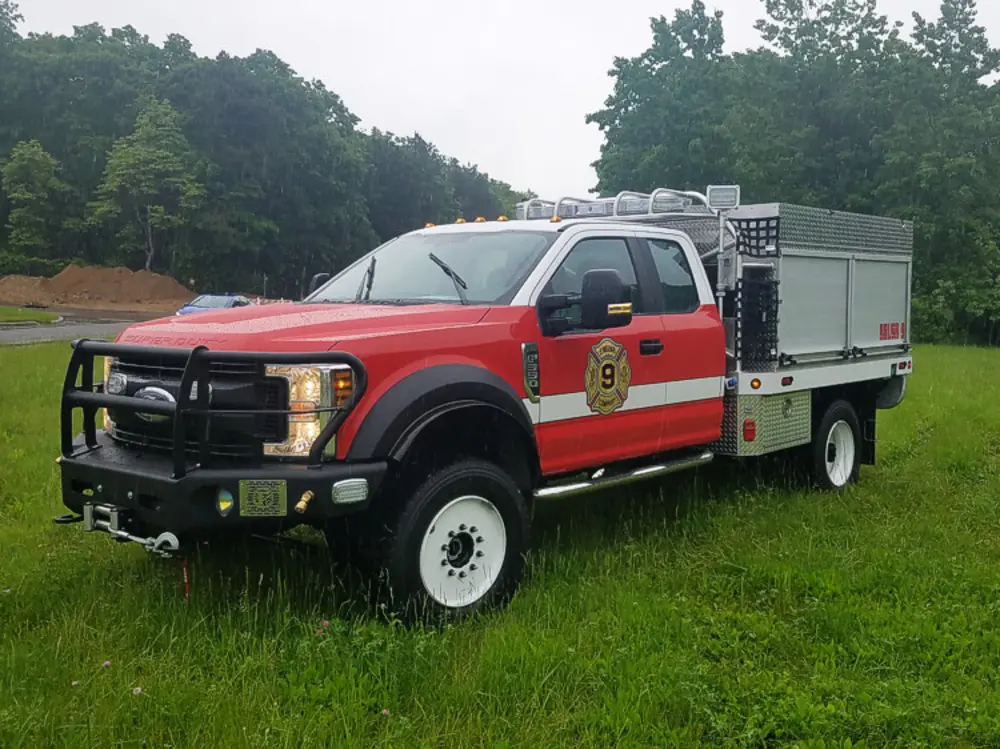

Original B.R.A.T. delivered in Mercersburg, Pennsylvania.
This original b.r.a.t. was delivered to MMP&W Volunteer Fire Company in Mercersburg, Pennsylvania and is configured around 350-gallon tank, F550 chassis, 4x4.
Specs Summary

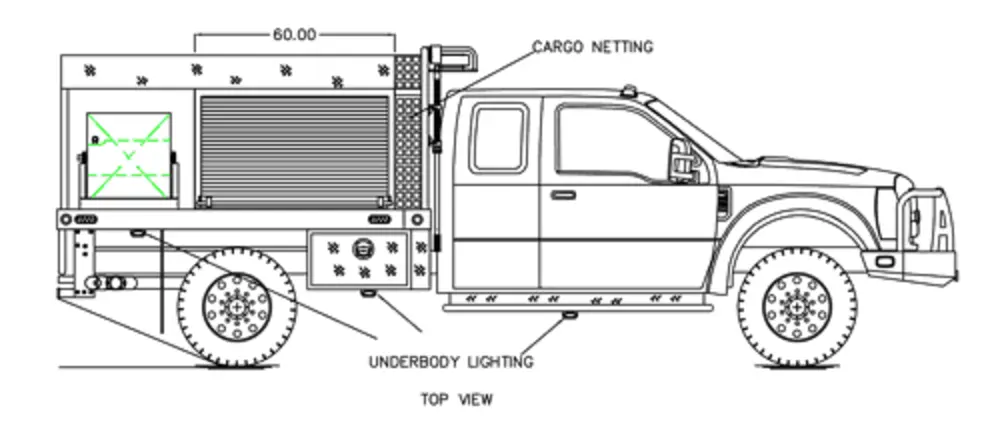

Drawing PDF- 2018 Ford F550 2 Door 4x4 Extended Chassis w/ 19,500 lbs. GVW
- Super Single 19.5" Toyo M605 Tires
- Heavy Duty Aluminum Fabricated Flatbed with FEA Tested Roll Bar
- Buckstop Heavy Duty front bumper
- Pro Poly 350 Gallon Skid with 10 gal. Foam Cell

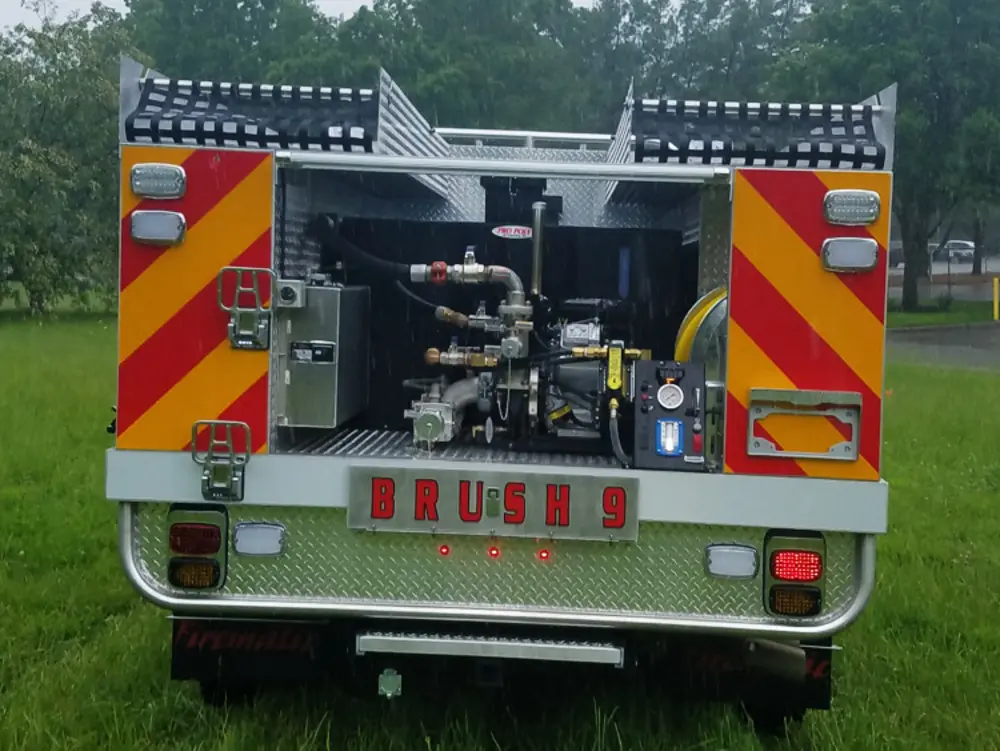

- Hale HPX200 - B23 Gasoline Pump
- Hale Pro Kit Stainless Steel Inlet and Discharge Manifold
- Exhaust Primer
- 1.5" Front Speedlay Tray
- Scotty "Around the Pump" Class A Foam Eductor System
- Two Aluminum Diamond Plate Rear 1.5/3.0" Hose Trays
- One Electric Hannay Reel Mounted on rear passenger deck with 200' of 3/4" Lightweight Booster
