B.R.A.T. Delivery
West Sayville FD

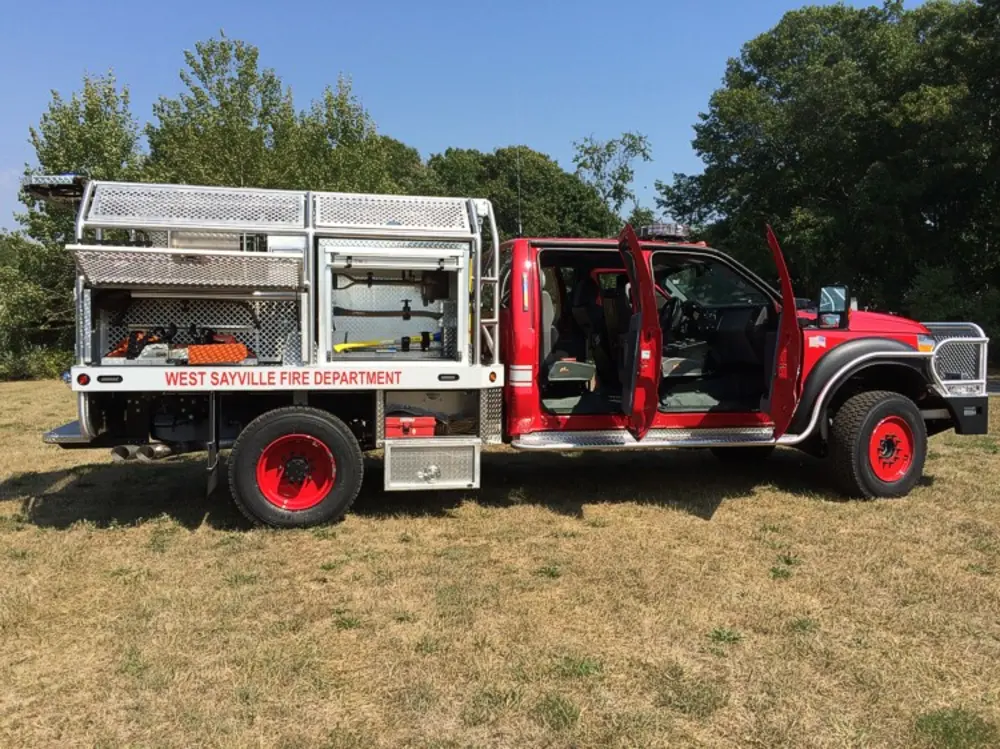

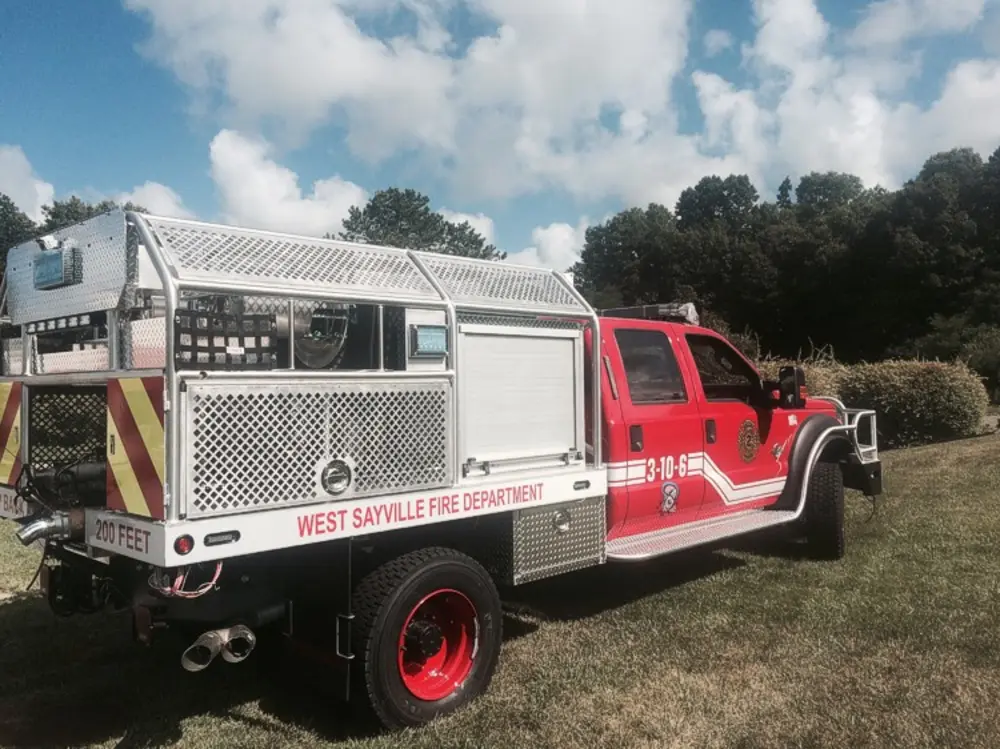

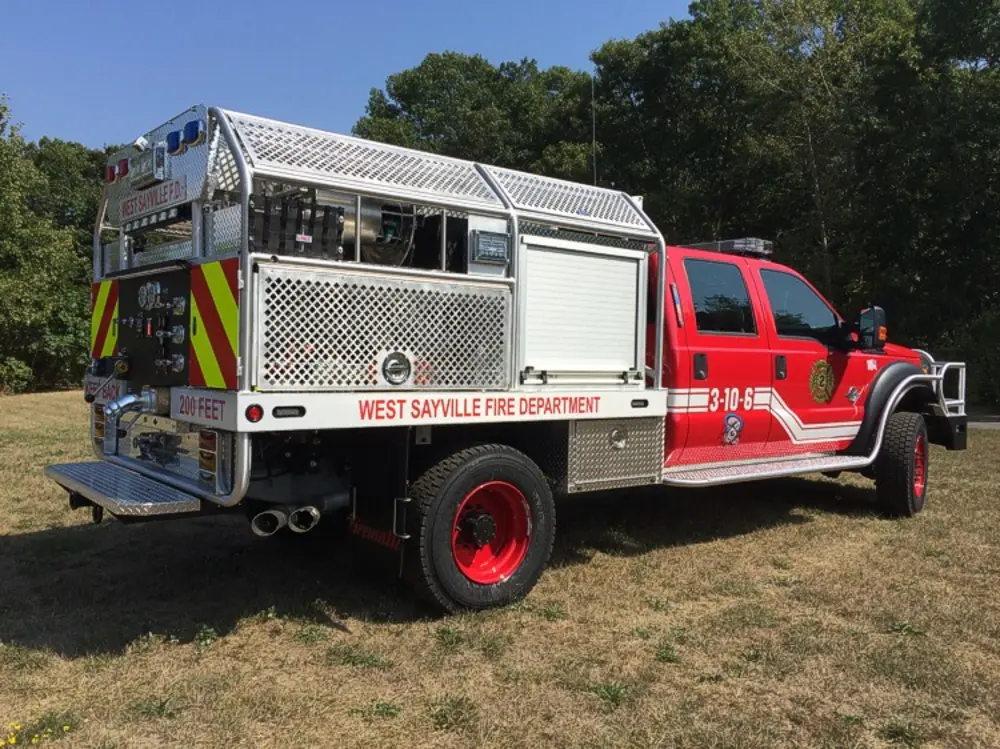

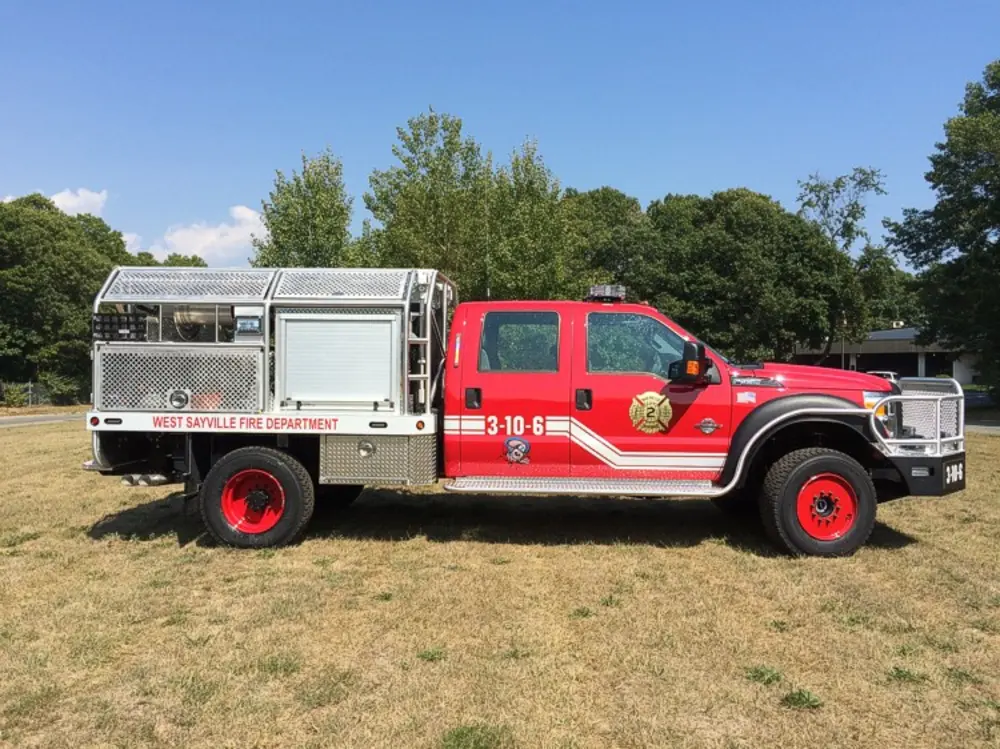

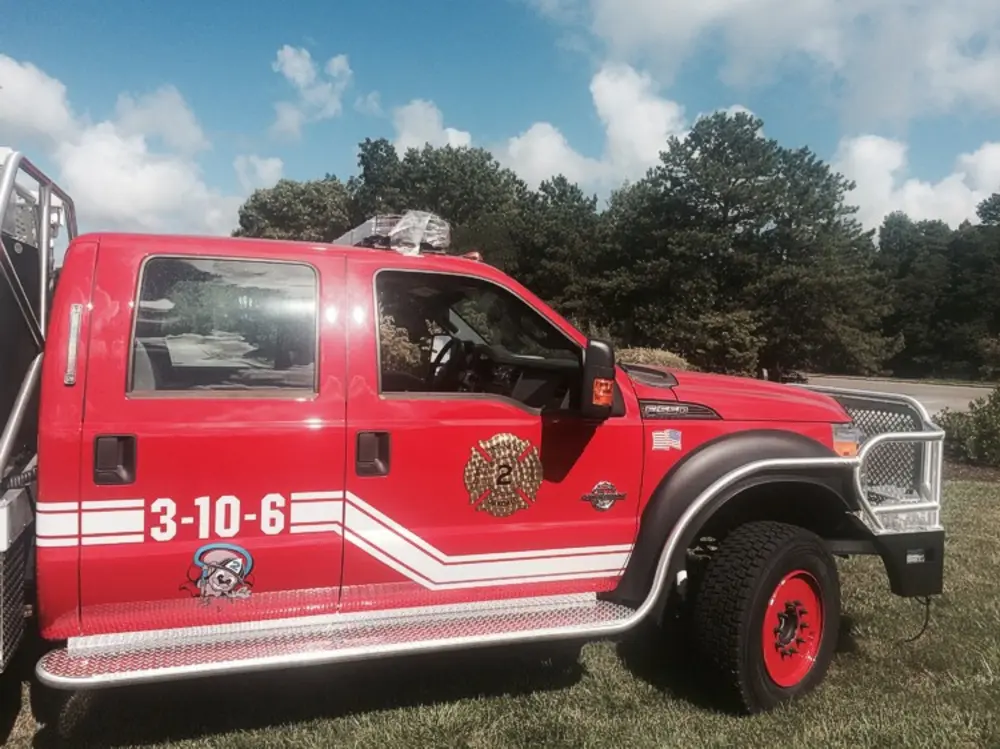

Original B.R.A.T. delivered in West Sayville, New York.

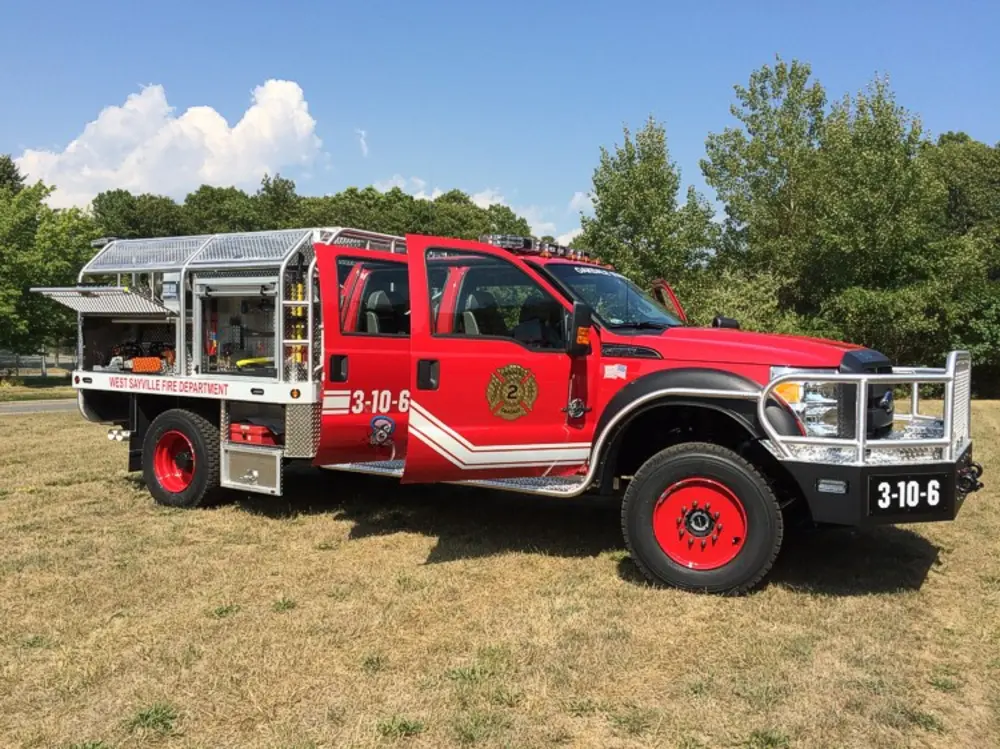

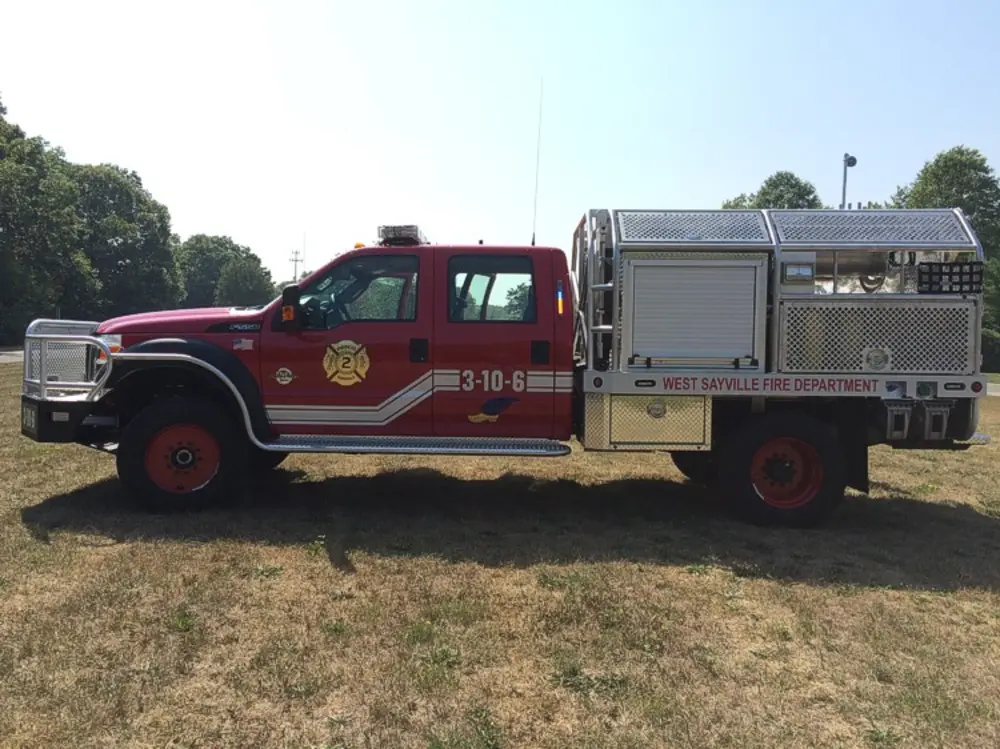

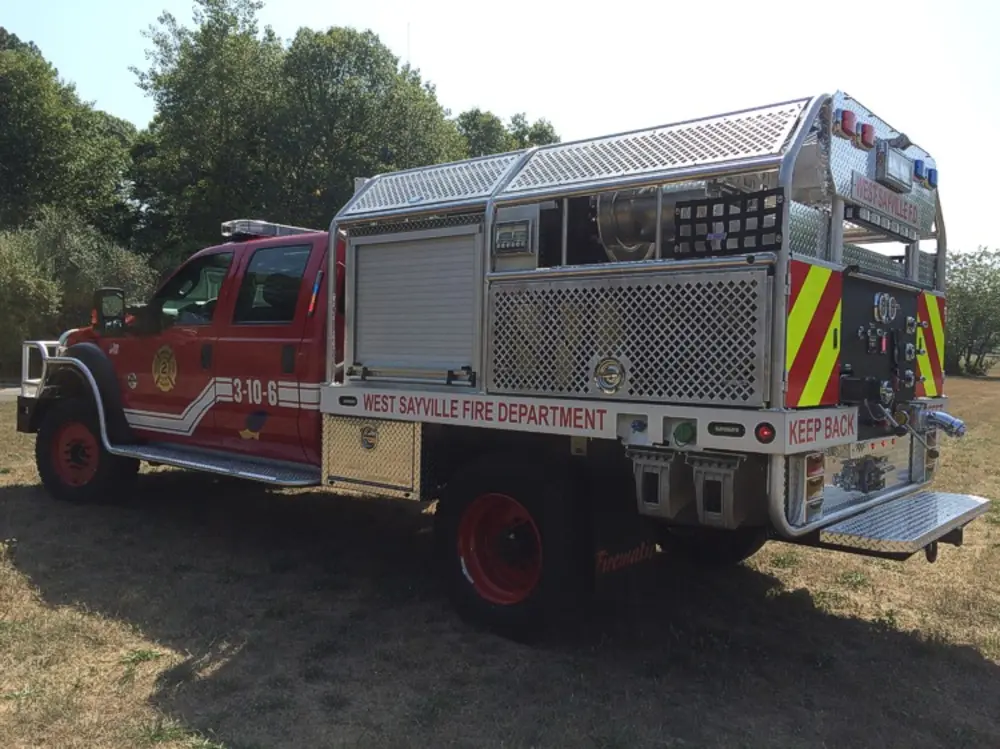

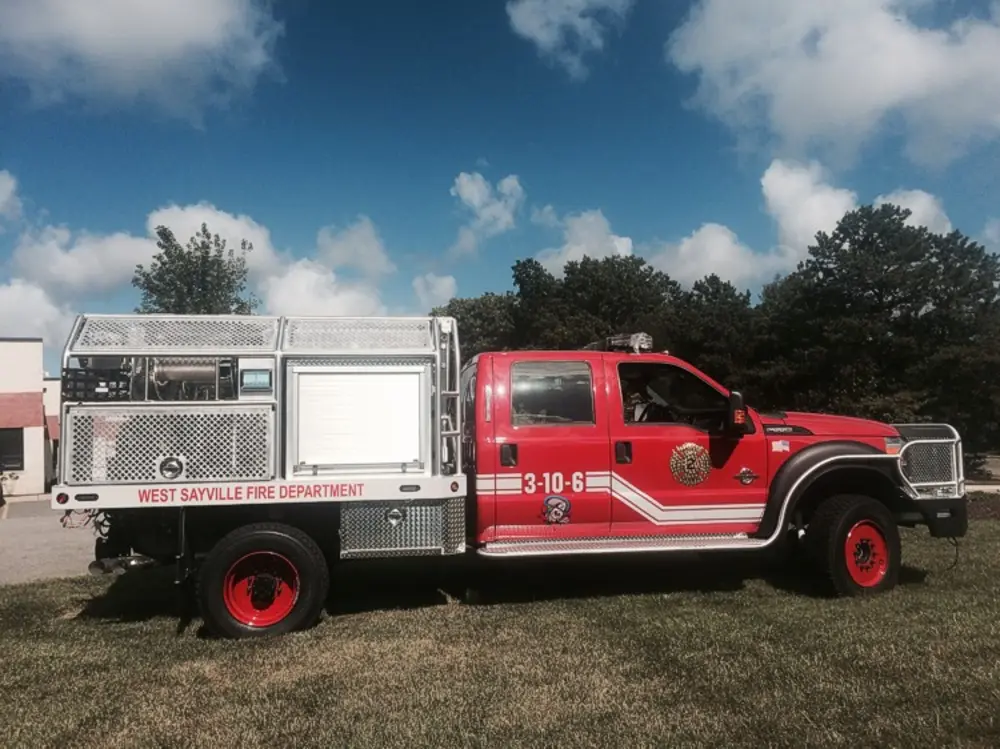

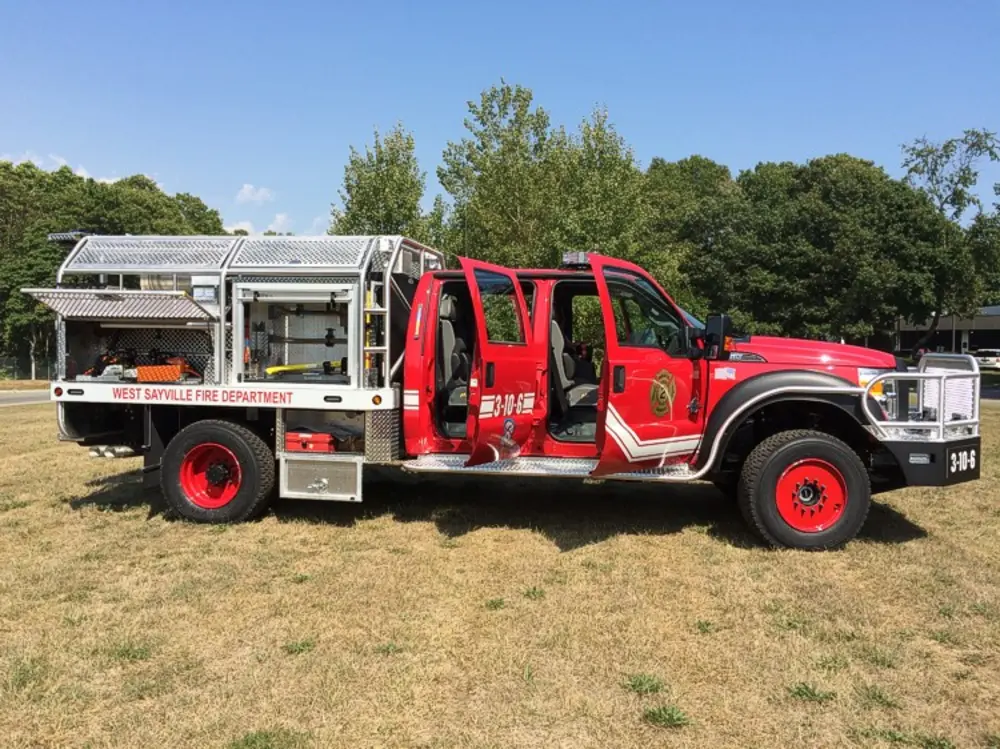

This original b.r.a.t. was delivered to West Sayville FD in West Sayville, New York and is configured around 300 GPM pump, F550 chassis, 4x4.
Specs Summary

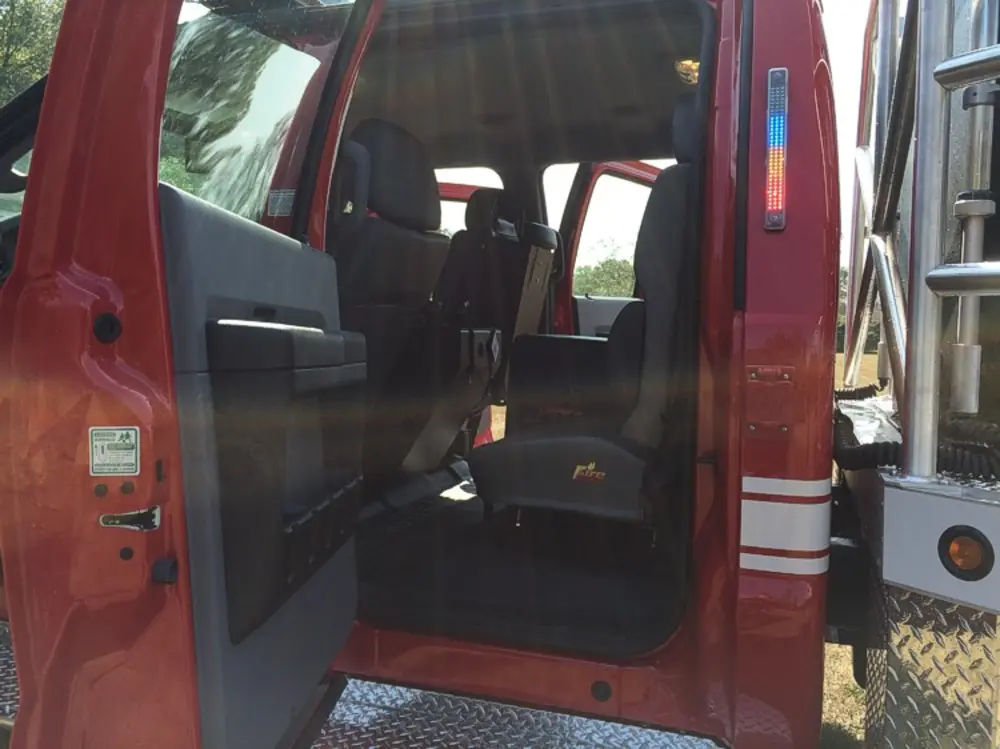

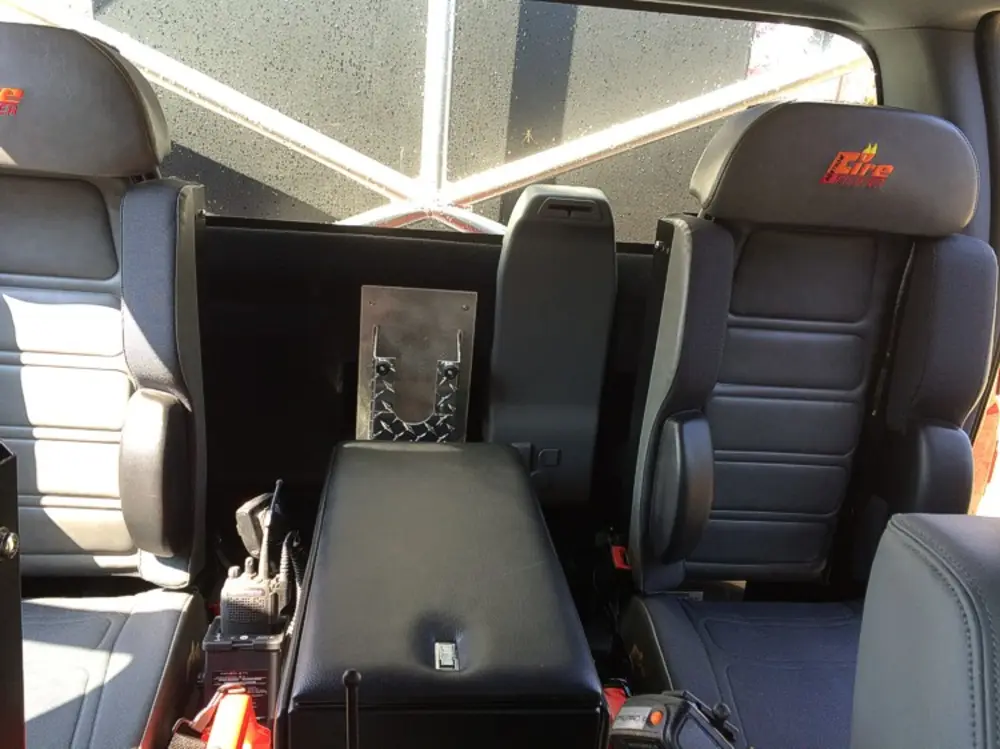

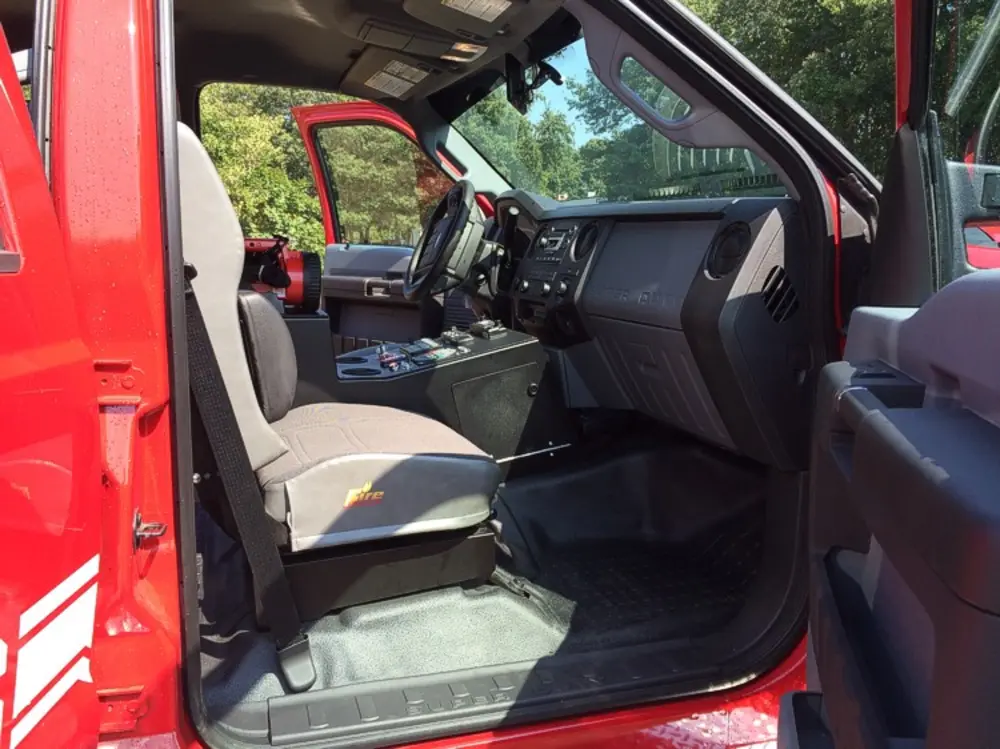

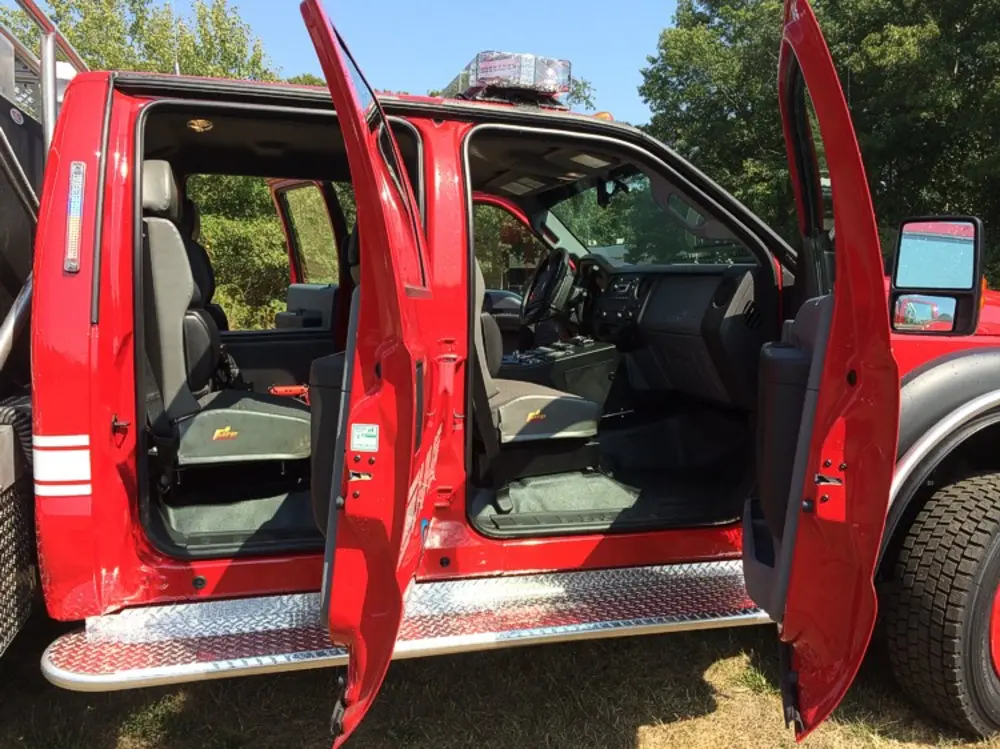

Drawing PDF- 2015 Ford F550 Four Door Cab and 4x4 Chassis 19,500 lbs. GVW
- 6.7L 300 HP Diesel Engine

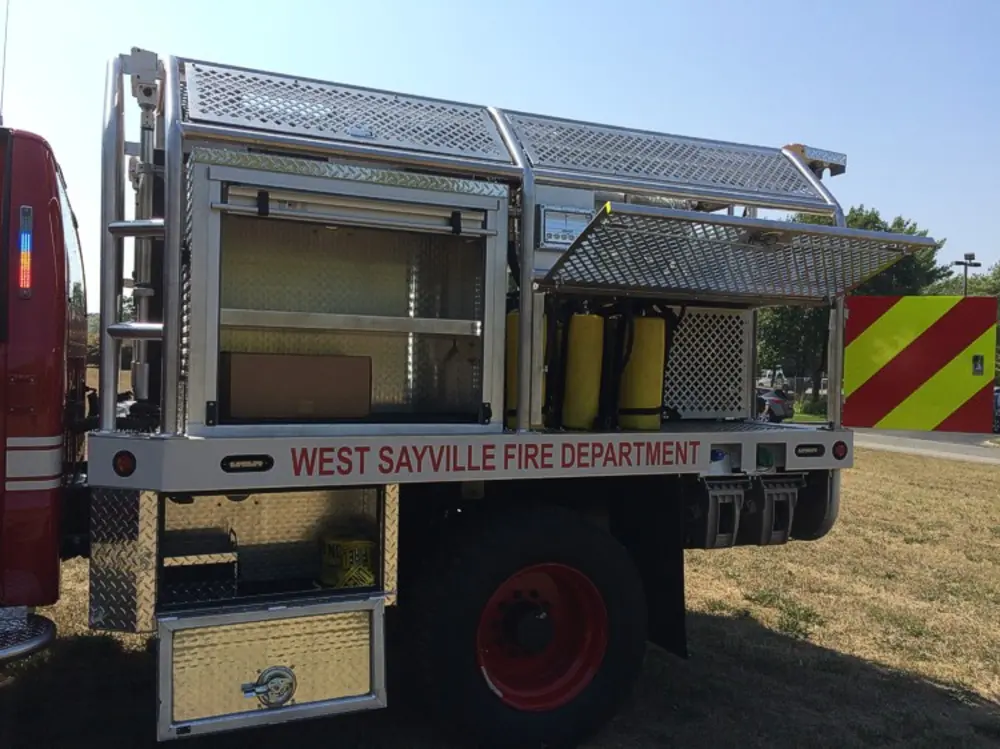

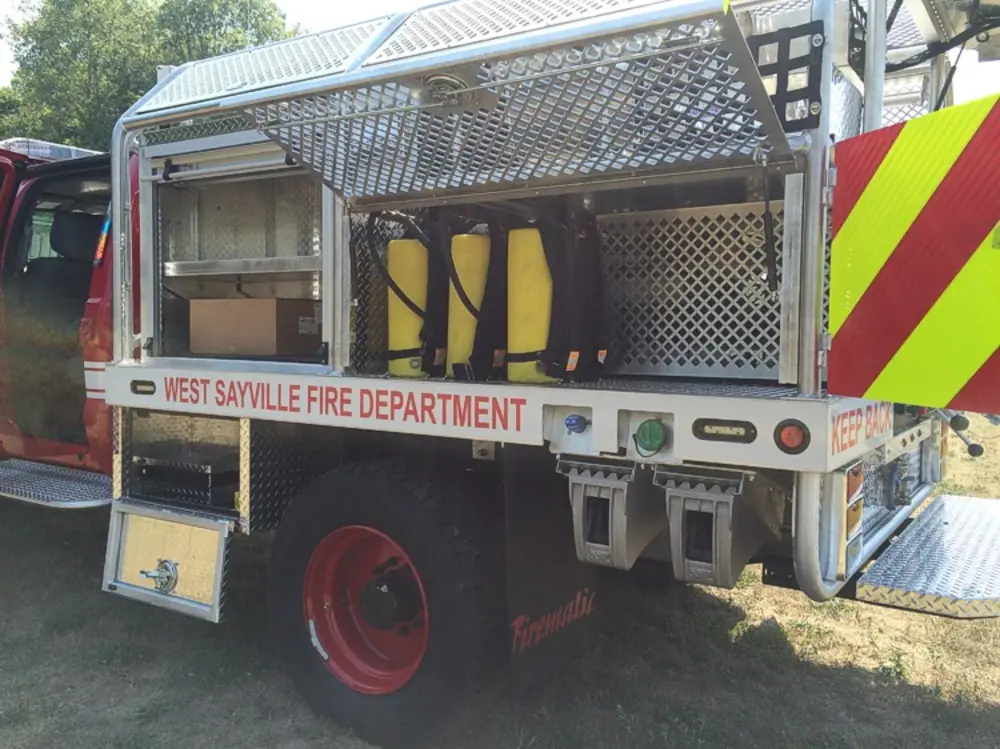

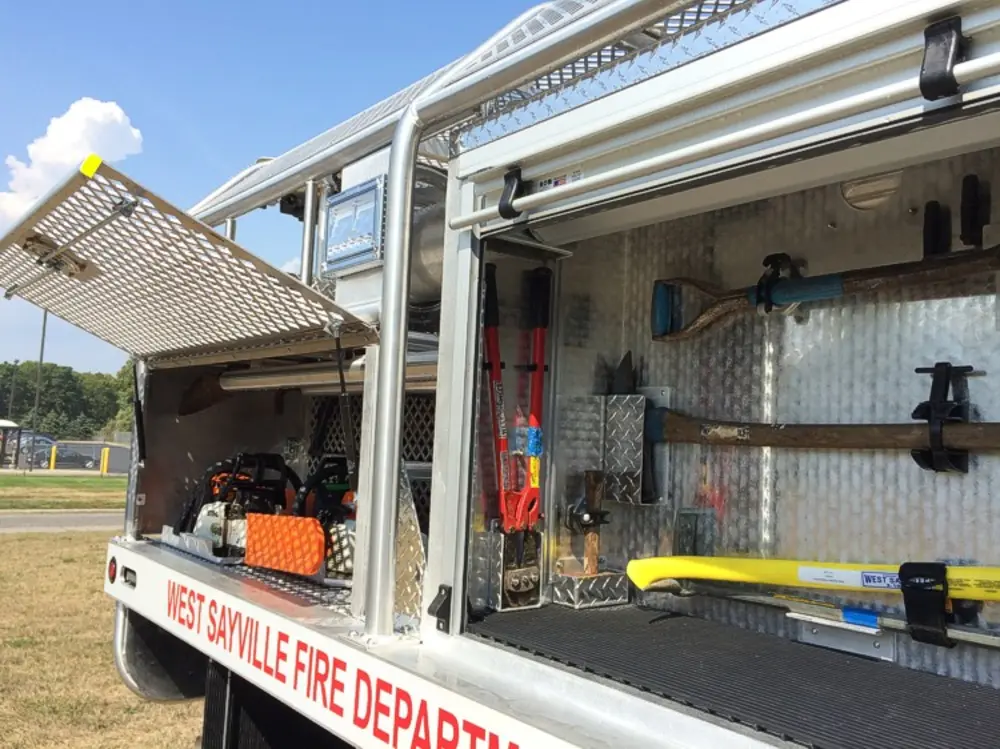

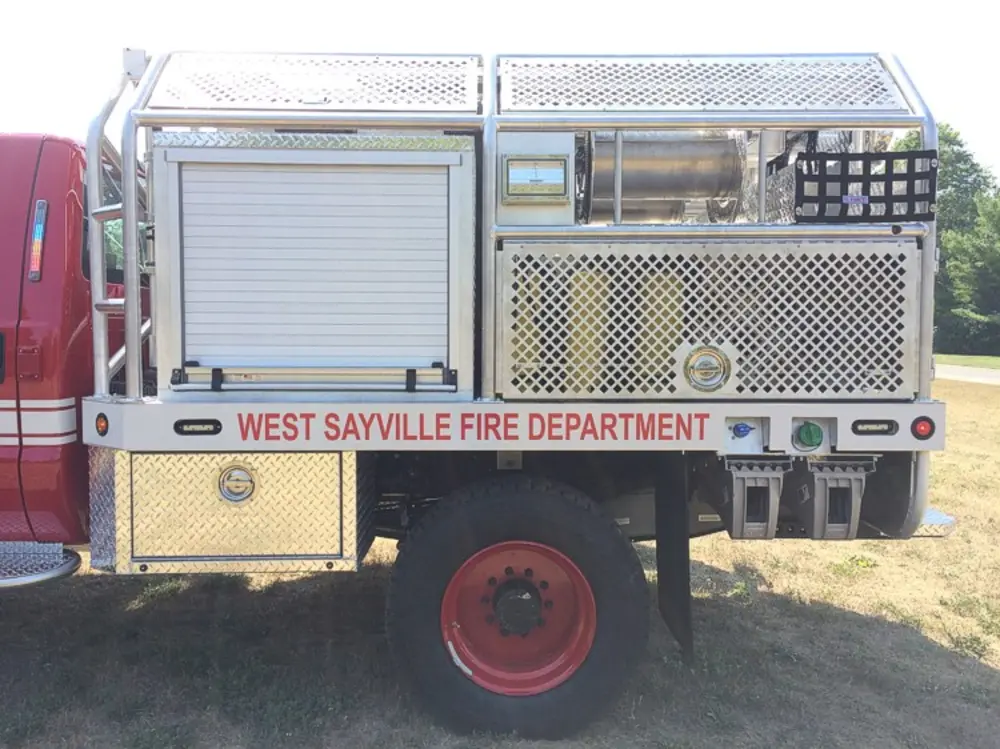

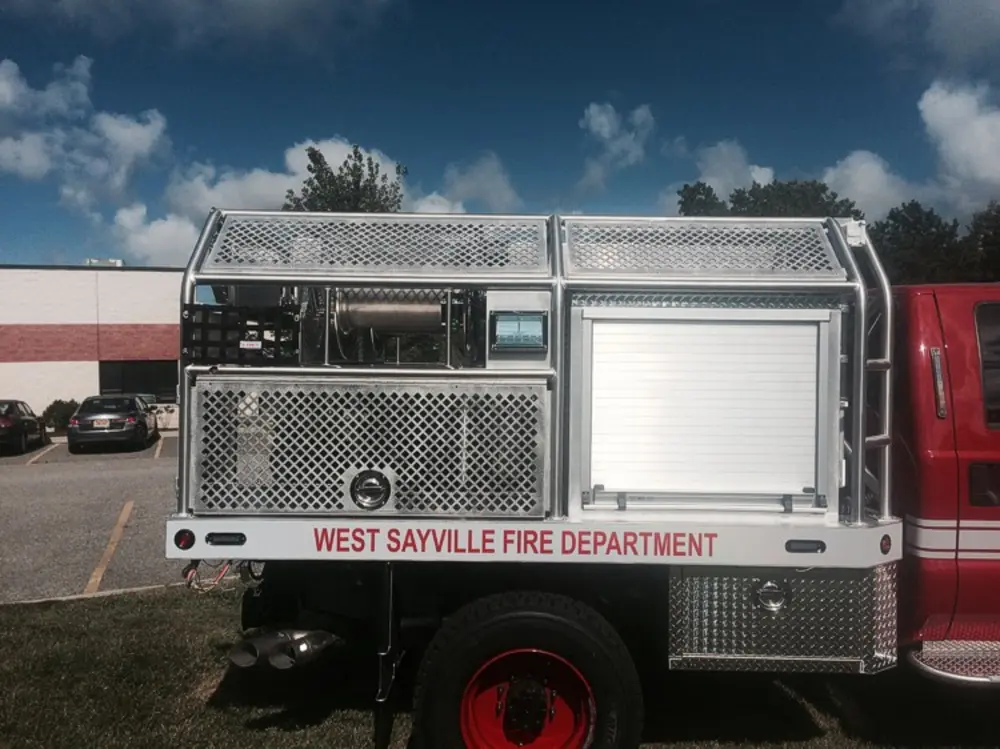

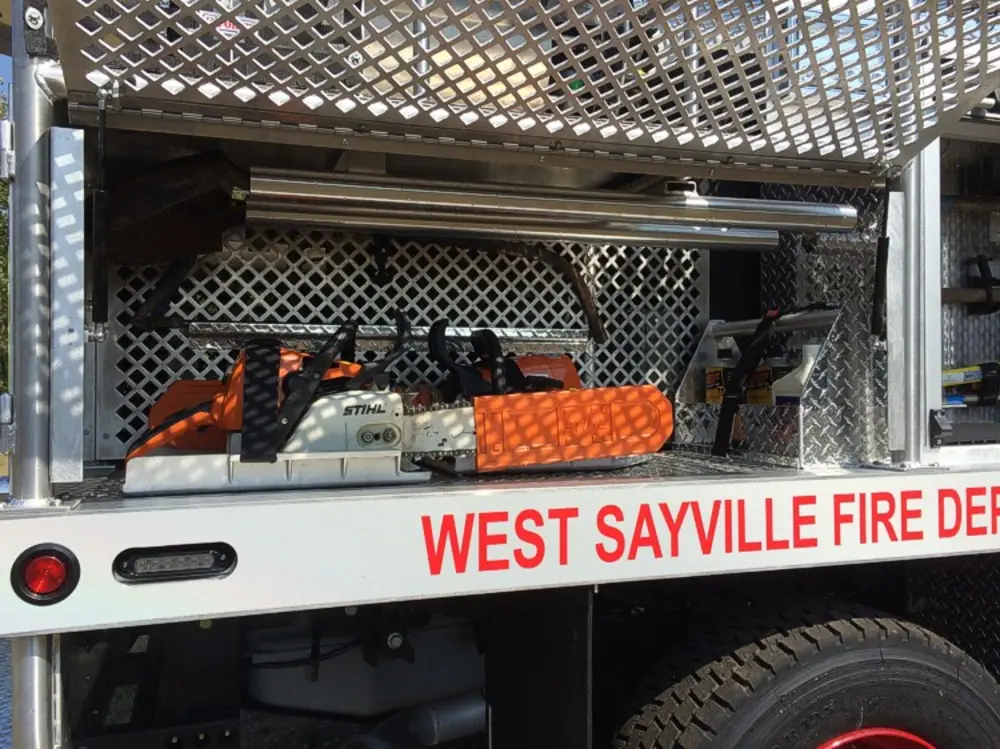

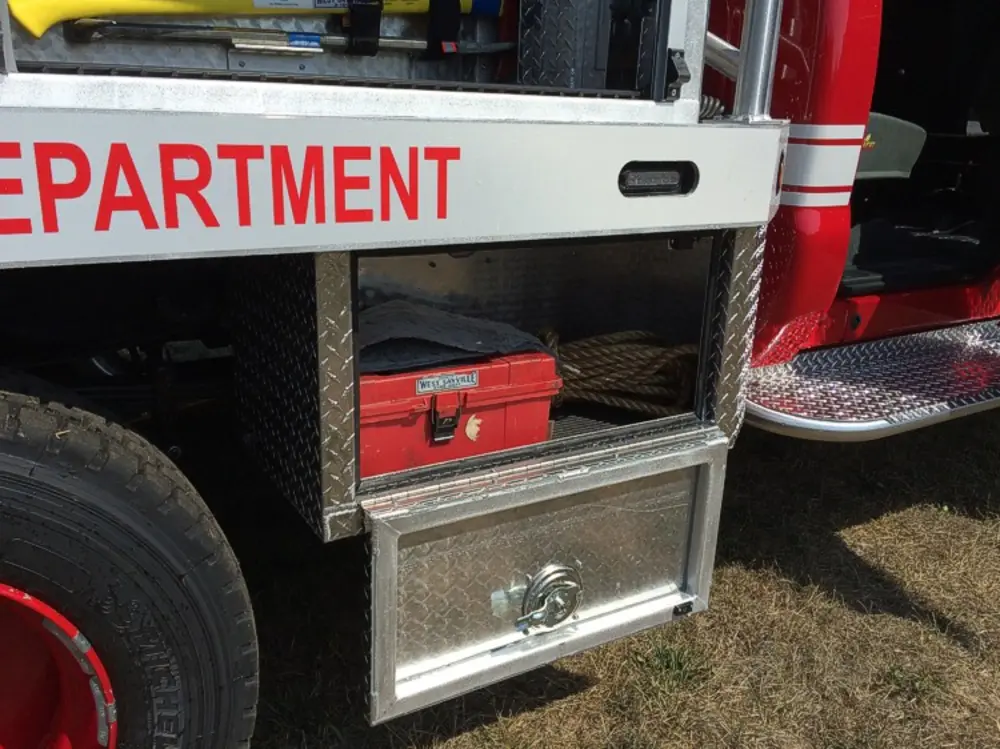

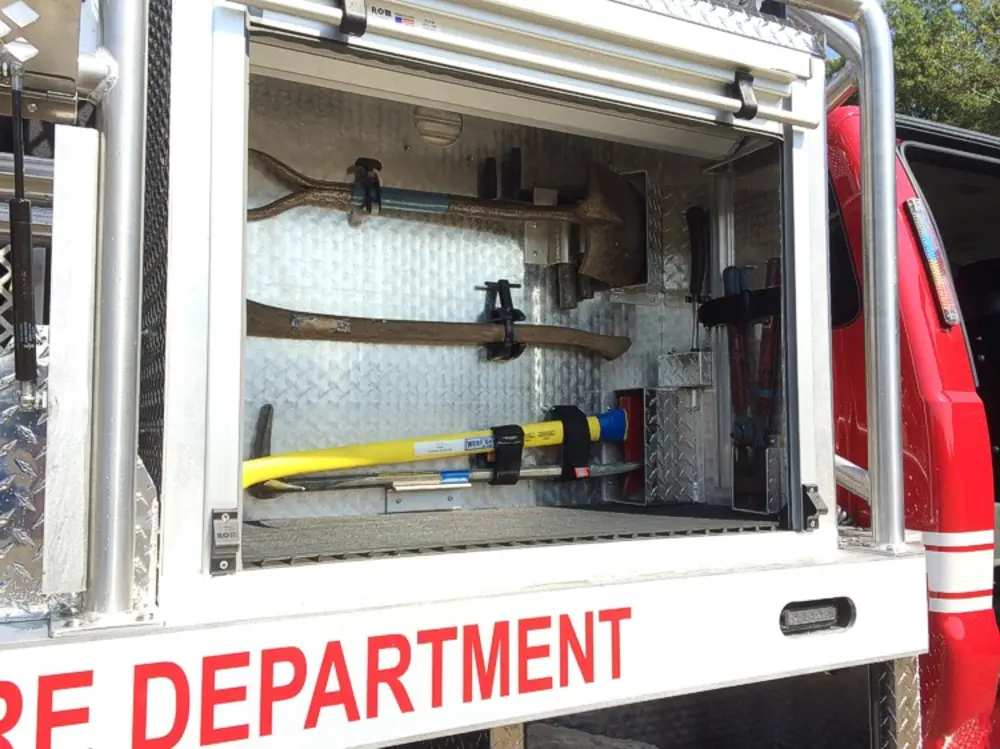

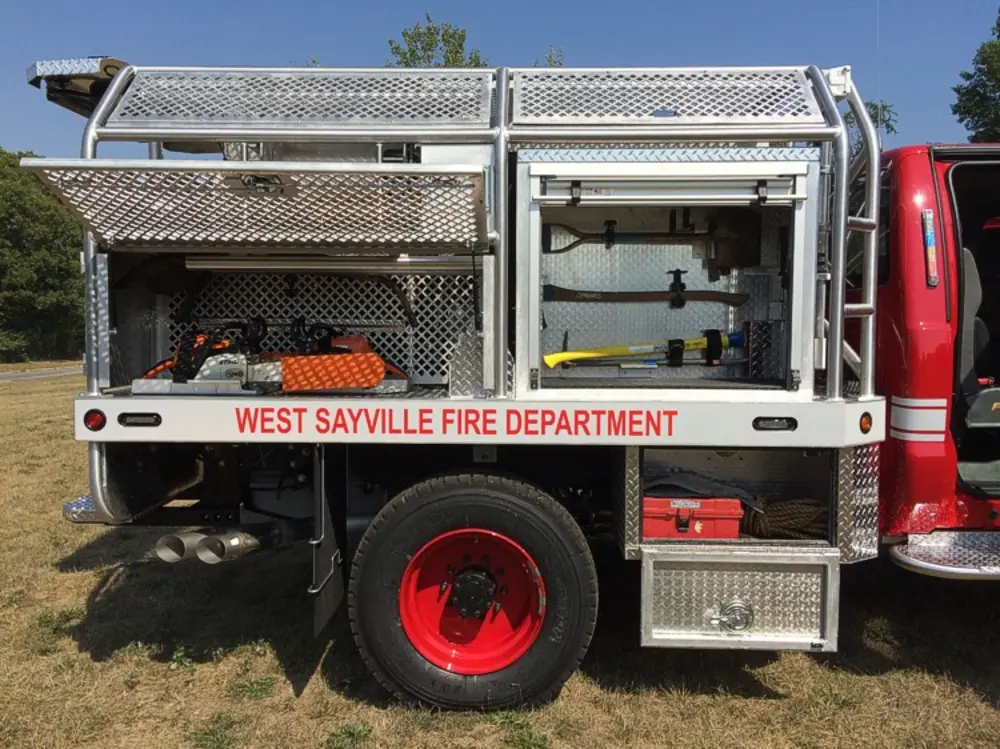

- Aluminum Flatbed Body with FEA Engineered Roll Bar
- 350 Gallons of Water
- 64 HP Deutz Diesel with Hale 30 FS Pump 300 gpm @ 150 psi
- Pump and Roll Capability

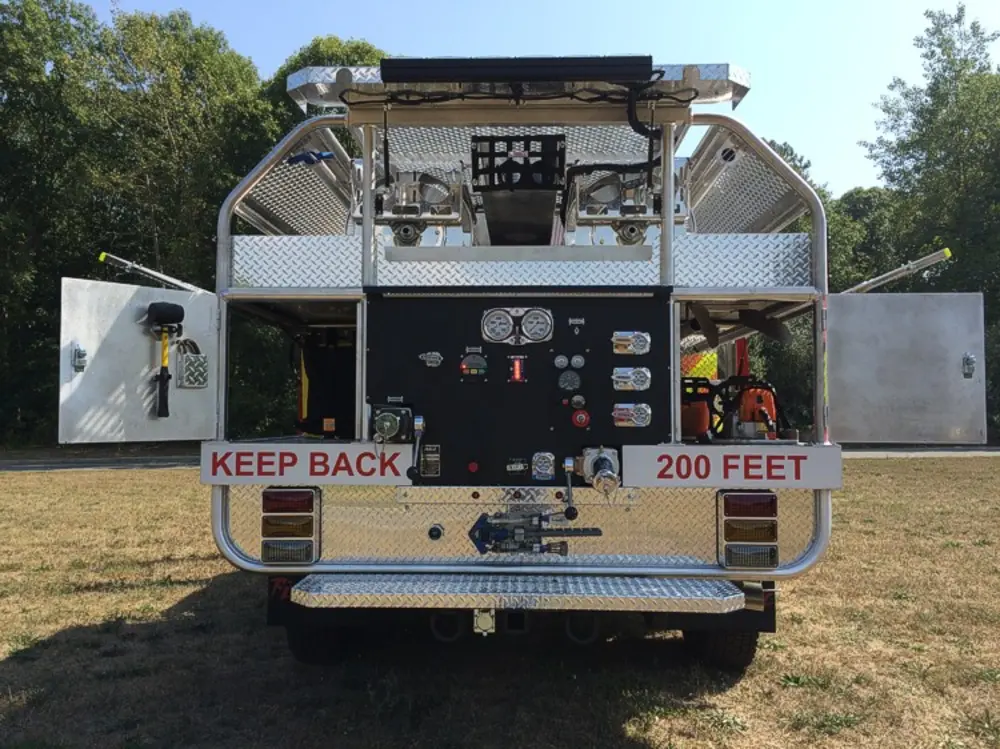

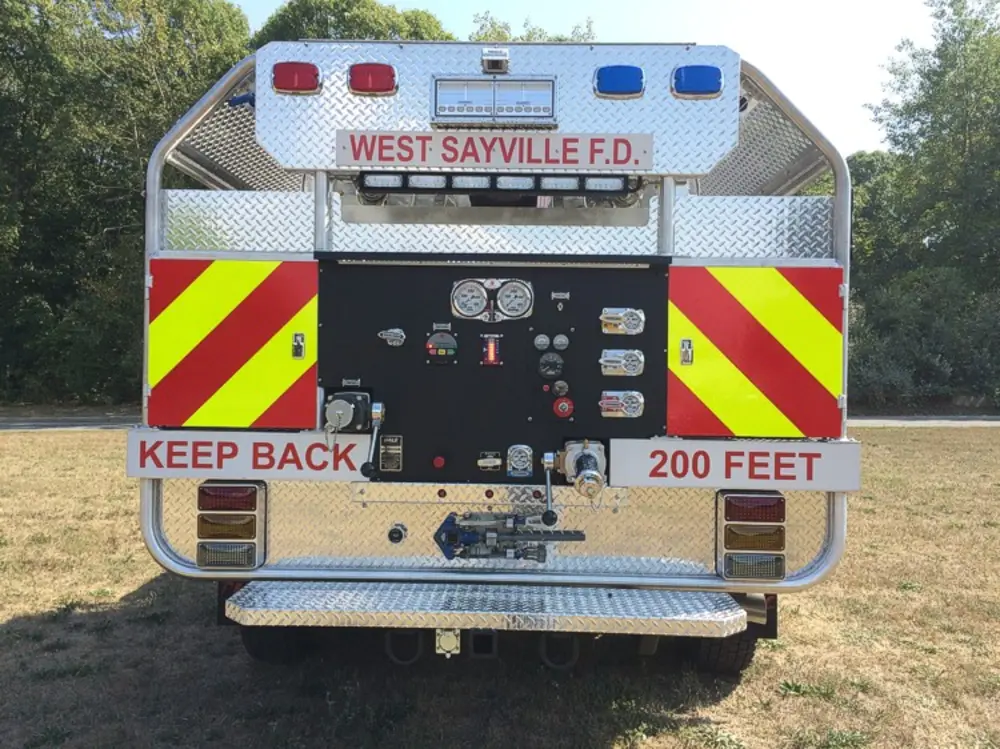

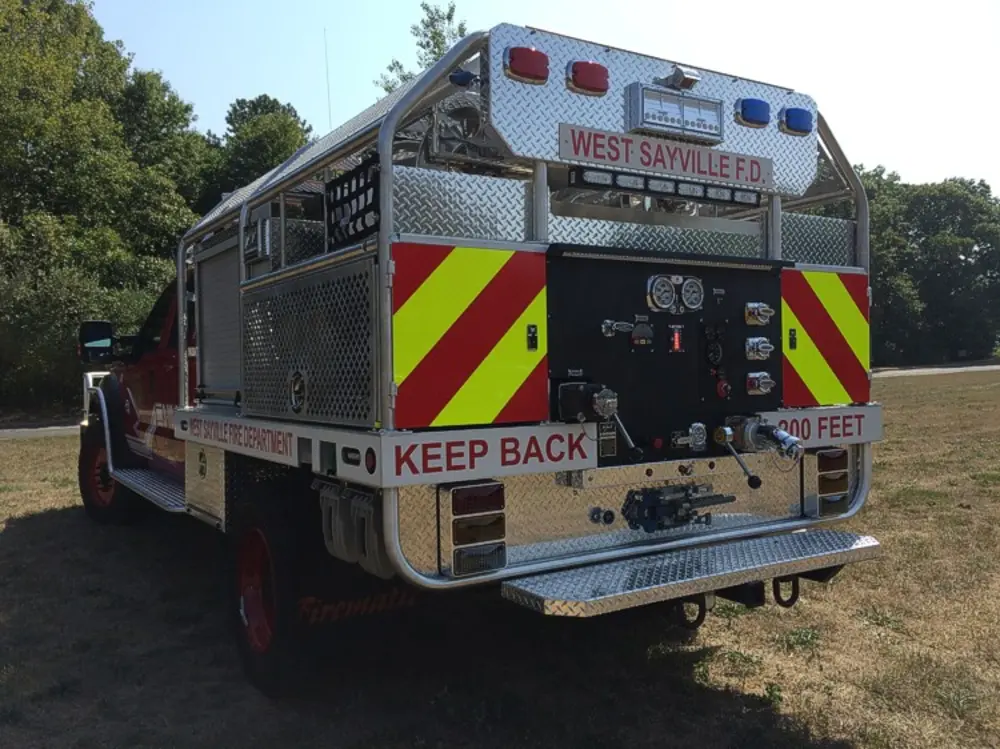

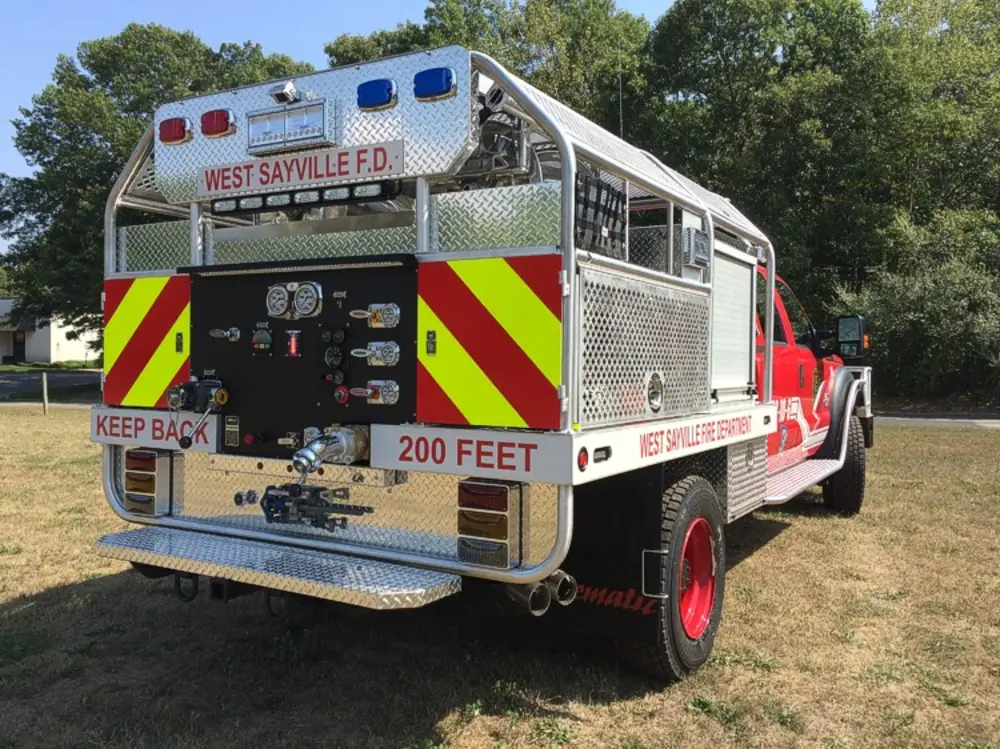

- One 1.5" Rear Crosslay for 150 ft. of 1.75"
- One 2.5" Direct Discharge

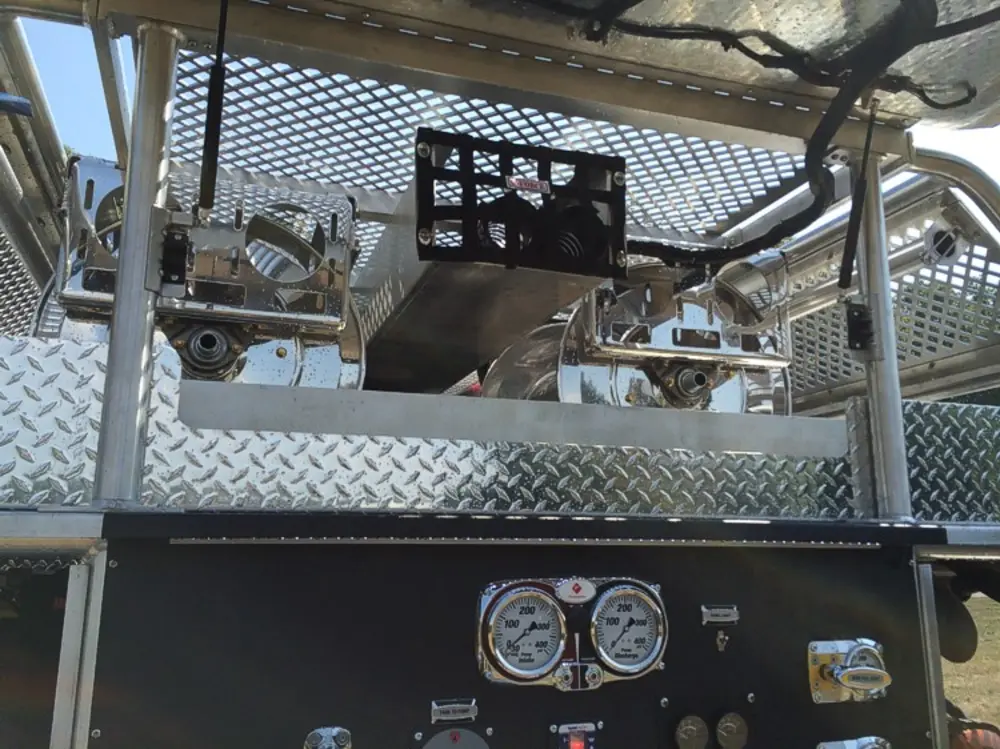

- Two Electric Hannay Reels Mounted on Rear w/ 200' of 1" Booster
- NFPA Whelen Super LED Lighting Package
- Whelen LED Scene Lighting

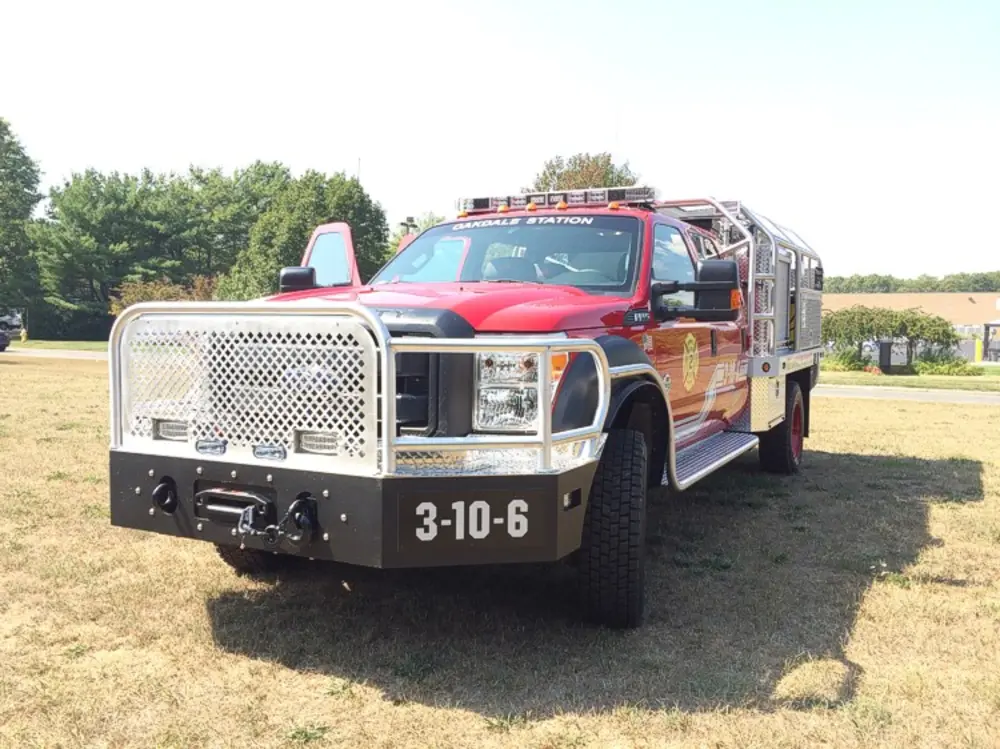

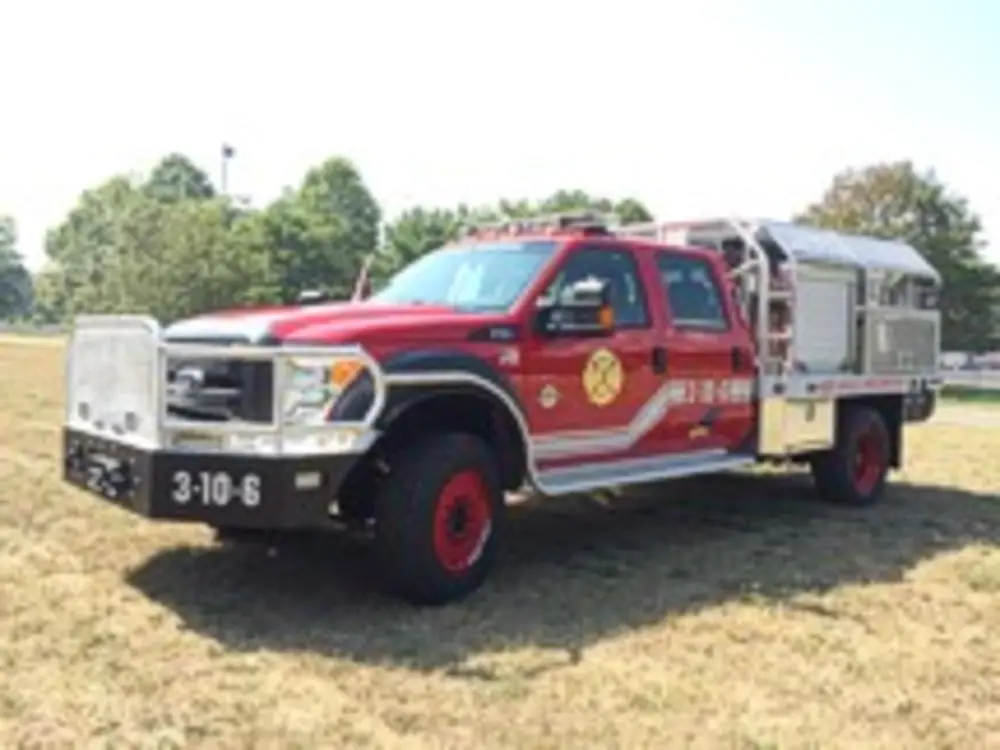

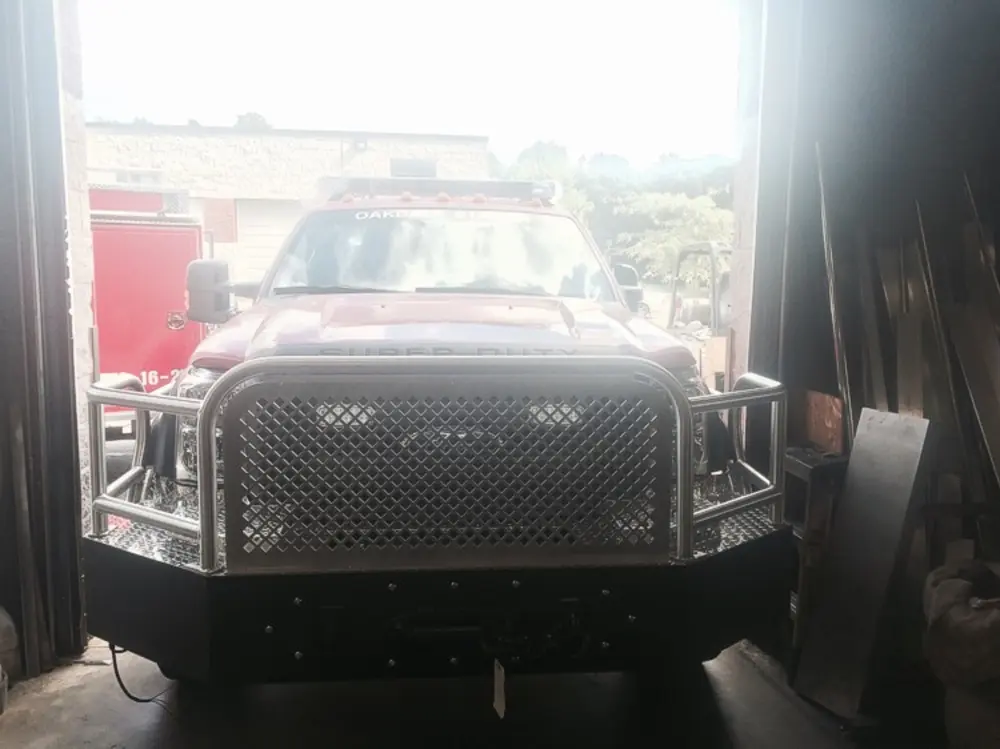

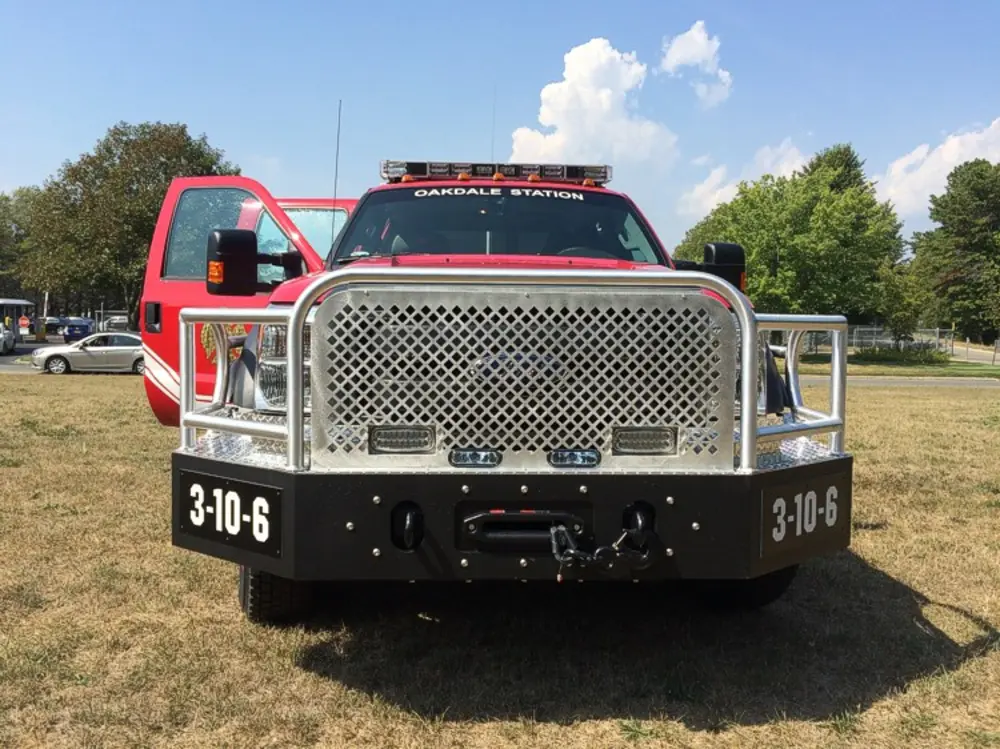

- Extended Front Bumper and Brush Guard
