B.R.A.T. Delivery
Point O'Woods FD
Ovation delivered in Fire Island, New York.

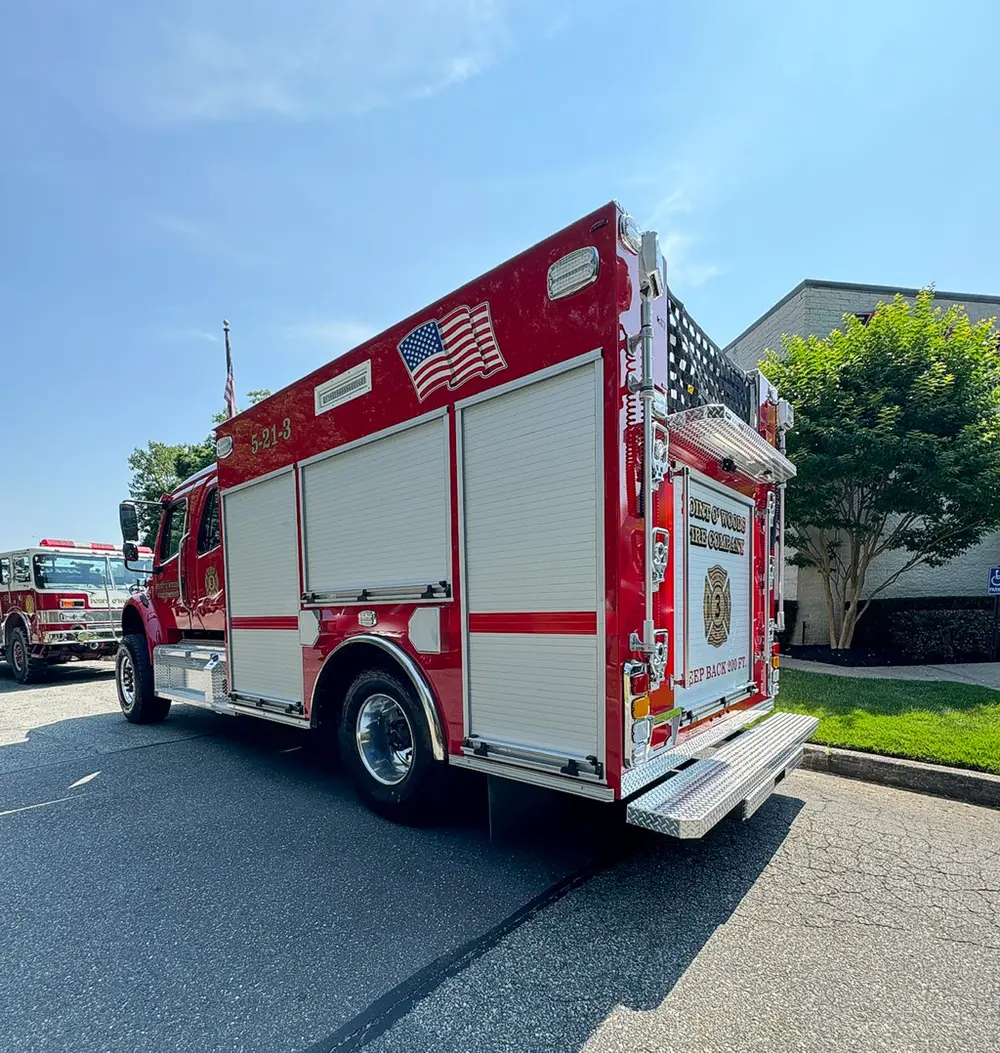

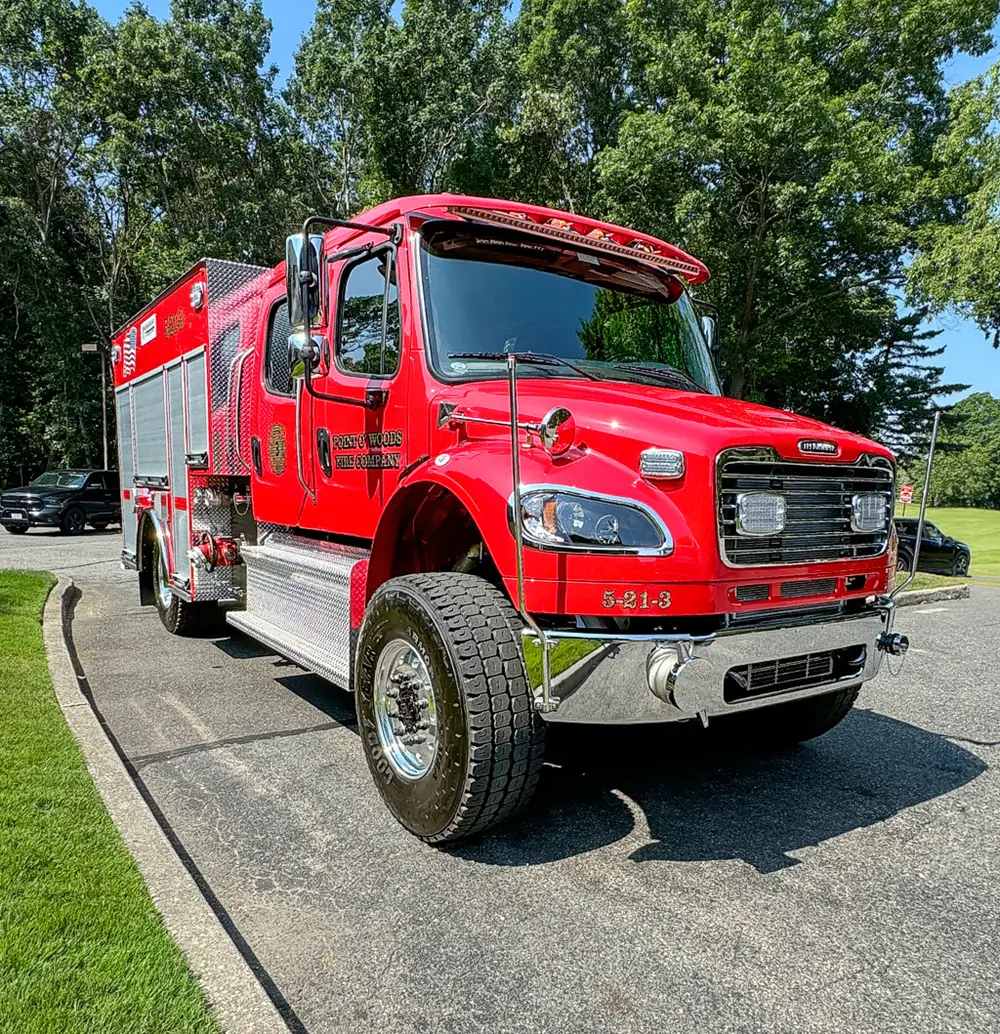

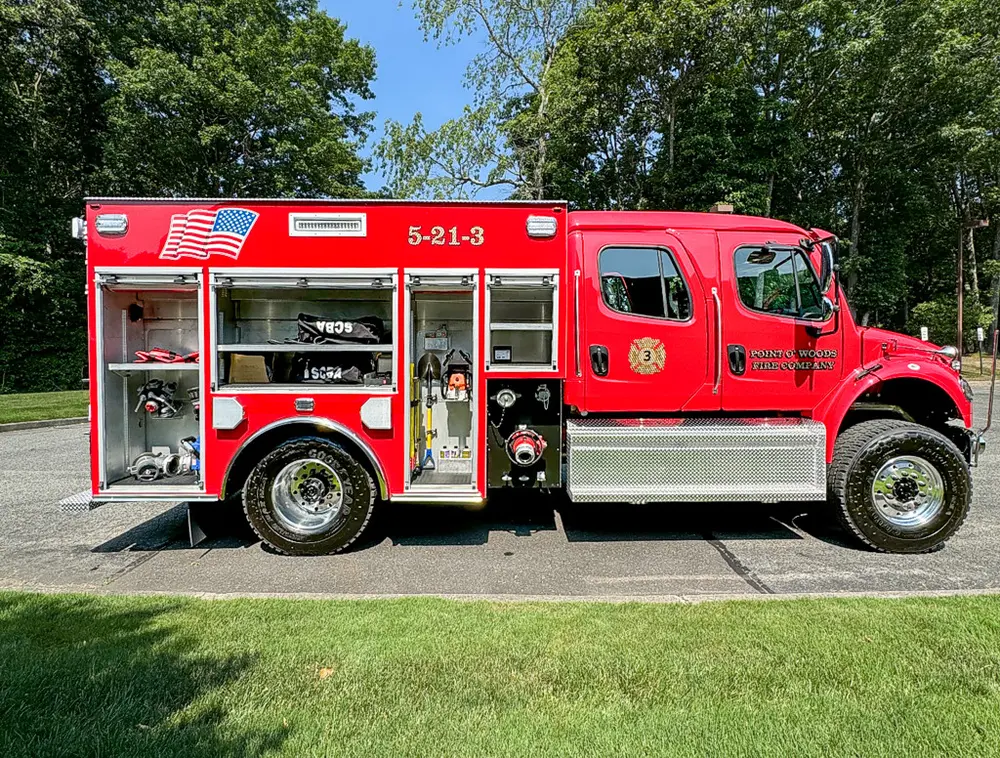

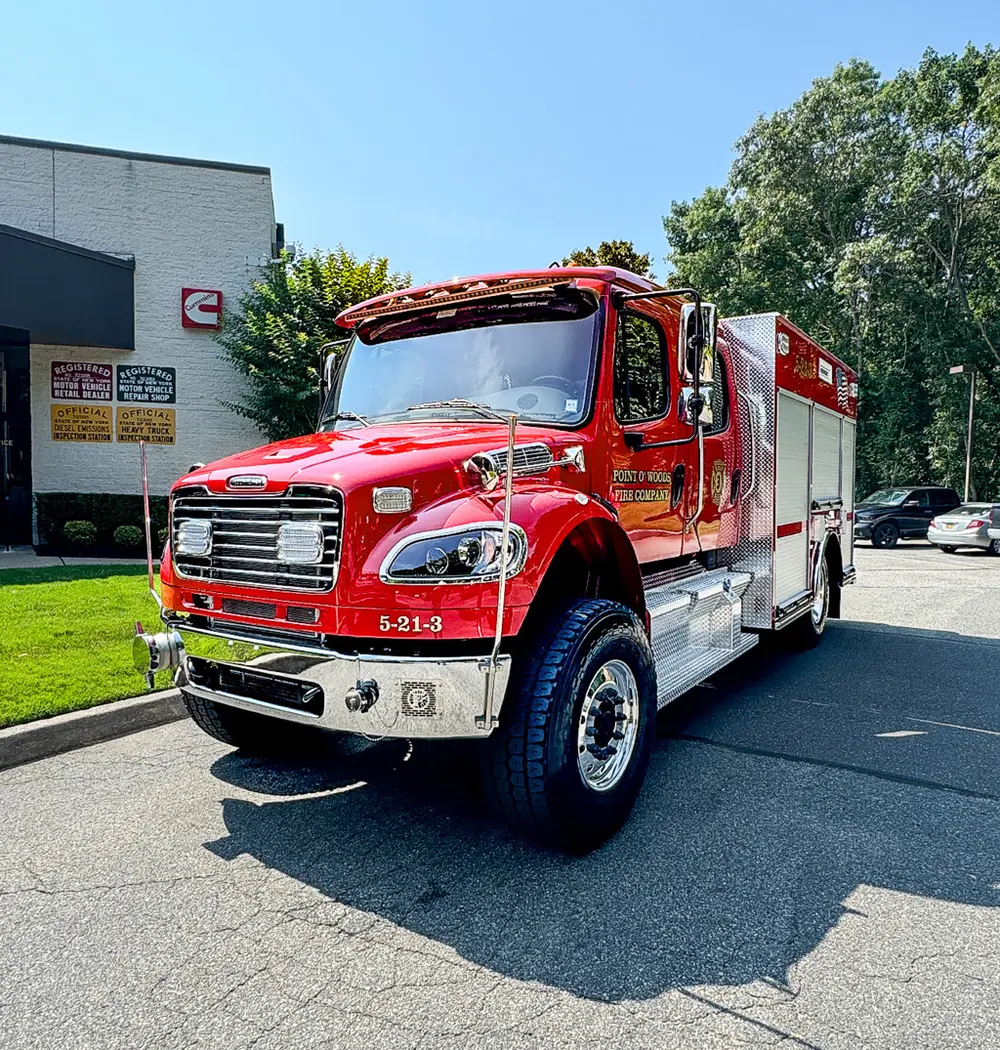

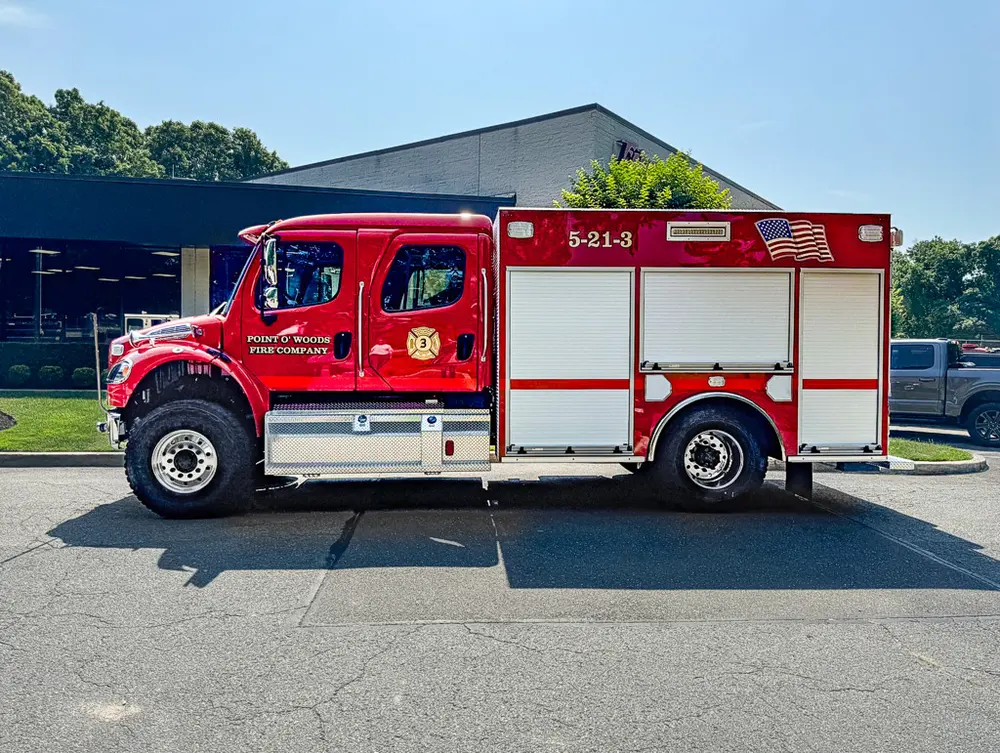

This ovation was delivered to Point O'Woods FD in Fire Island, New York and is configured around 1500 GPM pump, 300-gallon tank, Freightliner M2-106 chassis, 4x4.
Specs Summary
Drawing PDF- Freightliner M2-106 4x4 4-Door Chassis
- Cummins 360hp Diesel Engine
- Super Single Wheel & Tire Package

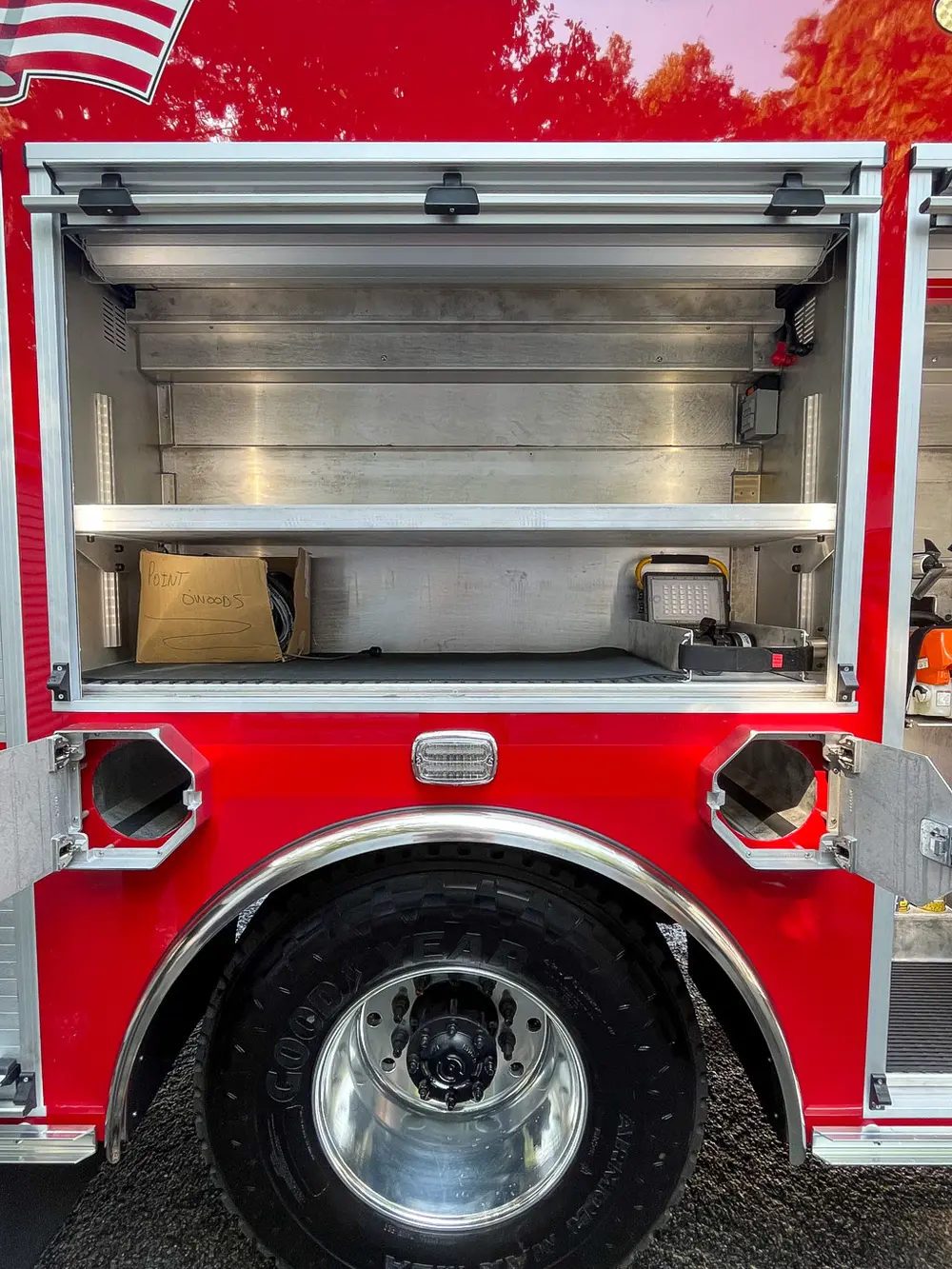

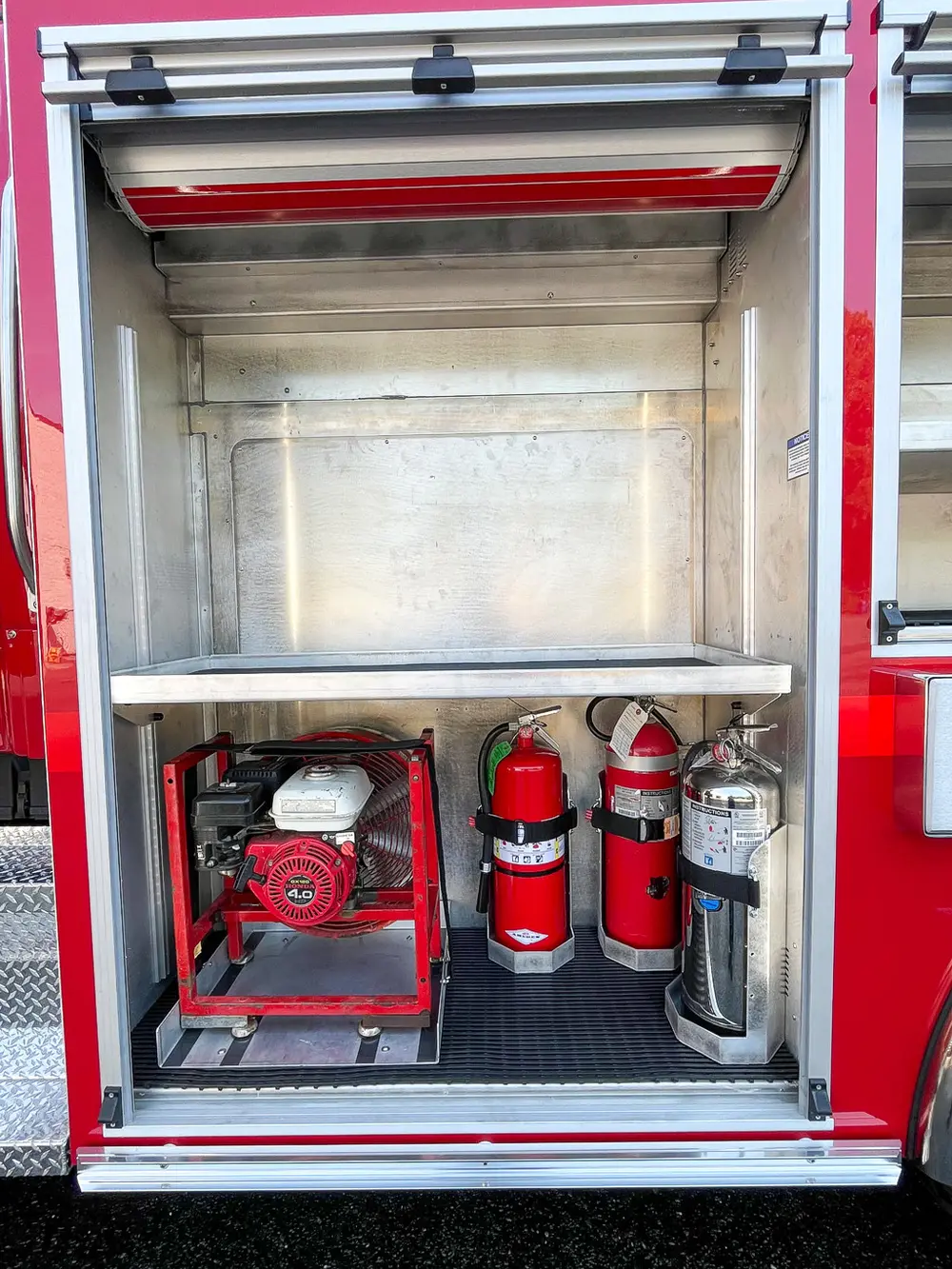

- Custom Aluminum Pumper Body
- Darley PTO Rear Facing 1500 GPM Pump
- 300 Gallon Water Tank

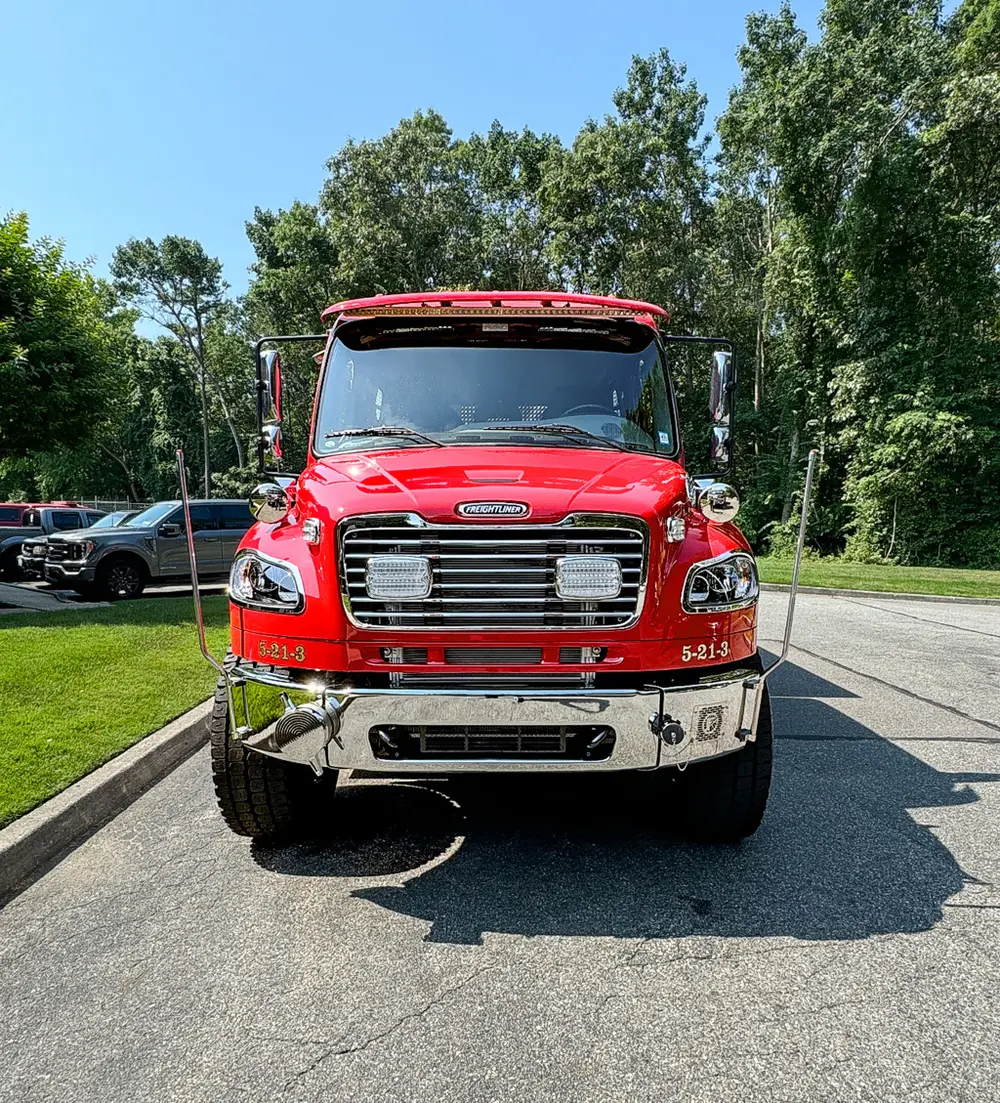

- Extended Front Bumper w/ Trashline Tray for 200' of 1.75" Hose and a 5" Front Suction Inlet

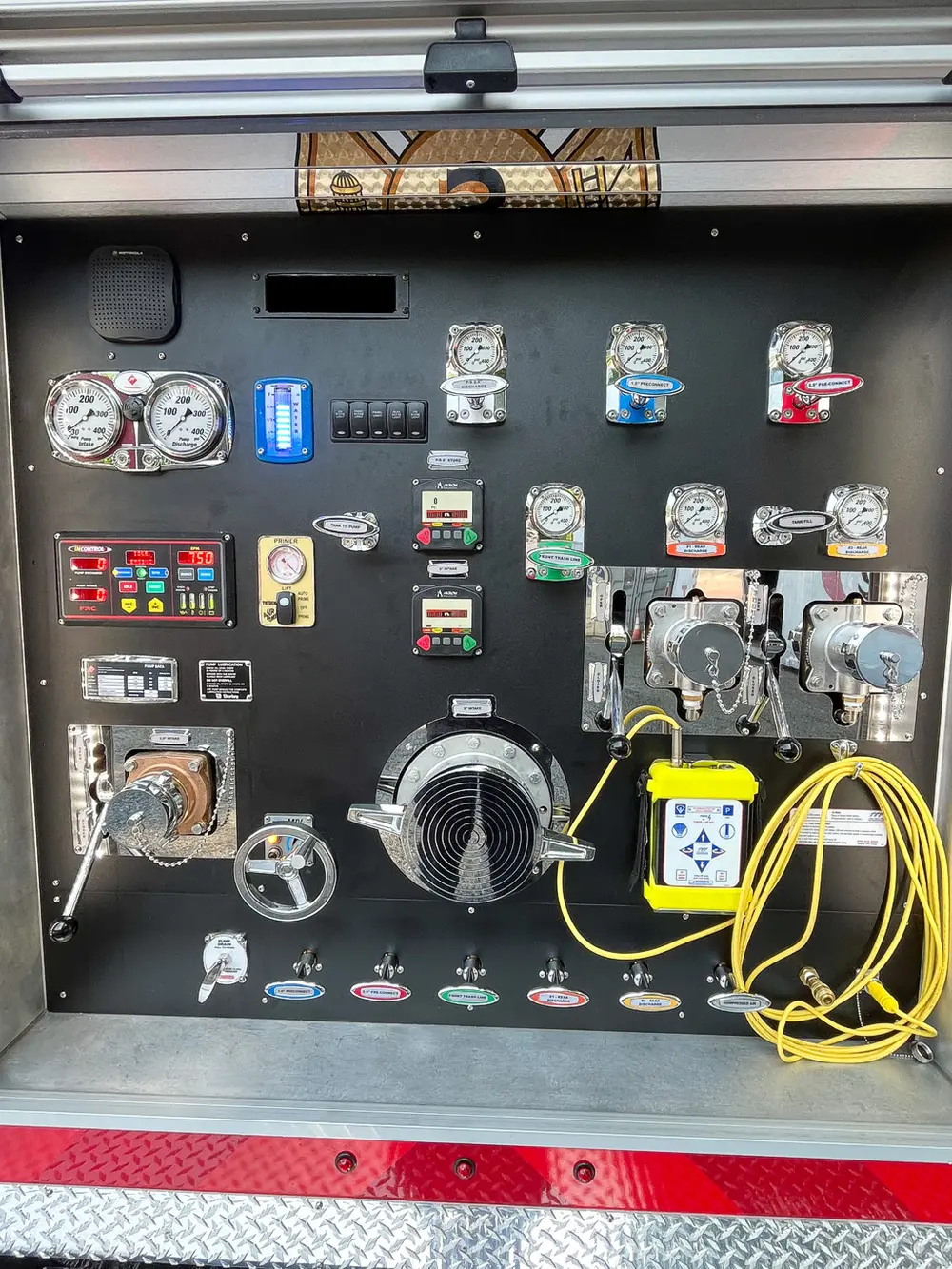

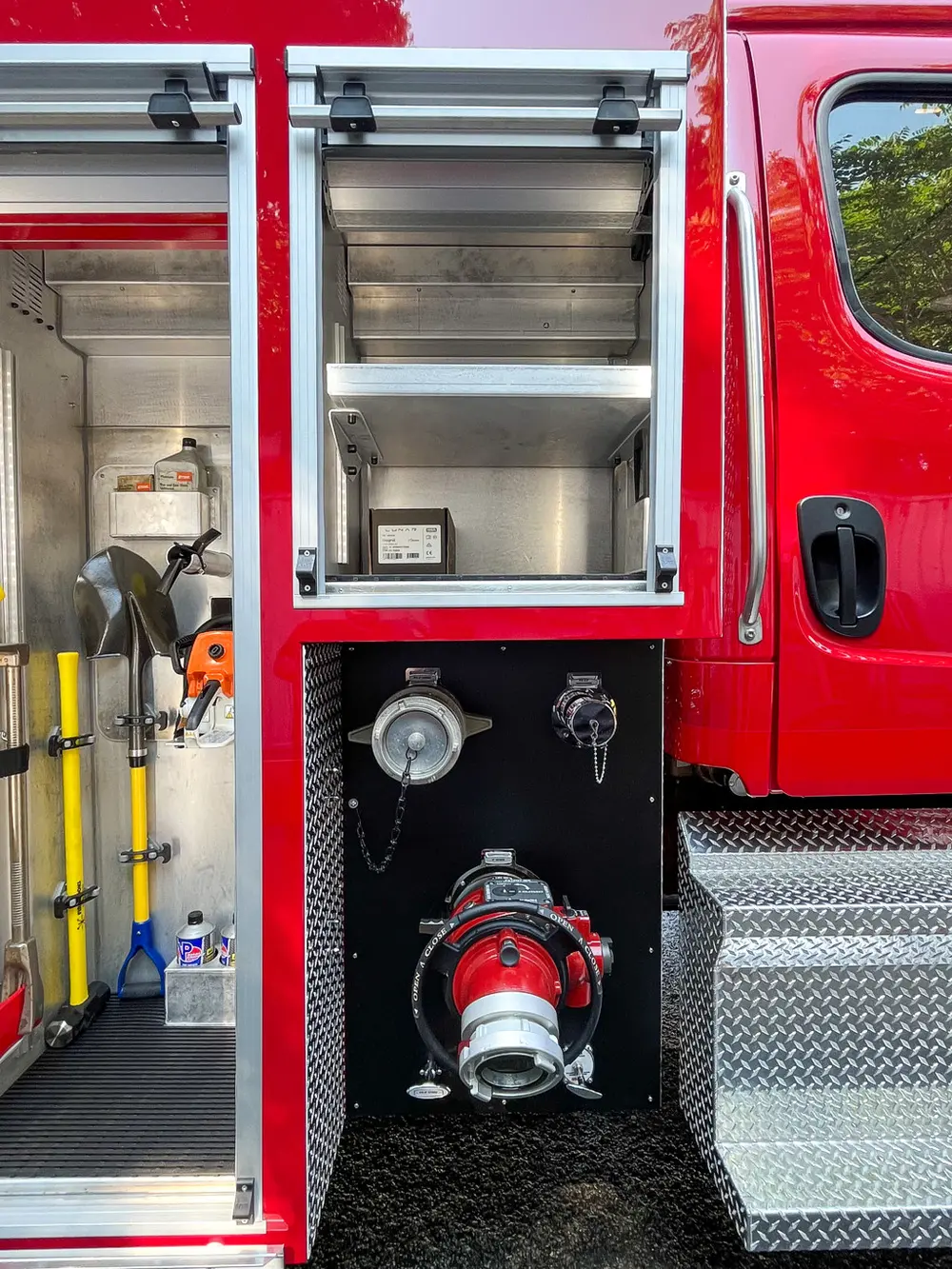

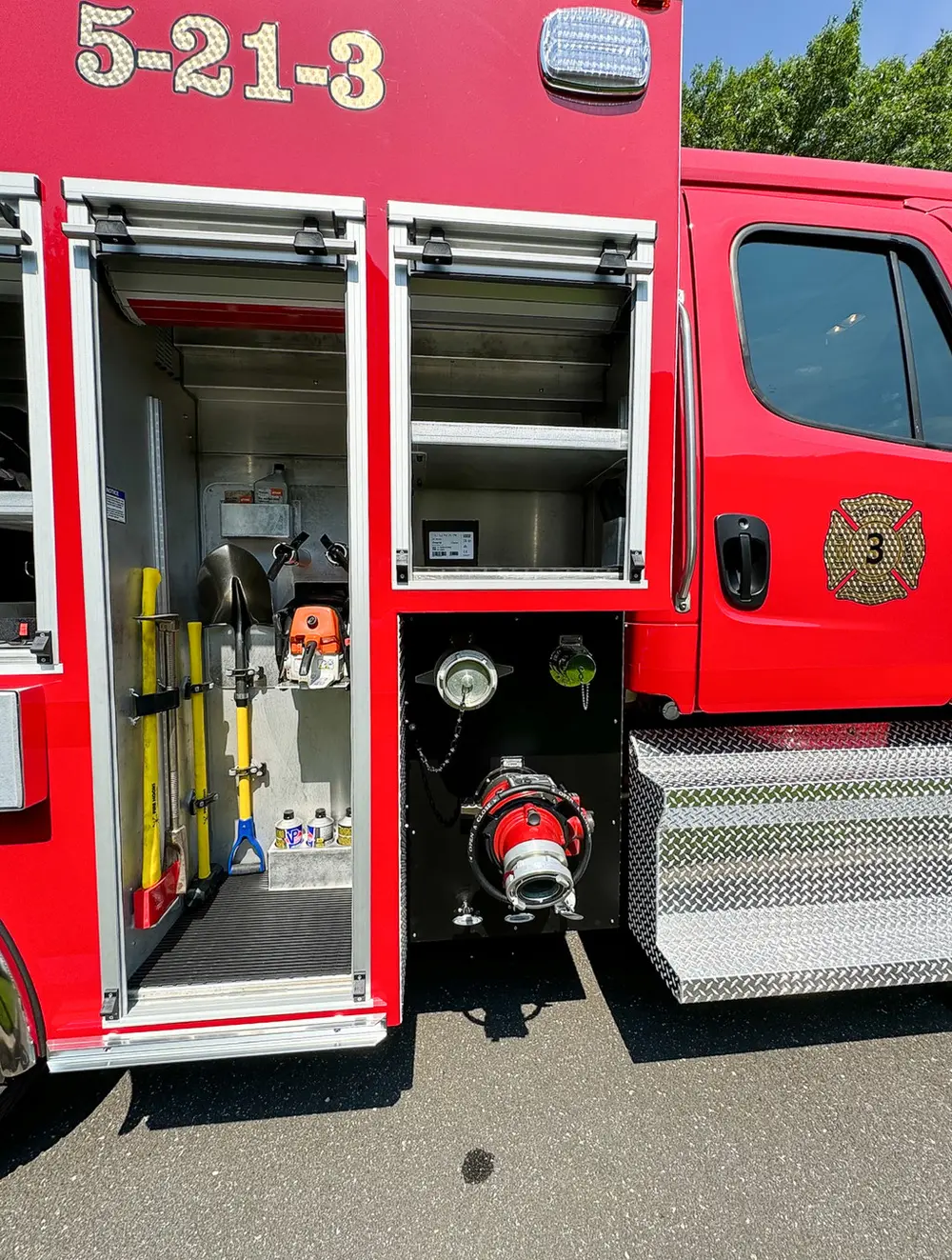

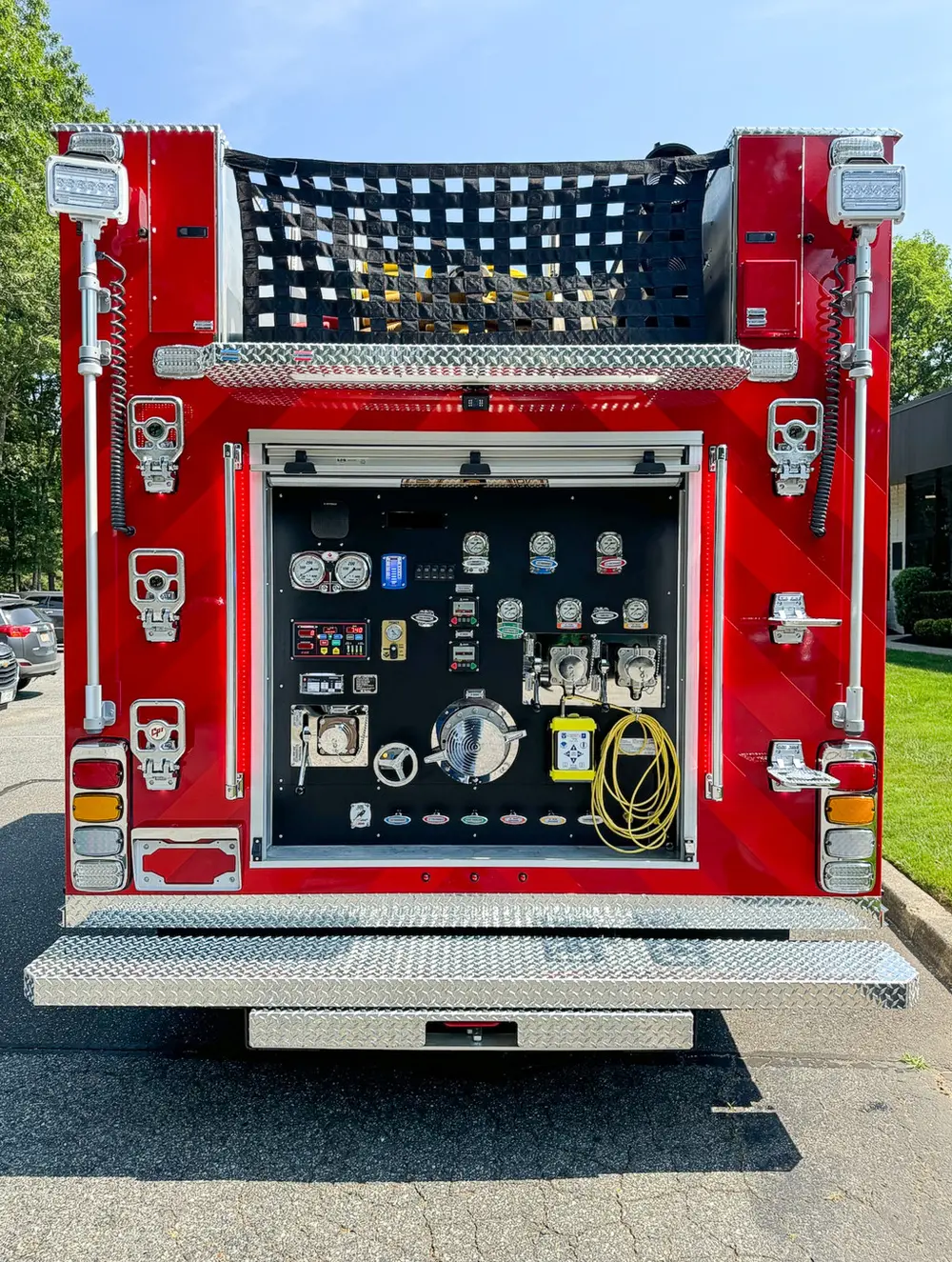

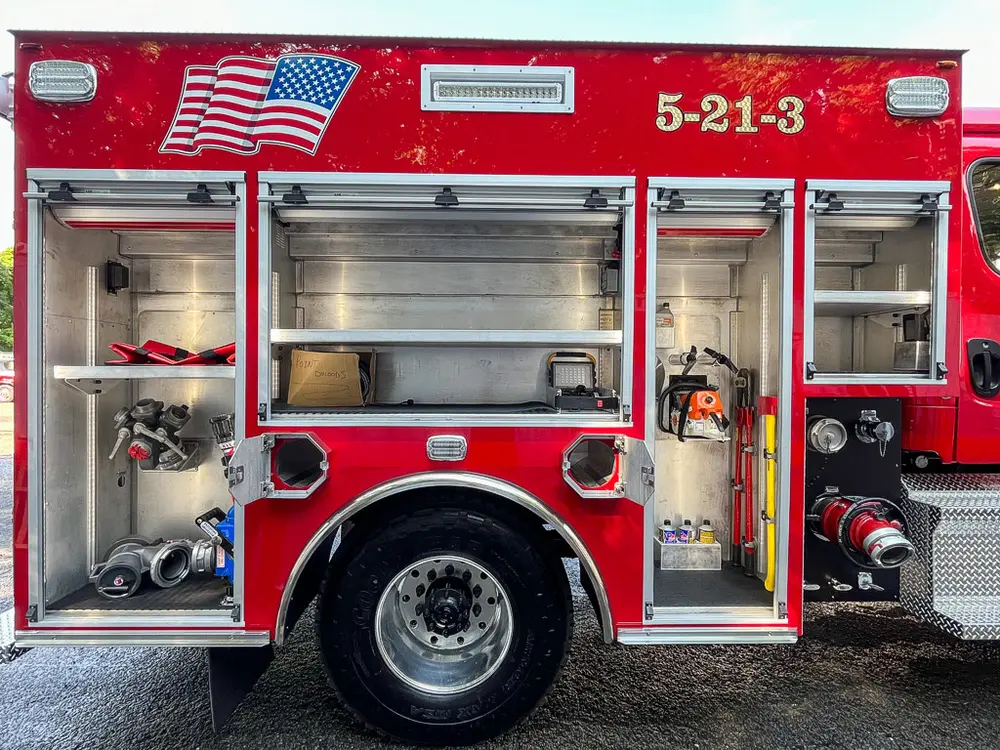

- Passenger Side & Rear Pump Panels w/ Fire Research Tank Vision Gauge on Rear Panel
- Elkhart Cobra DeckGun w/ Extender
- 200' of 1.75" Preconnect, 200' of 2.5" Preconnect, 1200' of 4" Hose,
- Additional 500' of 2.5" Hose & Three 6" Suctions
- Whelen LED Lighting Package
