B.R.A.T. Delivery
Pawling FD

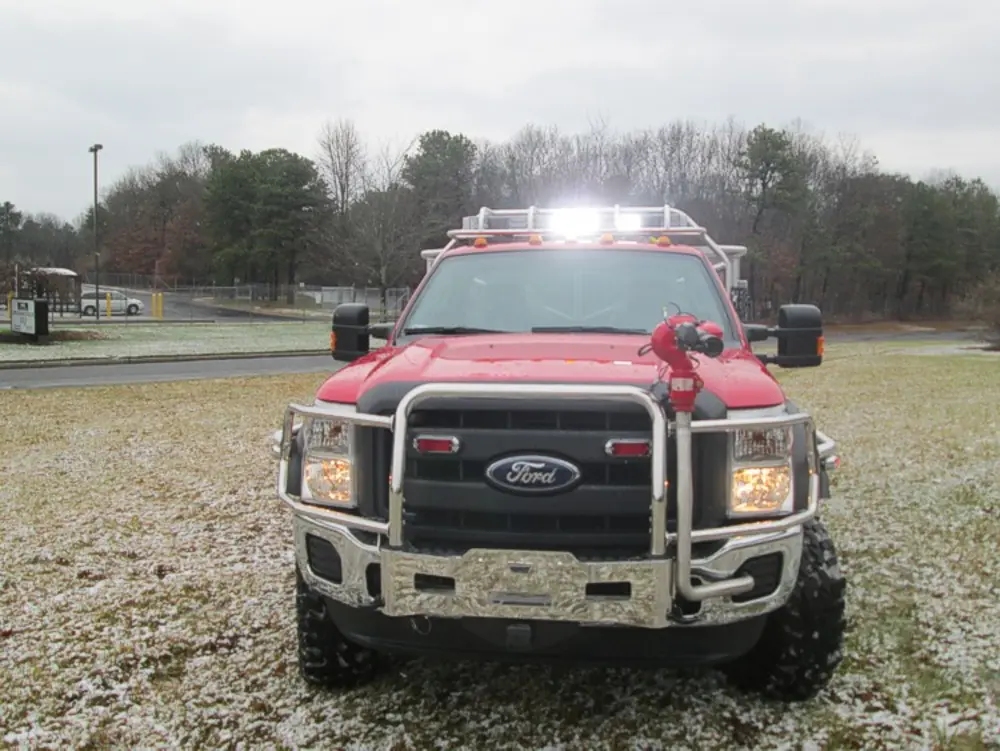

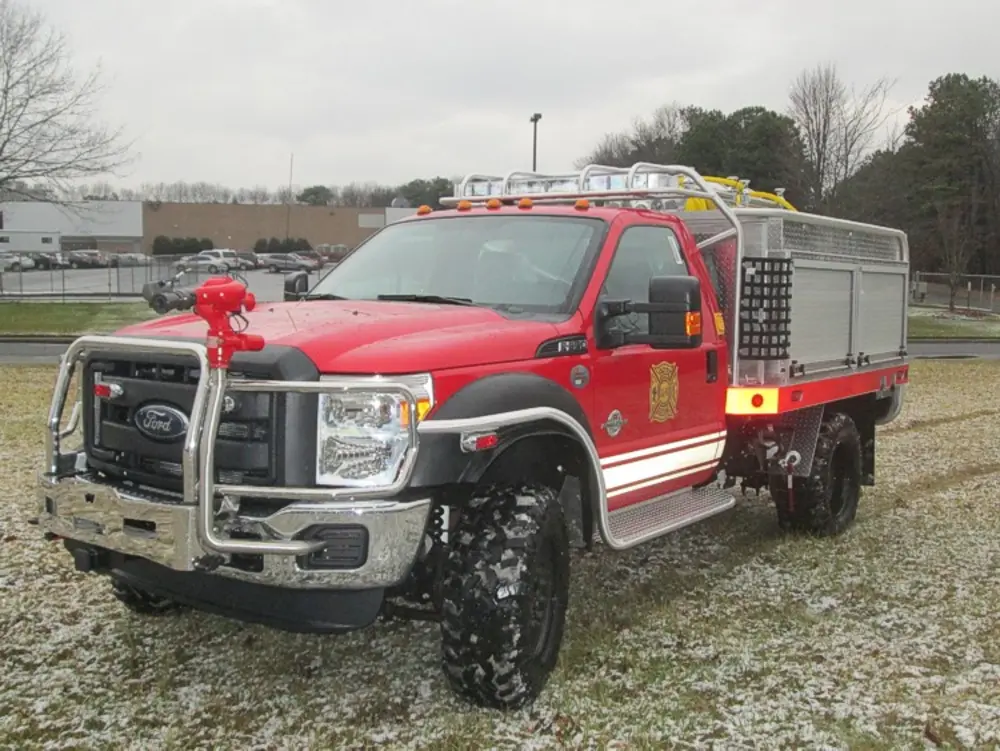

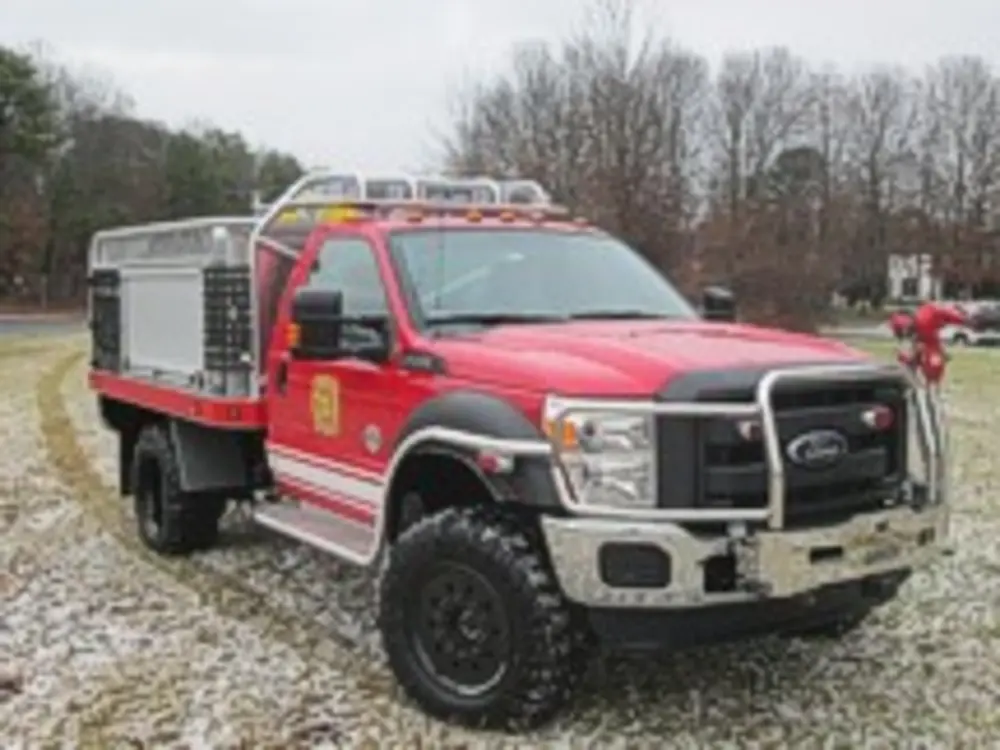

Original B.R.A.T. delivered in Pawling, New York.

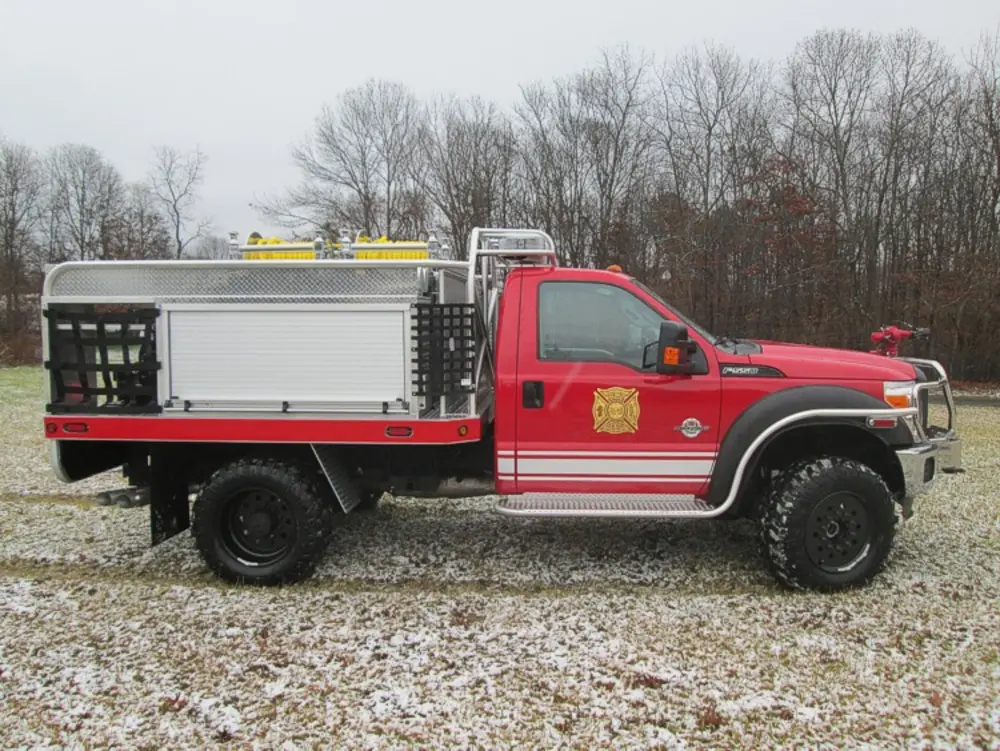

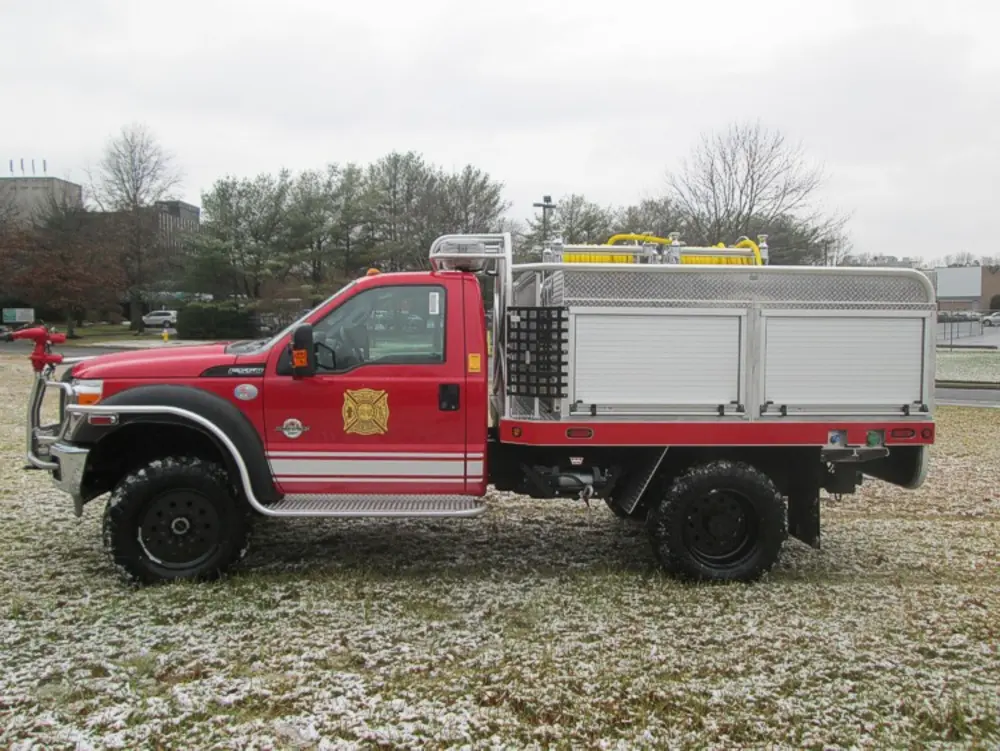

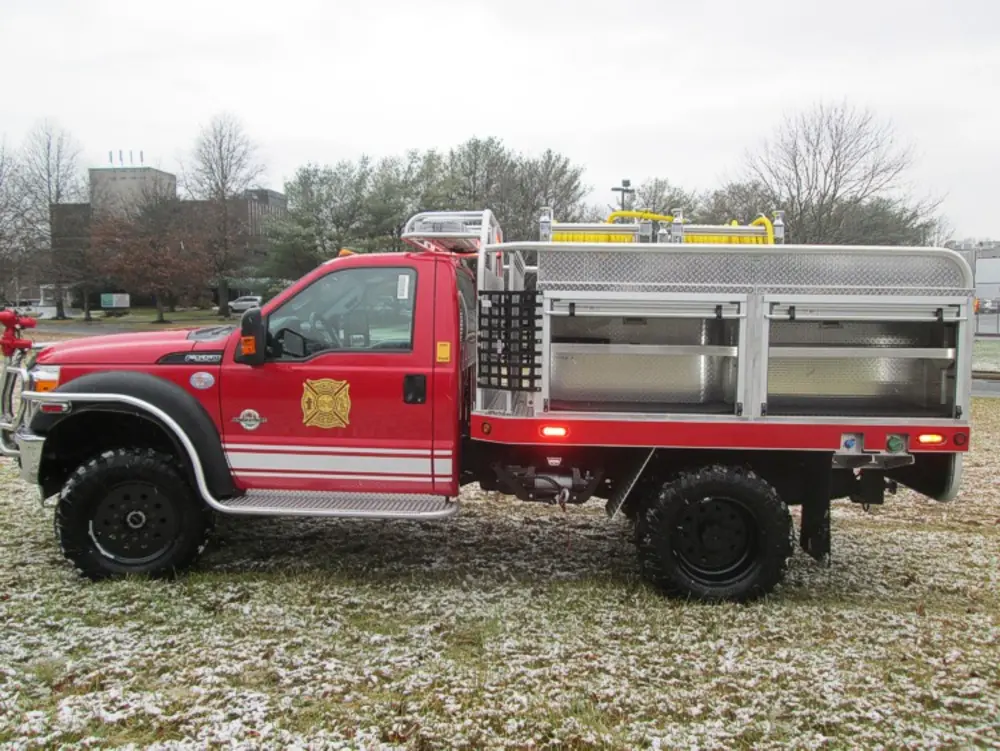

This original b.r.a.t. was delivered to Pawling FD in Pawling, New York and is configured around 250-gallon tank, F550 chassis, 4x4.
Specs Summary
Drawing PDF- 2013 Ford F550 2 Door Cab 4x4 Chassis with 19,500 lbs. GVW
- Super Single Aggressive Tread 19.5" Interco Irok Tires

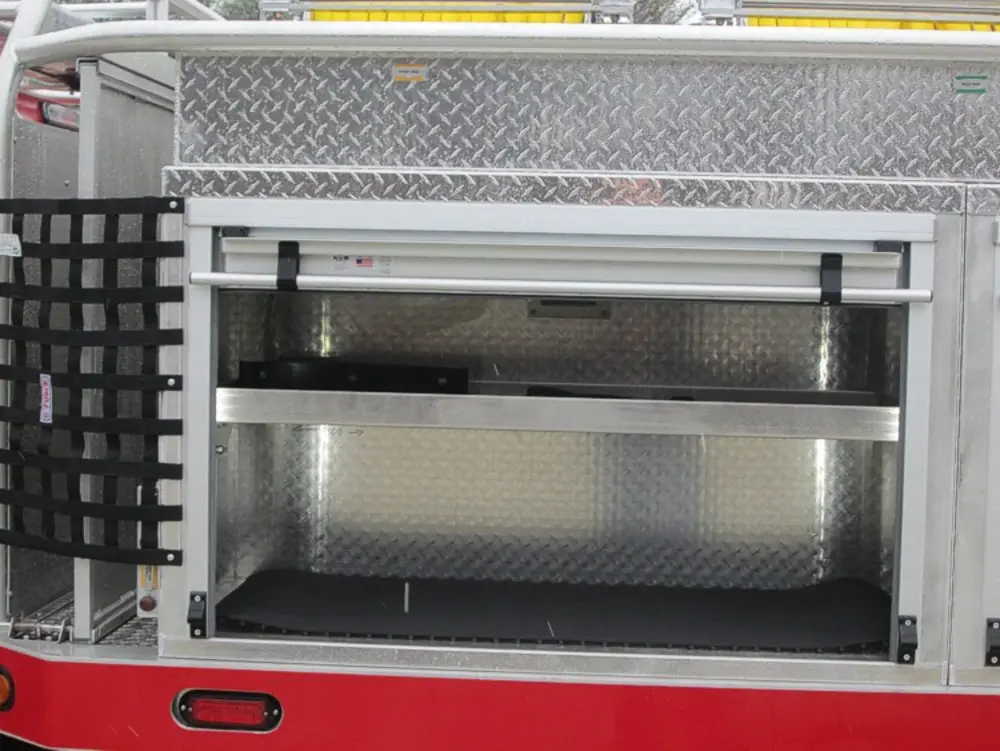

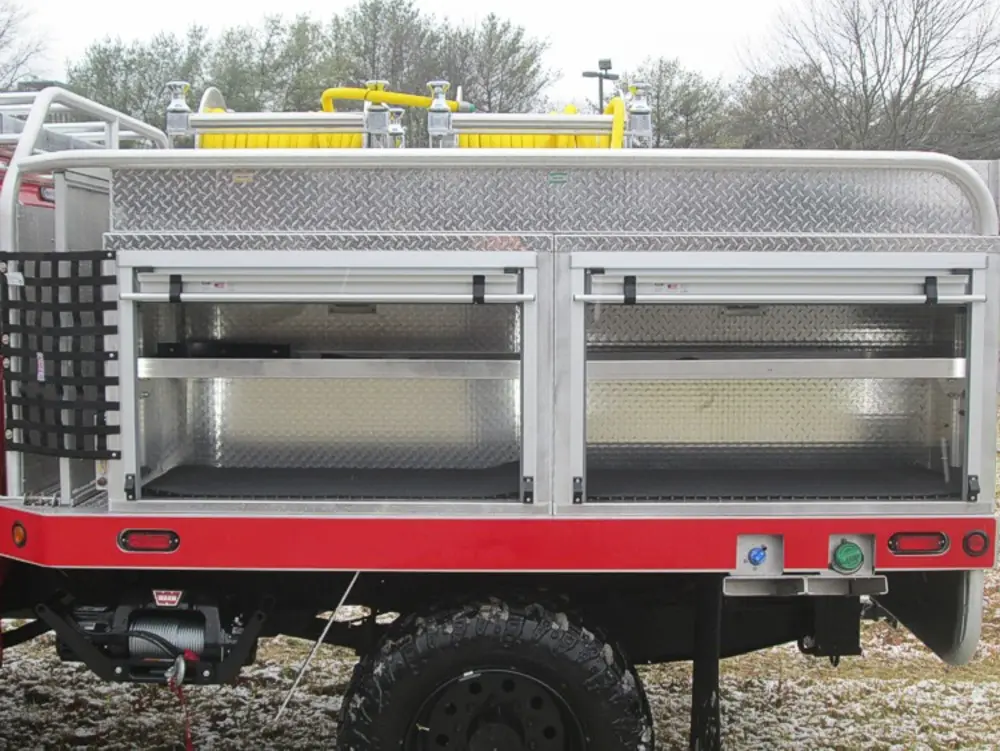

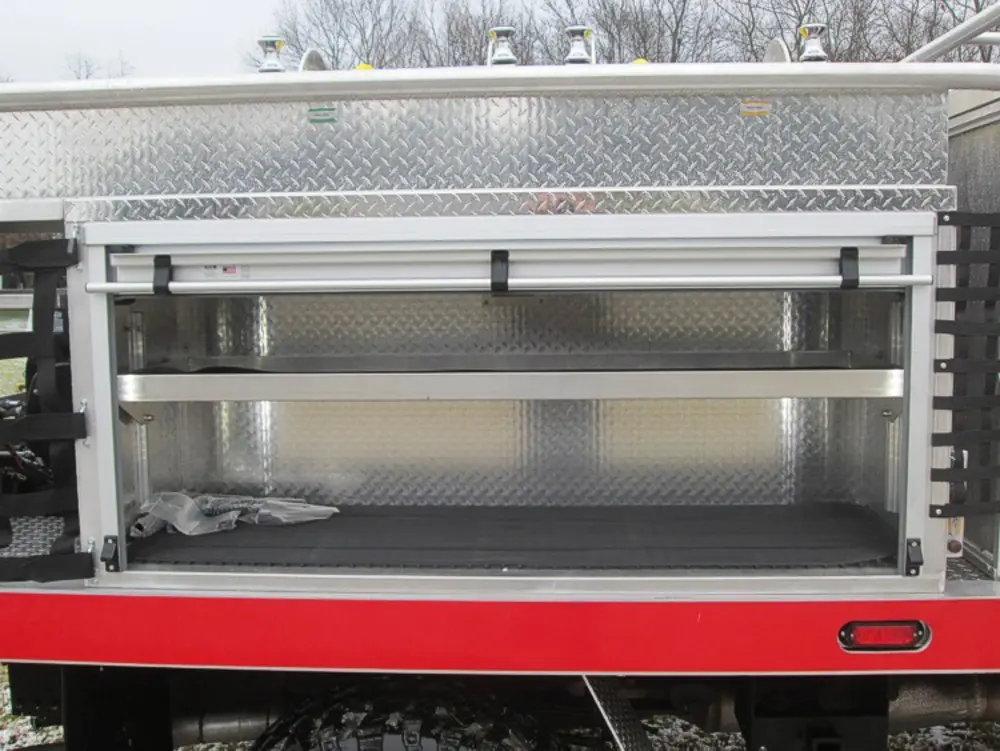

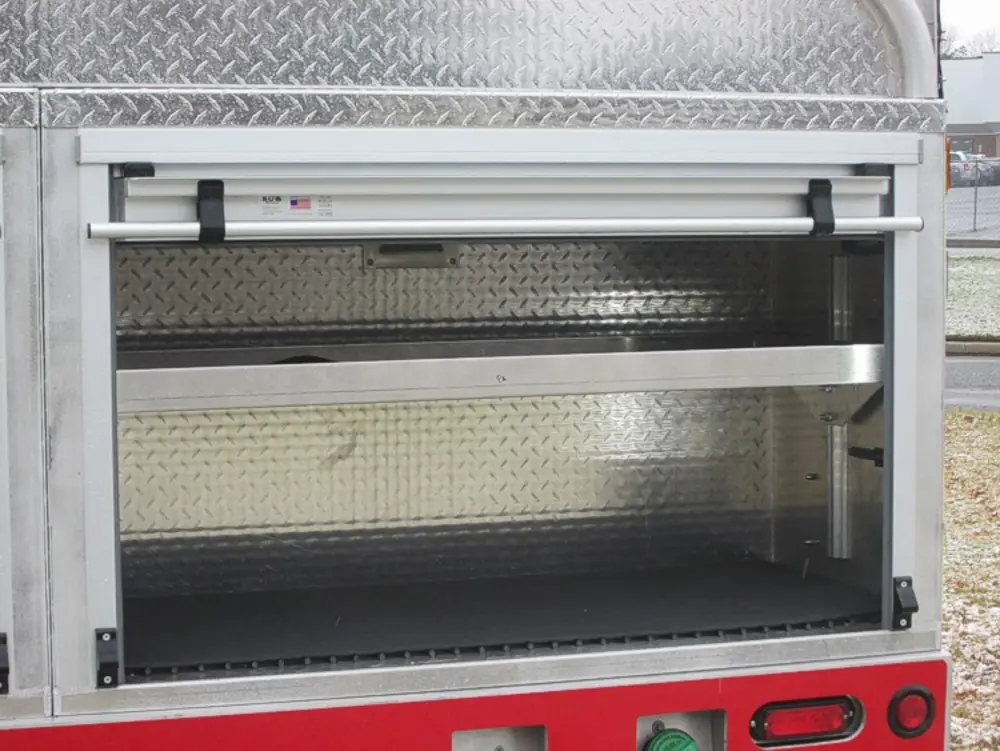

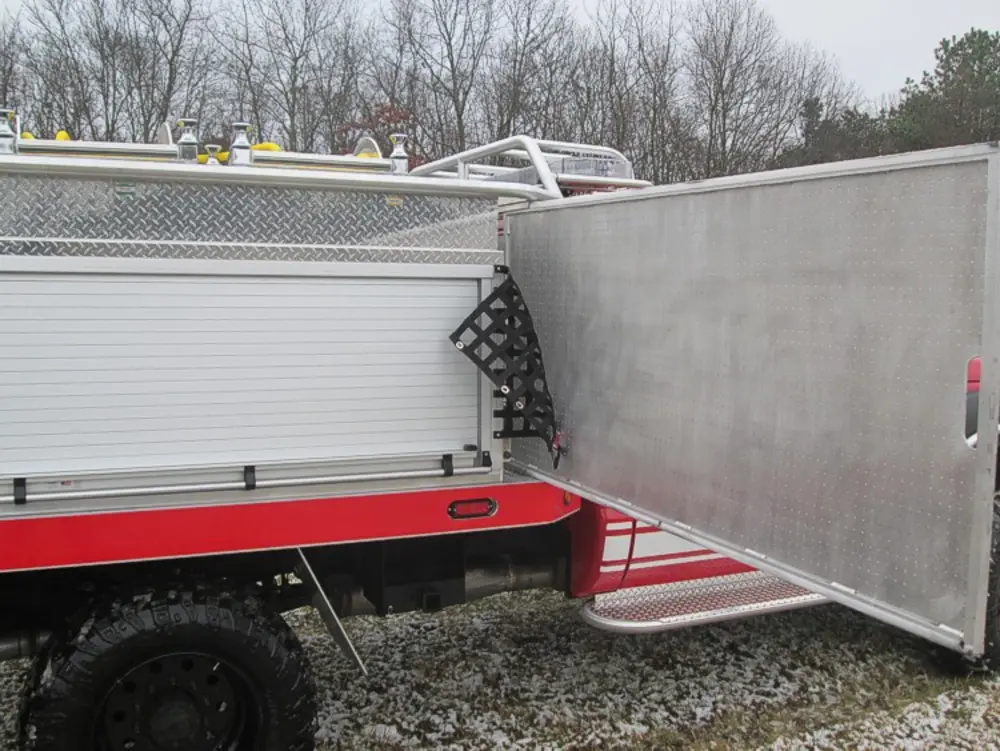

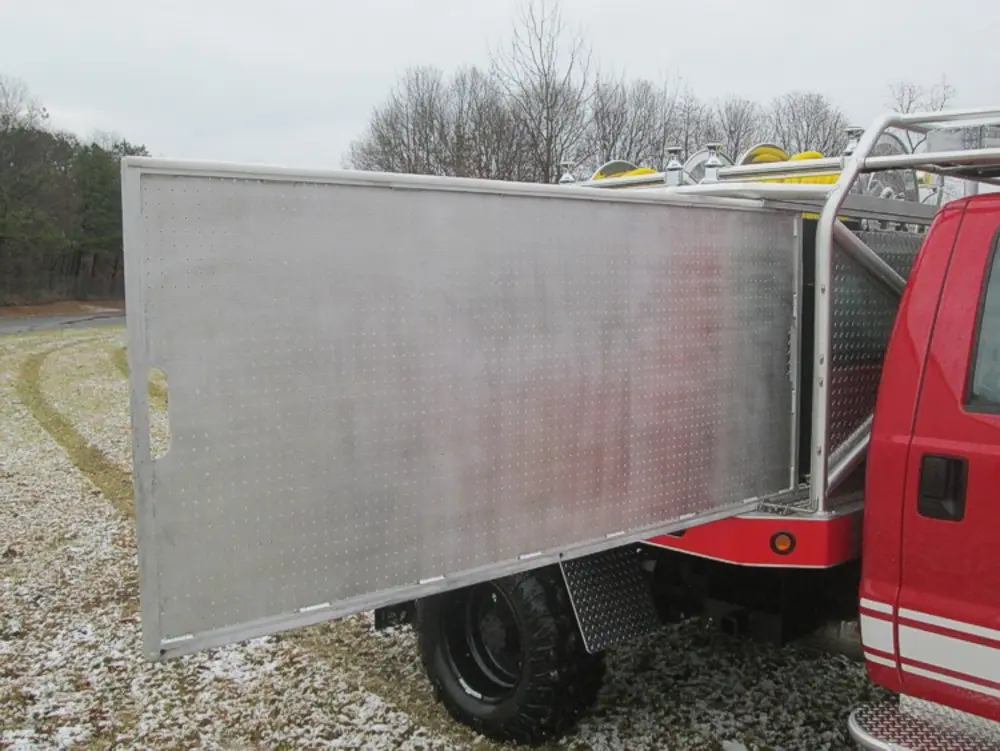

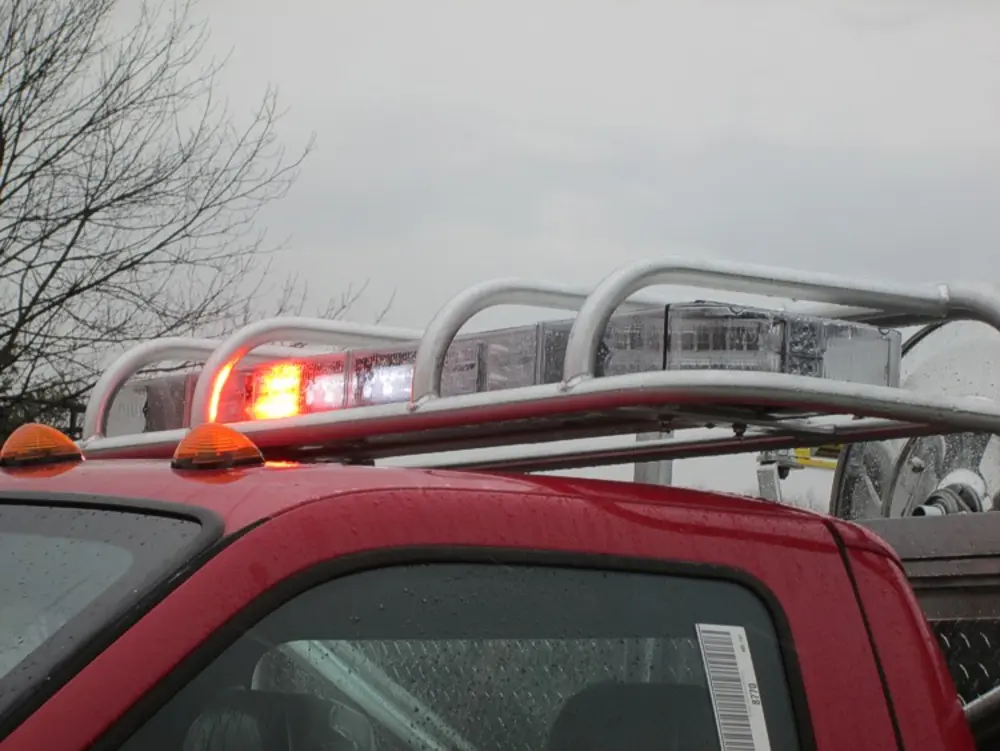

- Heavy Duty Aluminum Fabricated Flatbed with FEA Tested Roll Bar
- Pro Poly 250 Gallon Protector Tank

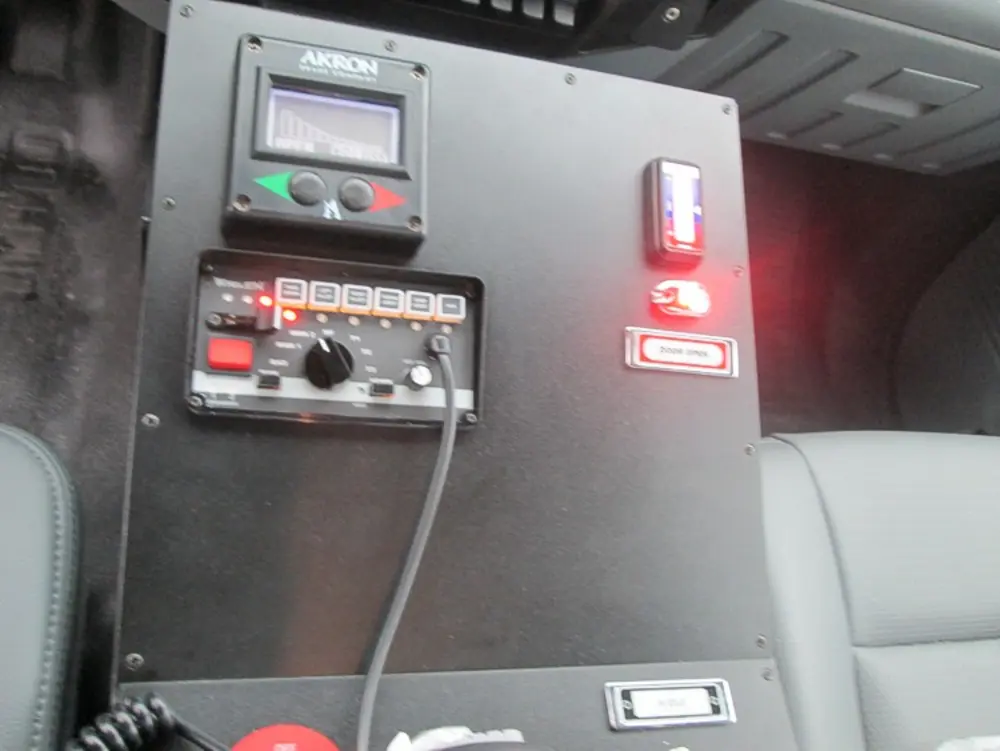

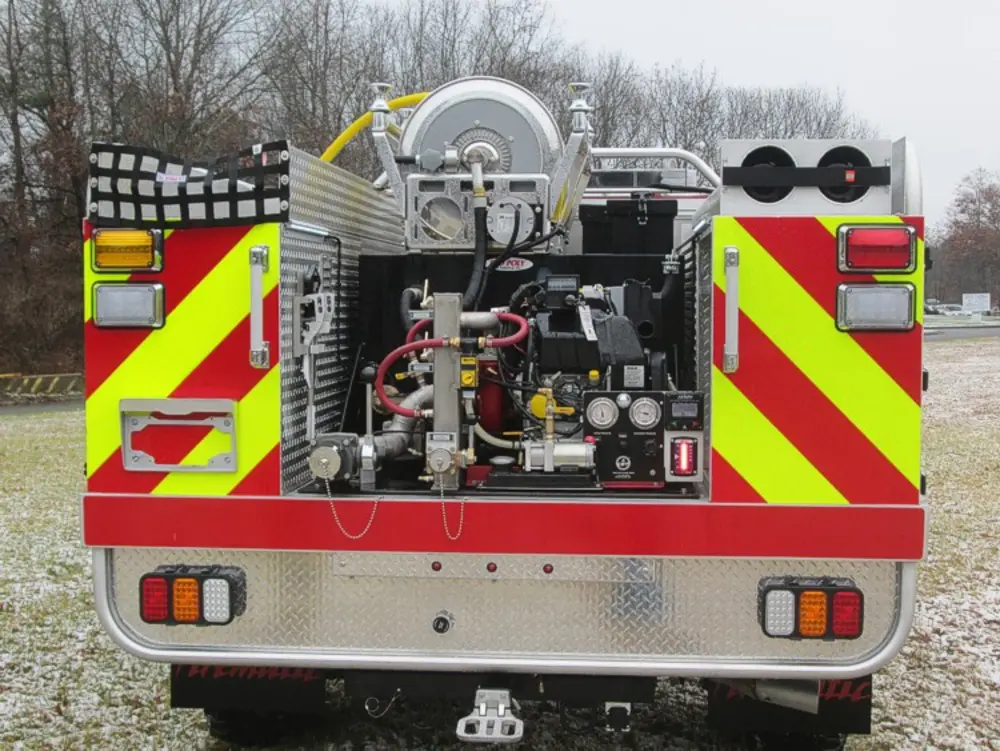

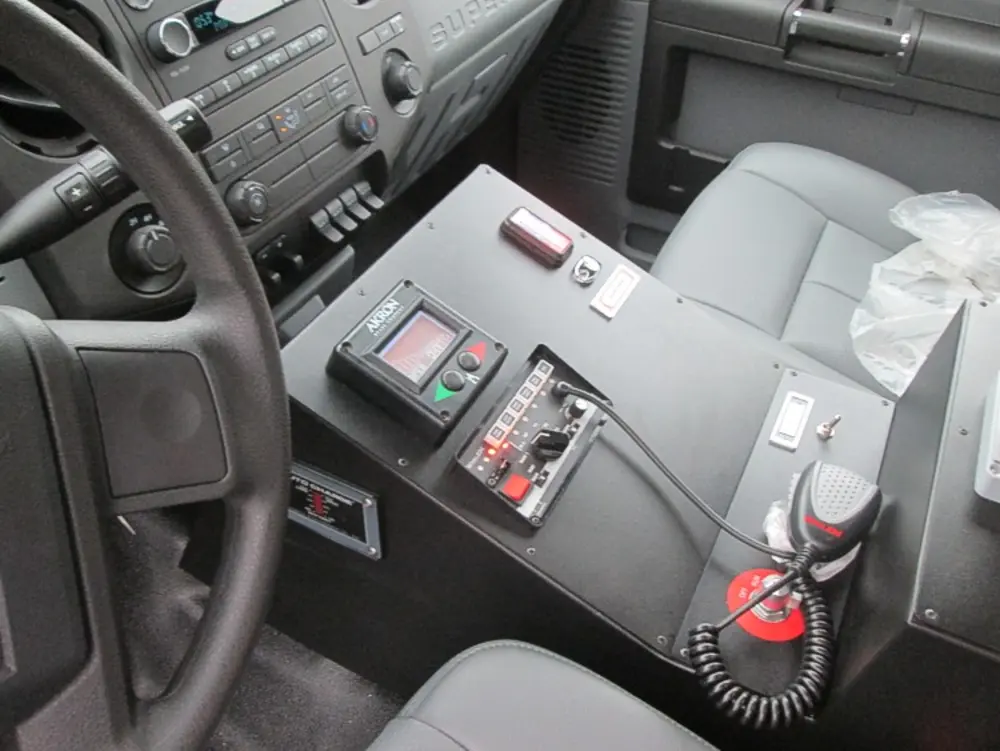

- CET 19 HP Diesel Pump w/ Remote Cab Start/Stop

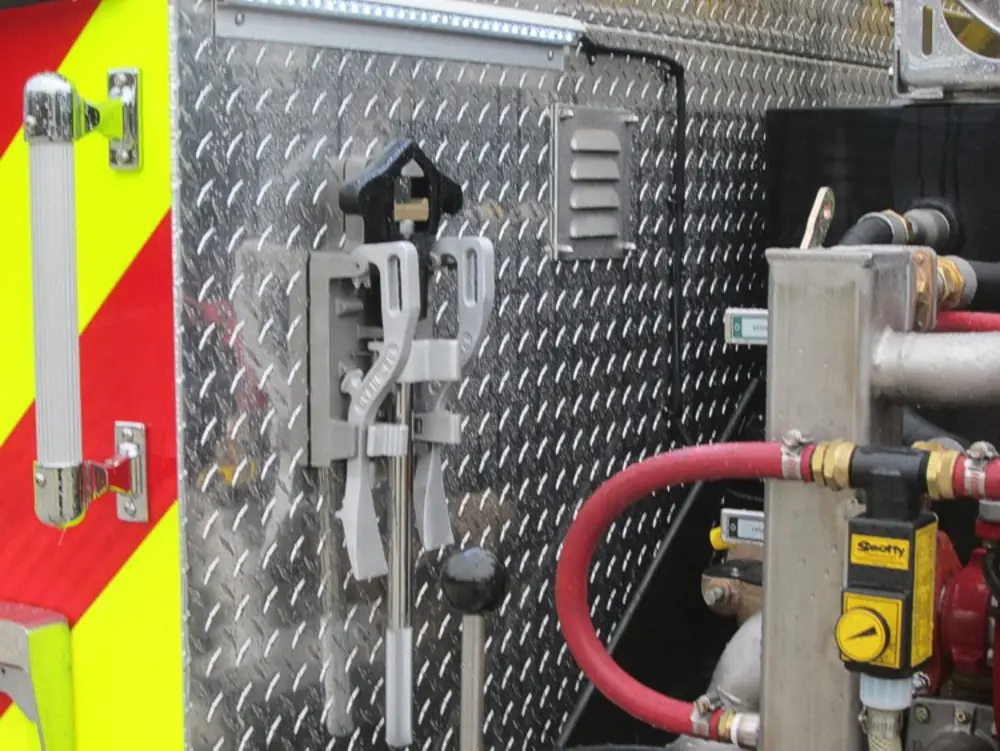

- Scotty Class A Foam Around the Pump Eductor

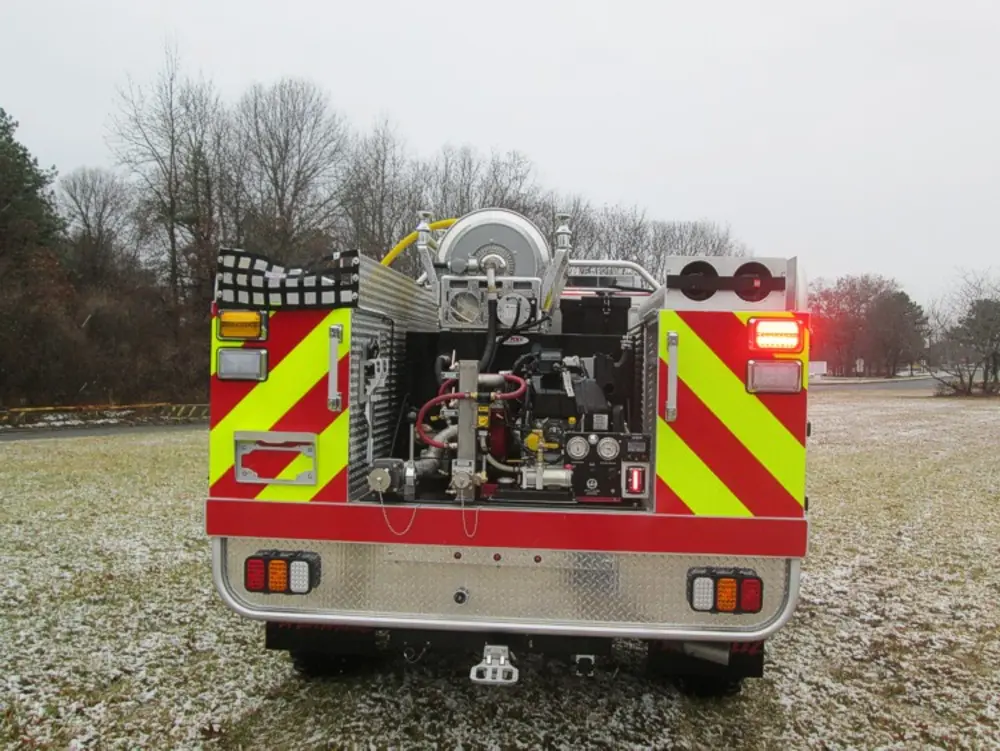

- Akron Brass Valves and S/S Manifold
- 1.5" Rear Direct Discharge
- Electric Primer
- Large Deadlay Hose Bed Area

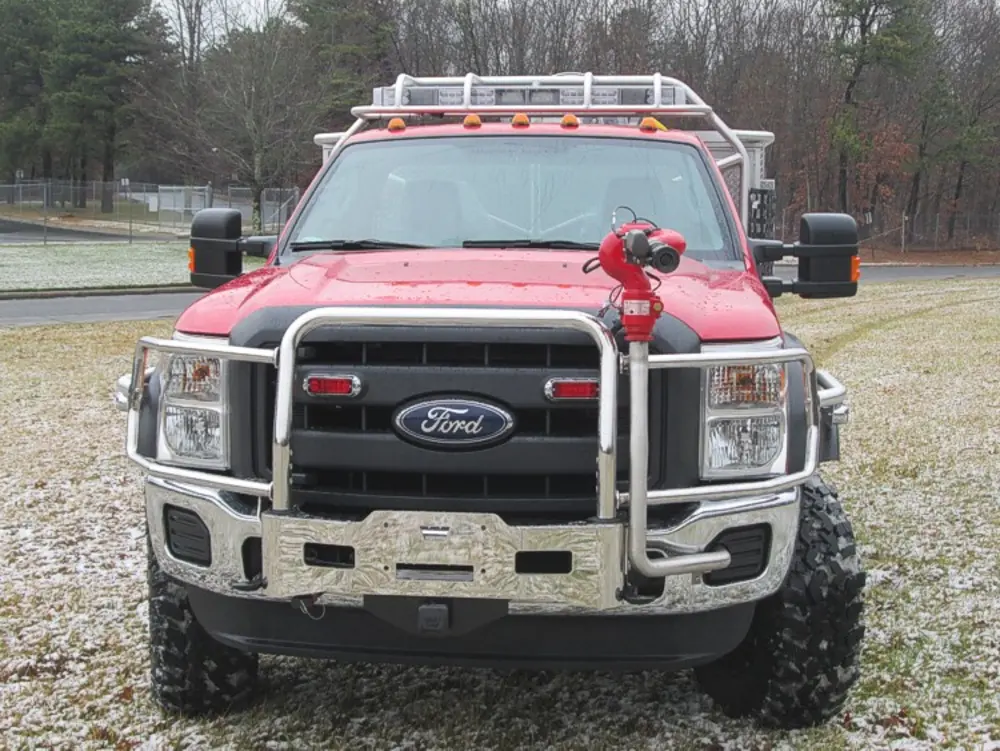

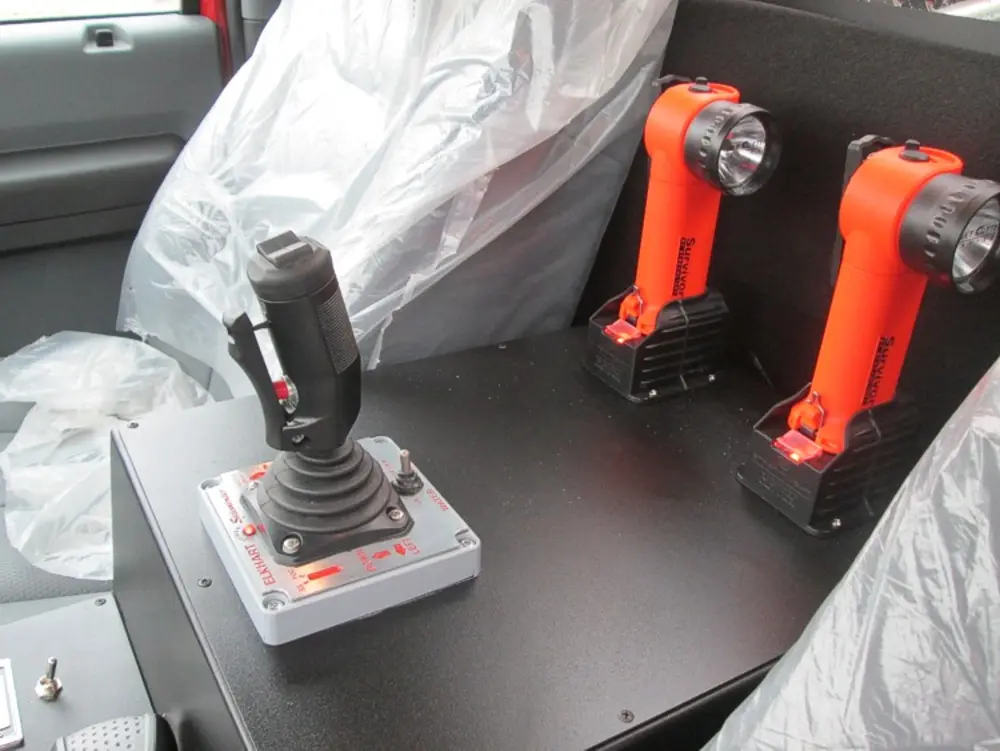

- Elkhart Sidewinder Remote Control Front Deckgun

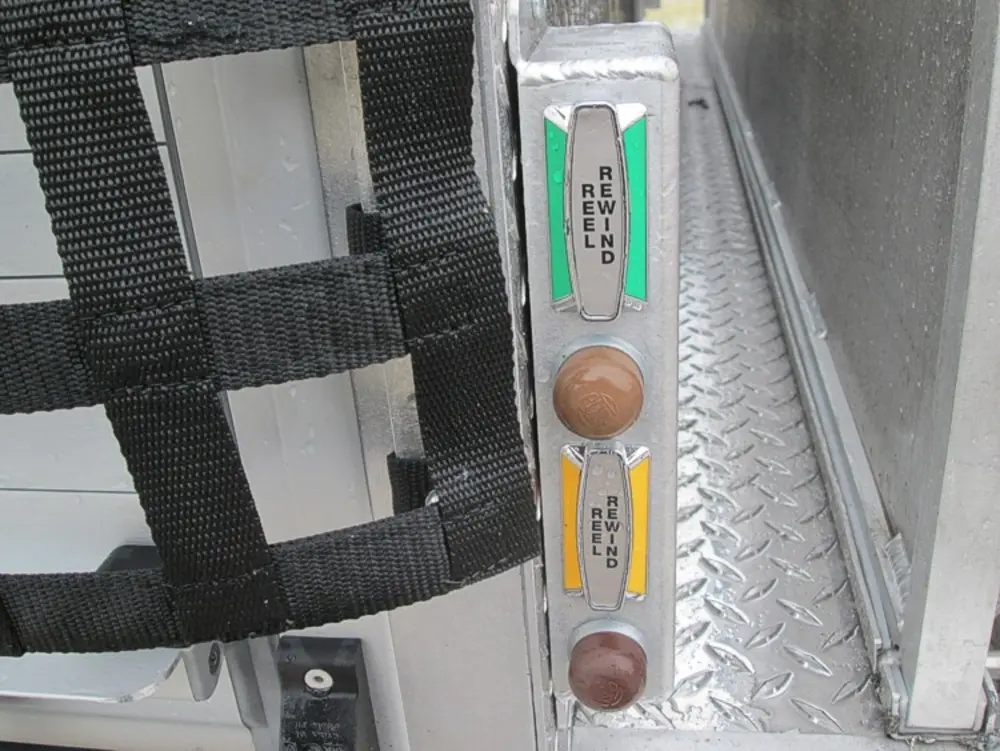

- Two (2) Electric Hannay Reels to Hold 1" Booster on Water Tank
