B.R.A.T. Delivery
Mount Sinai FD

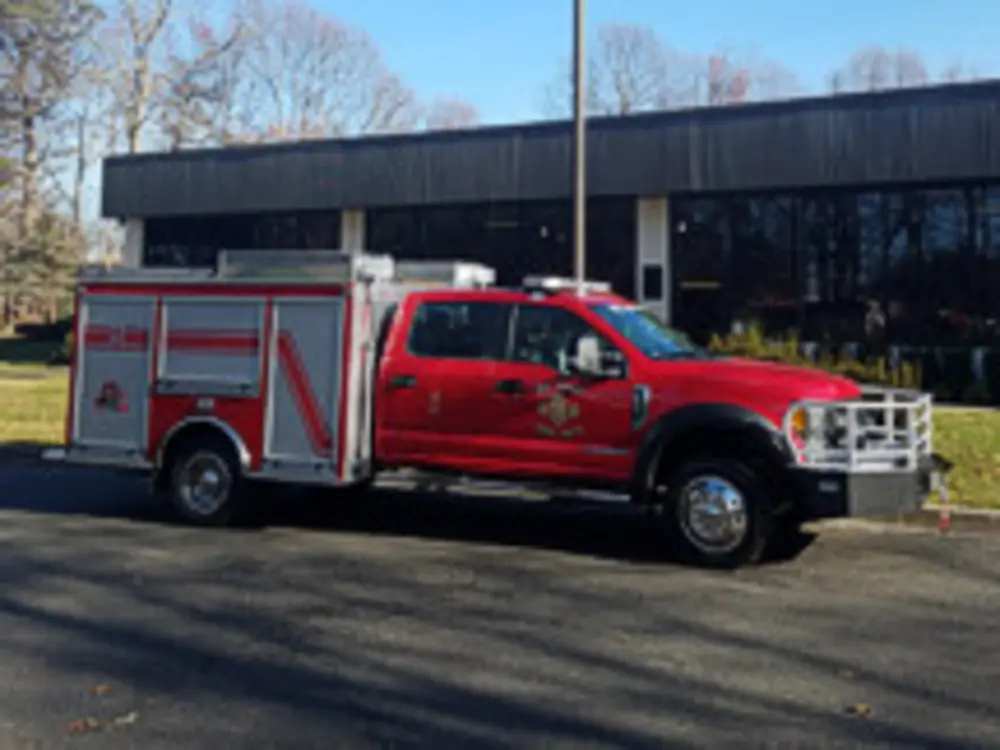

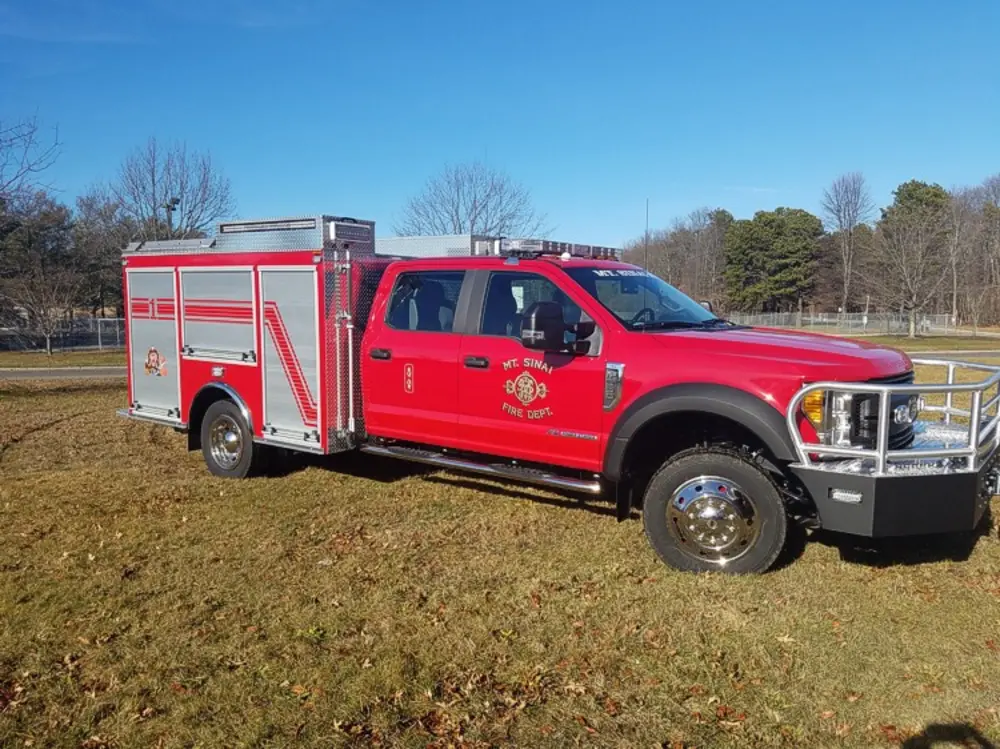

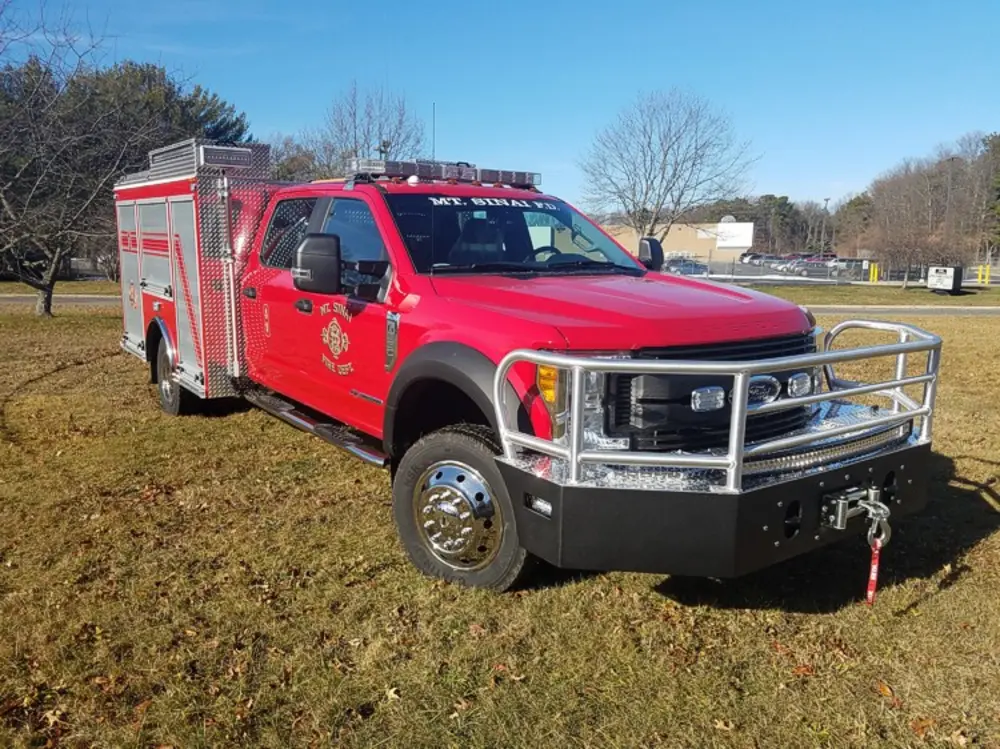

Original B.R.A.T. delivered in Mount Sinai, New York.

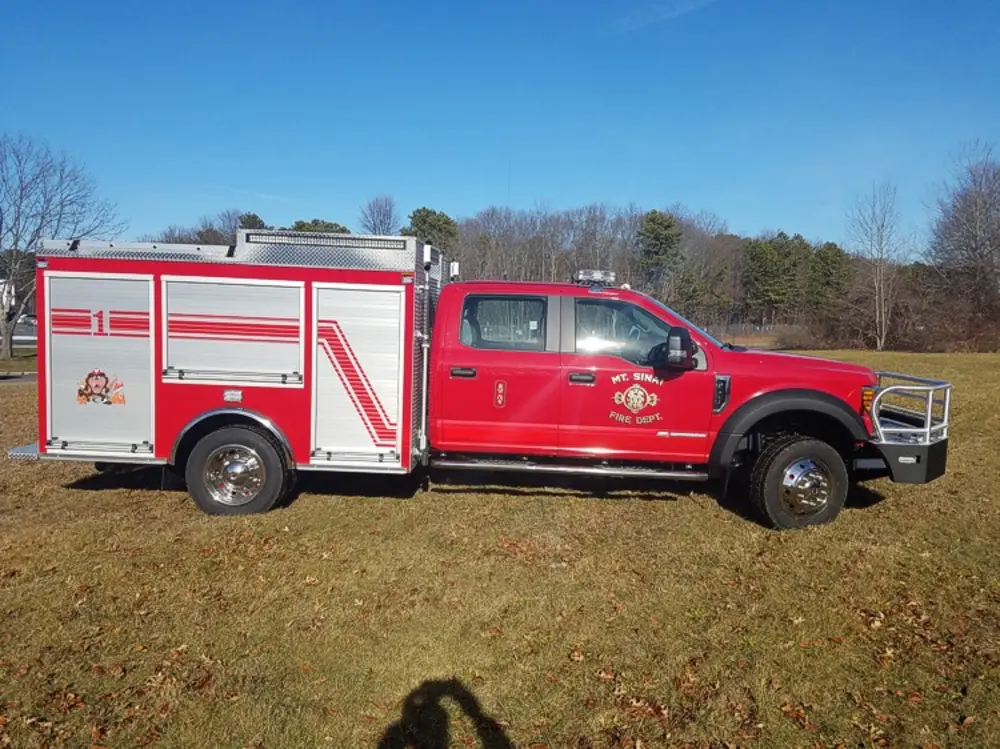

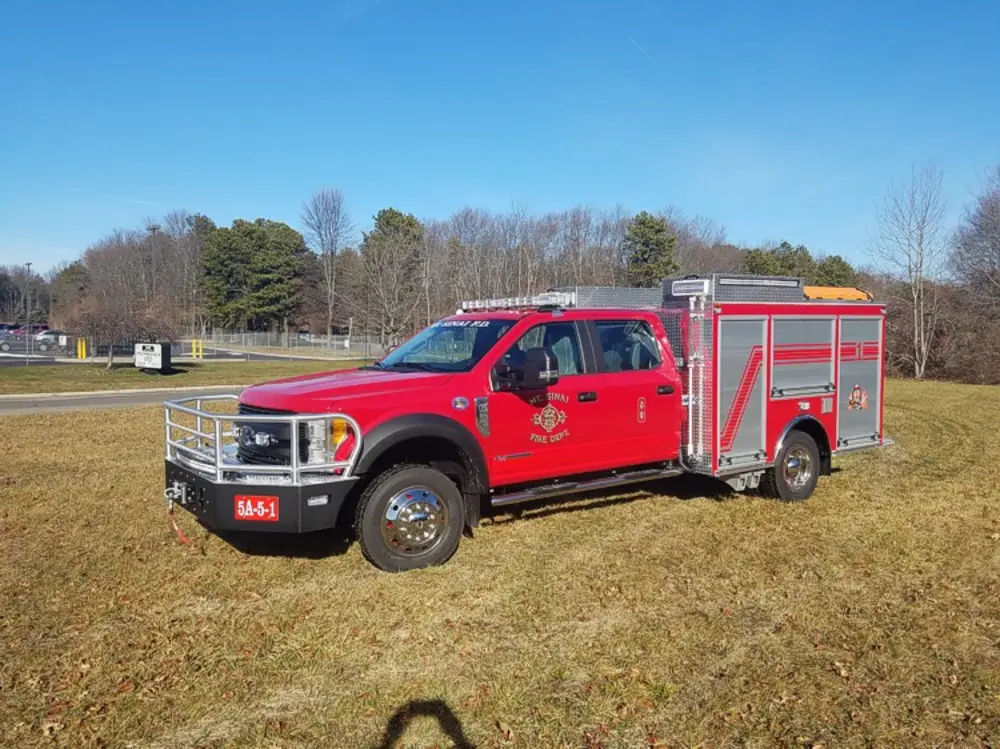

This original b.r.a.t. was delivered to Mount Sinai FD in Mount Sinai, New York and is configured around 300 GPM pump, 300-gallon tank, F550 chassis, 4x4.
Specs Summary

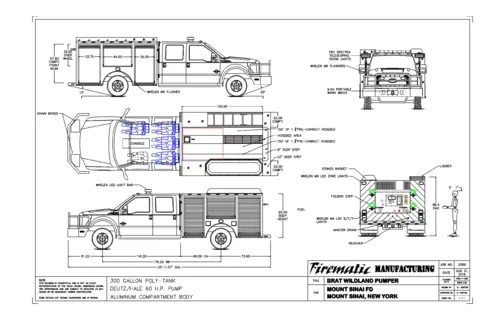

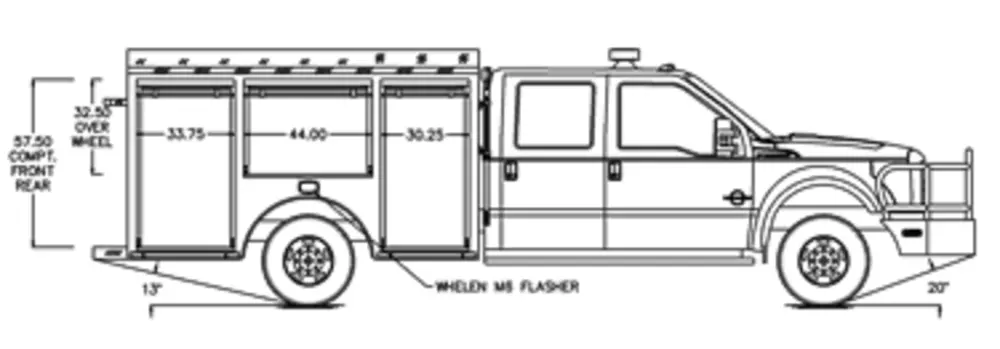

Drawing PDF- 2017 Ford F550 Four Door Crew Cab 4x4
- SCBA Cab Seats
- 6.7 Liter 300 HP Diesel Engine

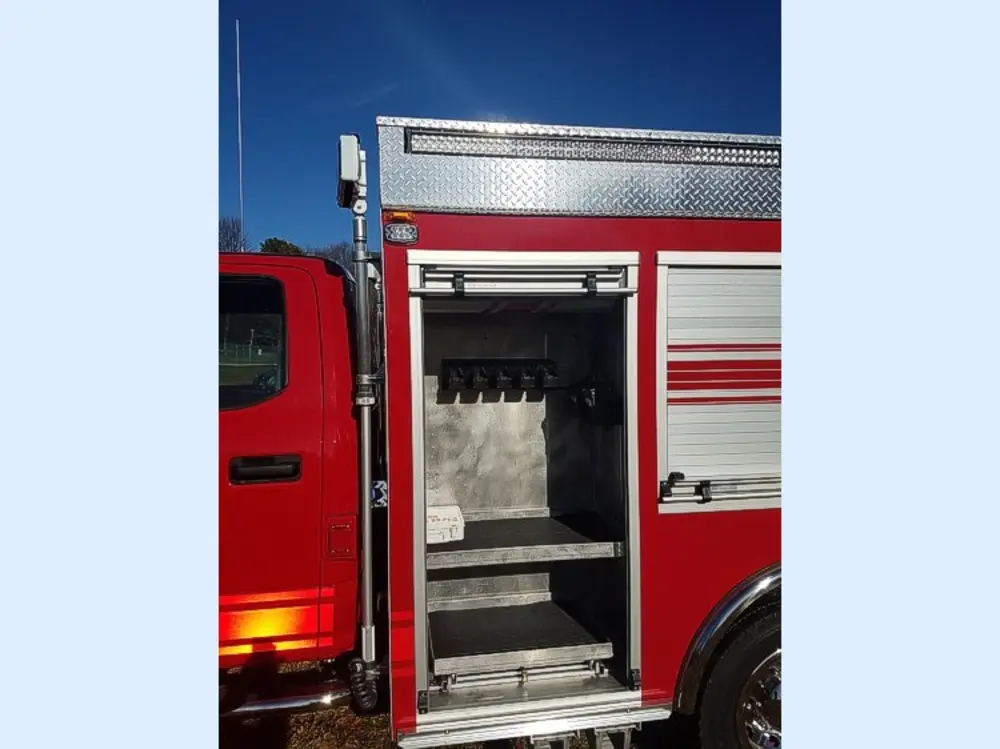

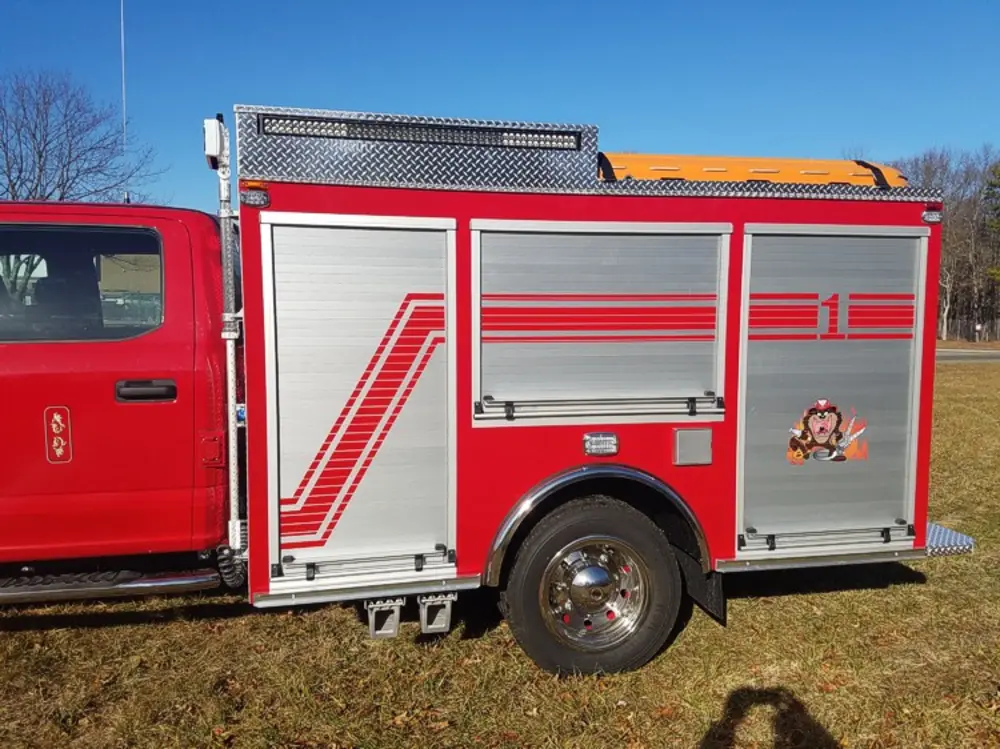

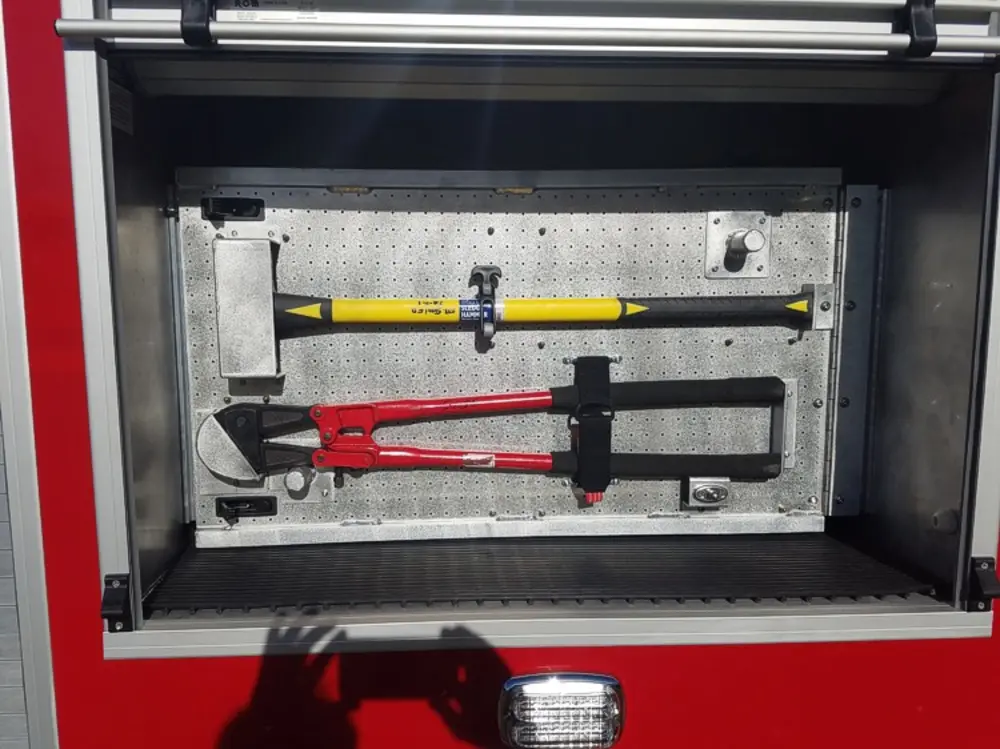

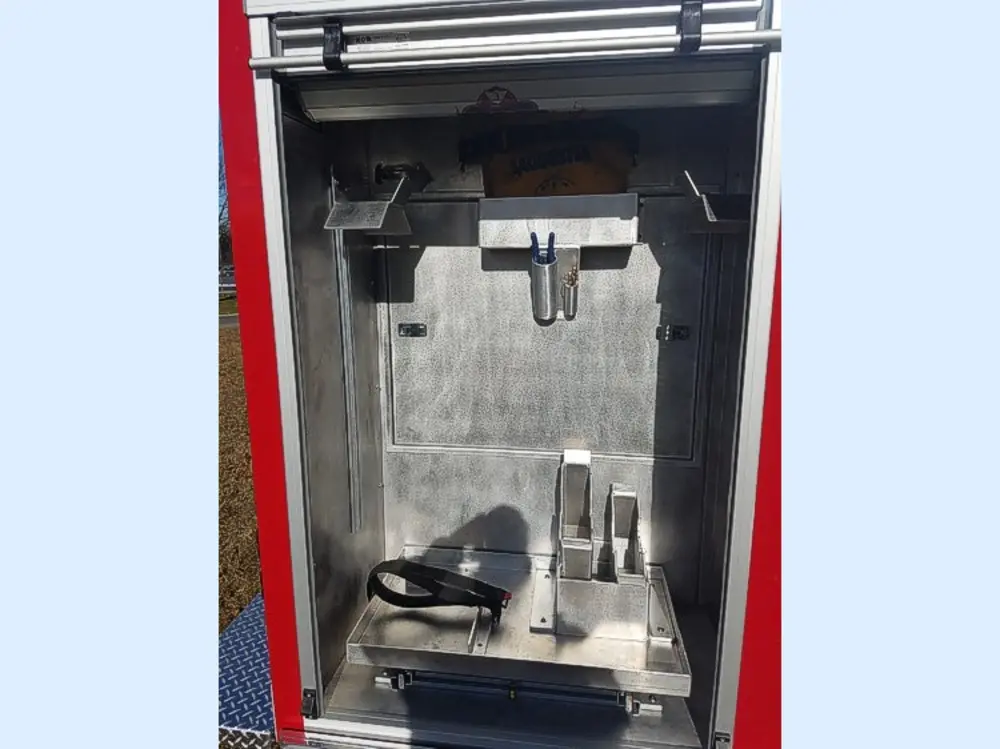

- Aluminum Bonded Body with ROM Roll up Doors

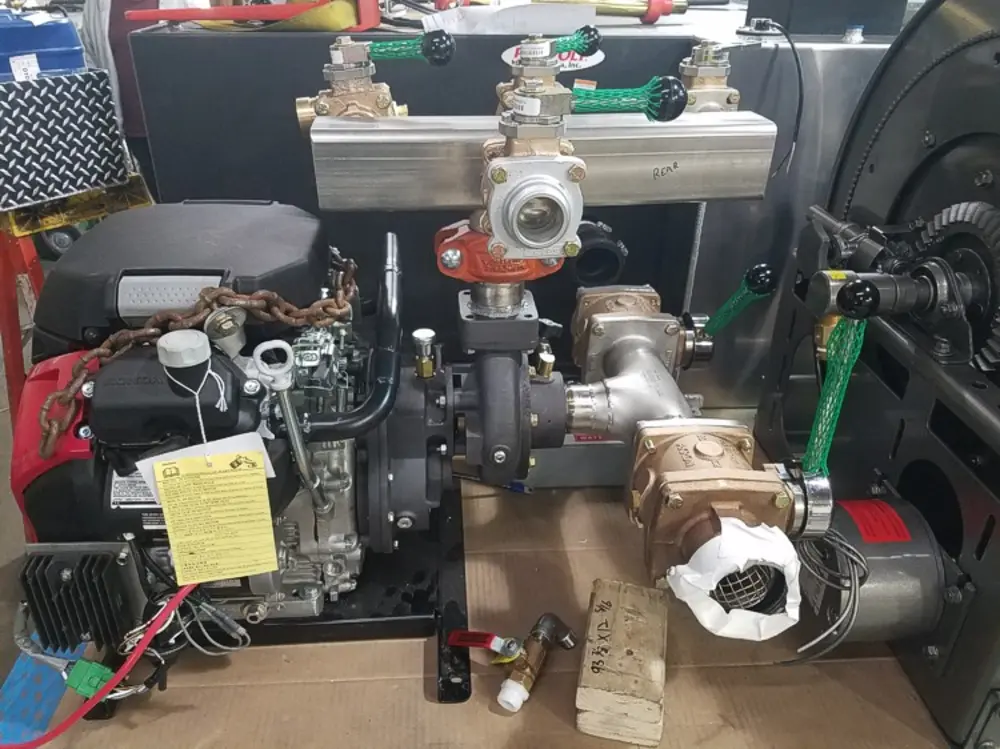

- Hale 30FS 300 GPM Pump / Deutz 60 HP Engine Combo
- All Akron Brass Valves
- Pump and Roll Capability
- Pro Poly 300 Gallon Water Tank

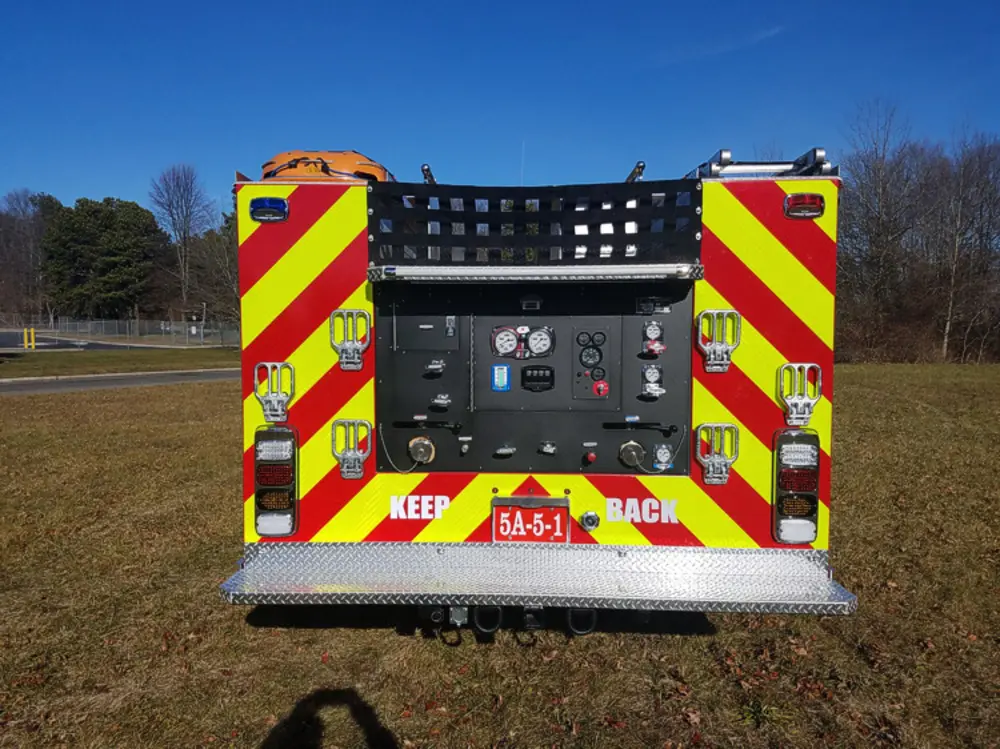

- One 1.5" Rear Preconnect, 2.5" Direct Rear Discharge

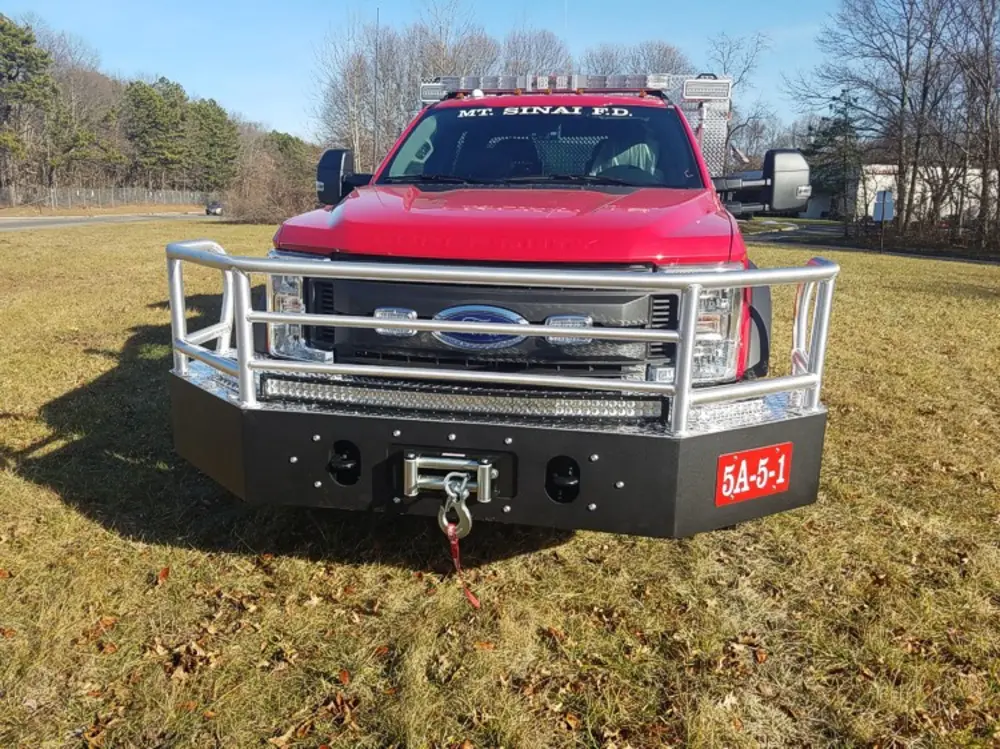

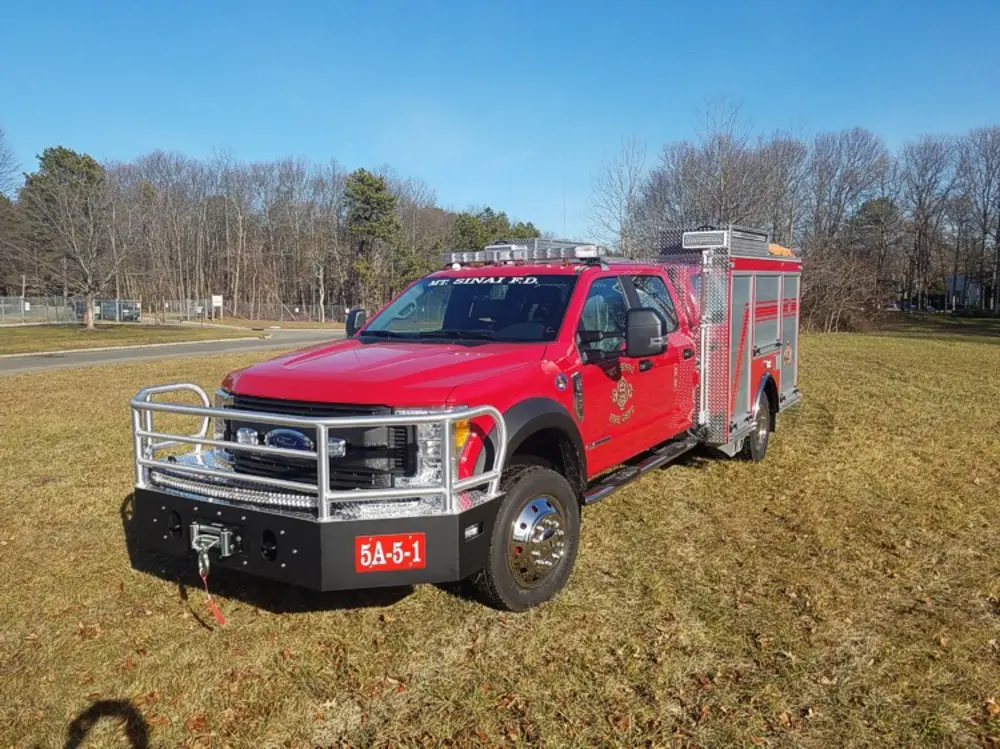

- Firematic Extended Front Bumper

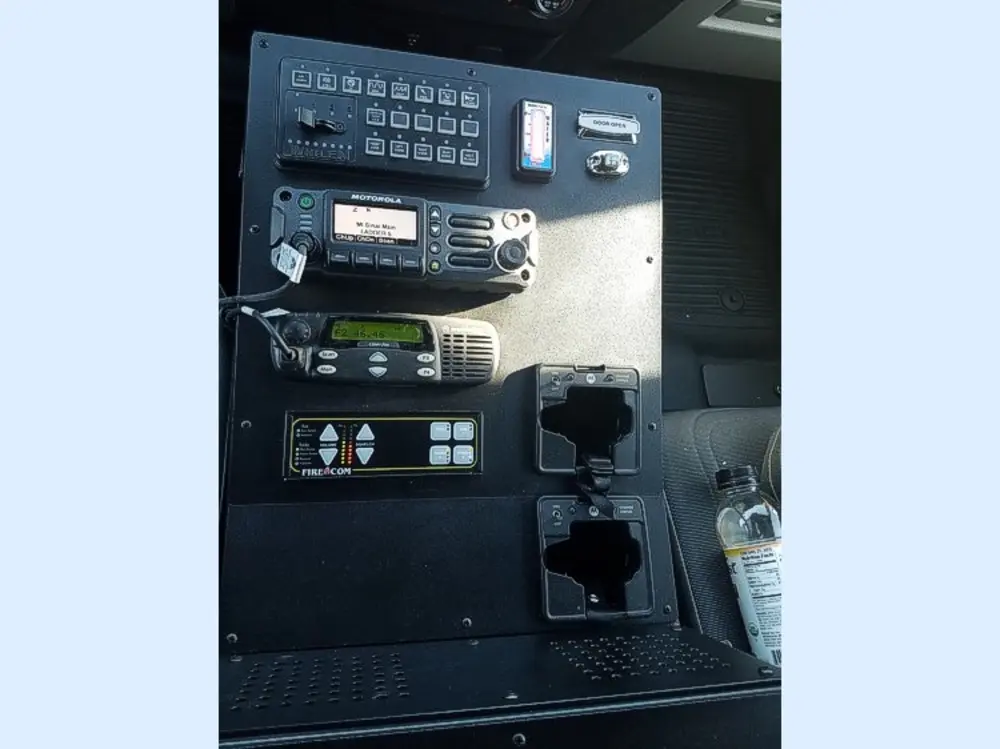

- Extended Console in Cab

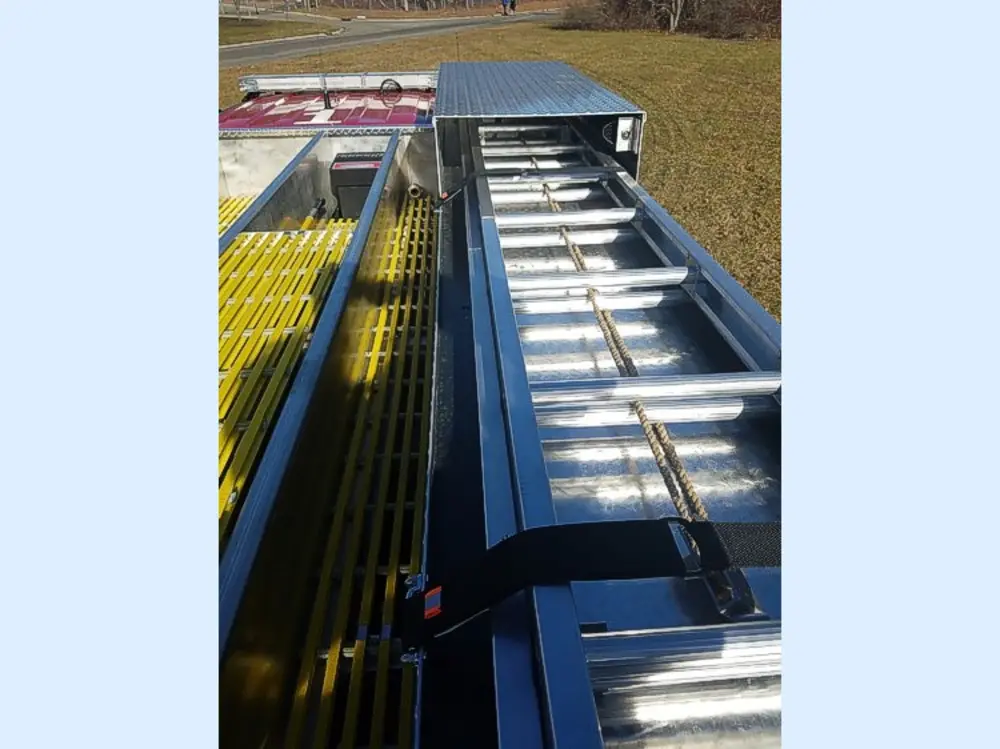

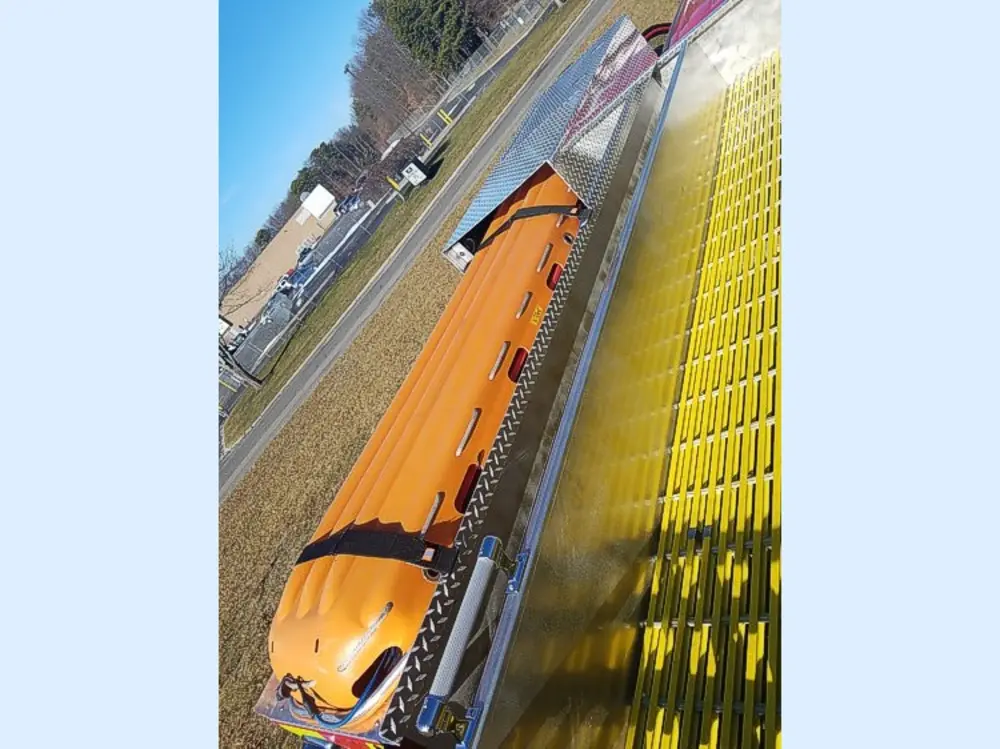

- Stokes Basket and Ladder Mounted Top of Body
Opens an in-page PDF viewer. Use the drawing link above for a direct PDF tab.
