B.R.A.T. Delivery
East Norwich FD

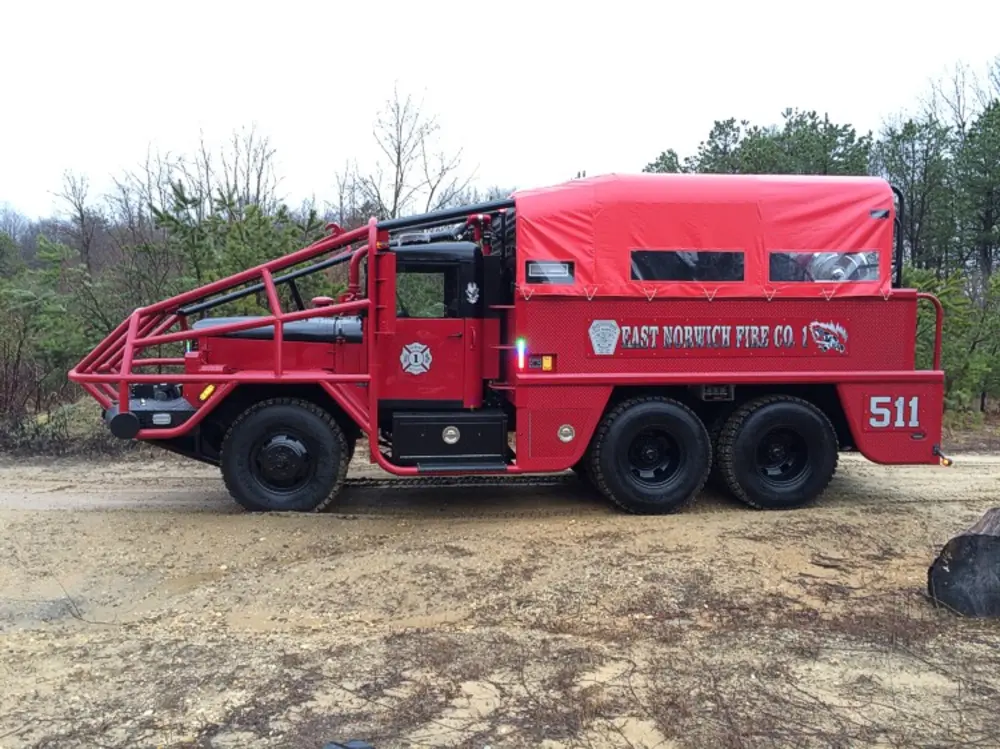

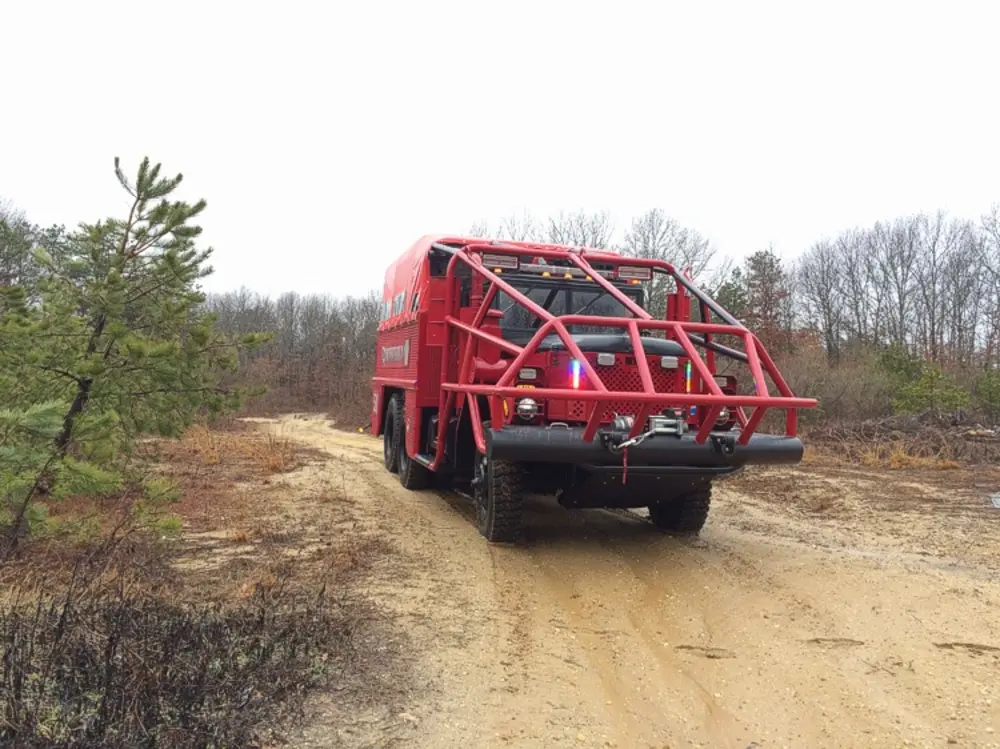

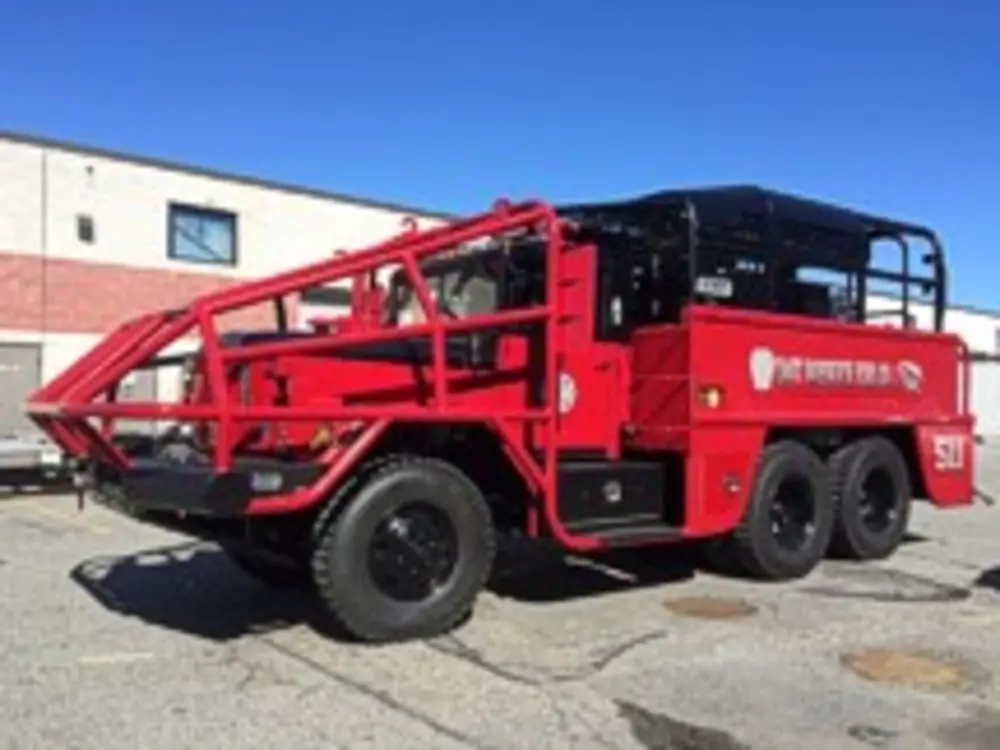

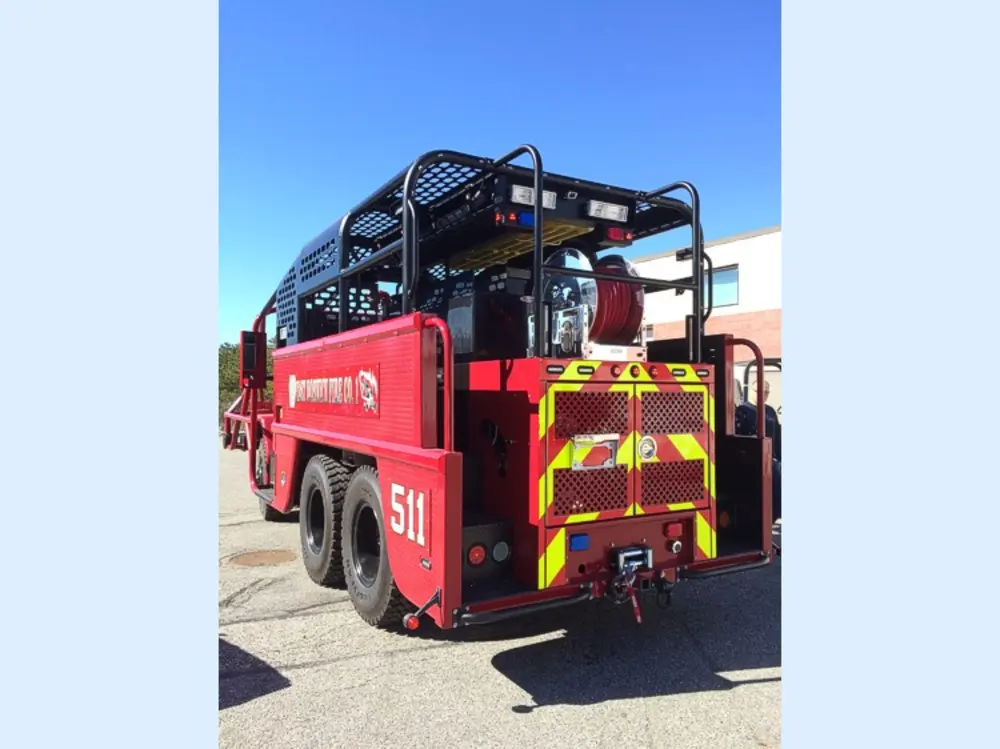

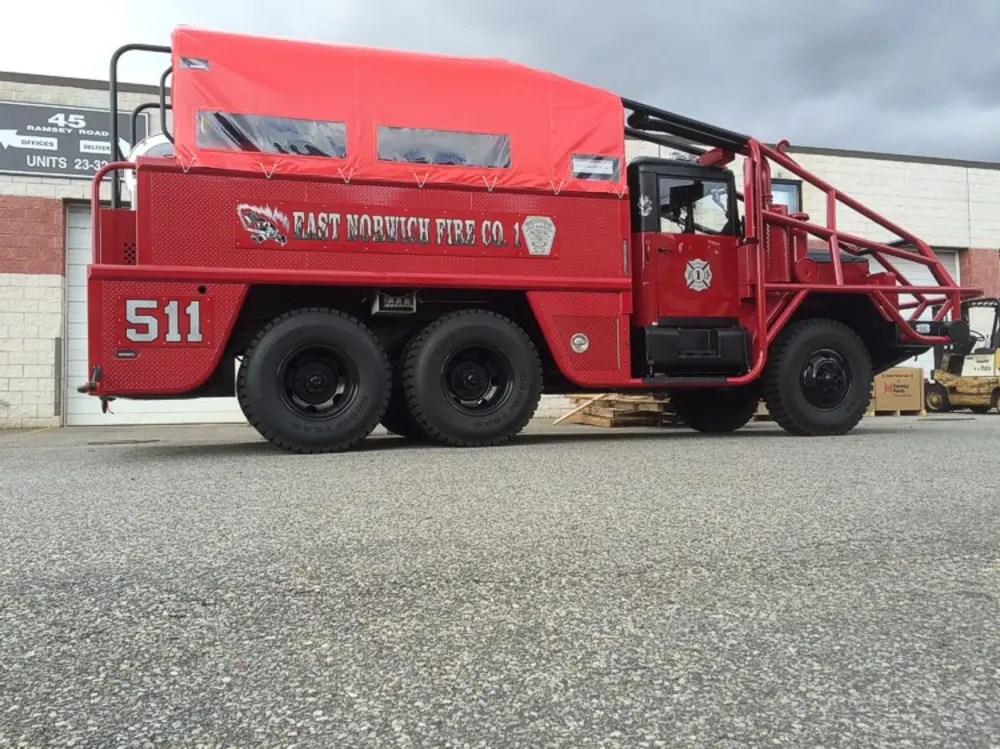

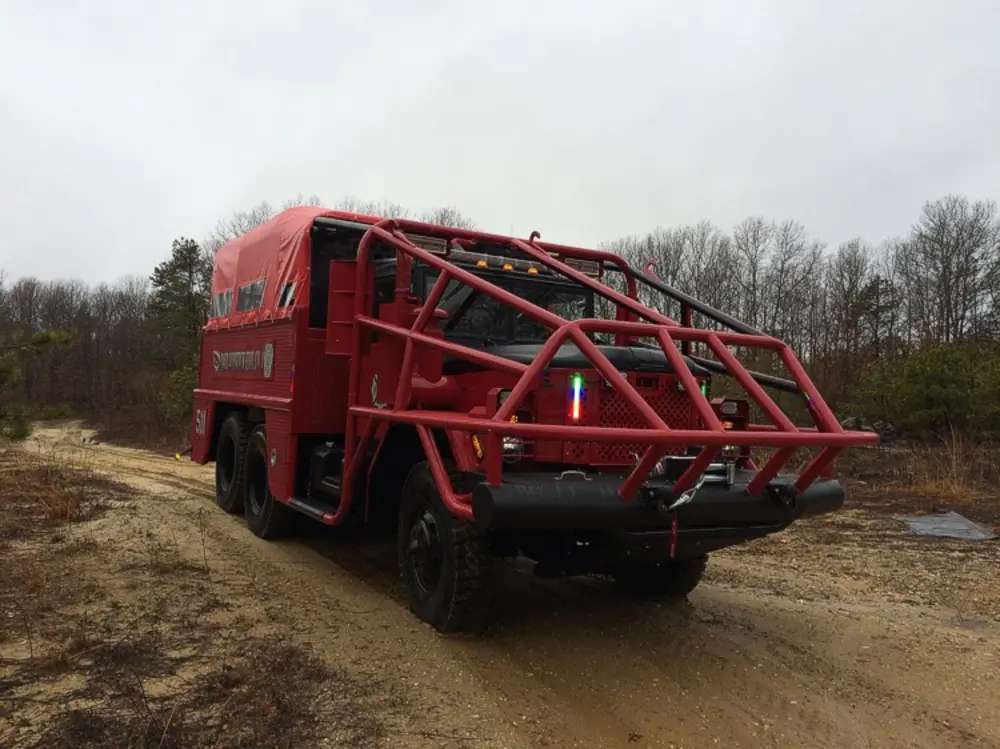

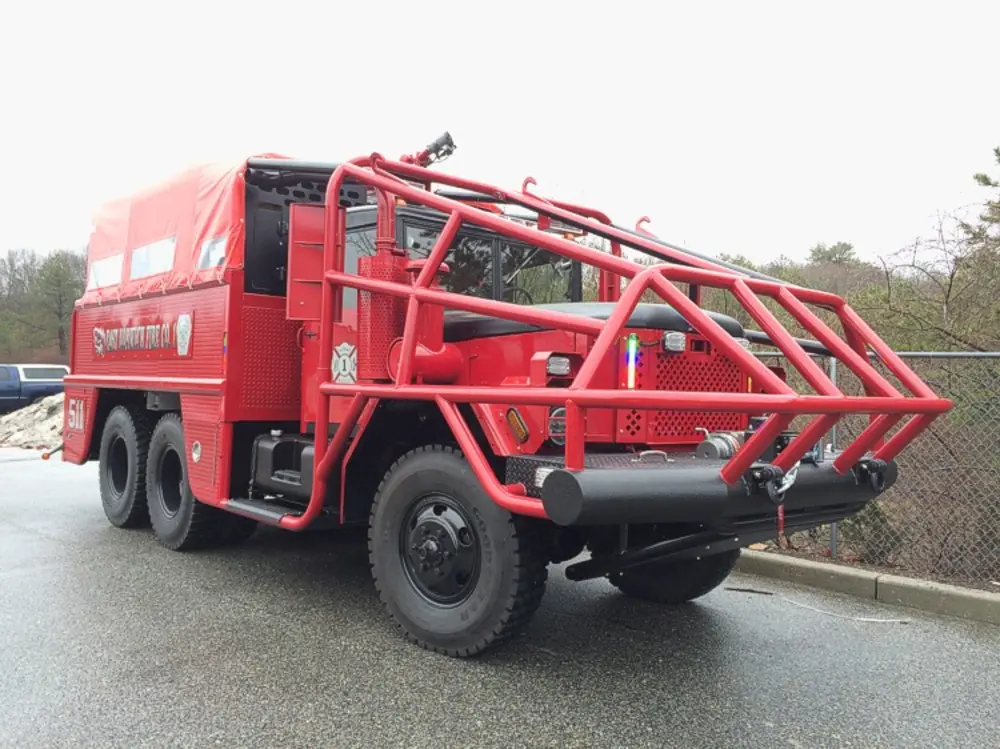

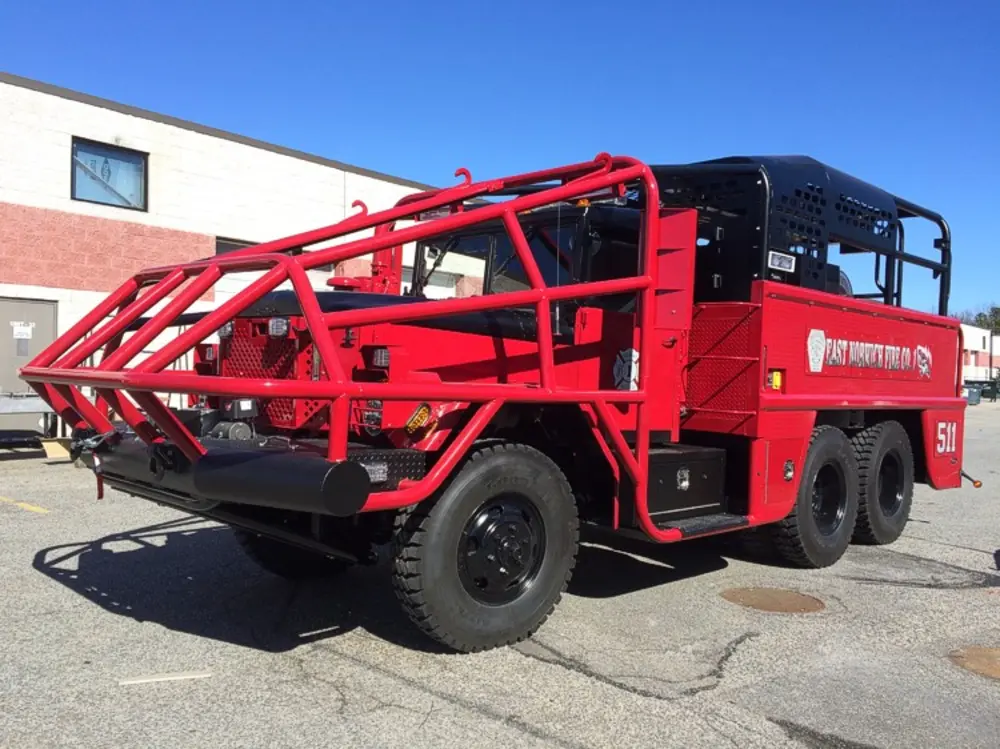

Brush Breaker delivered in East Norwich, New York.

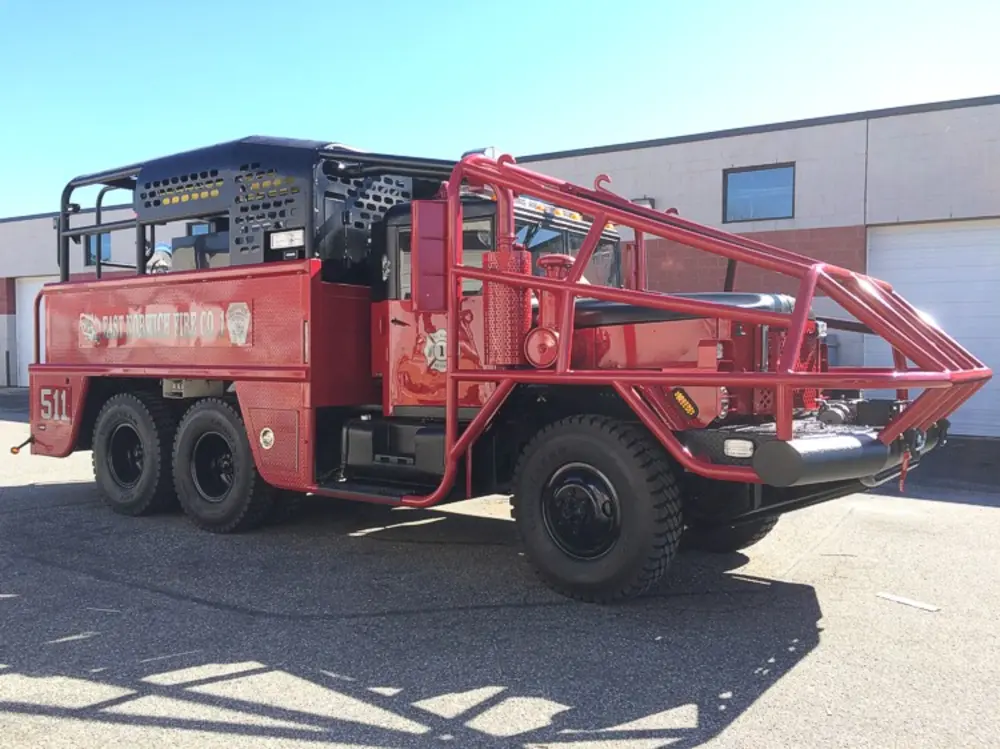

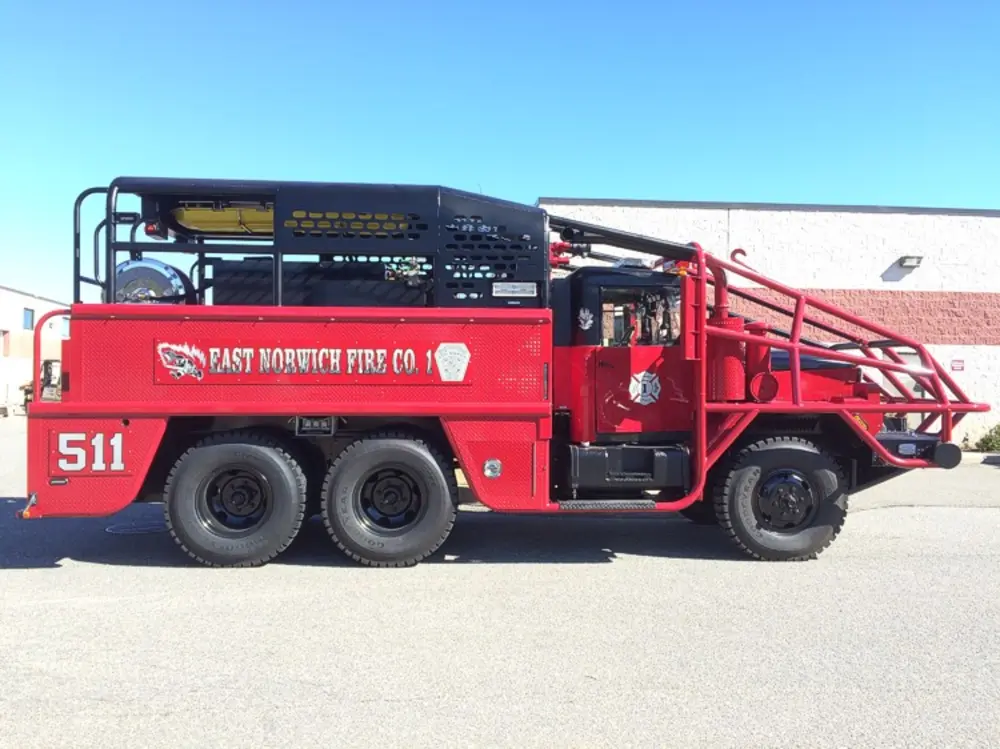

This brush breaker was delivered to East Norwich FD in East Norwich, New York and is configured around 600-gallon tank, 6x6.
Specs Summary

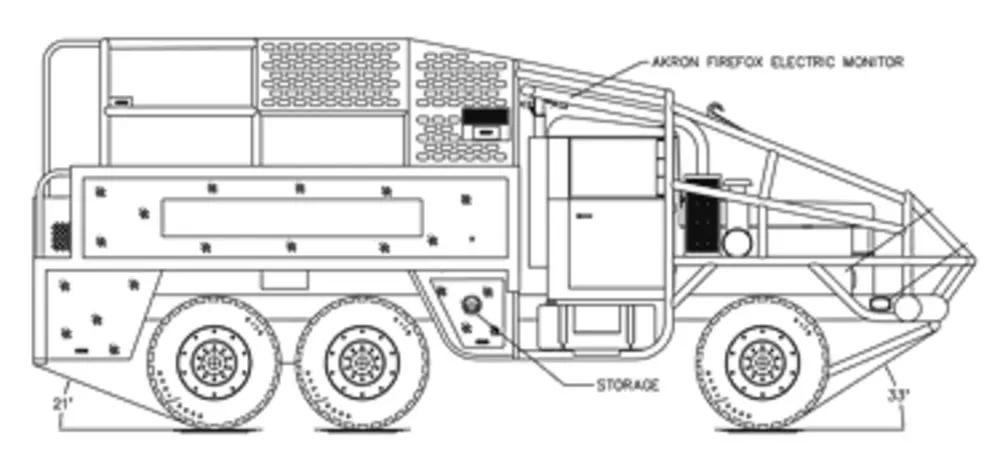

Drawing PDF- Army Chassis Brush Breaker
- 1990s Refurbished Army 2 Door 6x6 2.5 Ton Chassis
- Caterpillar 3116 - 170 hp Diesel Engine

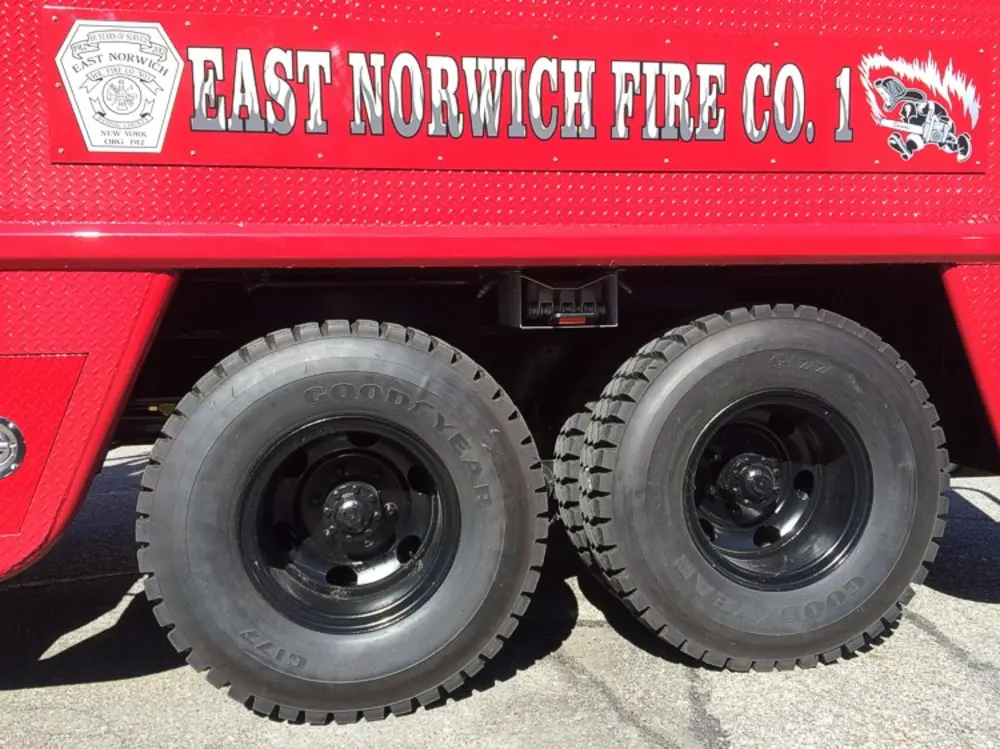

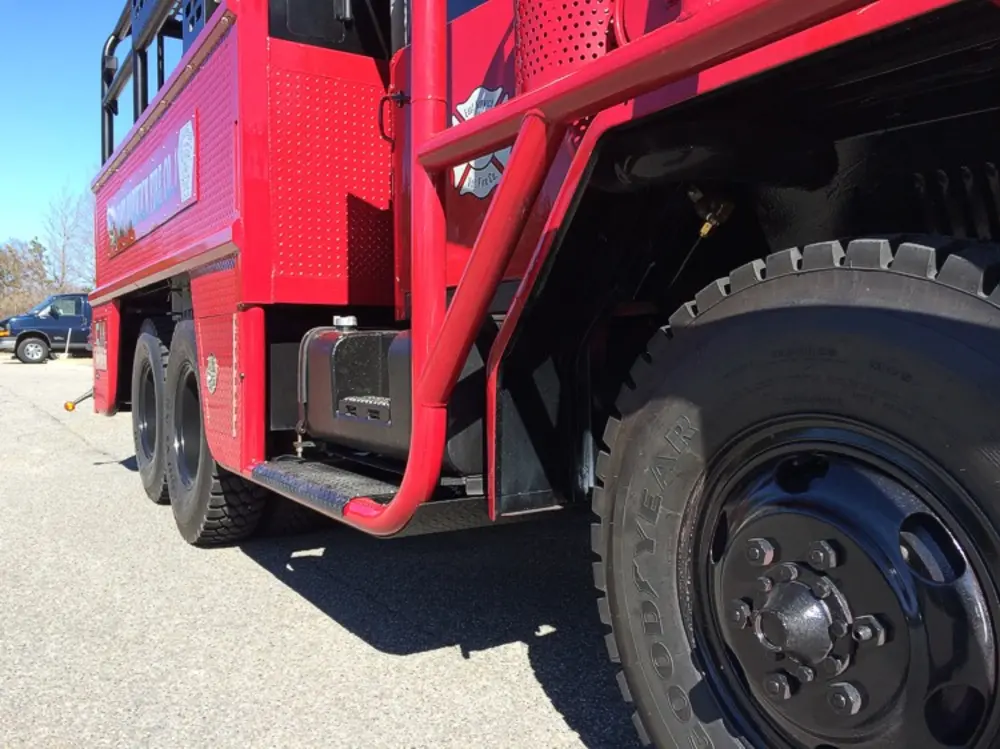

- Dual Wheels and Goodyear Tires

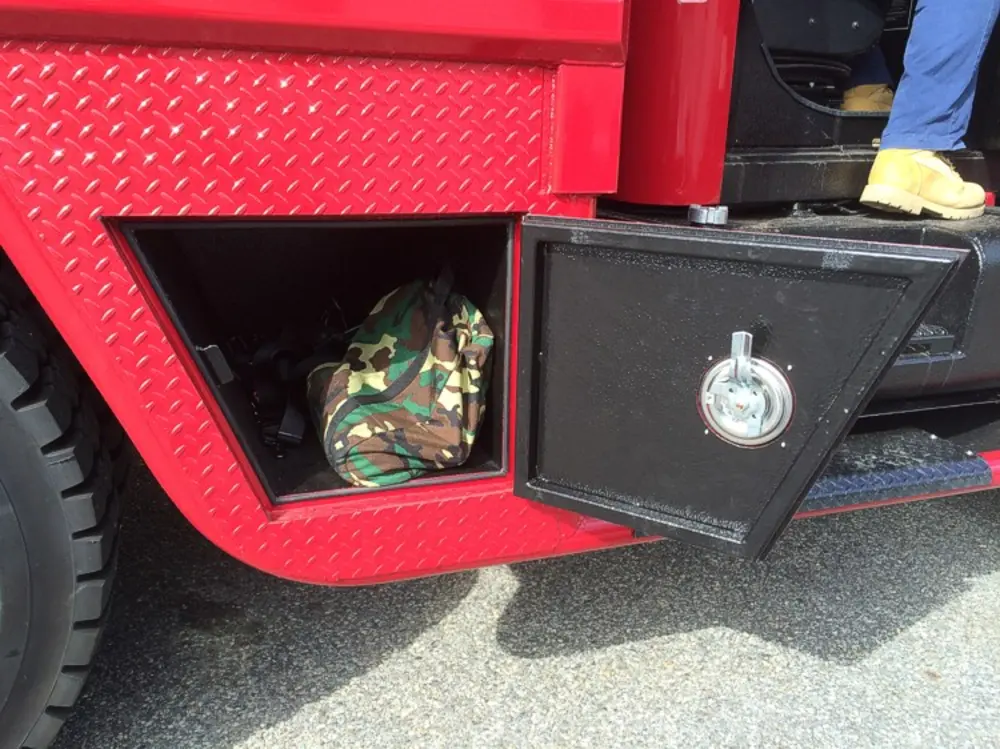

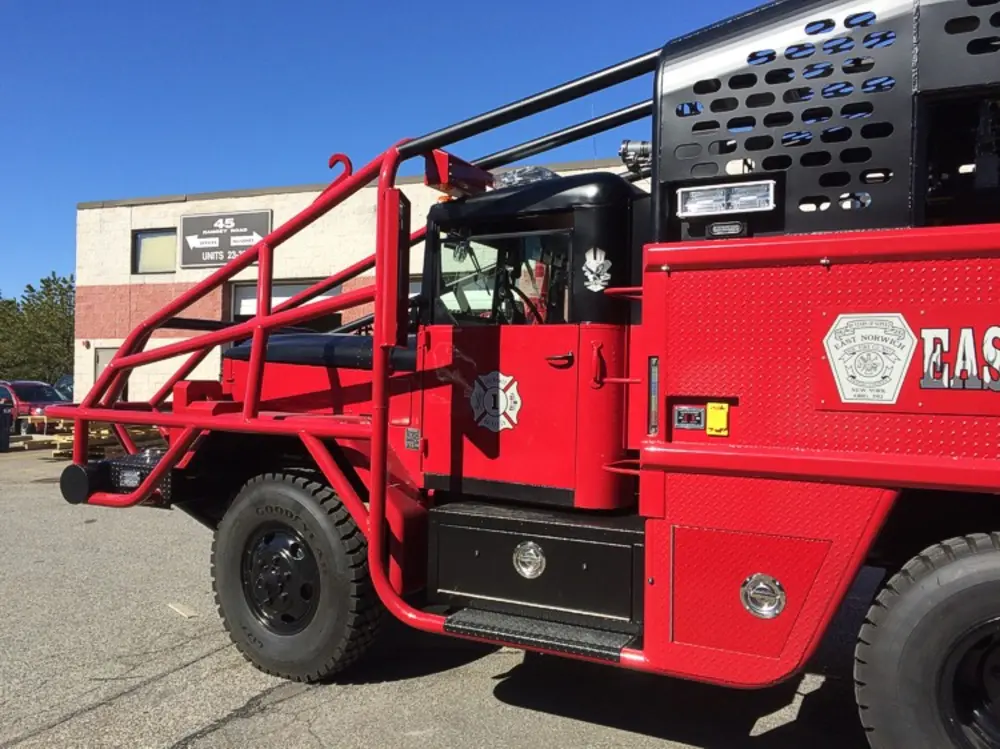

- Firematic Steel Tube and Sheet Modular Body

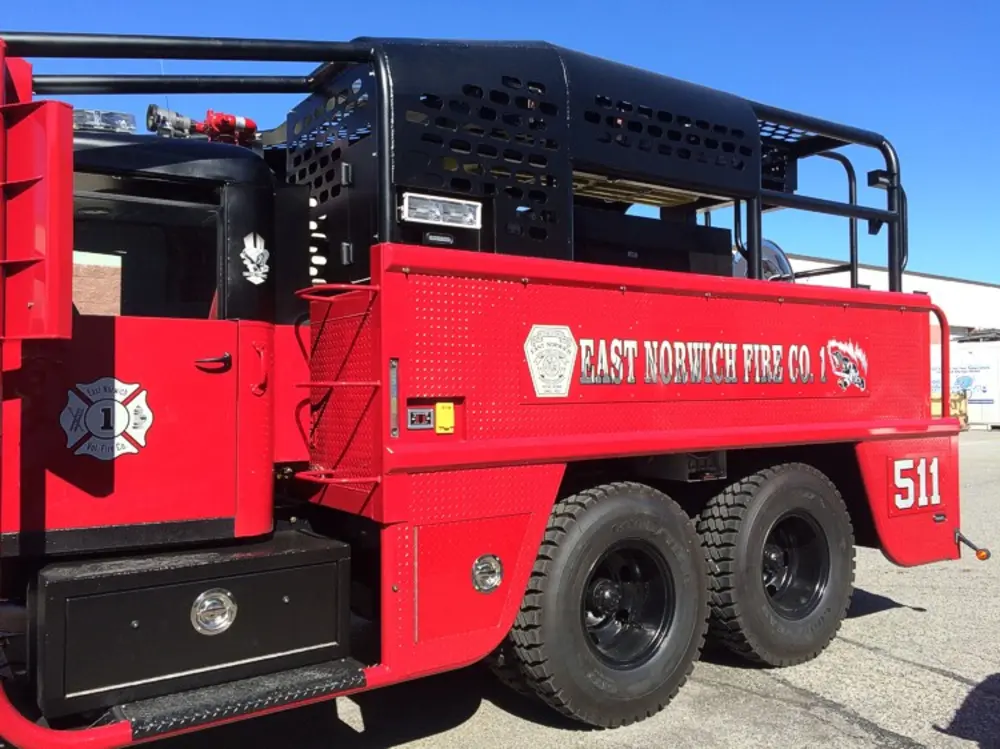

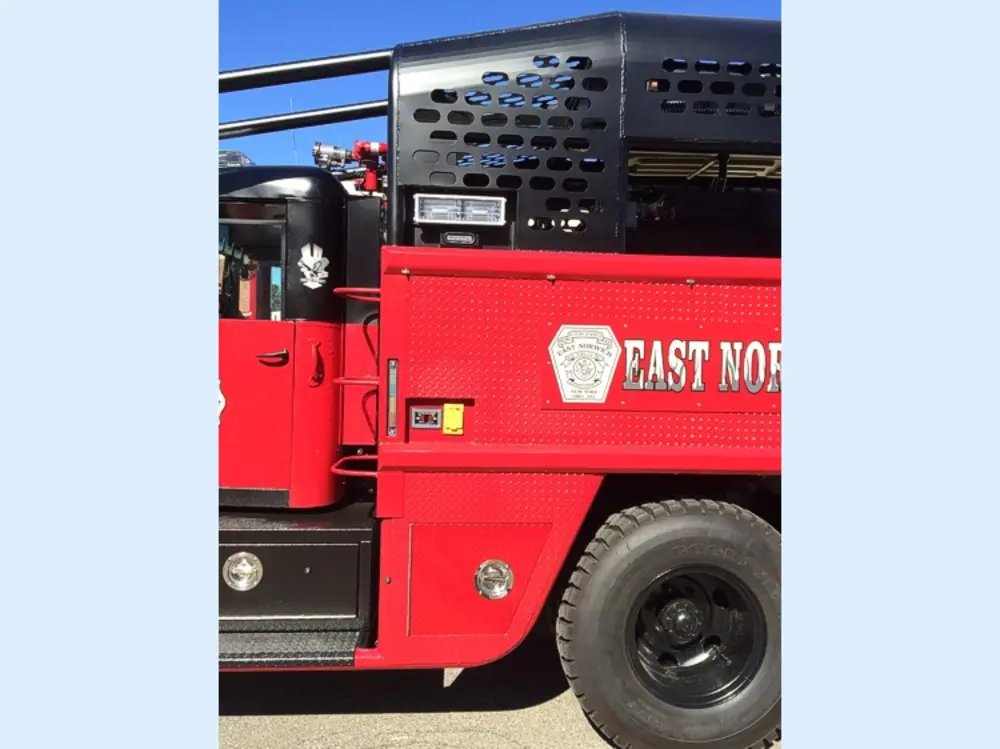

- Removable 2.5" Steel Tube Body Cage

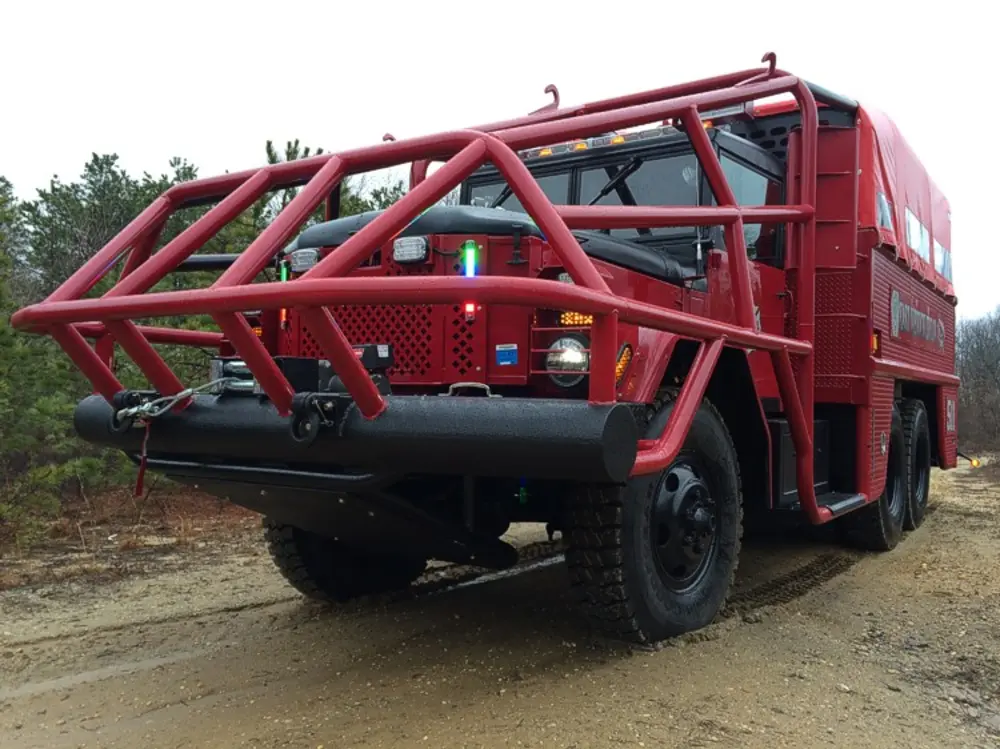

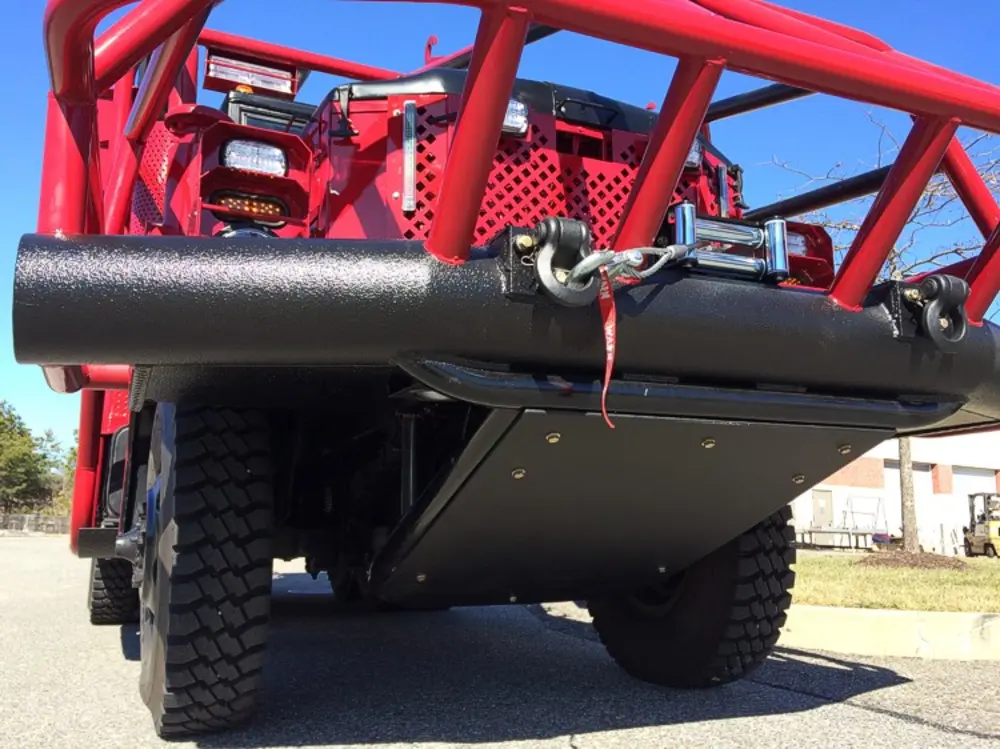

- Massive 8" Tube Front Bumper

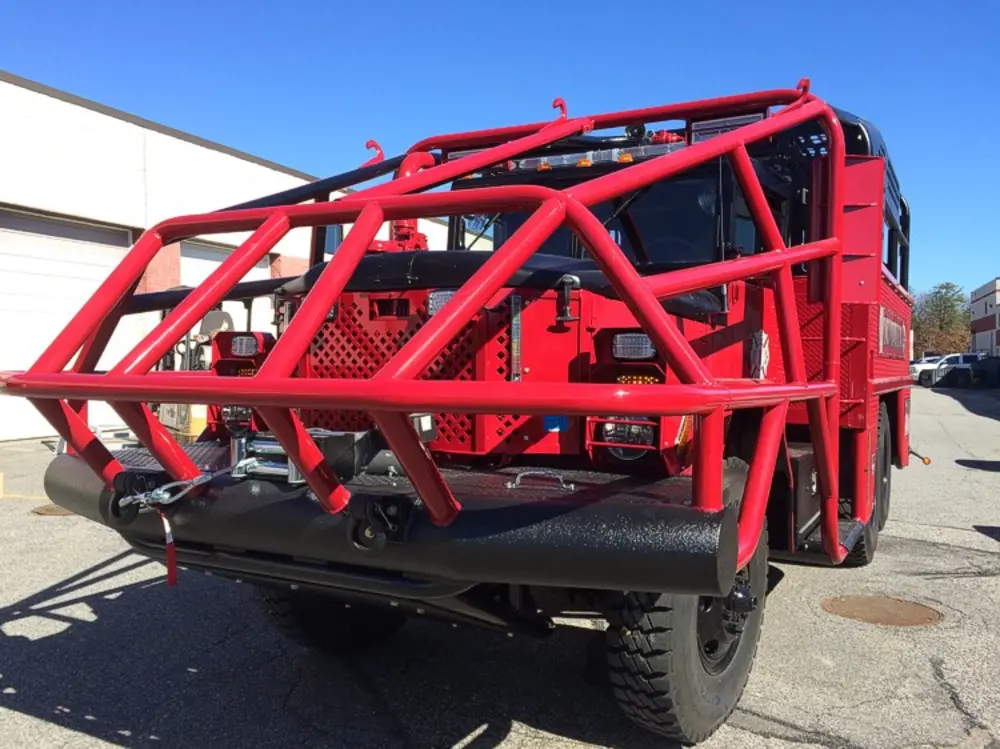

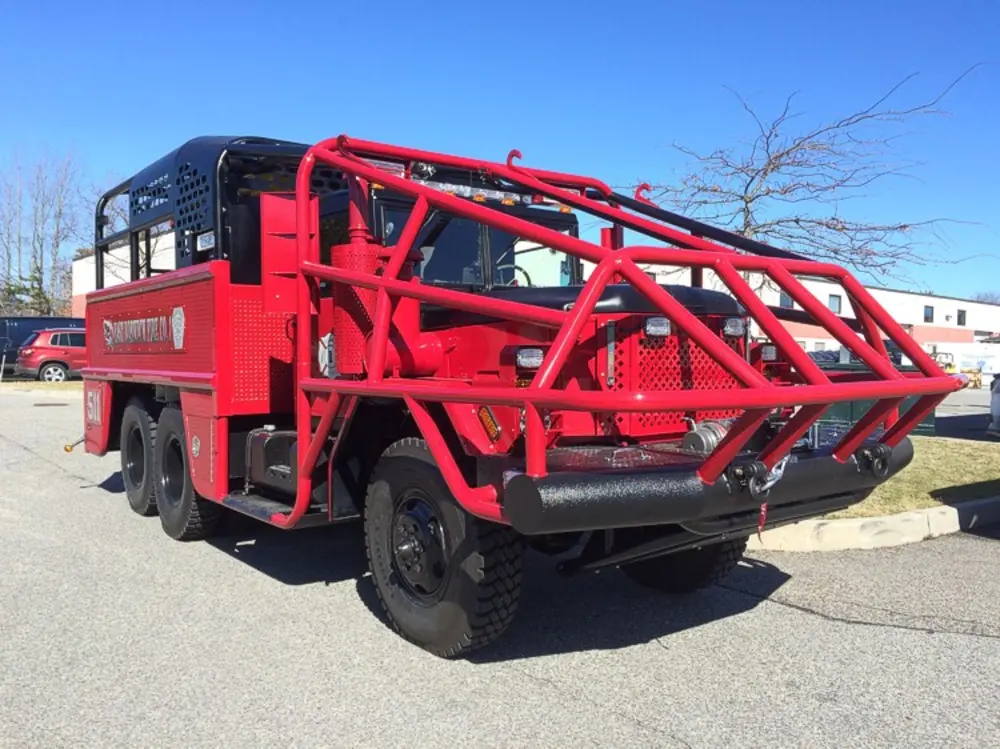

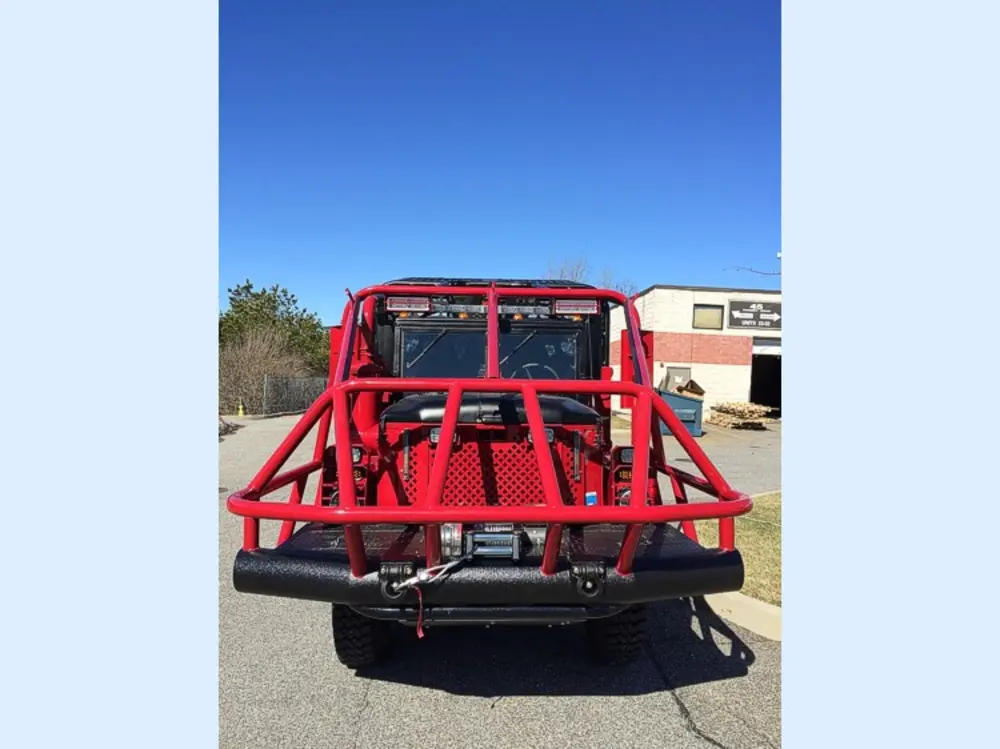

- 2.5" Steel Tube Mandrel Bent Front Protection Cage
- 600 Gallon Integrated Water Tank

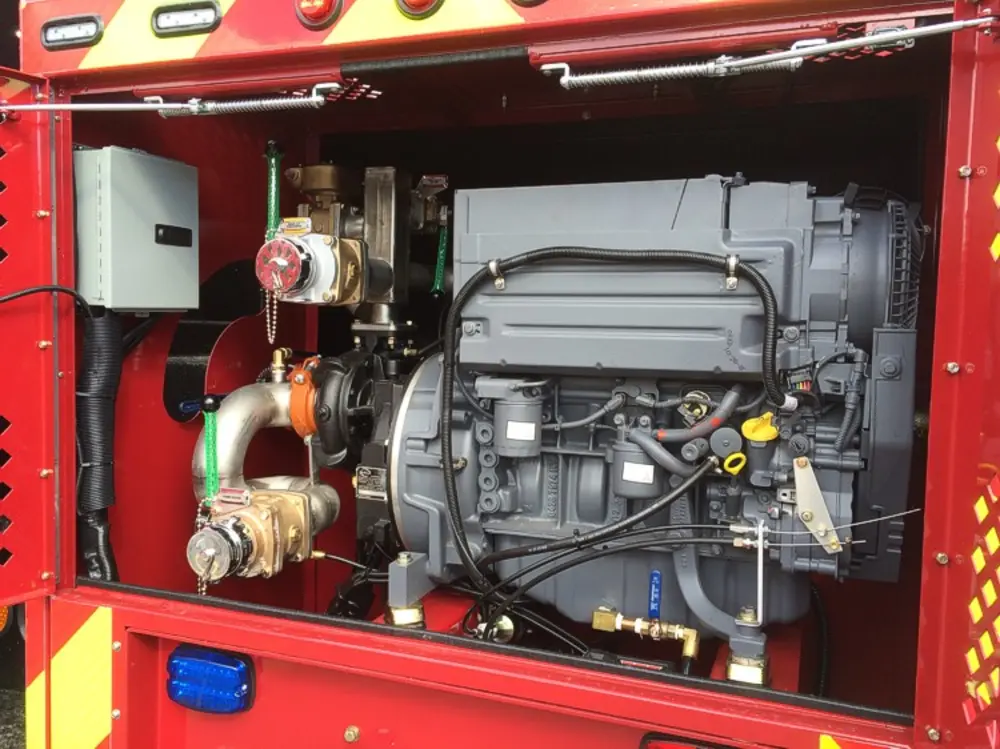

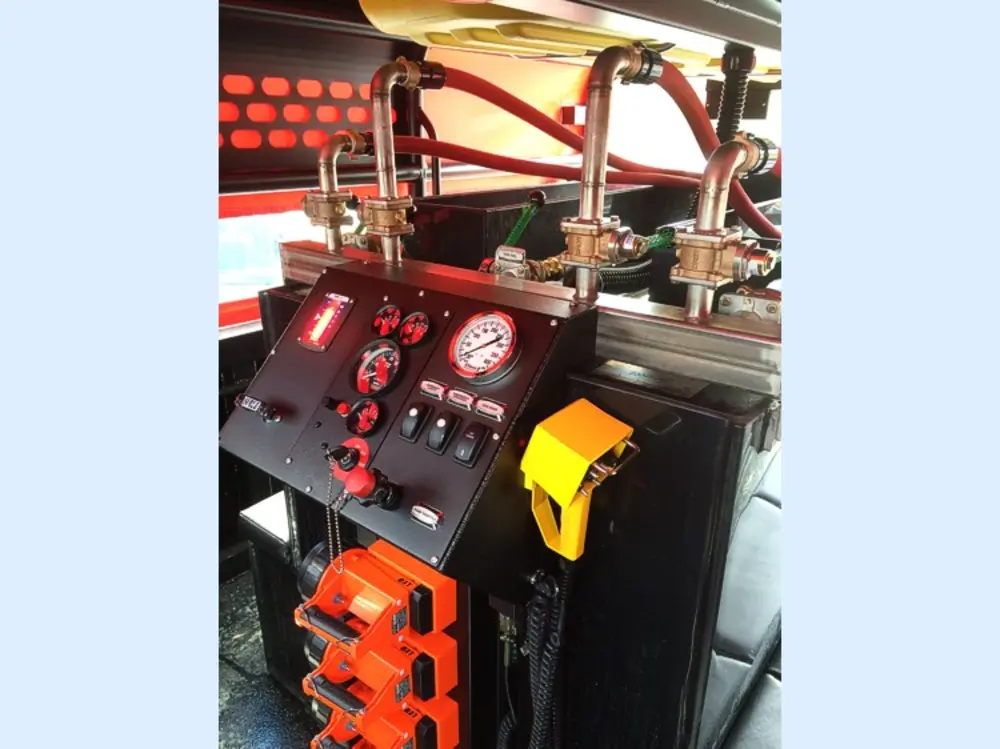

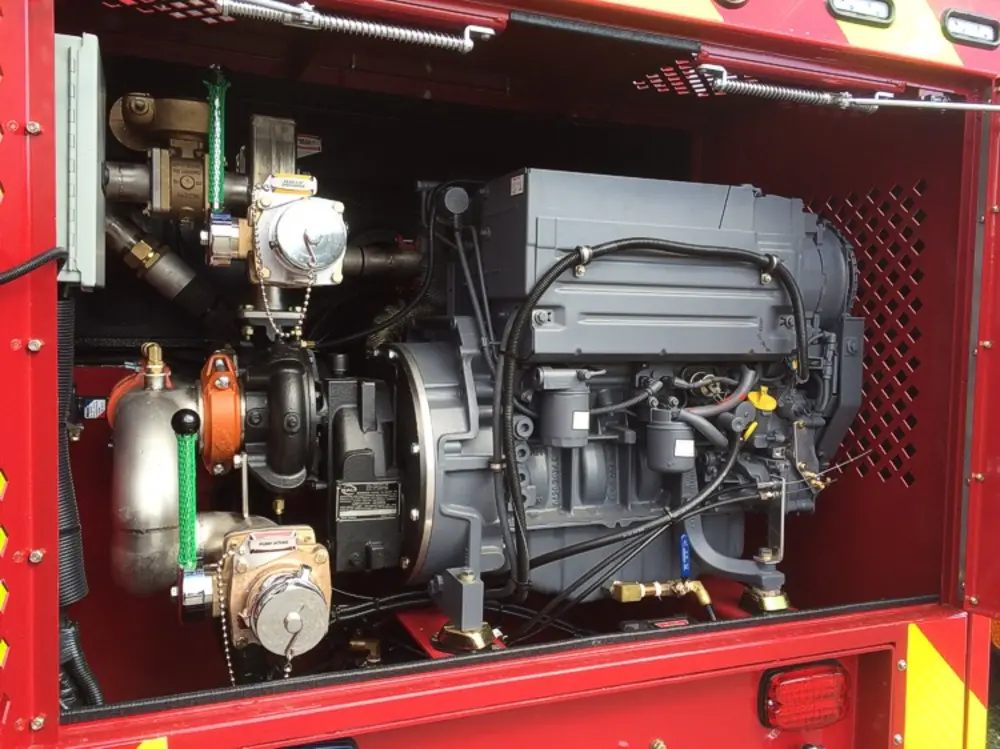

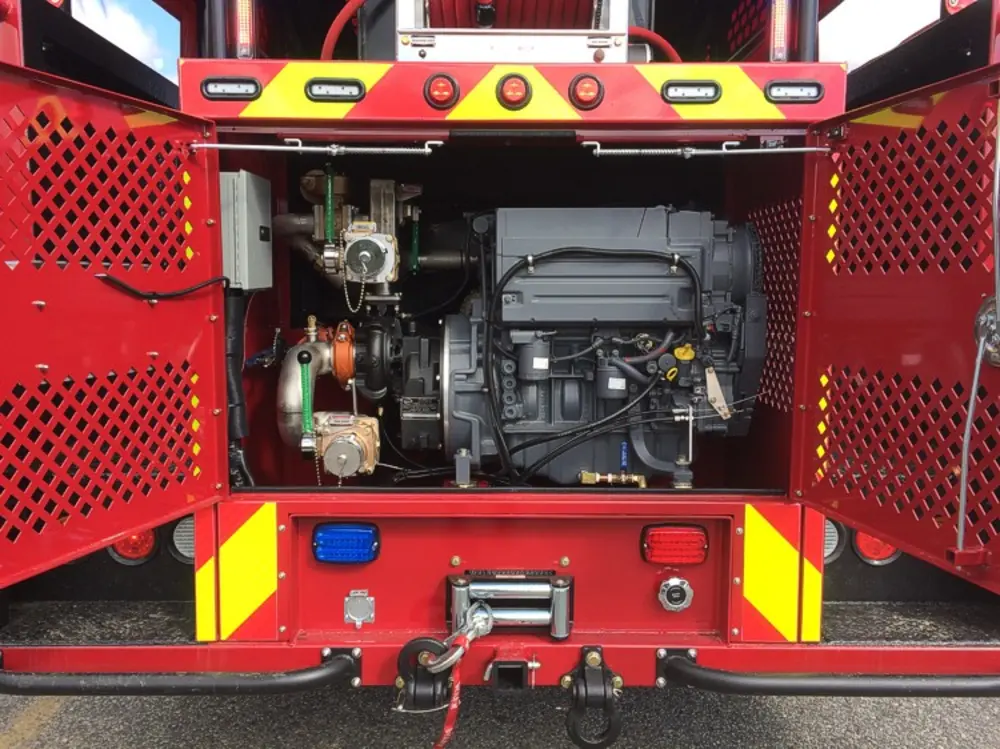

- 30FS Hale Pump Driven By Deutz 64 HP Diesel Engine
- Fire Research Water Level Gauges
- Two 1.5" Preconnects on Top of the Water Tank with 150' of 1-3/4" Hose
