B.R.A.T. Delivery
Cronomer Valley FD

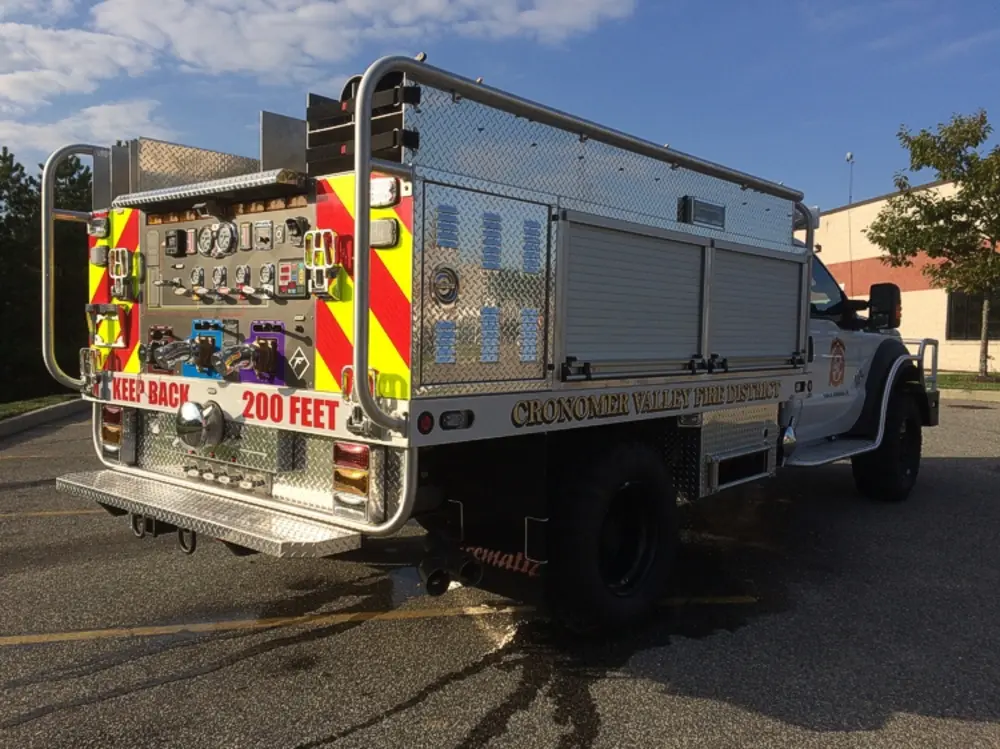

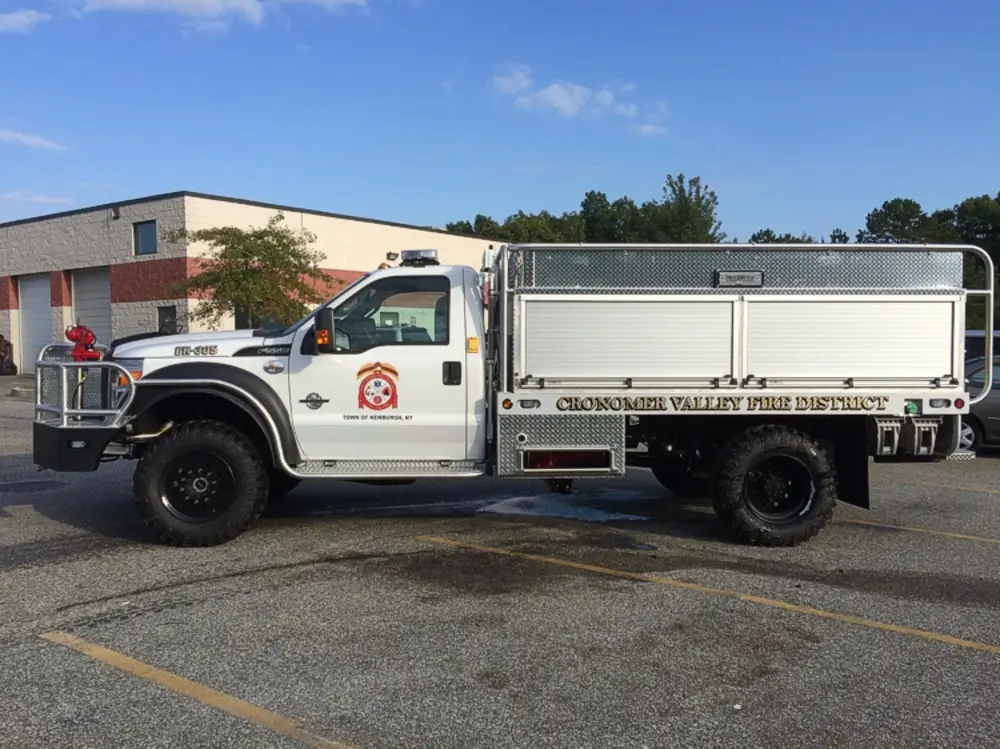

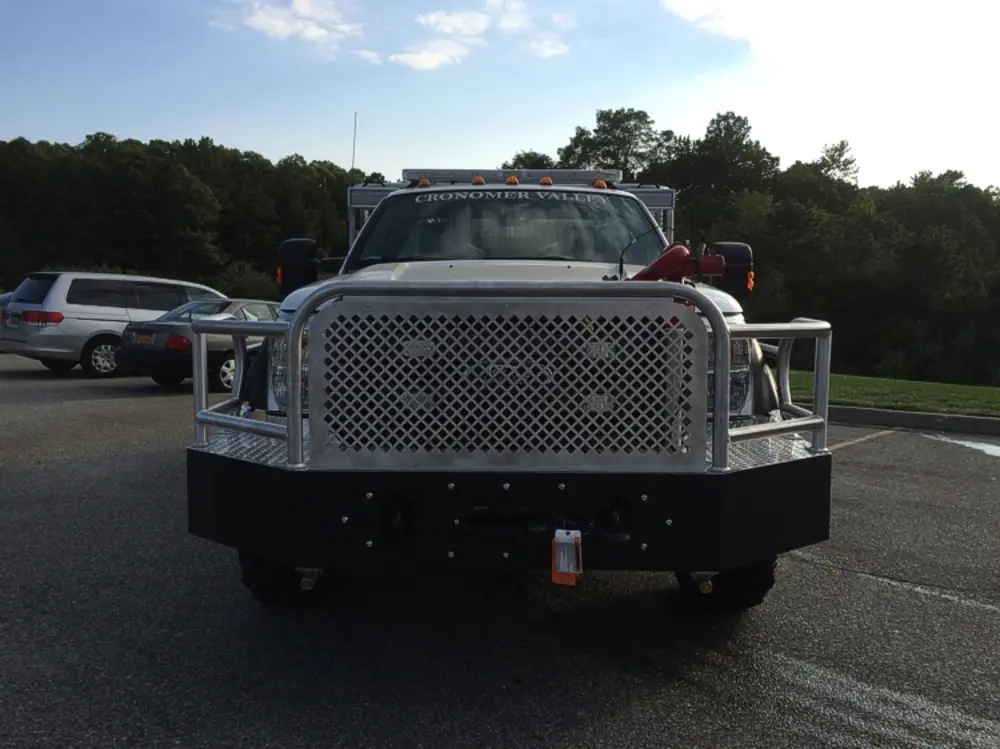

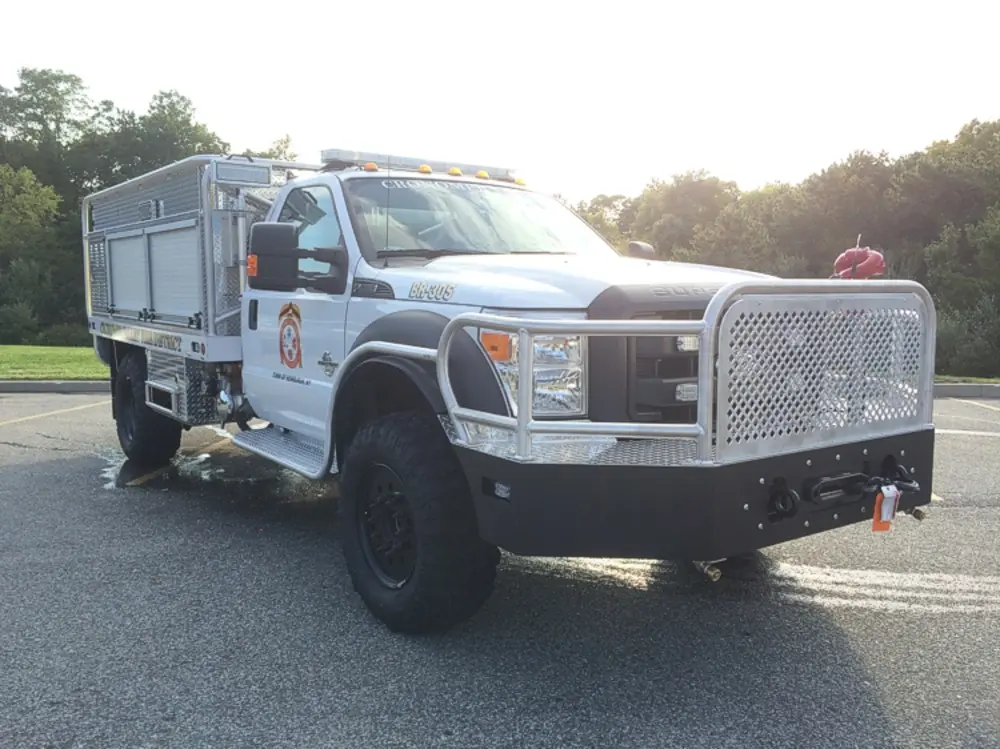

Original B.R.A.T. delivered in Newburgh, New York.

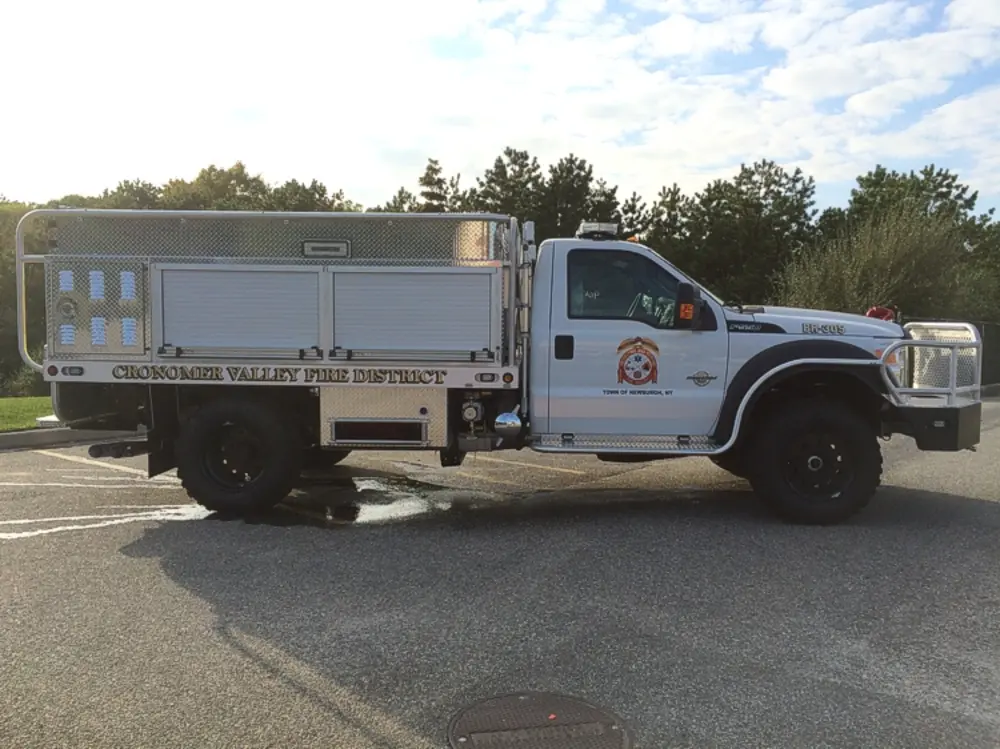

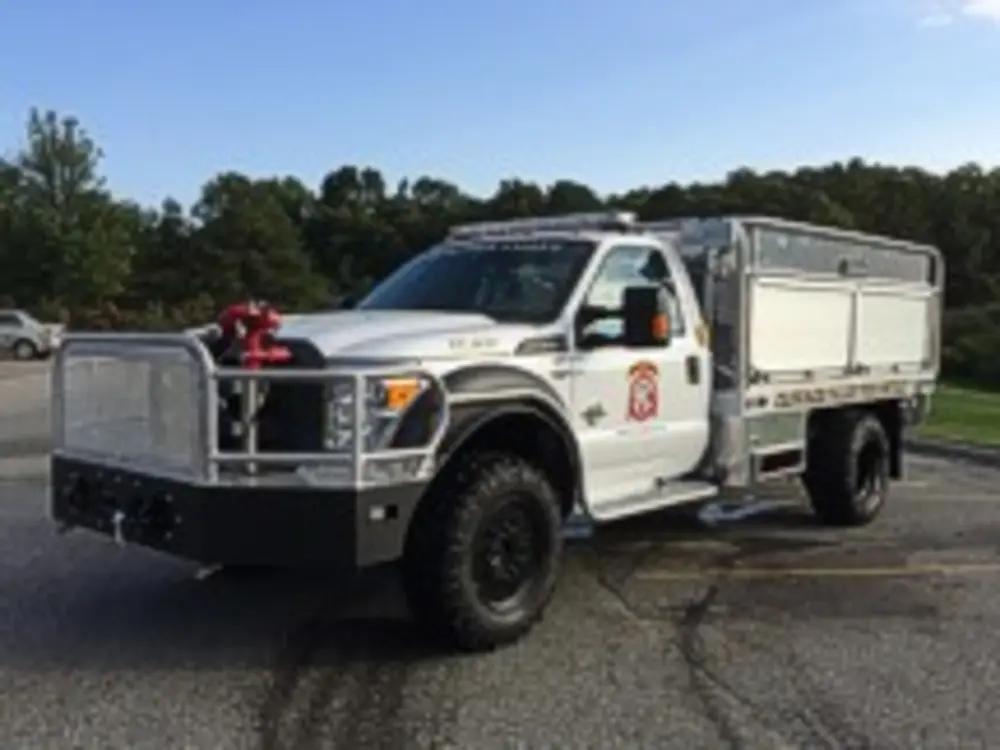

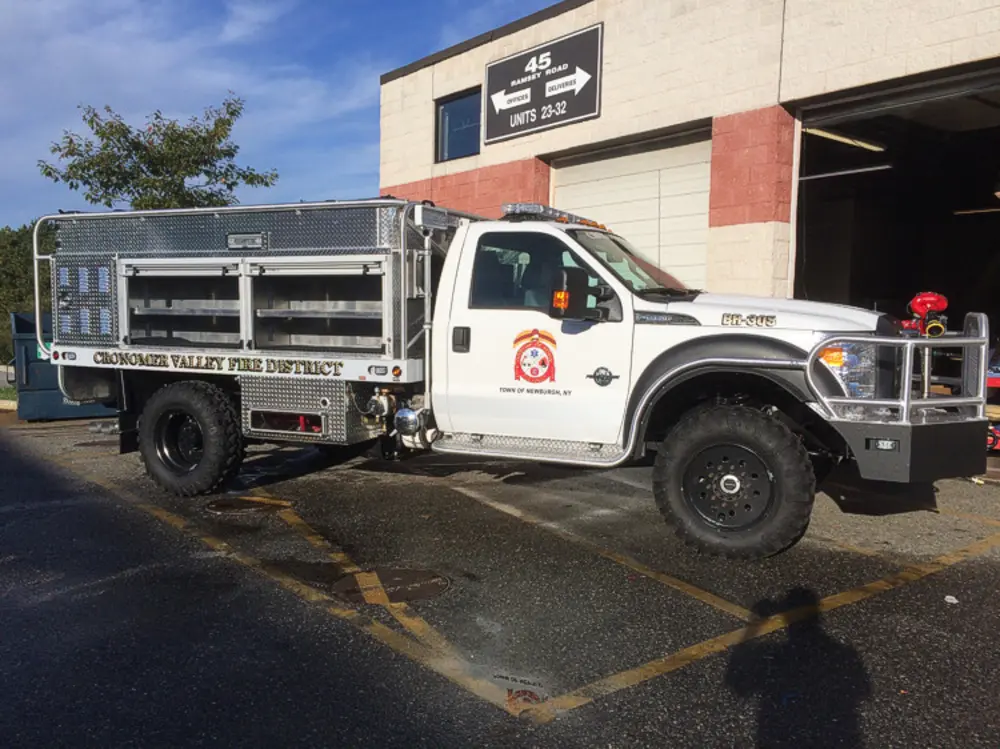

This original b.r.a.t. was delivered to Cronomer Valley FD in Newburgh, New York and is configured around 360-gallon tank, F550 chassis, 4x4.
Specs Summary
Drawing PDF- 2015 Ford F550 2 Door 4x4
- Powerstroke 300 HP Diesel Engine

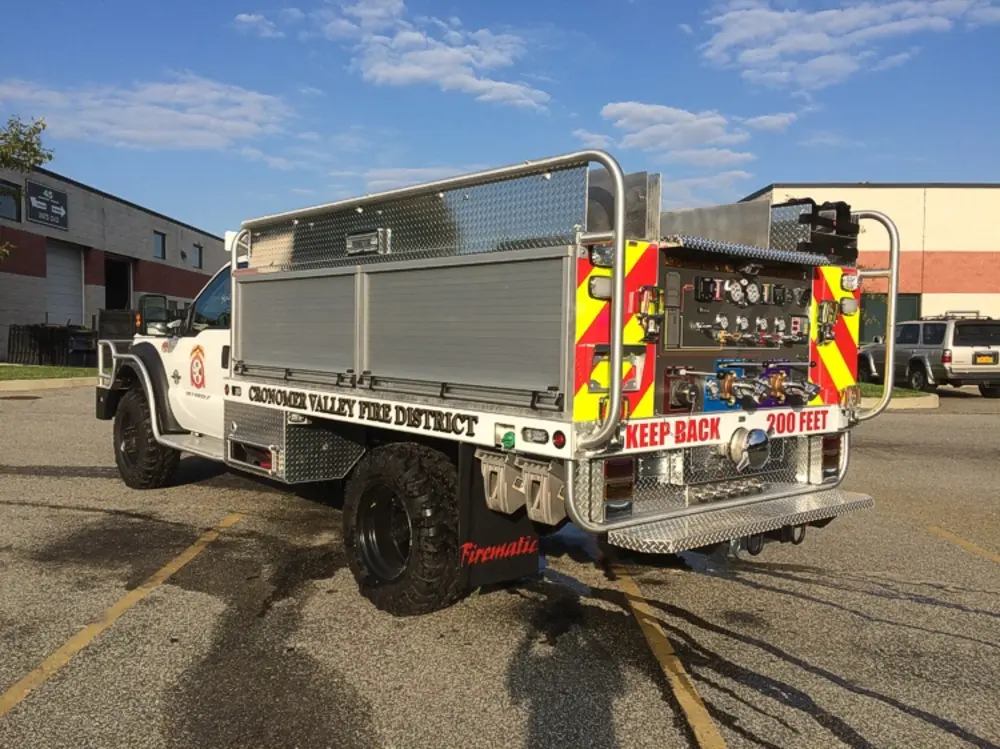

- Firematic Aluminum Deck Body

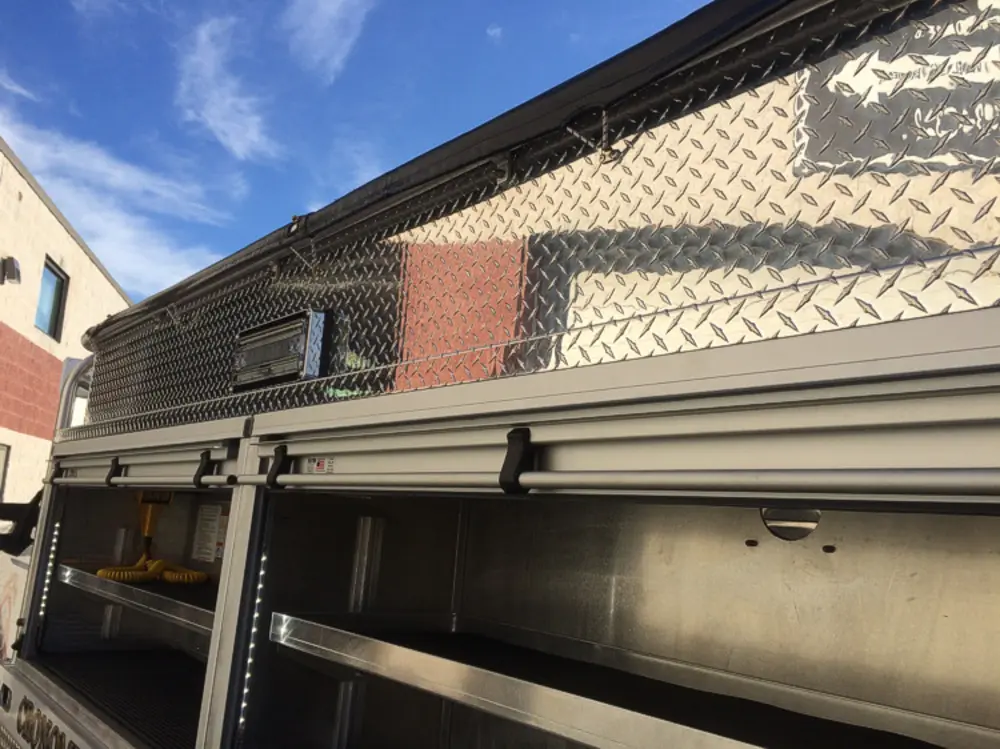

- Diamondplate compartments w/ ROM Roll-up Doors
- 2.5" Lift with Firematic's exclusive Irok Super Single tires
- 360 Gallon ProPoly Water Tank / 10 Gallon Foam Cell

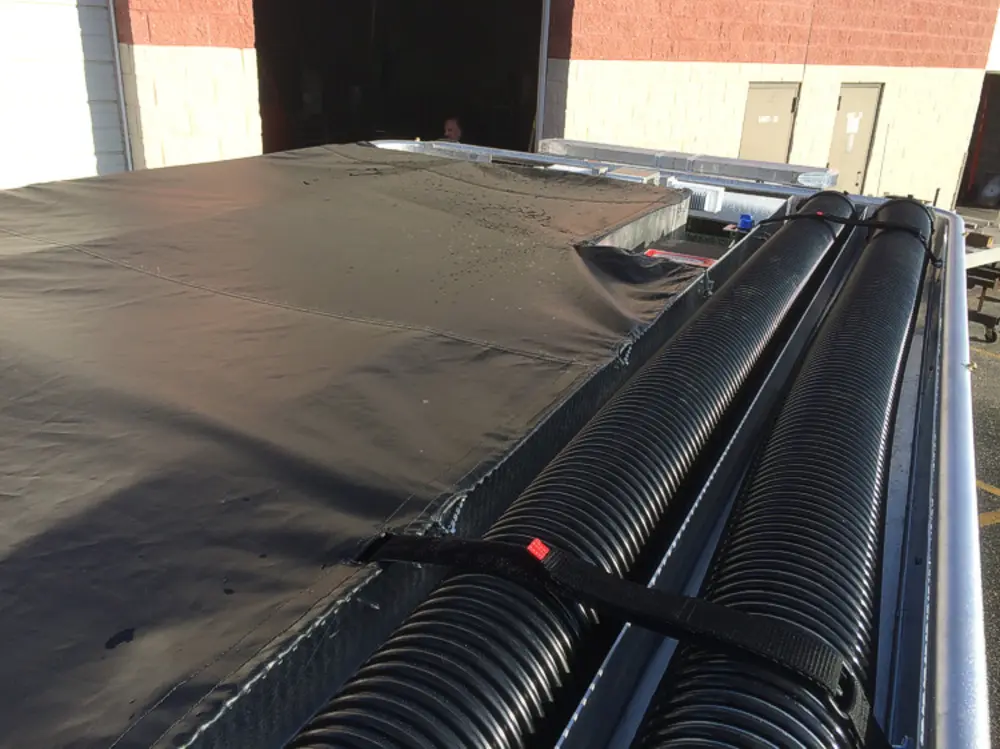

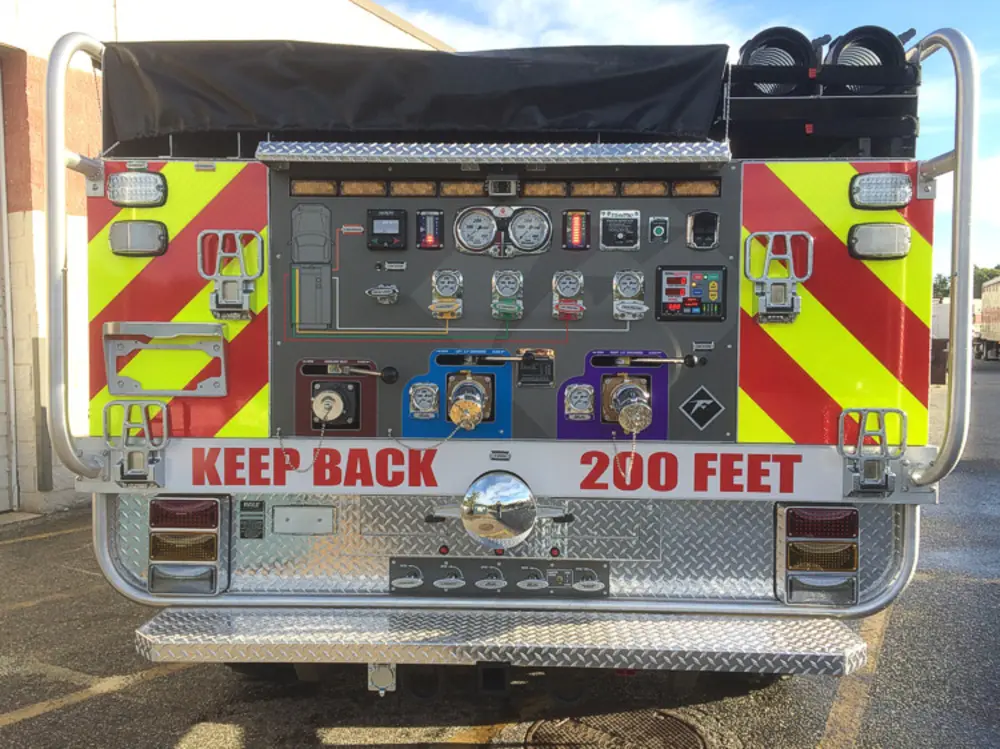

- 1250 Hale DSD Midship Pump w/ dual 6" intakes, one p/s and one at rear
- Darley Davey gas pump for "Pump and Roll" operations

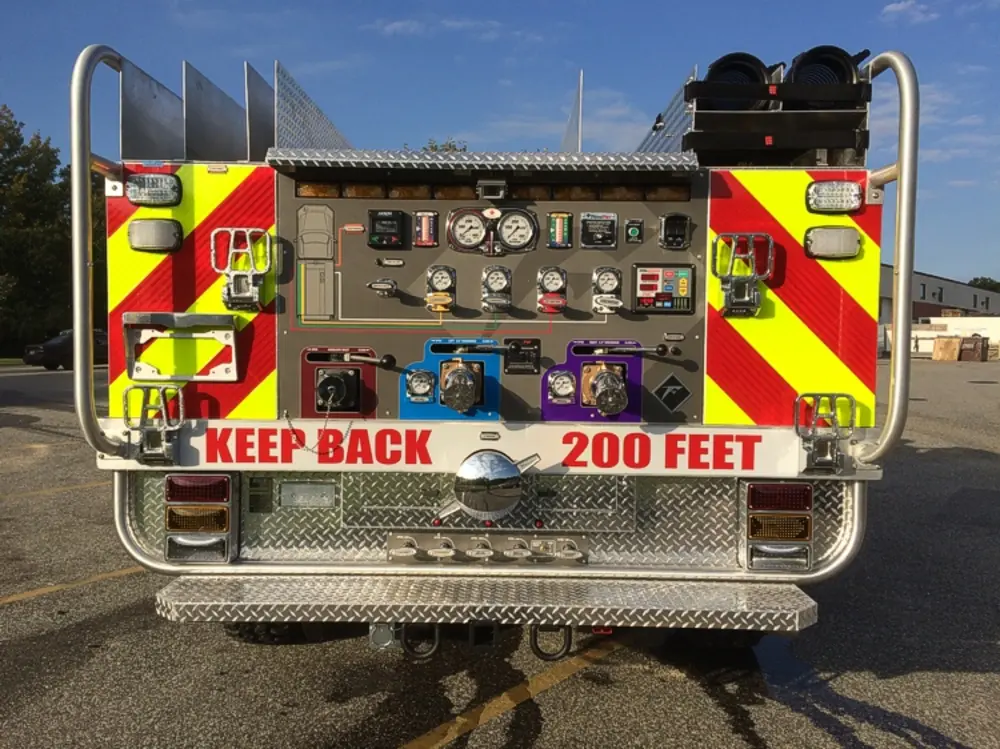

- Fire Research Total Control Pump Governor
- Fire Research Water and Foam Level Gauges
- Exclusive "Spray Curtain and Misting System" for truck and firefighter protection
- FoamPro 1600 Class A Foam Injection
