B.R.A.T. Delivery
Norwood FD

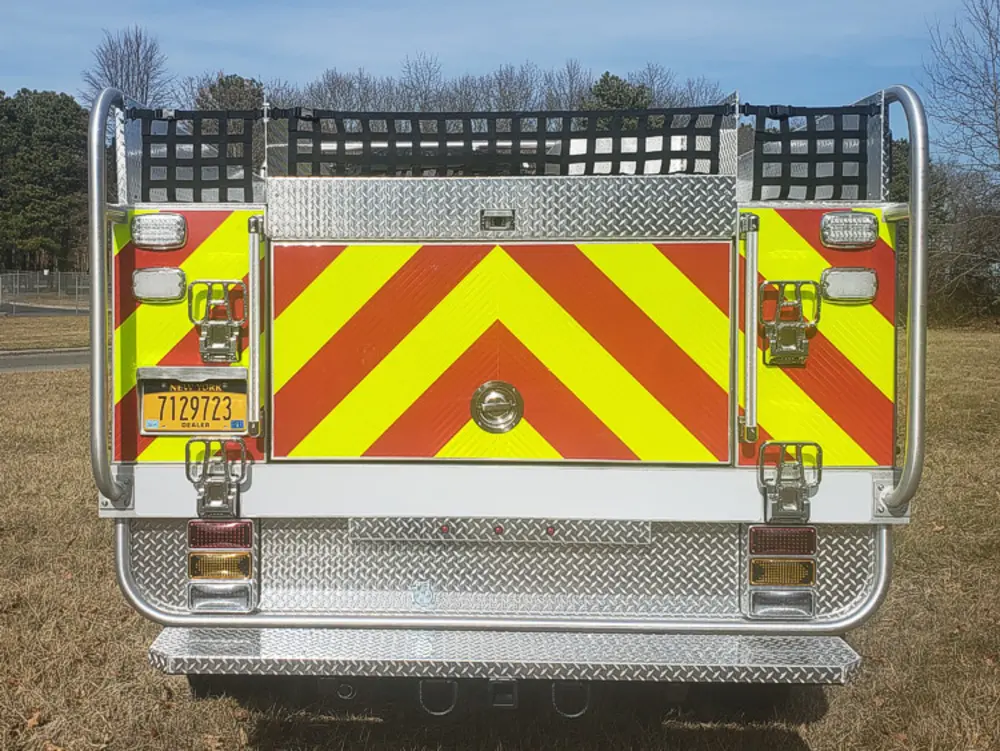

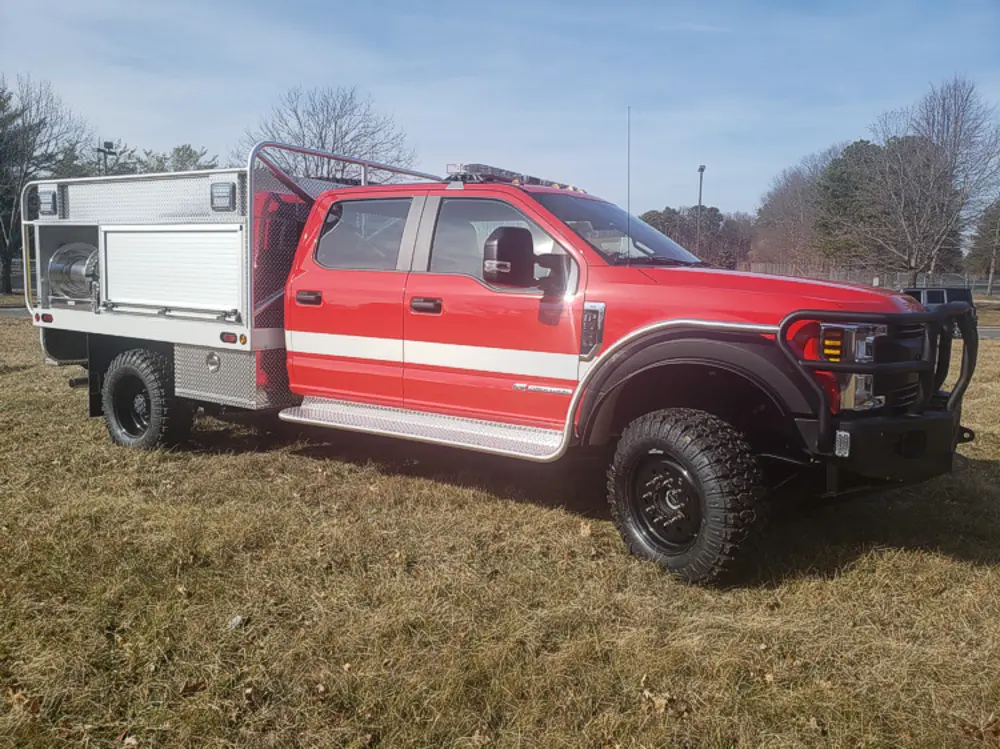

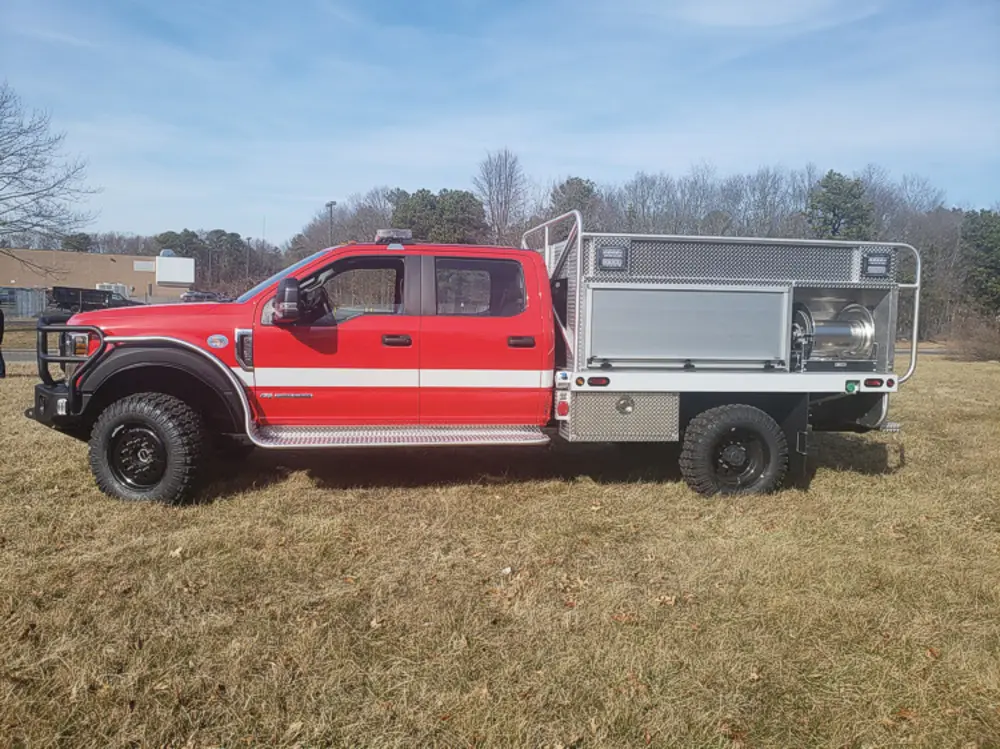

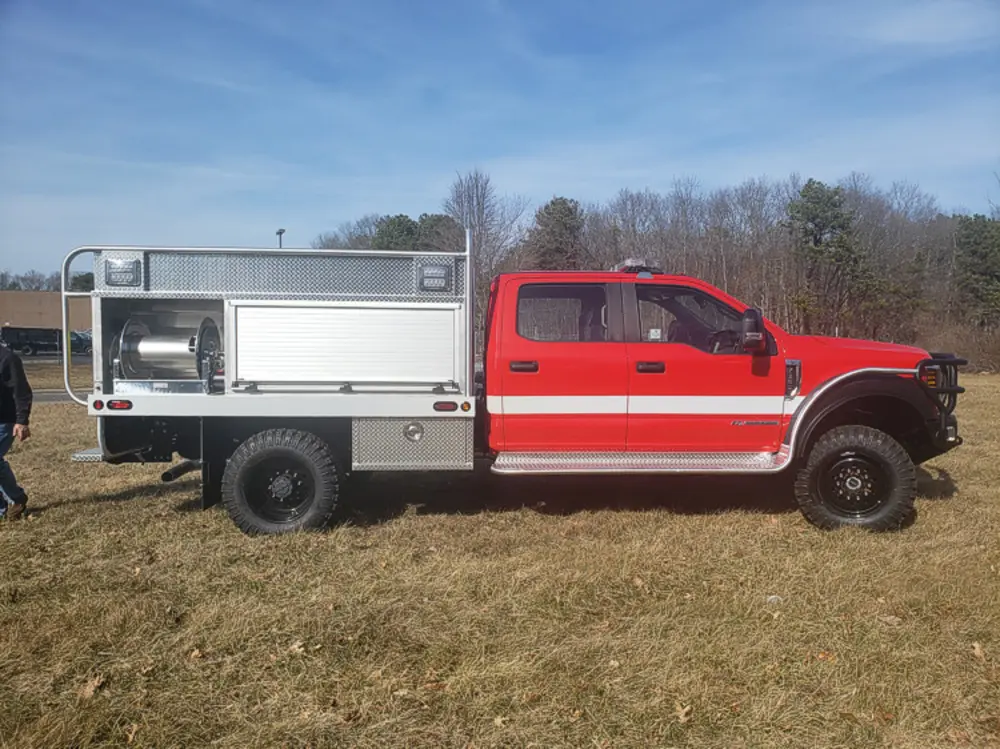

Original B.R.A.T. delivered in Norwood, Massachusetts.
This original b.r.a.t. was delivered to Norwood FD in Norwood, Massachusetts and is configured around 300-gallon tank, F550 chassis, 4x4.
Specs Summary

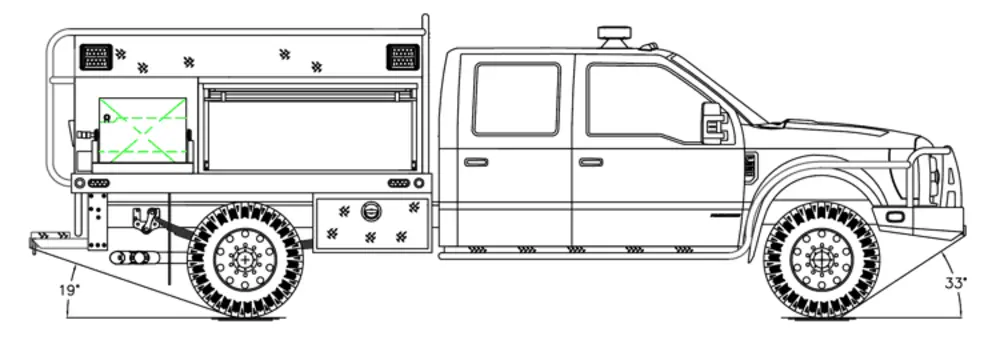

Drawing PDF- 2019 Ford F550 4 Door Crew Cab 4x4 Chassis with 19,500 lbs GVW
- Super Single Founders MT 36" Tires, 2.5" Suspension lift
- Heavy Duty Aluminum Fabricated Flatbed with FEA Tested Roll Bar

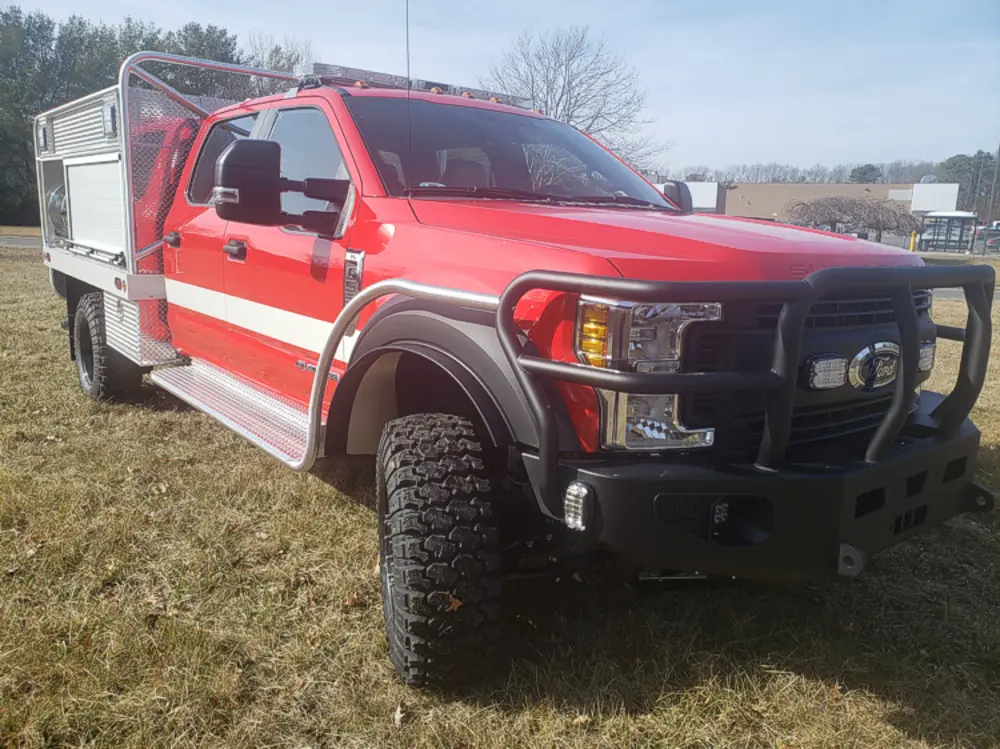

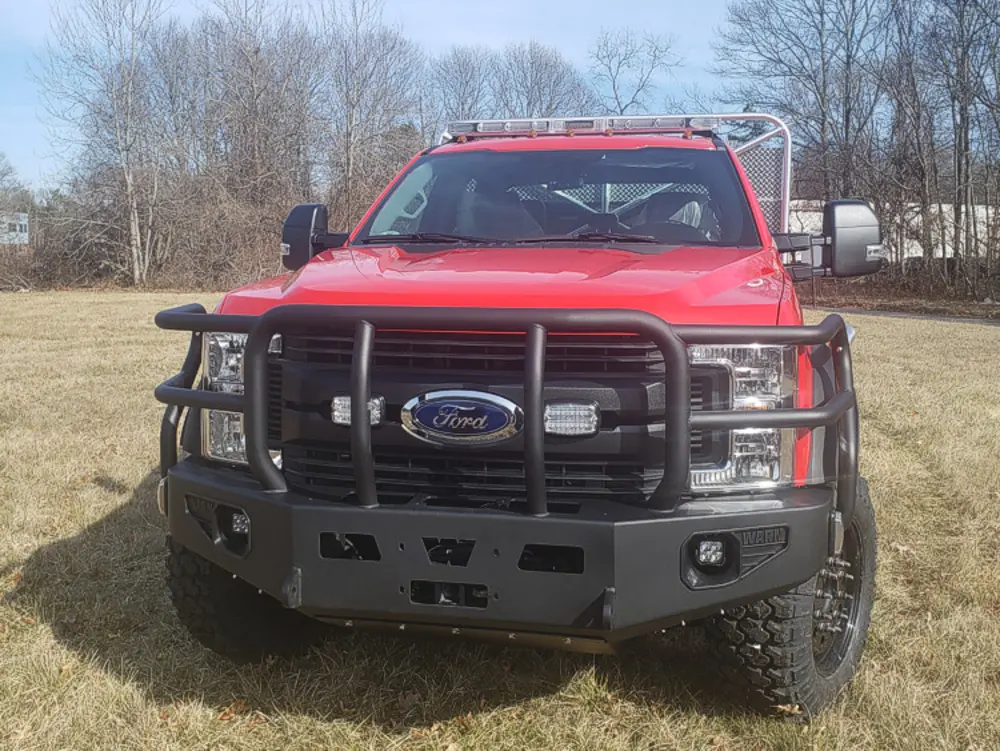

- Warn HD front steel bumper
- Pro Poly 300 Gallon Water Tank

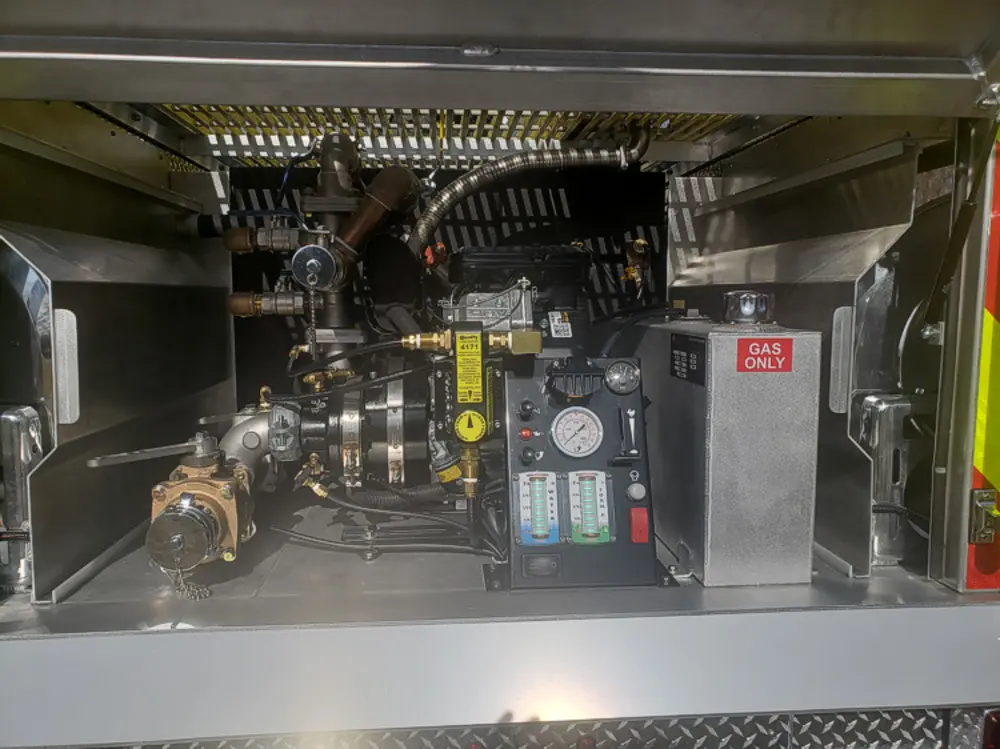

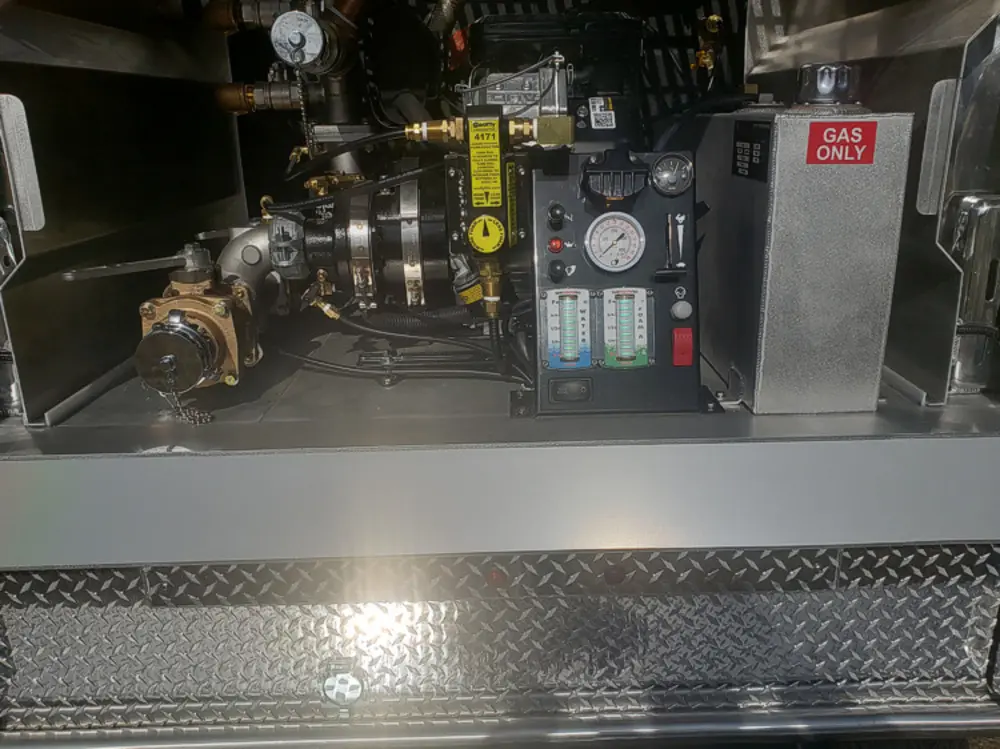

- Hale HPX75 - B23 Gas Pump
- Stainless Steel Inlet and Discharge Manifold
- Exhaust Primer
- One Rear 1.5" Preconnect Hose Tray
- Two Electric Hannay Reel Mounted on the flatbed

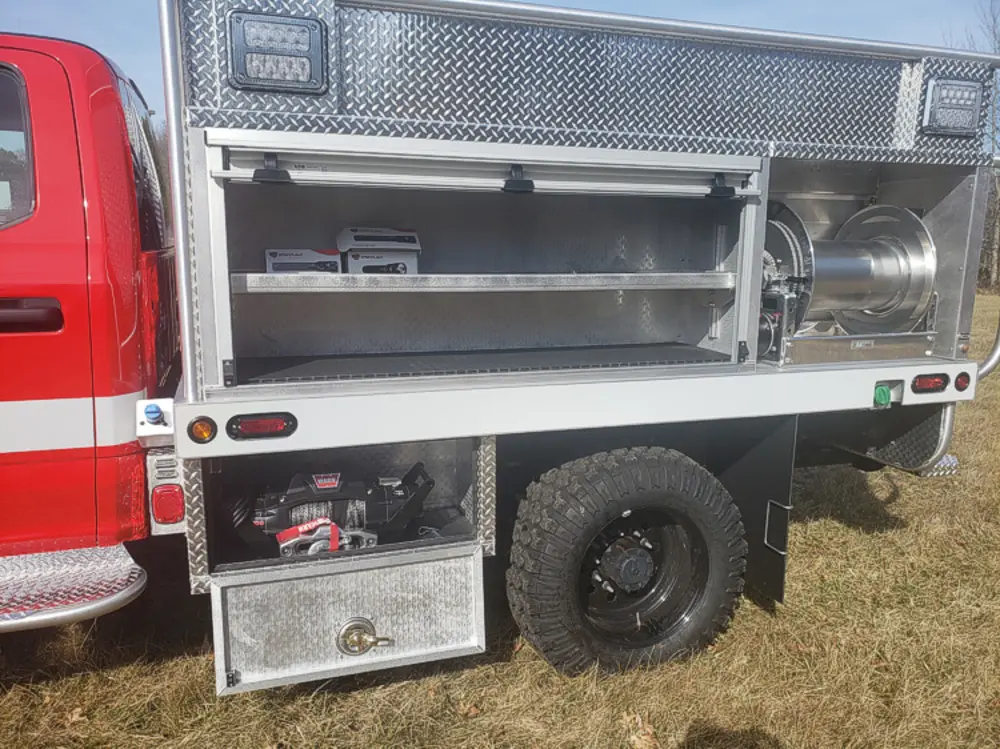

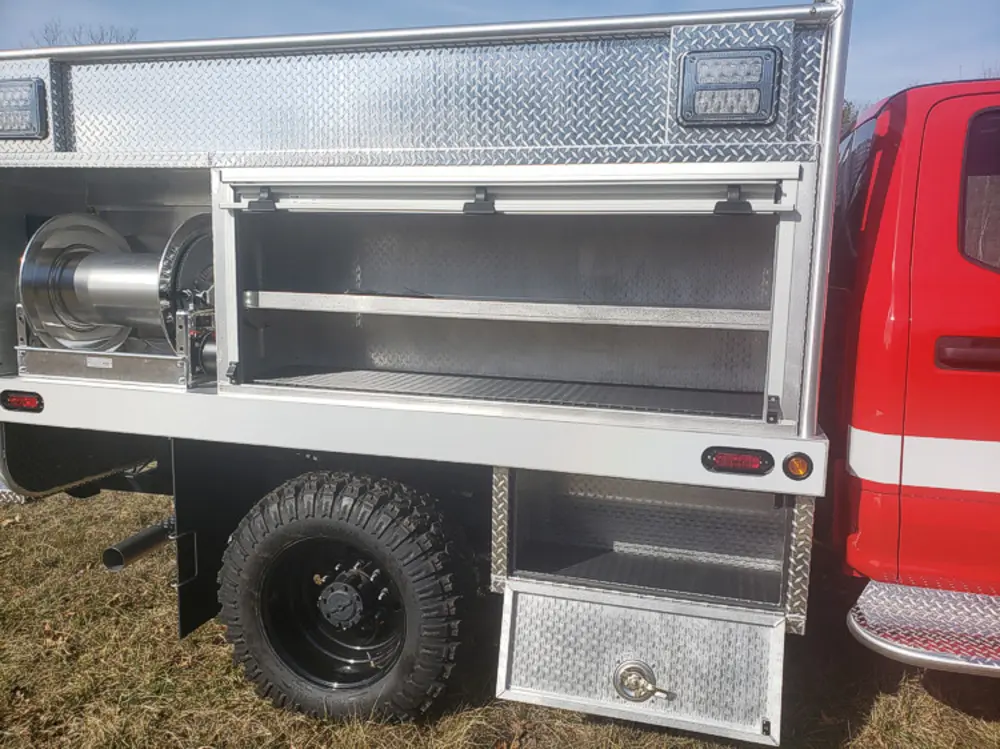

- (2) Aluminum Diamond Plate Compartments with ROM doors
- Whelen LED Lighting and Siren Package
