B.R.A.T. Delivery
Middleborough FD
Original B.R.A.T. delivered in Middleborough, Massachusetts.

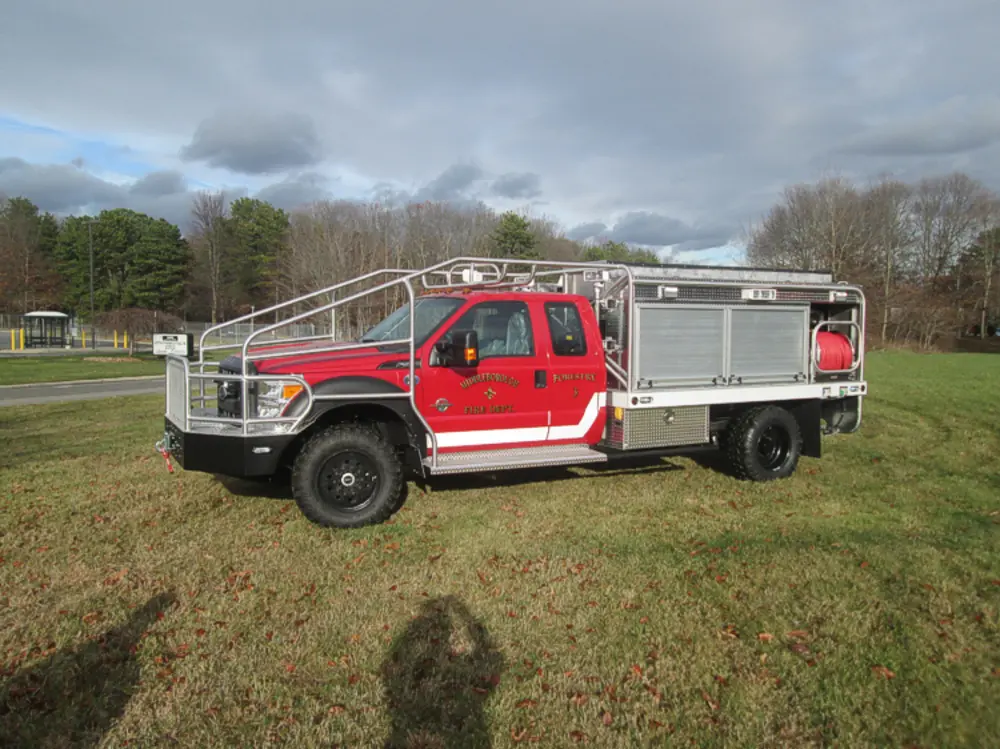

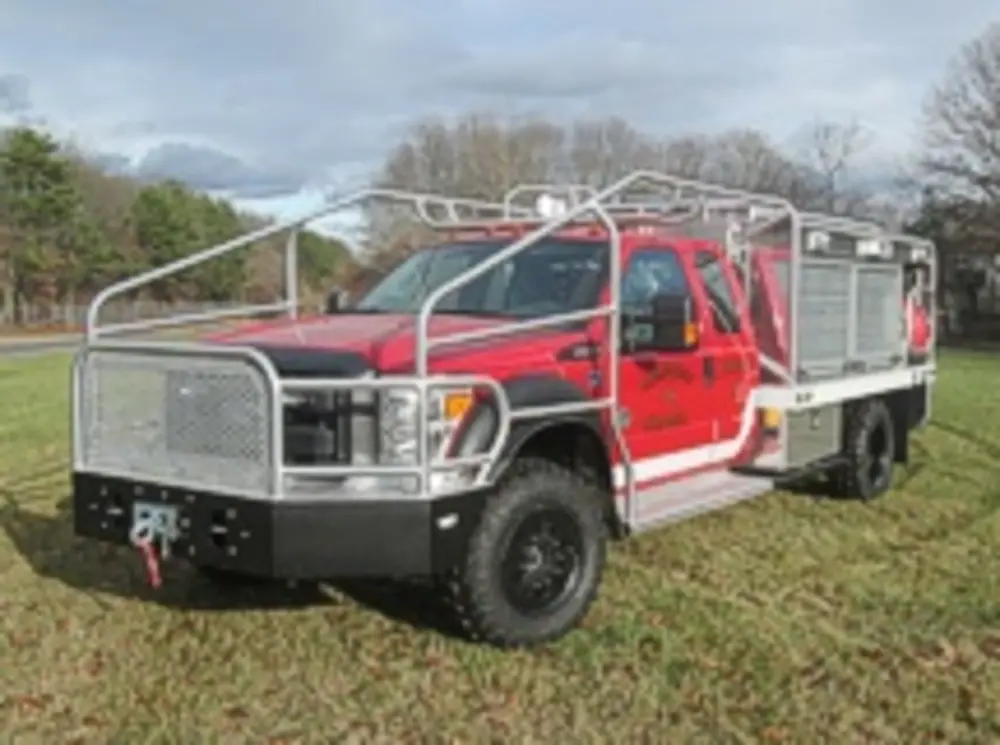

This original b.r.a.t. was delivered to Middleborough FD in Middleborough, Massachusetts and is configured around F550 chassis, 4x4.
Specs Summary
Drawing PDF- 2015 Ford F550 2 Door SuperCab 4x4 Chassis
- 6.7L Powerstroke Diesel Engine
- Super Single Aggressive Tread 19.5" Interco Irok Tires

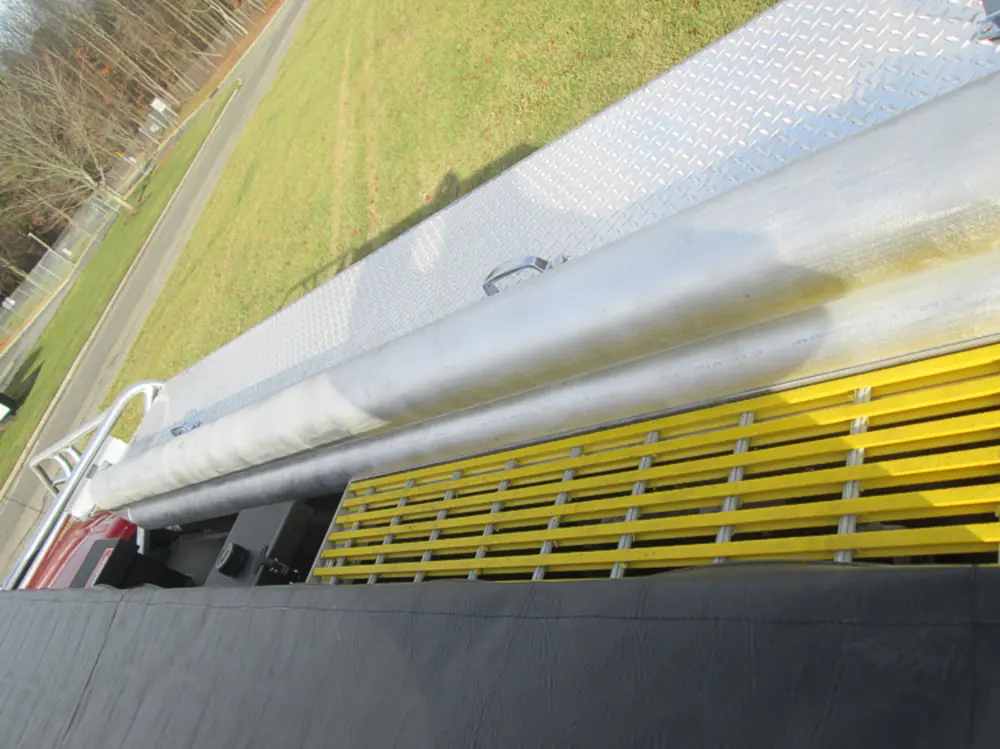

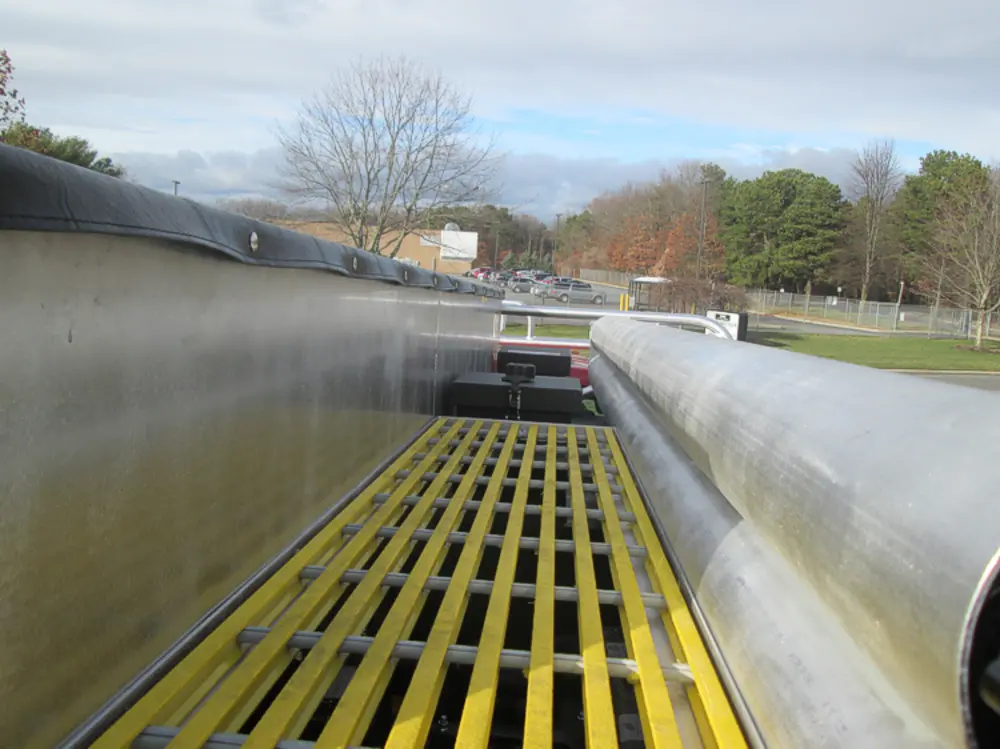

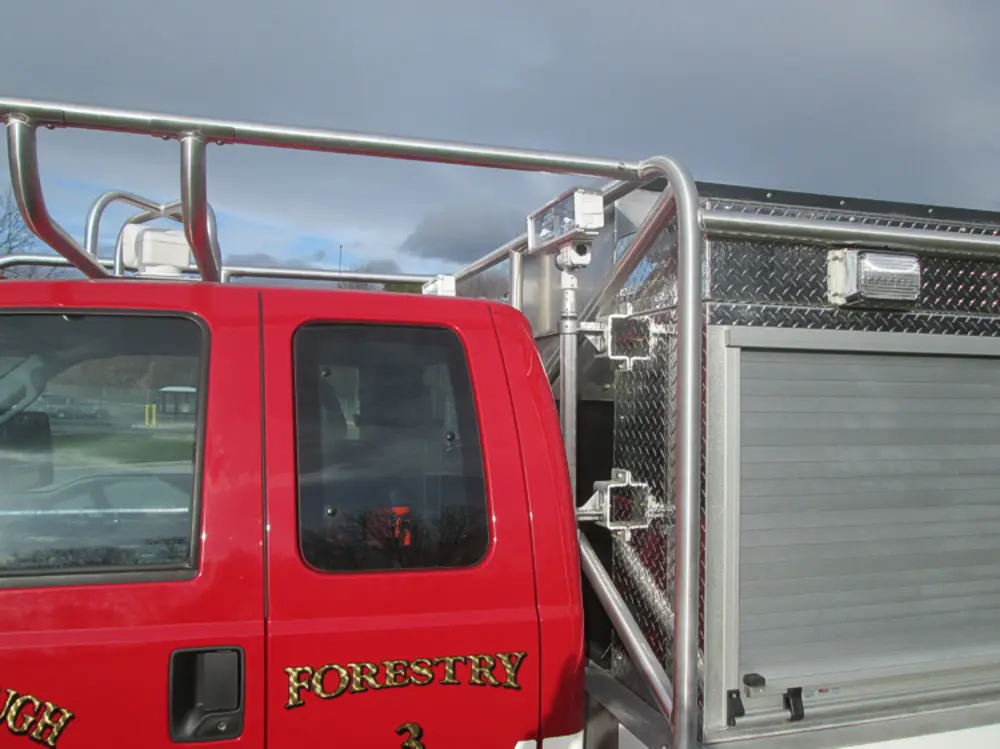

- Lightweight Aluminum Fabricated Flatbed with FEA Tested Roll Bar, Cab and body Protection Cage
- Pro Poly 400/20 Gallon Protector Skid

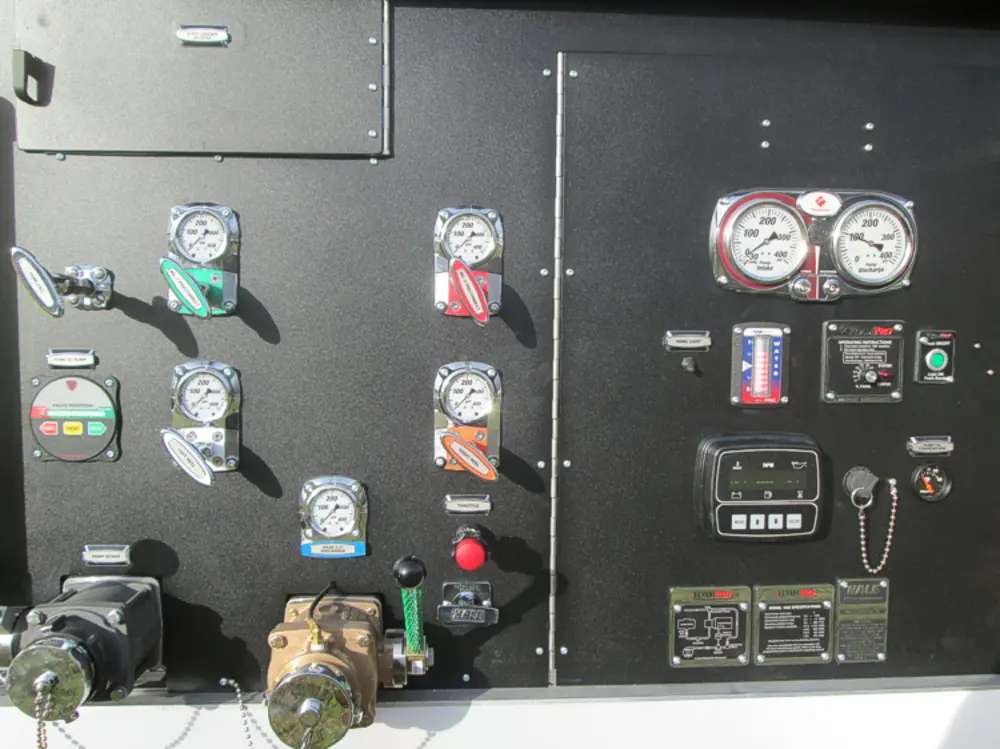

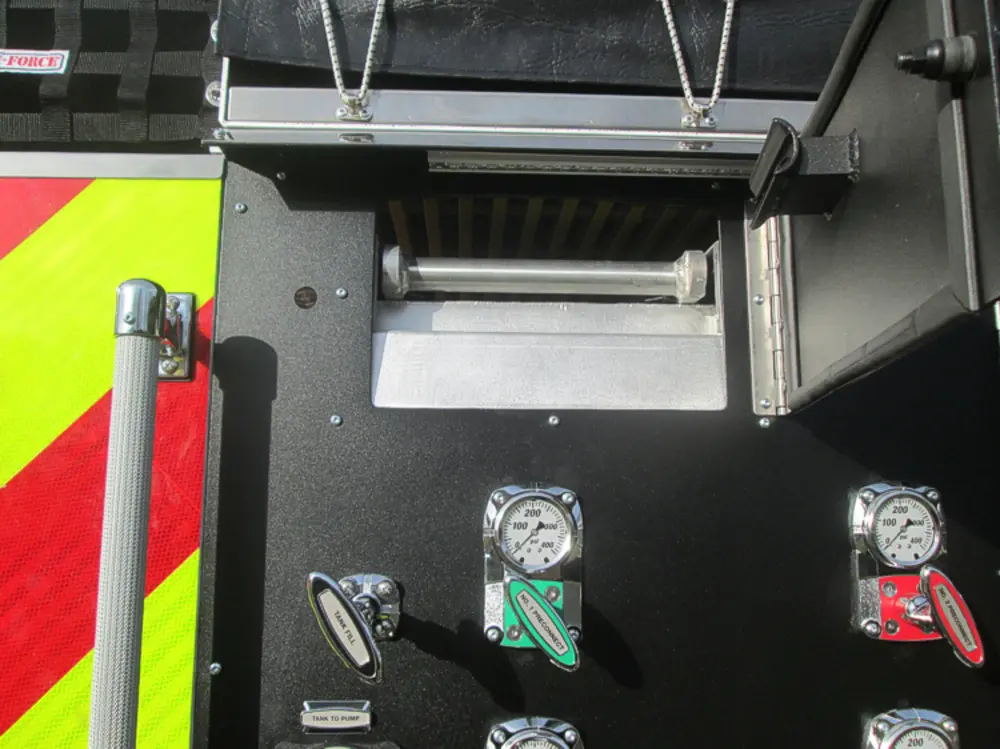

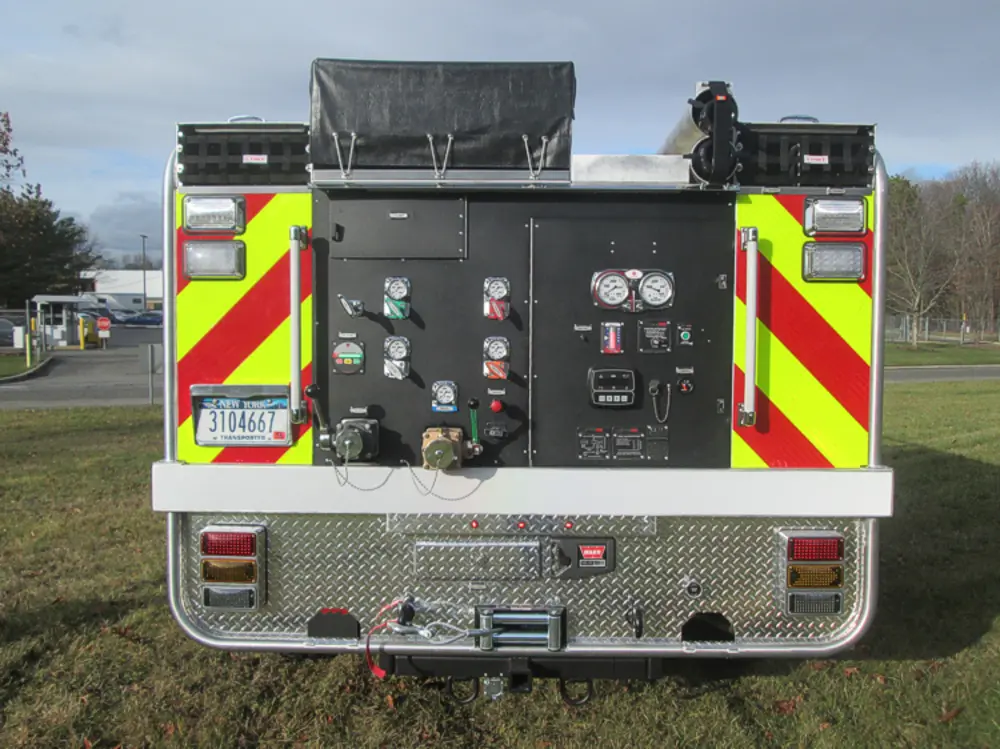

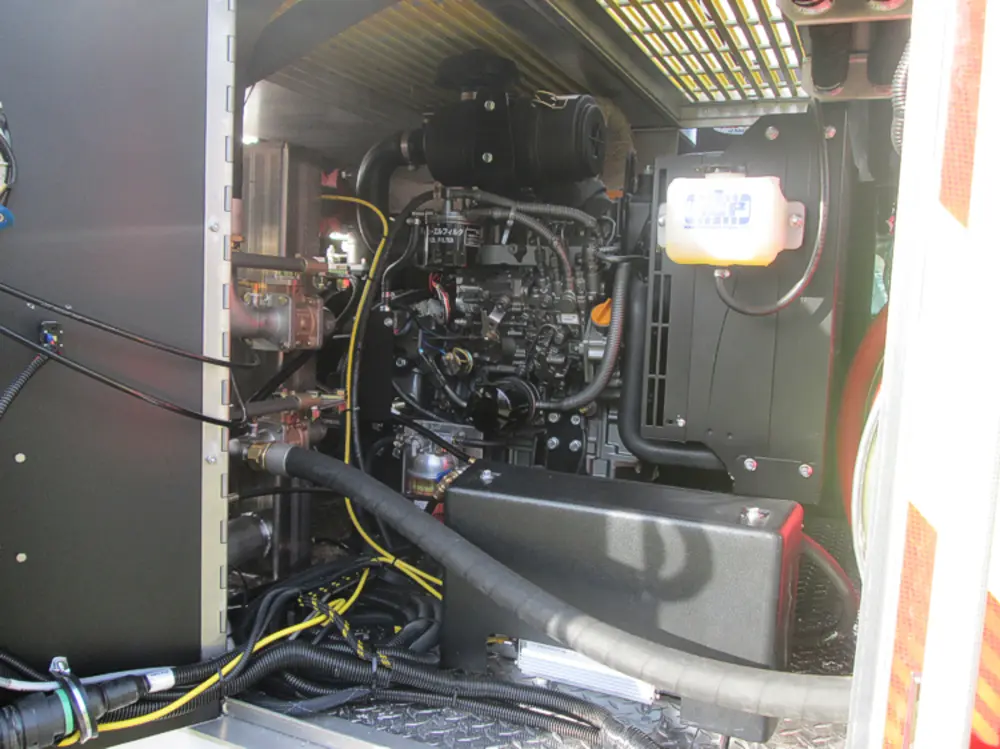

- Yanmar 36 hp diesel engine and Hale 30FS Pump combo w/ enclosed pump panel
- Stainless Steel Inlet and Discharge Manifold with Akron Brass Valves

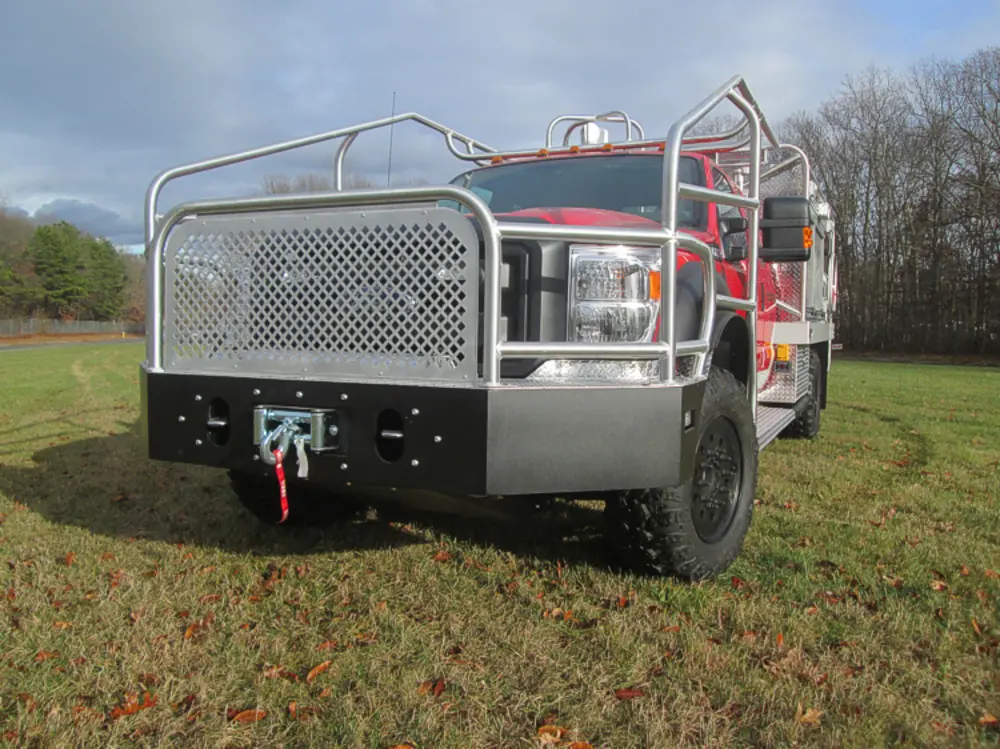

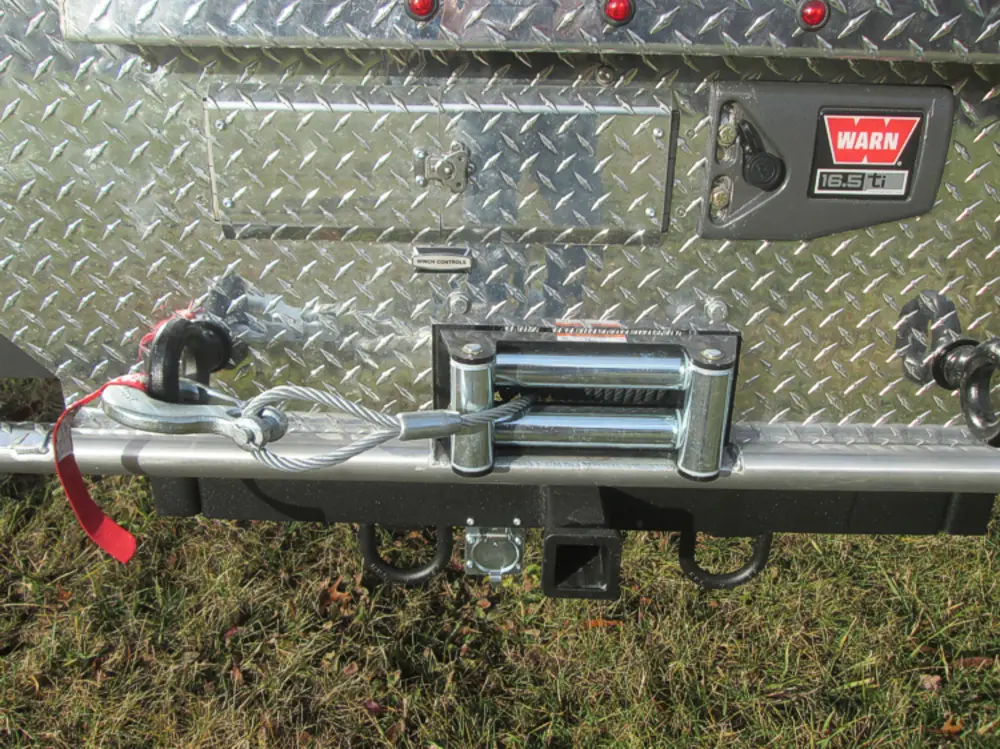

- A custom built aluminum heavy channel front bumper
- Two Aluminum Diamond Plate Rear 1.5" Preconnects.

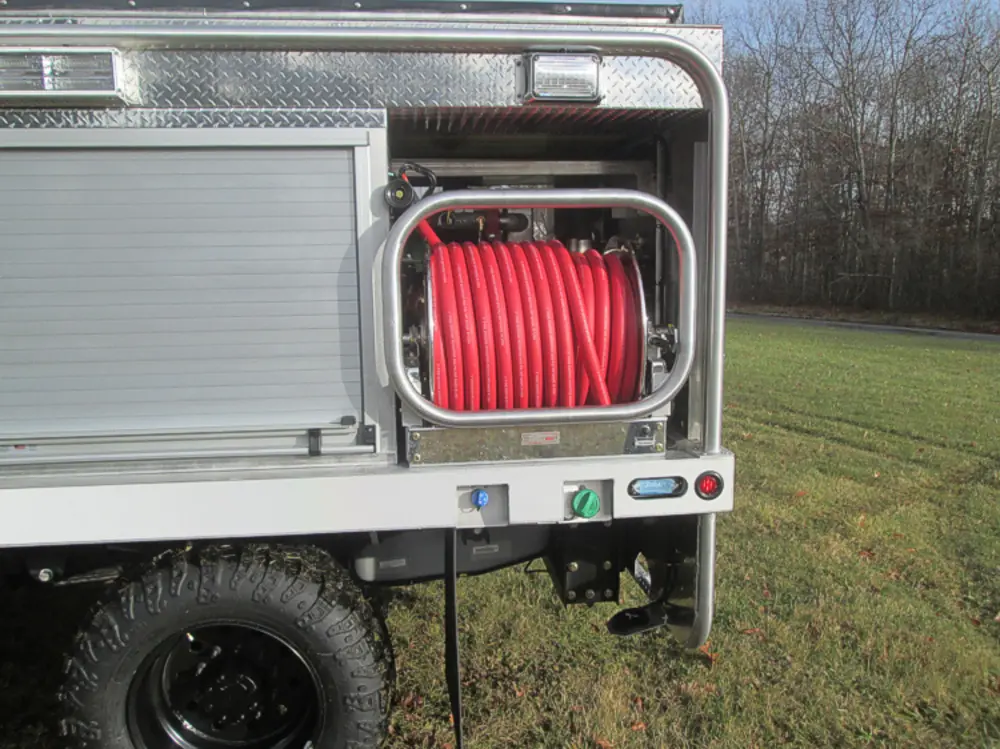

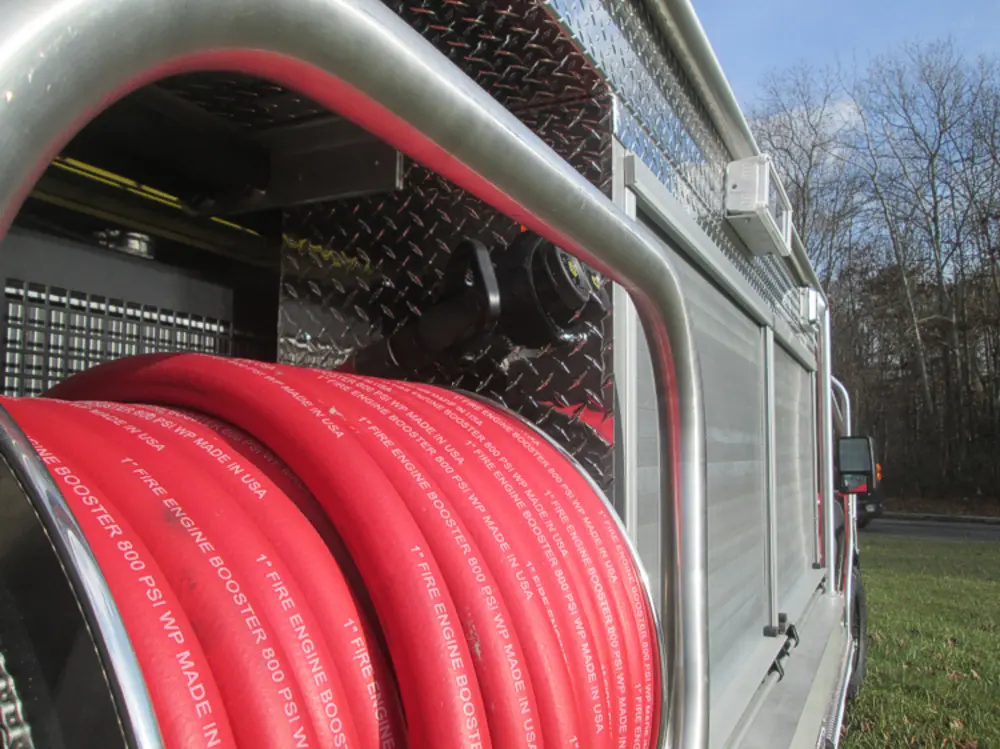

- Two Electric Hannay Reels Mounted on rear bed corners will hold 200' of 1" Booster.
- FoamPro 1600 foam system

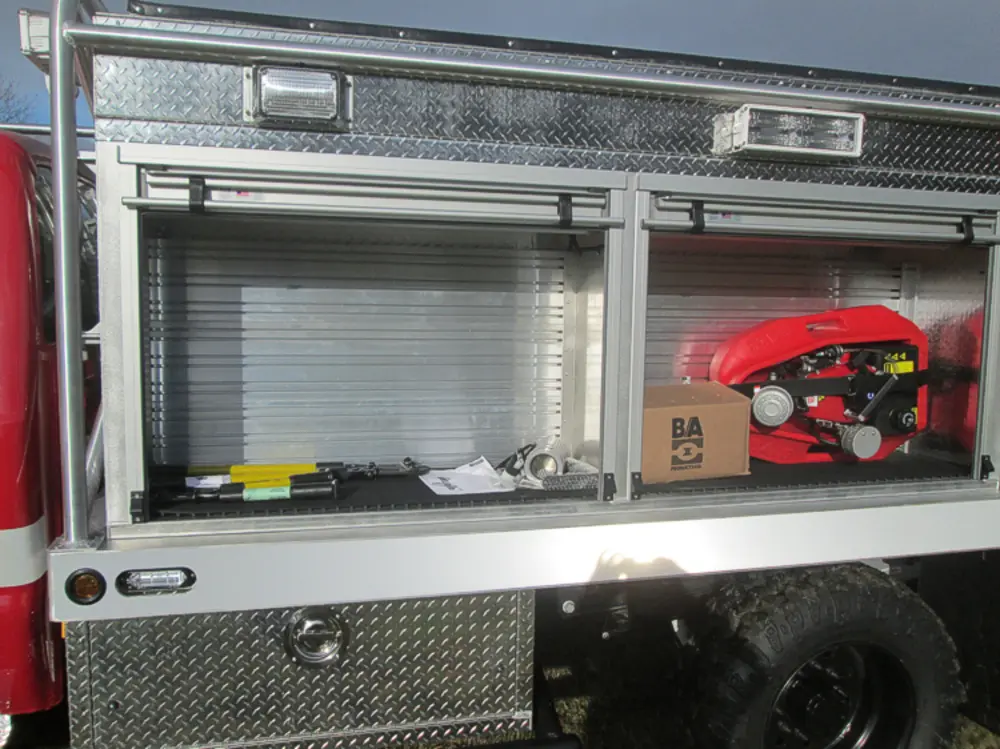

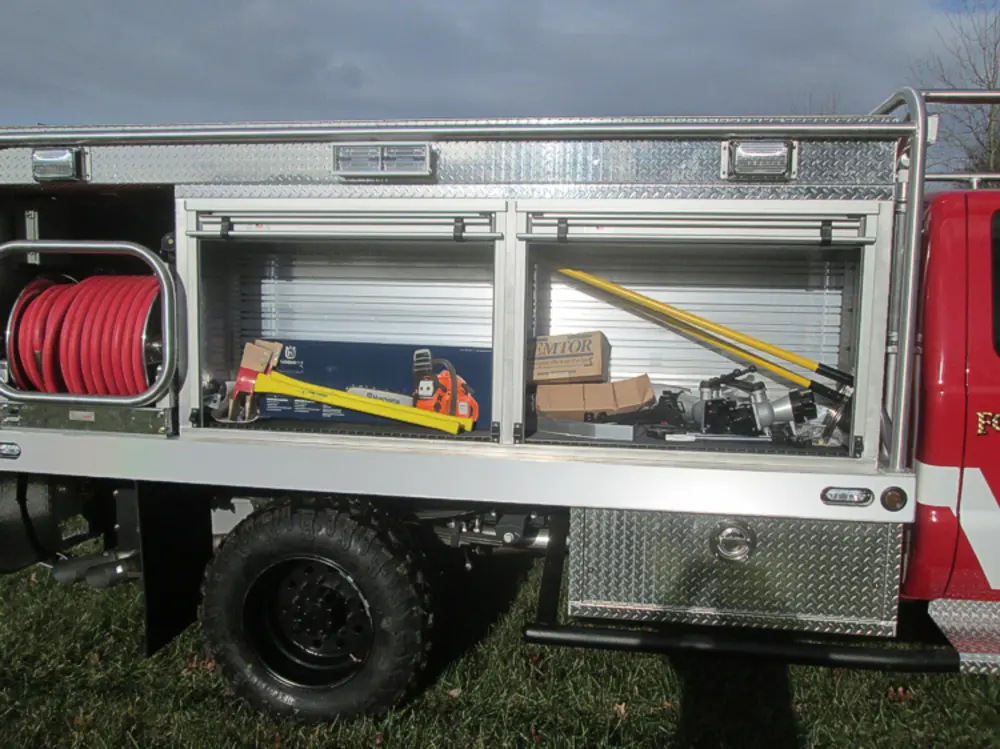

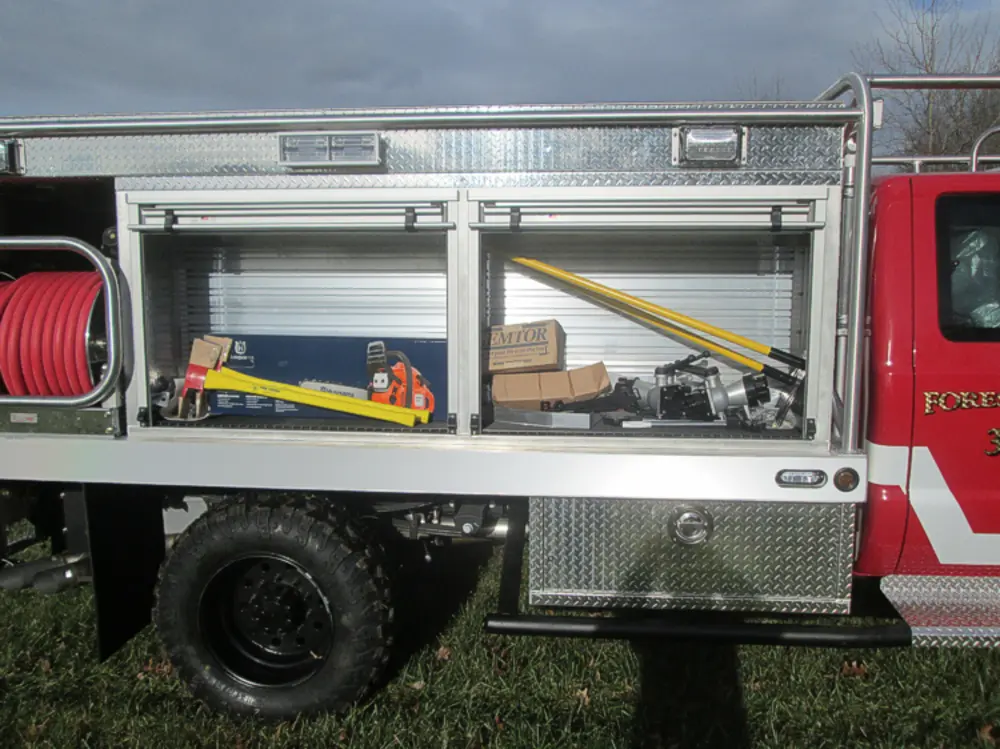

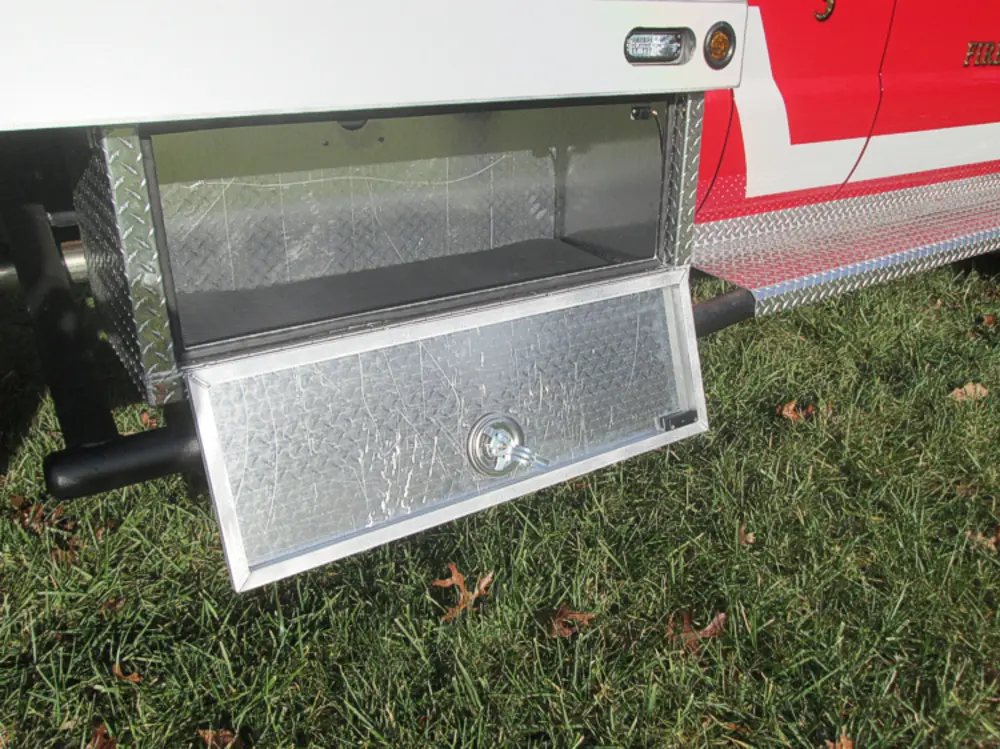

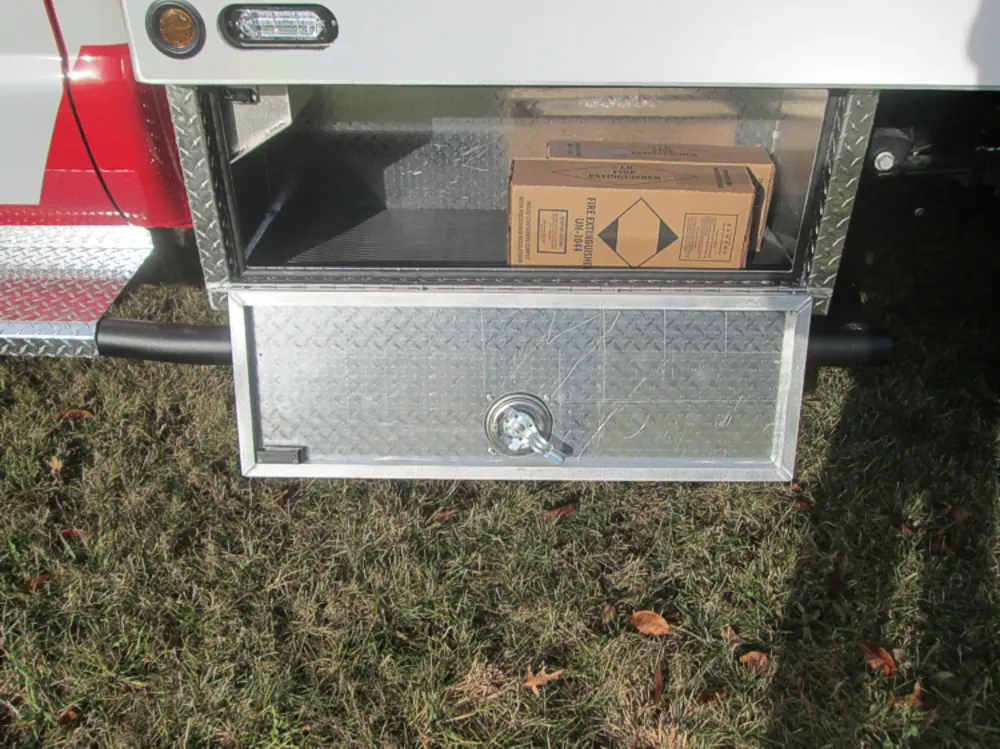

- (4) Aluminum Diamond Plate Compartments with ROM roll up doors
