B.R.A.T. Delivery
Hanson FD
Original B.R.A.T. delivered in Hanson, Massachusetts.

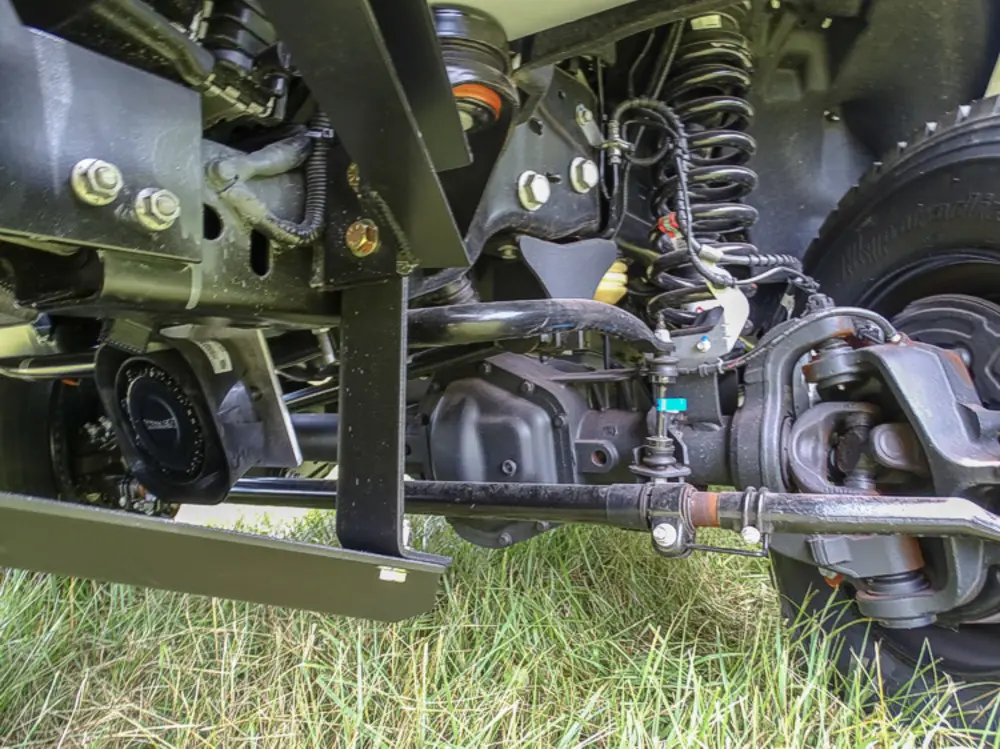

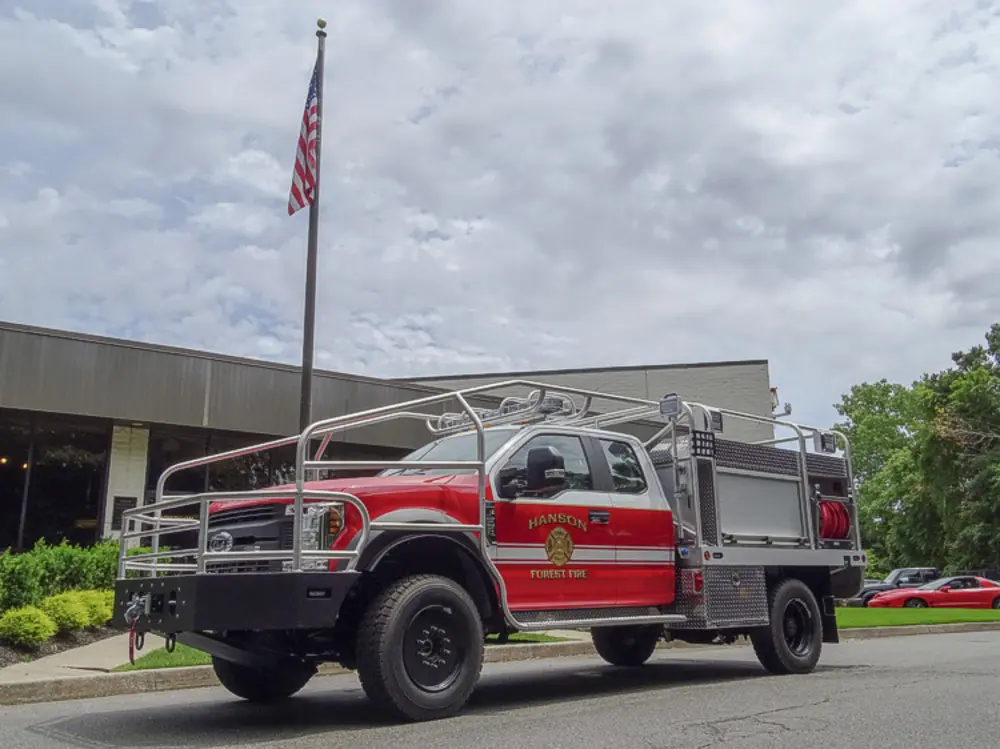

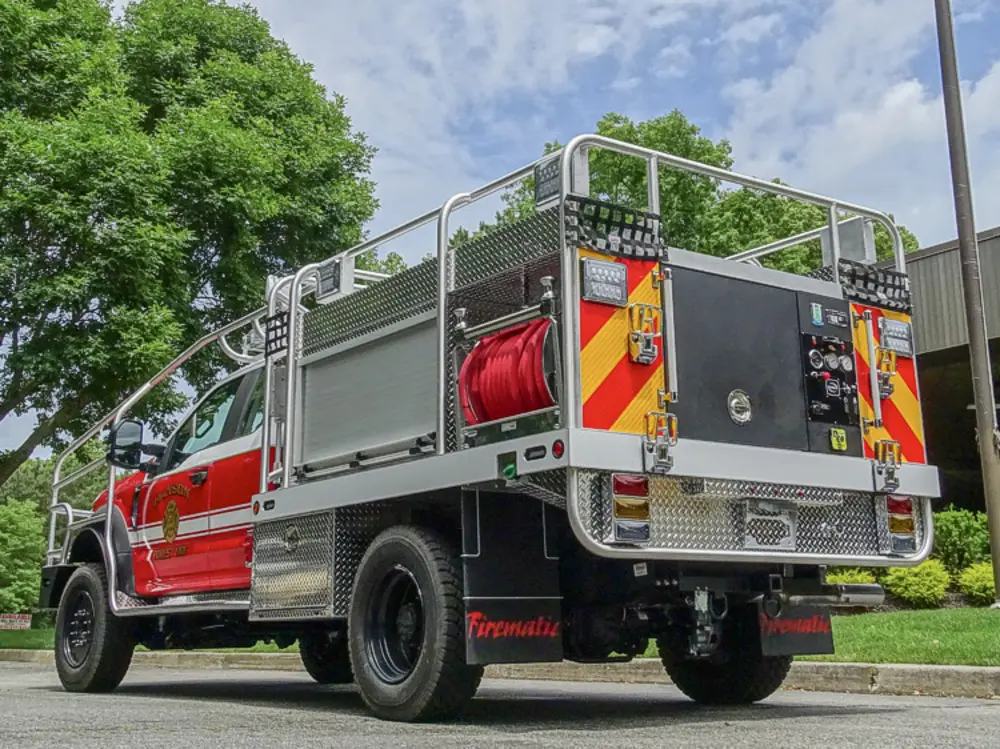

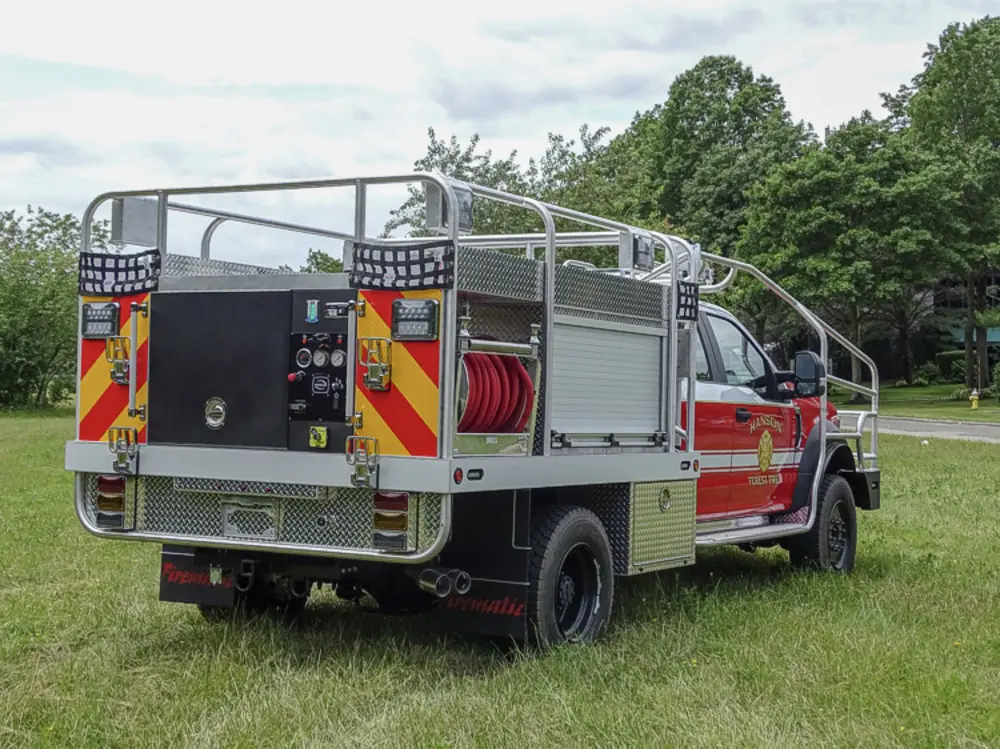

This original b.r.a.t. was delivered to Hanson FD in Hanson, Massachusetts and is configured around F550 chassis, 4x4.
Specs Summary

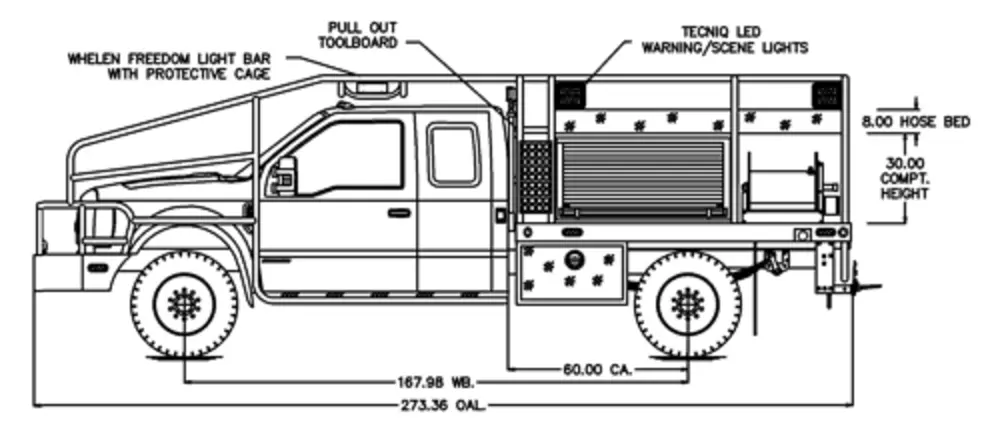

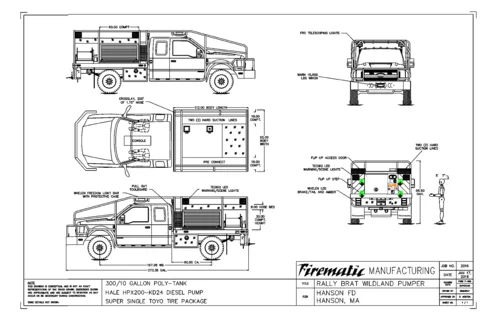

Drawing PDF- 2018 Ford F550 2 Door SuperCab 4x4 Chassis
- Two-Tone Paint Scheme

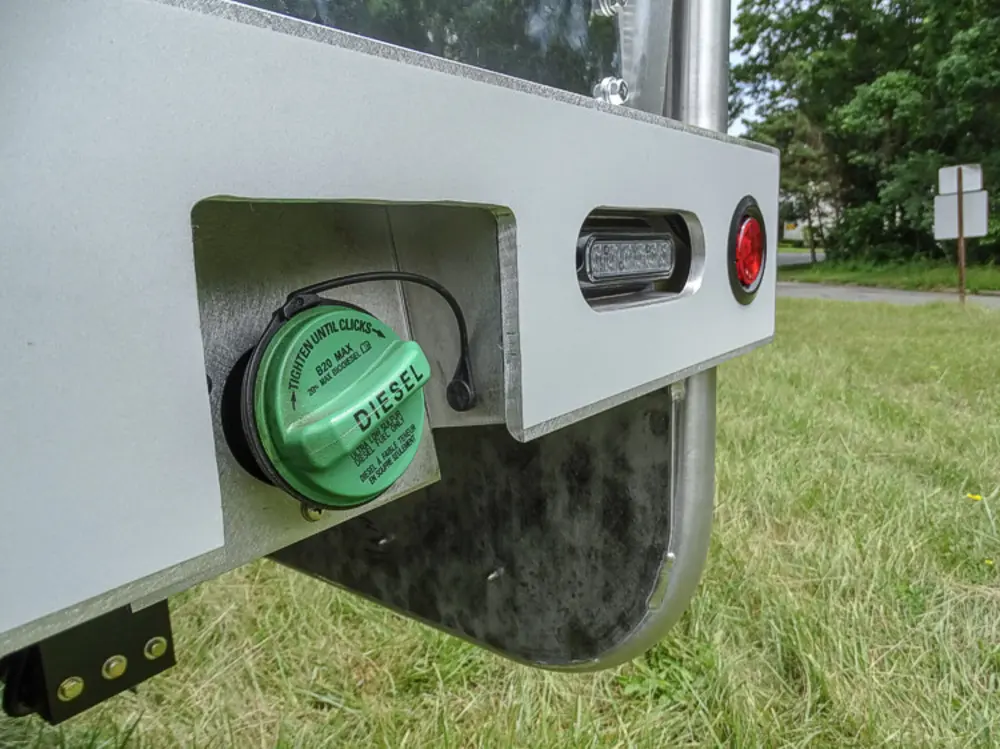

- 6.7L Powerstroke Diesel Engine

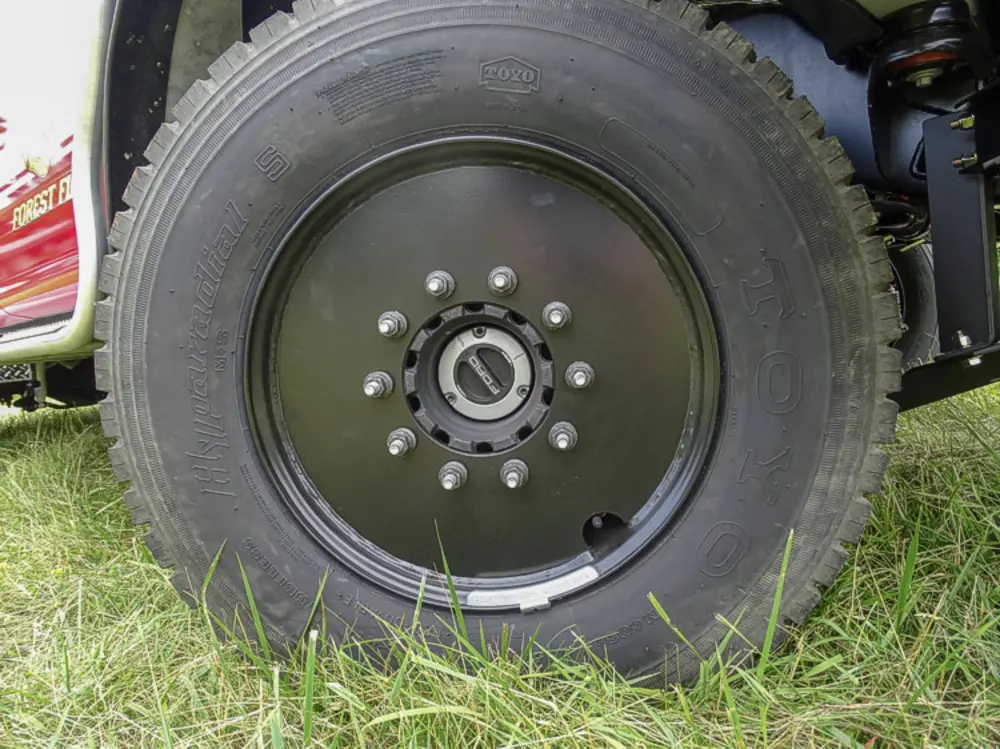

- Super Single 19.5" Toyo Tires

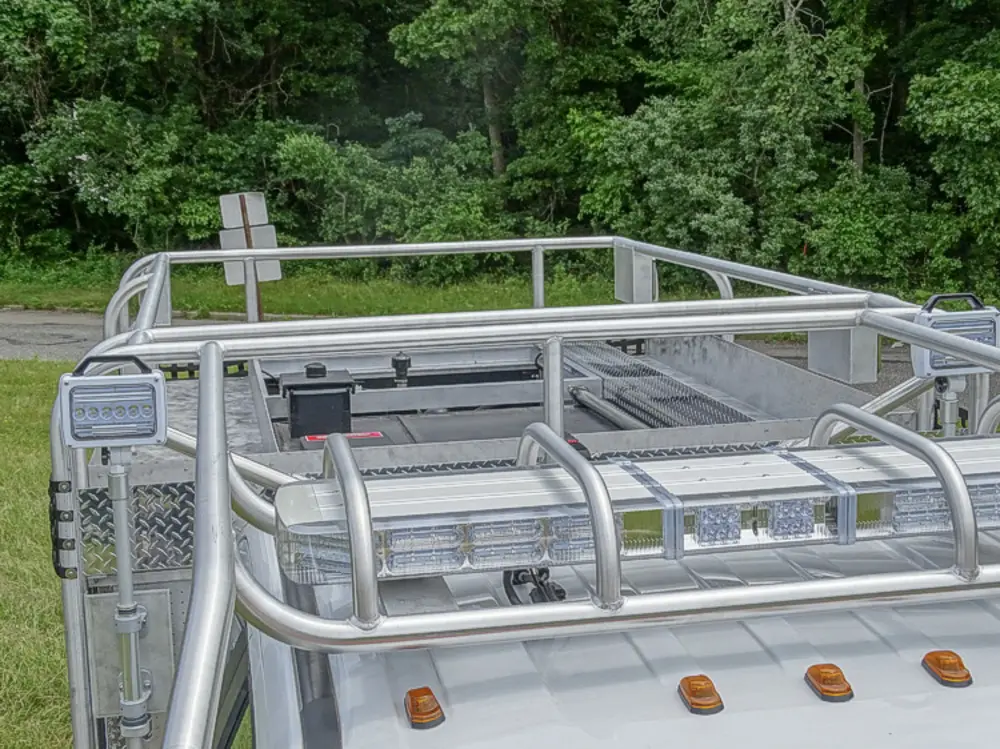

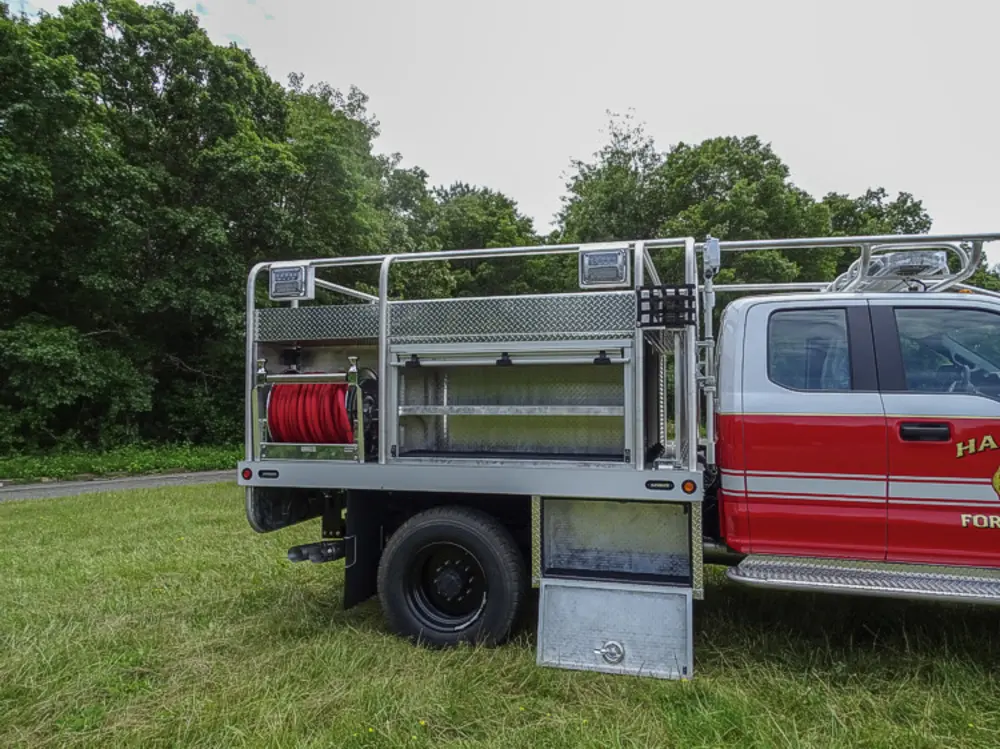

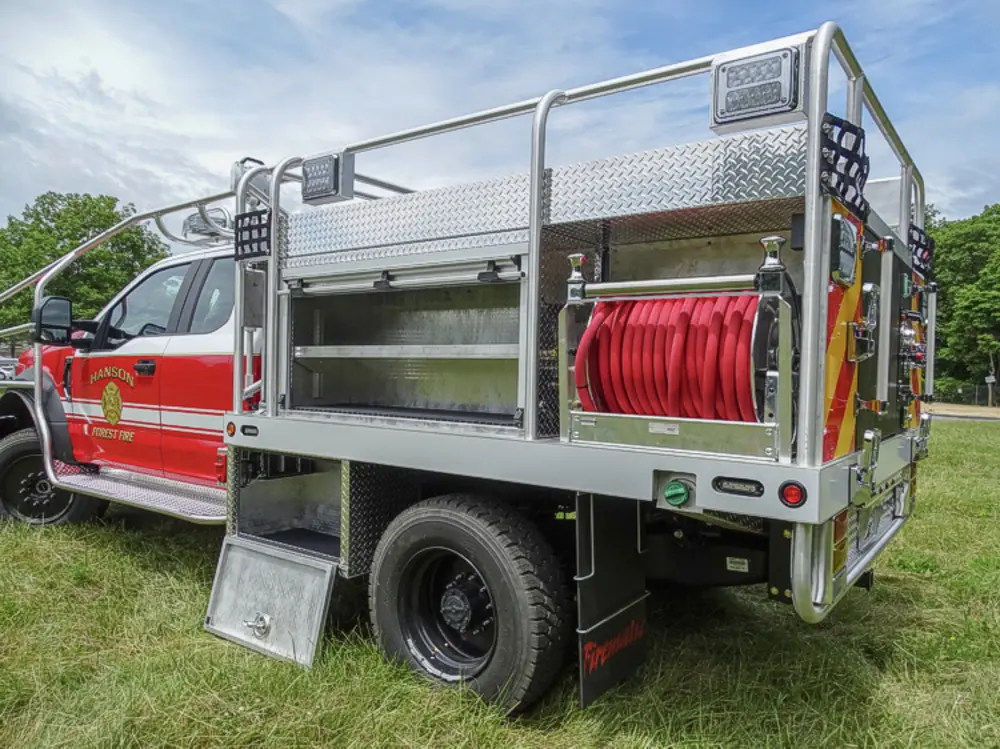

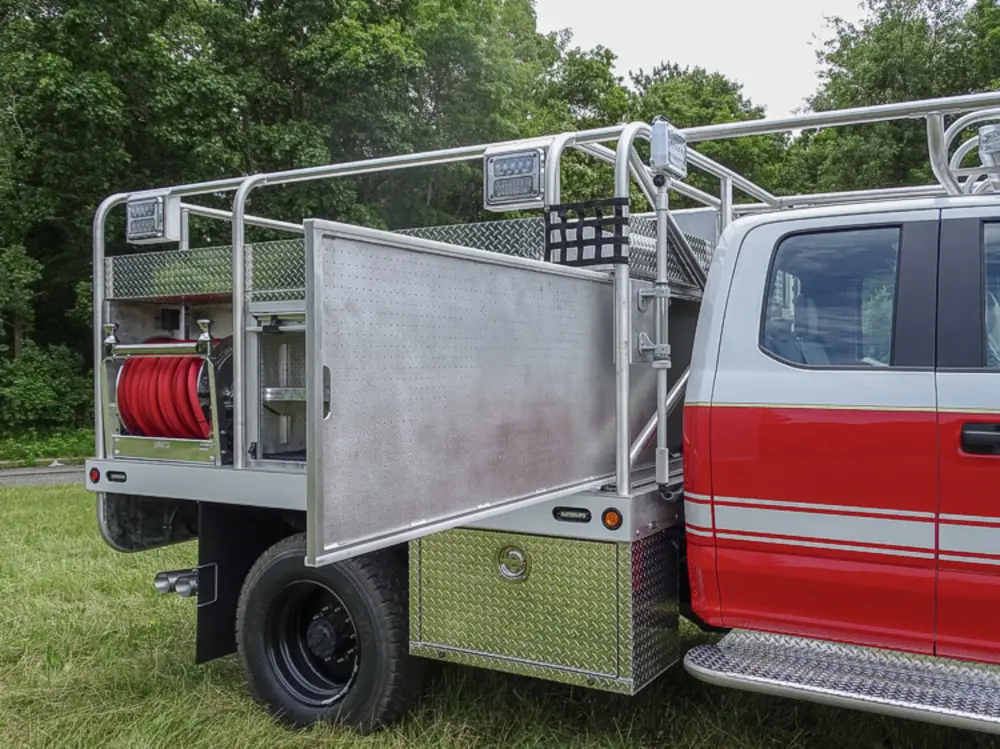

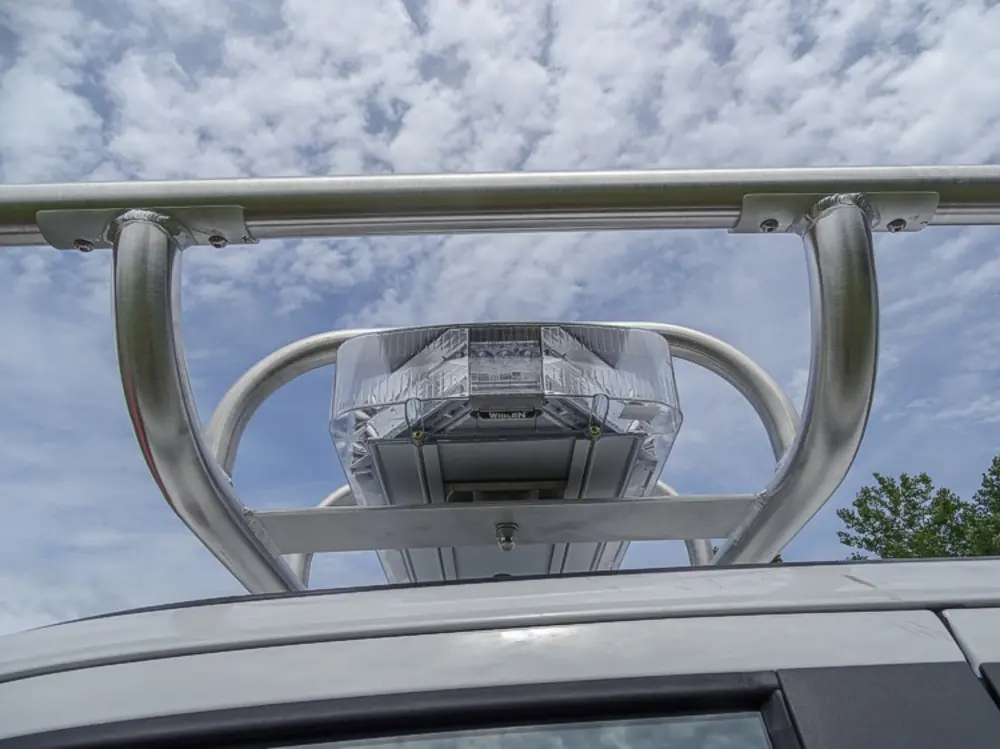

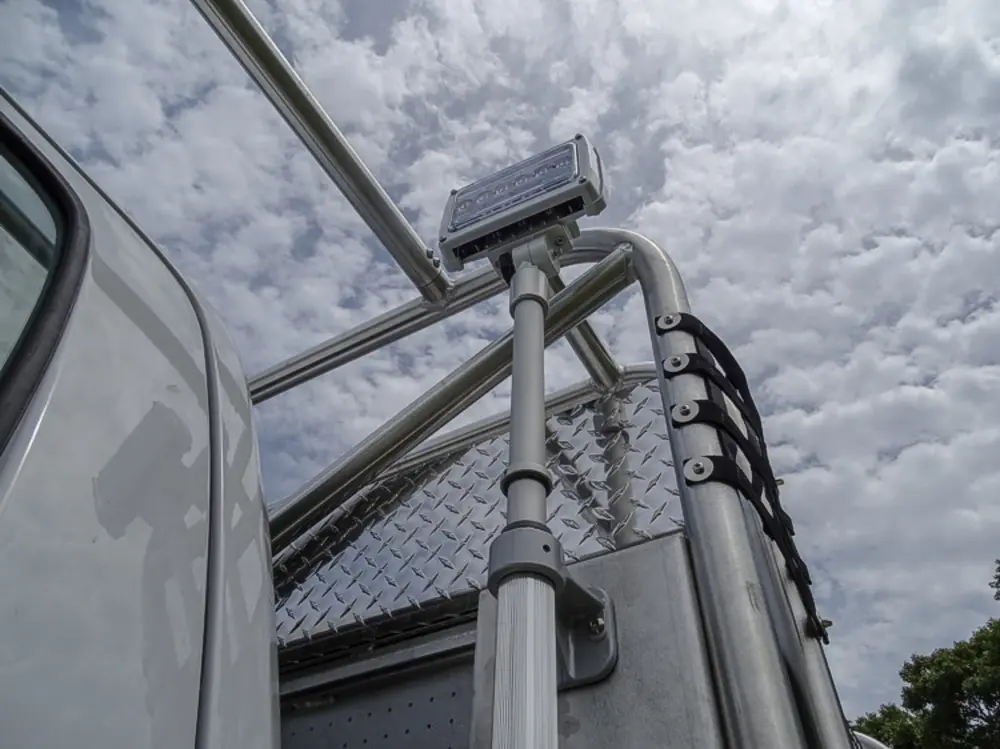

- Lightweight Aluminum Fabricated Flatbed with FEA Tested Roll Bar, Cab and body Protection Cage

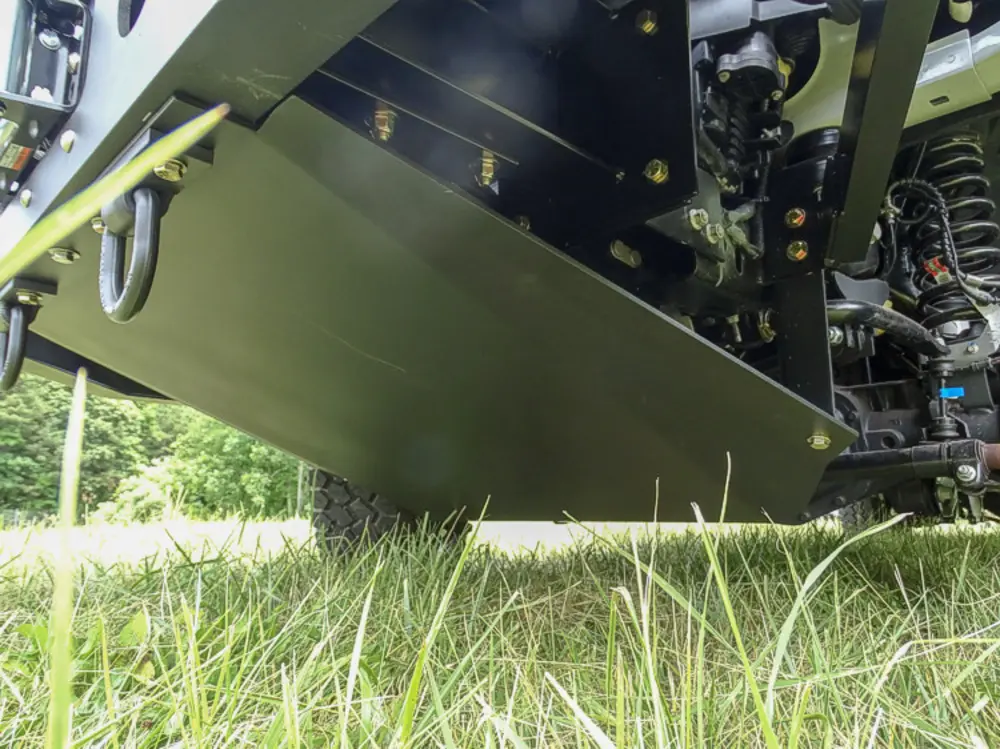

- Pro Poly 300/10 Gallon Protector Skid

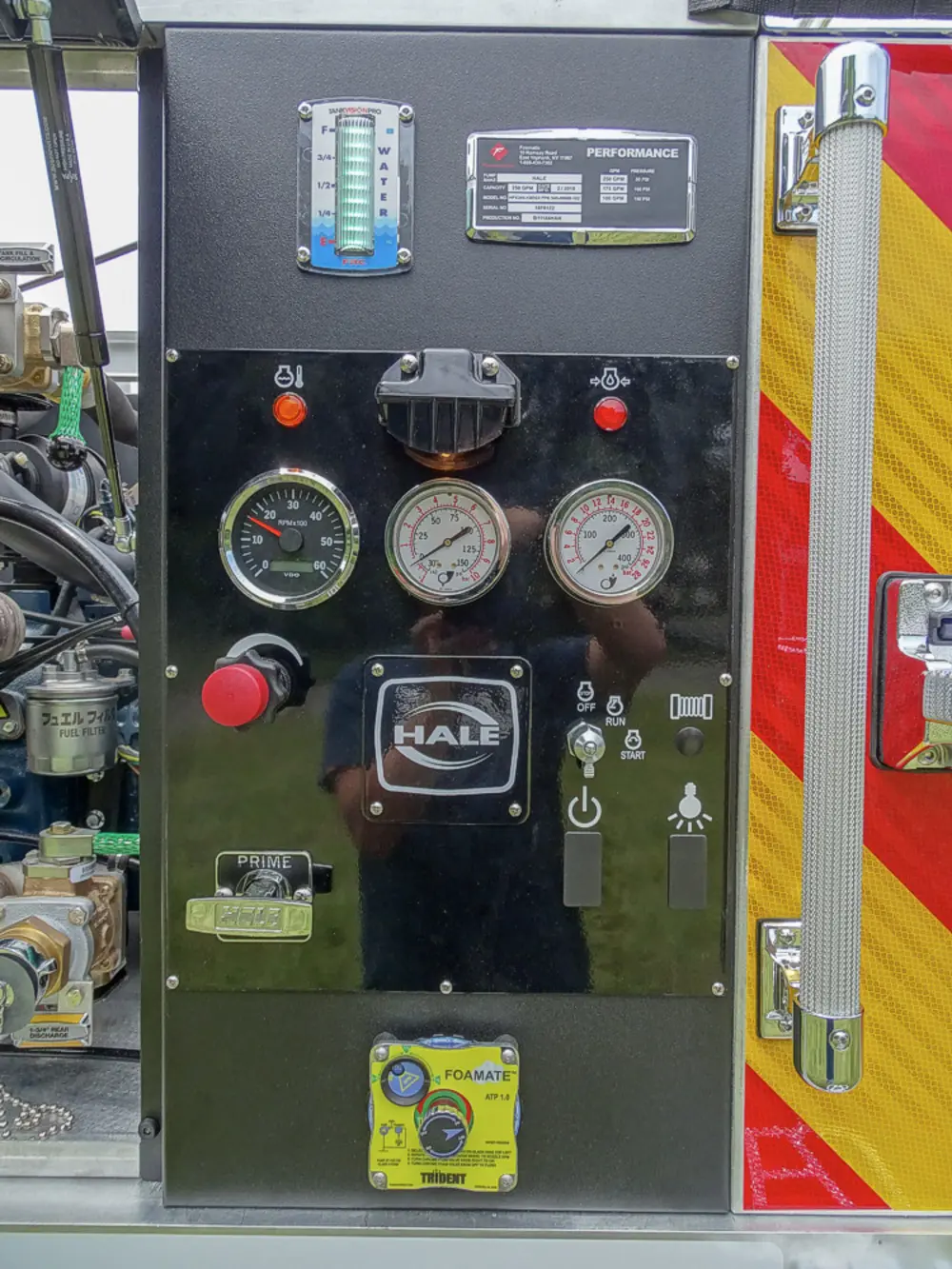

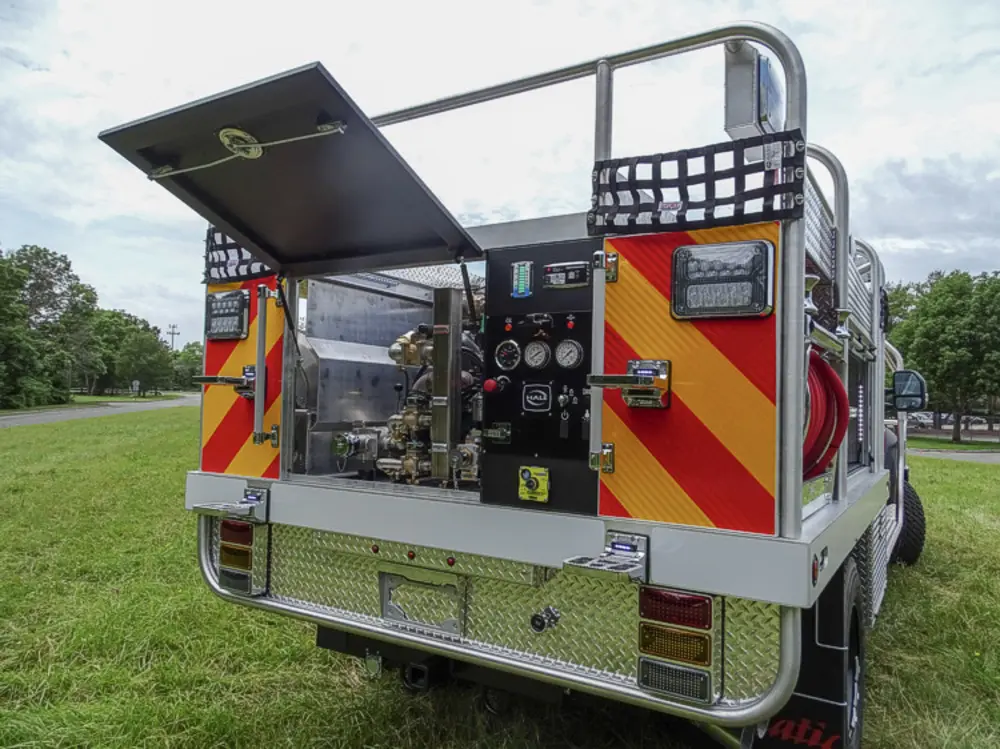

- Hale HPX200 pump package with Kubota 24 hp diesel engine with enclosed pump panel

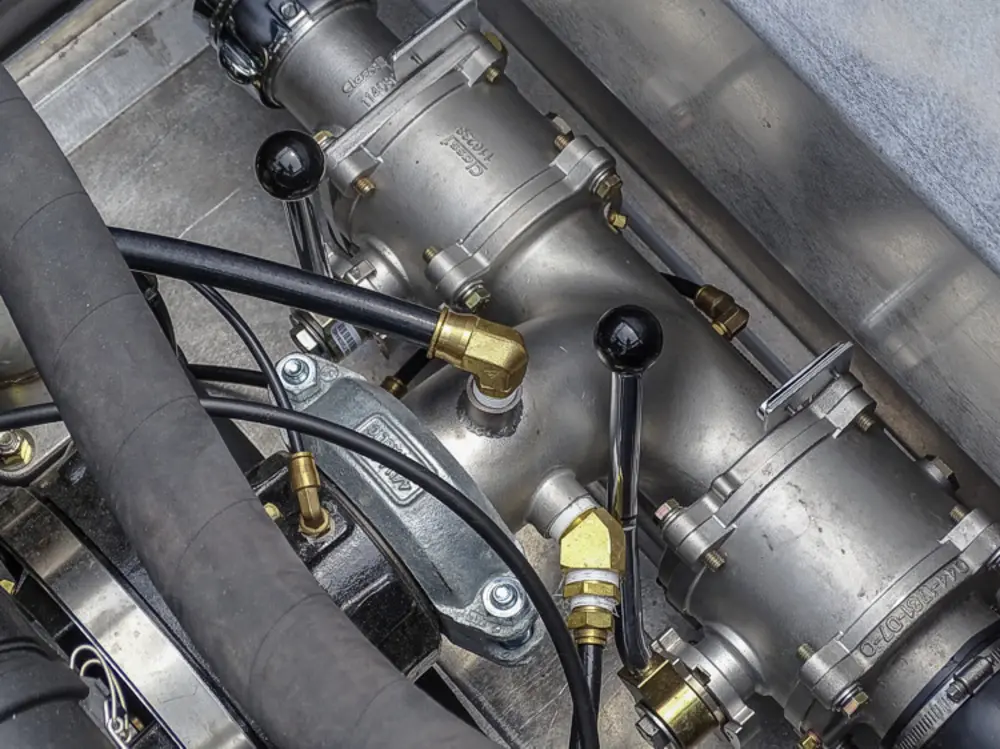

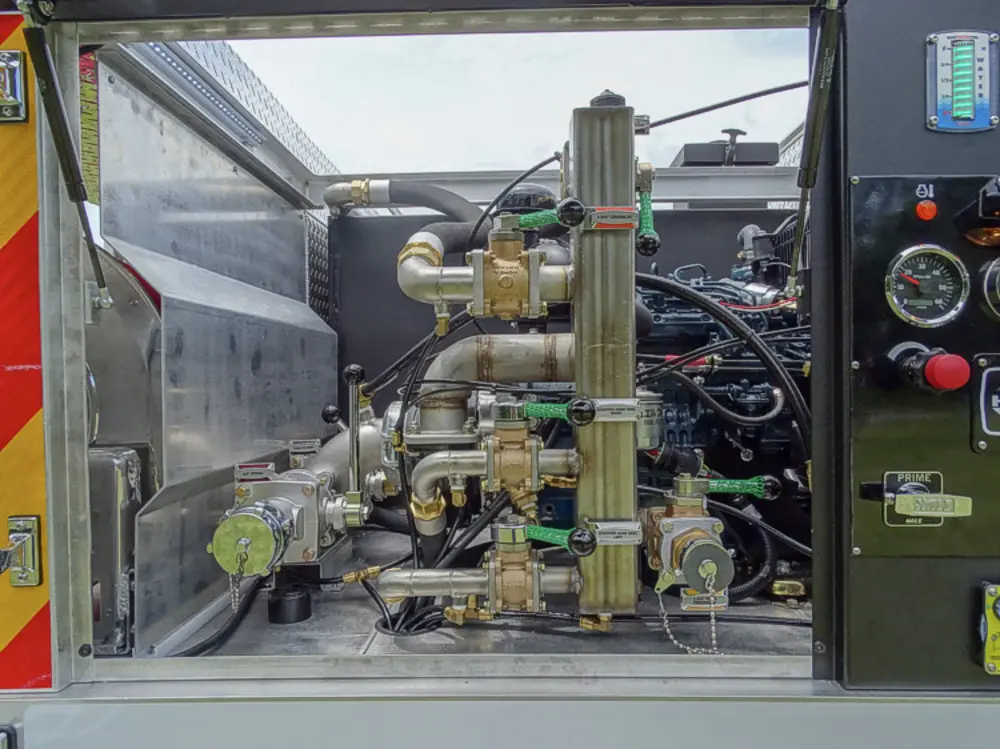

- Stainless Steel Inlet and Discharge Manifold with Akron Brass Valves

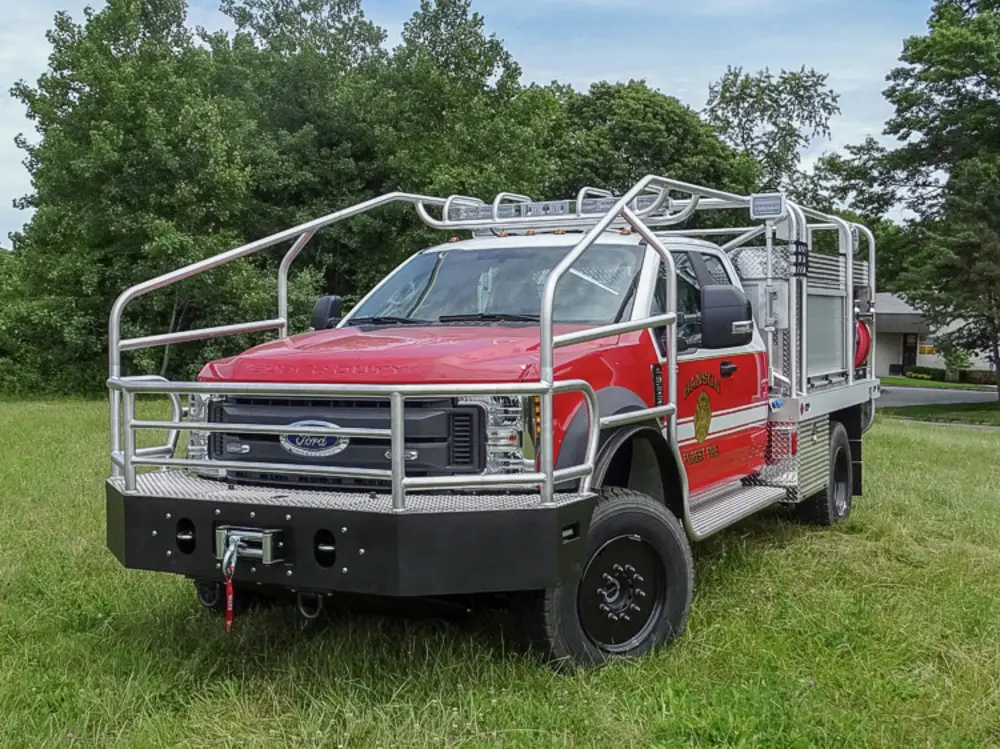

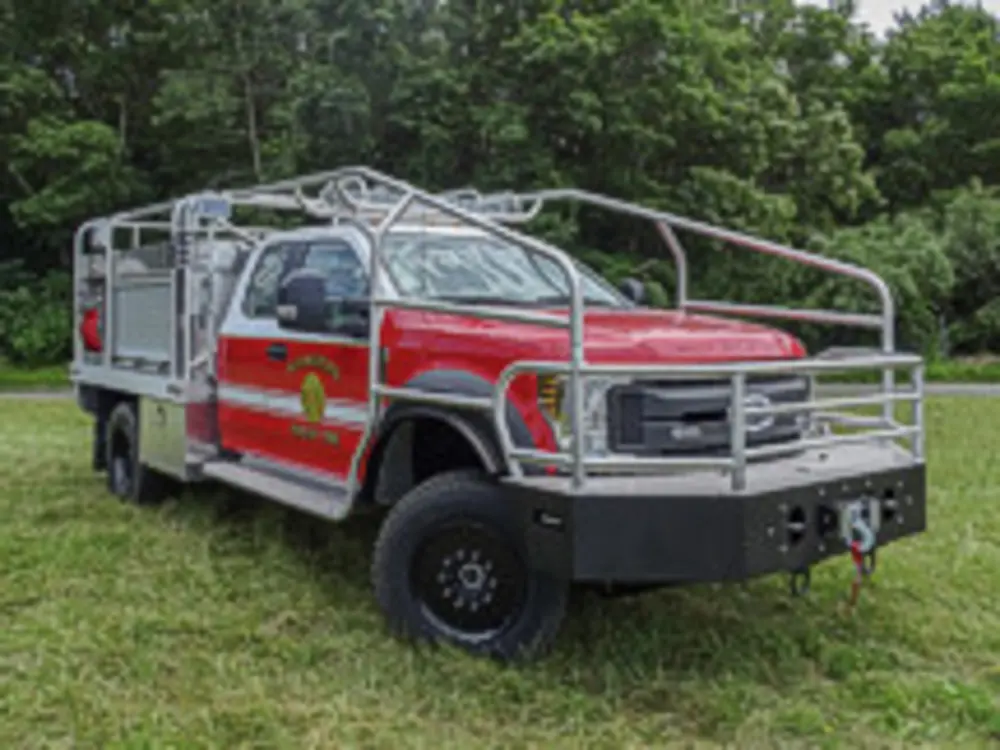

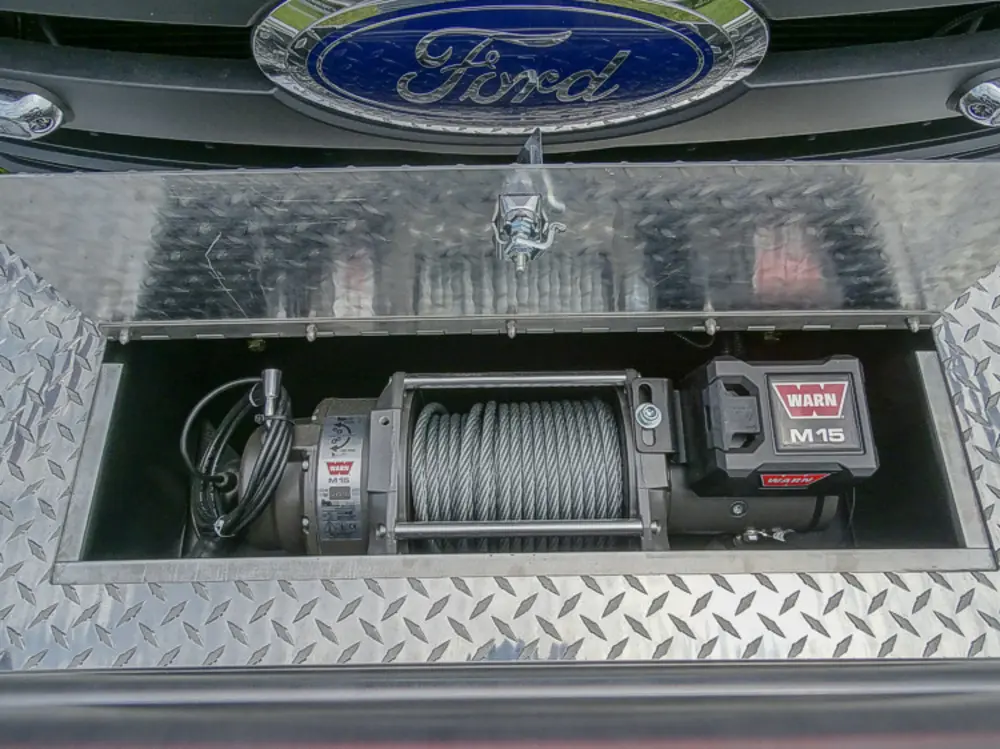

- A custom built aluminum heavy channel front bumper
- One Aluminum Diamond Plate Rear 1.5" Preconnect

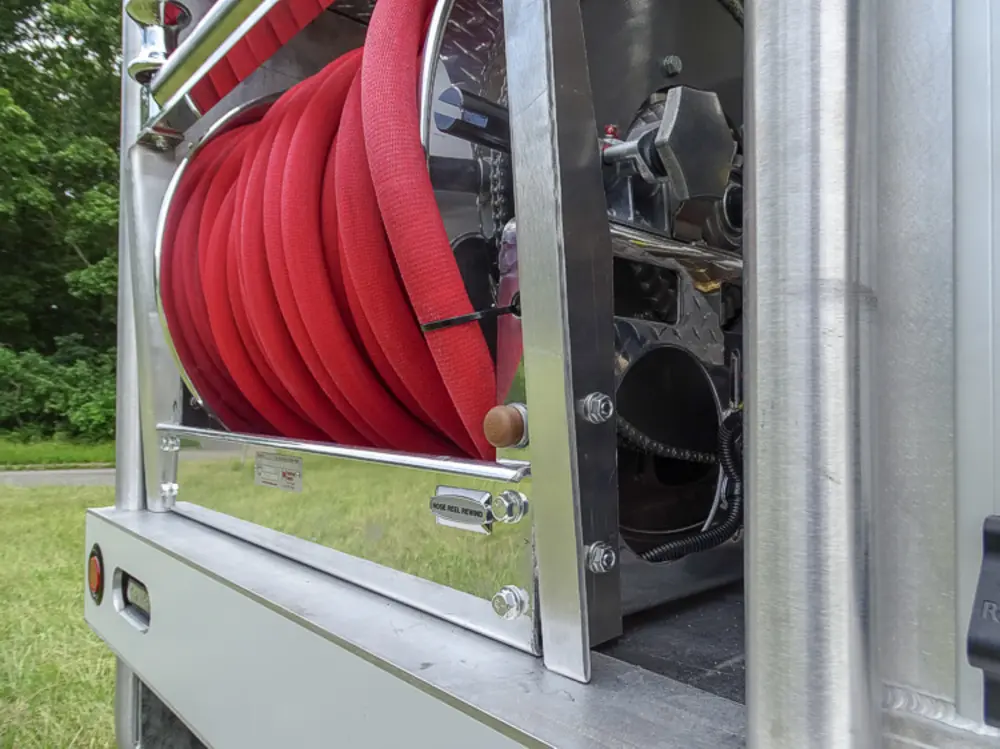

- Two Electric Hannay Reels Mounted on rear bed corners will hold 200' of 1" Booster
- Trident Around the pump foam system
