B.R.A.T. Delivery
Fort Devens FD

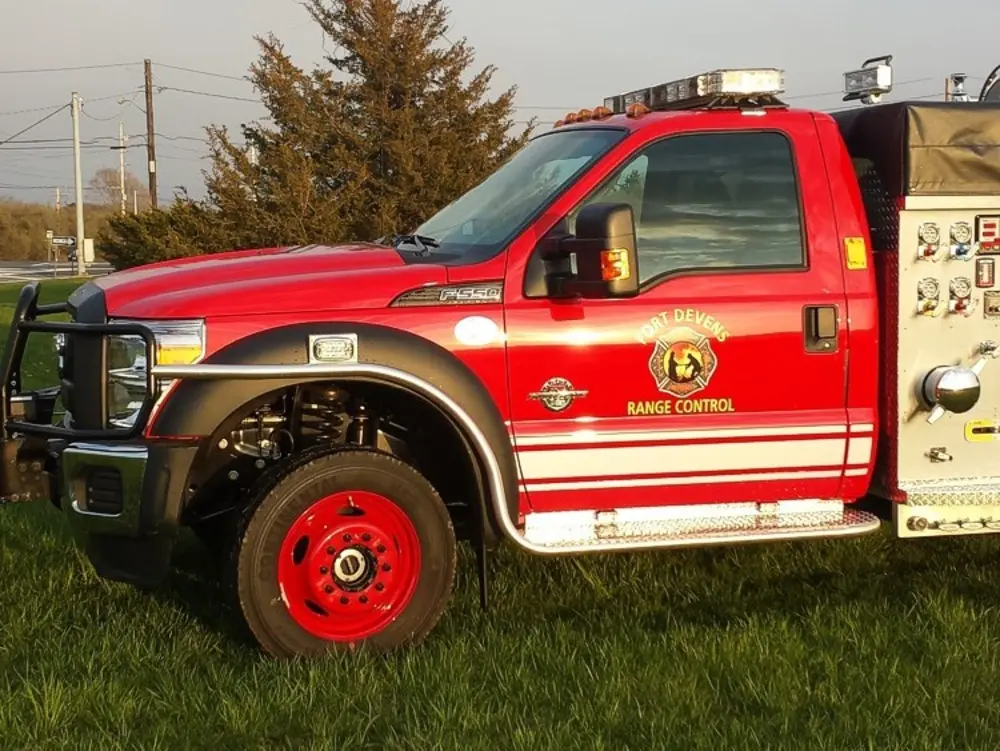

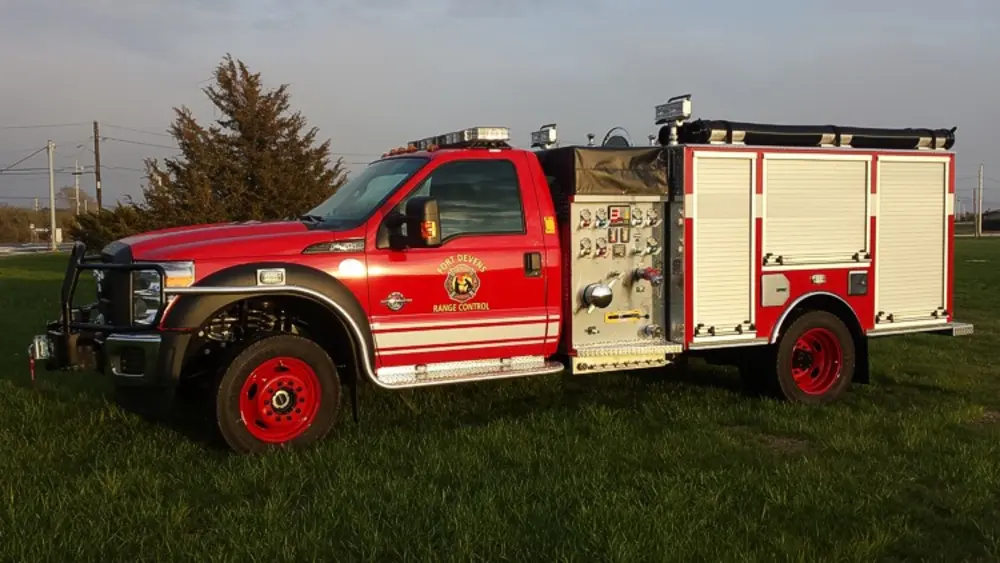

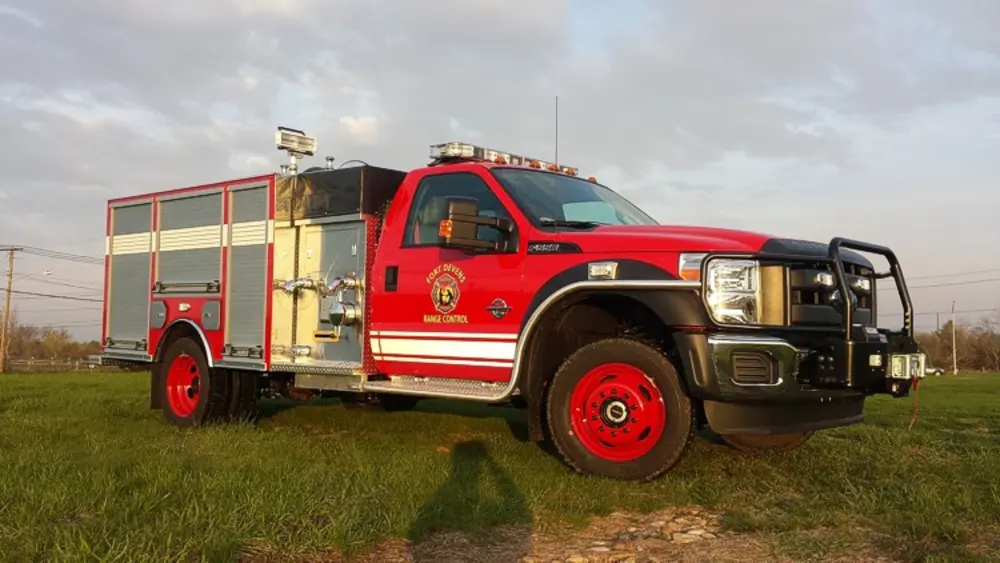

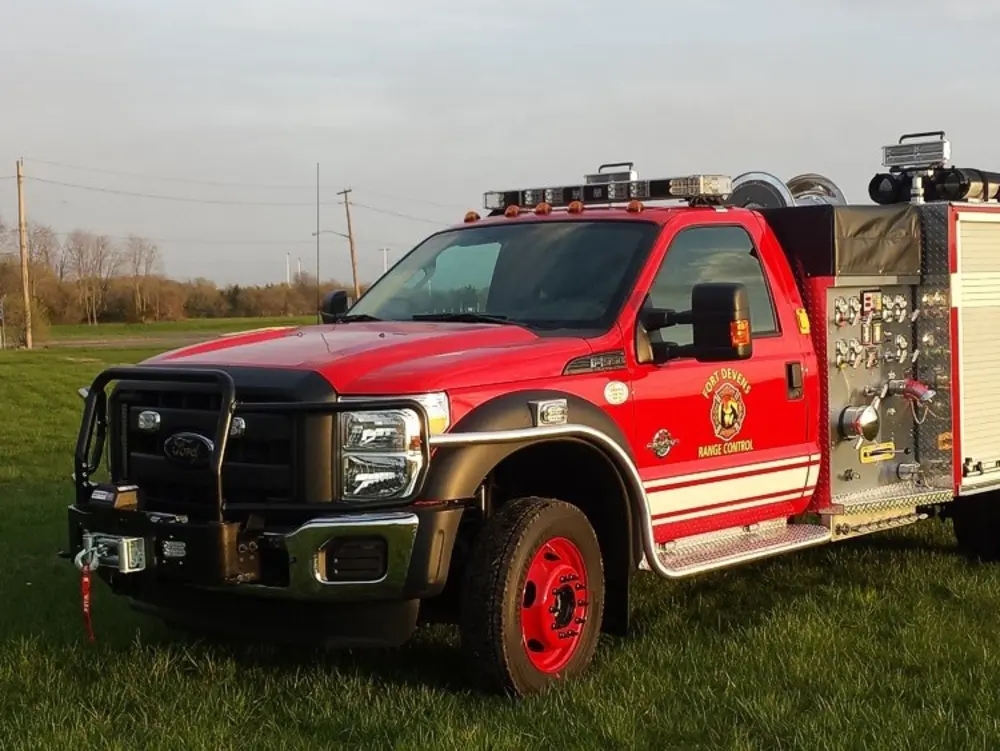

Original B.R.A.T. delivered in Fort Devens, Massachusetts.

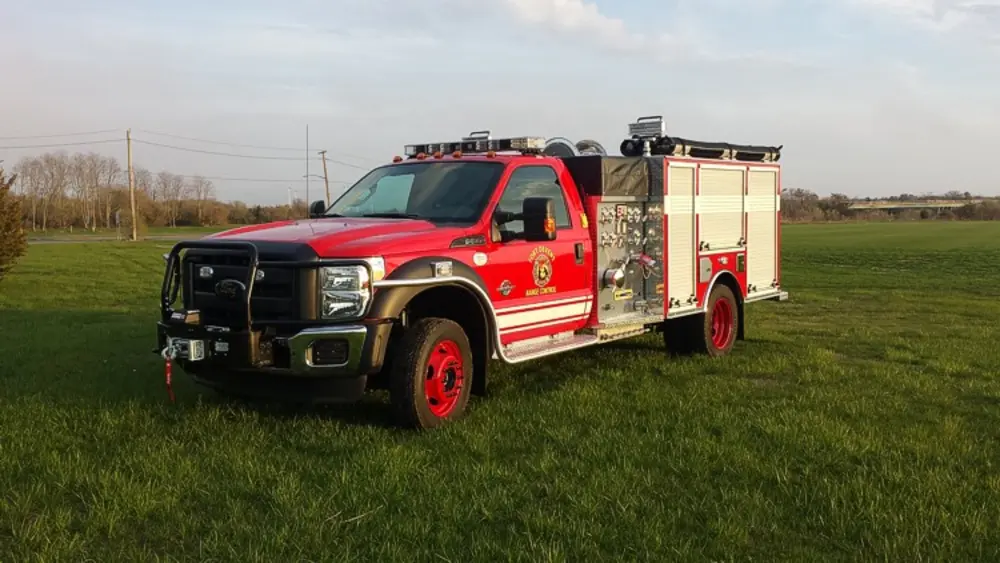

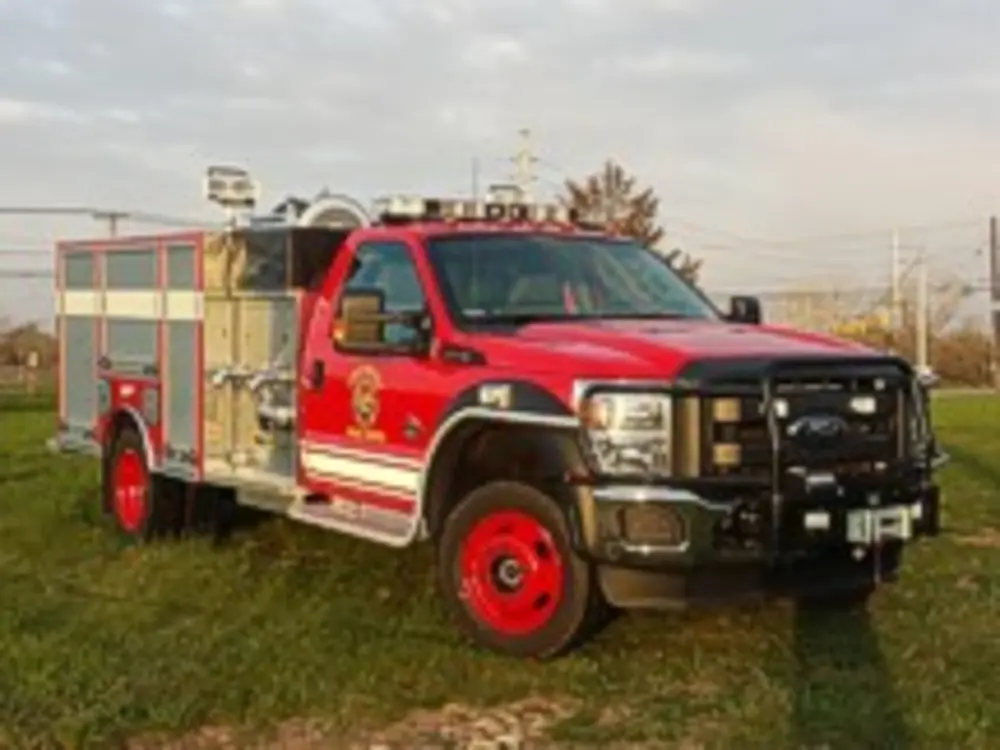

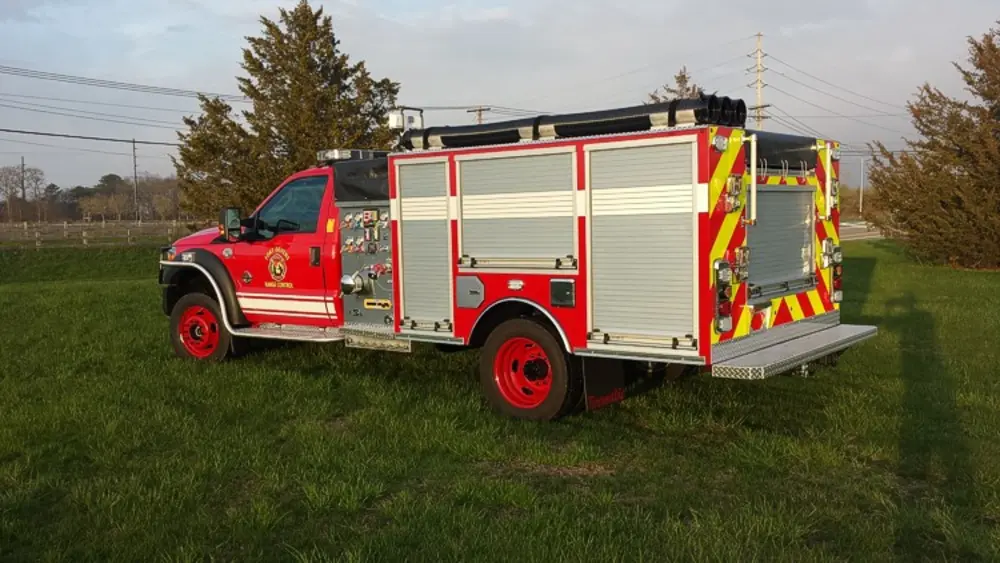

This original b.r.a.t. was delivered to Fort Devens FD in Fort Devens, Massachusetts and is configured around 400-gallon tank, F550 chassis, 4x4.
Specs Summary

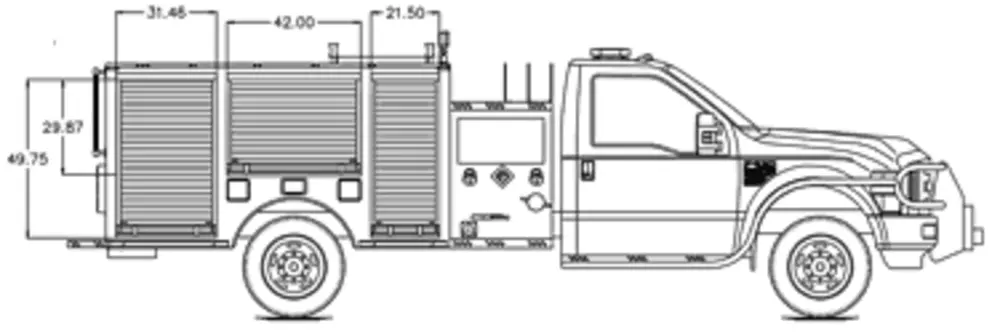

Drawing PDF- 2014 Ford F550 2 Door 4x4
- Powerstroke 300 HP Diesel Engine
- Firematic Bonded Aluminum Compartment Body w/ ROM Roll-up Doors
- 400 Gallon ProPoly Water Tank / 10 Gallon Foam Cell
- 1000 Hale Midship Pump

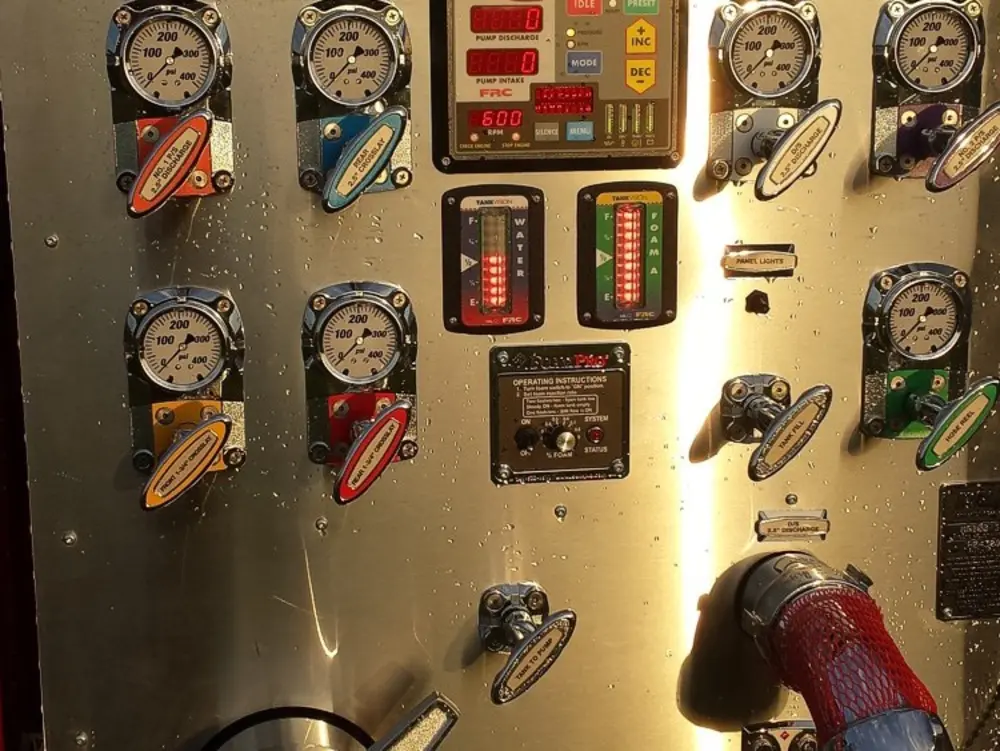

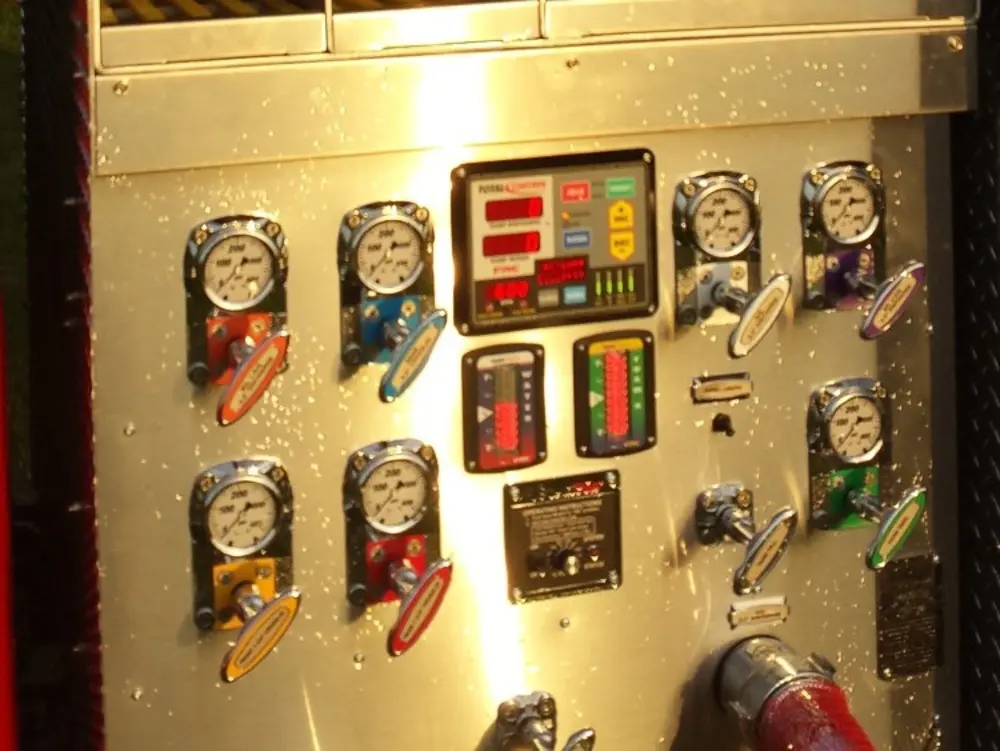

- Fire Research Total Control Pump Governor
- Fire Research Water and Foam Level Gauges
- FoamPro 1600 Class A Foam Injection
- Akron Manual Valves

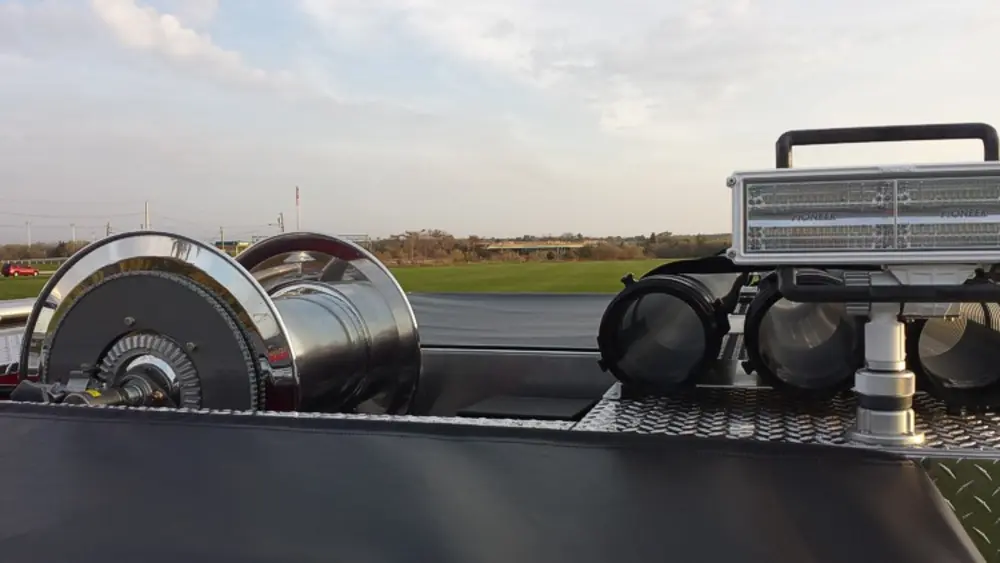

- Two 1.5" and One 2.5" Crosslays Over the Pump Module
- 3" Large Diameter Discharge Off Right Pump Panel
- 800 Feet of 5" Deadlay
