B.R.A.T. Delivery
Red Bluff FD

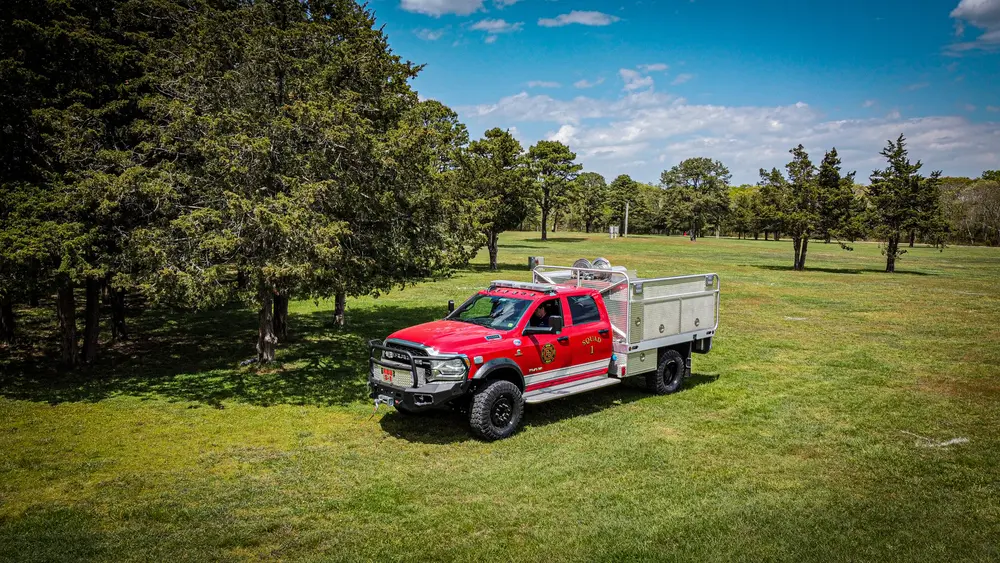

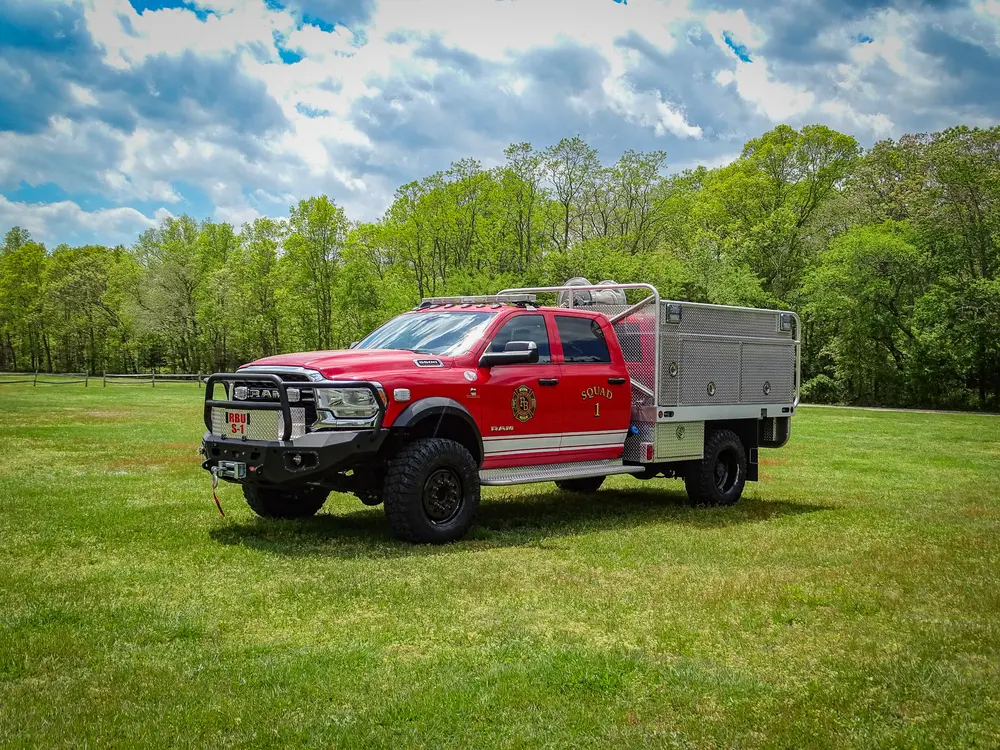

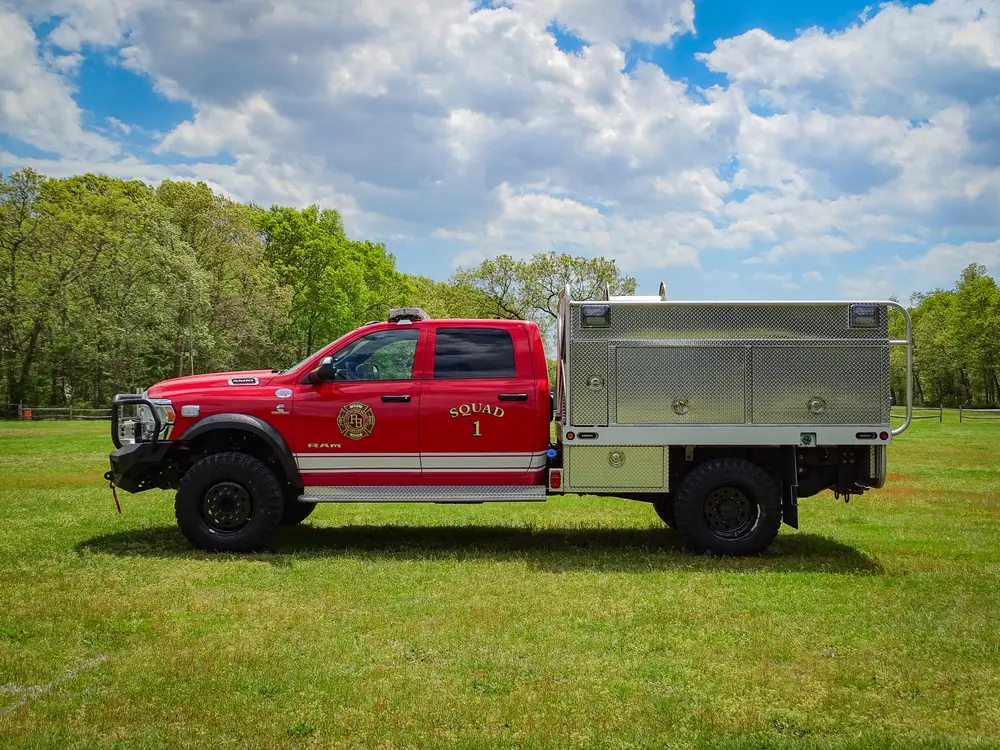

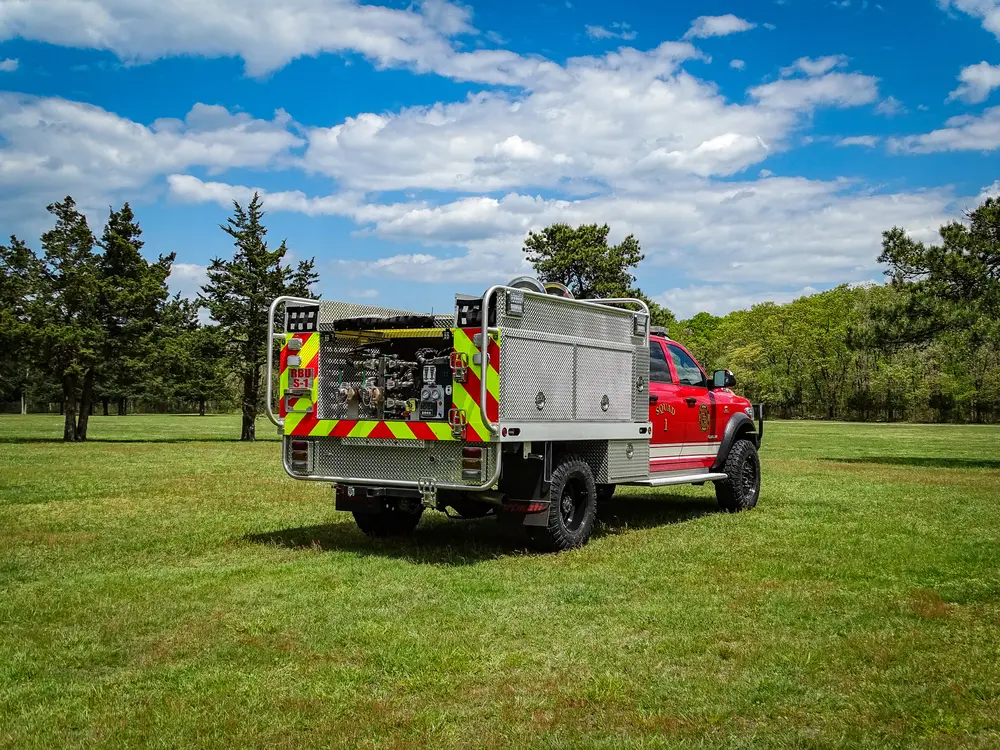

Rally delivered in Red Bluff, California.

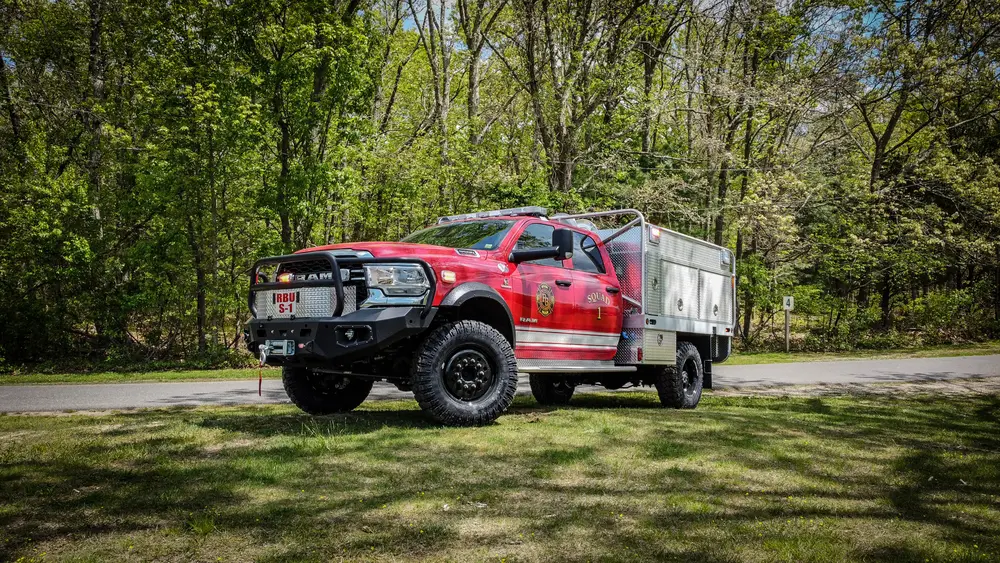

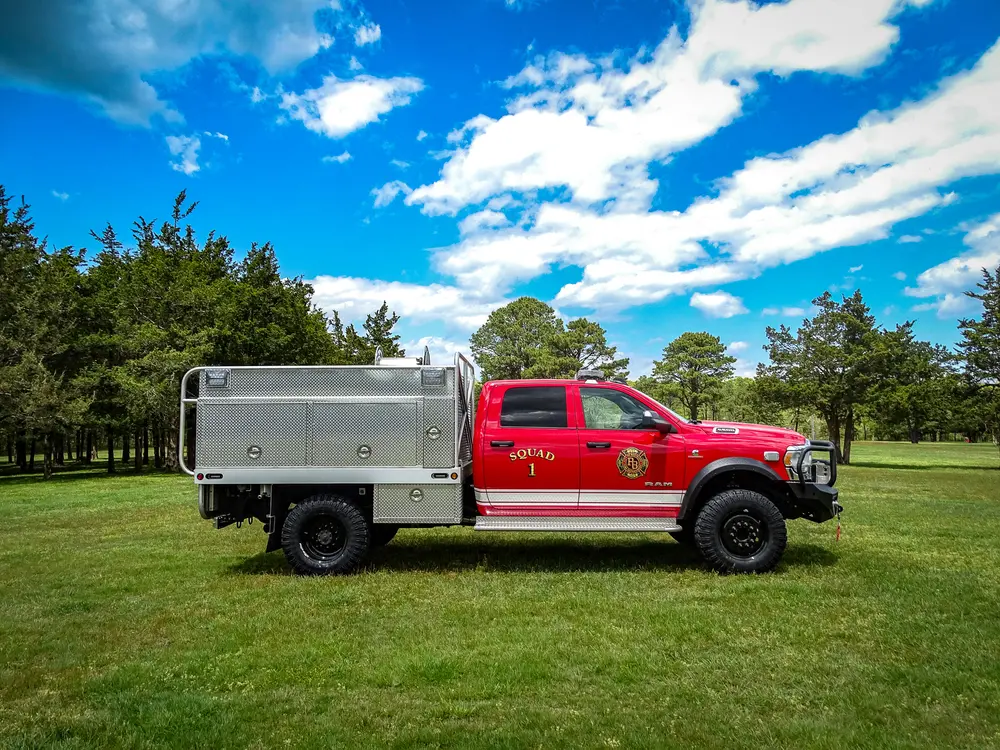

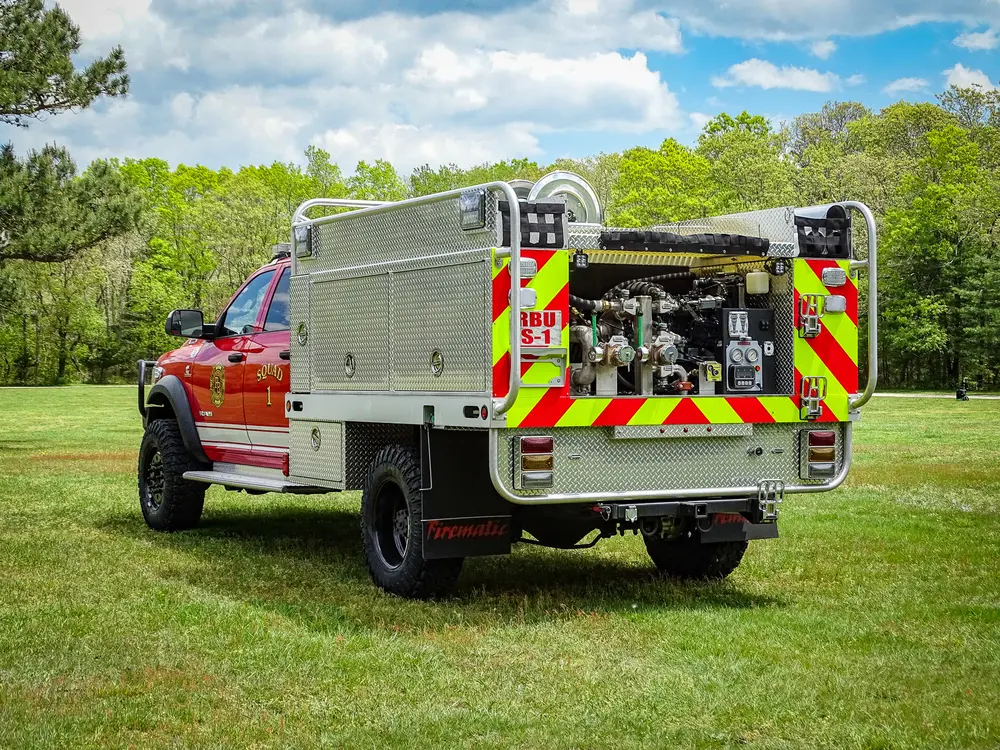

This rally was delivered to Red Bluff FD in Red Bluff, California and is configured around 4x4.
Specs Summary
Drawing PDF- Rally B.R.A.T. Wildland Pumper
- 2022 Dodge 5500 CrewCab 4x4 Chassis
- Cummins 6.7L 360HP Diesel Engine

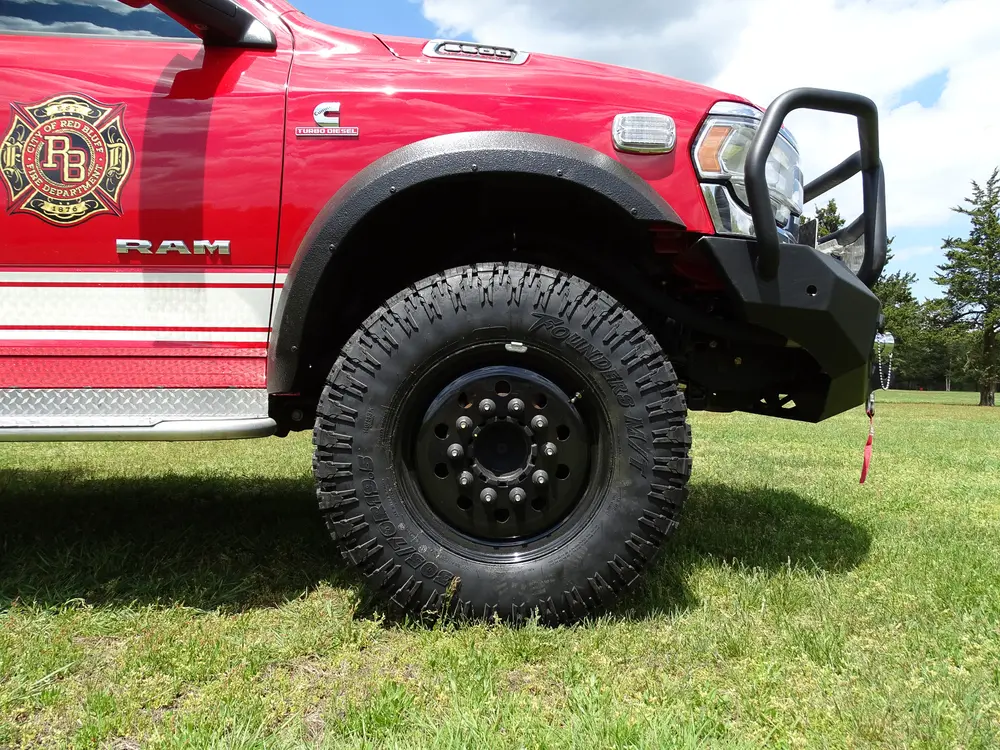

- Super Single Founders MT Radial 305/70R19.5 Tires

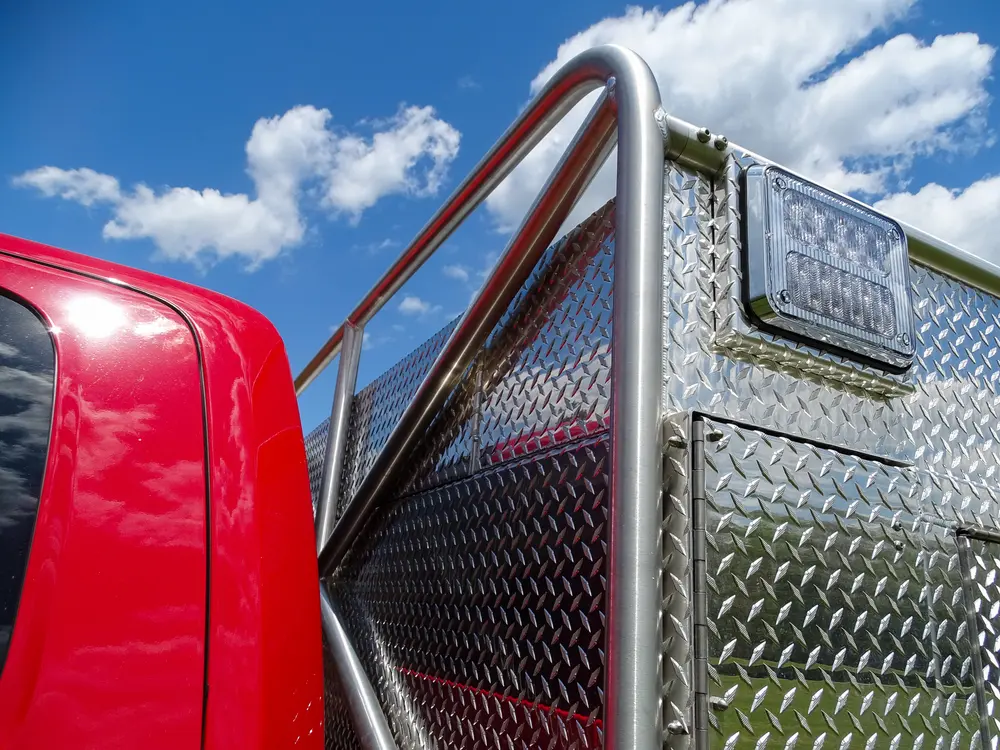

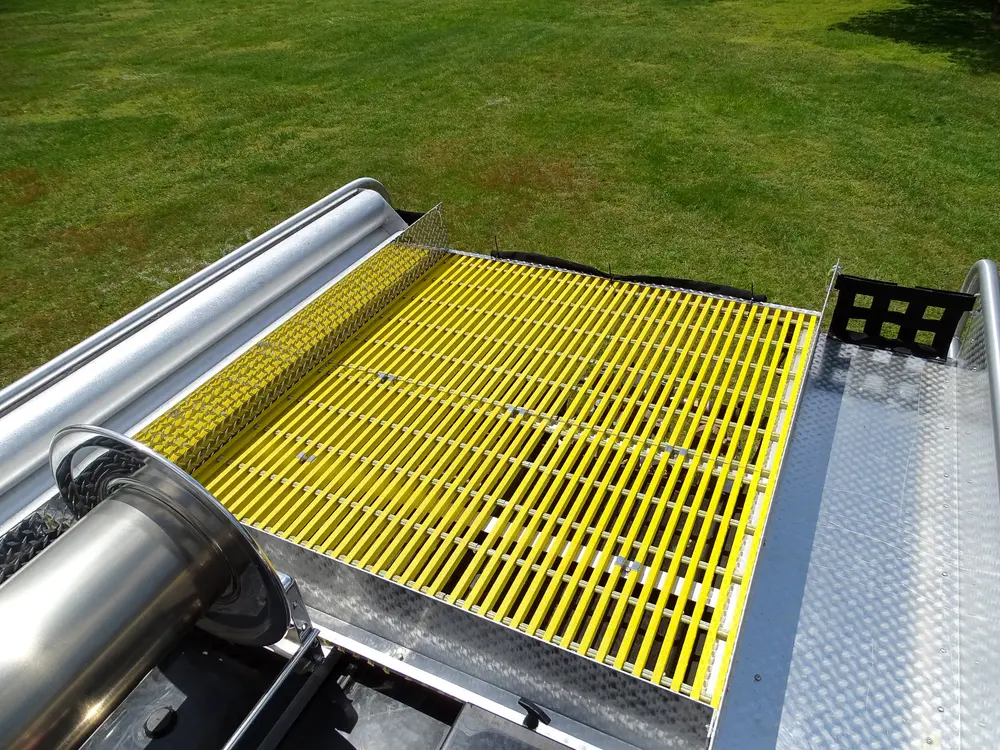

- HD Aluminum Fabricated Flatbed with FEA Tested Roll Bar, body Protection Cage

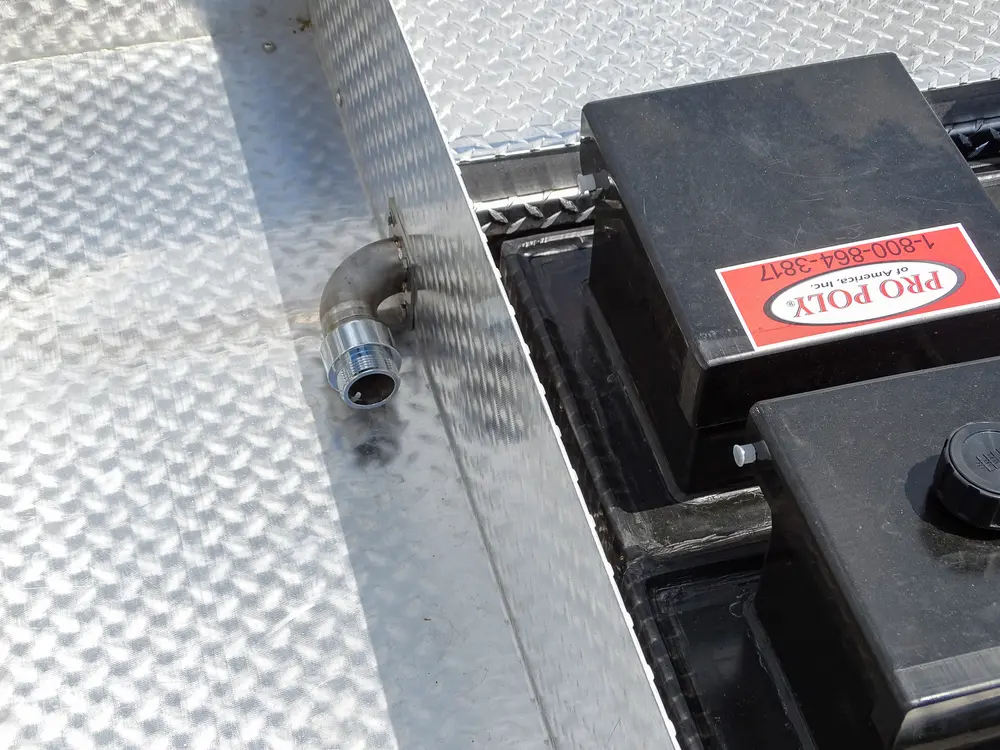

- Pro Poly 300/10 Gallon Protector Skid

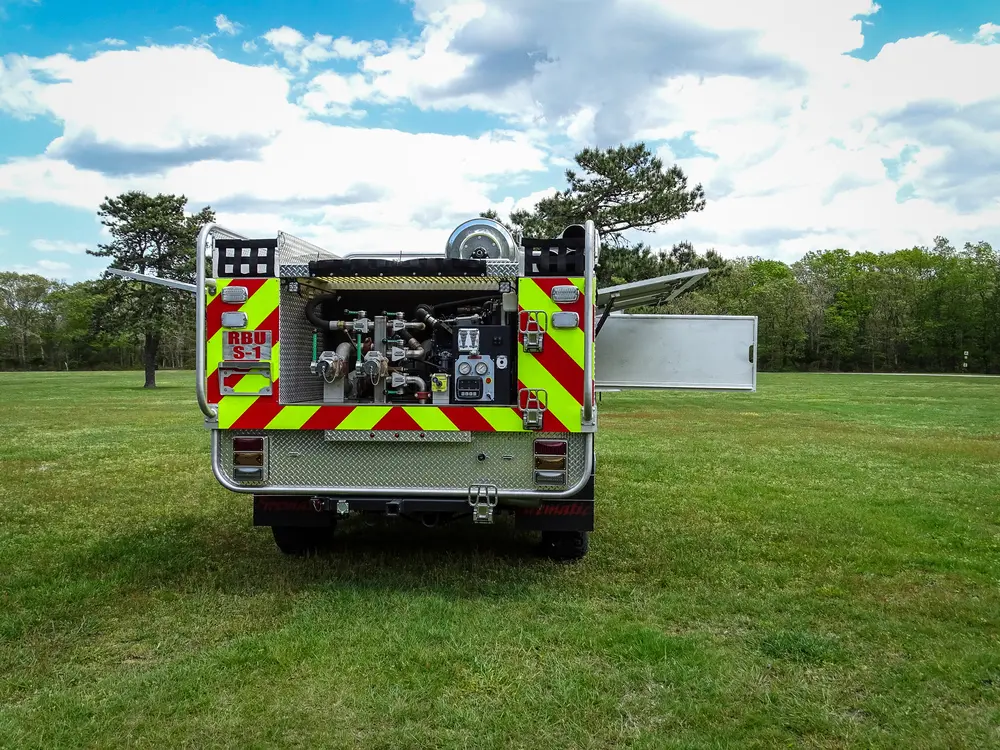

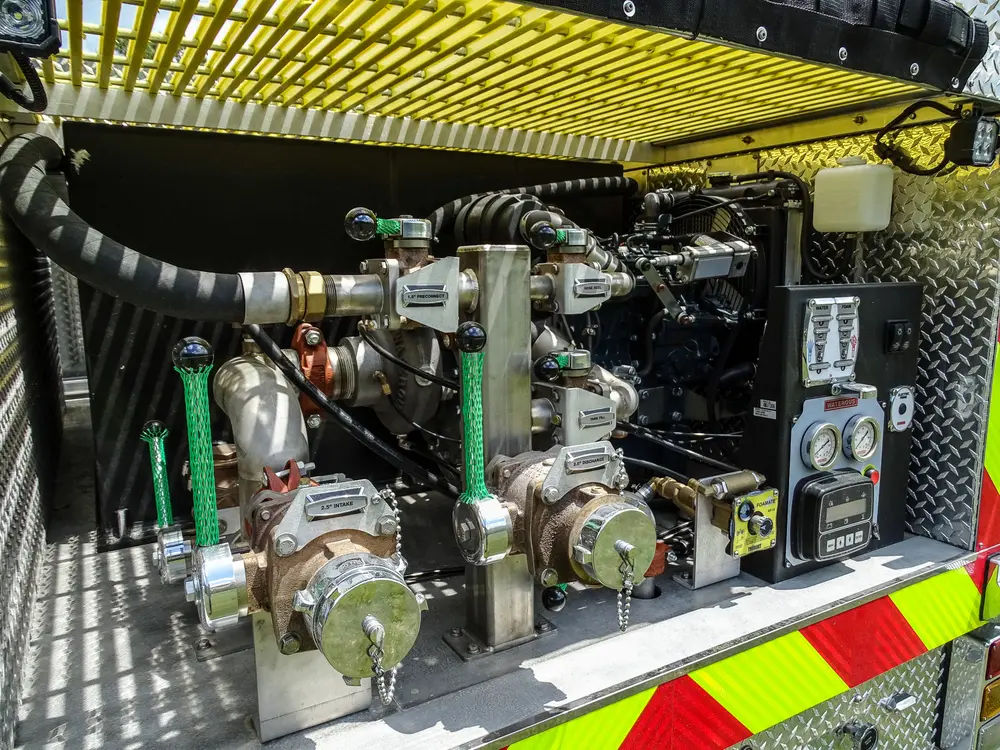

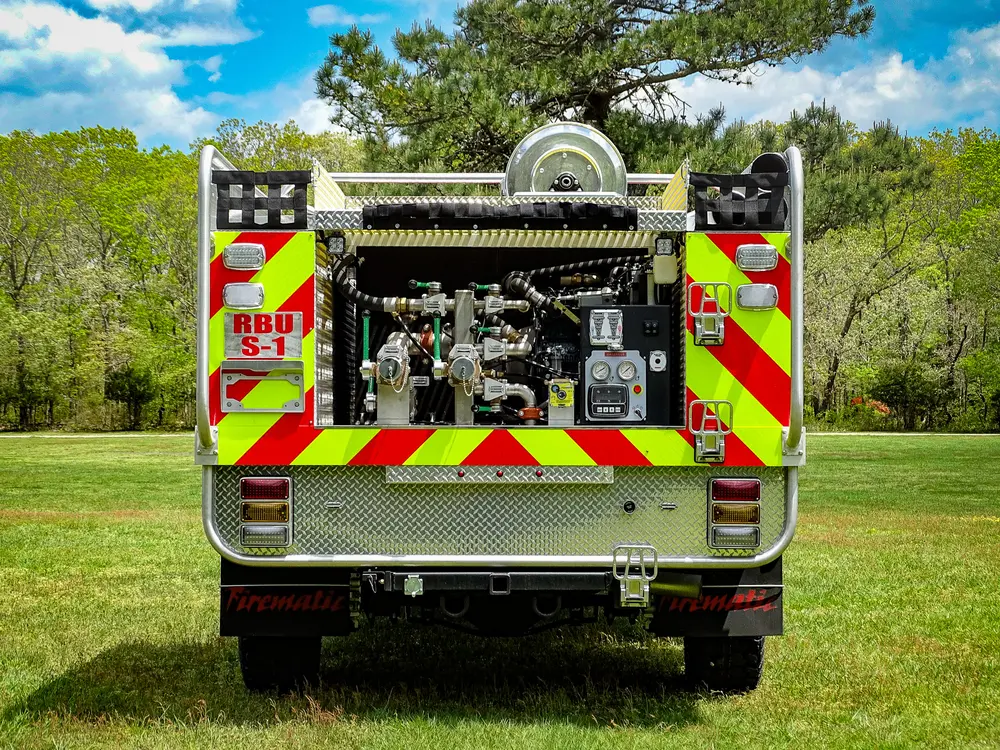

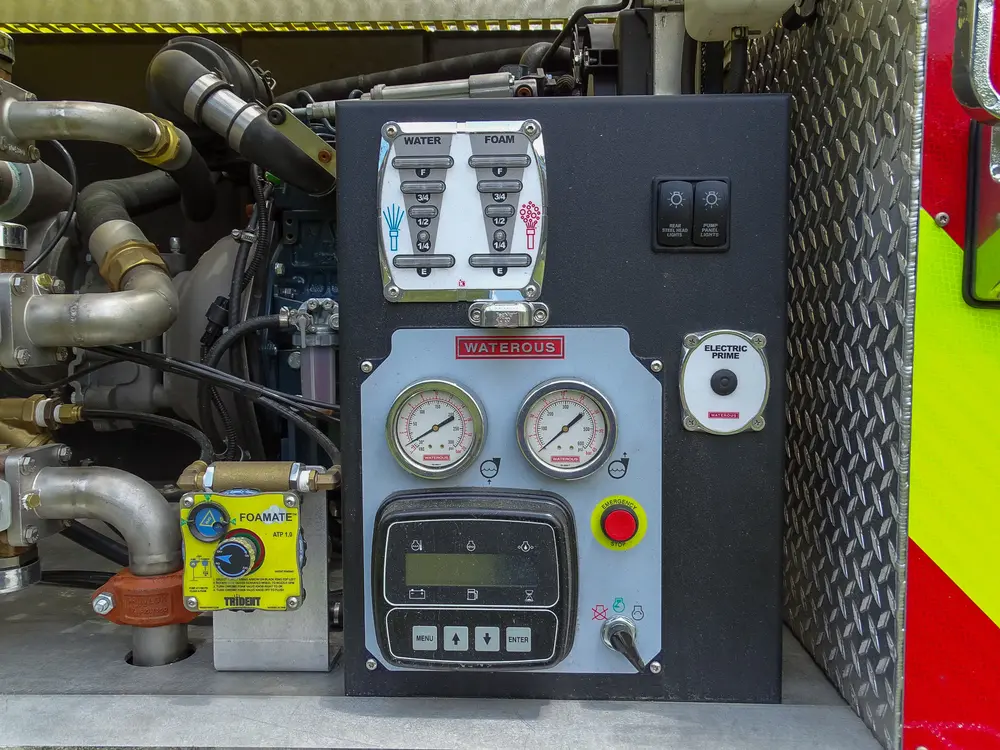

- Waterous E-511 pump package with Kubota 24 hp diesel engine

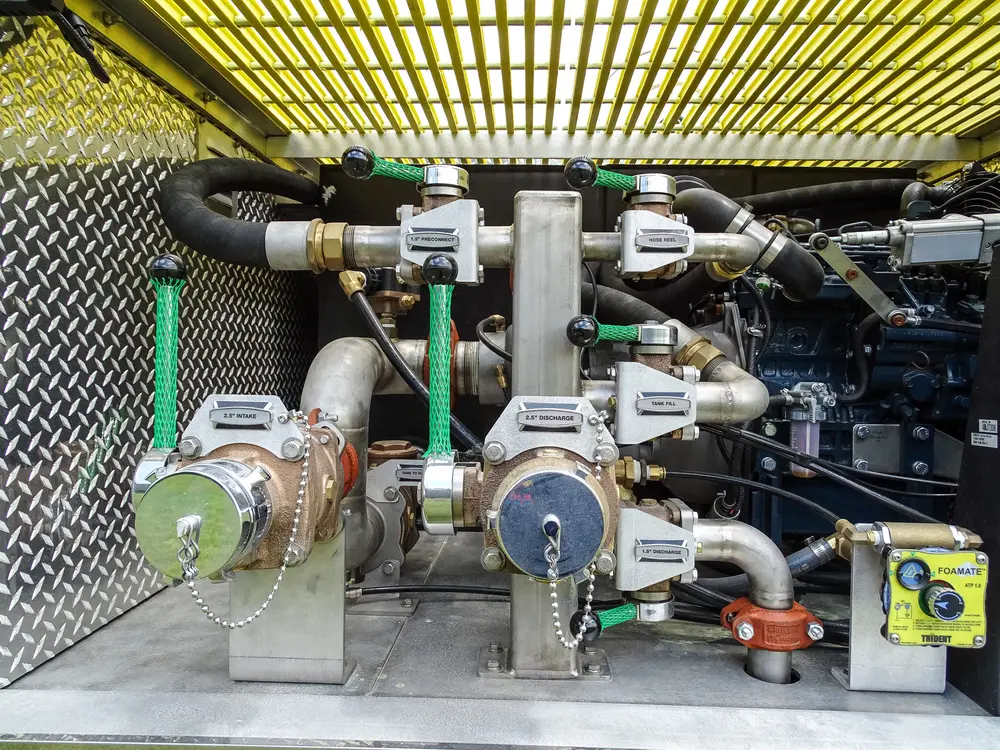

- Stainless Steel Inlet and Discharge Manifold with Akron Brass Valves

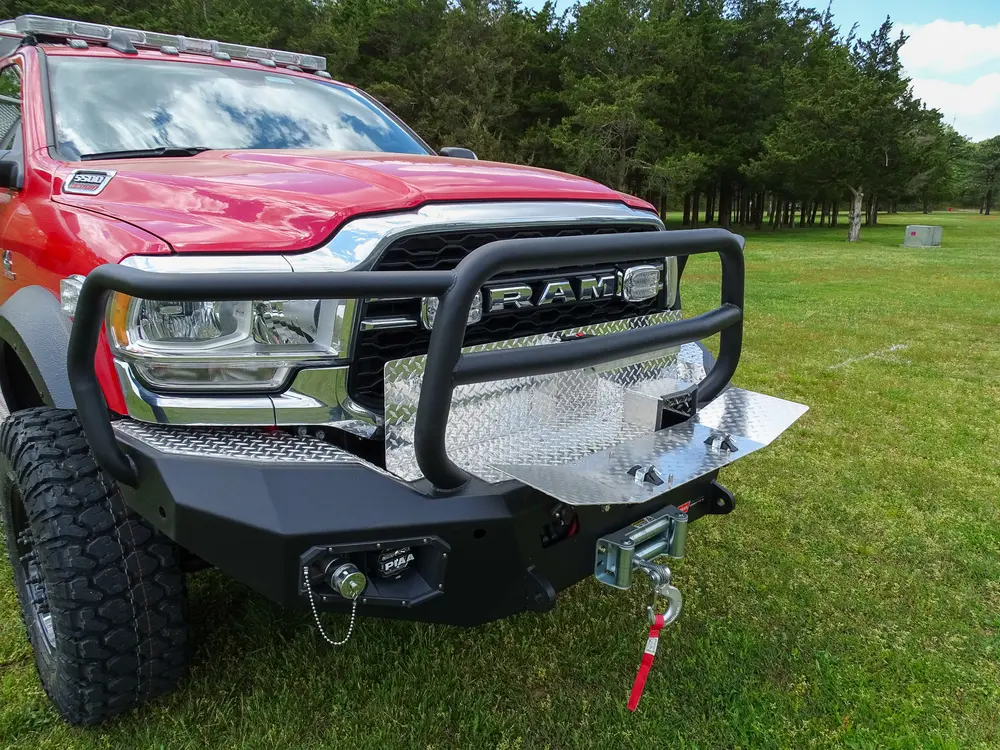

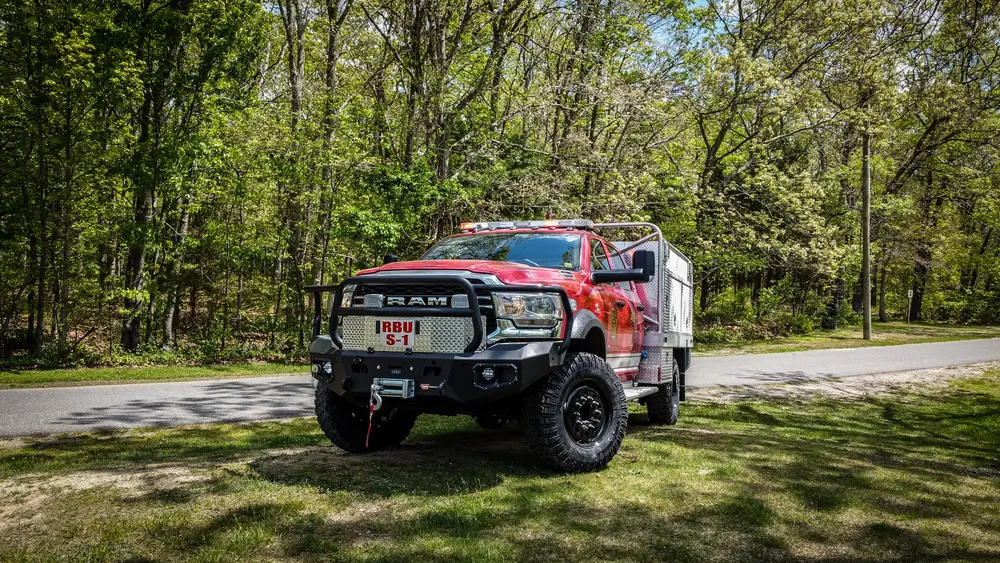

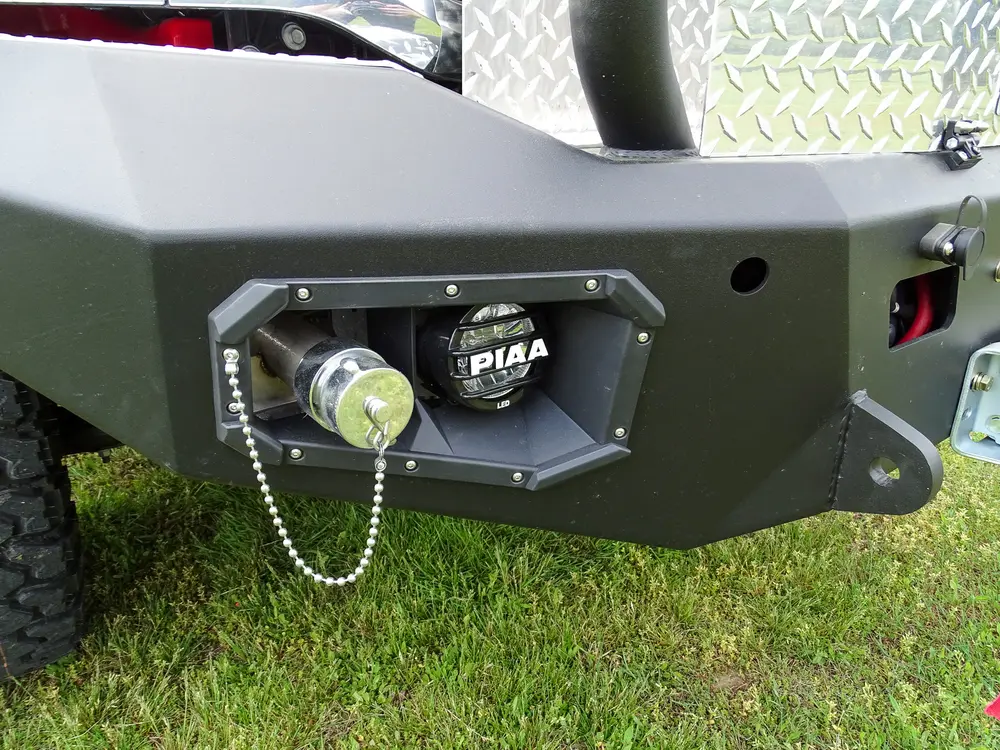

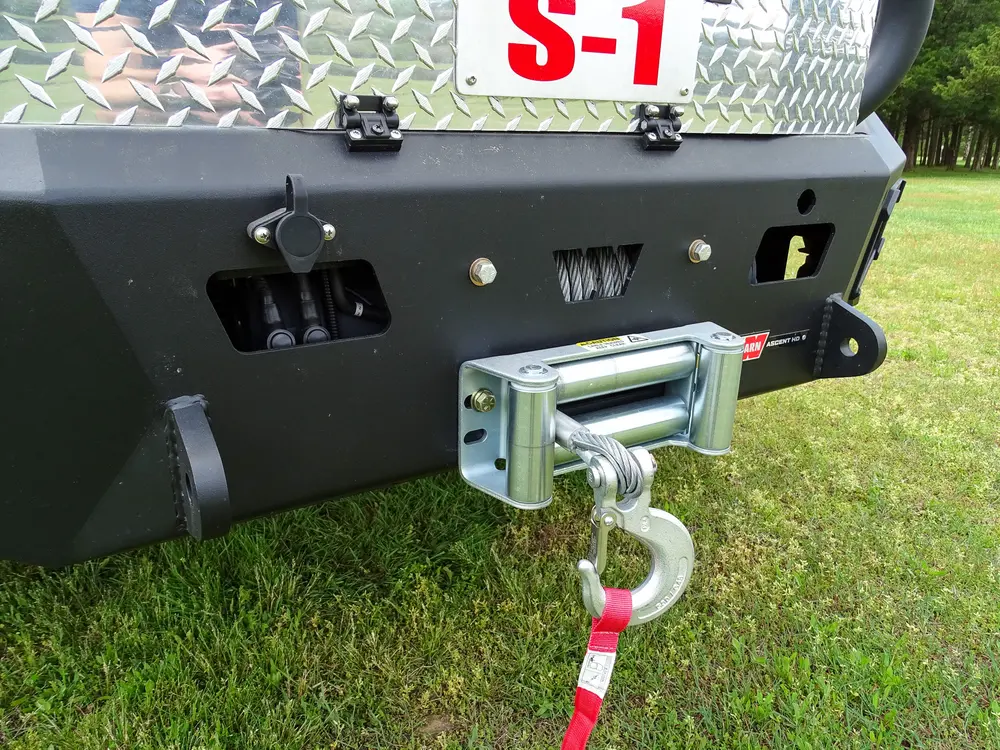

- Warn Ascent HD front bumper

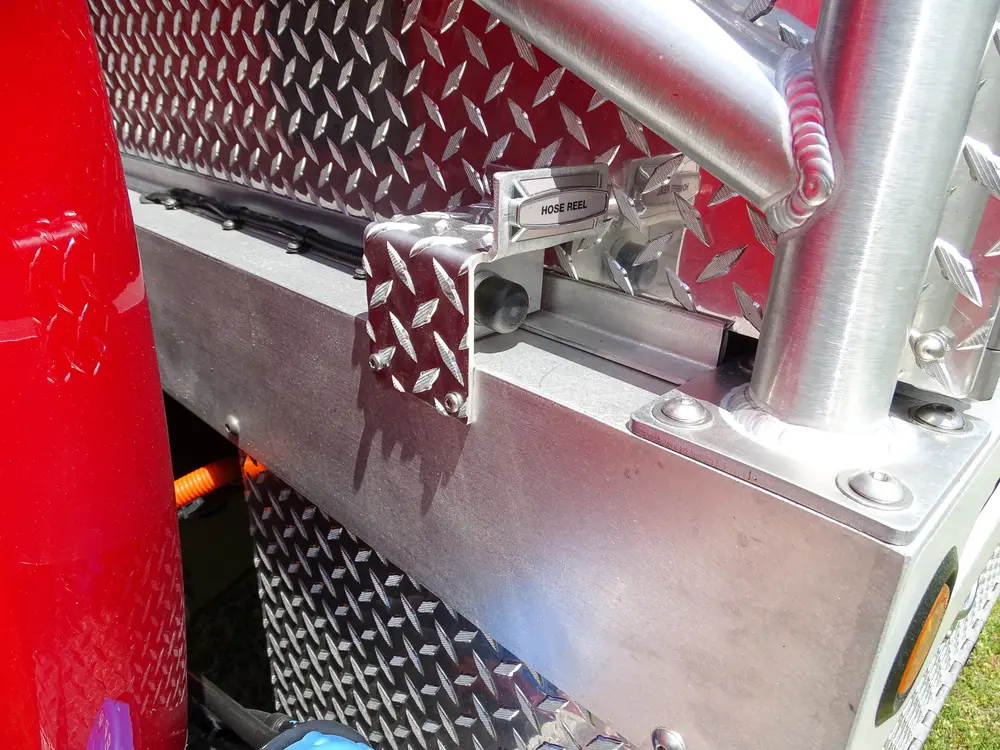

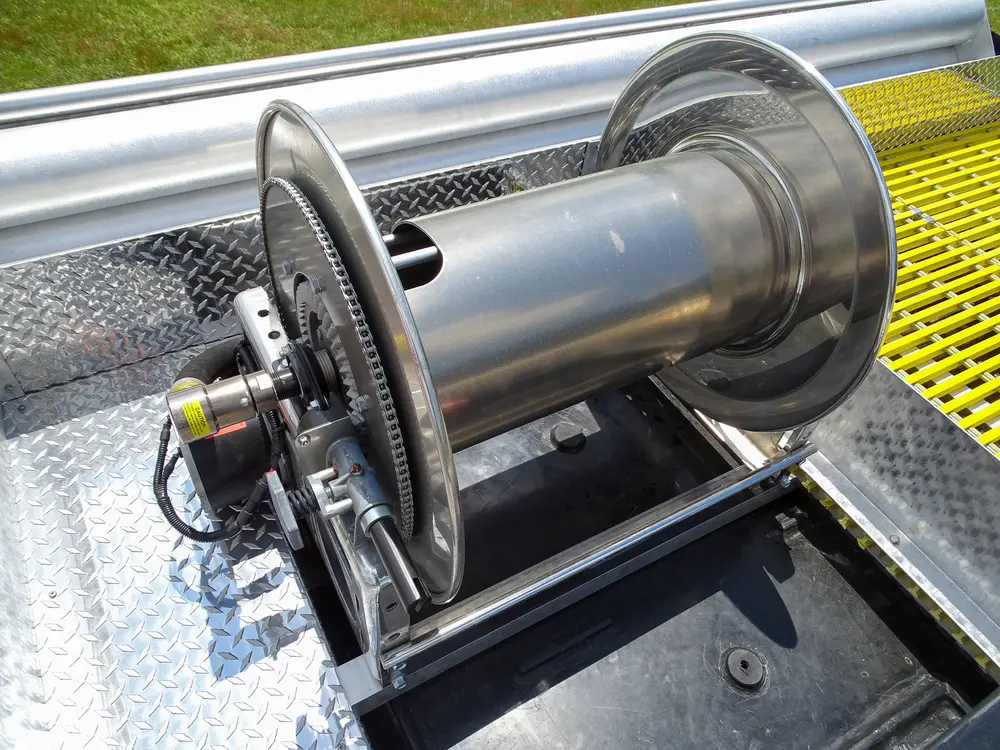

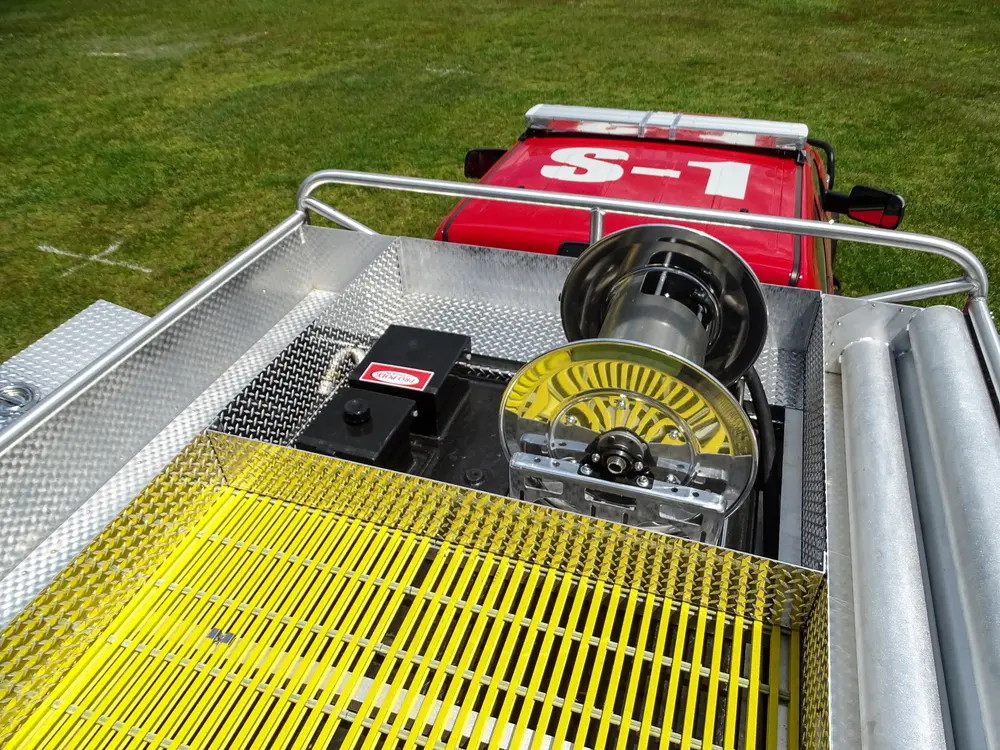

- One Electric Hannay Reels Mounted on the water tank will hold 200' of 1" Booster
- Trident Around the pump foam system

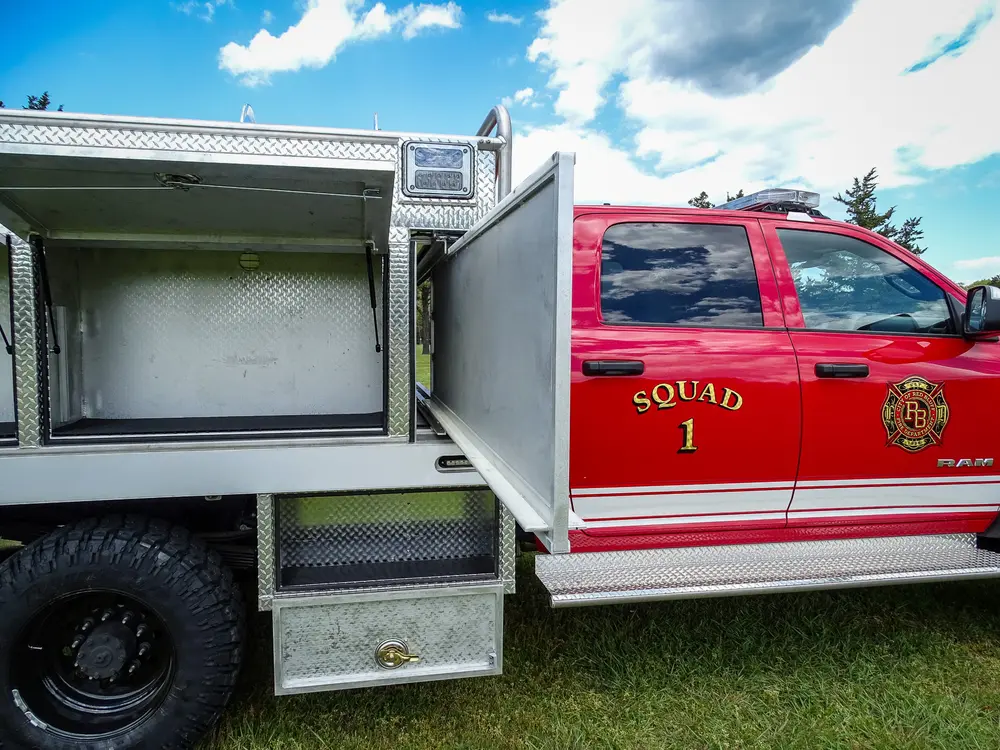

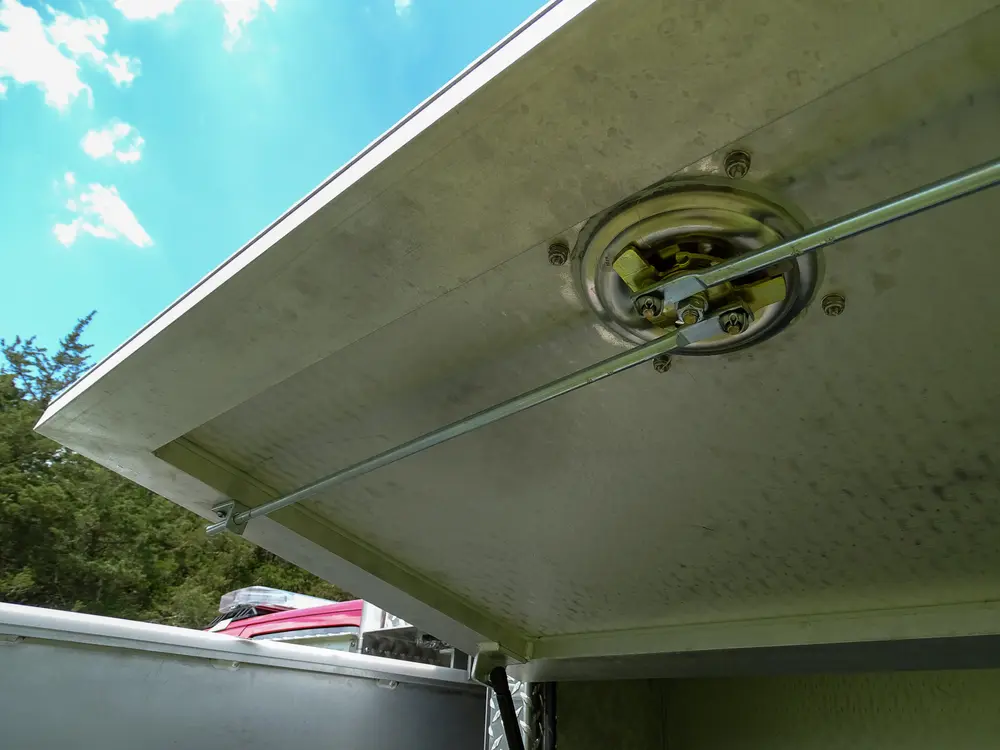

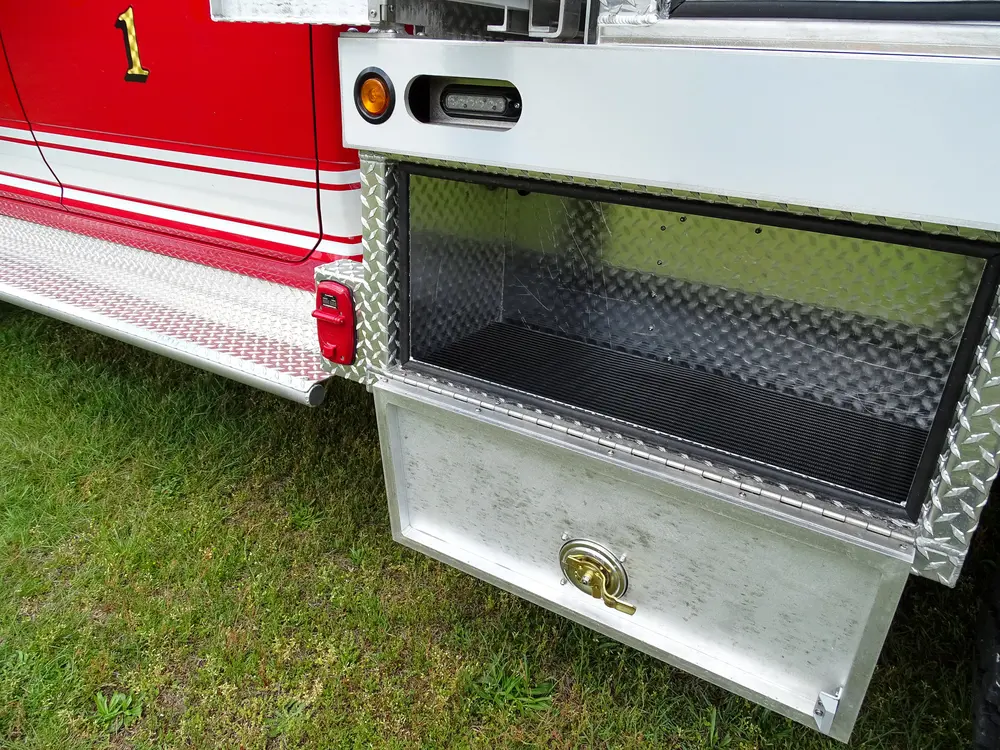

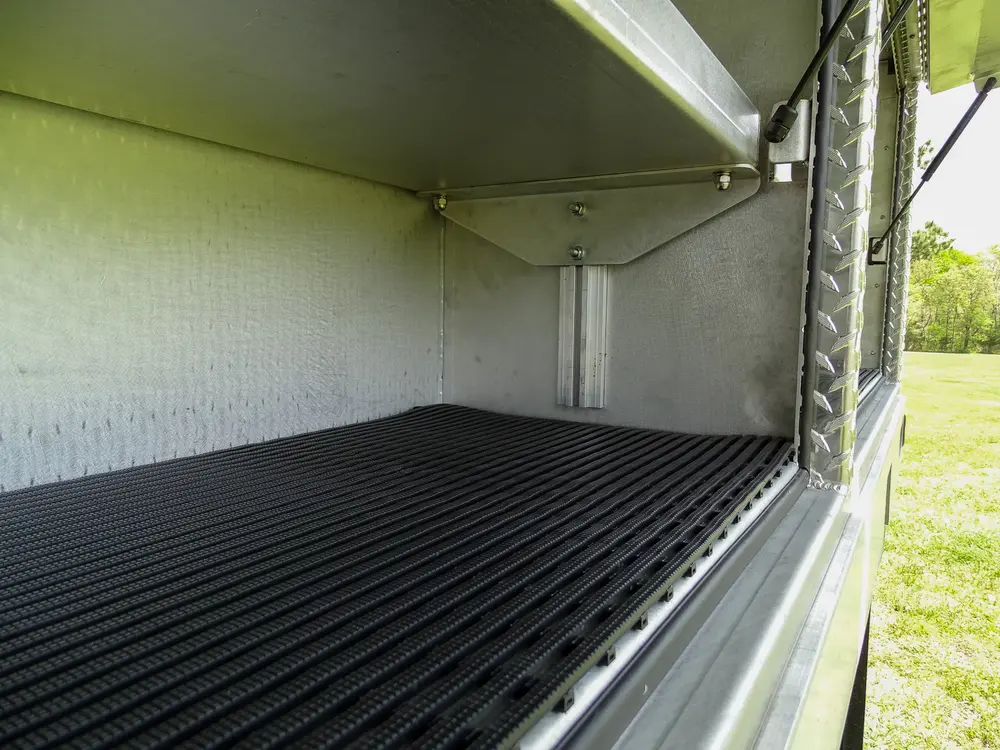

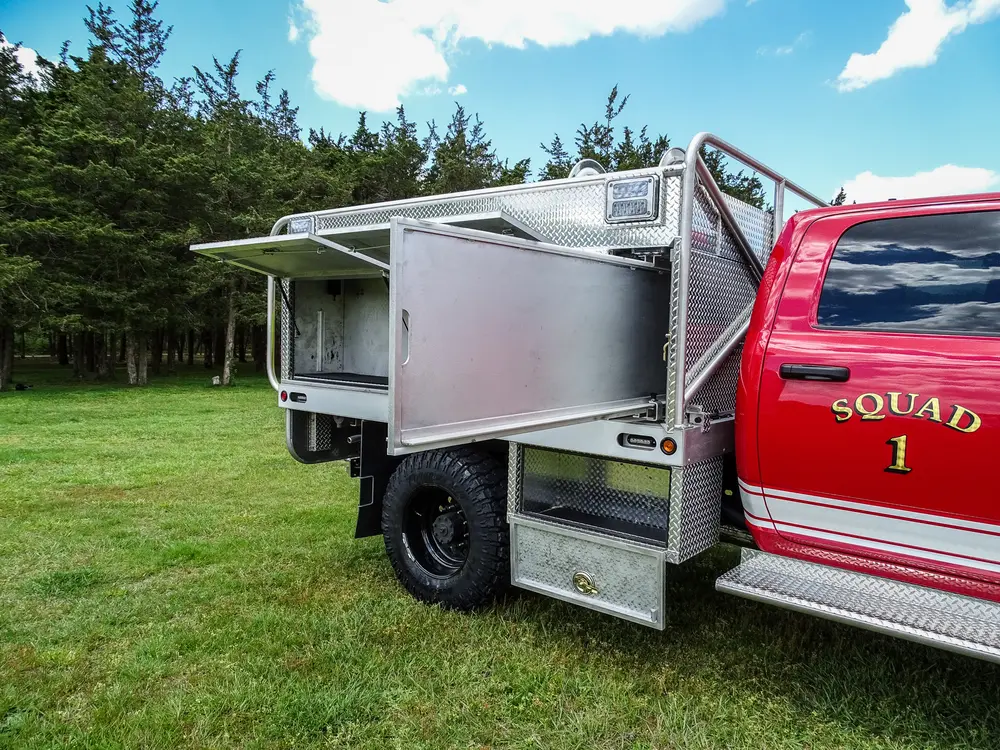

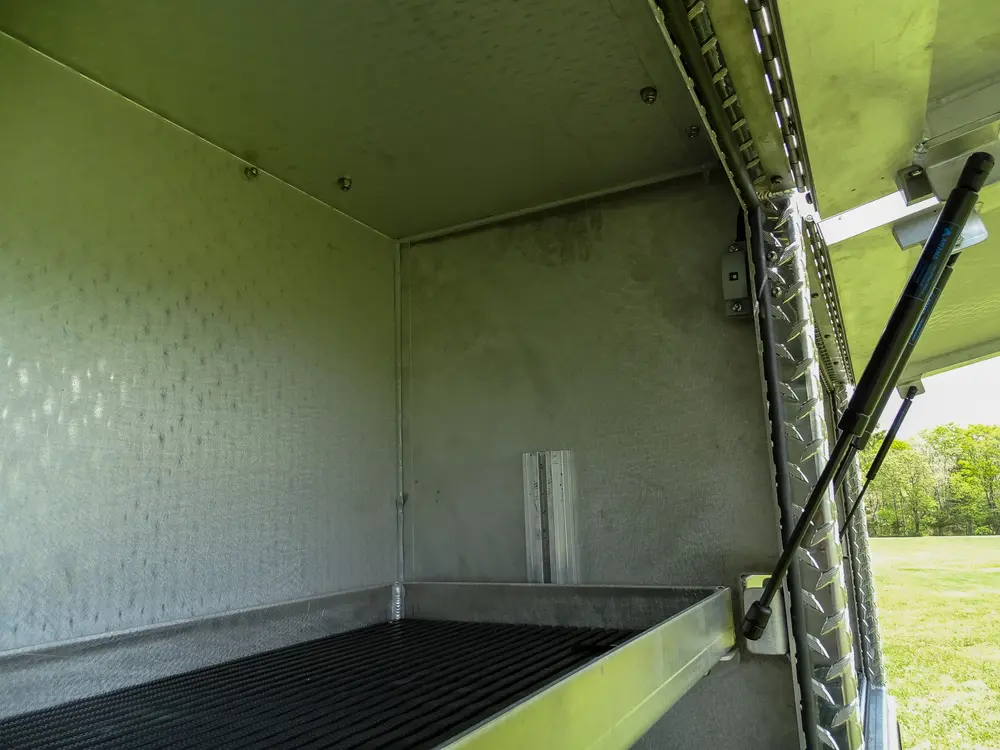

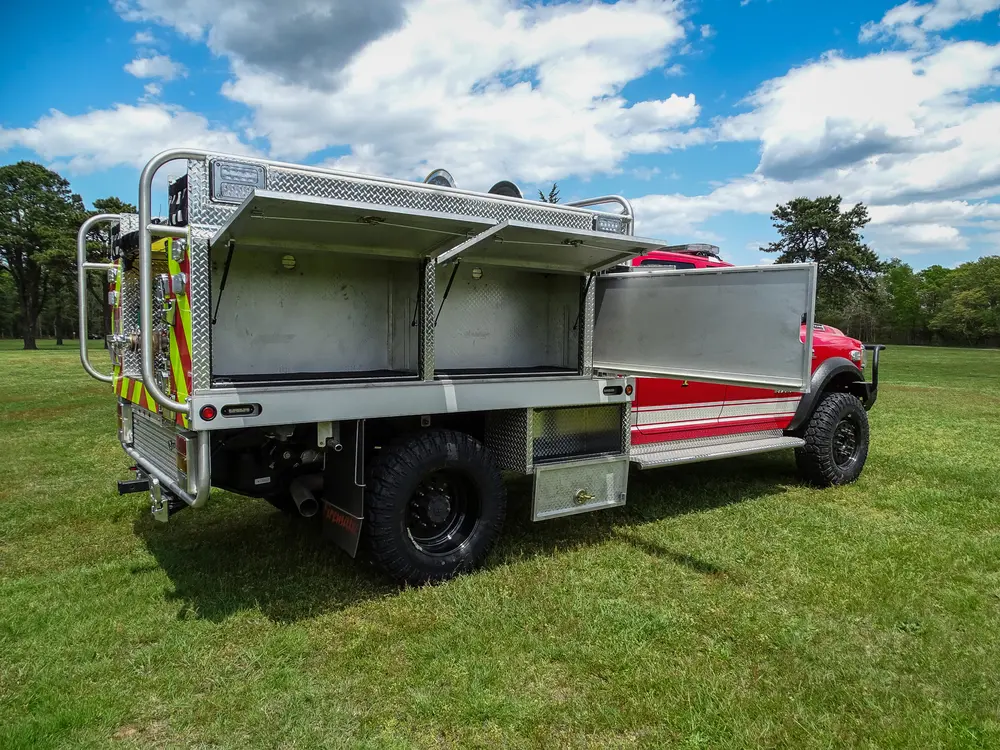

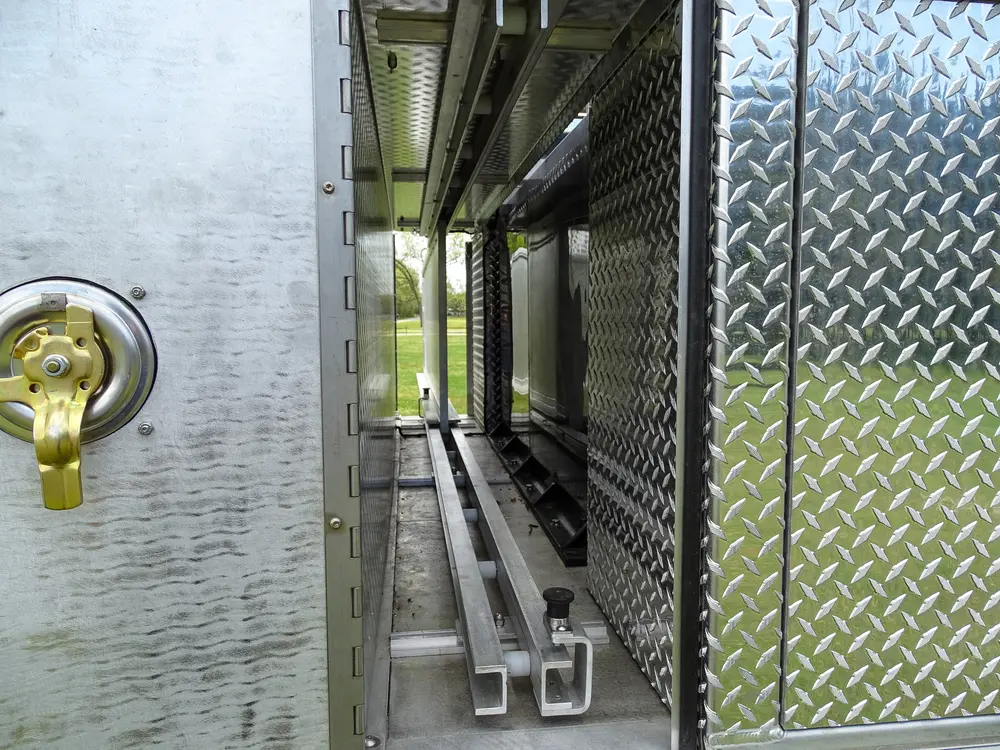

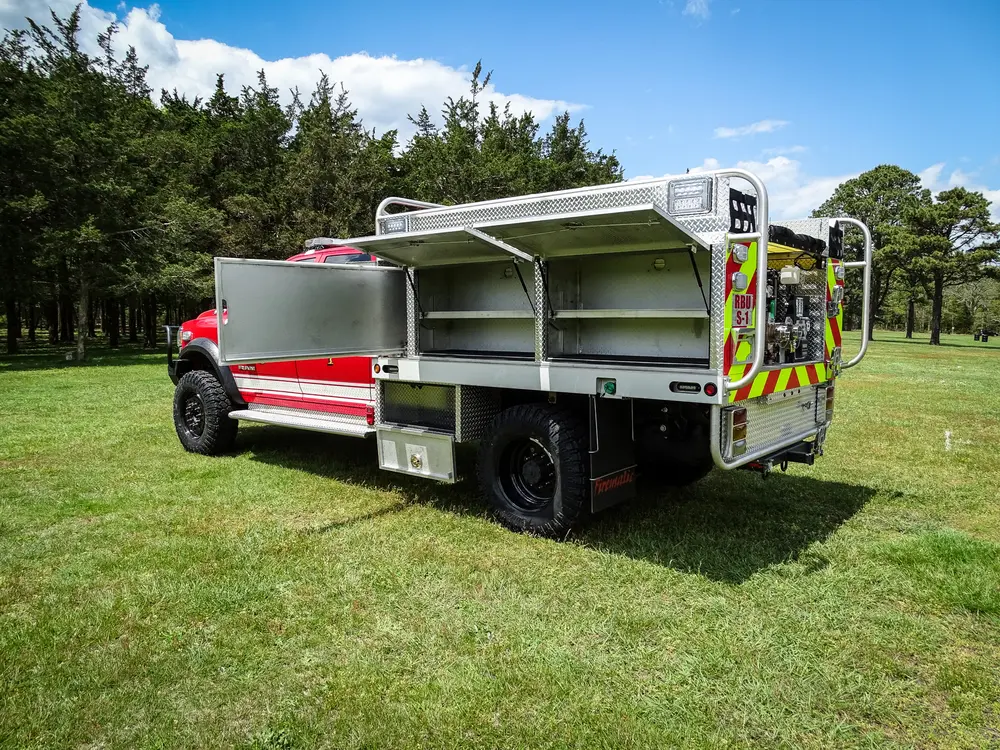

- (4) Aluminum Diamond Plate Compartments with swing up doors
